DIVERSITECH PAC-H-12 User manual

INSTRUCTION MANUAL
Pump House
Glaisdale Drive East, NG8 4LY
Nottingham United Kingdom
Email [email protected]
Phone [phone]
PORTABLE AIR CONDITIONER
(Local Air Conditioner)
PAC-H-12
IMPORTANT:
Read this manual carefully before
installing or operating your new air
conditioning unit. Make sure to save
this manual for future reference.

SAFETY PRECAUTIONS ............................................................................. 3
CAUTION ............................................................................. 4
WARNING ............................................................................. 5
INSTALLATION ............................................................................. 11
OPERATION ............................................................................. 20
MAINTENANCE ............................................................................. 25
TROUBLESHOOTING ............................................................................. 26
IMPEDANCE INFORMATION ............................................................................. 27
CONFORMITY ............................................................................. 27
PORTABLE AIR CONDITIONER
PAC-H-12
Pump House
Glaisdale Drive East, NG8 4LY
Nottingham United Kingdom
Email [email protected]
Phone [phone]
2
FOR FURTHER INSTALLATION ADVICE PLEASE CALL THE TECHNICAL SUPPORT HELPLINE ON 0115 900 5858.
TABLE OF CONTENTS

DiversiTech International Ltd.
Glaisdale Drive East, NG8 4LY
Nottingham United Kingdom
Email [email protected]
Phone [phone]
3
FOR FURTHER INSTALLATION ADVICE PLEASE CALL THE TECHNICAL SUPPORT HELPLINE ON 0115 900 5858.
Read Safety Precautions Before Operation and Installation To prevent death or injury to the user or other people and
property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause
death, harm or damage.
This symbol indicates
the possibility of
personnel injury or
loss of life.
This symbol indicates
the possibility
of property
damage or serious
consequences.
• Installation must be performed according to the
installation instructions. Improper installation can cause
water leakage, electrical shock, or re.
• Use only the included accessories and parts, and specied
tools for the installation. Using nonstandard parts can
cause water leakage, electrical shock, re, and injury or
property damage.
• Make sure that the outlet you are using is grounded
and has the appropriate voltage. The power cord is
equipped with a three-prong grounding plug to protect
against shock. Voltage information can be found on the
nameplate of the unit.
• Your unit must be used in a properly grounded wall
receptacle. If the wall receptacle you intend to use is not
adequately grounded or protected by a time delay fuse
or circuit breaker (the fuse or circuit breaker needed is
determined by the maximum current of the unit. The
maximum current is indicated on the nameplate located
on unit), have a qualied electrician install the proper
receptacle.
• Install the unit on a at, sturdy surface. Failure to do so
could result in damage or excessive noise and vibration.
• The unit must be kept free from obstruction to ensure
proper function and to mitigate safety hazards.
• Do not modify the length of the power cord or use an
extension cord to power the unit.
• Do not share a single outlet with other electrical
appliances. Improper power supply can cause re or
electrical shock.
• Do not install your air conditioner in a wet room such as a
bathroom or laundry room. Too much exposure to water
can cause electrical components to short circuit.
• Do not install the unit in a location that may be exposed
to combustible gas, as this could cause re. The unit has
wheels to facilitate moving. Make sure not to use the
wheels on thick carpet or to roll over objects, as these
could cause tipping.
• Do not operate a unit that it has been dropped or
damaged.
• The appliance with electric heater shall have at least 1
meter space to the combustible materials.
• Do not touch the unit with wet or damp hands or when
barefoot.
• If the air conditioner is knocked over during use, turn
off the unit and unplug it from the main power supply
immediately. Visually inspect the unit to ensure there is
no damage. If you suspect the unit has been damaged,
contact a technician or customer service for assistance.
• In a thunderstorm, the power must be cut off to avoid
damage to the machine due to lightning.
• Your air conditioner should be used in such a way that it
is protected from moisture. e.g. condensation, splashed
water, etc. Do not place or store your air conditioner
where it can fall or be pulled into water or any other
liquid. Unplug immediately if it occurs.
• All wiring must be performed strictly in accordance with
the wiring diagram located inside of the unit.
• The unit’s circuit board(PCB) is designed with a fuse
to provide overcurrent protection. The specications
of the fuse are printed on the circuit board, such as: T
3.15A/250V, etc.
• When the water drainage function is not in use, keep the
upper and the lower drain plug rmly to the unit to get
rid of choking. When the drain plug is not in use, keep it
carefully to prevent children from choking.
SAFETY PRECAUTIONS
WARNING
WARNING CAUTION
PORTABLE AIR CONDITIONER
PAC-H-12

DiversiTech International Ltd.
Glaisdale Drive East, NG8 4LY
Nottingham United Kingdom
Email [email protected]
Phone [phone]
4
• This appliance can be used by children aged from 8
years and above and person with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision. (be
applicable for the European Countries)
• This appliance is not intended for use by persons
(including childern) with reduced physical, sensory or
mental capabilities or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety. Children should be supervised to ensure
that they do not play with the appliance. Children must be
supervised around the unit at all times.(be applicable for
other countries except the European Countries)
• If the supply cord is damaged, it must be replaced by
the manufacturer,its service agent or similarly qualied
persons in order to avoid a hazard.
• Prior to cleaning or other maintenance, the appliance
must be disconnected from the supply mains.
• Do not remove any xed covers. Never use this appliance
if it is not working properly, or if it has been dropped or
damaged.
• Do not run cord under carpeting. Do not cover cord with
throw rugs, runners, or similar coverings. Do not route
cord under furniture or appliances. Arrange cord away
from trafc area and where it will not be tripped over.
• Do not operate unit with a damaged cord, plug, power
fuse or circuit breaker. Discard unit or return to an
authorized service facility for examination and/or repair.
• To reduce the risk of re or electric shock, do not use this
fan with any solid-state speed control device.
• The appliance shall be installed in accordance with
national wiring regulations.
• Contact the authorised service technician for repair or
maintenance of this unit.
• Contact the authorised installer for installation of this unit.
• Do not cover or obstruct the inlet or outlet grilles.
• Do not use this product for functions other than those
described in this instruction manual.
• Before cleaning, turn off the power and unplug the unit.
• Disconnect the power if strange sounds, smell, or smoke
comes from it.
• Do not press the buttons on the control panel with
anything other than your ngers.
• Do not remove any xed covers. Never use this appliance
if it is not working properly, or if it has been dropped or
damaged.
• Do not operate or stop the unit by inserting or pulling out
the power cord plug.
• Do not use hazardous chemicals to clean or come into
contact with the unit. Do not use the unit in the presence
of inammable substances or vapour such as alcohol,
insecticides, petrol,etc.
• Always transport your air conditioner in a vertical position
and stand on a stable, level surface during use.
• Always contact a qualied person to carry out repairs. If
the damaged power supply cord must be replaced with
a new power supply cord obtained from the product
manufacturer and not repaired.
• Hold the plug by the head of the power plug when taking
it out.
• Turn off the product when not in use.
1. Fluorinated greenhouse gases are contained in hermetically sealed equipment. For specic information on the type,
the amount and the CO2 equivalent in tonnes of the uorinated greenhouse gas(on some models), please refer to the
relevant label on the unit itself.
2. Installation, service, maintenance and repair of this unit must be performed by a certied technician.
3. Product uninstallation and recycling must be performed by a certied technician.
CAUTION
NOTE ABOUT FLUORINATED GASES (NOT APPLICABLE TO THE UNIT
USING R290 REFRIGERANT)
PORTABLE AIR CONDITIONER
PAC-H-12

DiversiTech International Ltd.
Glaisdale Drive East, NG8 4LY
Nottingham United Kingdom
Email [email protected]
Phone [phone]
5
FOR FURTHER INSTALLATION ADVICE PLEASE CALL THE TECHNICAL SUPPORT HELPLINE ON 0115 900 5858.
When using this appliance in the European countries, the following information must be followed:
• The municipality has established collection systems, where electronic waste can be disposed of at least free of charge
to the user.
• When buying a new product, the retailer will take back the old product at least free of charge.
• The manufacture will take back the old appliance for disposal at least free of charge to the user.
• As old products contain valuable resources, they can be sold to scrap metal dealers. Wild disposal of waste in forests
and landscapes endangers your health when hazar do us substances leak into the ground-water and nd their way into
the food chain.
• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the
manufacturer.
• The appliance shall be stored in a room without continuously operating ignition sources (for example: open ames, an
operating gas appliance or an operating electric heater).
• Do not pierce or burn.
• Be aware that the refrigerants may not contain an odour.
• Appliance should be installed, operated and stored in a room with a oor area according to the amount of refrigerant
to be charged. For specic information on the type of gas and the amount, please refer to the relevant label on the
unit itself. When there are differences between the lable and the manual on the Min. room area description, the
description on label shall prevail.
DISPOSAL: Do not dispose this product as unsorted municipal waste.
Collection of such waste separately for special treatment is necessary. It is
prohibited to dispose of this appliance in domestic household waste. For
disposal, there are several possibilities:
For R32 frigerant models:
Appliance shall be installed, operated and stored in a room with a oor area larger than 4 m .
Appliance shall not be installed in an unvertilated space, if that space is smaller than 4 m .
SOCIABLE COMMENT

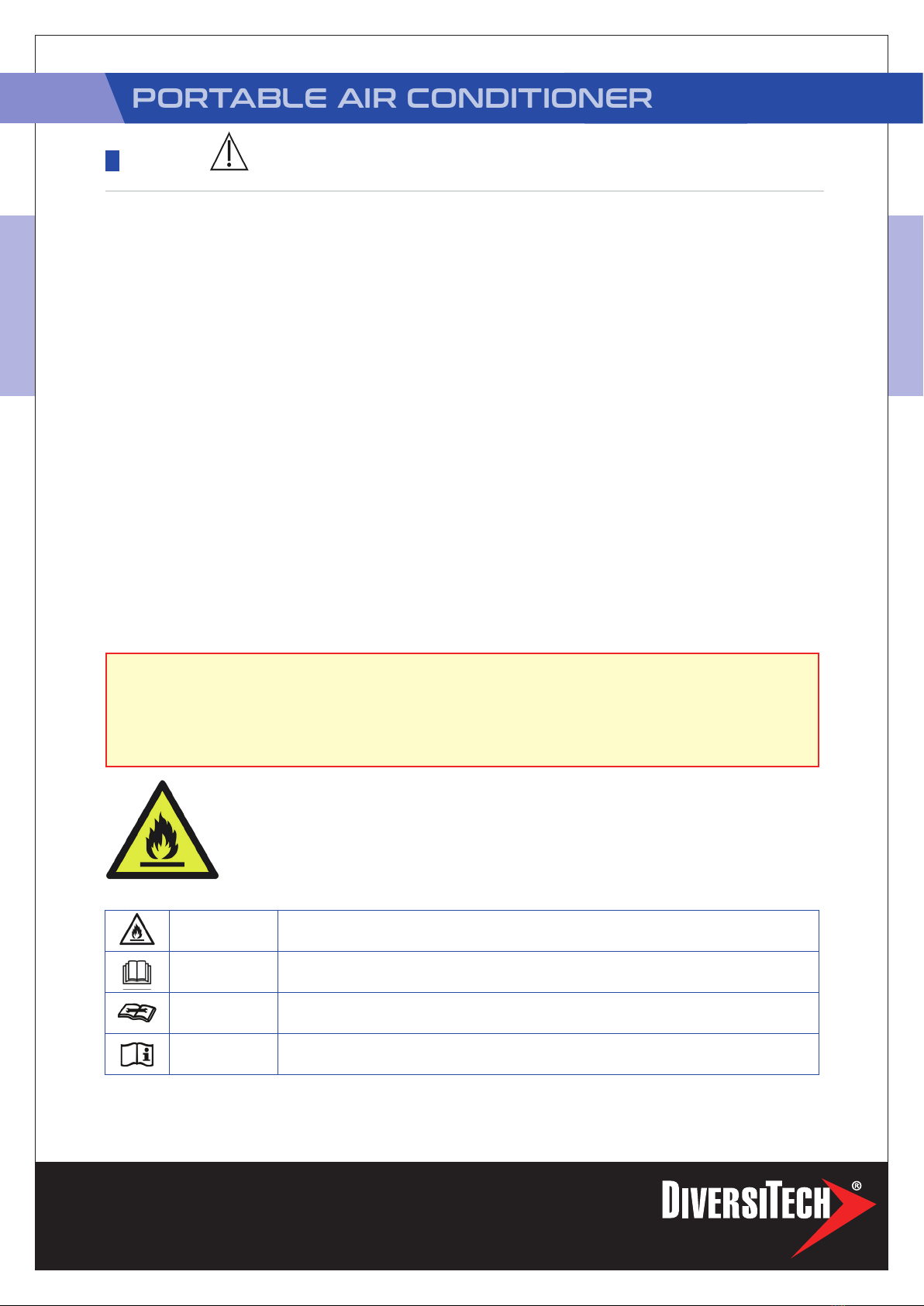

WARNING FOR USING R32/R290 REFRIGERANT
FOR R290(NOT APPLICABLE FOR NORTH AMERICA)
PORTABLE AIR CONDITIONER
PAC-H-12

DiversiTech International Ltd.
Glaisdale Drive East, NG8 4LY
Nottingham United Kingdom
Email [email protected]
Phone [phone]
6
FOR FURTHER INSTALLATION ADVICE PLEASE CALL THE TECHNICAL SUPPORT HELPLINE ON 0115 900 5858.
• Compliance with national gas regulations shall be observed.
• Keep ventilation openings clear of obstruction.
• The appliance shall be stored so as to prevent mechanical damage from occurring.
• A warning that the appliance shall be stored in a well-ventilated area where the room size corresponds to the room
area as specied for operation.
• Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certicate
from an industry-accredited assessment authority, which authorises their competence to handle refrigerants safely in
accordance with an industry recognised assessment specication.
• Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair
requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent
in the use of ammable refrigerants.
• Please follow the instruction carefully to handle, install, clear, service the air conditioner to avoid any damage or
hazard. Flammable Refrigerant R32 is used within air conditioner. When maintaining or disposing the air conditioner,
the refrigerant (R32 or R290) shall be recovered properly, shall not discharge to air directly.
• No any open re or device like switch which may generate spark/arcing shall be around air conditioner to avoid
causing ignition of the ammable refrigerant used.
• Please follow the instruction carefully to store or maintain the air conditioner to prevent mechanical damage from
occurring.
• Flammable refrigerant -R32 is used in air conditioner. Please follow the instruction carefully to avoid any hazard.For
speci-c information on the type of gas and the amount,please to the relevant label on the unit itself.
• The appliance shall be stored in a room without continuously operating open ames (for example an operating gas
appliance) and ignition sources (for example an operating electric heater).
Caution: Risk of re/
ammable materials
(Required for R32/R290 units only)
WARNING FOR USING R32/R290 REFRIGERANT
WARNING:
Do not use products to accelerate thawing or cleaning products other than those recommended by the
manufacturer. The appliance must be stored in an area free of continuously operating ignition sources
(for example example: open ame, gas appliance on or electric heater on). Do not pierce or burn.
Caution: refrigerants may be odorless.
WARNING This symbol shows that this appliance used a flammable refrigerant. If the refrigerant
is leaked and exposed to an external ignition source, there is a risk of fire.
CAUTION This symbol shows that the operation manual should be read carefully.
CAUTION This symbol shows that a service personnel should be handling this equipment
with reference to the installation manual.
CAUTION This symbol shows that information is available such as the operating manual or
installation manual.
PORTABLE AIR CONDITIONER
PAC-H-12

DiversiTech International Ltd.
Glaisdale Drive East, NG8 4LY
Nottingham United Kingdom
Email [email protected]
Phone [phone]
7
FOR FURTHER INSTALLATION ADVICE PLEASE CALL THE TECHNICAL SUPPORT HELPLINE ON 0115 900 5858.
1. Transport of equipment containing ammable refrigerants - See transport regulations
2. Marking of equipment using signs - See local regulations
3. Disposal of equipment using ammable refrigerants - See national regulations.
4. Storage of equipment/appliances - The storage of equipment should be in accordance with the manufacturer’s
instructions.
5. Storage of packed (unsold) equipment - Storage package protection should be constructed such that mechanical
damage to the equipment inside the package will not cause a leak of the refrigerant charge. The maximum number of
pieces of equipment permitted to be stored together will be determined by local regulations.
6. Information on servicing
i Checks to the area
Prior to beginning work on systems containing ammable refrigerants, safety checks are necessary to ensure that
the risk of ignition is minimised. For repair to the refrigerating system, the following precautions shall be complied
with prior to conducting work on the system.
ii Work procedure
Work shall be undertaken under a controlled procedure so as to minimise the risk of a ammable gas or vapour
being present while the work is being performed.
iii General work area
All maintenance staff and others working in the local area shall be instructed on the nature of work being carried
out. Work in conned spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that
the conditions within the area have been made safe by control of ammable material.
iv Checking for presence of refrigerant
The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the
technician is aware of potentially ammable atmospheres. Ensure that the leak detection equipment being used is
suitable for use with ammable refrigerants, i.e. non-sparking, adequately sealed or intrinsically safe.
v Presence of re extinguisher
If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate re
extinguishing equipment shall be available to hand. Have a dry powder or CO2 re extinguisher adjacent to the
charging area.
vi No ignition sources
No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that
contains or has contained ammable refrigerant shall use any sources of ignition in such a manner that it may lead
to the risk of re or explosion. All possible ignition sources, including cigarette smoking, should be kept sufciently
far away from the site of installation, repairing, removing and disposal, during which ammable refrigerant can
possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be
surveyed to make sure that there are no ammable hazards or ignition risks. No Smoking signs shall be displayed.
vii Ventilated area
Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or
conducting any hot work. A degree of ventilation shall continue during the period that the work is carried
out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the
atmosphere.
WARNING FOR USING R32/R290 REFRIGERANT
PORTABLE AIR CONDITIONER
PAC-H-12

DiversiTech International Ltd.
Glaisdale Drive East, NG8 4LY
Nottingham United Kingdom
Email [email protected]
Phone [phone]
8
FOR FURTHER INSTALLATION ADVICE PLEASE CALL THE TECHNICAL SUPPORT HELPLINE ON 0115 900 5858.
viii Checks to the refrigeration equipment
Where electrical components are being changed, they shall be t for the purpose and to the correct
specication. At all times the manufacturer’s maintenance and service guidelines shall be followed. If in doubt
consult the manufacturer’s technical department for assistance. The following checks shall be applied to
installations using ammable refrigerants:
The charge size is in accordance with the room size within which the refrigerant containing parts are installed;
The ventilation machinery and outlets are operating adequately and are not obstructed;
If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of
refrigerant; Marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall
be corrected;
Refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any
substance which may corrode refrigerant containing components, unless the components are constructed of
materials which are inherently resistant to being corroded or are suitably protected against being so corroded.
viiii Checks to electrical devices
Repair and maintenance to electrical components shall include initial safety checks and component inspection
procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the
circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to
continue operation, an adequate temporary solution shall be used. This shall be reported to the owner of the
equipment so all parties are advised.
Initial safety checks shall include:
That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking; That there no
live electrical components and wiring are exposed while charging, recovering or purging the system; That there is
continuity of earth bonding.
7. Repairs to sealed components
i During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being
worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply
to equipment during servicing, then a permanently operating form of leak detection shall be located at the most
critical point to warn of a potentially hazardous situation.
ii Particular attention shall be paid to the following to ensure that by working on electrical components, the casing
is not altered in such a way that the level of protection is affected. This shall include damage to cables, excessive
number of connections, terminals not made to original specication, damage to seals, incorrect tting of glands,
etc. Ensure that apparatus is mounted securely. Ensure that seals or sealing materials have not degraded such
that they no longer serve the purpose of preventing the ingress of ammable atmospheres. Replacement parts
shall be in accordance with the manufacturer’s specications.
NOTE: The use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment.
Intrinsically safe components do not have to be isolated prior to working on them.
8. Repair to intrinsically safe components
Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not
exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are
the only types that can be worked on while live in the presence of a ammable atmosphere. The test apparatus
shall be at the correct rating. Replace components only with parts specied by the manufacturer. Other parts
may result in the ignition of refrigerant in the atmosphere from a leak.
9. Cabling
Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other
adverse environmental effects. The check shall also take into account the effects of aging or continual vibration
from sources such as compressors or fans.
WARNING FOR USING R32/R290 REFRIGERANT
PORTABLE AIR CONDITIONER
PAC-H-12

DiversiTech International Ltd.
Glaisdale Drive East, NG8 4LY
Nottingham United Kingdom
Email [email protected]
Phone [phone]
9
FOR FURTHER INSTALLATION ADVICE PLEASE CALL THE TECHNICAL SUPPORT HELPLINE ON 0115 900 5858.
10. Detection of ammable refrigerants
Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant
leaks. A halide torch (or any other detector using a naked ame) shall not be used.
11. Leak detection methods
The following leak detection methods are deemed acceptable for systems containing ammable refrigerants.
Electronic leak detectors shall be used to detect ammable refrigerants, but the sensitivity may not be adequate,
or may need re-calibration. (Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the
detector is not a potential source of ignition and is suitable for the refrigerant used. Leak detection equipment
shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed
and the appropriate percentage of gas (25 %maximum) is conrmed. Leak detection uids are suitable for use
with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react
with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked ames shall be removed/
extinguished. If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered
from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak. Oxygen
free nitrogen (OFN) shall then be purged through the system both before and during the brazing process.
12. Removal and evacuation
When breaking into the refrigerant circuit to make repairs or for any other purpose conventional procedures shall
be used. However, it is important that best practice is followed since ammability is a consideration. The following
procedure shall be adhered to:
Remove refrigerant; Purge the circuit with inert gas; Evacuate; Purge again with inert gas; Open the circuit by
cutting or brazing.
The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be ushed with
OFN to render the unit safe. This process may need to be repeated several times. Compressed air or oxygen
shall not be used for this task. Flushing shall be achieved by breaking the vacuum in the system with OFN and
continuing to ll until the working pressure is achieved, then venting to atmosphere, and nally pulling down to
a vacuum. This process shall be repeated until no refrigerant is within the system. When the nal OFN charge
is used, the system shall be vented down to atmospheric pressure to enable work to take place. This operation
is absolutely vital if brazing operations on the pipe-work are to take place. Ensure that the outlet for the vacuum
pump is not close to any ignition sources and there is ventilation available.
13. Charging procedures
In addition to conventional charging procedures, the following requirements shall be followed. Ensure that
contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as
short as possible to minimise the amount of refrigerant contained in them.
Cylinders shall be kept upright.
Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.
Label the system when charging is complete (if not already).
Extreme care shall be taken not to overll the refrigeration system. Prior to recharging the system it shall be
pressure tested with OFN. The system shall be leak tested on completion of charging but prior to commissioning.
A follow up leak test shall be carried out prior to leaving the site.
14. Decommissioning
Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment
and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being
carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed
refrigerant. It is essential that electrical power is available before the task is commenced.
WARNING FOR USING R32/R290 REFRIGERANT
PORTABLE AIR CONDITIONER
PAC-H-12

DiversiTech International Ltd.
Glaisdale Drive East, NG8 4LY
Nottingham United Kingdom
Email [email protected]
Phone [phone]
10
FOR FURTHER INSTALLATION ADVICE PLEASE CALL THE TECHNICAL SUPPORT HELPLINE ON 0115 900 5858.
a) Become familiar with the equipment and its operation. b) Isolate system electrically. c) Before attempting
the procedure ensure that: Mechanical handling equipment is available, if required, for handling refrigerant
cylinders;All personal protective equipment is available and being used correctly; The recovery process is
supervised at all times by a competent person; Recovery equipment and cylinders conform to the appropriate
standards. d) Pump down refrigerant system, if possible. e) If a vacuum is not possible, make a manifold
so that refrigerant can be removed from various parts of the system. f) Make sure that cylinder is situated
on the scales before recovery takes place. g) Start the recovery machine and operate in accordance with
manufacturer’s instructions. h) Do not overll cylinders. (No more than 80 % volume liquid charge). i) Do
not exceed the maximum working pressure of thecylinder, even temporarily. j) When the cylinders have been
lled correctly and the process completed, make sure that the cylinders and the equipment are removed from
site promptly and all isolation valves on the equipment are closed off. k) Recovered refrigerant shall not be
charged into another refrigeration system unless it has been cleaned and checked.
15. Labelling
Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall
be dated and signed. Ensure that there are labels on the equipment stating the equipment contains ammable
refrigerant.
16. Recovery
When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good
practice that all refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only
appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding
the total system charge is available. All cylinders to be used are designated for the recovered refrigerant and
labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall be complete with
pressure relief valve and associated shut-off valves in good working order. Empty recovery cylinders are evacuated
and, if possible, cooled before recovery occurs. The recovery equipment shall be in good working order with a
set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of ammable
refrigerants. In addition, a set of calibrated weighing scales shall be available and in good working order. Hoses
shall be complete with leak-free disconnect couplings and in good condition. Before using the recovery machine,
check that it is in satisfactory working order, has been properly maintained and that any associated electrical
components are sealed to prevent ignition in the event of a refrigerant release. Consult manufacturer if in doubt.
The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the
relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders. If
compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level
to make certain that ammable refrigerant does not remain within the lubricant. The evacuation process shall be
carried out prior to returning the compressor to the suppliers. Only electric heating to the compressor body shall
be employed to accelerate this process. When oil is drained from a system, it shall be carried out safely.
WARNING FOR USING R32/R290 REFRIGERANT
PORTABLE AIR CONDITIONER
PAC-H-12

DiversiTech International Ltd.
Glaisdale Drive East, NG8 4LY
Nottingham United Kingdom
Email [email protected]
Phone [phone]
11
FOR FURTHER INSTALLATION ADVICE PLEASE CALL THE TECHNICAL SUPPORT HELPLINE ON 0115 900 5858.
NOTE: All the illustrations in the manual are for explanation purpose only. Your machine may be slightly different. The
actual shape shall prevail. The unit can be controlled by the unit control panel alone or with the remote controller. This
manual does not include Remote Controller Operations, see the <<Remote Controller Instruction>> packed with the
unit for details.
In order to ensure the optimal performance of our products, the design specications of the unit and remote control are
subject to change without prior notice.
In order to ensure the optimal performance of our products, the design specications of the unit and remote control are
subject to change without prior notice.
INSTALLATION
PREPARATION
DESIGN NOTICE
AMBIENT TEMPERATURE RANGE FOR UNIT OPERATING
MODE TEMPERATURE RANGE MODE TEMPERATURE RANGE
Cool 17-35°C (62-95°F) Heat(pump heat mode) 5-30°C (41-86°F)
Dry 13-35°C (55-95°F) Heat(electrical heat mode) 30°C (86°F)
PORTABLE AIR CONDITIONER
PAC-H-12

DiversiTech International Ltd.
Glaisdale Drive East, NG8 4LY
Nottingham United Kingdom
Email [email protected]
Phone [phone]
12
FOR FURTHER INSTALLATION ADVICE PLEASE CALL THE TECHNICAL SUPPORT HELPLINE ON 0115 900 5858.
The exhaust hose and adaptor must be installed or removed in accordance with the usage mode. For COOL,HEAT(heat
pump type) or AUTO mode must be installed exhaust hose. For FAN, DRY or HEAT (electrical heat type) mode must be
removed exhaust hose.

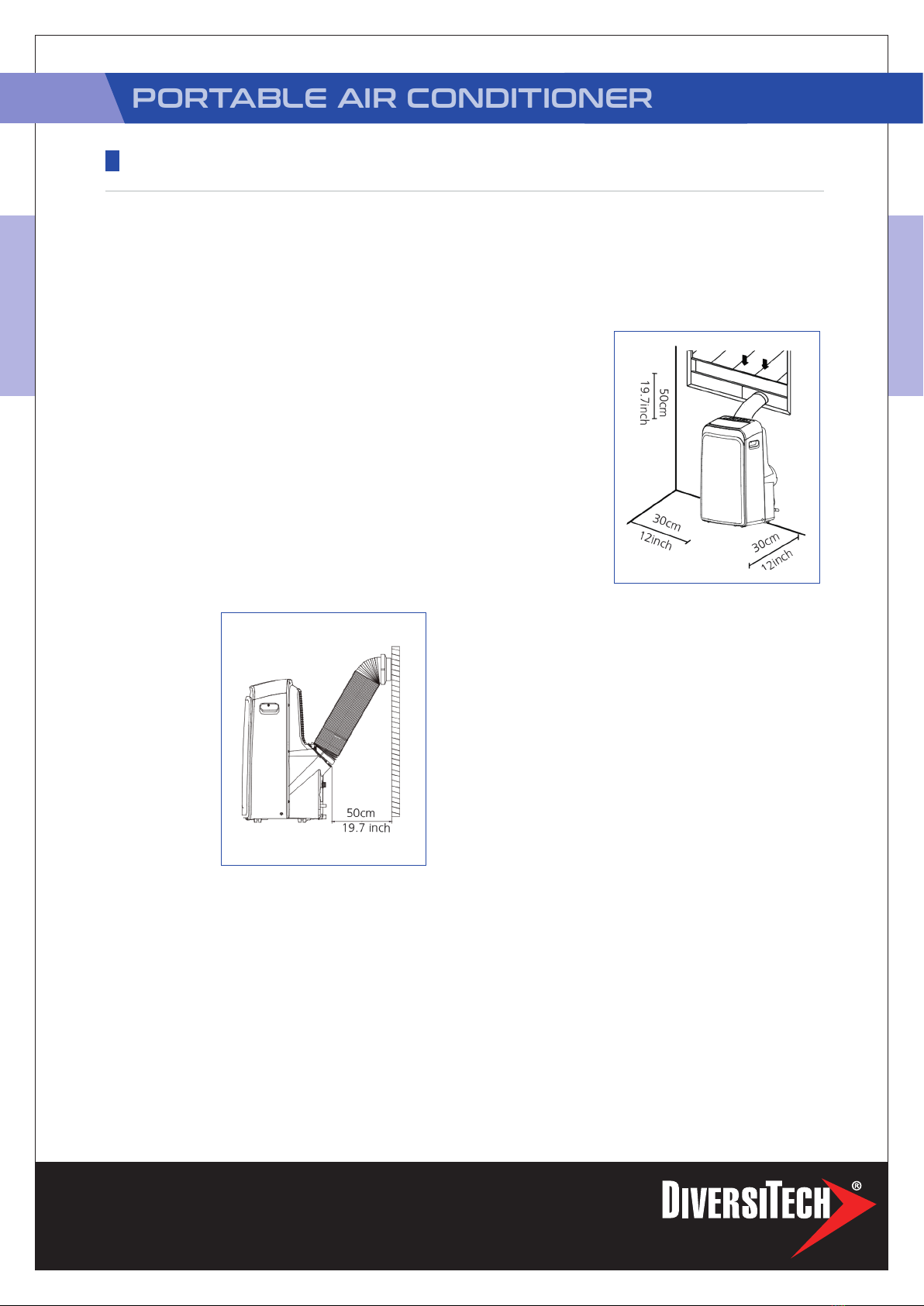

Your installation location should meet the following requirements:
- Make sure that you install your unit on an even surface to
minimize noise and vibration.
- The unit must be installed near a grounded plug, and the
Collection Tray Drain (found on the back of the unit) must be
accessible.
- The unit should be located at least 30cm (12”) from the nearest
wall to ensure proper air conditioning. The horizontal louver
blade should be at least 50cm (19.7”) away from obstacles.
- DO NOT cover the Intakes, Outlets or Remote Signal Receptor
of the unit, as this could cause damage to the unit.
The energy rating and noise information for this unit is based on the standard installation using an un-extended exhaust duct
(Diameter:150mm, Length:1.5m) without window slider adaptor or wall exhaust adaptor A.
The unit with 3 meters extended exhaust duct is running by using 2 exhaust ducts(Diameter:150mm, Length:1.5m +
Diameter: 130mm, Length: 1.5m) .The Energy rating and noise information for unit with 3 meters extended exhaust duct is
not assessed.(For some models)
NOTE: We recommend that operating the unit at room temperature below 35°C . Since there is a risk that the unit with 3
meters extended exhaust duct would not work at room temperature above 35°C under some extreme conditions, such as
the lower air intake be blocked for 50%.
INSTALLATION
EXHAUST HOSE INSTALLATION
CHOOSING THE RIGHT LOCATION
ENERGY RATING INFORMATION
RECOMMENDED
INSTALLATION
PORTABLE AIR CONDITIONER
PAC-H-12

DiversiTech International Ltd.
Glaisdale Drive East, NG8 4LY
Nottingham United Kingdom
Email [email protected]
Phone [phone]
13
FOR FURTHER INSTALLATION ADVICE PLEASE CALL THE TECHNICAL SUPPORT HELPLINE ON 0115 900 5858.
Because of a new federal test procedure for Portable Air Conditioners, you may notice that the cooling capacity claims
on portable air conditioner packaging are signicantly lower than that of models produced prior to 2017. This is due to
changes in the test procedure, not to the portable air conditioners themselves.
What should I look for first when purchasing a portable air conditioner?
The right air conditioner helps you cool a room efciently. An undersized unit won’t cool adequately while one that’s too
large will not remove enough humidity, leaving the air feeling damp. To nd the proper air conditioner, determine the
square footage of the room you want to cool by multiplying the room length by its width. You also need to know the air
conditioner’s BTU (British Thermal Unit) rating, which indicates the amount of heat it can remove from a room. A higher
number means more cooling power for a larger room. (Be sure you are comparing only newer models to each other-
older models may appear to have a higher capacity, but are actually the same). Be sure to “size up” if your portable air
conditioner will be placed in a very sunny room, in a kitchen, or in a room with high ceilings. After you’ve found the right
cooling capacity or your room, you can look at other features.
Why is the cooling capacity lower on newer models than on older units?
Federal regulations require manufacturers to calculate cooling capacity based on a specic test procedure, which was
changed just this year. Models manufactured before 2017 were tested under a different procedure and cooling capacity
is measured differently than in prior years’models. So, while the BTUs may be lower, the actual cooling capacity of the air
conditioners has not changed.
What is SACC ?
SACC is the representative value of Seasonally Adjusted Cooling Capacity, in Btu/h, as determined in accordance with
the DOE test procedure at title 10 Code of Federal Regulations (CFR) 430, subpart B, appendix CC and applicable
sampling plans.
Medium Philips screwdriver; Tape measure or ruler; Knife or scissors; Saw (On some models, to shorten
window adaptor for narrow windows)
INSTALLATION
HOW TO STAY COOL WITH A NEW PORTABLE AIR CONDITIONER
(FOR THE MODELS COMPLY WITH THE REQUIREMENTS OF DEPARTMENT OF ENERGY IN US)
TOOLS NEEDED
PORTABLE AIR CONDITIONER
PAC-H-12

DiversiTech International Ltd.
Glaisdale Drive East, NG8 4LY
Nottingham United Kingdom
Email [email protected]
Phone [phone]
14
FOR FURTHER INSTALLATION ADVICE PLEASE CALL THE TECHNICAL SUPPORT HELPLINE ON 0115 900 5858.
NORTH AMERICA
OTHER REGIONS

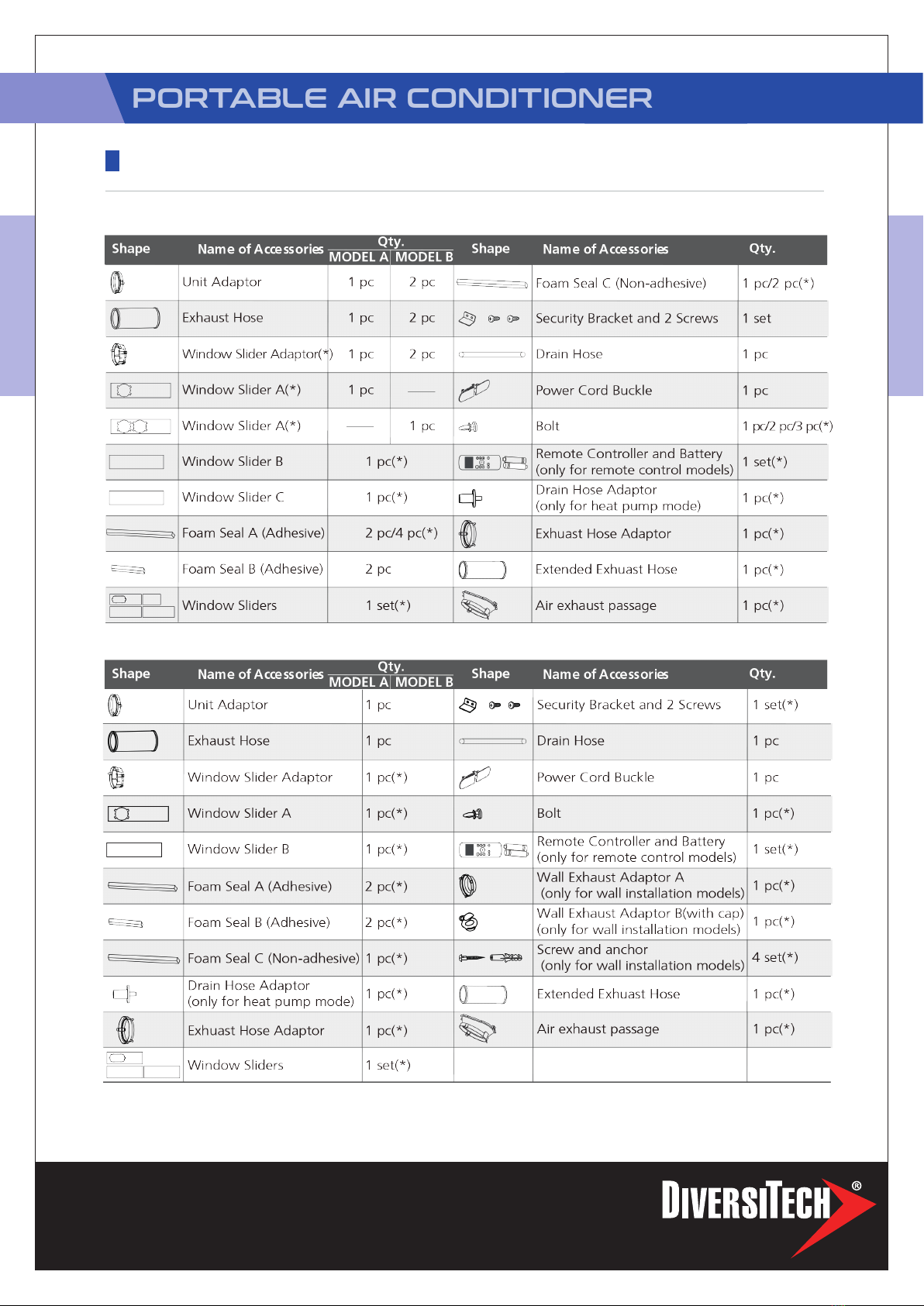

ACCESSORIES NOTE: Items with (*) are on some models.
Slight variations in design may occur.
PORTABLE AIR CONDITIONER
PAC-H-12

DiversiTech International Ltd.
Glaisdale Drive East, NG8 4LY
Nottingham United Kingdom
Email [email protected]
Phone [phone]
15
FOR FURTHER INSTALLATION ADVICE PLEASE CALL THE TECHNICAL SUPPORT HELPLINE ON 0115 900 5858.
INSTALLATION
TYPE WINDOW INSTALLATION:
TYPE WALL INSTALLATION:
NOTE: Once the Exhaust Hose
assembly and Adjustable Window Slider
are prepared, choose from one of the
following two installation methods.

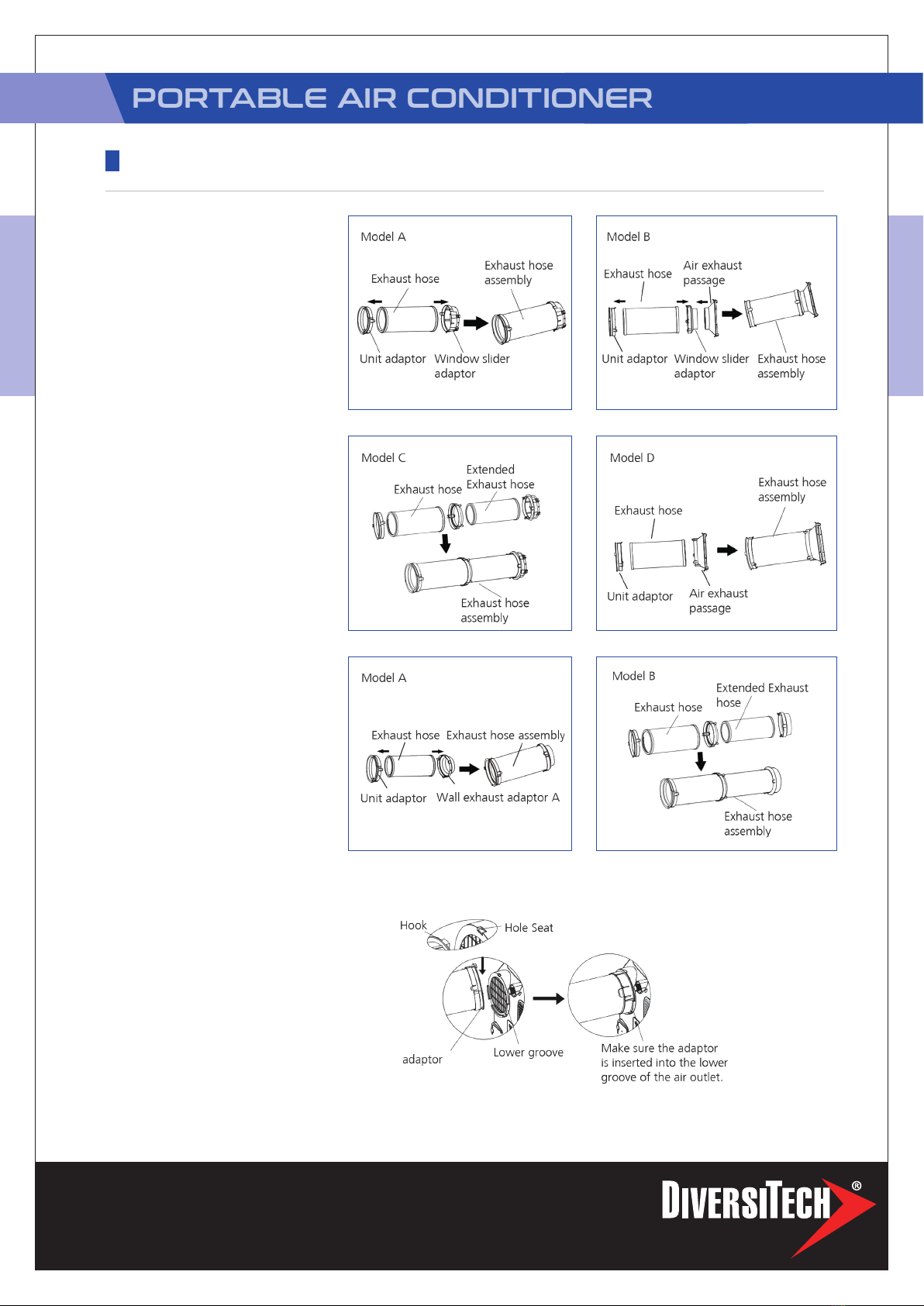

Step Two: Install the Exhaust hose
assembly to the unit
Insert unit adaptor of the Exhaust hose
assembly into the lower groove of the
air outlet of the unit while the hook
of the adaptor is aligned with the hole
seat of the air outlet and slide down the
Exhaust hose assembly along the arrow
direction for installation.
PORTABLE AIR CONDITIONER
PAC-H-12

DiversiTech International Ltd.
Glaisdale Drive East, NG8 4LY
Nottingham United Kingdom
Email [email protected]
Phone [phone]
16
FOR FURTHER INSTALLATION ADVICE PLEASE CALL THE TECHNICAL SUPPORT HELPLINE ON 0115 900 5858.
WINDOW INSTALLATION KIT
OR
OR
Step Three: Preparing the
Adjustable Window Slider
1. Choose the window sliders
according the size of your window.
Sometimes, it needs to be cut
short to meet the window size,
please take extra care to cut it
properly.
2. Use bolts to fasten the window
sliders once they are adjusted to
the Proper length.
PORTABLE AIR CONDITIONER
PAC-H-12

DiversiTech International Ltd.
Glaisdale Drive East, NG8 4LY
Nottingham United Kingdom
Email [email protected]
Phone [phone]
17
FOR FURTHER INSTALLATION ADVICE PLEASE CALL THE TECHNICAL SUPPORT HELPLINE ON 0115 900 5858.
INSTALLATION
OR
OR
OR
OR
NOTE: Once the Exhaust Hose assembly and Adjustable Window Slider are prepared, choose from one of the following
two installation methods.

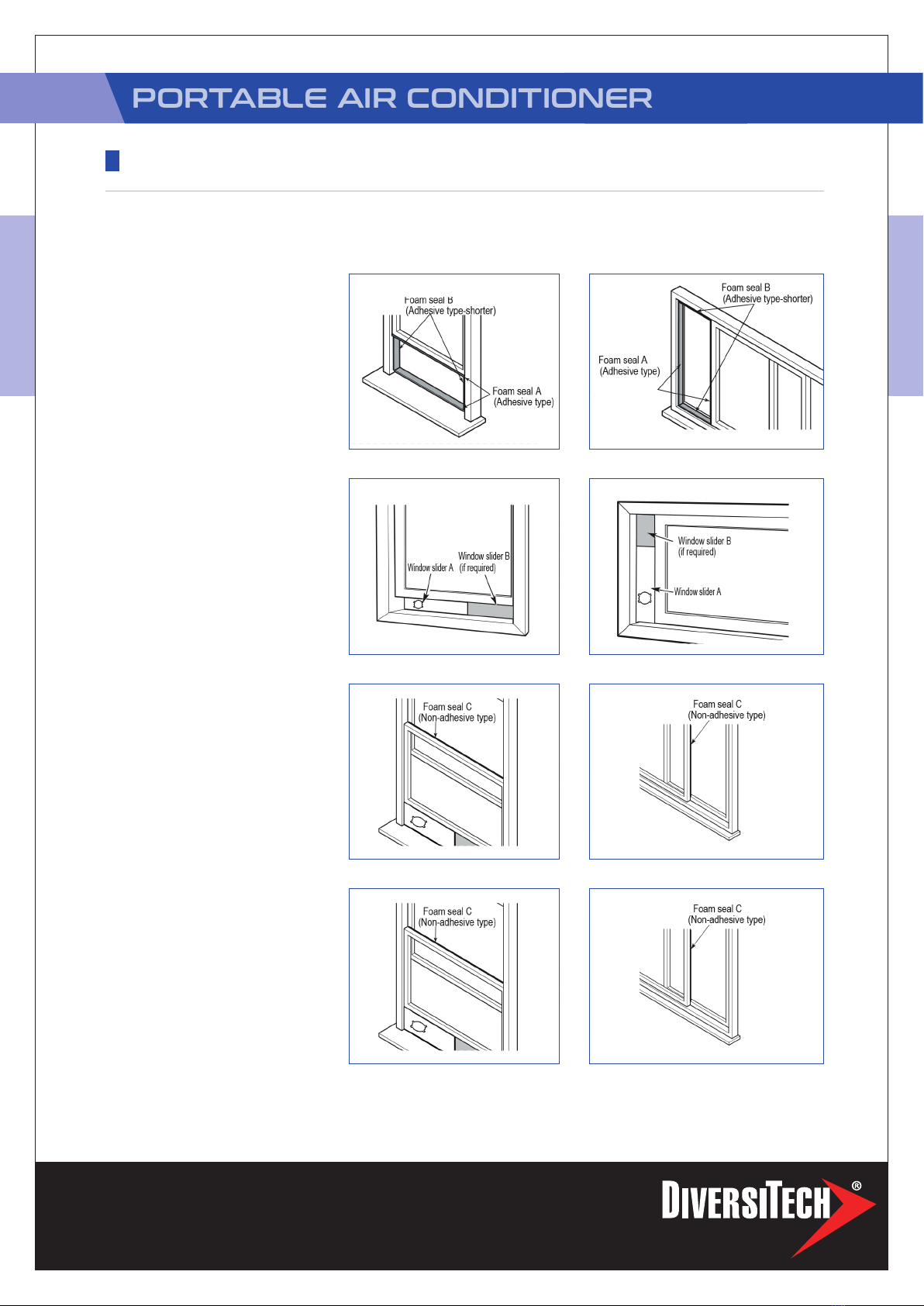

1. Cut the adhesive foam seal A and
B strips to the proper lengths, and
attach them to the window sash
and frame as shown.
2. Insert the window slider assembly
into the window opening.
3. Cut the non-adhesive foam seal C
strip to match the width(or height)
of the window. Insert the seal
between the glass and the window
frame to prevent air and insects
from getting into the room.
4. If desired, install the security
bracket with 2 screws as shown.
TYPE 1: HUNG WINDOW OR SLIDING
WINDOW INSTALLATION
(FOR SOME MODELS)
PORTABLE AIR CONDITIONER
PAC-H-12

DiversiTech International Ltd.
Glaisdale Drive East, NG8 4LY
Nottingham United Kingdom
Email [email protected]
Phone [phone]
18
FOR FURTHER INSTALLATION ADVICE PLEASE CALL THE TECHNICAL SUPPORT HELPLINE ON 0115 900 5858.

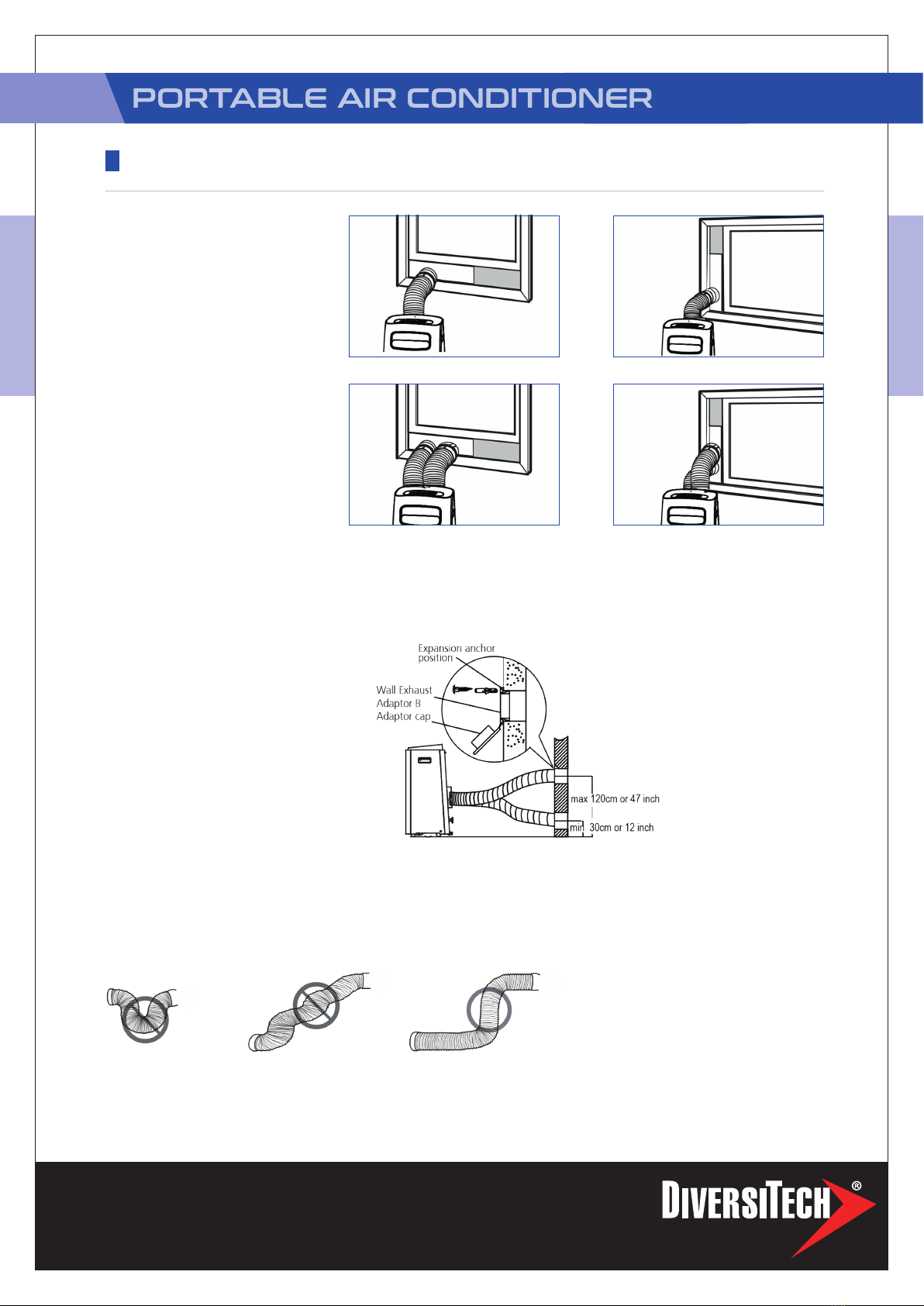

NOTE: To ensure proper function, DO NOT overextend or bend the hose. Make sure that there is no obstacle around the
air outlet of the exhaust hose (in the range of 500mm) in order to the exhaust system works properly. All the illustrations in
this manual are for explanation purpose only. Your air conditioner may be slightly different. The actual shape shall prevail.
INSTALLATION
OR
OR
5. Insert the window slider adaptor
into the hole of the window slider.
1. Cut a 125mm (4.9inch) hole into
the wall for the Wall Exhaust
Adaptor B.
2. Secure the Wall Exhaust Adaptor
B to the wall using the four
Anchors and Screws provided in
the kit.
3. Connect the Exhaust Hose
Assembly(with Wall Exhaust
Adaptor A) to the Wall Exhaust
Adaptor B.
MODEL A
MODEL A
MODEL B
NOTE: COVER THE HOLE USING THE
ADAPTOR CAP WHEN NOT IN USE.
MODEL B
TYPE 2: WALL INSTALLATION
(FOR SOME MODELS)
PORTABLE AIR CONDITIONER
PAC-H-12

DiversiTech International Ltd.
Glaisdale Drive East, NG8 4LY
Nottingham United Kingdom
Email [email protected]
Phone [phone]
19
FOR FURTHER INSTALLATION ADVICE PLEASE CALL THE TECHNICAL SUPPORT HELPLINE ON 0115 900 5858.
VENT CONTROL feature(for MODEL B)
The Vent Control is located at the back of the air conditioner. The
OPEN position removes stale air from the room and exhausts it to the
outside. Fresh air is drawn in through normal passages in the home.
When not need to circulate the room air, set Vent Control to CLOSE
position. This function is only applicable for
NOTE: The following control panels are for explanation purpose only. The control
panel of the unit you purchased may be slightly different according to the models. Your
machine may not contain some indicators or buttons. The actual shape shall prevail.
INSTALLATION
OPERATING INSTRUCTIONS
TYPE 2: WALL INSTALLATION
(FOR SOME MODELS)

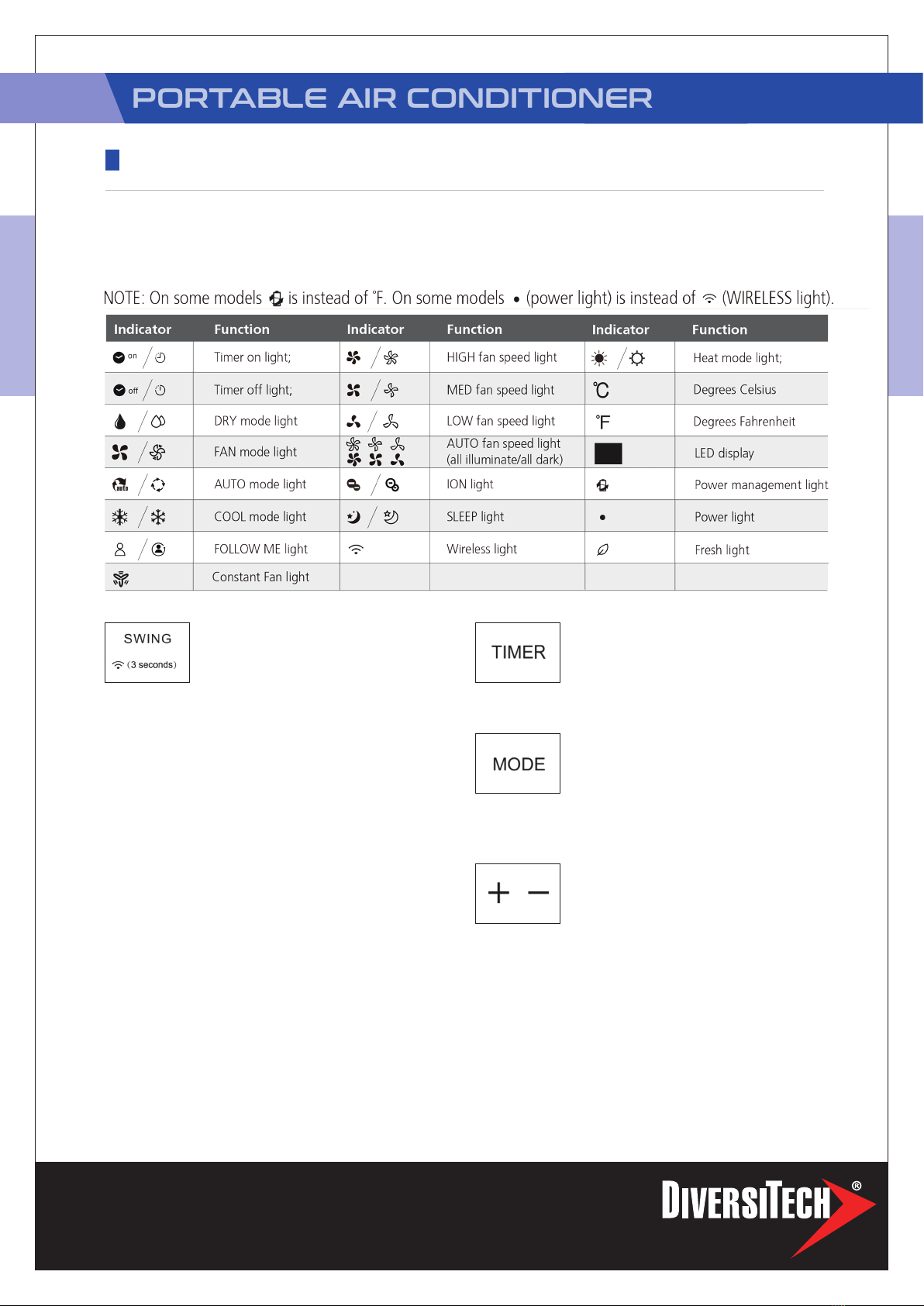

CONTROL PANEL FEATURES
PORTABLE AIR CONDITIONER
PAC-H-12

DiversiTech International Ltd.
Glaisdale Drive East, NG8 4LY
Nottingham United Kingdom
Email [email protected]
Phone [phone]
20
FOR FURTHER INSTALLATION ADVICE PLEASE CALL THE TECHNICAL SUPPORT HELPLINE ON 0115 900 5858.
Swing/Wireless(On some models)
button
Used to initiate the Auto swing feature.
When the operation is ON, press the
SWING button can stop the louver at the desired angle.
Used to initiate the Wireless function. For the rst time
to use Wireless function, press and hold the swing button
for 3 seconds to initiate the Wireless connection mode.
The LED DISPLAY shows ‘AP’ to indicate you can set
Wireless connection. If connection(router) is successful
within 8 minutes, the unit will exit Wireless connection
mode automatically and the Wireless indicator illuminates.
If connection is failure within 8 minutes, the unit exits
Wireless connection mode automatically. After Wireless
connection is successful, you can press and hold SWING
and DOWN (-) buttons at the same time for 3 seconds
to turn off Wireless function and the LED DISPLAY shows
‘OF’ for 3 seconds, press SWING and UP(+) buttons at
the same time to turn on Wireless function and the LED
DISPLAY shows ‘On’ for 3 seconds.
NOTE: When you restart the Wireless function, it
may take a period of time to connect to the network
automatically.
Timer button
Used to initiate the AUTO ON start time
and AUTO OFF stop time program, in
conjuction with the + & - buttons. The
timer on/off indicator light illuminates under the timer on/
off settings.
Mode button
Selects the appropriate operating mode.
Each time you press the button, a mode
is selected in a sequence that goes from
AUTO), COOL, DRY, FAN and HEAT (cooling only models
without). The mode indicator light illuminates under the
different mode settings.
Up (+) and Down (-) buttons
Used to adjust (increasing/decreasing)
temperature settings in 1°C/1°F (or 2 °F)
increments in a range of 17°C/62°F to
30°C/86°F (or 88°F) or the TIMER setting in a range of
0~24hrs.
NOTE: The control is capable of displaying temperature
in degrees Fahrenheit or degrees Celsius. To convert from
one to the other, press and hold the Up and Down buttons
at the same time for 3 seconds.
NOTE: The following control panels are for explanation purpose only. The control
panel of the unit you purchased may be slightly different according to the models. Your
machine may not contain some indicators or buttons. The actual shape shall prevail.
OPERATING INSTRUCTIONS
CONTROL PANEL FEATURES
PORTABLE AIR CONDITIONER
PAC-H-12
