Dixon ZTR 6601 User manual

IMPORTANT -READ CAREFULLY
The Dixon^ZTR®Mower is both easy and fun to operate. However, any power mower must be operated
properly to be safe. It is not a toy or a recreational vehicle. Before you start to use the mower, read the
operator's manual carefully and become completely familiar with the controls.
The information in this operator's manual applies to all Dixon
@
ZTR
@
Model 6601 Mowers. Your Dixon
dealer will gladly provide a check-out ride and answer any questions.
See your dealer for warranty service, parts and repairs.
DIXON INDUSTRIES, INC
A BLOUNT COMPANY
AIRPORT INDUSTRIAL PARK
PO BOX 1569
COFFEYVILLE KS 67337 O945
316 251 2000
FAX [phone]

RIDING LAWNMOWERS, IF IMPROPERLY OPERATED,
CAN CAUSE SERIOUS INJURY OR DEATH

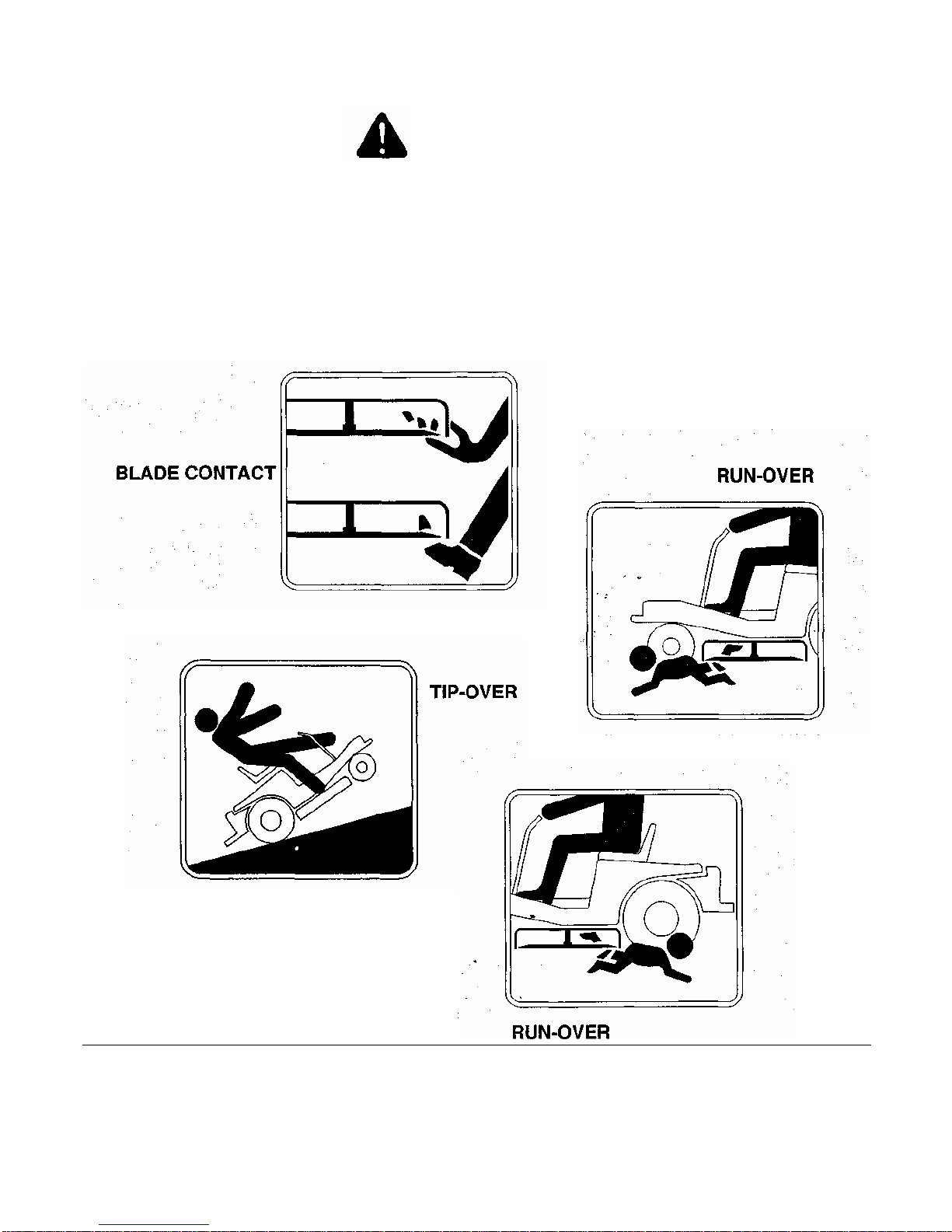

The most common causes of injury to the operator or bystander...
SAFETY
Page 1

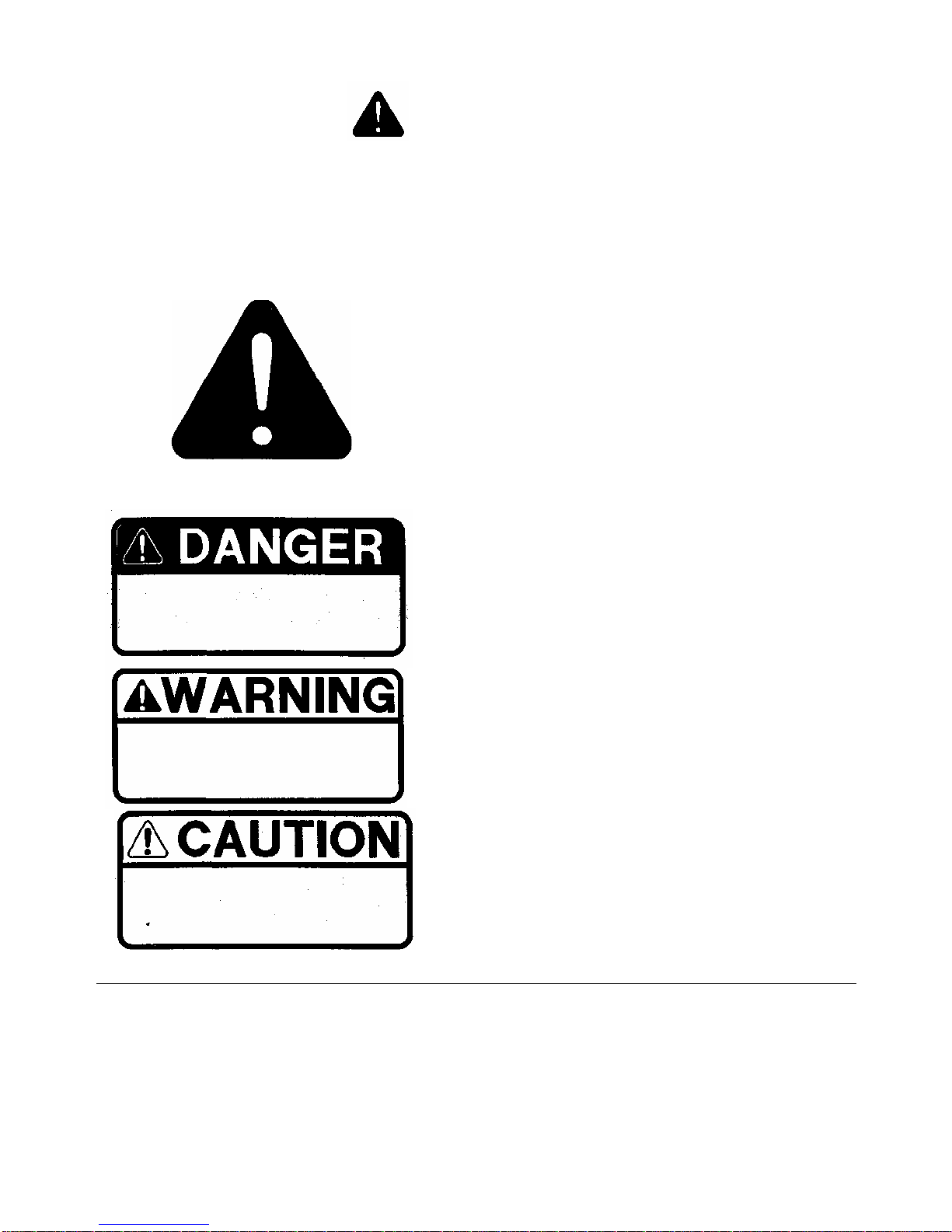

SAFETY SYMBOLS:
SAFETY ALERT SYMBOL -
When you see this symbol,
BE ALERT to the potential for injury.
Follow recommended safety precautions and safe
operating practices.
Danger indicates an imminently hazardous
situation which, if not avoided, will result in death or
serious injury.
Warning indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
Caution indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderate injury. It may also be used to alert against
unsafe practices.
SAFETY
Page 2

SAFETY
This cutting mower is capable of amputating hands and feet, and throwing objects.
Failure to observe the following safety instructions could result in
serious injury or death.
GENERAL OPERATION:
•Read, understand, and follow all instructions in the manual and on the mower before starting.
•Only allow responsible adults, who are familiar with the instructions, to operate the mower.
•Clear the area of objects such as rocks, toys, wire, etc., which could be picked up and thrown by the
blade.
•Be sure the area is clear of other people before mowing. Stop mower if anyone enters the area.
•Never carry passengers.
•Do not mow in reverse unless absolutely necessary. Always look down and behind before and while
backing.
•Be aware of the mower discharge direction and do not point it at anyone. Do not operate the mower
without either the entire grass catcher or the deflector in place.
•Slow down before turning.
•Never leave a running mower unattended. Always turn off blades, set parking brake, stop engine,
and remove key before dismounting.
•Turn off blades when not mowing.
•Stop engine before removing grass catcher or unclogging chute.
•Mow only in daylight or good artificial light.
•Do not operate the mower while under the influence of alcohol or drugs.
•Watch for traffic when operating near or crossing roadways.
•Use extra care when loading or unloading the mower into a trailer or truck. Do not ride the mower
when loading & unloading.
WARNING: The Engine Exhaust from this product contains chemicals known to the
state of California to cause cancer, birth defects or other reproductive harm.
Page 3

SAFETY
SLOPE OPERATION:
Slopes are a major factor related to loss-of-control and tip-over accidents,
which can result in severe injury or death.
All slopes require extra caution.If you cannot back up
the slope or if you feel uneasy on it, do not mow it.
DO
Mow across the slope with your Dixon ZTR -never up or down.
Remove obstacles such as rocks, tree limbs, etc.
Watch for holes, ruts or bumps. Uneven terrain could overturn the mower. Tall grass can hide
obstacles.
Use slow speed.
Use extra care with grass catchers or other attachments. These can change the stability of the
mower.
Keep all movement on the slopes slow and gradual. Do not make sudden changes in speed or
direction.
Avoid starting or stopping on a slope. If tires lose traction, disengage the blades and proceed
slowly down the slope.
DO NOT
Do not turn on slopes unless necessary, and then, turn slowly and gradually downhill, if possible.
Do not mow near drop-offs, ditches, or embankments. The mower could suddenly turn over if a
wheel is over the edge of a cliff or ditch, or if an edge caves in.
Do not mow on wet grass. Reduced traction could cause sliding.
Do not try to stabilize the mower by putting your foot on the ground.
-Do not use grass catcher on steep slopes.
Page 4

SAFETY
CHILDREN:
Tragic accidents can occur if the operator is not alert to the
presence of children.
Children are attracted to lawn mowers and the mowing activity.
NEVER assume children will stay where they were last seen.
Be alert to avoid accidents.
•Keep children out of the mowing area and under the watchful care of another responsible adult.
•Be alert and turn mower off if a child enters the area.
•Before and during backing, look behind and DOWN for small children.
•Never carry children. They may fall off and be seriously injured or interfere with safe mower operation.
•Never allow children to operate the mower.
•Use extra care when approaching blind corners, shrubs, trees, or other objects that may obscure
vision.
Page 5

SAFETY
SERVICE:
•Use extra care in handling gasoline and other fuels. They are flammable and vapors are explosive.
Use only an approved container.
Never remove gas cap or add fuel with the engine running. Allow engine to cool before
refueling. Do not smoke.
Never refuel the mower indoors.
Never store the mower or fuel container inside a building where there is an open flame.
•Never run a mower inside a closed area.
•Keep nuts and bolts, especially blade attachment bolts, tight and keep equipment in good
condition.
•Never tamper with safety devices. Check their proper operation regularly.
•Keep mower free of grass, leaves, or other debris buildup . Clean up oil or fuel spillage.
Allow mower to cool before storing.
•Stop and inspect the equipment if you strike an object. Repair, if necessary, before restarting.
•Never make adjustments or repairs with the engine running.
•Grass catcher components are subject to wear, damage, and deterioration, which could expose
moving parts or allow objects to be thrown. Frequently check components and replace with original
equipment parts, when necessary.
•Mower blades are sharp and can cut. Wrap the blade(s) or wear gloves, and use extra caution
when servicing them.
•Batteries contain sulfuric acid. To prevent burns avoid contact with skin, eyes and clothing. To
prevent a fire or explosion keep sparks and open flames away from battery.
Before disconnecting the negative (-) ground cable, make sure all switches are OFF.
•Check to assure that the drive chains are properly adjusted. A loose chain may come off causing
loss of control. This statement applies to chain drive models ZTR 2301, 3000 & 4000 Series.
« -, ,•••!-.'
Page 6

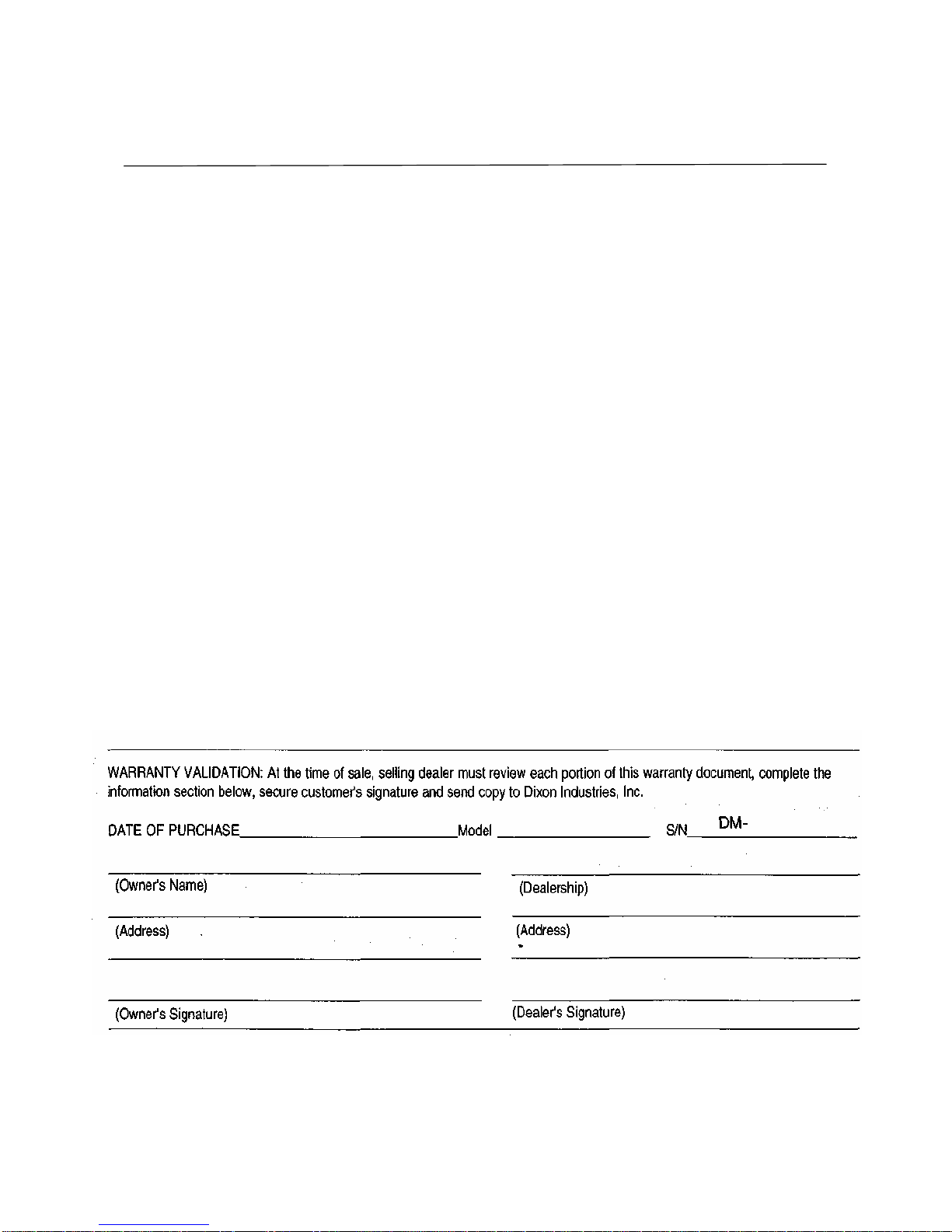

DIXON LIMITED WARRANTY POLICY -- HYDRO-GEAR MODELS
This warranty policy applies to all HydroGear mowers or any 50" model, purchased on or after March 1 , 1990.
WARRANTY: Dixon Warranty term is for a period of one (1) year from date of purchase or 400 hours of use, whichever occurs
first. Mowers used for residential homeowner applications (used only at owner's primary place of residence) are warranted for
two (2) years from date of purchase or 400 hours of use, whichever occurs first. DIXON ZTR MOWERS ARE WARRANTED
AGAINST DEFECTS IN MATERIALS AND WORKMANSHIP AND PROVIDES FOR REPLACEMENT OR REPAIR OF PARTS
INCLUDING LABOR COSTS. THIS WARRANTY IS SUBJECT TO THE FOLLOWING CONDITIONS AND LIMITATIONS:
1. Warranty applies only to original retail purchaser of new and unused mowers and accessories.
2. All Dixon warranty must be accomplished by authorized Dixon dealers and in accordance with Dixon warranty policy and
allowances. All warranty claims must be approved by Dixon Industries, Inc.
3. Battery warranty: Limited to 90 days from date of purchase.
4. Accessories Warranty (Grass Catchers, Snow Blades, Tine Rakes, Covers, etc.): Limited to 90 days from date of purchase.
5. Warranty does not apply to damage in transit or incidents of misuse, negligence, accidents, or alteration. The use of parts or
components other than those supplied by Dixon Industries, Inc. VOIDS ALL WARRANTY.
6. The following items are nplcovered by this warranty policy:
(a) Pick up and delivery charges for transportation of mower to and from an Authorized Dixon Dealer's place of business.
(b) Routine maintenance or adjustments.
(c) Belts / chains / sprockets / cutting blades.
(d) Engines -All engines used on Dixon ZTR mowers are warranted by each individual engine manufacturer.
(e) Any costs or expense of providing substitute equipment while repair work is being performed on a warranted mower.
7. There is no other express warranty. Implied warranties, including those of merchantability and fitness for a particular
purpose, are limited to the same duration of the express warranty, and to the extent permitted by law any and all implied
warranties are excluded. Liabilities for consequential damages under any and all warranties are excluded.
SEE DEALER FOR DETAILS
Page 7

SPECIFICATIONS
Model ZTR 6601
CHASSIS: 11 GA -rectangular tube
BODY: Two piece-made of rotational molded polyethylene. Front body contains
access panels for battery service and engine to mower deck belt removal. Rear
body tilts up to allow service on the entire drive system.
SEAT: Economically designed for operator comfort by use of high density closed cell
foam, contoured back rest and arm rests. Seat is adjustable fore and aft.
MOWER DECK: 10 GA stamped steel construction
3 blades combine for 60" cut width Cut height approximately 1" to
4.5" via 8 position lift handle
BLADE DRIVE: Electric clutch
DRIVE SYSTEM: Each rear wheel is independently driven by a HydroGear BDU-10L Series 70
hydrostatic transmission. The hydrostatic transmissions, in turn, power a fully
enclosed HydroGear gearbox.
ENGINE: 22 HP Kohler Command, 4-Cycle, Twin Cylinder, V-Configuration, Overhead
Valve, Air-Cooled, Gasoline, Vertical Shaft, Aluminum Head and Crankcase with
Cast Iron Liners, Oil Cooler.
STARTING SYSTEM: Electric by key switch operation with safety interlocks on parking brake and blade
drive clutch.
TIRES: Front 11 X 4 X 5 Ribbed Tread
Rear 20 X 11 X 8 Turf Tamer AT.
;
RECOMMENDED Front 16-21lbs.
TIRE PRESSURE: Rear 5 lbs. maximum pressure
CAPACITIES: Fuel -4.8 gallons total (dual tanks)
Hydrostat oil tank -3 quart with in-line 10 micron filter
Hydrostat oil recommendation, refer to page 29
Engine -2 qts. SAE 10W30 (with filter)
DIMENSIONS: Width 72"
Height 45"
Length 89"
Weight 700 lbs.
NOTE: Additionalinformationprovidedinserviceinstructionsunder the individual
component.
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
Page 8

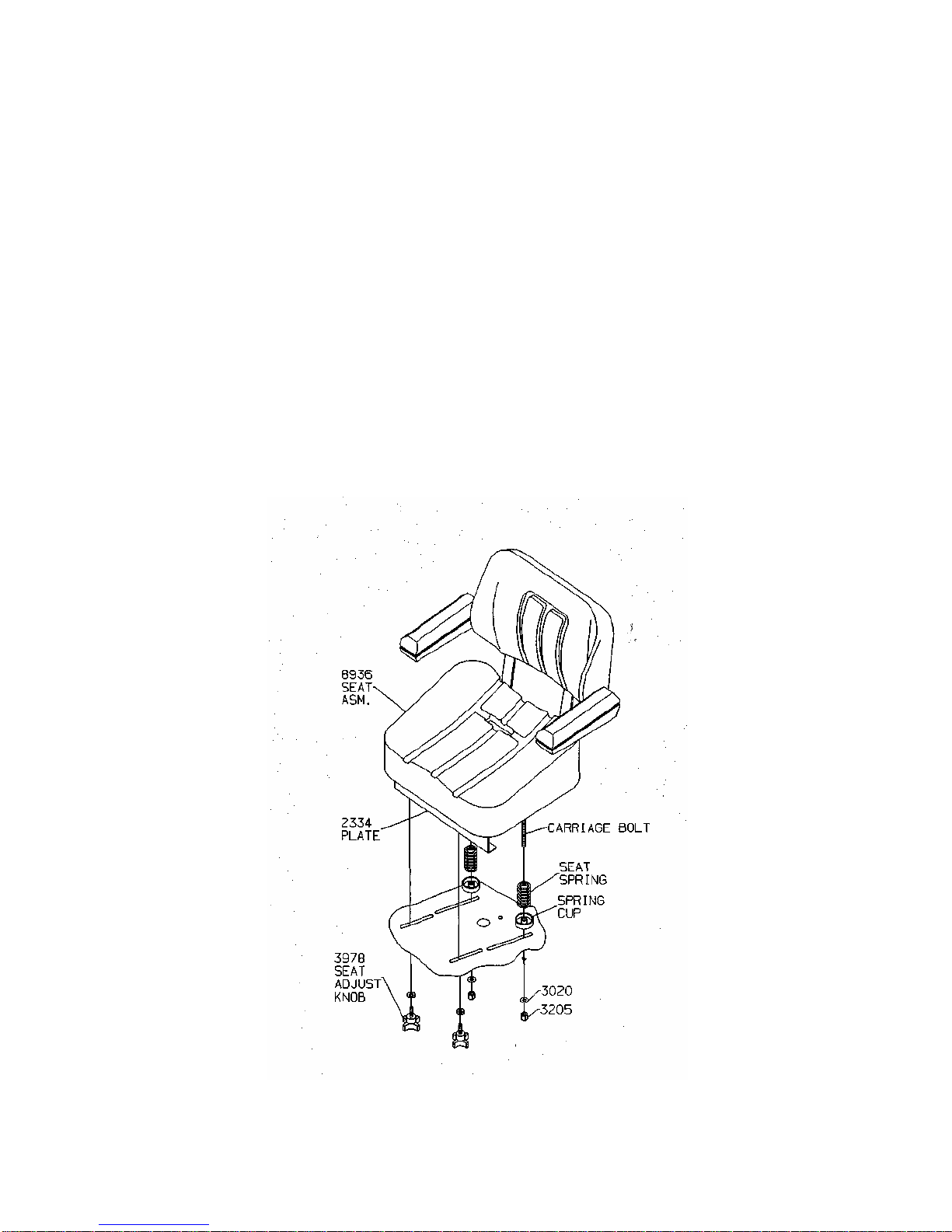

SEAT ADJUSTMENT INSTRUCTIONS
1. Place parking brake in ON position. (Pull brake lever up)
2. Raise and push seat assembly and upper body rearward.
3. Loosen two front seat adjustment knobs, P/N 3978, and slide seat forward or backward to desired
position.
4. Re-tighten front seat adjustment knobs, P/N 3978.
DO NOT operate mower without seat adjustments properly tightened.
5. Carefully lower upper body and seat assembly to the closed position.
Page 9

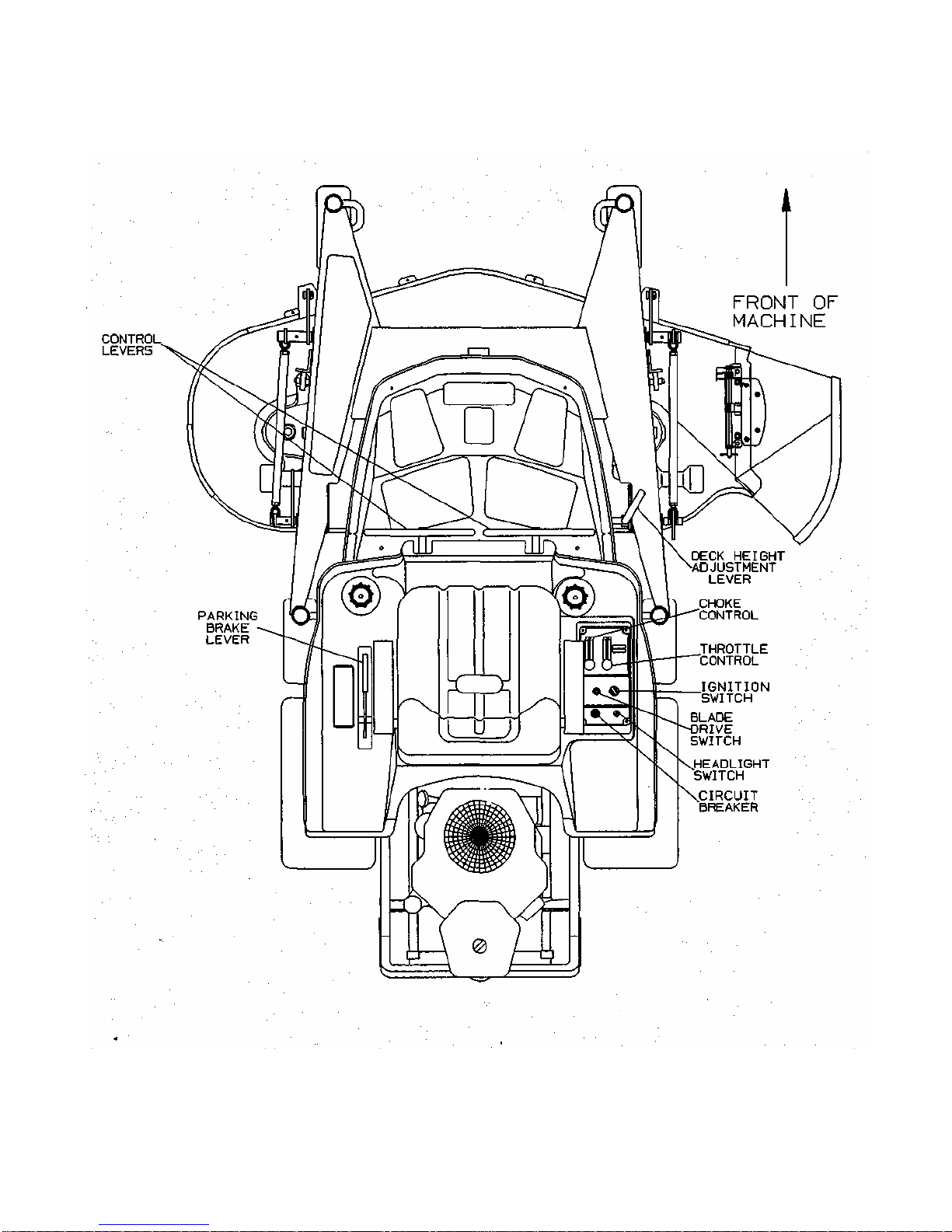

CONTROLS
Page 10

CONTROLS
PARKING BRAKE:
The parking brake used on the Model ZTR 6601 is designed to hold the
mower from moving and is not intended for use in stopping the mower
while it is in motion.
CAUTION Engage parking brake before starting engine.
Do not leave engine running for extended periods of time
without the parking brake engaged. Damage to the drive system could
result.

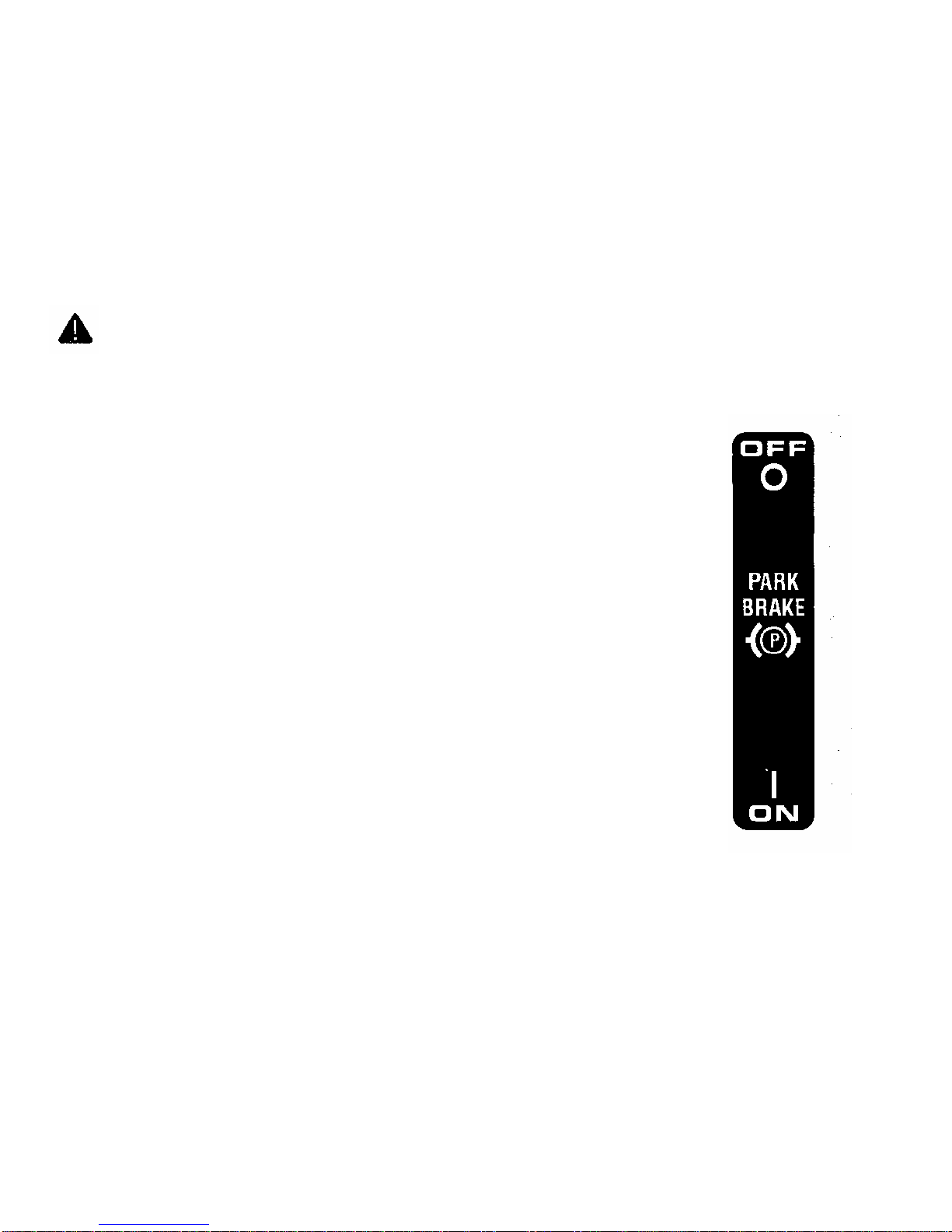

TO SET PARKING BRAKE:
The hand operated parking brake is located at left hand side of mower.
To engage brake, pull lever up and to the rear.
To release brake, move lever forward and down.
NOTE: Always set parking brake before dismounting.
Release parking brake before moving mower.
HYDRO-GEAR DRIVE SYSTEM:
Allows the mower to turn on its own axis (zero turning radius).
Drive levers control braking, turning, travel speed and direction. Each
lever controls one side of the mower.
NOTE: The pressure required to operate the mower is very light.
A minimum of 1/2 hour should be spent simply driving the mower without
the blade drive engaged.
Page 11

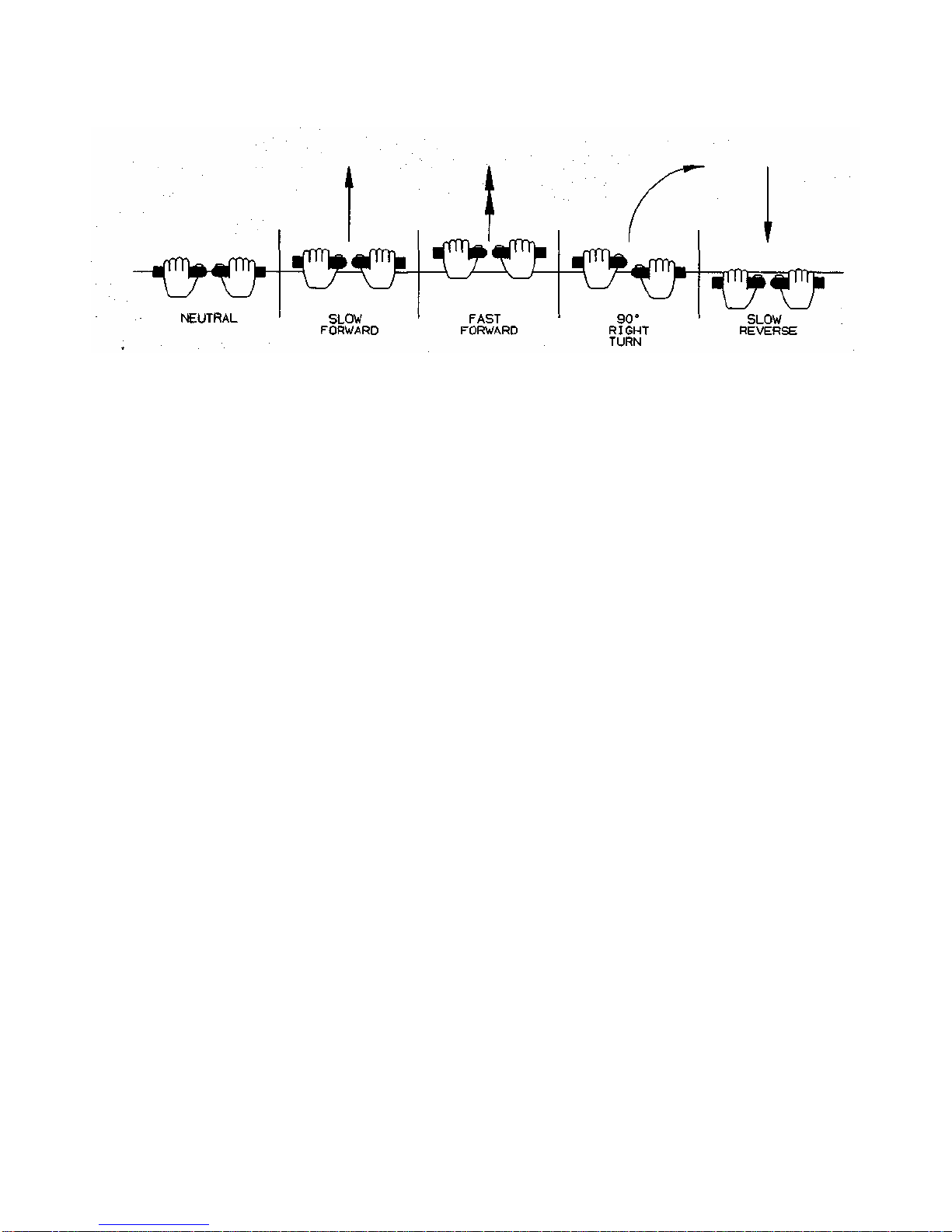

TO GO FORWARD:
From neutral position, gently push both drive levers forward. To
increase speed, move levers farther forward.
TO GO BACKWARD:
From neutral position, gently pull both drive levers toward you.
TURNING:
Turning is controlled by moving one drive lever slightly forward or rearward of the other.
To turn left, move left lever rearward of the right lever.
To turn "square corners" move lever of desired direction to neutral.
To turn on mower's own axis (zero turning radius) stop and move one lever to reverse
position and the other to forward position.
BRAKING:
To brake mower, move both levers in direction opposite of travel, release levers to neutral,
set parking brake. Park only on level surfaces.
CHOKE CONTROL LEVER:
Located on control panel to operator's right.
Used to start a cold engine.
THROTTLE CONTROL LEVER:
Located on control panel to operator's right.
Controls engine speed, slow to maximum.
While mowing throttle control should be set to the MAXIMUM or wide open setting toinsure
adequate cooling of the engine and to maintain mower deck blade speed.
Page 12
CONTROLS

CONTROLS
BLADE DRIVE:
Located on control panel, on operator's right.
To engage the mower blades, lift switch up
lightly and push forward.
To disengage blades, pull switch backward.
Switch is clearly marked "on and off".
CIRCUIT BREAKER:
Located on control panel, on operator's right.
Protection of the electrical system is by (1)
15 amp circuit breaker.
If circuit breaker trips, push button to reset.
If this C9ndition repeats, consult dealer for
inspection and repair.
MOWER DECK CUT HEIGHT LIFT LEVER:
Located to the right and front of operator.
Controls the cutting height.
Eight positions of adjustment.
Move lever in and forward to lower.
Move lever in and back to raise.
NOTE: Always use high position for transport.
Page 13

OPERATION INSTRUCTIONS
The safe and successful operation of the Model ZTR 6601 will depend upon the operator having
the correct knowledge of all controls used on the mower and making good judgements about the
terrain to be mowed.
NEVER allow anyone to operate the mower without complete knowledge of all controls and their
functions.
During initial operation, "learning to drive", set throttle at slow speed.
Sound judgement by the owner will prevent accidents.
BEFORE OPERATING MOWER:
1. Read engine manufacturer's operating and maintenance
instructions.
2. Discuss proper maintenance with your dealer.
3. Read and observe all safety instructions on your mower and in the
manual.
4. Check engine oil.
5. Check gas cap to be sure it is in place.
6. Be sure parking brake is on.
7. Mower blade drive is off.
8. Know how to stop engine. (Turn key to off position)
Page 14

OPERATION INSTRUCTIONS
PARKING BRAKE SWITCH TEST: With parking brake in the OFF position,
engine should not turn over or attempt to
start when the key switch is moved to the
start position.
BLADE DRIVE SWITCH TEST:
a. With electric blade drive switch turned ON
and parking brake in the ON position,
engine should not turn over or attempt to
start when key switch is moved to the start
position.
b. In a SAFE AREA away from bystanders,
start the engine, place throttle setting at
maximum or full. Engage the blades by
turning the blade drive switch to the ON
position. Raise weight slightly off of seat.
Engineshouldstop.
c. IfanySafetyCheckfails,donotoperate
the mower until the system has been
checked and repaired by an Authorized
Dixon ZTR Dealer.
Page 15
TESTING OF SAFETY INTERLOCK SYSTEMS:

OPERATION INSTRUCTIONS
STARTING INSTRUCTIONS: Cold Engine
1. Push choke control lever fully forward.
2. Push throttle control lever to 1/2 setting.
3. Insert ignition key and turn to "Start" position. When engine starts,
,release ignition key. Key will return to "Run" position.
4. Once engine starts to warm up, slowly move choke control lever to the fully
closed position.
5. Move throttle control lever to the wide open or maximum setting for actual
operation of the mower deck.
6. Engine must be operated at wide open or maximum setting to insure
adequate lubrication, cooling and cut quality of the mower deck.
NOTE: Model ZTR 6601 will
require a slightly longer
warm up period using
partial choke settings.
Page 16

OPERATION INSTRUCTIONS
STARTING INSTRUCTIONS: Engine has been operated.
1. Move throttle control lever to 1/4 to 1/2 setting.
2. Insert ignition key and turn to "Start" position. When engine starts, release
ignition key. Key will return to "Run" position.
3. Move throttle control lever to wide open or maximum setting for actual
operation of the mower deck.
NOTE: Model ZTR 6601 may require partial choke setting to start even
if the engine has been operated for a period of time.
4. Engine must be operated at wide open or maximum setting to insure
adequate lubrication, cooling and cut quality of the mower deck.
CAUTION DO NOT operate the engine in an enclosed area due to the
harmful exhaust gas produced.
NOTE: On initial operation, set throttle at slow speed.
Engine cannot be restarted when blade is engaged.
Safety switches stop engine when operator leaves seat while
mower blade is engaged.
Always turn engine off when leaving mower.
Page 17
