R36XSCF10

2
Original Instructions
IMPORTANT!
It is essential that you read the instructions in this manual
before assembling, operating, and maintaining the
product.
Subject to technical modication.
Safety, performance, and dependability have been given top
priority in the design of your cordless scarier or aerator.
INTENDED USE
The cordless scarier or aerator is intended only for outdoor
use. All four wheels should touch the ground while scarifying
or aerating.
The product tted with scarifying tines is designed for
domestic lawn scarifying.
The product tted with an aerator attachment is designed to
create holes in the soil to reduce soil compaction.
The product is a pedestrian-controlled lawn scarier or
aerator designed to be pushed by hand. The product should
not be pulled or ridden on. It should not be used on anything
other than domestic grass lawns.
Do not use the product for any other purpose.
GENERAL PRODUCT SAFETY WARNINGS
PERSONAL SAFETY
■Be familiar with the controls and the correct use of the
product.
■Never allow children or people with reduced physical,
sensory or mental capabilities or persons not familiar
with these instructions to operate, clean or maintain the
product. Local regulations may restrict the age of the
operator. Children should be adequately supervised to
ensure that they do not play with the product.
■Stay alert, watch what you are doing, and use common
sense when operating the product. Do not operate the
product while tired, ill, or under the influence of drugs,
alcohol, or medication. A lapse in concentration while
operating the product may result in serious personal
injury.
■Wear heavy, long trousers, long sleeves, and sturdy,
anti-slip footwear. Do not wear short trousers, sandals,
or go barefoot. Avoid wearing loose-fitting clothing
or clothes that have hanging cords or ties. Wear ear
protection.
■Always wear safety glasses with side shields.
■Do not overreach. Always be sure of your footing
especially on slopes. Keep firm footing and balance.
Walk, never run.
■Use the product across the face of slopes, never up
and down. Exercise extreme caution when changing
direction on slopes.
■Do not use the product near drop-offs, ditches,
excessively steep slopes, or embankments. Poor footing
could cause a slip-and-fall accident.
WORK AREA SAFETY
■Never use the product while people, especially children,
or pets are nearby.
■Objects struck by the scarifier tines can cause severe
injuries to persons. Thoroughly inspect the area where
the product is to be used and remove all rocks, sticks,
metal, wire, bones, toys, or other foreign objects.
Remember, string or wire may entangle with the cutting
means.
■Always use the product in the daylight or with good
artificial light. Thoroughly inspect the area where the
equipment is to be used and remove all objects which
can be thrown by the product.
■Do not operate the product in explosive atmospheres,
such as in the presence of flammable liquids, gases, or
dust. The product creates sparks, which may ignite the
dust or fumes.
■Do not operate the product on wet grass or in the rain.
■Do not operate the product on a paved or gravel surface
where ejected material could cause injury.
■Operate the product only on a level surface by using
a two-handed operation with the operator behind the
handlebar.
■Avoid using the product in bad weather especially when
there is a risk of lightning.
■Keep in mind that the operator or user is responsible for
accidents or hazards occurring to other people or their
property.
BATTERY TOOL USE AND CARE
■A battery pack must be recharged only with the charger
specified by the manufacturer. Using a charger with an
incompatible battery pack may create a risk of fire. Use
battery pack only with charger listed.
■Use only battery pack intended specifically for the
product. Use of any other battery packs may result in a
risk of fire, electric shock, or injury to persons.
■When the battery pack is not in use, keep it away from
other metal objects like, paper clips, coins, keys, nails,
screws, or other small metal objects, that can make a
connection from one terminal to another. Shorting the
battery pack terminals together may cause sparks,
burns, fire or explosion.
■Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally occurs,
flush with water. If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery may cause
irritation or burns.
SCARIFIER AND AERATOR SAFETY WARNINGS
■The tines on the product are sharp. Use extreme caution
and wear heavy-duty gloves when fitting, replacing,
cleaning, or checking bolt security.
■Check that all screws, nuts, bolts, and other fasteners
are properly secured and that guards and screens are in
place. Replace damaged or unreadable labels.
■Replace worn or damaged parts before operating the
product.
■Do not force the product. It will do the job better and
safer at the speed for which it was designed.
■Use extreme caution when reversing or pulling the
product towards you.
■Stop the tines if the product has to be tilted for
transportation, when crossing surfaces other than grass,
and when transporting the product to and from the work
area.

3
Original Instructions
■Never use the product with defective guards or shields,
or without safety devices, for example, deflectors and
catchers, in place.
■Do not tilt the product when turning on the motor, except
if the product has to be tilted for starting. If absolutely
necessary, you may lift only the part that is away from
the operator. Always ensure that both hands are in the
operating position before returning the product to the
ground.
■Turn on the product carefully according to the
instructions, and keep hands and feet away from the
tines. Do not put hands or feet near or under rotating
parts. Keep clear of the discharge opening at all times.
■Never pick up or carry the product while it is running.
■Turn off the product, and remove the isolator key and the
battery pack. Make sure that all moving parts have come
to a complete stop:
●whenever you leave the product unattended
(including disposal of grass clippings).
●before cleaning a blockage or unclogging the
discharge chute
●before checking, cleaning or working on the product
●after striking a foreign object; inspect the product
for damage and make repairs as necessary before
restarting and operating the product.
■If the product starts to vibrate abnormally, check
immediately to:
●inspect for damage
●replace or repair any damaged parts
●check for and tighten any loose parts
■Do not touch moving hazardous parts before battery
pack is removed and the moving hazardous parts have
come to a complete stop.
■Injuries may be caused, or aggravated, by prolonged use
of the product. When using any product for prolonged
periods, ensure to take regular breaks.
ADDITIONAL BATTERY SAFETY WARNINGS
To reduce the risk of re, personal injury, and product
damage due to a short circuit, never immerse the tool,
battery pack, or charger in uid or allow uid to ow inside
them. Corrosive or conductive uids, such as seawater,
certain industrial chemicals, and bleach or bleach-containing
products, etc., can cause a short circuit.
TRANSPORTATION AND STORAGE
■Turn off the product, remove the isolator key and the
battery pack, and allow both to cool down before storing
or transporting.
■Remove all foreign materials from the product. Store the
product in a cool, dry, and well-ventilated place that is
inaccessible to children. Keep the product away from
corrosive agents such as garden chemicals and de-icing
salts. Do not store the product outdoors.
■For transportation, secure the product against movement
or falling to prevent injury to persons or damage to the
product.
WARNING! Use extreme caution when lifting or
tilting the product for maintenance, cleaning, storage, or
transportation. The tines are sharp, keep all body parts
away from the tines while it is exposed.
TRANSPORTING LITHIUM BATTERIES
Transport the battery in accordance with local and national
provisions and regulations.
Follow all special requirements on packaging and labelling
when transporting batteries by a third party. Ensure that
no batteries can come in contact with other batteries
or conductive materials while in transport by protecting
exposed connectors with insulating, non-conductive caps or
tape. Do not transport batteries that are cracked or leaking.
Check with the forwarding company for further advice.
MAINTENANCE
■Use only original manufacturer’s replacement parts,
accessories, and attachments. Failure to do so can cause
possible injury, can contribute to poor performance, and
may void your warranty.
■Servicing requires extreme care and knowledge
and should be performed only by a qualified service
technician. Have the product serviced by an authorised
service centre only.
■When the product is stopped for servicing, inspection,
storage, or changing an accessory, turn off the power
source, remove the battery pack, and make sure that all
moving parts have come to a complete stop. Allow the
product to cool down before making any inspections and
adjustments. Maintain the product with care and keep
it clean.
■Check the catcher frequently for wear, holes, or
deterioration.
■Replace worn or damaged parts for safety. Use only
original replacement parts and accessories.
■Check all nuts, bolts, and screws at frequent intervals
for proper tightness to ensure that the product is in safe
working condition.
■Be careful during adjustment of the product to prevent
entrapment of the fingers between moving tines and
fixed parts of the product.
■When servicing the tine assembly, be aware that even
though the power source is turned off, the tine assembly
can still be moved.

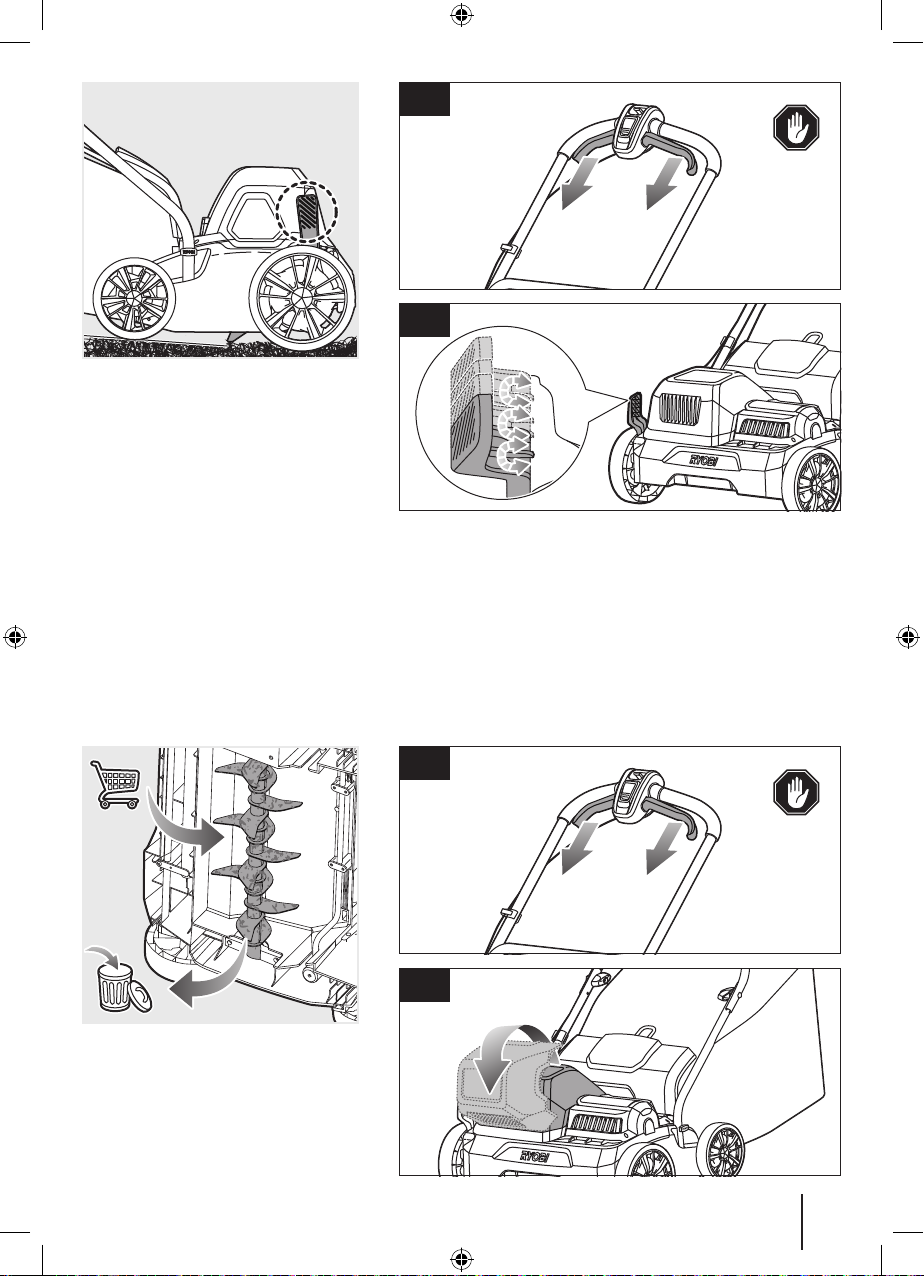

CLEARING BLOCKAGES
Always wear heavy-duty gloves when checking or clearing a
blockage. The tines are sharp and the blockage itself could
be a sharp object.
1. Turn off the product, and remove the isolator key and
the battery pack.
2. Remove the catcher, and check for and carefully clear
obstructions.
3. Check for and carefully clear blockages in the grass
discharge chute.
4. Turn the product on its side and check the underside of
the product and the area around the tines.
5. Remove any found blockages carefully. Remember that
the tines may move during cleaning.

4
Original Instructions

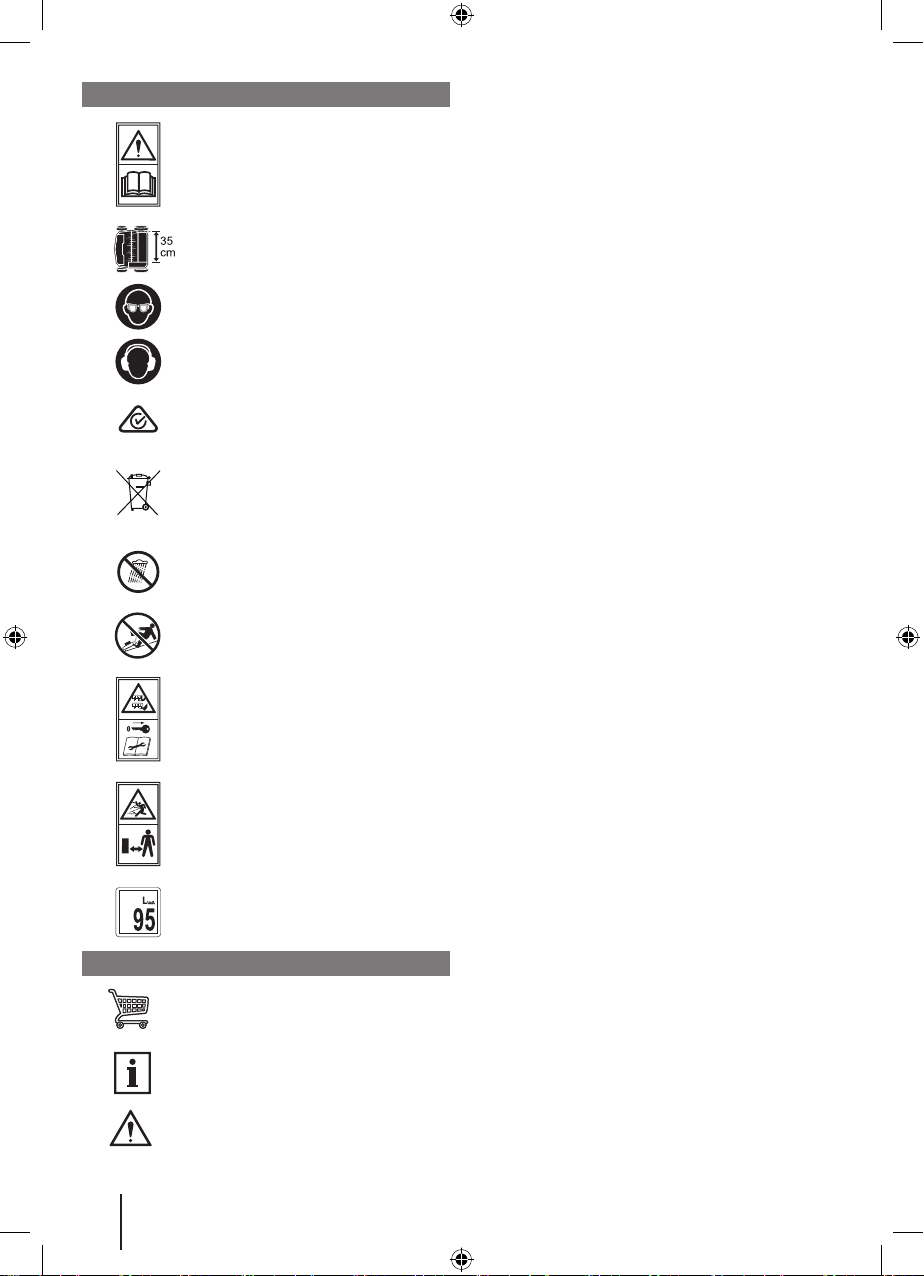

SYMBOLS ON THE PRODUCT
Safety alert
Read the instructions carefully before
starting the product.
Working width: 35 cm
Wear eye protection.
Wear ear protection.
Regulatory Compliance Mark (RCM).
This product meets applicable
regulatory requirements.
Waste electrical products should not
be disposed of with household waste.
Please recycle where facilities exist.
Check with your local authority or
retailer for recycling advice.
Do not expose the product to rain or
damp condition.
Do not operate on inclines greater than
15°. Use the product across the face of
slopes, never up and down.
Beware of sharp tines.
Tines continue to rotate
after the motor is turned o󰀨.
Remove the isolator key before
maintenance.
Beware of thrown or ying objects.
Keep all bystanders, especially
children and pets, at least 15 m away
from the operating area.
Guaranteed sound power level
SYMBOLS IN THIS MANUAL
Parts or accessories sold separately
Note
Warning

5

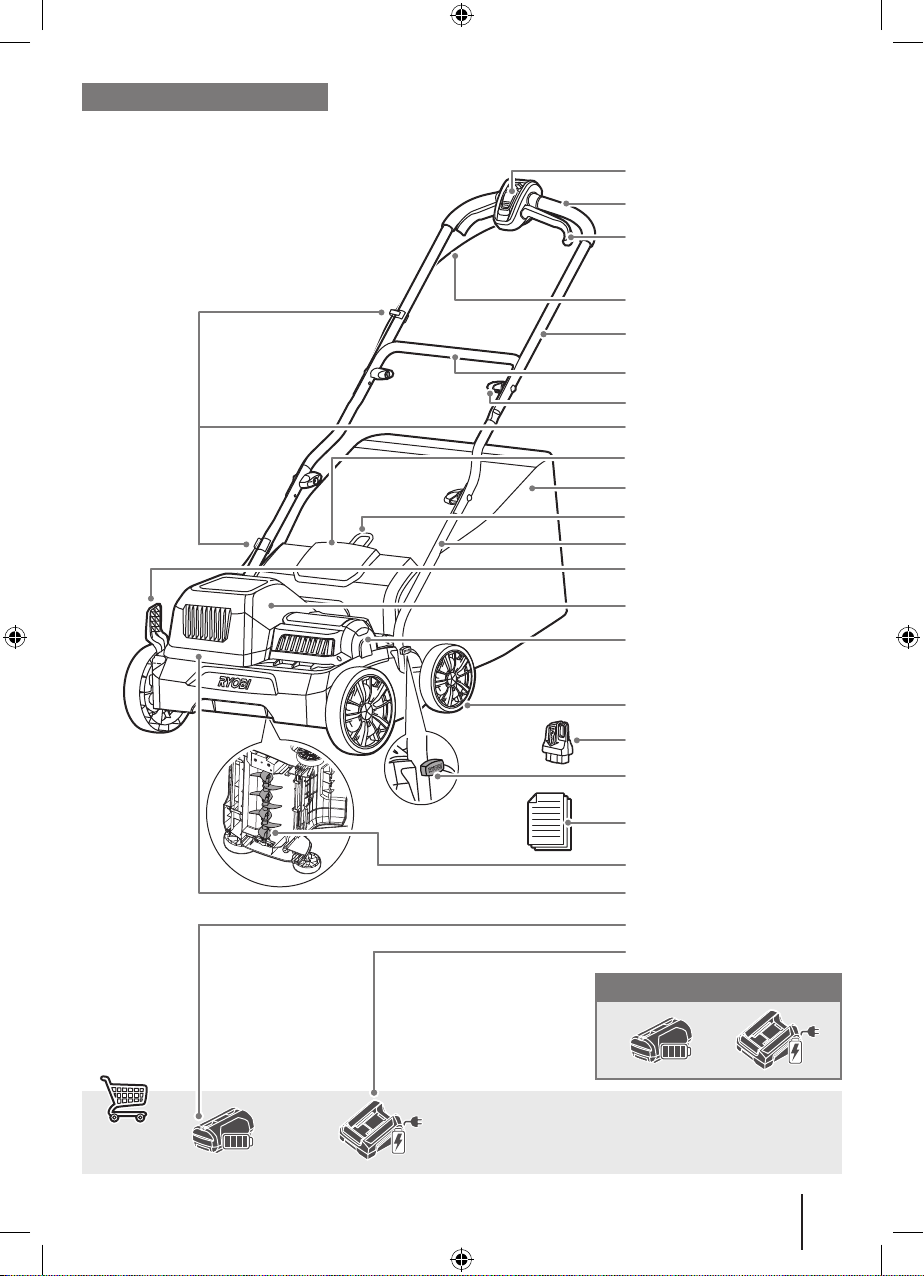

Know your product
R36XSCF10
R36XSCF14
Start button
Scarifier blade
Handle grips
Upper handle
Motor control cable
Motor control cable retainer
Handle knob
Catcher
Operator’s manual
Isolator key
Lower handle
Middle handle
Wheel
Battery door
Depth adjustment lever
Motor housing
On/off lever
Catcher frame
Rear door
Battery compartment
Handle lock
Battery pack
Charger

6

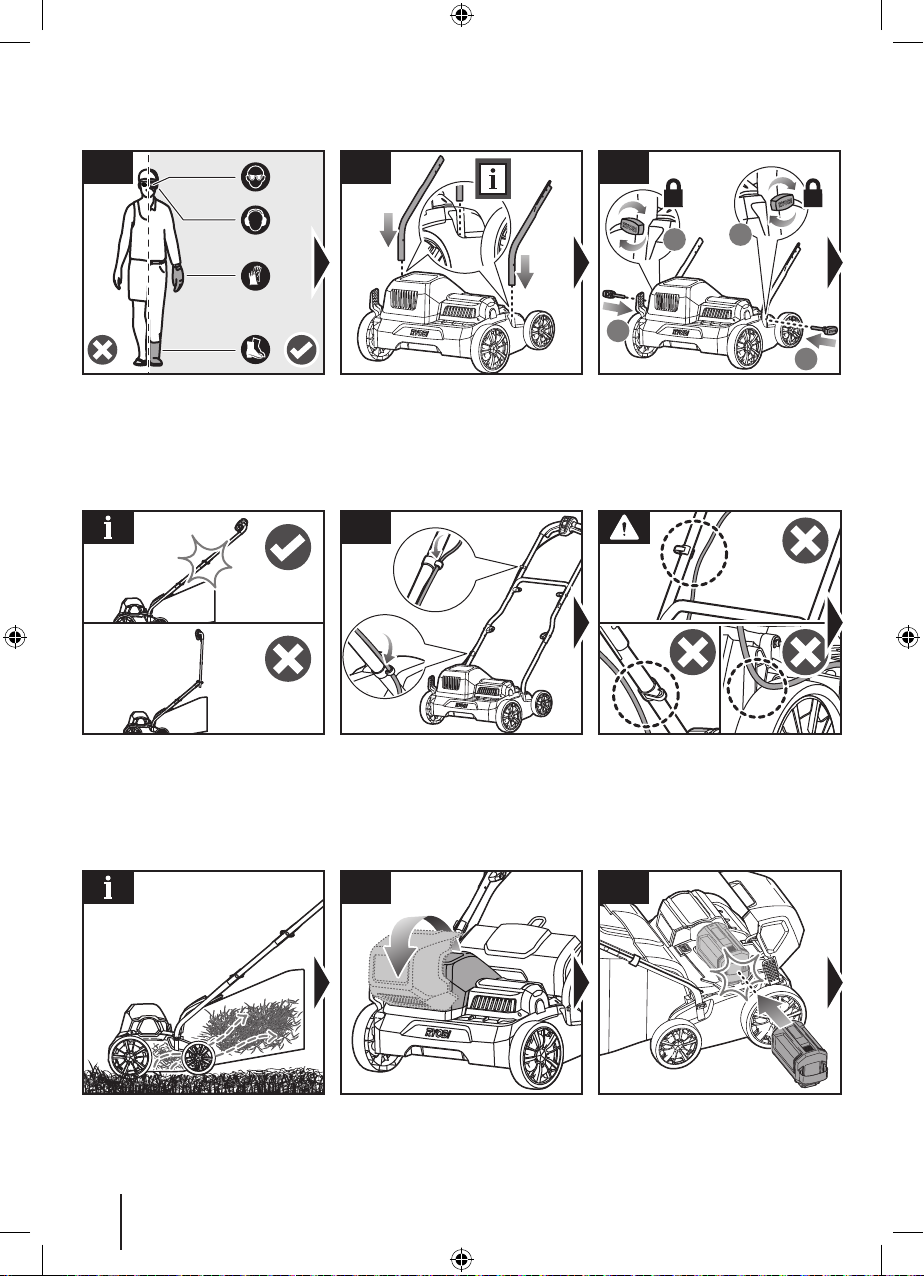

Getting started
7
NOTE: The catcher collects the thatch
and dead grass removed by the
product.
1
1
22
1 2 3
10
Install the battery pack. Make sure that
the latch on the battery pack clicks into
place.
Secure the motor control cable into the
motor control cable retainer.
Wear full eye protection, ear protection,
non-slip heavy-duty gloves, substantial
footwear, and long trousers at all times
while operating the product. Do not
operate the product when barefoot or
wearing open sandals.
Attach the lower handle to the product. Install a handle lock on each side of
the lower handle. Turn the handle locks
clockwise to tighten.
WARNING: Do not leave the motor
control cable unsecured and hanging
loosely.
Open the battery door.
NOTE: Straighten the joints of the
upper and middle handles so that the
joints click into place. Make sure that
the joints are not at an angle.
11

7

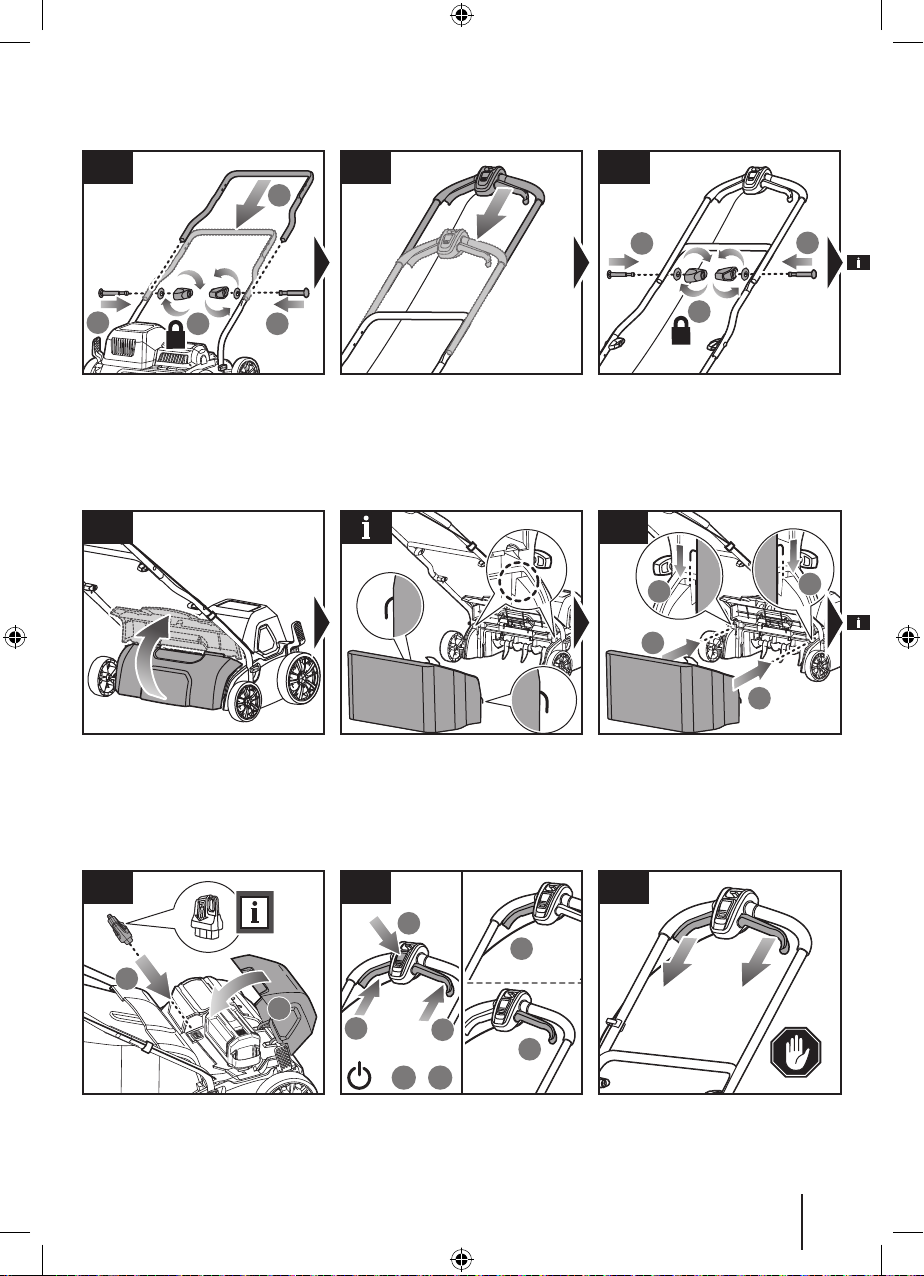

Getting started
1
1
22
Insert the isolator key and close the
battery door.
Open the rear door. NOTE: The catcher has a hook on each
side that fits into the grooves behind the
product.
2
1
12
Press the start button and squeeze
either the right or left on/off lever.
1
223 2
1
1
4 5
1
A
B
A
+ /
B
2
2
13 14
Release the on/off lever to stop the
product.
8
Align the catcher to the rear side of
the product. Hook the catcher into the
grooves.
9
Attach the middle handle to the lower
handle. Install a screw, washer, and
handle knob on each side. Turn the
handle knobs clockwise to tighten.
Attach the upper handle to the middle
handle.
Install a screw, washer, and handle
knob on each side. Turn the handle
knobs clockwise to tighten.
6

8
p.9
Operating the
product
Adjusting the
working depth
Replacing the
scarifier blade
Emptying the
catcher
Cleaning and
storing the product
p.14
p.15p.11 p.11

9
Operation
15˚Max.15˚
1
OPERATING THE PRODUCT
WARNING: Use the product in areas without
any obstructions. Avoid holes, ruts, bumps,
rocks, property stakes, or other hidden
objects.
WARNING: The product can be used on a
horizontal slope inclined at a maximum of
15°. Do not operate the product on inclines
greater than 15°. Use the product across the
face of the slopes, never up and down. For
best results, mow lawns before using the
product.
1. Open the rear door.
NOTE: The grooves behind the product are
for the hooks of the catcher.

10
Operation
1
23
AB
1
A
+ /
B
2
2
5
6
2
3
4
2. Align the catcher to the rear side of the
product.
NOTE: The catcher has a hook on each
side that fits into the grooves behind the
product.
3. Hook the catcher into the grooves.
4. Open the battery door.
5. Install the battery pack and make sure
that the latch on the battery pack clicks
into place. Insert the isolator key and
close the battery door.
6. Press the start button,and squeeze
either the right or left on/off lever.
NOTE: Release the on/off lever to stop
the product.

11
Operation
1
4321
2
1
2
REPLACING THE SCARIFIER BLADE
1. Release the on/off lever to stop the
product.
2. Open the battery door.
ADJUSTING THE WORKING DEPTH
1. Release the on/off lever to stop the
product.
2. Move the depth adjustment lever to the
different settings to set the preferred
working depth.
NOTE: The 1setting is the default working
depth of the product. The following settings
increase the depth.

12

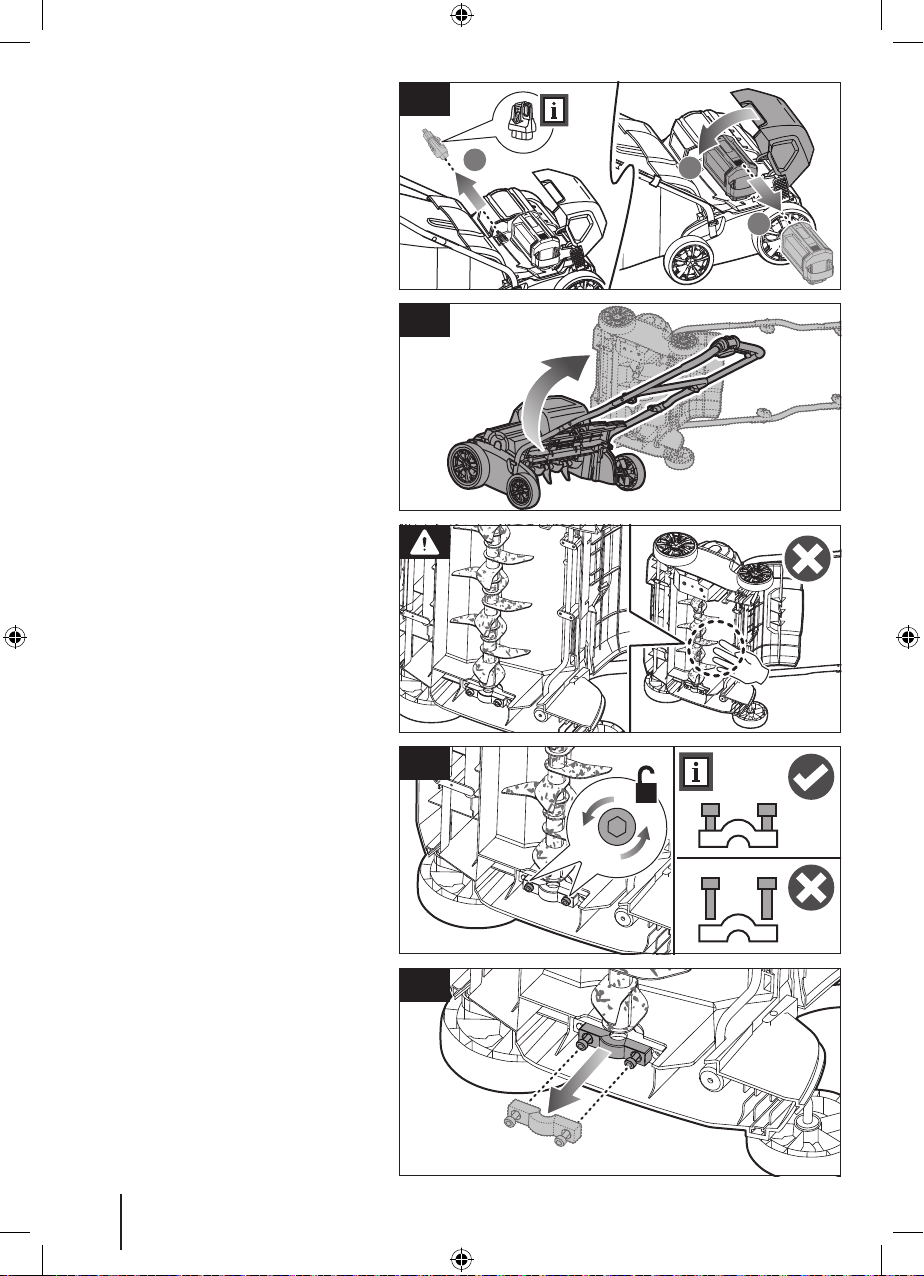

Maintenance
3
2
1
3
4
5
6
3. Remove the isolator key. Remove the
battery pack. Close the battery door.
4. Lay down the product on its side.
WARNING: Keep bare hands away from
the scarifier blade at all times. Use extreme
caution and wear heavy-duty gloves when
fitting, replacing, or cleaning the blade.
5. Turn the screws counterclockwise to
loosen them.
NOTE: Loosen the screws only. Do not
remove them from the blade shaft cover.
6. Remove the blade shaft cover.

13
Maintenance
2
1
3
7
1
2
8
1
2
9
10
7. Pull and slide down the blade to remove
it. Dispose of the scarifier blade properly.
8. Insert the new scarifier blade and push in
the blade shaft.
9. Reinstall the blade shaft cover. Turn the
screws clockwise to tighten them.
NOTE: Do not overtighten the screw. The
torque setting is 3-3.5 Nm.
10. Set the product upright.

14
Maintenance
1
2
3
2
1
1
2
3
4
5
EMPTYING THE CATCHER
1. Release the on/off lever to stop the
product. Open the battery door.
2. Remove the isolator key. Remove the
battery pack. Close the battery door.
3. Unhook the catcher from the grooves.
4. Remove the catcher.
5. Empty the contents of the catcher into a
proper waste container.

15
Maintenance
1
2
1
3
1
2
2
CLEANING AND STORING THE
PRODUCT
1. Release the on/off lever to stop the
product.
NOTE: Remove debris from the product with
a soft, dry cloth and a stiff brush.
NOTE: Do not use water to clean the product.
2. Open the battery door. Remove the
isolator key.
3. Remove the battery pack. Close the
battery door.

16

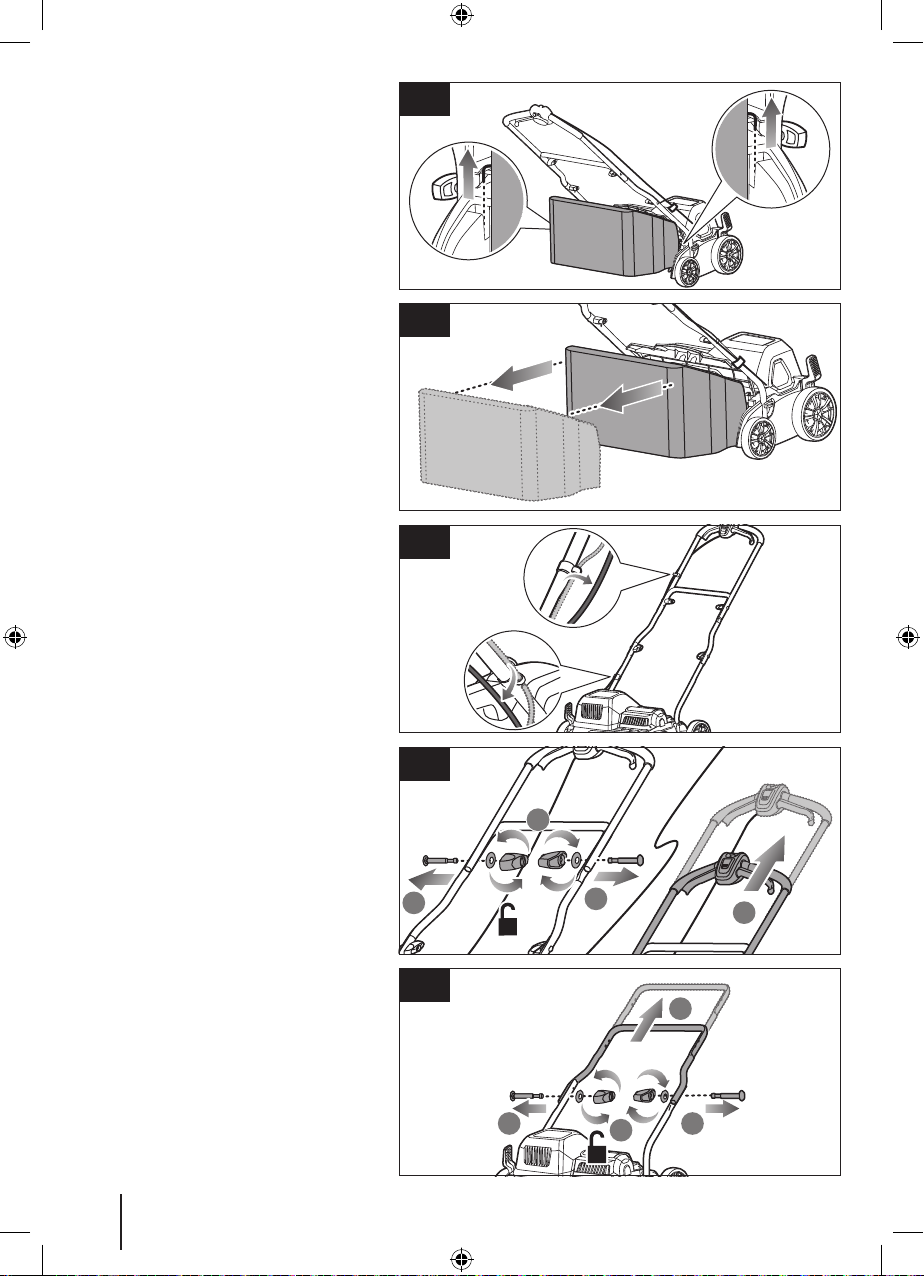

Storage
4
5
6
22
1
3
7
22
1
3
8
4. Unhook the catcher from the grooves.
5. Remove the catcher.
6. Remove the motor control cable from the
motor control cable retainer.
7. Turn the handle knobs that secure the
upper handle counterclockwise to loosen
them. Remove the washer and screw on
each side. Remove the upper handle.
8. Turn the handle knobs that secure the
middle handle counterclockwise to loosen
them. Remove the washer and screw on
each side. Remove the middle handle.
20211014v1d1

17
Storage
11
1
22
1
9
10
20211014v1d1
9. Turn the handle lock on each side
counterclockwise to remove it.
10. Remove the lower handle from the
product.
11. Store the product in a cool, dry, and
well-ventilated area that is inaccessible
to children. Keep the product away
from corrosive agents, such as garden
chemicals and de-icing salts. Do not store
the product outdoors.

PRODUCT SPECIFICATIONS
Cordless scarier
Model R36XSCF10
Rated voltage 36 V d.c.
Working width 350 mm
Working heights 2, -4, -8, -12 mm
No-load blade speed 3300 rpm
Noise emission level (in accordance with EN 50636-2-92 Annex DD)
LpA 80.5 dB(A)
Uncertainty K= 3.0 dB
LWA 91.3 dB(A)
Uncertainty K= 3.8 dB
Vibration level (in accordance with EN 50636-2-92 Annex CC)
ah8.1 m/s2
Uncertainty K= 1.5 m/s2
BATTERY AND CHARGER
Model R36XSCF14 R36XSCF10
Battery pack R36BTY4 -
Weight 1.33 kg -
Charger BCL3617S -
Weight 0.37 kg -
Compatible battery
packs
BPL3620D, BPL3626D2, BPL3640D2,
BPL3650D2, BPL3660D, BPL3690D,
BPL3612D, R36BTY2, R36BTY4, R36BTY5
REPLACEMENT PARTS
Scarier blade 09922801044
NOTE: Visit your local special orders desk or contact RYOBI
customer service for replacement parts.
WARNING! The declared vibration total values and the
declared noise emission values given in this instruction
manual have been measured in accordance with a
standardised test and may be used to compare one tool with
another. They may be used for a preliminary assessment
of exposure.
The declared vibration and noise emission values represent
the main applications of the tool. However, if the tool is used
for di󰀨erent applications, used with di󰀨erent accessories,
or poorly maintained, the vibration and noise emission
may di󰀨er. These conditions may signicantly increase the
exposure levels over the total working period. An estimation
of the level of exposure to vibration and noise should take
into account the times when the tool is turned o󰀨 or when
it is running idle. These conditions may signicantly reduce
the exposure level over the total working period.
Identify additional safety measures to protect the operator
from the e󰀨ects of vibration and noise, such as maintaining
the tool and the accessories, keeping the hands warm (in
case of vibration), and organising work patterns.

BACK PAGE
Imported by:
Techtronic Industries Australia Pty Ltd
31 Gilby Road, Mount Waverley, VIC 3149
Melbourne, Australia
Techtronic Industries N.Z. Limited
Unit C, 70 Business Parade South,
Highbrook, Auckland 2013, New Zealand
RYOBI is a trade mark of Ryobi Limited, and is used under license.
099267001001-01
