Installation Manual
Battery Energy Storage System
Soluna S8 EU-A50
DLG Energy (Shanghai) Co., Ltd.
June 2020 Version V1.1

Page 2of 60
About this manual
This manual describes how to install the SOLUNA Battery Energy Storage System
(referred to as BESS from hereon), the Soluna S8 EU-A50, manufactured by DLG
Energy (Shanghai) Co., Ltd.
Please read this manual before you attempt to install the product, and follow the
instructions throughout the installation process. If you are uncertain about any of
the requirements, recommendations, or safety procedures described in this
manual, contact DLG Energy (Shanghai) Co., Ltd. immediately for advice and
clarification.
The information included in this manual is accurate at the time of publication.
Regarding the product design and technical specification updates, our company
reserves the right to make changes at any time without prior notice. Also, the
illustrations in this manual are intended to help explain system configuration
concepts and installation instructions. The illustrated items may differ from the
actual products at the installation location
Please search the products sections of the websites www.soluna.com.au or
www.solunabattery.com to confirm that you are reading the latest version of
the Installation Manual. Please search for the Australian version.
Version Information
Version
Date
Content
Author
V1.0
21st May 2020
First edition
Henry
V1.1
1 June 2020
Contact details changed to
solunabattery.com
Henry

Page 3of 60
Contents
Safety precautions..................................................................................................................4
Warning signs .....................................................................................................................5
Safety guide........................................................................................................................6
Transportation and installation ............................................................................................7
Grid-tied operation ..............................................................................................................8
Maintenance and replacement ............................................................................................8
What to do at the battery end of life.....................................................................................8
Product Introduction................................................................................................................9
Features..............................................................................................................................9
Application ..........................................................................................................................9
Outline Dimensions...........................................................................................................10
Functional description .......................................................................................................11
Working modes.................................................................................................................12
ALWAYS CHECK THE AS4777.2: 2015 SETTINGS WITH THE LOCAL GRID OPERATOR
..........................................................................................................................................13
Technical Data..................................................................................................................16
Technical data of System...............................................................................................16
Technical data of battery module...................................................................................17
Appearance.......................................................................................................................19
Installation ............................................................................................................................22
Installation tools.............................................................................................................22
Spacing during installation and subsequent operation.......................................................23
Wiring specifications..........................................................................................................24
Installation step.................................................................................................................24
Unpacking confirmation .................................................................................................24
Basic installation requirement............................................................................................25
Installation procedures..........................................................................................................26
Step 1............................................................................................................................26
Step 2:...........................................................................................................................27
Step 3............................................................................................................................28
Step 4:...........................................................................................................................29
Step 5............................................................................................................................30
Step 6............................................................................................................................31
Step 7 :..........................................................................................................................34
How to operate Soluna S8 EU-A50.......................................................................................36
Turn on or turn off the Soluna S8 EU system................................................................36
How to operate the LCD....................................................................................................37
The LCD is operated by touch, to view the information in the LCD simply touch to view the
details................................................................................................................................37
How to check the information on the LCD screen..............................................................38
How to Setting parameters of Soluna system ................................................................40
How to check the information of “Data” icon...................................................................44
How to check the production information of Soluna system...........................................45
How to maintain....................................................................................................................47
Fault handling.......................................................................................................................47
Remote monitoring ...............................................................................................................49
Contact us ............................................................................................................................60

Page 4of 60
Safety precautions
BESS are designed and tested following relevant international safety standards. As
an electrical and electronic device, all applicable safety regulations must apply
during installation, operation, and maintenance. Incorrect use or misuse may result
in: •Injury to the life and personal safety of the operator or other people.
•Damage to the system or other property belonging to the
operator/other people.
This chapter mainly reviews various warning symbols in the operation manual
and provides safety instructions for the installation, operation, maintenance and
use of the BESS .
Statement
Our company shall not be liable for any consequence caused by any of the
following events.
•Damage caused by transportation.
•The storage conditions do not meet the requirements specified in
the manual, resulting in damage.
•Incorrect storage, installation, and use.
•Unqualified personnel install and operate the system.
•Failure to comply with the operation instructions and safety
precautions in this manual.
•Operation in extreme environments which are not covered in this manual.
•Exceed the operation range of parameters specified in the
technical specification.
•Unauthorized disassembly, modification, or modification of the software code.
•Device damage caused by abnormal natural environment (force majeure,
such as lightning strikes, earthquakes, fires, storms, etc.)
•Warranty expiration.
•Installation or use in an environment which is not specified in the
relatedinternational standards

Page 5of 60
Warning signs
Warning signs are used to warn you about the conditions that may cause severe
injury or damage to the device. They instruct you to exercise caution to prevent
danger. The following table describes the warning signs used in this manual.
Sign
Name
Description
Danger
Severe physical injury or even death may occur
if related requirements are not followed
Warning
Physical injury or damage to the devices may occur if
related requirements are not followed.
Electrostatic
discharge
Damage may occur if related requirements are
not followed
Hot sides
Sides of the device may become hot. Do not touch.
Note
Note
Steps to take for ensuring the proper running of the
device.

Page 6of 60
Safety guide
After receiving this product, first, confirm the product package is intact.If any
question, contact the logistic company or local distributor immediately.
The installation and operation of the system must be carried out by
professional technicians. They have received professional training, and
thoroughly familiar with all the contents in this manual and the safety
requirements of the electrical system.
Do not carry out connection/disconnection, unpacking inspection and unit
replacement operations on the system when the power source is applied.
Before wiring and inspection, users must confirm the breakers on DC and
AC side of the inverter are disconnected and wait for at least 5 mins
Ensure there is no substantial electromagnetic interference caused by other
electronic or electrical devices around the installation site.
Do not refit the system unless authorized.
All the electrical installation must conformto local and national electrical
standards.
Ground with proper technics before the operation
Do not open the surface cover of the system unless authorized. The
electronic components inside the system are electrostatic sensitive. Do take
proper anti-electrostatic measures during authorized operation.
Do not touch the housing of the system or the radiator to avoidscald as
they may become hot during operation
The system needs to be reliably grounded.
Ensure that DC and AC side circuit breakers have been disconnected and
wait at least 5 minutes before wiring and checking.
Note: Technical personnel who can perform installation, wiring, commissioning,
maintenance, troubleshooting and replacement of the energy storage inverters must
meet the following requirements:
•Operators need professional training and should wear the recommended PPE.
•Operators must read this manual thoroughly and understand the related
safety precautions.
•Operators need to be familiar with the relevant safety regulations for
electrical systems in the region of the installation.
•Operators need to be fully aware of the composition, operating principle of the
entire energy storage system, and related standards in the region of the installation.

Page 7of 60
Transportation and installation
•Keep the package and unit complete, dry and clean during storage
and transportation.
•Please remove and install it with at least two people.
•To ensure the safe operation of the BESS and avoid personal
injury, please select proper handling and installation tools, and
take mechanical protection measures to PPE, such as wearing
steel toe capped shoes, overalls and so on.
•Only qualified electricians are allowed to install the system.
•Do not put and install the system on or close to flammableor
explosive materials.
•Do not install the system in a place where children and other people
can easily touch it.
•To avoid the risk of electric shock, please remove rings, bracelets,
and other metal jewellery on your hands before installation and
electrical connection.
•The solar cell modules exposed to the sunlight may generate a
dangerous voltage. Users must cover the cell modules with
sufficiently light shading materials before electrical connection.
•The input voltage of the system should not exceed the maximum
input voltage. Otherwise, damage may occur.
•The system is not suitable for the positive or negativegrounding
systems of solar cell modules.
•Ensure the proper grounding of the inverter.
•Ensure a reliable installation and electrical connection.

Page 8of 60
Grid-tied operation
Maintenance and replacement
•Only qualified electricians are allowed to perform the maintenance,
inspection, and component replacement of the system.
•Please contact the distributor or manufacturer for support.
•To avoid irrelevant personnel from entering the maintenance area
during maintenance, temporary warning signs must be placed to warn
non-professionals not to enter. Use a fence for isolation.
•Before carrying out any maintenance operations, all input powerto
the system must be disconnected first, and wait for at least 5
minutes until the internal parts of the system have fullydischarged.
•Please follow the electrostatic protection norms, and take correct
protective measures because there are mostly electrostatic-
sensitive circuits and devices in the system.
•Do not use parts and components not provided by our company
during maintenance.
•Restart the system after eliminating the faults and problemswhich
may affect the safety and performance of the system.
•Do not get close to or touch any charged metal conductor parts of
the Grid or running system; otherwise, electric shock or fire may
occur. Please do not ignore the warning icons and instructions with
“electric shock”.
What to do at the battery end of life
•Do not dispose of the system together with household waste. The user
is responsible and obliged to send it to a designated organization for
recycling and disposal. Seek advice from Soluna Australia,
Note
•Only qualified electricians are allowed to operate the system under
the permission of local power departments.
•All electrical connections must meet the electrical standards of the
countries/regions where the installation is happening.
•Ensure a reliable installation and electrical connection beforeoperation.
•Do not open the cover when the system is working or any circuit is
connected to the system.

Page 9of 60
Product Introduction
Soluna’s S8 EU-A50 can connect with a solar power generation system, assisting the
customer to use environmentally-friendly energy 24 hours per day. The BESS can
store the energy generated by the PV, using it when required, reducing electricity
bills, improving the household energy self-consumption and working when there is
a BLACKOUT. A Soluna BESS will provide the solution.
Features
•Intelligent power management
•Simple user controls, power data history analysis, and programming
•Touch-screen LCD interface
•Secure battery access door
•Height-adjustable threaded appliance-grade feet for stability and level
appearance
Application
•Self-use
•Peak Shaving
•Emergency power

Page 10 of 60
Outline Dimensions

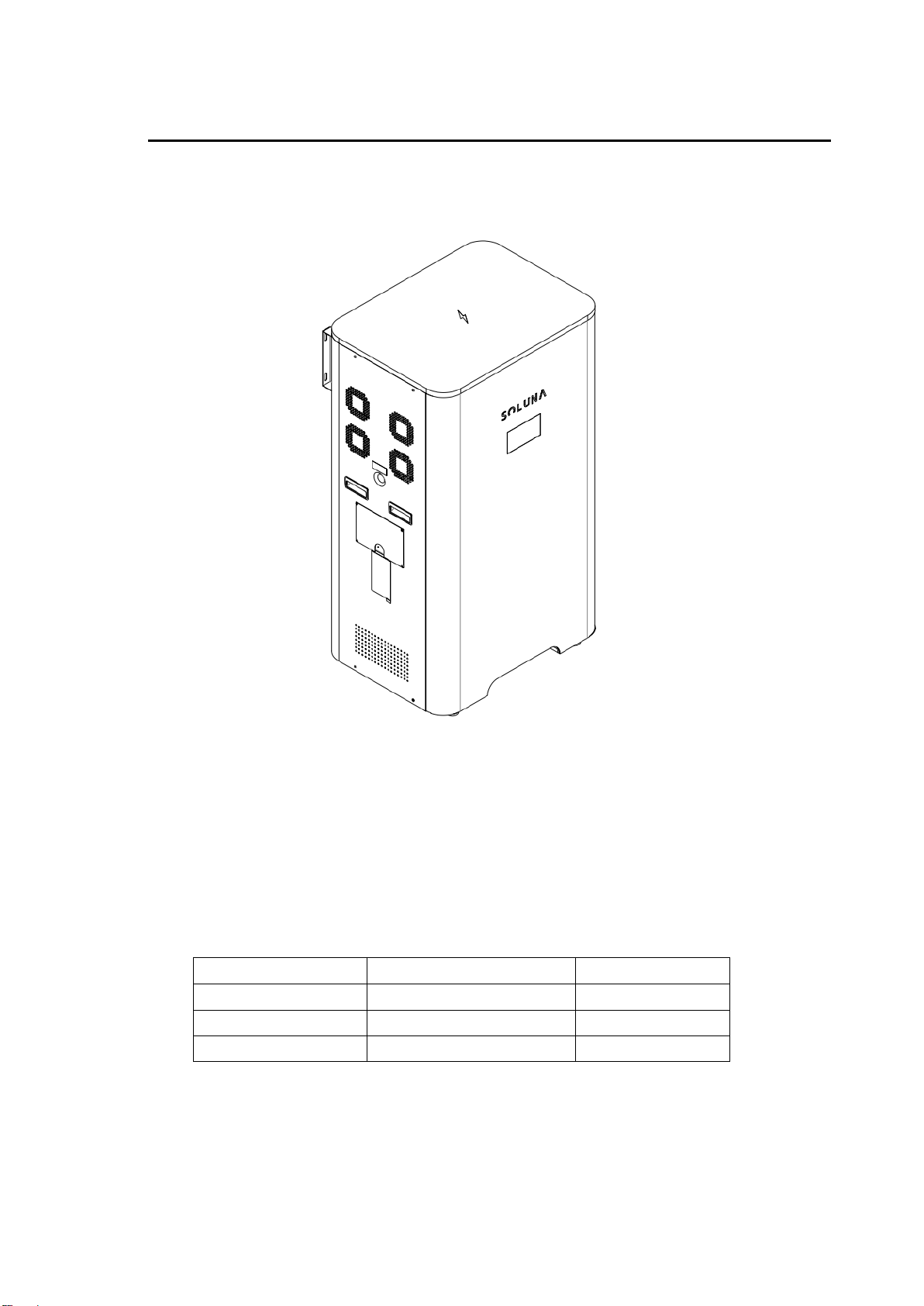

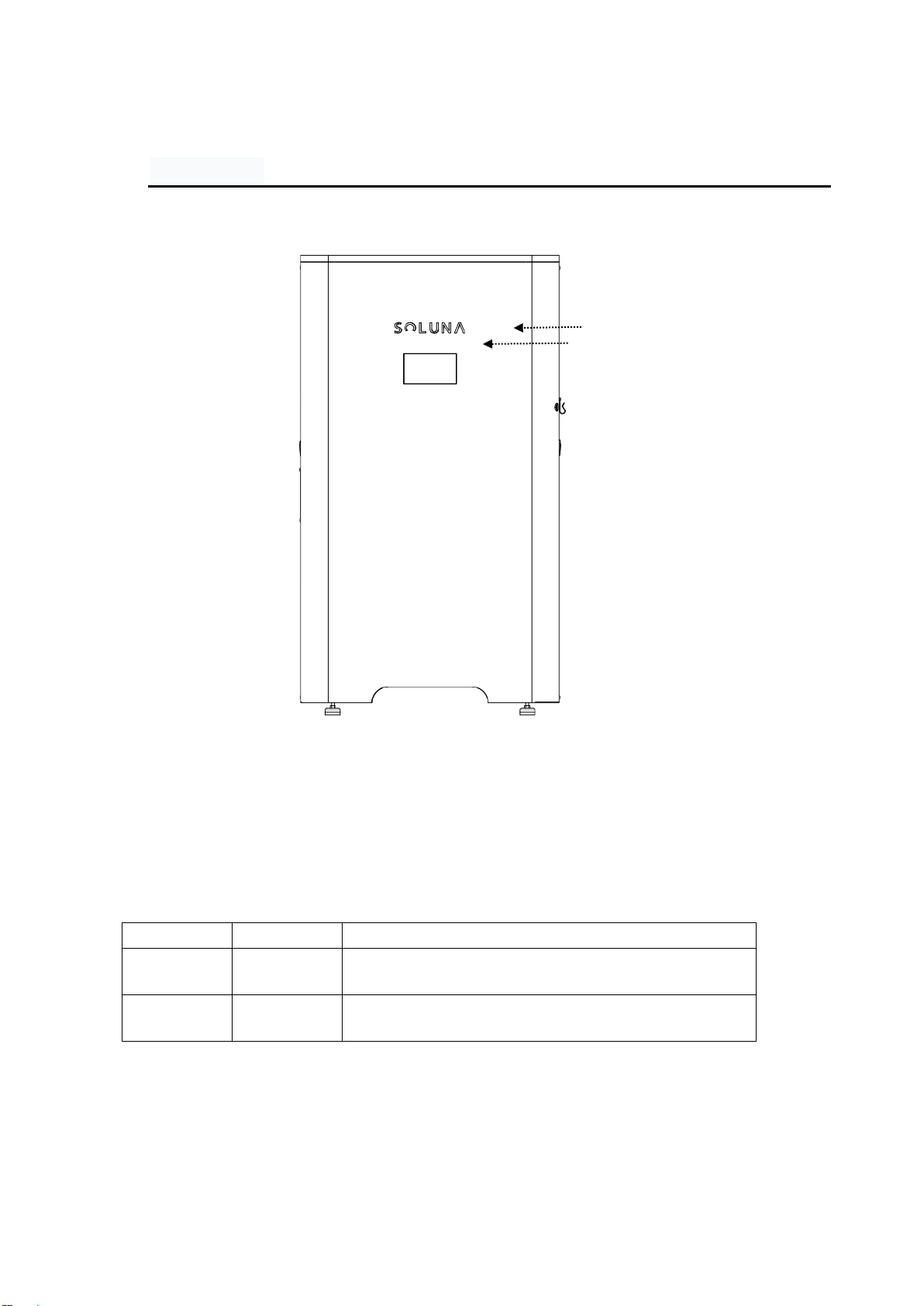

Figure 2.1 outline dimension
Width
750
mm
Depth
565
mm
Height
1335
mm
Weight
240
kg
