DLS CRUISE CRPP-BMW1.8 User manual
User manual
BMW / MINI
Declaration of conformity
Welcome to DLS!
Thank you for buying a DLS Cruise
CRPP-BMW1.8. For us, it’s all about the sound
experience. We care deeply about sound and
construction quality. In order for your experience to
be as optimal as possible, it is important that you
fully read this manual, preferably before you start
your installation. Keep the manual in a safe and
accessible place for future reference.
Your subwoofers must be installed correctly in
order to work as intended. Make sure you have all
necessary tools nearby before starting and that
you are completely confident in how to process. If
you feel the slightest uncertainty; feel free to take
the help of an experienced installer or a car audio
dealer.
DLS plug and play subwoofers for vehicles are
manufactured in accordance with the EU directive
EEC 95/54 (72/245/ EEC) and are marked with
the approval number. They are also marked in
accordance with the WEEE-directive 2012/19/EC.
The products are also produced in accordance
with the EU RoHS directive 2015/863/EU.
Warranty
This subwoofer is covered by warranty, depending
on the conditions in the country where it is sold. If
the subwoofer is returned for service, please
include the original dated receipt with the product.
Winn Scandinavia AB
Elementvägen 15 - SE-702 27 Örebro - Sweden
www.dls.se
DLS subwoofers are engineered by DLS Sweden,
a part of:
Designed & Sound tuned in Sweden.
CRPP-BMW1.8
DLS CRUISE
Content
Welcome
Pre installation
General info
Dismounting seat
Removing subwoofer
Mounting subwoofer
Remount seat
Specifications
Running-in time
Compatible car models
Product markings
1
2
2
3
4
5
5
6
6
8
10
For technical assistance, ask your car audio dealer
where the product was sold or the distributor in your
country. You can always contact the DLS Helpdesk
also be found on our WEB-site www.dls.se. We
follow a policy of continuous advancement in
development. For this reason, all or part of the
specifications and designs may be changed without
prior notice.
DLS Support
Pre installation
Included products:
1pc Subwoofer
Included in box:
1pc PRY tool
1pc Manual
Disconnect Battery
Before you start the pro-
cess of replacing subwoofers,
disconnect and secure the
negative terminal from
your battery/power source.
This will prevent the risk
of damaging yourself or
the products.
Place the disconnected terminal in a secure and
isolated location away from any possible
connection belonging to the battery/power source
system.
BMW has many different sound systems and configurations in the same year/model.
This means that there are several different setups that can be installed in the same models.
The subwoofer set up is very similar in the majority of the BMW models.
Before the start of the installation, take a few minutes to check how your subwoofer is placed in
your car. For this reason there can be a need for different tools, such as.
• Bitscrewdriver
• Bit ratchet
• T15/20/T40 & T50 Torx bit
• Hex bit
• Philips bit
• Size 10mm & 13mm wrench
• Plastic PRY tool
• Narrow screwdriver
Remember: Use plastic PRY tool to avoid marks on the panels or damaging the plastic clips.
Take your time and don’t rush things. Don’t use brutal force to remove a grill, trim or door panel.
General info
2
HINT: There are electric connections under the seat. These need to be connected during the operation
otherwise there is a huge risk that an airbag or other warning lamp lights up.
1) On some newer models, there can be a plastic cover on the seat frame. This plastic can be a bit tricky to
remove.There are tabs at the back. Move the back part outwards and then slide the plastic forward.
2) The seat is fixed with 4 screws, 2 at the front and 2 at the back (6 screws in some convertible models).
Normally the screws are Torx T40/T50.
Start with moving the seat up as high as it goes, then move the seat maximum back, to loosen the screws at
the front of the frame.
To loosen the screws at the back, move the seat as forward as possible. Remove the screws.
Save them for reassembly.
Lean the seat backwards. Be careful with all cables under the seat. Unplugging them can lead to several
warning lamps in the dash panel.
HINT: Use the rear seatbelt to secure the front seat, while changing the subwoofer. Wrap the seat belt around
the headrest of the front seat.
3
Dismounting seat
Installation
1
2
1
4

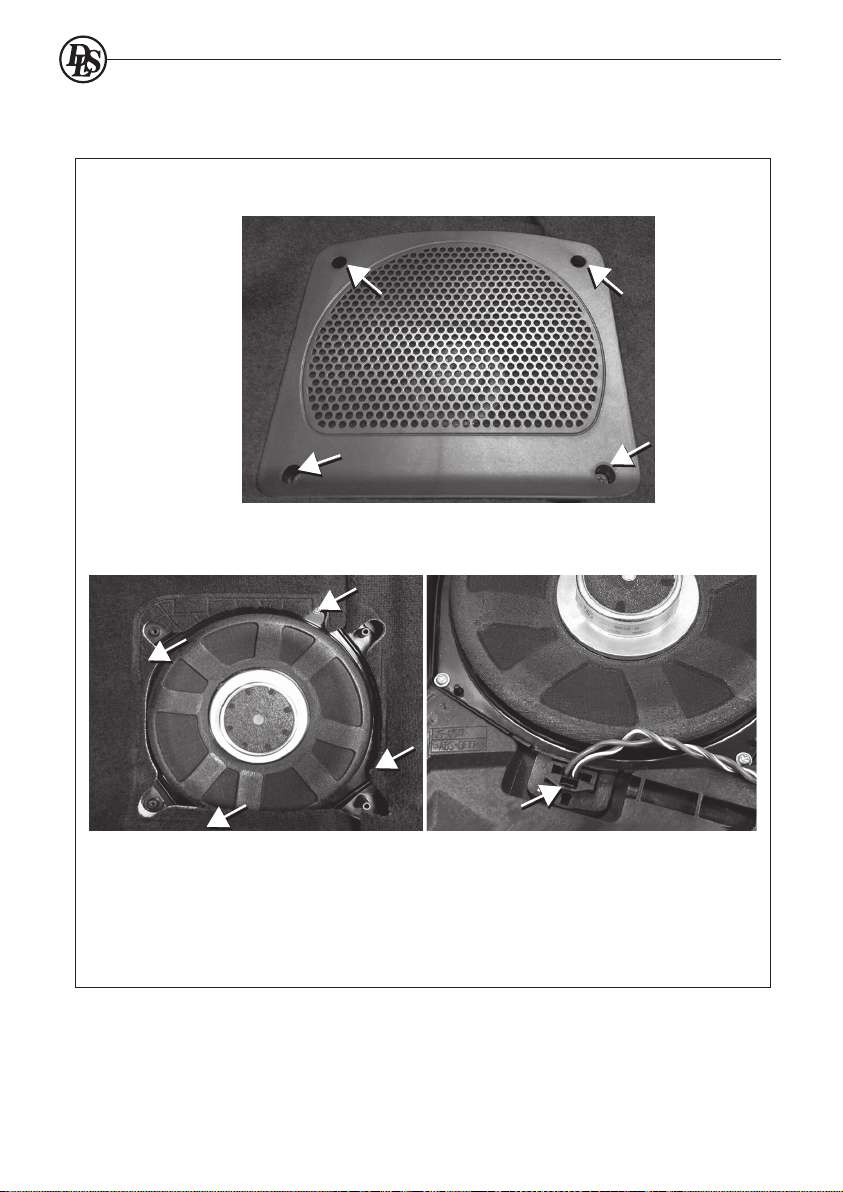

Remove the screws that holds the plastic cover. Normally fixed with Philips screws or Torx T15/20.
The OEM subwoofer is usually fixed with 4 Torx T15/T20 screws. If you can’t see all the screws, just lift up
the carpet and you will find them.
Remove the screws from the subwoofer and unplug the connector from the subwoofer. Press the tab on the
connector to unplug. Sometimes it’s easier to lift up the subwoofer, before unplugging the connector.
There is a gasket under the subwoofer, remove this. On older models, the gasket can be stuck on the
subwoofer housing. Make sure to remove all of it. The new DLS subwoofer has a new gasket.
Removing subwoofer
5
HINT: On some models, you need to remove the subwoofer housing first and mount the subwoofer in the
housing, before placing the housing back under the carpet.

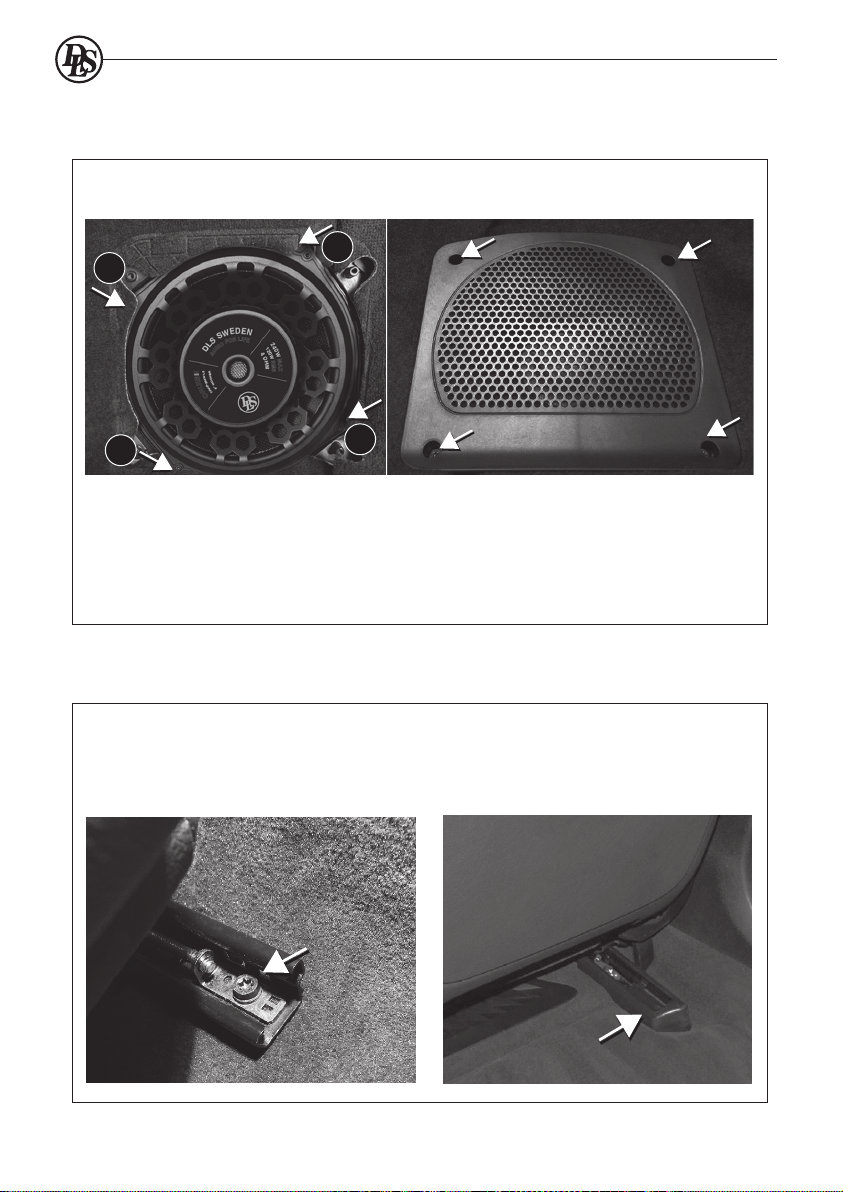

Plug the OEM connector in the DLS subwoofer. Mount the subwoofer in the housing. There is a dowel pin by
the connector for lining up the subwoofer. Make sure the connector is still fixed.
Screw back the screws in a star pattern. Just fix the screws and move to the next screw. Repeat until all 4
screws are done and they are really fixed.
Place the plastic cover over the subwoofer and fix it with the OEM screws.
Mounting subwoofer
Remove the safety belt from the head rest.
Place the seat correctly over the holes. Just fix all the screws first. Now tighten them really hard, but not over
tighten.
Finish with placing the plastic cover on the back of the seat chassis.
Remount seat
1
2
3
4

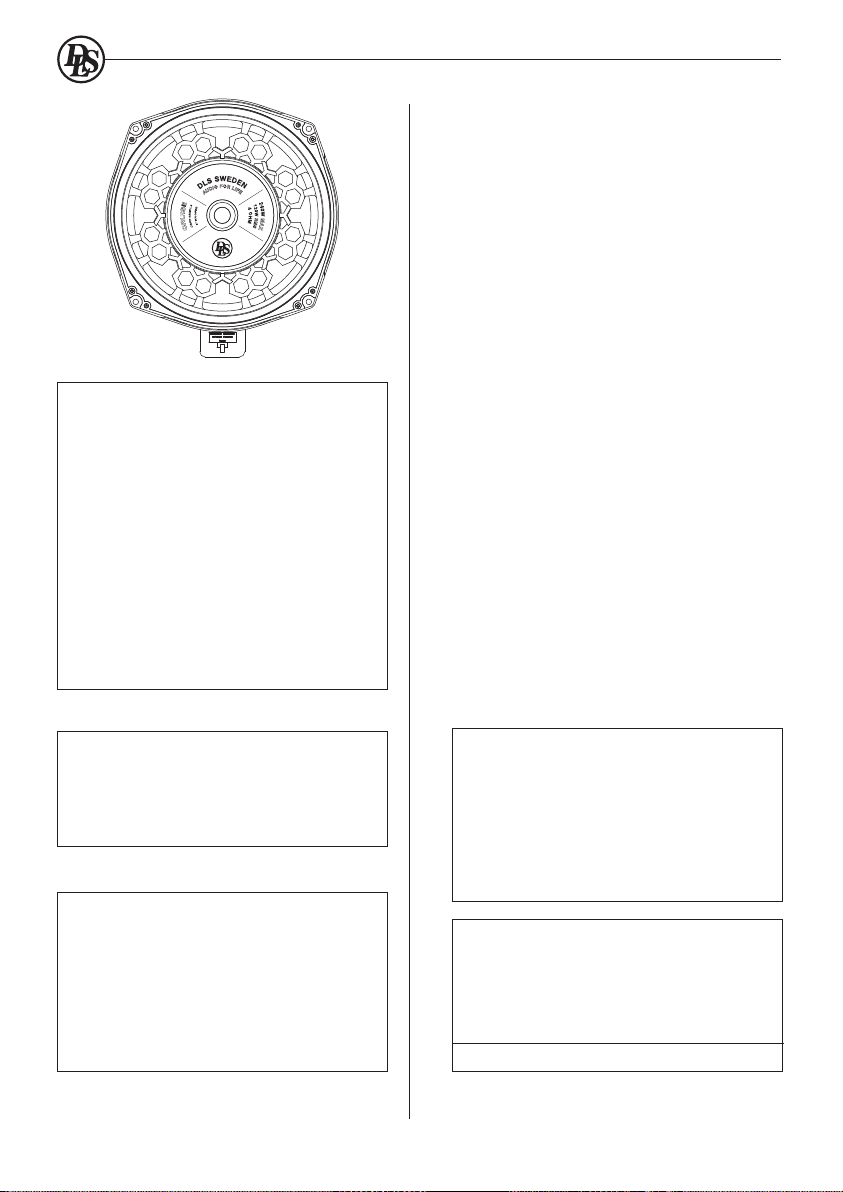

DLS Cruise CRPP-BMW1.8 Subwoofer
Technical Specification
Size 8” / 200 mm
RMS Power 120 W
MAX Power 240 W
Voice Coil Size 2” / 50 mm
Voice Coil Material CCAW voice coil / Kapton former
Basket Fibreglass Reinforced ABS
Magnet Ferrite
Cone Fibreglass
Suspension Rubber
Impedance 4 Ohm
Sensitivity 86 dB 1W / 1M
Freq. range 35 Hz - 500 Hz
Electro-Acoustic Parameters
Re 3.3 Ohm
Fs 45 Hz
Mms 43.5 gr
Cms 0.28
Vas 22.63 L
Qts 0.71
Qes 0.80
Qms 5.80
Bl 7.10 T.m
Sd 240 cm²
Specifications

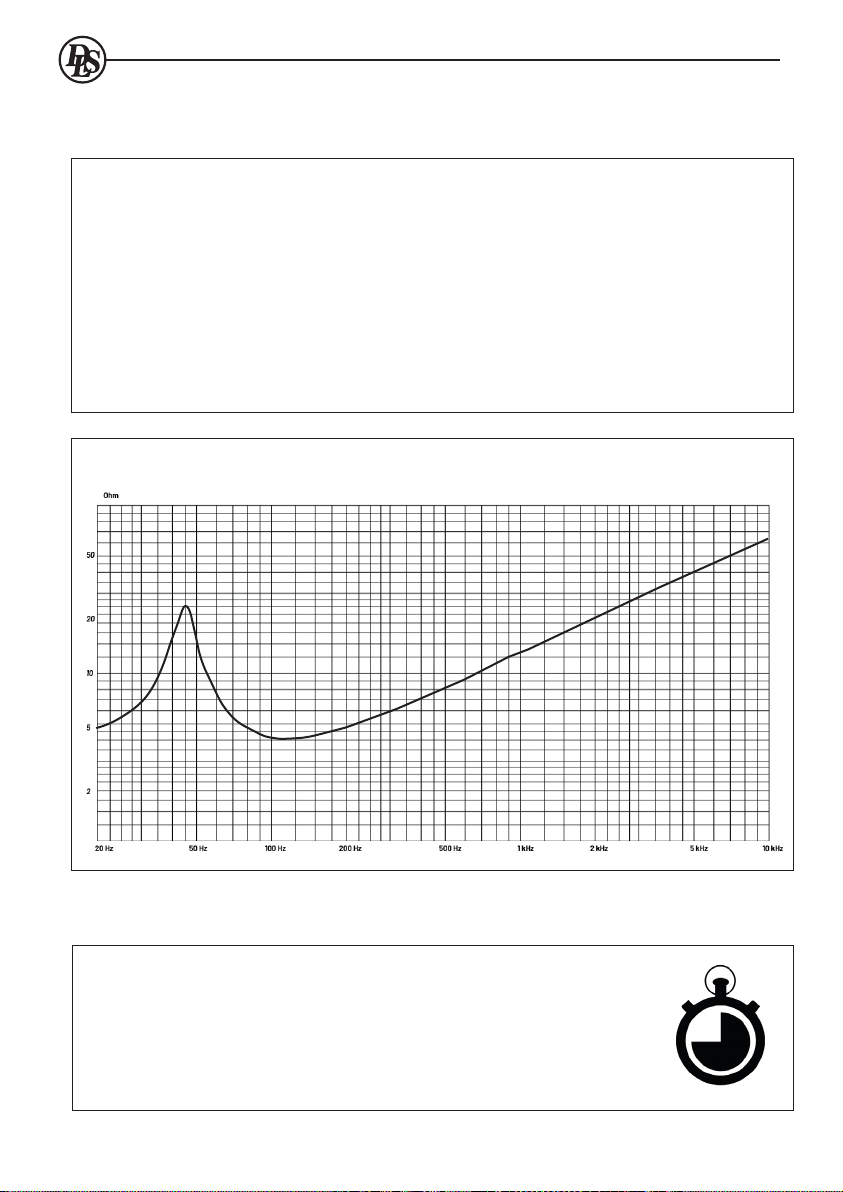

Impedance VS Frequency
6
Running-in time
Allow the subwoofer to play for at least 15-20 hours in order to perform at its possibly best.
This run-in can be made with bass sweep or with just music.
Start at a moderate volume and increase the volume step by step during the running in
period. After the 15-20 hour run in session the performance and characteristics will be in the
correct condition.
Finally, it’s time to play some good music and enjoy!
7
(mm)
8
DLS Cruise CRPP-BMW1.8 compatible car models
1-Serie E81 2007 - 2012 Yes
1-Serie E82 2007 - 2013 Yes
1-Serie E87 2005 - 2011 Yes
1-Serie E88 2008 - 2013 Yes
1-Serie F20 2014 - 2020 Yes
1-Serie F21 2013 - 2020 Yes
2-Serie F22 2014 - 2020 Yes
2-Serie F23 2014 - 2021 Yes
2-Serie F87 2015 - 2022 Yes
2-Serie F44 2015 - 2022 Yes
2-Serie F45 2015 - 2022 Yes
2-Serie F46 2015 - 2022 Yes
3-Serie E90 2005 - 2011 Yes
3-Serie E91 2005 - 2012 Yes
3-Serie E92 2006 - 2013 Yes
3-Serie E93 2007 - 2013 Yes
3-Serie F30 2012 - 2019 Yes
3-Serie F31 2012 - 2019 Yes
3-Serie F34 2012 - 2021 Yes
3-Serie F35 2012 - 2019 Yes
3-Serie F80 2014 - 2018 Yes
4-Serie F32 2014 - 2020 Yes
4-Serie F33 2014 - 2020 Yes
4-Serie F36 2014 - 2020 Yes
4-Serie F82 2014 - 2020 Yes
4-Serie F83 2014 - 2020 Yes
4-Serie G22 2021 - 2023 Yes
4-Serie G23 2021 - 2023 Yes
5-serie E60 2003 - 2010 Yes
5-serie E61 2003 - 2010 Yes
5-serie F07 2009 - 2016 Yes
5-serie F10 2010 - 2016 Yes
5-serie F11 2011 - 2016 Yes
5-serie G30 2017 - 2023 Yes
5-serie G31 2017 - 2022 Yes
6-Serie F06 2011 - 2015 Yes
6-Serie F12 2012 - 2019 Yes
6-Serie F13 2012 - 2019 Yes
6-Serie G32 2018 - 2023 Yes
7-Serie E65 2002 - 2008 Yes
7-Serie E66 2002 - 2008 Yes
7-Serie E67 2001 - 2008 Yes
7-Serie G11 2016 - 2022 Yes
7-Serie G12 2016 - 2022 Yes
X1 E84 2009 - 2015 Yes
X1 F48 2016 - 2022 Yes
X1 F49 2016 - 2022 Yes
X3 E83 2003 - 2010 Yes
X3 F25 2011 - 2017 Yes
X4 F26 2014 - 2018 Yes
X5 E70 2007 - 2011 Yes (Only Hi-Fi & Logic 7)
X6 E71 2008 - 2014 Yes (Only Hi-Fi & Logic 7)
X6 F16 2015 - 2019 Yes (Only Base Audio, Hi-Fi & Harman Kardon)
MINI
Model Body Year Subwoofer
Countryman R60 2010-2016 Yes
Paceman R61 2013-2016 Yes
Clubman F54 2016-2022 Yes
Hatch (5-door) F55 2014-2019 Yes
Hatch (3-door) F56 2014-2019 Yes
Cabrio F57 2017-2022 Yes
Countryman F60 2017-2021 Yes
BMW
Serie Body Year Subwoofer
1-Serie E81 2007 - 2012 Yes
1-Serie E82 2007 - 2013 Yes
1-Serie E87 2005 - 2011 Yes
1-Serie E88 2008 - 2013 Yes
1-Serie F20 2014 - 2020 Yes
1-Serie F21 2013 - 2020 Yes
2-Serie F22 2014 - 2020 Yes
2-Serie F23 2014 - 2021 Yes
2-Serie F87 2015 - 2022 Yes
2-Serie F44 2015 - 2022 Yes
2-Serie F45 2015 - 2022 Yes
2-Serie F46 2015 - 2022 Yes
3-Serie E90 2005 - 2011 Yes
3-Serie E91 2005 - 2012 Yes
3-Serie E92 2006 - 2013 Yes
3-Serie E93 2007 - 2013 Yes
3-Serie F30 2012 - 2019 Yes
3-Serie F31 2012 - 2019 Yes
3-Serie F34 2012 - 2021 Yes
3-Serie F35 2012 - 2019 Yes
3-Serie F80 2014 - 2018 Yes
4-Serie F32 2014 - 2020 Yes
4-Serie F33 2014 - 2020 Yes
4-Serie F36 2014 - 2020 Yes
4-Serie F82 2014 - 2020 Yes
4-Serie F83 2014 - 2020 Yes
4-Serie G22 2021 - 2023 Yes
4-Serie G23 2021 - 2023 Yes
5-serie E60 2003 - 2010 Yes
5-serie E61 2003 - 2010 Yes
5-serie F07 2009 - 2016 Yes
5-serie F10 2010 - 2016 Yes
5-serie F11 2011 - 2016 Yes
5-serie G30 2017 - 2023 Yes
5-serie G31 2017 - 2022 Yes
6-Serie F06 2011 - 2015 Yes
6-Serie F12 2012 - 2019 Yes
6-Serie F13 2012 - 2019 Yes
6-Serie G32 2018 - 2023 Yes
7-Serie E65 2002 - 2008 Yes
7-Serie E66 2002 - 2008 Yes
7-Serie E67 2001 - 2008 Yes
7-Serie G11 2016 - 2022 Yes
7-Serie G12 2016 - 2022 Yes
X1 E84 2009 - 2015 Yes
X1 F48 2016 - 2022 Yes
X1 F49 2016 - 2022 Yes
X3 E83 2003 - 2010 Yes
X3 F25 2011 - 2017 Yes
X4 F26 2014 - 2018 Yes
X5 E70 2007 - 2011 Yes (Only Hi-Fi & Logic 7)
X6 E71 2008 - 2014 Yes (Only Hi-Fi & Logic 7)
X6 F16 2015 - 2019 Yes (Only Base Audio, Hi-Fi & Harman Kardon)
MINI
Model Body Year Subwoofer
Countryman R60 2010-2016 Yes
Paceman R61 2013-2016 Yes
Clubman F54 2016-2022 Yes
Hatch (5-door) F55 2014-2019 Yes
Hatch (3-door) F56 2014-2019 Yes
Cabrio F57 2017-2022 Yes
Countryman F60 2017-2021 Yes
Serie Body Year Subwoofer
9
The crossed-out wheelie bin symbol means that the product, literature and pac-
kaging included must be taken to separate collection at the end of their working
life. Do not dispose of these products as unsorted municipal waste: take them
for recycling. For info on your nearest recycling point, check with your local
waste authority.
This product has been granted with the CE certification mark to show that the
product follows the health, safety, and environmental protection standards for
products sold within the European Economic Area (EEA).
DLS products complies with the relevant provisions of the RoHS
Directive for the European Union. In common with all Electrical
and Electronic Equipment (EEE) the productshould not be
disposed of as household waste. Alternative arrangements may
apply in other jurisdictions.
aideMeliboMnaeporuEehtforentraplabolgasiSLD
Association, an organisation that focus on promoting the
custom made mobile media installations to consumers.
Product markings
We follow a policy of continuous advancement in development. For this reason all or part of
specifications & designs may be changed without prior notice. We reserve for possible typos,
factual or numeric errors that may have been printed on any products, package designs,
user manuals and/or other included accessories.
10
This manual suits for next models
1
Table of contents
Other DLS Receiver manuals
