DMT VT201 User manual

VT201 - 4K-HDMI / USB KVM Extender Set (TX/RX)
Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands
Product code: 101241
USER MANUAL
ENGLISH
V1

1
VT201 - 4K-HDMI / USB KVM Extender Set (TX/RX)
Product code: 101241
Preface
Thank you for purchasing this DMT product.
The purpose of this user manual is to provide instructions for the correct and safe use of this product.
Keep the user manual for future reference as it is an integral part of the product. The user manual shall be
stored at an easily accessible location.
This user manual contains information concerning:
●Safety instructions
●Installation and operation of the device
●Intended and non-intended use of the device
●Maintenance procedures
●Troubleshooting
●Transport, storage and disposal of the device
Non-observance of the instructions in this user manual may result in serious injuries and damage of
property.
©2021 DMT. All rights reserved.
No part of this document may be copied, published or otherwise reproduced without the prior written
consent of Highlite International.
Design and product specifications are subject to change without prior notice.
For the latest version of this document or other language versions, please visit our website
www.highlite.com or contact us at [e-mail].
Highlite International and its authorized service providers are not liable for any injury, damage, direct or
indirect loss, consequential or economic loss or any other loss arising from the use of, or inability to use or
reliance on the information contained in this document.

2
VT201 - 4K-HDMI / USB KVM Extender Set (TX/RX)
Product code: 101241
Table of contents
1. Introduction..........................................................................................................................................................3
Before Using the Product ..................................................................................................................................3
Intended Use .......................................................................................................................................................3
Product Lifespan.................................................................................................................................................4
Text Conventions ................................................................................................................................................4
Symbols and Signal Words................................................................................................................................4
Symbols on the Information Label ..................................................................................................................4
2. Safety ....................................................................................................................................................................5
Warnings and Safety Instructions ....................................................................................................................5
Requirements for the User.................................................................................................................................6
3. Description of the Device...................................................................................................................................7
Front View Transmitter .......................................................................................................................................7
Back View Transmitter .......................................................................................................................................7
Front View Receiver ...........................................................................................................................................8
Back View Receiver ...........................................................................................................................................8
Product Specifications ......................................................................................................................................9

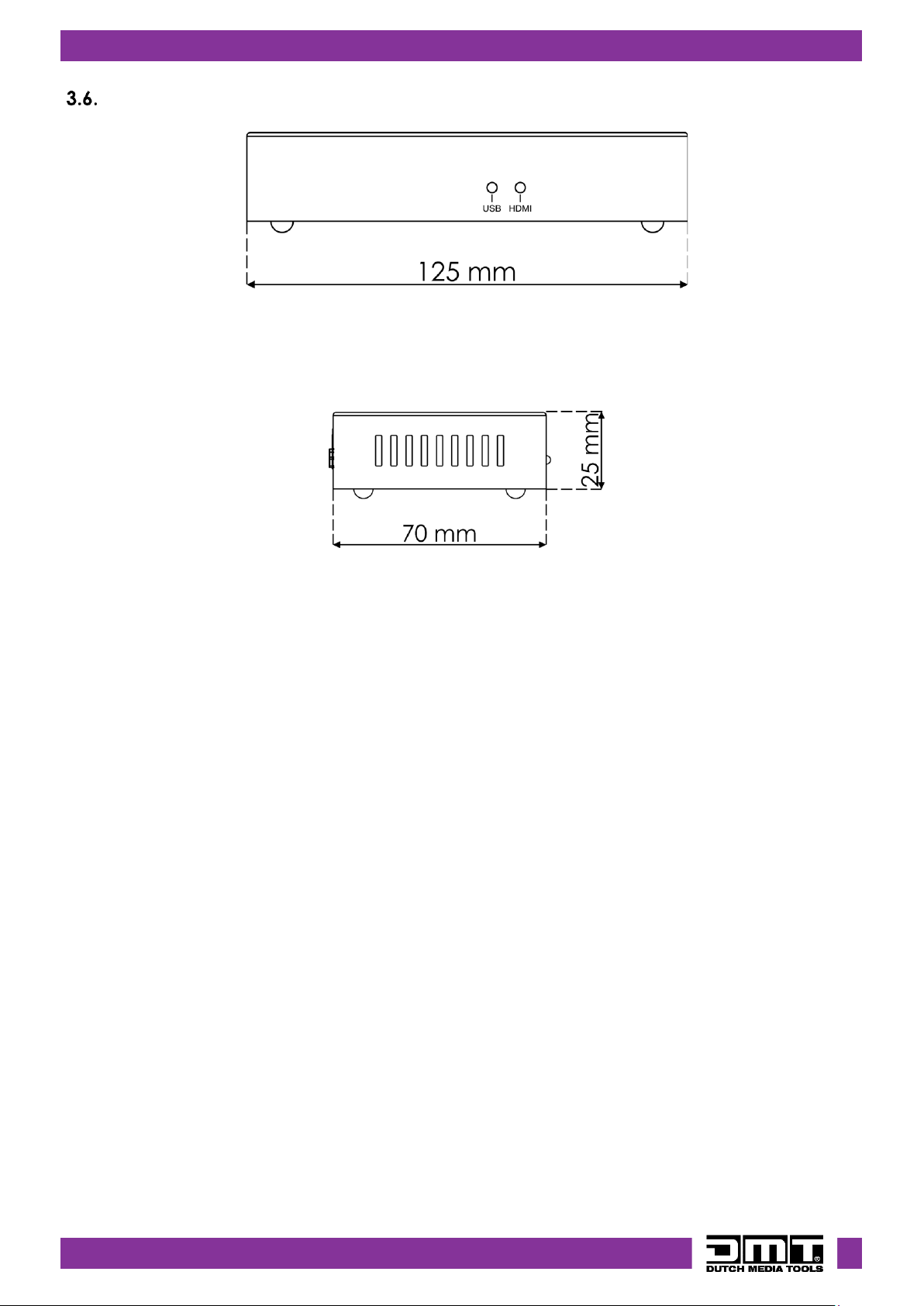

Dimensions.........................................................................................................................................................10
4. Installation ..........................................................................................................................................................11
Installation Site Requirements ........................................................................................................................11
Connecting to Power Supply.........................................................................................................................11
5. Setup ...................................................................................................................................................................12
Warnings and Precautions .............................................................................................................................12

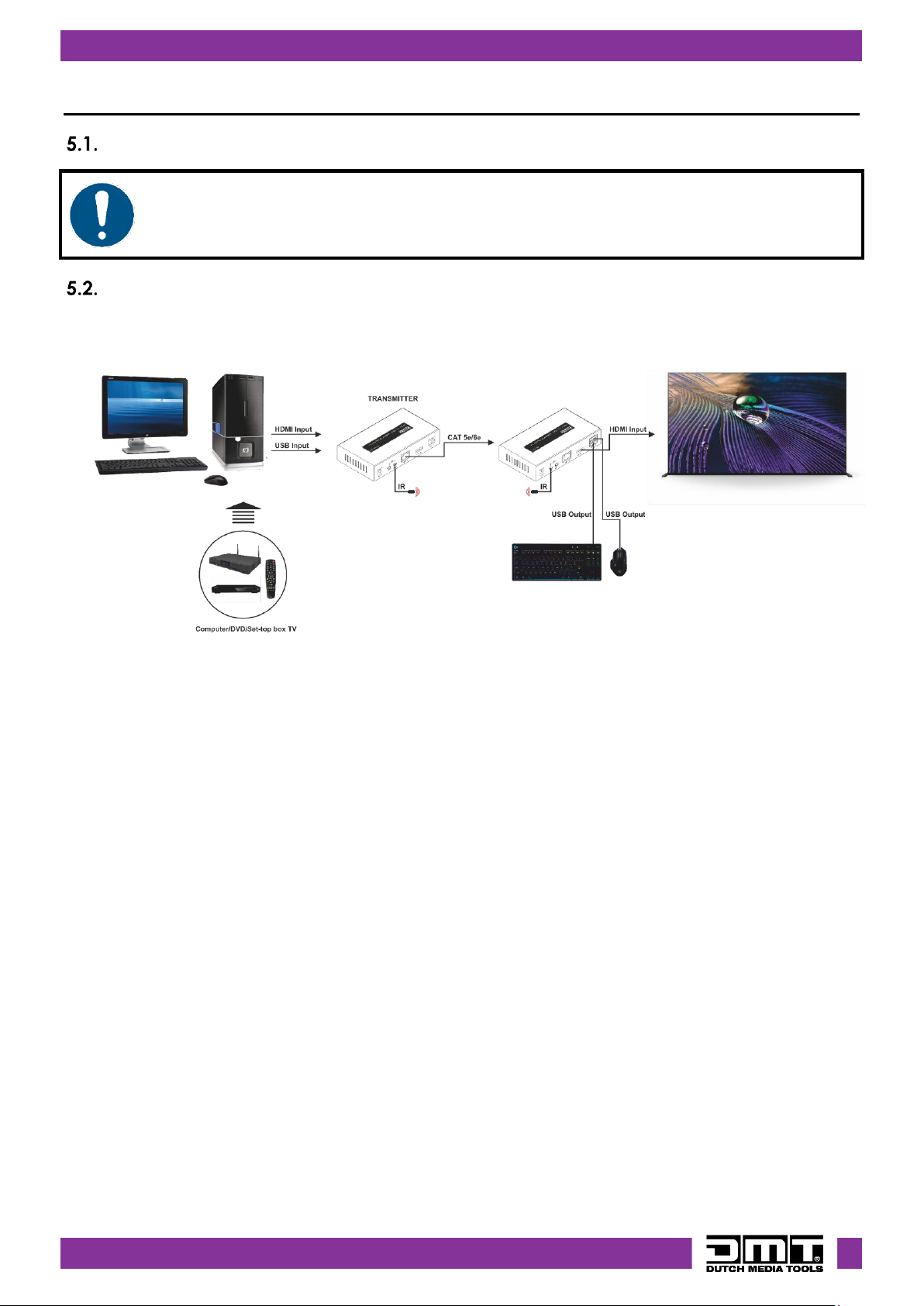

Setup Example ..................................................................................................................................................12
6. Operation ...........................................................................................................................................................13
Safety Instructions for Operation...................................................................................................................13
7. Troubleshooting .................................................................................................................................................14
8. Maintenance .....................................................................................................................................................15
Safety Instructions for Maintenance.............................................................................................................15
Preventive Maintenance................................................................................................................................15
Basic Cleaning Instructions ...................................................................................................................15
Corrective Maintenance................................................................................................................................15
9. Deinstallation, Transportation and Storage ....................................................................................................16
10. Disposal ..............................................................................................................................................................17
11. Approval.............................................................................................................................................................18

3
VT201 - 4K-HDMI / USB KVM Extender Set (TX/RX)
Product code: 101241
1. Introduction
Before Using the Product
Important
Read and follow the instructions in this user manual before installing, operating or
servicing this product.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual.
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your
Highlite International dealer.
Your shipment includes:
●VT201 - 4K-HDMI / USB KVM Extender Set
(TX/RX)
●2x Jack Cable with IR eye (IR IN) (1,5 m)
●2x Jack Cable with IR eye (IR OUT) (1,5 m)
●USB-A to USB-B cable
●2x brackets
●2x DC Power Adapter (input 100-240VAC,
Output 12V 2A) (1,1 m)
●User manual
Fig. 01
Intended Use
This device is intended for professional use as an HDMI matrix switch. It is suitable only for indoor
installation. This device is not suitable for households.
Any other use, not mentioned under intended use, is regarded as non-intended and incorrect use.

4
VT201 - 4K-HDMI / USB KVM Extender Set (TX/RX)
Product code: 101241
Product Lifespan
This device is not designed for permanent operation. Disconnect the device from the electrical power
supply when the device is not in operation. This will reduce the wear and will improve the device’s
lifespan.
Text Conventions
Throughout the user manual the following text conventions are used:
●Buttons: All buttons are in bold lettering, for example “Press the UP/DOWN buttons”
●References: References to chapters and parts of the device are in bold lettering, for example:
“Refer to 2. Safety”, “turn the adjustment screw (02)”
●0–255: Defines a range of values
●Notes: Note: (in bold lettering) is followed by useful information or tips
Symbols and Signal Words
Safety notes and warnings are indicated throughout the user manual by safety signs.
Always follow the instructions provided in this user manual.
DANGER
Indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury.
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which, if not avoided, may result in
minor or moderate injury.
Attention
Indicates important information for the correct operation and use of the
product.
Important
Read and observe the instructions in this document.
Provides important information about the disposal of this product.
Symbols on the Information Label
This product is provided with an information label. The information label is located on the bottom plate of
the device.
The information label contains the following symbols:
This device is designed for indoor use.
This device is IEC protection class III.
This device shall not be treated as household waste.
Read and observe the instructions in this document.

5
VT201 - 4K-HDMI / USB KVM Extender Set (TX/RX)
Product code: 101241
2. Safety
Important
Read and follow the instructions in this user manual before installing, operating or
servicing this product.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual.
Warnings and Safety Instructions
DANGER
Danger for children
For adult use only. The device must be installed beyond the reach of children.
●Do not leave various parts of the packaging (plastic bags, polystyrene foam, nails, etc.) within
children’s reach. Packaging material is a potential source of danger for children.
DANGER
Incorrect handling of the AC power adapter may result in hazardous situations
This device is delivered with an AC power adapter. Incorrect handling of the AC power adapter may
result in hazardous situations.
●Use only the AC power adapter delivered with the device.
●Do not wrap the power cable around the power adapter or any other object. This can damage the
internal wires.
●Do not cover the power adapter with anything when it is plugged into the socket-outlet. This may
cause overheating.
●Do not expose the power adapter to water or other liquids.
Do not use the power adapter:
●If it shows signs of overheating, for example the plastic is damaged.
●If the AC input pins show signs of corrosion or overheating.
●If the power cable is damaged or shows signs of material fatigue.

6
VT201 - 4K-HDMI / USB KVM Extender Set (TX/RX)
Product code: 101241
Attention
General safety
●Do not insert objects into the air vents.
●Do not switch the device on and off in short intervals. This decreases the device’s life.
●Do not shake the device. Avoid brute force when installing or operating the device.
●If the device is dropped or struck, disconnect the device from the electrical power supply
immediately.
●If the device is exposed to extreme temperature variations (e.g. after transportation), do not switch it
on immediately. Let the device reach room temperature before switching it on, otherwise it may be
damaged by the formed condensation.
Attention
This device shall be used only for the purposes it is designed for.
This device is designed to be used as a professional laser projector. Any incorrect use may lead to
hazardous situations and result in injuries and material damage.
●This device is not designed for permanent operation.
●This device does not contain user-serviceable parts. Unauthorized modifications to the device will
render the warranty void. Such modifications may result in injuries and material damage.
Attention
Do not expose the device to conditions that exceed the rated IP class conditions.
This device is IP20 rated. IP (Ingress Protection) 20 class provides protection against solid objects greater
than 12 mm, such as fingers, and no protection against harmful ingress of water.
Requirements for the User
This product may be used by ordinary persons. Maintenance and installation may be carried by ordinary
persons. Service shall be carried out only by instructed or skilled persons. Contact your Highlite
International dealer for more information.
Instructed persons have been instructed and trained by a skilled person, or are supervised by a skilled
person, for specific tasks and work activities associated with the operation, installation, service and
maintenance of this product, so that they can identify risks and take precautions to avoid them.
Skilled persons have training or experience, which enables them to recognize risks and to avoid hazards
associated with the operation, installation, service and maintenance of this product.
Ordinary persons are all persons other than instructed persons and skilled persons. Ordinary persons
include not only users of the product but also any other persons that may have access to the device or
who may be in the vicinity of the device.

7
VT201 - 4K-HDMI / USB KVM Extender Set (TX/RX)
Product code: 101241
3. Description of the Device
The DMT VT201 - 4K-KVM / USB Extender Set enables sending HDMI, USB and Infrared signals over long
distances. It consists of a signal sender and receiver unit that can communicate through a network cable
(not included). Its HDMI signal supports a resolution up to 4K (3840x2160 @30 Hz). Furthermore, it also offers
USB 2.0 and Bi-Directional IR signal transmission.
Please note that a network switch is required when bridging a distance of more than 100 meters.
Front View Transmitter
Fig. 02
01) USB LED
02) HDMI LED
Back View Transmitter
Fig. 03
DC5V
In 1: Jack connector for Infrared sensor for remote control
Out 2: Jack connector for Infrared sensor for remote control
CAT 5e/6e
HDMI IN
USB In (USB B)

8
VT201 - 4K-HDMI / USB KVM Extender Set (TX/RX)
Product code: 101241

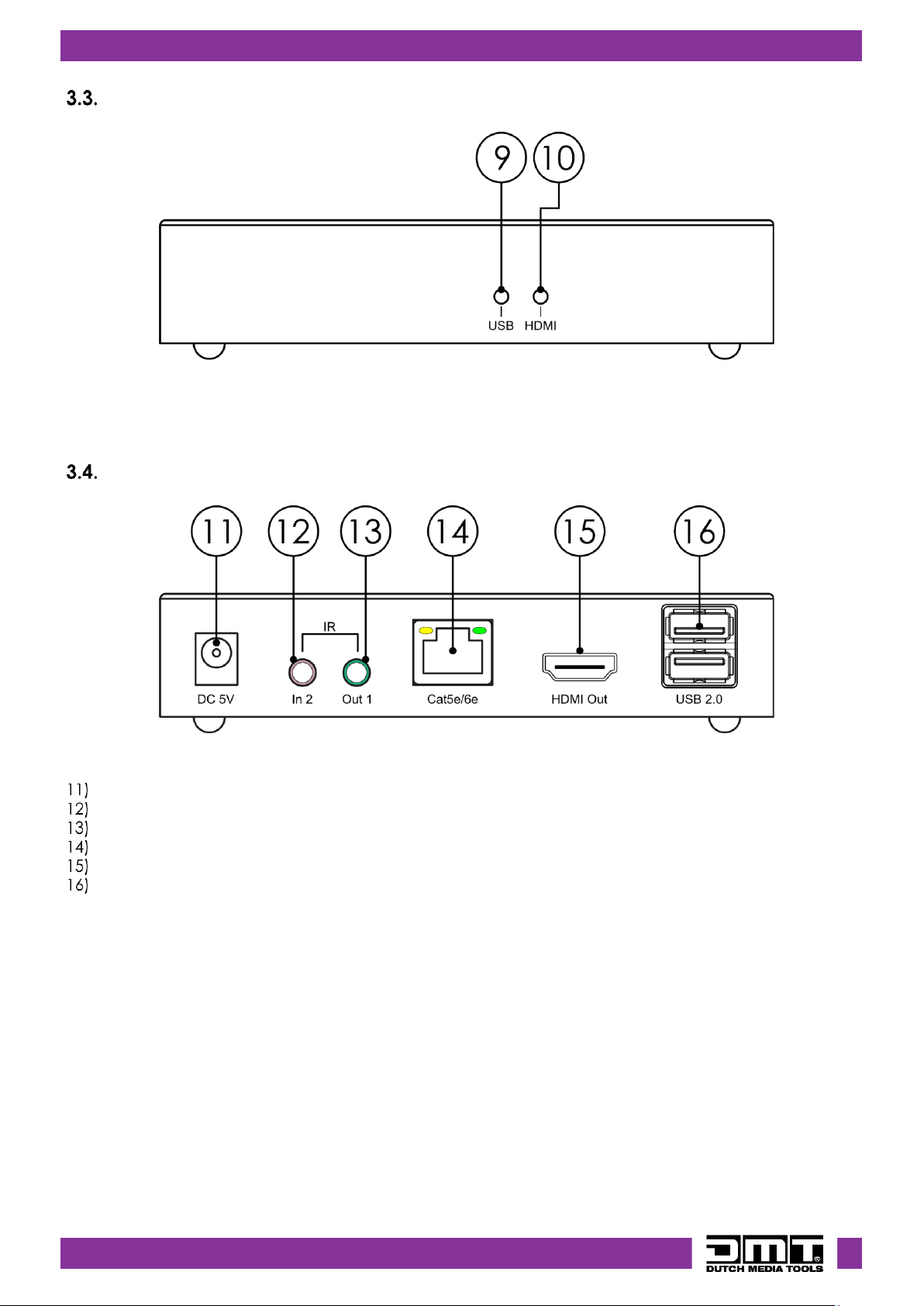

Front View Receiver
Fig. 04
09) USB LED
10) HDMI LED
Back View Receiver
Fig. 05
DC5V
In 2: Jack connector for Infrared sensor for remote control
Out 1: Jack connector for Infrared sensor for remote control
CAT 5e/6e
HDMI OUT
2x USB 2.0 (USB A)

9
VT201 - 4K-HDMI / USB KVM Extender Set (TX/RX)
Product code: 101241
Product Specifications
Model:
VT201 - 4K-HDMI / USB KVM Extender Set (TX/RX)
Electrical Transmitter:
Input voltage:
100–240 V AC, 50/60 Hz
Power consumption:
3,5 W
Power supply
5V DC / 2A
Physical Transmitter::
Dimensions:
125 x 70 x 25 mm (LxWxH)
Weight:
0,24 kg
Connections Transmitter:
Inputs:
In 1: Jack connector for Infrared sensor for remote control
CAT 5e/6e
HDMI IN 2.0
USB In (USB B)
Outputs:
Out 2: Jack connector for Infrared sensor for remote control
HDMI resolution:
Up to 4K (3840 x 2160 @30 Hz)
Electrical Receiver:
Input voltage:
100–240 V AC, 50/60 Hz
Power consumption:
7 W
Power supply
5V DC / 2A
Physical Receiver::
Dimensions:
125 x 70 x 25 mm (LxWxH)
Weight:
0,26 kg
Connections Receiver:
Inputs:
In 2: Jack connector for Infrared sensor for remote control
CAT 5e/6e
2x USB 2.0 (USB A)
Output:
HDMI OUT 2.0
Out 1: Jack connector for Infrared sensor for remote control
HDMI resolution:
Up to 4K (3840 x 2160 @30 Hz)
Thermal:
Maximum ambient temperature ta:
40 °C
Minimum ambient temperature:
-10 °C
Maximum housing temperature tc:
50 °C
Humidity:
5–90 %
