Dodge Dakota 2011 User manual

Chrysler Group LLC
OWNER’S MANUAL
2011
2011 DAKOTA
First Edition Printed in U.S.A.
DAKOTA
11ND33-126-AB

TABLE OF CONTENTS
SECTION PAGE
1
INTRODUCTION ............................................................3
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE ..............................9
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE ............................. 81
4
UNDERSTANDING YOUR INSTRUMENT PANEL ..................................175
5
STARTING AND OPERATING ................................................247
6
WHAT TO DO IN EMERGENCIES ............................................. 335
7
MAINTAINING YOUR VEHICLE ..............................................357
8
MAINTENANCE SCHEDULES .................................................409
9
IF YOU NEED CONSUMER ASSISTANCE ........................................ 425
10
INDEX ...................................................................435
1
2
3
4
5
6
7
8
9
10

INTRODUCTION
CONTENTS
䡵Introduction ........................... 4
䡵How To Use This Manual .................. 4
䡵Warnings And Cautions ................... 6
䡵Vehicle Identification Number .............. 6
䡵Vehicle Modifications/Alterations ............ 7
1

INTRODUCTION
Congratulations on selecting your new Chrysler Group
LLC vehicle. Be assured that it represents precision
workmanship, distinctive styling, and high quality - all
essentials that are traditional to our vehicles.
This Owner’s Manual has been prepared with the assis-
tance of service and engineering specialists to acquaint
you with the operation and maintenance of your vehicle.
It is supplemented by a Warranty Information Booklet,
located on the DVD, and various customer-oriented
documents. Please take the time to read these publica-
tions carefully. Following the instructions and recom-
mendations in this manual will help assure safe and
enjoyable operation of your vehicle.
NOTE: After you read the manual, it should be stored
in the vehicle for convenient referencing and remain
with the vehicle when sold, so that the new owner will
be aware of all safety warnings.
When it comes to service, remember that your authorized
dealer knows your vehicle best, has factory-trained tech-
nicians and genuine MOPAR威parts, and cares about
your satisfaction.
HOW TO USE THIS MANUAL
Consult the Table of Contents to determine which section
contains the information you desire.
Since the specification of your vehicle depends on the
items of equipment ordered, certain descriptions and
illustrations may differ from your vehicle’s equipment
The detailed index at the back of this Owner’s Manual
contains a complete listing of all subjects.

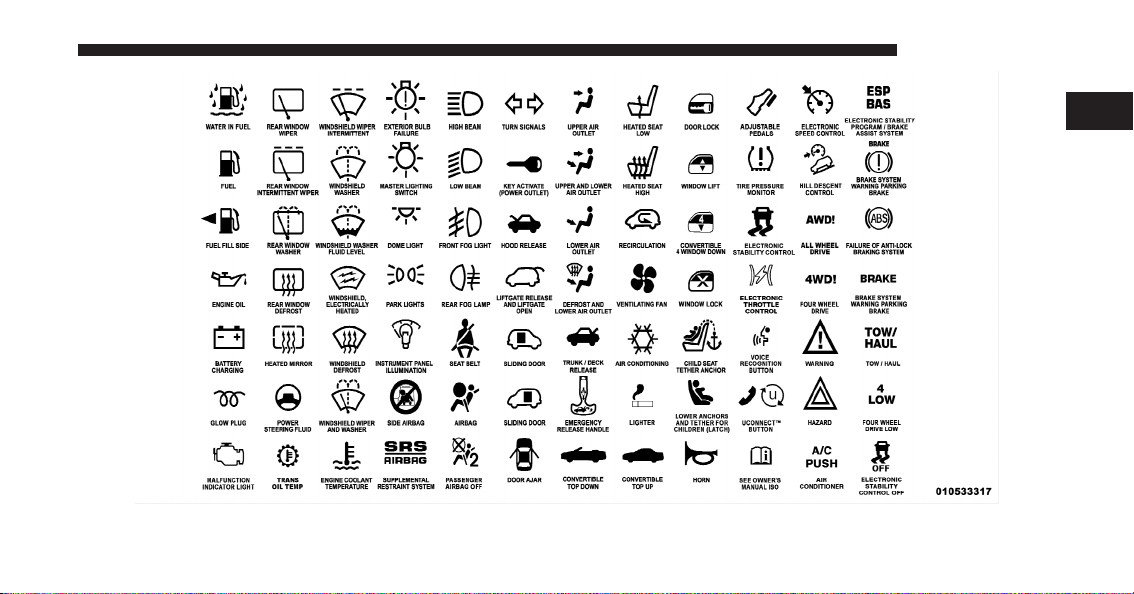

Consult the following table for a description of the
symbols that may be used on your vehicle or throughout
this Owner’s Manual:
4 INTRODUCTION

1
INTRODUCTION 5

WARNINGS AND CAUTIONS
This Owner’s Manual contains WARNINGS against op-
erating procedures that could result in a collision or
bodily injury. It also contains CAUTIONS against proce-
dures that could result in damage to your vehicle. If you
do not read this entire manual, you may miss important
information. Observe all Warnings and Cautions.
VEHICLE IDENTIFICATION NUMBER
The Vehicle Identification Number (VIN) is located on
the left front corner of the instrument panel pad, visible
from outside of the vehicle through the windshield. This
number also appears on the Automobile Information
Disclosure Label affixed to a window on your vehicle.
Save this label for a convenient record of your vehicle
identification number and optional equipment.
NOTE: It is illegal to remove or alter the VIN.
VIN Location
6 INTRODUCTION

VEHICLE MODIFICATIONS/ALTERATIONS
WARNING!
Any modifications or alterations to this vehicle could
seriously affect its roadworthiness and safety and
may lead to a collision resulting in serious injury or
death.
1
INTRODUCTION 7

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
䡵A Word About Your Keys ................. 12
▫Ignition Key Removal .................. 12
▫Locking Doors With A Key .............. 15
䡵Steering Wheel Lock — If Equipped ......... 15
▫To Manually Lock The Steering Wheel ...... 15
▫To Release The Steering Wheel Lock ........ 15
▫Automatic Transmission Ignition Interlock
System ............................. 15
䡵Sentry Key威— If Equipped ............... 15
▫Replacement Keys ..................... 17
▫Customer Key Programming ............. 17
䡵Vehicle Security Alarm — If Equipped ........ 18
▫To Arm The System ................... 19
▫To Disarm The System ................. 19
䡵Illuminated Entry ...................... 20
▫Vehicles Equipped With Power Door Locks . . . 20
䡵Remote Keyless Entry (RKE) .............. 21
▫To Unlock The Doors .................. 21
2

▫To Lock The Doors .................... 22
▫Using The Panic Alarm ................. 23
▫General Information ................... 24
▫Programming Additional Transmitters ...... 24
▫Battery Replacement ................... 24
䡵Remote Starting System — If Equipped ....... 25
▫How To Use Remote Start ............... 26
䡵Door Locks ........................... 28
▫Manual Door Locks ................... 28
▫Power Door Locks .................... 29
▫Child-Protection Door Lock .............. 31
䡵Windows ............................ 33
▫Power Windows ...................... 33
▫Auto-Down — Driver’s Side Only ......... 34
▫Window Lockout Switch ................ 34
▫Wind Buffeting ....................... 34
䡵Occupant Restraints ..................... 35
▫Lap/Shoulder Belts .................... 36
▫Adjustable Upper Shoulder Belt Anchorage . . . 42
▫Seat Belts In Passenger Seating Positions ..... 43
▫Center Lap Belts ...................... 43
▫Lap/Shoulder Belt Untwisting Procedure .... 44
▫Automatic Locking Retractors (ALR) Mode
— If Equipped ....................... 44
▫Seat Belt Pretensioners ................. 45
▫Energy Management Feature ............. 45
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫Enhanced Seat Belt Use Reminder System
(BeltAlert威) ......................... 46
▫Seat Belts And Pregnant Women .......... 47
▫Seat Belt Extender ..................... 47
▫Supplemental Restraint System (SRS) –
Airbags ............................ 48
▫Advanced Front Airbag Features .......... 50
▫Airbag Deployment Sensors And Controls . . . 54
▫Event Data Recorder (EDR) .............. 61
▫Child Restraints ...................... 62
䡵Engine Break-In Recommendations .......... 75
䡵Safety Tips ........................... 76
▫Transporting Passengers ................ 76
▫Exhaust Gas ......................... 76
▫Safety Checks You Should Make Inside The
Vehicle ............................. 77
▫Periodic Safety Checks You Should Make
Outside The Vehicle ................... 79
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

A WORD ABOUT YOUR KEYS
The authorized dealer that sold you your vehicle has the
key code numbers for your vehicle locks. These numbers
can be used to order duplicate keys from your authorized
dealer. Ask your authorized dealer for these numbers
and keep them in a safe place.
Ignition Key Removal
Automatic Transmission
1. Place the shift lever in PARK.
2. Turn the ignition switch to the LOCK position.
3. Remove the key from the ignition lock cylinder.
Ignition Key
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE: If you try to remove the key before you place the
shift lever in PARK, the key may become temporarily
trapped in the ignition cylinder. If this occurs, rotate the
key to the right slightly, then remove the key as de-
scribed. If a malfunction occurs, the system will trap the
key in the ignition cylinder to warn you that this safety
feature is inoperable. The engine can be started and
stopped, but the key cannot be removed until you obtain
service.
WARNING!
• Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Don’t leave the keys in
the ignition. A child could operate power win-
dows, other controls, or move the vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
Ignition Switch Positions
1 — ACC 4 — ON/RUN
2 — LOCK 5 — START
3 — OFF
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

CAUTION!
An unlocked car is an invitation to thieves. Always
remove the key from the ignition and lock all the
doors when leaving the vehicle unattended.
Manual Transmission — If Equipped
When the steering wheel is in the LOCK position, the
steering and ignition systems are locked to provide
antitheft protection for your vehicle. It may be difficult to
turn the key from the LOCK position when starting your
vehicle. Move the steering wheel left and right while
turning the key until it turns easily. To remove the key:
1. Press and hold the release button located between the
ignition switch and the instrument panel.
2. Turn the ignition switch to the LOCK position.
3. Remove the key from the ignition lock cylinder.
Ignition Release Button
1 — ACC 4 — ON/RUN
2 — LOCK 5 — START
3 — OFF
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Locking Doors With A Key
You can insert the key into the door lock cylinder with
either side up. To lock the driver’s door, turn the key
rearward. To unlock the driver’s door, turn the key
forward. For external door lock lubrication, refer to
“Maintenance Procedures” in “Maintaining Your
Vehicle”.
STEERING WHEEL LOCK — IF EQUIPPED
Your vehicle may be equipped with a passive steering
wheel lock. This lock prevents steering the vehicle with-
out the ignition key. If the steering wheel is moved
approximately a half turn in either direction, and the key
is not in the ignition switch, the steering wheel will lock.
To Manually Lock the Steering Wheel
With the engine running, rotate the steering wheel one-
half revolution, turn off the engine and remove the key.
Turn the steering wheel slightly in either direction until
the lock engages.
To Release the Steering Wheel Lock
Insert the key in the ignition switch and start the engine.
If the key is difficult to turn, move the wheel slightly to
the right or left to disengage the lock.
NOTE: If you turned the wheel to the right to engage
the lock, you must turn the wheel slightly to the right to
disengage it. If you turned the wheel to the left to engage
the lock, turn the wheel slightly to the left to disengage it.
Automatic Transmission Ignition Interlock System
This system prevents the key from being removed unless
the shift lever is in PARK. It also prevents shifting out of
PARK unless the key is in the ACC, or ON/RUN
position, and the brake pedal is pressed.
SENTRY KEY姞— IF EQUIPPED
The Sentry Key威prevents unauthorized vehicle opera-
tion by disabling the engine. The system does not need to
be armed or activated. Operation is automatic, regardless
of whether the vehicle is locked or unlocked.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

The system uses ignition keys that have an embedded
electronic chip (transponder) to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two
seconds if someone uses an invalid key to try to start the
engine.
NOTE: A key that has not been programmed is also
considered an invalid key, even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
During normal operation, after turning on the ignition
switch, the Vehicle Security Light will turn on for three
seconds for a bulb check. If the light remains on after the
bulb check, it indicates that there is a problem with the
electronics. In addition, if the light begins to flash after
the bulb check, it indicates that someone used an invalid
key to try to start the engine. Either of these conditions
will result in the engine being shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.
CAUTION!
The Sentry Key威Immobilizer system is not compat-
ible with some after-market remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Replacement Keys
NOTE: Only keys that are programmed to the vehicle
electronics can be used to start and operate the vehicle.
Once a Sentry Key威is programmed to a vehicle, it cannot
be programmed to any other vehicle.
CAUTION!
Always remove the Sentry Keys威from the vehicle
and lock all doors when leaving the vehicle unat-
tended.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of keys. Du-
plication of keys may be performed at an authorized
dealer or by following the customer key programming
procedure. This procedure consists of programming a
blank key to the vehicle electronics. A blank key is one
that has never been programmed.
NOTE: When having the Sentry Key威Immobilizer
System serviced, bring all vehicle keys with you to an
authorized dealer.
Customer Key Programming
If you have two valid Sentry Keys威, you can program
new Sentry Keys威to the system by performing the
following steps:
1. Cut the additional Sentry Key威Transponder blank(s)
to match the ignition switch lock cylinder key code.
2. Insert the first valid key into the ignition switch. Turn
the ignition switch to the ON/RUN position for at least
three seconds, but no longer than 15 seconds. Then, turn
the ignition switch to the LOCK position and remove the
first key.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

3. Insert the second valid key into the ignition switch.
Turn the ignition switch to the ON/RUN position within
15 seconds. After 10 seconds, a chime will sound. In
addition, the Vehicle Security Light will begin to flash.
Turn the ignition switch to the LOCK position and
remove the second key.
4. Insert a blank Sentry Key威into the ignition switch.
Turn the ignition switch to the ON/RUN position within
60 seconds. After 10 seconds, a single chime will sound.
In addition, the Vehicle Security Light will stop flashing.
To indicate that programming is complete, the Vehicle
Security Light will turn on again for three seconds and
then turn off.
The new Sentry Key威is programmed. The Remote
Keyless Entry (RKE) transmitter will also be pro-
grammed during this procedure.
Repeat this procedure to program up to eight keys. If you
do not have a programmed Sentry Key威, contact your
authorized dealer for details.
NOTE: If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tem’s memory. This will prevent the lost key from
starting your vehicle. The remaining keys must then be
reprogrammed. All vehicle keys must be taken to an
authorized dealer at the time of service to be
reprogrammed.
VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm monitors the vehicle doors
and ignition for unauthorized operation. When the Ve-
hicle Security Alarm is activated it will provide both
audible and visible signals. The horn will sound repeat-
edly for the three minutes and the headlights, park lamps
and/or turn signals and Vehicle Security Light will flash
for an additional 15 minutes.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

To Arm the System
The Vehicle Security Alarm will set when you use the
power door locks, or use the Remote Keyless Entry (RKE)
transmitter to lock the doors. After all the doors are
locked and closed, the Vehicle Security Light in the
instrument cluster will flash rapidly for approximately
15 seconds to signal that the Vehicle Security Alarm is
arming. After the Vehicle Security Alarm is set, the
Vehicle Security Light will flash at a slower rate to
indicate that the Vehicle Security Alarm is armed.
NOTE: If the Vehicle Security Light stays on continu-
ously during vehicle operation, have the Vehicle Security
Alarm checked by an authorized dealer.
To Disarm the System
Use the RKE transmitter to unlock the door. If something
has triggered the Vehicle Security Alarm in your absence,
the horn will sound three times when you unlock the
doors. Check the vehicle for tampering.
The Vehicle Security Alarm will also disarm if the vehicle
Sentry Key威in inserted into the ignition and turned to
ON/RUN. If an unprogrammed Sentry Key威is used to
start a vehicle, the engine will run for two seconds and
then shut down. After six unsuccessful attempts at start-
ing the engine, the Vehicle Security Alarm will shut down
until the correct key is used. To exit alarming mode, press
the RKE transmitter UNLOCK button or start the vehicle
with a programmed Sentry Key威.
The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the
Vehicle Security Alarm will arm unexpectedly. If you
remain in the vehicle and lock the doors with the RKE
transmitter, the alarm will sound when you pull the door
handle to exit.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
