Doherty Howarth 01 User manual
www.sidhil.com
Howarth
Trolley Range
Instructions for use
2
1. INTRODUCTION............................................................................3
2. SPECIFICATION.......................................................................4
3. ASSEMBLY & PREPARING FOR USE..............................................5
4. CLEANING....................................................................................5
5. INSPECTION.....................................................................................5
6. REPLACEMENT/SPARE PARTS.........................................................6
7. WARRANTY........................................................................................7
3
1. INTRODUCTION
Thank you for purchasing a Doherty Howarth trolley. Your Howarth trolley is
part of a matching range of furniture, including fixed height couches and privacy
screens. Please speak to the Sidhil customer service team for information with
regards to the complete range (contact details found on the back of this booklet).
These instructions for use should be read carefully before using your new
Howarth Trolley.
In line with our policy of continuous improvement we welcome any suggestions
that could lead to product improvement.
Removable shelf
Removable
shallow drawer
Ticket
Trolley frame

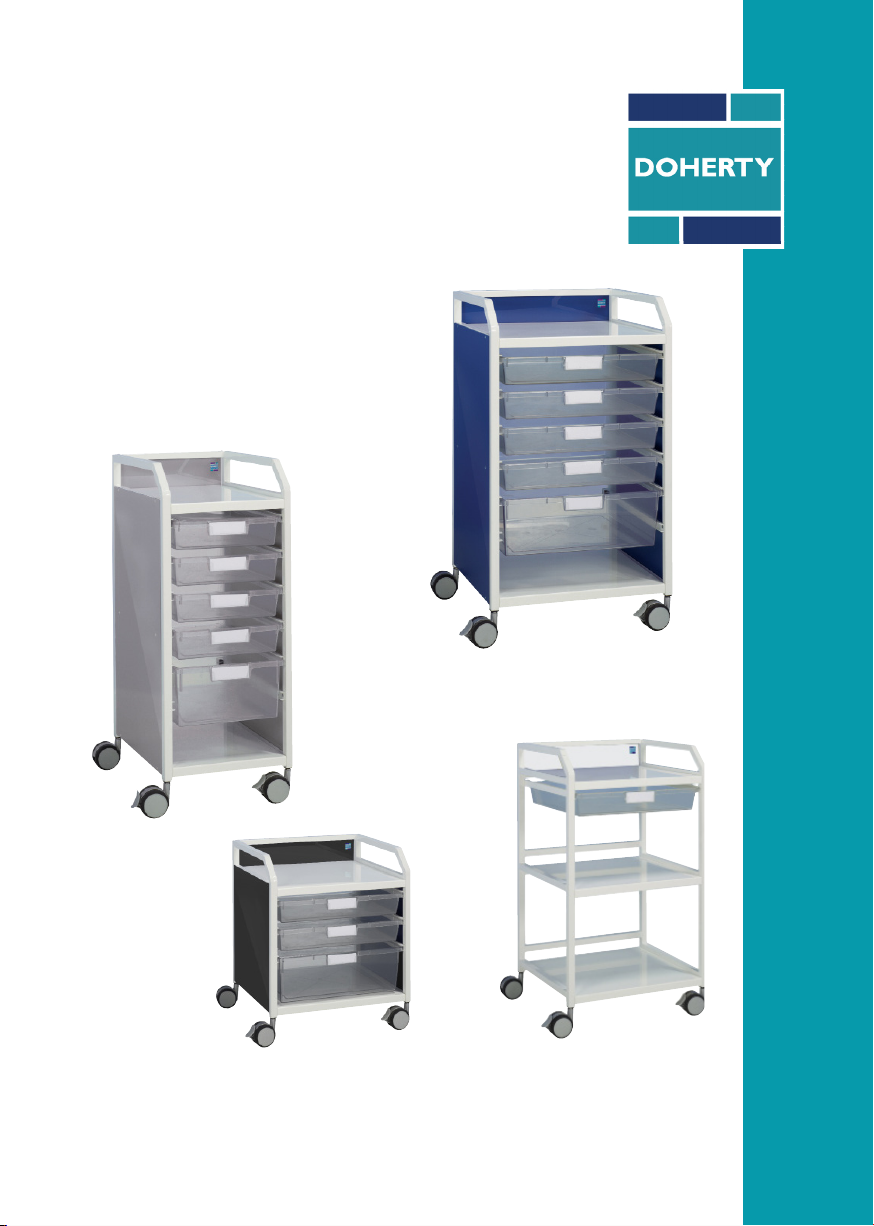

Trolley Shown: 1525/01/PURPLE
Removable
deep drawer
Removable shelf
Brake castor
Swivel castor
4
2. SPECIFICATION
Howarth 01 Howarth 02 Howarth 03 Howarth 04
Height 960mm (37.8”) 960mm (37.8”) 630mm (24.8”) 960mm (37.8”)
Width 520mm (20.4”) 365mm (14.4”) 520mm (20.4”) 520mm (20.4”)
Depth 450mm (17.7”) 450mm (17.7”) 450mm (17.7”) 450mm (17.7”)
Trolley Weight 22.2kg (44.5lb) 16.3kg (36lb) 14.6kg (32.2lb) 15.7kg (34.6lb)
Castors 2 Brake + 2 Swivel 2 Brake + 2 Swivel 2 Brake + 2 Swivel 2 Brake + 2 Swivel
Shelves 2 2 2 3
Trolley Frames 1 1 1 1
Plastic drawer sizes and quantity
Wide, Shallow
440 x 400 x 75mm
(17.3 x 15.7 x 3”)
4 2 1
Wide, Deep
440 x 400 x 150mm
(17.3 x 15.7 x 5.9”)
1 1
Narrow, Shallow
280 x 400 x 75mm
(11 x 15.7 x 3”)
4
Narrow, Deep
280 x 400 x 150mm
(17.3 x 15.7 x 5.9”)
1
Drawer Ticket
Windows
5 5 3 1
All Trolleys come in a range of 5 attractive colours.
White Purple Black Blue Grey
5
Plastic drawer sizes and quantity
Wide, Shallow
440 x 400 x 75mm
(17.3 x 15.7 x 3”)
4 2 1
Wide, Deep
440 x 400 x 150mm
(17.3 x 15.7 x 5.9”)
1 1
Narrow, Shallow
280 x 400 x 75mm
(11 x 15.7 x 3”)
4
Narrow, Deep
280 x 400 x 150mm
(17.3 x 15.7 x 5.9”)
1
Drawer Ticket
Windows
5 5 3 1
3. ASSEMBLY & PREPARING FOR USE
Your trolley is delivered fully assembled and ready for use.
1. Remove the trolley carefully from its packaging. (Note: it is advisable for two able
bodied people to unpack the trolley due to the weight.)
2. Remove all packing materials that are securing the shelves and drawers in place.
3. Wheel into position and apply the brakes to the front castors.
Please dispose of the packaging in a sensible and environmental fashion.
All surfaces should be wiped down with a disposable cleaning cloth, moistened with
a mild detergent and diluted in hot water (60°C). Extra care should be taken around
areas where excess dirt or dust may gather. Rinse down with clean water and dry off
with a paper towel.
Always ensure the trolley is dry before re-using.
Sidhil does not recommend the use of neat bleach as this could mark the painted or
plastic surfaces.
4. CLEANING
5. INSPECTION
The Howarth trolley requires very little maintenance, however if there are any signs
of damage or the trolley is not performing as it should, please contact your supplier
for assistance.
Inspection points:
• Check there are no loose parts or fixings
• Check no parts appear excessively worn
• Check the castors are clean and free running
• Check the brakes function effectively
6
6. REPLACEMENT/SPARE PARTS
Spare Part List Product Code 1525/01
(Standard)
1525/02
(Narrow)
1525/03
(Short)
1525/04
(Basic)
Removable Shelf 1525/013 x x x
Removable Narrow
Shelf
1525/026 x
Removable Wide,
Shallow Drawer
1525/TRAY/WS x x x
Removable Narrow,
Shallow Drawer
1525/TRAY/NS x
Removable Wide,
Deep Drawer
1525/TRAY/WD x x
Removable Narrow,
Deep Drawer
1525/TRAY/ND x
Ticket Window 1525/TRAY/TW x x x x
Brake Castor CASTOR/010 x x x x
Swivel Castor CASTOR/011 x x x x
7
Sidhil Ltd guarantees this product is free from defects in material and workmanship
under normal use for 1year (1 year full parts and labour) from the date of purchase from
Sidhil Ltd, its subsidiary companies, authorised dealers and international distributors.
Proof of purchase must be presented with any claim. Except as provided herein, Sidhil
Ltd, product warranty does not cover damage caused by misuse or abuse, accident,
the attachment of any unauthorised accessory, alteration to the product, or any
other conditions whatsoever that are beyond the control of Sidhil Ltd. Sidhil Ltd, its
subsidiary companies, authorised dealers and international distributors shall have no
liability or responsibility to the customers or any other person or entity with respect to
any liability, loss or damage caused directly or indirectly by use or performance of the
product or arising out of any breach of this warranty, including but not limited to any
damages resulting from inconvenience, loss of time, property, revenue, or profit or any
indirect, special, incidental or consequential damages, even if Sidhil Ltd, its subsidiary
companies, authorised dealers or international distributors has been advised of the
possibility of such damages.
In the event of a product defect during the warranty period you should contact your
supplier, whether it be Sidhil Ltd, its subsidiary companies, authorised dealers or
international distributors who will at their option unless otherwise provided by law;
a) correct the defect by product repair without charge for parts and labour b) replace
the product with one of the same or similar design or c) refund the purchase price.
All replaced parts and products on which a refund is made become the property of
Sidhil Ltd. New or reconditioned parts and products may be used in the performance
of the warranty service. Repaired or replaced parts and products are warranted
for the remainder of the original warranty period. You will be charged for repair or
replacement of the product made after the expiration of the warranty period.
This warranty does not cover; a) damage or failure by or attributes to acts of God,
abuse, accident, misuse, improper or abnormal usage, failure to follow instructions,
improperinstallationormaintenance,alterations,lightningorotherincidenceofexcess
voltage or current, b) any repairs other than those provided by a Sidhil Ltd authorised
technician, c) consumables such as fuses, d) cosmetic damage, e) transportation,
shipping or insurance costs or f) costs of product removal, installation setup service
adjustment or re-installation.
This limited one year warranty gives you specific legal rights and you may also have
other rights.
Sidhil Ltd cannot be held responsible for any injury or incident which relates to the
use of this Doherty Howarth Trolley in conjunction with accessories manufactured by
companies other than Sidhil Ltd.
All products carry the CE mark in accordance with EC Directive on Medical Devices
(93/42/EEC).
Sidhil has a policy of continual product improvement and reserves the right to amend
specifications covered in this brochure.
No part of this brochure may be reproduced without the written approval of Sidhil Ltd.
7. WARRANTY
CONTACT INFORMATION
Tel: +44 (0) 01422 233000 Fax: +44 (0) 01422 233010
Sidhil Business Park, Holmfield, Halifax, HX2 9TN
A member of the Siddall & Hilton Ltd. Group of Companies
Certificate No. FM14550
(93/42/EEC)
INSTRUC/1525 18/03/2014 - rev.2
