ENGLISH (Original instructions)
CONTENTS
SECTION 1 SYMBOLS MARKED ON THE PRODUCT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
SECTION 2 GENERAL SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
SECTION 3 PARTS DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
SECTION 4 TECHNICAL DATA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
SECTION 5 ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
SECTION 6 “3 IN 1” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
SECTION 7 OPERATING INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
SECTION 8 MAINTENANCE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
SECTION 9 LUBRICATION INSTRUCIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
SECTION 10 CLEANING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
SECTION 11 STORAGE INSTRUCTIONS (OFF SEASON) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
SECTION 12 TROUBLES SHOOTING GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
SECTION 13 WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
SECTION 14 ENVIRONMENT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
SECTION 15 EC DECLARATION OF CONFORMITY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

9
Explanation of general view
WARNING:
For your own safety please read this manual before
attempting to operate your new unit. Failure to follow
instructions can result in serious personal injury. Spend a
few moments to familiarize yourself with your mower
before each use.
1. SYMBOLS MARKED ON THE
PRODUCT
Safety Label Found On Lawn Mower: KEEP HANDS AND
FEET AWAY
2. GENERAL SAFETY RULES
WARNING: When using petrol tools, basic safety
precautions, including the following, should always be
followed to reduce the risk of serious personal injury and/
or damage to the unit. Read all these instruction before
operating this product and retain these instructions for
future reference.
WARNING: This machine produces an
electromagnetic field during operation. This field may
under some circumstances interfere with active or passive
medical implants. To reduce the risk of serious or fatal
injury, we recommend persons with medical implants to
consult their physician and the medical implant
manufacturer before operating this machine.
Training
• Read the instructions carefully. Be familiar with the
controls and the proper use of the equipment;
• Never allow children or people unfamiliar with these
instructions to use the lawn mower. Local regulations
can restrict the age of the operator;
• Never mow while people, especially children, or pets
are nearby;
• Keep in mind that the operator or user is responsible
for accidents or hazards occurring to other people or
their property.
Preparation
• While mowing, always wear substantial footwear and
long trousers. Do not operate the equipment when
barefoot or wearing open sandals;
1. Upper handle
2. Brake control handle
3. Choke lever
4. Starter handle
5. Rope guide
6. Locking lever
7. Grass catch bag
8. Height adjusting lever
9. Discharge channel
10. Sideward flap
11. Deck
12. Spark plug
13. Fuel cap
14. Oil cap
15. Cable clamp
16. Lower handle
17. Self-drive control handle
18. Mulching wedge
19. Bolt
20. Washer
21. Locking knob
22. Lock nut
23. The angle adjusting gear
24. Primer bulb
25. Screw
26. Filter cover
Read operator’s manual.
Keep bystanders away.
Pay more attention to the operator’s hands
and feet to avoid injury.
Fuel is flammable, keep fire away. Do not add
fuel with running machine.
Toxic fumes; don’t operate inside house.
When mowing, please wear the glasses and
ear plugs to defend the operator himself.
When repairing, please pick up the spark
plug, and then repair it according to the
operational manual.
Caution: Engine hot.

10
• Thoroughly inspect the area where the equipment is to
be used and remove all objects which can be thrown by
the machine;
• WARNING - Petrol is highly flammable.
- Store fuel in containers specifically designed for this
purpose;
- Refuel outdoors only and do not smoke while
refueling;
- Add fuel before starting the engine. Never remove
the cap of the fuel tank or add petrol while the
engine is running or when the engine is hot;
- If petrol is spilled, do not attempt to start the engine
but move the machine away from the area of
spillage and avoid creating any source of ignition
until petrol vapours have dissipated;
- Replace all fuel tank and container caps securely;
• Replace faulty silencers;
• Before using, always visually inspect to see that the
blades, blade bolts and cutter assembly are not worn or
damaged. Replace worn or damaged blades and bolts
in sets to preserve balance.
Operation
• Do not operate the engine in a confined space where
dangerous carbon monoxide fumes can collect;
• Mow only in daylight or in good artificial light;
• Avoid operating the equipment in wet grass, where
feasible;
• Always be sure of your footing on slopes;
• Walk, never run;
• For wheeled rotary machines, mow across the face of
slopes, never up and down;
• Exercise extreme caution when changing direction on
slopes;
• Do not mow excessively steep slopes;
• Use extreme caution when reversing or pulling the
lawn mower towards you;
• Stop the blade(s) if the lawn mower has to be tilted for
transportation when crossing surfaces other than
grass, and when transporting the lawn mower to and
from the area to be mowed;
• Never operate the lawn mower with defective guards,
or without safety devices, for example deflectors and/or
grass catchers, in place;
• Do not change the engine governor settings or
overspeed the engine;
• Disengage all blades and drive clutches before starting
the engine;
• Start the engine carefully according to instructions and
with feet well away from the blade(s);
• Do not tilt the lawn mower when starting the engine;
• Do not start the engine when standing in front of the
discharge chute;
• Do not put hands or feet near or under rotating parts.
Keep clear of the discharge opening at all times;
• Never pick up or carry a lawn mower while the engine
is running;
• Stop the engine and disconnect the spark plug wire,
make sure that all moving parts have come to a
complete stop and, where a key is fitted remove the
key:
- Before clearing blockages or unclogging chute;
- Before checking, cleaning or working on the lawn
mower;
- After striking a foreign object. Inspect the lawn
mower for damage and make repairs before
restarting and operating the lawn mower;
- If lawn mower starts to vibrate abnormally (check
immediately);
• Stop the engine and disconnect the spark plug wire,
make sure that all moving parts have come to a
complete stop and, where a key is fitted remove the
key:
- Whenever you leave the lawn mower;
- Before refueling;
• Reduce the throttle setting during engine shut down
and, if the engine is provided with a shut-off valve, turn
the fuel off at the conclusion of mowing.
Maintenance and storage
• Keep all nuts, bolts and screws tight to be sure the
equipment are in safe working condition;
• Never store the equipment with petrol in the tank inside
a building where fumes can reach an open flame or
spark;
• Allow the engine to cool before storing in any
enclosure;
• To reduce the fire hazard, keep the engine, silencer,
battery compartment and petrol storage area free of
grass, leaves, or excessive grease;
• Check the grass catcher frequently for wear or
deterioration;
• Replace worn or damaged parts for safety;
• If the fuel tank has to be drained, this should be done
outdoors.
WARNING: Do not touch rotating blade.
WARNING: Refuel in a well ventilated area with
the engine stopped.

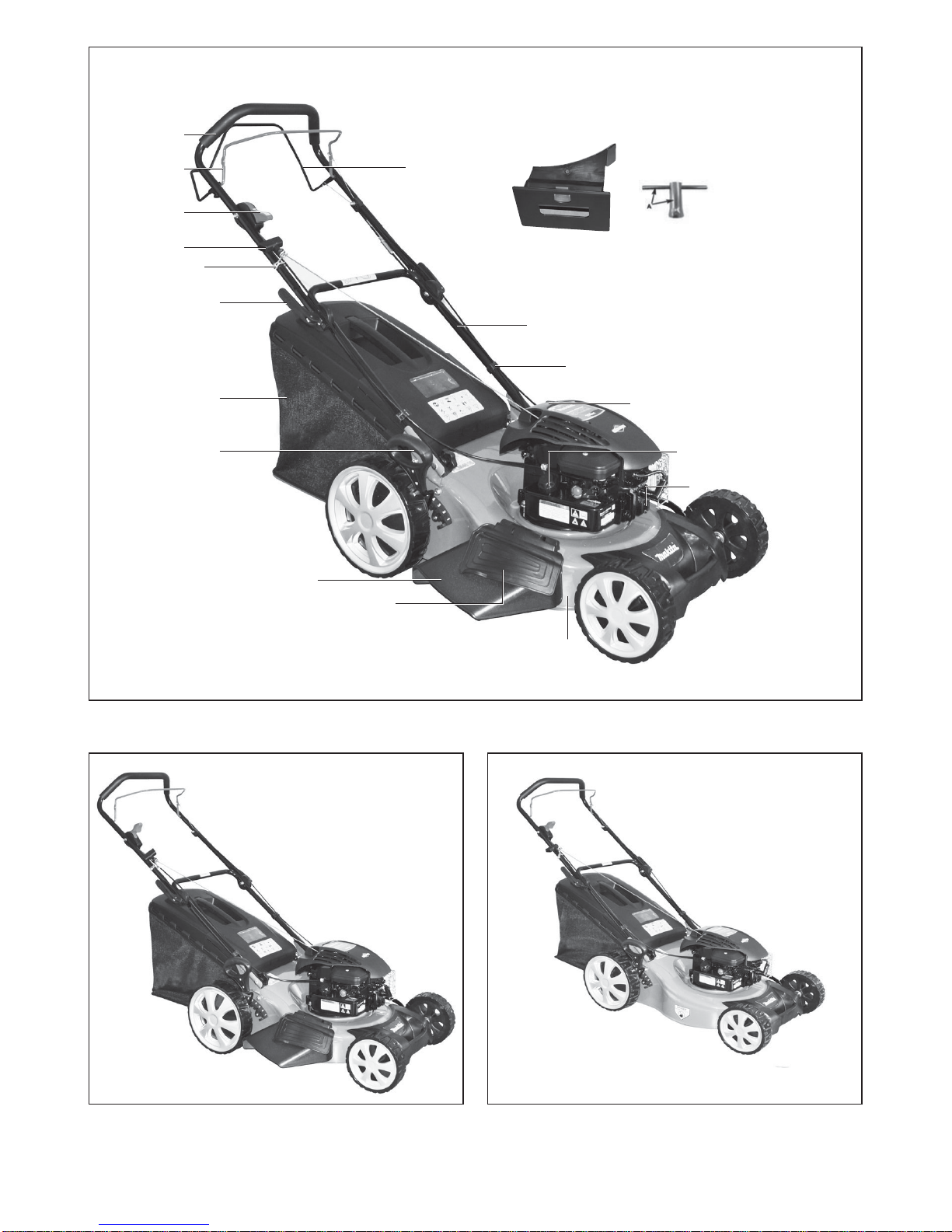

3. PARTS DESCRIPTION (Fig. A
& B, C)
Including
A: Spark plug wrench

11
4. TECHNICAL DATA
Differences between three models
Noise emission values according to directive 2000/14/EC
5. ASSEMBLY

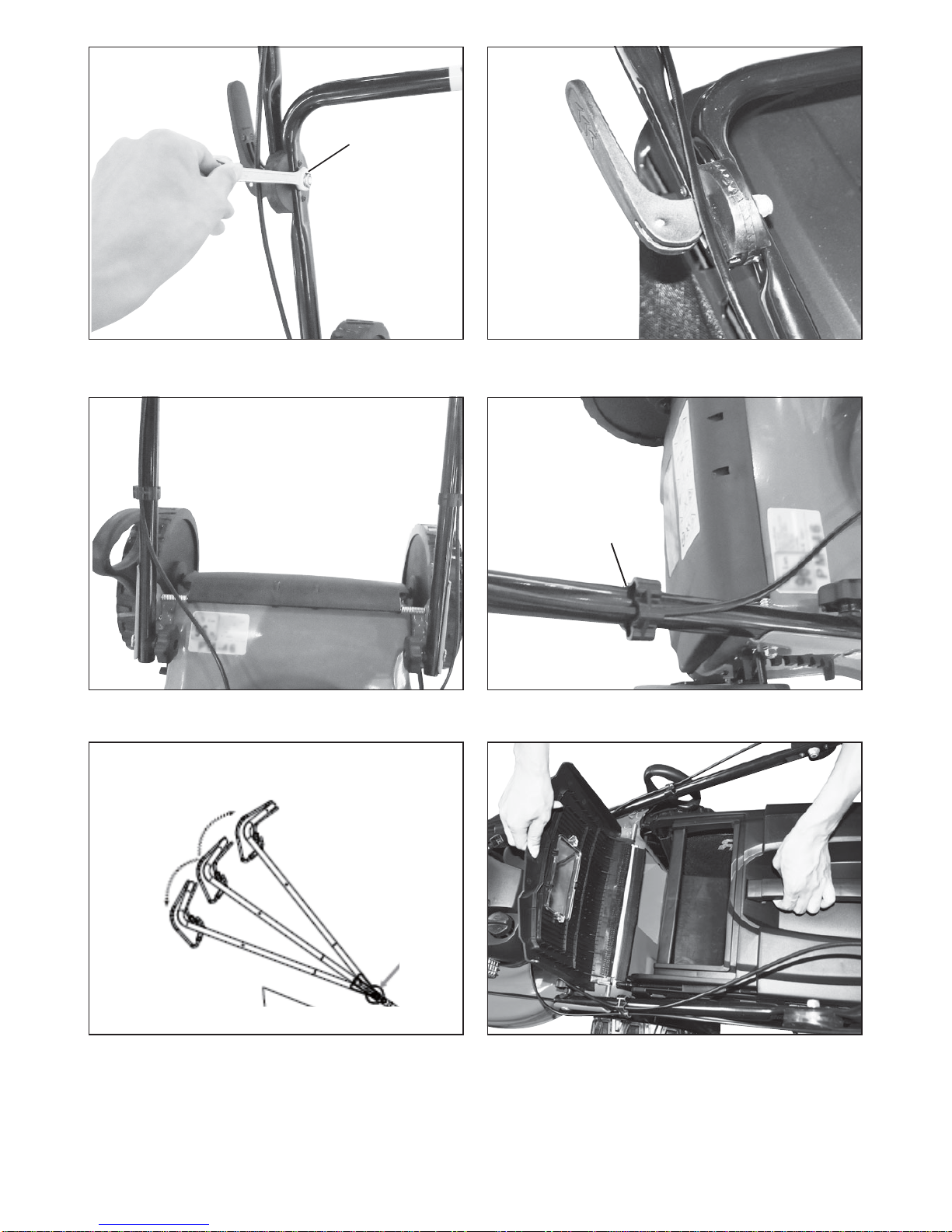

5-1 FOLDING HANDLE
1. Use the locking knob to fix the lower handlebars into
the unit body. (Fig. 1A/Fig. 1B/Fig. 1C/Fig. 1D)
2. Lift the two locking levers to release the upper
handlebars for folding. (Fig. 1E)
3. Push the locking lever closed to lock the handlebars in
the operating position. (Fig. 1F)
4. Adjust the tension by turning the lock nut with a
suitable spanner. (Fig. 1G/Fig. 1H)
5. Attachthe cable-clamp to the position shown and then
attach the cable. (Fig. 1I/Fig. 1J)
5-2 ADJUSTMENT FOR AN
APPROPRIATE ANGLE
A) Pull the locking lever opening;
B) Rotating the upper handle centered of the angle
adjusting gear for adjusted a appropriate angle into
the scope –20° to 20° (5 position: –20°/–10°/0°/10°/
20°) as the Fig. 2 shown;
C) Push the locking lever closed to connect the lower
handle and the upper handle.
5-3 MOUNTING THE GRASS CATCHER
1. To fit: Raise the rear cover and hitch the grass catcher
on rear of mower. (Fig. 3A/Fig. 3B/Fig. 3C)
2. To remove: grasp and lift rear cover, remove grass
catcher.
5-4 STARTER HANDLE
Move the starter handle from the engine to the rope guide.
(Fig. 4)

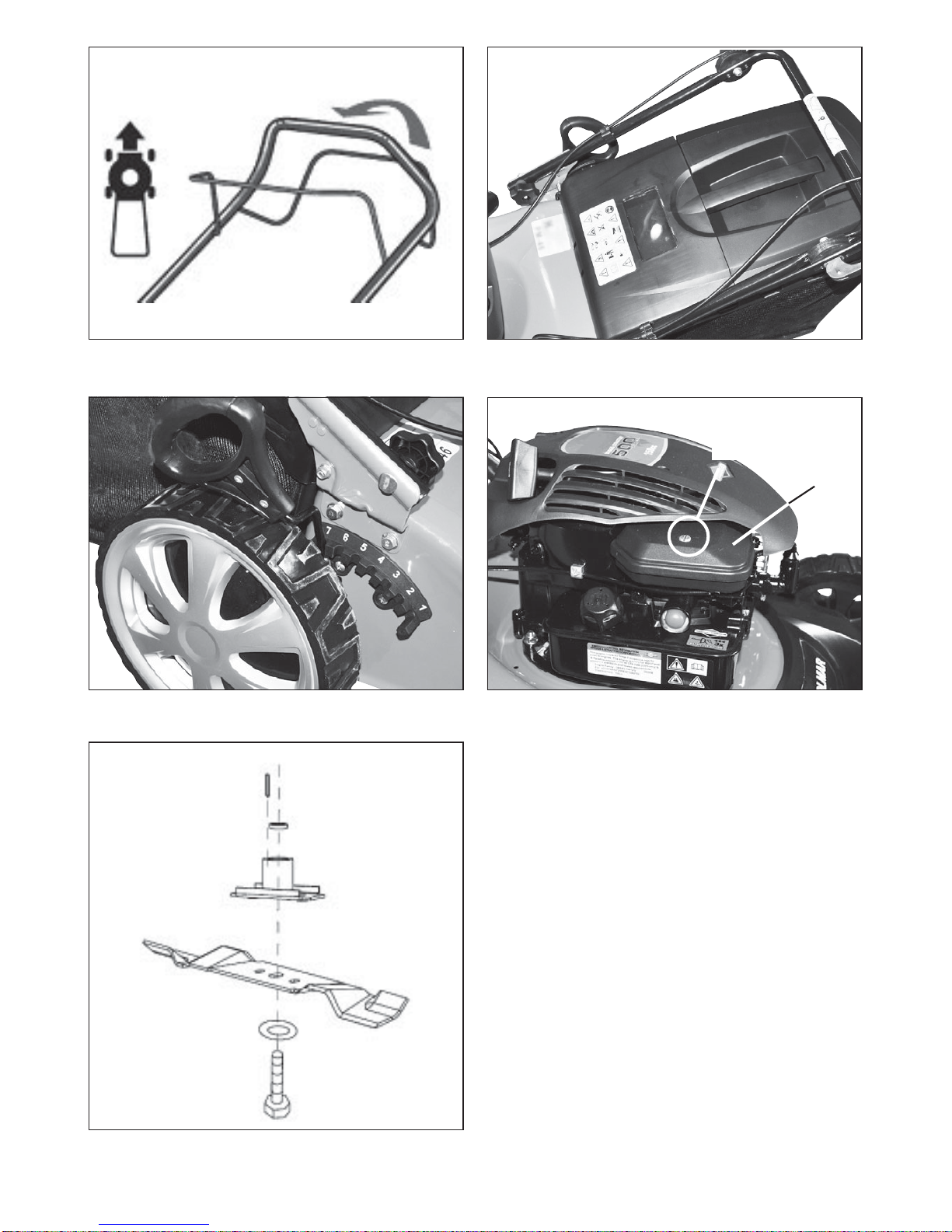

5-5 HEIGHT OF CUT
Apply outward pressure to disengage lever from rack.
Move lever forward or back to adjust height. (Fig. 5 and
see clause 7.9)
6. “3 IN 1” (only for PM-46 N,
PM-46 S)
These lawn mowers can be retrofitted from its normal
function, based on the application purpose:
From lawn mower with rear discharge to:
1. Mulching mower or as
2. Side-discharge mower.
What is mulching?
When mulching, the grass is cut in one working step, then
finely chopped and returned to the grass strip as natural
fertilizer.
Hints for mulch-mowing:
- Regular cut-back by max. 2 cm form 6 cm to 4 cm
grass height.
- Use a sharp cutting knife - Do not mow wet grass
Model PM-46 PM-46 N PM-46 S
Engine type B&S500, 10T6 B&S500, 10T6 B&S500, 10T6
Self-propelled no no yes
Engine displacement 158 cm3158 cm3158 cm3
Blade width 460 mm 460 mm 460 mm
Rated speed 2,800/min 2,800/min 2,800/min
Fuel tank capacity 800 ml 800 ml 800 ml
Grass catcher capacity 60 L 60 L 60 L
Net weight 28.6 kg 29.2 kg 32.3 kg
Height adjustment 30-75 mm, 7 adjustment 30-75 mm, 7 adjustment 30-75 mm, 7 adjustment
Model Front handle of
deck Side discharge Self-propelled
PM-46 uu
PM-46 N u
PM-46 S
EN ISO 3744, EN ISO 4871 PM-46 PM-46 N PM-46 S
LpA (SPL) at the site of the user 85 dB (A) (K=3 dB (A)) 85 dB (A) (K=3 dB (A)) 85 dB (A) (K=3 dB (A))
Measured sound power level 92.9 dB (A)
K=2.59 dB (A) 92.9 dB (A) K=2.59 dB (A) 92.9 dB (A) K=2.59 dB (A)
Guaranteed sound power level LwA 96 dB (A) 96 dB (A) 96 dB (A)
Vibration EN ISO 20643 3.099 m/s2
K=1.5 m/s23.099 m/s2 K=1.5 m/s23.099 m/s2 K=1.5 m/s2

12
- Set max. motor speed
- Only move at working pace
- Regularly clean mulching wedge, housing inner side
and mowing blade
Starting Operation
ONE: Retrofitting for mulching mower
WARNING: Only with a stopped motor and
standstill cutter.
1. Raise the rear cover and remove the grass catch bag.
2. Push the mulching wedge into the deck. Lock the
mulching wedge with the button into the opening on
the deck. (Fig. 6A/Fig. 6B)
3. Lower the rear cover again.
TWO: Resetting for side-discharge mowing
Only when motor and cutting are at standstill!
1. Lift the rear cover and remove the grass catch bag.
2. Mount the discharge channel.
3. Lift sideward flap for side discharge. (Fig. 7A)
4. Mount the discharge guide for side discharge on the
support pin of the sideward flap. (Fig. 7A)
5. Lower the sideward flap- the flap lies on the discharge
channel. (Fig. 7B)
THREE: Mowing with the grass catch bag
1. For mowing with the grass catch bag, remove the
mulching wedge and discharge channel for side
discharge and mount the grass catch bag.
2. Removing the mulching wedge.
- Lift rear cover and remove the mulching wedge.
WARNING: Only with a stopped motor and
standstill cutter.
3. Life sideward flap and remove discharge channel.
- Removing the discharge channel for side discharge.
- The sideward flap automatically closes the
discharge opening on the housing by mean of spring
force.
- Regularly clean the sideward flap and discharge
opening form grass rest and stuck dirt.
WARNING: Only with a stopped motor and
standstill cutter.
7. OPERATING INSTRUCTIONS
7-1 BEFORE STARTING
Service the engine with gasoline and oil as instructed in
the separate engine manual packed in your mower. Read
instructions carefully.
WARNING: Petrol is highly flammable.
Store fuel in containers specifically designed for this
purpose.
Refuel outdoors only, before starting the engine and do
not smoke while refueling or handling fuel.
Never remove the cap of the fuel tank or add petrol while
the engine is running or when the engine is hot.
If petrol is spilled, do not attempt to start the engine but
move the machine away from the area of spillage and
avoid creating any source of ignition until petrol vapors
have dissipated.
Replace all fuel tanks and container caps securely.
Before tipping the lawn mower to maintain the blade or
drain oil, remove fuel from tank.
WARNING: Never fill fuel tank indoors, with
engine running or until the engine has been allowed to
cool for at least 15 minutes after running.
7-2 TO START ENGINE AND ENGAGE
BLADE
1. The unit is equipped with a rubber boot over the end of
the spark plug, make certain the metal loop on the end
of the spark plug wire (inside the rubber boot) is
fastened securely over the metal tip on the spark plug.
2. Press the primer bulb 3-5 times before starting the
engine. (Fig. 8A)
3. When starting cool engine, turn throttle choke lever to
“ ” position.
When starting warm engine and operating, turn
throttle choke lever to “ ” position. (Fig. 8B)
4. Standing behind the unit, grasp the brake control
handle and hold it against the upper handle as shown.
(Fig. 8C)
5. Grasp the starter handle as shown (Fig. 8C) and pull
up rapidly. Return it slowly to the rope guide bolt after
engine starts.
Release the brake control handle to stop the engine and
blade. (Fig. 8D)
Start the engine carefully according to
instructions and with feet well away from the blade.
Do not tilt the lawn mower when starting the
engine. Start the mower on a level surface, free of high
grass or obstacles.
Keep hands and feet away from the rotating
parts. Do not start the engine when standing in front of the
discharge opening.
7-3 OPERATION PROCEDURES
During operation, tightly hold the brake handle with both
hands.
Note: During operation, when the brake handle is
released, the engine will stop and thus stopping the lawn
mower from operating.
7-4 TO STOP ENGINE
CAUTION: The blade continues to rotate for a
few seconds after the engine is shut off.
1. Release the brake control handle to stop the engine
and blade.

13
2. Disconnect and ground the spark plug wire as
instructed in the separate engine manual to prevent
accidental starting while equipment is unattended.
7-5 CONNECTION FOR AUTO MOVE
For PM-46 S
Grip the self-drive control handle, the lawn mower will
move forward automatically with about 3.0 km/h (Fig. 9),
release the self-drive handle, the lawn mower will stop
move.
CAUTION: Your mower is designed to cut normal
residential grass of a height no more than 250 mm.
Do not attempt to mow through unusually tall dry or wet
grass (e.g., pasture) or piles of dry leaves. Debris may
build up on the mower deck or contact the engine exhaust
presenting a potential fire hazard.
7-6 FOR THE BEST RESULTS WHEN
MOWING
Clear lawn of debris. Be sure that the lawn is clear of
stones, sticks, wire or other foreign objects which could be
accidentally thrown out by the mower in any direction and
cause serious personal injury to the operator and others
as well as damage to property and surrounding objects.
Do not cut wet grass. For effective mowing do not cut wet
grass because it tends to stick to the underside of the
deck preventing proper mowing of the grass clippings. Cut
no more than 1/3 the length of the grass. The
recommended cut for mowing is 1/3 the length of the
grass. Ground speed will need to be adjusted so the
clippings can be dispersed evenly into the lawn. For
especially heavy cutting in thick grass it may be
necessary touse one of the slowest speeds in order toget
a clean well mowed cut. When mowing long grass you
may have to cut the lawn in two passes, lowering the
blade another 1/3 of the length for the second cut and
perhaps cutting in a different pattern than was used the
first time. Overlapping the cut a little on each pass will
also help to clean up any stray clippings left on the lawn.
The mower should always be operated at full throttle to
get the best cut and allow it to do the most effective job of
mowing. Clean underside of deck. Be certain to clean the
underside of the cutting deck after each use to avoid a
build-up of grass, which would prevent proper mulching.
Mowing leaves. The mowing of leaves can also be
beneficial to your lawn. When mowing leaves make sure
they are dry and are not laying too thick on the lawn. Do
not wait for all the leaves to be off the trees before you
mow.
WARNING: If you strike a foreign object, stop the
engine. Remove wire from spark plug, thoroughly inspect
the mower for any damage and repair the damage before
restarting and operating the mower. Extensive vibration of
the mower during operation is an indication of damage.
The unit should be promptly inspected and repaired.
7-7 GRASS CATCHER
There is a window on the rear cover. You can see the
condition of grass catcher through the window. If the
catcher is full of grass; you will empty and clean the bag,
make sure it is clean and ensure its meshwork is
ventilated. (Fig. 10)
7-8 DECK
The underside of the mower deck should be cleaned after
each use to prevent a buildup of grass clippings, leaves,
dirt or other matter. If this debris is allowed to accumulate,
it will invite rust and corrosion, and may prevent proper
mulching. The deck may be cleaned by tilting the mower
and scraping clean with a suitable tool (make certain the
spark plug wire is disconnected).
7-9 HEIGHT ADJUSTMENT
INSTRUCTIONS
CAUTION: Do not at any time make any
adjustment to lawn mower without first stopping the
engine and disconnecting the spark plug wire.
CAUTION: Before changing mowing height, stop
mower and disconnect spark plug cable.
Your mower is equipped with a central height
adjustment lever offering 7 height positions.
1. Stop mower and disconnect spark plug cable before
changing mower cutting height.
2. The central height adjustment lever offers you 7
different height positions.
3. To change the height of cut, squeeze adjuster lever
toward the wheel, moving up or down to selected
height. (Fig. 11)
All wheels will be in the same height of cut.
8. MAINTENANCE
INSTRUCTIONS
SPARK PLUG
Use only original replacement spark plug. For best
results, replace the spark plug every 100 hours of use.
9. LUBRICATION INSTRUCIONS
CAUTION: DISCONNECT SPARK PLUG
BEFORE SERVICING.
1. WHEELS - Lubricate the ball bearings in each wheel
at least once a season with a light oil.
2. ENGINE - Follow engine manual for lubrication
instructions.
10.CLEANING
CAUTION: Do not hose engine. Water can
damage engine or contaminate the fuel system.
1. Wipe deck with dry cloth.
2. Hose under deck by tilting the mower so that the spark
plug is up.

14
10-1 ENGINE AIR CLEANER
CAUTION: Do not allow dirt or dust to clog the air
filter foam element. The engine air cleaner element must
be serviced (cleaned) after 25 hours normal mowing. The
foam element must be serviced regularly if the mower is
used in dry dusty conditions.
To CLEAN AIR FILTER
1. Remove the screw.
2. Remove the filter cover.
3. Wash filter element in soap water. DO NOT USE
GASOLINE!
4. Air dry filter element.
5. Place a few drops of SAE30 oil on the foam filter and
squeeze tightly to remove any excess oil.
6. Reinstall filter.
NOTE: Replace filter if frayed, torn, damaged or
unable to be cleaned. (Fig. 12)
10-2 CUTTING BLADE
CAUTION: Be sure to disconnect and ground the
spark plug wire before working on the cutting blade to
prevent accidental engine starting. Protect hands by using
heavy gloves or a rag to grasp the cutting blades. Tip
mower as specified in separate engine manual. Remove
the hex bolt and washer which hold the blade and blade
adapter to the engine crankshaft. Remove the blade and
adapter from the crankshaft.
WARNING: Periodically inspect the blade
adapter for cracks, especially if you strikea foreign object.
Replace when necessary.
For best results your blade should be sharp. The blade
may be resharpened by removing it and either grinding or
filing the cutting edge keeping as close to the original
bevel as possible. It is extremely important that each
cutting edge receives an equal amount of grinding to
prevent an unbalanced blade. Improper blade balance will
result in excessive vibration causing eventual damage to
the engine and mower. Be sure to carefully balance blade
after sharpening. The blade can be tested for balance by
balancing it on a round shaft screwdriver. Remove metal
from the heavy side until it balances evenly.
Before reassembling the blade and the blade adapter to
the unit, lubricate the engine crankshaft and the inner
surface of the blade adapter with light oil. Install the blade
adapter on the crankshaft. Refer to Fig. 13. Place the
blade with the part number facing away from the adapter.
Align the washer over the blade and insert the hex bolt.
Tighten the hex bolt to the torque listed below:
10-3 BLADE MOUNTING TORQUE
Center bolt 35 Nm - 45 Nm, to insure safe operation of
your unit. All nuts and bolts must be checked periodically
for correct tightness.
After prolonged use, especially in sandy soil conditions,
the blade will become worn and lose some of the original
shape. Cutting efficiently will be reduced and the blade
should be replaced. Replace with an approved factory
replacement blade only. Possible damage resulting from
blade unbalance condition is not the responsibility of the
manufacturer.
When you change the blade, you must use the original
type marked on the blade (Dolmar 263001451) (to order
the blade, please contact your local dealer or call our
company, see cover page).
10-4 ENGINE
Refer to the separate engine manual for engine
maintenance instructions.
Maintain engine oil as instructed in the separate engine
manual packed with your unit. Read and follow
instructions carefully.
Service air cleaner as per separate engine manual under
normal conditions.
Clean every few hours under extremely dusty conditions.
Poor engine performance and flooding usually indicates
that the air cleaner should be serviced.
To service the air cleaner, refer to the separate engine
manual packed with your unit.
The spark plug should be cleaned and the gap reset once
a season. Spark plug replacement is recommended at the
start of each mowing season; check engine manual for
correct plug type and gap specifications.
Clean the engine regularly with a cloth or brush. Keep the
cooling system (blower housing area) clean to permit
proper air circulation which is essential to engine
performance and life. Be certain to remove all grass, dirt
and combustible debris from muffler area.
11. STORAGE INSTRUCTIONS
(OFF SEASON)
The following steps should be taken to prepare lawn
mower for storage.
1. Empty the tank after the last mowing of the season.
a) Empty the petrol tank with a suction pump.
CAUTION: Do not drain the petrol in closed
rooms, in close proximity of open fire, etc. Do not smoke!
Petrol fumes can cause explosion or fire.
b) Start the engine and let it run until it has used up all
remaining petrol and stalls.
c) Remove the spark plug. Use an oilcan to fill approx.
20 ml oil into the combustion chamber. Operate the
starter to evenly distribute the oil in the combustion
chamber. Replace the spark plug.
2. Clean and grease the lawn mower carefully as
described above under “LUBRICATION
INSTRUCIONS”.
3. Slightly grease the cutter to avoid corrosion.
4. Store the lawn mower in a dry, clean and frost-
protected place, out of reach of unauthorized persons.
CAUTION: The engine must have completely
cooled down before storing the lawn mower.
NOTE:
- When storing any type of power equipment in an
unventilated or material storage shed:

15
- Care should be taken to rust-proof the equipment.
Using a light oil or silicone, coat the equipment,
especially cables and all moving parts.
- Be careful not to bend or kink cables.
- If the starter rope becomes disconnected from rope
guide on handle, disconnect and ground the spark plug
wire, depress the blade control handle and pull the
starter rope out from engine slowly. Slip the starter
rope into the rope guide bolt on handle.
Transport
Turn the engine off. Ensure not to bend or damage the
cutter when pushing the lawn mower over obstacles.
12. TROUBLES SHOOTING GUIDE
PROBLEM PROBABLE CAUSE CORRECTIVE ACTION
Engine does not start. Throttle choke not in the correct position
for the prevailing conditions. Move throttle choke to correct position.
Fuel tank is empty. Fill tank with fuel: refer to ENGINE
OWNERS MANUAL.
Air cleaner element is dirty. Clean air cleaner element: refer to
ENGINE OWNERS MANUAL.
Spark plug loose. Tighten spark plug to 25-30 Nm.
Spark plug wire loose or disconnected
from plug. Install spark plug wire on spark plug.
Spark plug gap is incorrect. Set gap between electrodes at 0.7 to
0.8 mm.
Spark plug is defective. Install new, correctly gapped plug: refer
to ENGINE OWNERS MANUAL.
Carburetor is flooded with fuel. Remove air cleaner element and pull
starter rope continuously until carburetor
clears itself and install air cleaner
element.
Faulty ignition module. Contact the service agent.
Engine difficult to start or loses
power. Dirt, water, or stale fuel tank. Drain fuel and clean tank. Fill tank with clean, fresh fuel.
Vent hole in fuel tank cap is plugged. Clean or replace fuel tank cap.
Air cleaner element is dirty. Clean air cleaner element.
Engine operates erratically. Spark plug is defective. Install new, correctly gapped plug: refer
to ENGINE OWNERS MANUAL.
Spark plug gap is incorrect. Set gap between electrodes at 0.7 to
0.8 mm.
Air cleaner element is dirty. Clean air cleaner element: refer to
ENGINE OWNERS MANUAL.
Engine idles poorly. Air cleaner element is dirty. Clean air cleaner element: refer to
ENGINE OWNERS MANUAL.
Air slots in engine shroud are blocked. Remove debris from shots.
Cooling fins and air passages under
engine blower housing are blocked. Remove debris from cooling fins and air passages.
Engine skips at high speed. Gap between electrodes of spark plug is
too close. Set gap between electrodes at 0.7 to 0.8 mm.
Engine overheats. Cooling air flow is restricted. Remove any debris from slots in shroud,
blower housing, air passages.
Incorrect spark plug. Install RJ19LM spark plug and cooling
fins on engine.
Mower vibrates abnormally. Cutting assembly is loose. Tighten blade.
Cutting assembly is unbalanced. Balance blade.

16
13.WARRANTY
This product is warranted in accordance with legal
regulations for a 12 months period effective from the date
of purchase by the first user.
This warranty covers all material or production failures, it
does not include defects from normal wear & tear parts,
such as bearings, brushes, cables, plugs or accessories
like drills, drill bits, saw blades etc.; damage or defects
resulting from abuse, accidents or alterations; nor the
costs for transport.
We reserve the right to reject any claim where the
purchase cannot be verified or when it is clear that the
product was not maintained properly. (Clean ventilation
slots, carbon brushes serviced regularly.)
Your purchase ticket must be kept as proof for date of
purchase.
Your un-dismantled tool must be returned to your dealer
in an acceptably clean state, in its original blow molded
case if applicable to unit, accompanied by your proof of
purchase.
14.ENVIRONMENT
Should your machine need replacement after extended
use, do not put it in the domestic waste but dispose of it in
an environmentally safe way.
15.EC DECLARATION OF
CONFORMITY
For European countries only
The undersigned, Tamiro Kishima and Rainer
Bergfeld, as authorized by Dolmar GmbH, declare that
the DOLMAR machine(s):
Designation of Machine: Petrol Lawn Mower
Model No./Type: PM-46, PM-46 N, PM-46 S
Specifications: See “4. TECHNICAL DATA”
are of series production and
Conforms to the following European Directives:
2004/108/EC, 2006/42/EC, 2000/14/EC & 2005/88/EC
And are manufactured in accordance with following
standards or standards documents:
EN ISO 14982, EN836
The technical documentation is on file at:
Dolmar GmbH,
Jenfelder Straße 38, Abteilung FZ,
D-22045 Hamburg
The conformity assessment procedure required by
Directive 2000/14/EC was in Accordance with Annex V.
Notified body:
TÜV SÜD Industrie Service GmbH
Westendstraße 199, D-80686 München, Deutschland
Identification number: 0036
Model: PM-46
Measured sound power level: 92.9 dB (A)
Guaranteed sound power level: 96 dB (A)
Model: PM-46 N
Measured sound power level: 92.9 dB (A)
Guaranteed sound power level: 96 dB (A)
Model: PM-46 S
Measured sound power level: 92.9 dB (A)
Guaranteed sound power level: 96 dB (A)
31. 7. 2012
Tamiro Kishima Rainer Bergfeld
Managing Director Managing Director

17
DEUTSCH (Originalanweisungen)
INHALT
KAPITEL 1 SYMBOLE AM PRODUKT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
KAPITEL 2 ALLGEMEINE SICHERHEITSREGELN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
KAPITEL 3 BESCHREIBUNG DER BAUTEILE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
KAPITEL 4 TECHNISCHE DATEN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
KAPITEL 5 MONTAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
KAPITEL 6 „3-IN-1“. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
KAPITEL 7 BEDIENUNGSANWEISUNGEN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
KAPITEL 8 WARTUNGSANWEISUNGEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
KAPITEL 9 SCHMIERUNGSANWEISUNGEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
KAPITEL 10 REINIGEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
KAPITEL 11 LAGERUNGSANWEISUNGEN (AUSSERHALB DER SAISON). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
KAPITEL 12 PROBLEMBEHEBUNG. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
KAPITEL 13 GARANTIE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
KAPITEL 14 UMWELT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
KAPITEL 15 EG-KONFORMITÄTSERKLÄRUNG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

18
Erklärung der Gesamtdarstellung
WARNUNG:
Lesen Sie zu Ihrer eigenen Sicherheit dieses Handbuch
vor der Aufnahme des Betriebs Ihres neuen Geräts durch.
Werdendie folgenden Anweisungen nicht befolgt, besteht
die Gefahr schwerer Verletzungen. Nehmen Sie sich vor
jeder Verwendung ein wenig Zeit, sich mit Ihrem Mäher
vertraut zu machen.
1. SYMBOLE AM PRODUKT
Sicherheitsetikett am Rasenmäher: HÄNDE UND FÜSSE
FERNHALTEN
2. ALLGEMEINE
SICHERHEITSREGELN
WARNUNG: Bei der Verwendung von
Benzinwerkzeugen müssen Sie stets grundlegende
Sicherheitsmaßnahmen befolgen, einschließlich der
folgenden, um das Risiko von schweren Verletzungen
und/oder Schäden am Gerät zu verringern. Lesen Sie vor
der Inbetriebnahme dieses Produkts alle Anweisungen
durch, und bewahren Sie diese zum späteren
Nachschlagen auf.
WARNUNG: Während des Betriebs erzeugt
diese Maschine ein elektromagnetisches Feld. Unter
bestimmten Umständen kann dieses Feld Auswirkungen
auf aktive oder passive medizinische Implantate haben.
Zur Verminderung der Gefahr ernsthafter oder tödlicher
Verletzungen empfehlen wir Personen mit medizinischen
Implantaten, sich vor der Bedienung dieses Geräts an
einen Arzt oder den Hersteller des medizinischen
Implantats zu wenden.
Einarbeitung
• Lesen Sie alle Anweisungen aufmerksam durch.
Machen Sie sich mit der Bedienung und der
ordnungsgemäßen Verwendung des Mähers vertraut.
• Erlauben Sie Kindern und Personen, die diese
Anleitungen nicht kennen, niemals den Gebrauch des
Rasenmähers. Das Mindestalter für den Benutzer ist
möglicherweise durch geltende Gesetze und
Bestimmungen geregelt.
• Mähen Sie niemals, wenn Personen, vor allem Kinder,
oder Haustiere in der Nähe sind.
1. Oberer Griff
2. Bremsregelgriff
3. Gashebel
4. Startergriff
5. Seilführung
6. Arretierhebel
7. Grasfänger
8. Hebel für Höheneinstellung
9. Auswurfkanal
10. Seitliche Klappe
11. Deck
12. Zündkerze
13. Tankdeckel
14. Öldeckel
15. Kabelklemme
16. Unterer Griff
17. Selbstfahr-Regelgriff
18. Mulchkeil
19. Schraube
20. Unterlegscheibe
21. Sicherungsknauf
22. Sicherungsmutter
23. Winkelanpassungsgelenk
24. Pumpball
25. Schraube
26. Filterabdeckung
Lesen Sie die Bedienungsanleitung.
Halten Sie umstehende Personen fern.
Achten Sie beim Bedienen vor allem auf Ihre
Hände und Füße, um Verletzungen zu
vermeiden.
Kraftstoffe sind brennbar. Kein Feuer! Füllen
Sie Kraftstoff nicht bei laufendem Motor nach.
Giftige Dämpfe! Kein Betrieb im
Innenbereich.
Tragen Sie beim Mähen zu Ihrem eigenen
Schutz Schutzbrille und Ohrstöpsel.
Ziehen Sie vor Reparaturarbeiten die
Zündkerze heraus und nehmen Sie
anschließend die Reparatur anhand der
Bedienungsanleitung vor.
Achtung: Motor ist heiß.

19
• Beachten Sie, dass der Bediener für Unfälle mit oder
Gefahren für andere Personen oder deren Eigentum
verantwortlich ist.
Vorbereitung
• Tragen Sie während des Mähens stets festes
Schuhwerk und lange Hosen. Mähen Sie nicht barfuß
oder mit leichten Sandalen.
• Überprüfen Sie sorgfältig das zu mähende Gelände
und entfernen Sie alle Gegenstände, die von dem
Mäher weggeschleudert werden können.
• WARNUNG: Benzin ist leicht entzündlich.
- Lagern Sie Benzin ausschließlich in dafür
vorgesehenen Kanistern.
- Füllen Sie Benzin nur im Freien nach und rauchen
Sie dabei nicht.
- Füllen Sie Benzin vor dem Starten des Motors nach.
Entfernen Sie niemals die Tankkappe und füllen Sie
Benzin nach, wenn der Motor läuft oder heiß ist.
- Falls Benzin ausläuft, starten Sie den Motor nicht,
sondern bewegen Sie den Mäher aus diesem
Bereich heraus und vermeiden Sie strengsten jede
Art von Zündung, bis der Benzindampf verflogen ist.
- Setzen Sie alle Deckel für den Benzintank und
Kanister wieder fest auf.
• Tauschen Sie defekte Schalldämpfer aus.
• Führen Sie vor jedem Gebrauch eine Sichtprüfung der
Schneidklingen, Schrauben und Schnitteinheit auf
Verschleiß und Beschädigungen durch. Tauschen Sie
verschlissene oder beschädigte Schneidklingen und
Schrauben nur satzweise aus, um eine Unwucht zu
vermeiden.
Bedienung
• Betreiben Sie den Motor nicht in Innenräumen, in
denen sich gefährliches Kohlenmonoxid ansammeln
kann.
• Mähen Sie ausschließlich bei Tageslicht oder
ausreichendem Kunstlicht.
• Vermeiden Sie, wenn möglich, den Betrieb des Mähers
in feuchtem Gras.
• Achten Sie immer darauf, dass Sie an Hängen einen
guten Stand haben.
• Laufen Sie, rennen Sie niemals beim Mähen.
• Mähen Sie bei Walzenmähern quer zum Hang, niemals
nach oben und unten.
• Seien Sie besonders vorsichtig, wenn Sie die Richtung
am Hang ändern.
• Mähen Sie nicht an Hängen mit übermäßiger Neigung.
• Seien Sie besonders vorsichtig, wenn Sie den Mäher
zu sich heranziehen.
• Stoppen Sie die Schneidklinge(n), wenn der Mäher
beim Transport geneigt werden muss, z. B. beim
Überqueren von Flächen, die kein Rasen sind, oder
beim Transport von und zum zu mähenden Gelände.
• Verwenden Sie den Mäher niemals mit defekten oder
ohne Schutzvorrichtungen, beispielsweise ohne
Schutzbleche und/oder Grasfänger.
• Ändern Sie niemals die Einstellung des Motorreglers
oder überlasten Sie den Motor nicht.
• Kuppeln Sie alle Schneidklingen und
Antriebskupplungen aus, bevor Sie den Motor starten.
• Starten Sie den Motor vorsichtig entsprechend den
Anweisungen und mit ausreichendem Abstand
zwischen Füßen und Schneidklinge(n).
• Kippen Sie Rasenmäher nicht, wenn Sie den Motor
starten.
• Starten Sie den Motor nicht, wenn Sie vor der
Auswurföffnung stehen.
• Halten Sie weder Hände noch Füße in die Nähe oder
unter rotierende Teile. Achten Sie jederzeit auf
ausreichenden Abstand zur Auswurföffnung.
• Heben oder tragen Sie einen Rasenmäher niemals mit
laufendem Motor.
• Stoppen Sie in folgenden Situationen den Motor und
ziehen Sie das Zündkerzenkabel ab, vergewissern Sie
sich, dass alle sich bewegenden Teile zum völligen
Stillstand gekommen sind und entfernen Sie, falls
vorhanden, den Schlüssel.
- Vor dem Lösen von Blockierung oder Reinigen des
Auswurfs;
- Vor dem Prüfen, Reinigen oder Arbeiten am
Rasenmäher;
- Nach dem Anschlagen an Fremdkörper. Überprüfen
Sie den Rasenmäher auf Beschädigungen und
nehmen Sie ggf. Reparaturen vor, bevor Sie den
Rasenmäher wieder starten und den Betrieb
fortsetzen.
- Falls der Rasenmäher ungewöhnlich zu vibrieren
beginnt (sofort überprüfen);
• Stoppen Sie in folgenden Situationen den Motor und
ziehen Sie das Zündkerzenkabel ab, vergewissern Sie
sich, dass alle sich bewegenden Teile zum völligen
Stillstand gekommen sind und entfernen Sie, falls
vorhanden, den Schlüssel.
- Wenn Sie den Rasenmäher verlassen;
- Vor dem Auftanken.
• Verringern Sie die Gashebeleinstellung, während der
Motor aus ist und, falls der Motor mit einem
Rückschlagventil ausgestattet ist, leiten Sie das Benzin
aus dem Ende des Rasenmähers.
Wartung und Lagerung
• Überprüfen Sie, dass alle Muttern, Bolzen und
Schrauben stets festgezogen sind, um sichere
Arbeitsbedingungen zu gewährleisten.
• Lagern Sie die Maschine niemals mit Benzin im Tank
im Inneren eines Gehäuses, wo Dämpfe an offene
Flammen oder Funken gelangen können.
• Lassen Sie den Motor abkühlen, bevor Sie ihn
abdecken.
• Zu Minderung der Brandgefahr müssen Sie Motor,
Schalldämpfer, Akkufach und Lagerbereich des
Benzins frei von Gras, Blättern und übermäßiger
Schmiere halten.
• Überprüfen Sie den Grasfänger häufig auf Verschleiß
oder Zerstörung.
• Ersetzen Sie zu Ihrer Sicherheit verschlissene oder
beschädigte Teile.
• Falls der Benzintank geleert werden muss, sollten Sie
dies im Freien tun.

20
WARNUNG: Berühren Sie niemals eine
rotierende Schneidklinge.
WARNUNG: Füllen Sie Benzin in einem gut
belüfteten Bereich bei angehaltenem Motor nach.
3. BESCHREIBUNG DER
BAUTEILE (Abb. A und B, C)
Einschließlich
A: Schlüssel für Zündkerze
4. TECHNISCHE DATEN
Unterschiede zwischen diesen drei Modellen
Schallemissionswerte Gemäß Norm 2000/14/EG
5. MONTAGE
5-1 KLAPPGRIFF
1. Befestigen Sie mit dem Sicherungsknauf die unteren
Griffholme am Gerät. (Abb. 1A/Abb. 1B/Abb. 1C/
Abb. 1D)
2. Heben Sie die zwei Arretierhebel, um die oberen
Griffholme zum Klappen zu lösen. (Abb. 1E)
3. Drücken Sie den Arretierhebel zu, um die Griffholme
in der Betriebsposition zu arretieren. (Abb. 1F)
4. Passen Sie die Spannung durch Drehen der
Sicherungsmutter mit einem passenden
Schraubenschlüssel an. (Abb. 1G/Abb. 1H)
5. Befestigen Sie die Kabelklemme in der abgebildeten
Position und befestigen Sie anschließend das Kabel.
(Abb. 1I/Abb. 1J)
5-2 EINSTELLEN AUF GEEIGNETEN
WINKEL
A) Öffnen Sie den Arretierhebel.
B) Drehen Sie den oberen Griff mittig des
Winkelanpassungsgelenks zum Anpassen eines
geeigneten Winkels im Bereich zwischen –20° und
20° (5 Positionen: –20°/–10°/0°/10°/20°, siehe
Abb. 2).
C) Drücken Sie den Arretierhebel zu, um den unteren
und den oberen Griff zu verbinden.
5-3 MONTIEREN DES GRASFÄNGERS
1. Einsetzen: Heben Sie die hintere Abdeckung an und
haken Sie den Grasfänger hinten am Mäher ein.
(Abb. 3A/Abb. 3B/Abb. 3C)
2. Entfernen: Heben Sie die hintere Abdeckung an und
entfernen Sie den Grasfänger.
Modell PM-46 PM-46 N PM-46 S
Motortyp B&S500, 10T6 B&S500, 10T6 B&S500, 10T6
Selbstantrieb nein nein ja
Motor-Hubraum 158 cm3158 cm3158 cm3
Schneidklingenbreite 460 mm 460 mm 460 mm
Nenndrehzahl 2.800 U/min 2.800 U/min 2.800 U/min
Volumen Kraftstofftank 800 ml 800 ml 800 ml
Volumen Grasfänger 60 l 60 l 60 l
Nettogewicht 28,6 kg 29,2 kg 32,3 kg
Höheneinstellung 30 – 75 mm in 7 Stufen 30 – 75 mm in 7 Stufen 30 – 75 mm in 7 Stufen
Modell Vordergriff am
Deck Seitenauswurf Selbstantrieb
PM-46 uu
PM-46 N u
PM-46 S
EN ISO 3744, EN ISO 4871 PM-46 PM-46 N PM-46 S
LpA (Schalldruckpegel) auf
Benutzerseite 85 dB (A) (K=3 dB (A)) 85 dB (A) (K=3 dB (A)) 85 dB (A) (K=3 dB (A))
Gemessener Schallleistungspegel 92,9 dB (A)
K=2,59 dB (A) 92,9 dB (A) K=2,59 dB (A) 92,9 dB (A) K=2,59 dB (A)
Garantierter Schallleistungspegel LwA 96 dB (A) 96 dB (A) 96 dB (A)
Schwingungen nach EN ISO 20643 3,099 m/s2
K=1,5 m/s23,099 m/s2 K=1,5 m/s23,099 m/s2 K=1,5 m/s2
