Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
7 Installing and connecting the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . .19
8 Using the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
9 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
10 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
11 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
12 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
13 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
CRE50-65-80-IO-16s.book Seite 13 Donnerstag, 9. November 2017 1:03 13

EN
Explanation of symbols CRE
14
1 Explanation of symbols
D
!
!
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
•Faulty assembly or connection
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
2.1 General safety
!WARNING!
•Have a qualified technician perform the installation in wet rooms.
•Do not operate the device if it is visibly damaged.
•If this device's power cable is damaged, it must be replaced by the
manufacturer, customer service or a similarly qualified person in order
to prevent safety hazards.
DANGER!
Safety instruction: Failure to observe this instruction will cause fatal or
serious injury.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
CRE50-65-80-IO-16s.book Seite 14 Donnerstag, 9. November 2017 1:03 13

EN
CRE Safety instructions
15
•This device may only be repaired by qualified personnel. Inadequate
repairs may cause serious hazards.
•This device can be used by children aged 8 years or over, as well as by
persons with diminished physical, sensory or mental capacities or a
lack of experience and knowledge, providing they are supervised, or
have been taught how to use the device safely and are aware of the
resulting risks.
•Cleaning and user maintenance must not be carried out by children
without supervision.
•Children must be supervised to ensure that they do not play with the
device.
•Always keep and use the device out of the reach of children under
8 years of age.
•Do not store any explosive substances, such as spray cans with
propellants, in the device.
!CAUTION!
•Danger of crushing! Do not put your fingers into the hinge.
•Foodstuff may only be stored in its original packaging or in suitable
containers.
ANOTICE!
•Check that the voltage specification on the type plate is the same as
that of the power supply.
•Never pull the plug out of the socket by the connection cable.
•Disconnect the refrigerator and other electric consumers from the
battery before connecting the quick charging device.
•Disconnect the refrigerator or switch it off when you turn off the
engine. Otherwise you may discharge the battery.
•The refrigerator is not suitable for storing substances which are caustic
or contain solvents.
•Keep the drainage outlet clean at all times.
•Do not open the refrigerant circuit under any circumstances.
•Never transport the device in a horizontal position, so that no oil can
leak out of the compressor.
CRE50-65-80-IO-16s.book Seite 15 Donnerstag, 9. November 2017 1:03 13

EN
Safety instructions CRE
16
•Make sure that the refrigerator circuit is not damaged during
transportation. The refrigerant in the refrigerator circuit is highly
flammable.
In the event of any damage to the refrigerator circuit:
– Switch off the refrigerator.
– Air the room well.
•Set up the device in a dry location where it is protected against
splashing water.
2.2 Operating the device safely
DDANGER!
•Do not touch exposed cables with your bare hands.
!CAUTION!
•Before starting the device, ensure that the power supply line and the
plug are dry.
•If you connect the device to a battery, make sure that no food comes
into contact with the battery acid.
ANOTICE!
•Do not use electrical devices inside the cooling device unless they are
recommended by the manufacturer for that purpose.
•Do not place it near naked flames or other heat sources (heaters, direct
sunlight, gas ovens etc.)
•Danger of overheating!
Always ensure sufficient ventilation so that the heat generated during
operation can dissipate. Make sure that the device is sufficiently far
away from walls and other objects so that the air can circulate.
•Ensure that the ventilation vents are not covered.
•Do not fill the inner container with ice or fluid.
•Never immerse the appliance in water.
•Protect the appliance and the cable against heat and moisture.
•Make sure that foodstuffs do not touch the walls of the cooling area.
CRE50-65-80-IO-16s.book Seite 16 Donnerstag, 9. November 2017 1:03 13

EN
CRE Scope of delivery
17
3Scopeofdelivery
4Accessories
Available as accessories (not included in the scope of delivery):
5 Intended use
The refrigerator is designed for installation in caravans and motorhomes and on
boats. It is only suitable for installation in a fitted niche. Once it is installed, only the
front of the device may be accessible.
The refrigerator is only suitable for cooling, freezing and storing foodstuffs.
!
!
Quantity Description
1 Refrigerator with shelves
1 Outlet port
1 Installation and operating manual
Description Explanation Ref. no.
Rectifier Transforms an input voltage of 100 to 240 Vwto 12 Vg
or 24 Vg, so that the refrigerator can be connected to
an AC power supply.
9600000445
WARNING!
The refrigerator is not intended for the proper storage of medicine.
CAUTION! Health hazard!
Please check if the cooling capacity of the refrigerator is suitable for
storing the food you wish to cool.
CRE50-65-80-IO-16s.book Seite 17 Donnerstag, 9. November 2017 1:03 13

EN
Technical description CRE
18
6 Technical description
The CoolMatic CRE series cooling devices can cool products and keep them cool.
Products can be deep-frozen in the freezer compartment.
All materials used in the refrigerator are compatible for use with foodstuffs.
The refrigerant circuit is maintenance-free.
When used on boats the refrigerator can be subjected to a short-term inclination
of 30°.
The temperature is set using the control panel on the inside left of the refrigerator.
Four temperature ranges from +0 °C to +12 °C are available for selection.
6.1 Control elements inside the fridge
The various types of refrigerators are shown in the following illustrations:
•CRE0050: fig. 1, page 2
•CRE0065: fig. 2, page 2
•CRE0080: fig. 3, page 3
No. Explanation
1 Freezer compartment
2 Control panel
3 Wire shelf (folding, so that bottles can be put in the fridge)
4 Bottle restraint (to hold bottles in the door)
5 Compartment
CRE50-65-80-IO-16s.book Seite 18 Donnerstag, 9. November 2017 1:03 13

EN
CRE Installing and connecting the refrigerator
19
6.2 Control elements

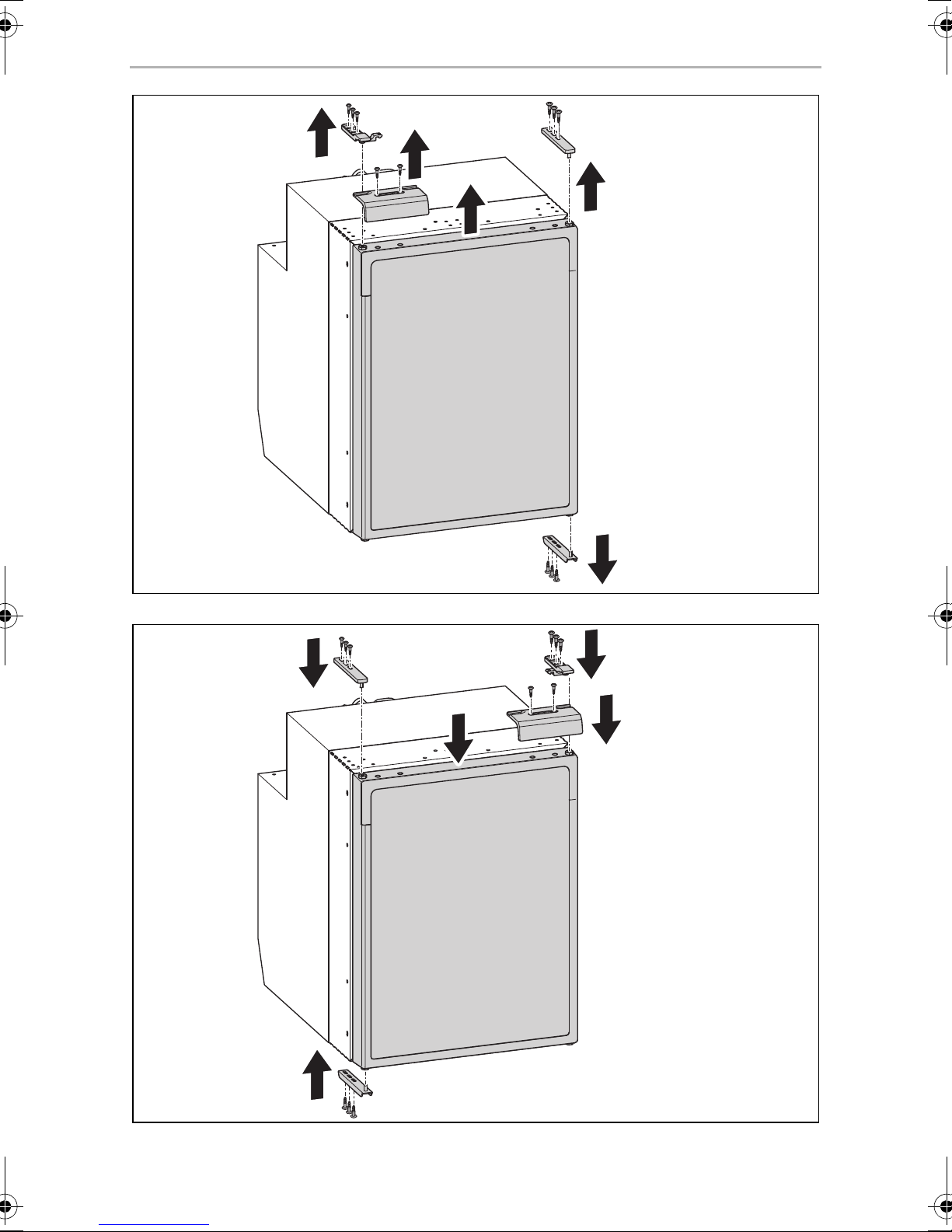

7 Installing and connecting the
refrigerator
7.1 Safety instructions for installation on boats
Please note the following instructions for installation on boats:
D
A
No. in
fig. 4, page 3 Explanation
1 IR sensor for switching the interior light
2 Red LED: Fault indication
3 LED Blue: Compressor is running
LED Orange: Compressor is off
4 On/off button
5 Inner lighting
6 Temperature selection button
7 LEDs: Temperature levels
DANGER!
If the device is powered by the mains, ensure that the voltage supply has
a residual current circuit breaker.
NOTICE!
•The device can be for tilted sideways up to 30° for only a short period
of time. When setting up the refrigerator, note that it must be
fastened to take account of this. If you have any questions regarding
installation, consult your specialist dealer.
•Install the refrigerator so that the warm air produced can easily
escape (either upwards or to the sides, fig. 5, page 4).
•The device is designed for ambient temperatures between +16 °C
and +38 °C.
CRE50-65-80-IO-16s.book Seite 19 Donnerstag, 9. November 2017 1:03 13

EN
Installing and connecting the refrigerator CRE
20
7.2 Notes on installing the refrigerator
Observe the following when installing the refrigerator:
•Install the refrigerator so that the warm air produced can easily escape
(either upwards or to the sides, fig. 5, page 4).

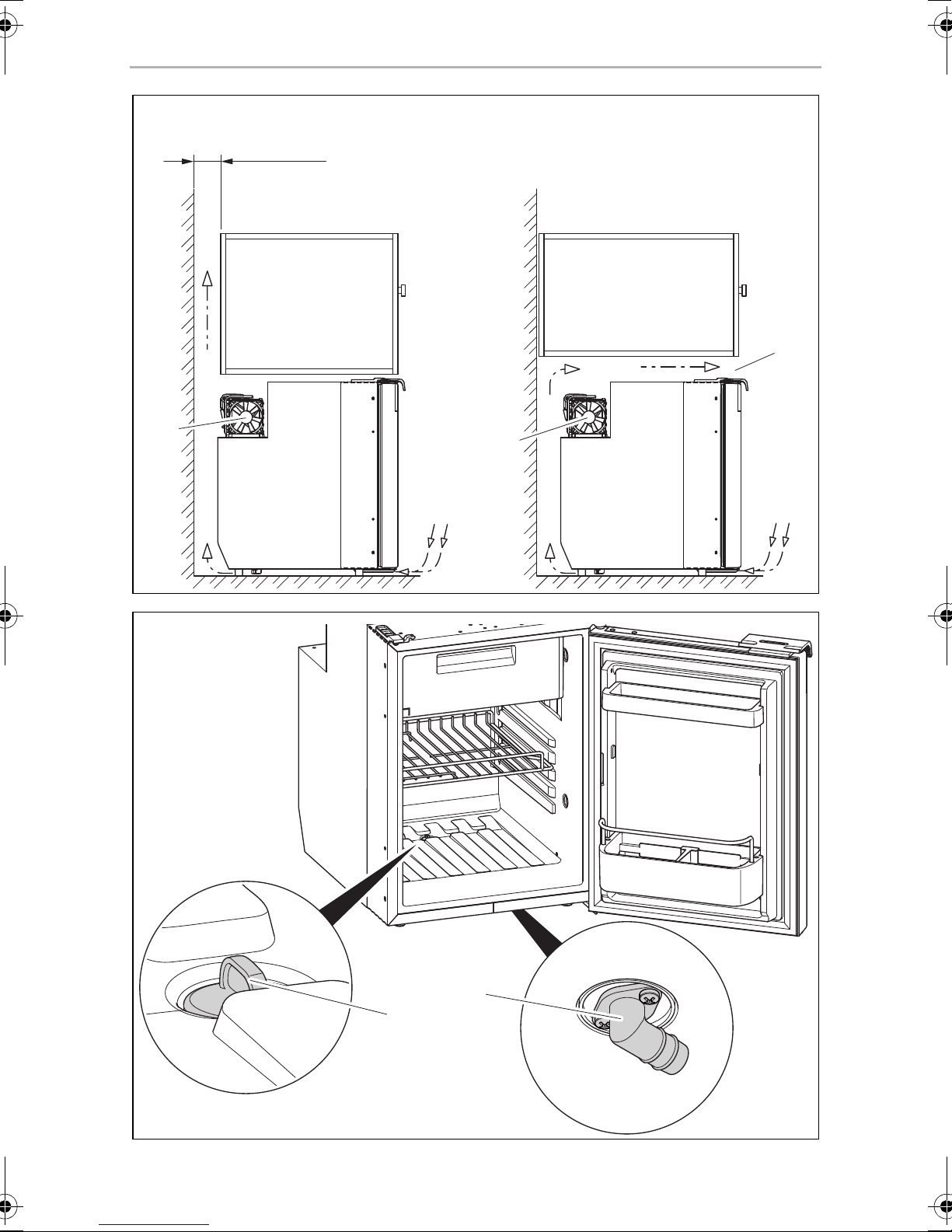

Key for fig. 5, page 4
•Observe the following installation dimensions:
– CRE0050: 550 x 390 x 544 mm
– CRE0065: 595 x 458 x 535 mm
– CRE0080: 578 x 485 x 650 mm
•Keep objects clear of openings in the housing or installation structure (such as
ventilation slots, etc.).
•Condensate is produced when the refrigerator is operating normally. You can
either wipe up the condensate on the floor of the refrigerator in regular intervals,
or drain it through an outlet in the floor of the refrigerator (see chapter “Mounting
the outlet port (optional)” on page 20).
7.3 Mounting the outlet port (optional)
➤Connect a hose with an inside diameter of 10 mm (not included) to the outlet
port.
➤Lay the refrigerator on its side in order to access the bottom side.
A

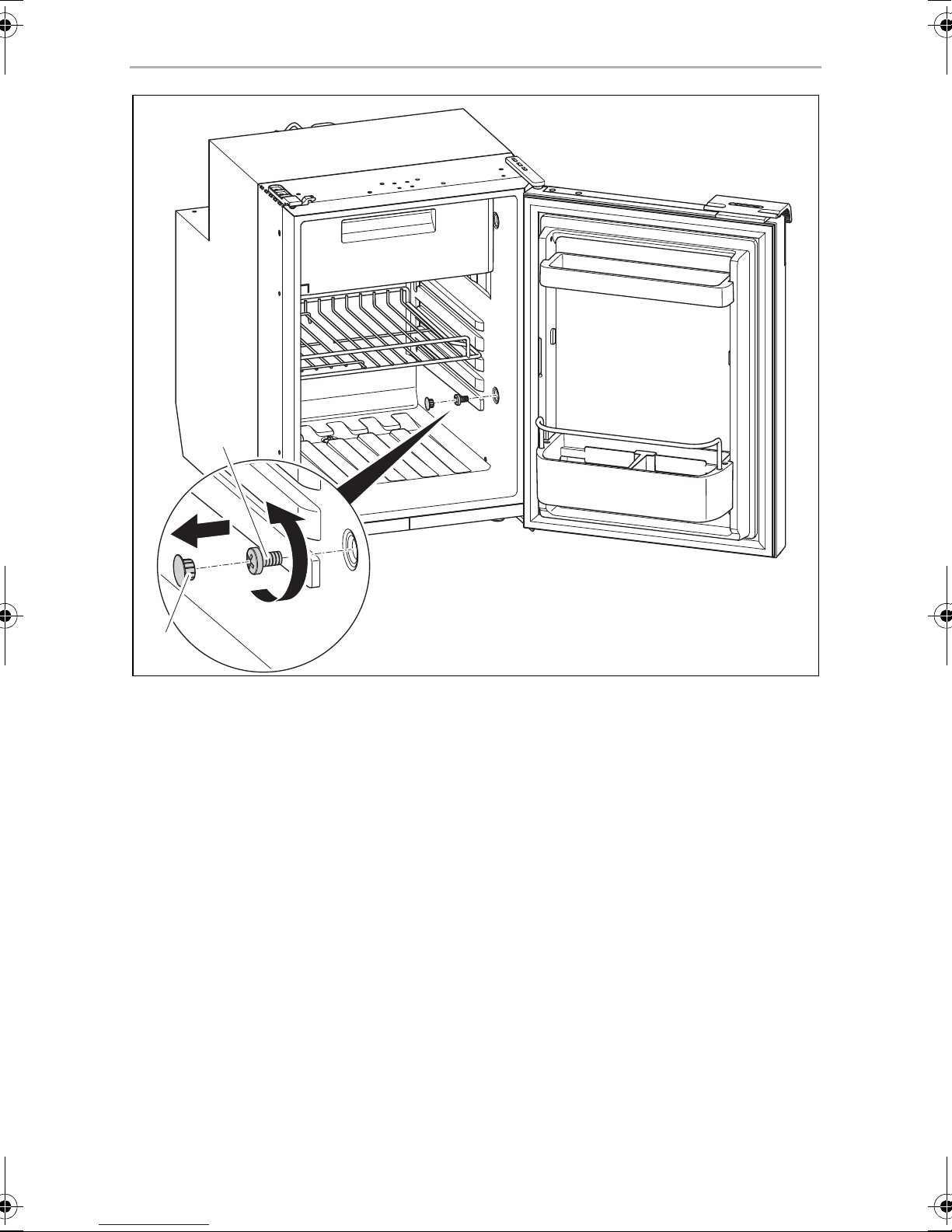

➤Mount the outlet port (fig. 62, page 4) aligned to the front or to the back
according to the desired outlet direction.
➤Remove the drain plug (fig. 61, page 4) inside the refrigerator.
No. Explanation
1 Cold intake air
2 Hot waste air
3 Condenser
4 Spacing above the refrigerator if there is not sufficient space for the air to
circulate above or at the side.
NOTICE!
Do not switch on the device until it stood in an upright position for a
period of 4 hours.
CRE50-65-80-IO-16s.book Seite 20 Donnerstag, 9. November 2017 1:03 13
