Description of symbols RMD10
14
Please read this instruction manual carefully before first use, and store it in
a safe place. If you pass on the product to another person, hand over this
instruction manual along with it.
Table of contents
1 Description of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
3 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
6 Using the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
7 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
8 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
9 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
10 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
11 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
1 Description of symbols
!
!
A
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
50'2:(67ERRN6HLWH'RQQHUVWDJ0DL

EN
RMD10 Safety instructions
15
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
• Damage to the product resulting from mechanical influences and incorrect
connection voltage
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in the operating manual
2.1 General safety
!WARNING!
• Never open the absorber unit. It is under high pressure and can cause
injury if it is opened.
• Do not operate the refrigerator if it is visibly damaged.
• If the connection cable for this refrigerator is damaged, it must be
replaced by the manufacturer, customer service or a similarly qualified
person in order to prevent safety hazards.
• This refrigerator may only be repaired by qualified personnel.
Improper repairs can result in considerable danger or damage to the
refrigerator.
• This refrigerator can be used by children aged 8 years or over, as well
as by persons with diminished physical, sensory or mental capacities
or a lack of experience and knowledge, providing they are supervised
or have been instructed how to use the refrigerator safely and are
aware of the resulting risks.
• Cleaning and user maintenance may not be carried out by unsuper-
vised children.
• Children must be supervised to ensure that they do not play with the
refrigerator.
• Do not store any explosive substances, such as spray cans with propel-
lants, in the refrigerator.
!CAUTION!
•Danger of crushing!
Do not place your hand on the hinge.
NOTE
Supplementary information for operating the product.
50'2:(67ERRN6HLWH'RQQHUVWDJ0DL

EN
Safety instructions RMD10
16
• Food may only be stored in its original packaging or in suitable con-
tainers.
ANOTICE!
• Do not open the refrigerant circuit under any circumstances.
• The refrigerant in the refrigerant circuit is highly flammable.
In the event of any damage to the refrigerant circuit (smell of
ammonia):
– Switch off the refrigerator.
– Avoid naked flames and sparks.
– Air the room well.
• Check that the voltage specification on the type plate is the same as
that of the energy supply.
• The refrigerator is not suitable for storing substances which are caustic
or contain solvents.
• Keep the condensation opening clean at all times.
• Do not use a high-pressure cleaner near the ventilation grill when
cleaning the vehicle.
• Never pull the plug out of the socket by the connection cable.
• The refrigerator lighting may only be replaced by customer service.
• The refrigerator may not be exposed to rain.
2.2 Safe operation
!CAUTION!
• Close the refrigerator door before beginning a journey.
• The refrigerator unit at the back of the refrigerator becomes very hot
during operation. Protect yourself from coming into contact with hot
parts when removing ventilation grills.
• Only store heavy objects such as bottles or cans in the refrigerator
door, in the vegetable compartment or on the bottom shelf.
ANOTICE!
• Do not use electrical devices inside the refrigerator unless they are
recommended by the manufacturer for that purpose.
•Danger of overheating!
Always ensure sufficient ventilation so that the heat generated during
operation can dissipate. Make sure that the refrigerator is sufficiently
far away from walls or other objects so that the air can circulate.
50'2:(67ERRN6HLWH'RQQHUVWDJ0DL

EN
RMD10 Safety instructions
17
• Ensure that the ventilation openings are not covered.
• Do not fill the inner container with ice or liquids.
• Protect the refrigerator and the cables from heat and moisture.
• Make sure that foodstuffs do not touch the walls of the refrigerator
compartment.
2.3 Safety when operating with DC power
ANOTICE!
• Only select operation with DC power supply (battery mode) if the
vehicle engine is running and providing sufficient voltage to the light
system, or if you are using a battery monitor.
2.4 Safety when operating with AC power
ANOTICE!
• Check that the voltage specification on the type plate is the same as
that of the energy supply.
• Only use the supplied connection cable to connect the refrigerator to
the AC mains.
• Never pull the plug out of the socket by the connection cable.
2.5 Safety when operating with gas
!WARNING!
•Onlyoperate the refrigerator at the pressure shown on the type plate.
Only use pressure controllers with a fixed setting which comply with
the national regulations.
•Neverstore liquid gas cylinders in unventilated areas or below
ground level (funnel shaped holes in the ground).
• Keep liquefied petroleum gas cylinders away from direct sunlight. The
temperature may not exceed 50 °C.
• Never operate the refrigerator with gas
– at petrol stations
– while driving
– while transporting the camper van or mobile home with a transport
vehicle or tow truck
• Never use a naked flame to check the refrigerator for leaks.
50'2:(67ERRN6HLWH'RQQHUVWDJ0DL

EN
Accessories RMD10
18
• In case of gas odor:
– Close the gas supply cock and the valve on the cylinder.
– Open all windows and leave the room.
– Do not press an electric switch.
– Put out any naked flames.
– Have the gas system checked by a specialist.
ANOTICE!
• Only use propane or butane gas (not natural gas).
2.6 Safety when operating ventilation grille
ANOTICE!

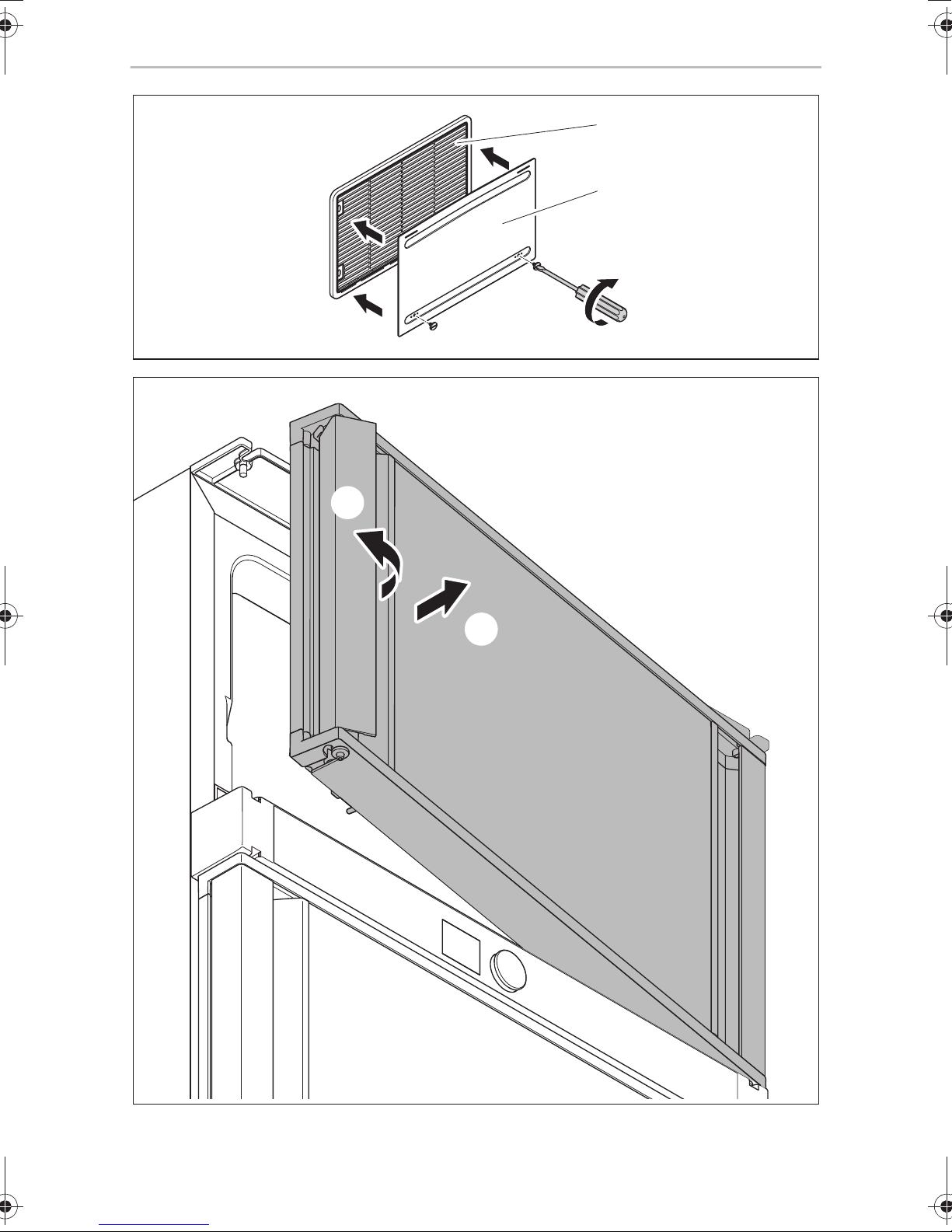

• Attach the winter covers of the ventilation grille when the vehicle is
cleaned from the outside or not used for a prolonged period of time.
3Accessories
Available as accessories (not included in the scope of delivery):
All the accessories are available from specialist dealers. If you have any questions,
please contact the dealer or your service partner directly.
Description
Winter cover LS300 for the ventilation grille (white, other colors available on request)
Cleaning brush for cleaning the burner
Battery pack
Refrigerator compartment shelf
Freezer compartment shelf
Interior accessories package (3x large stacking box, 6x small stacking box, 1x egg tray,
4x goods holder (for locking on the shelf), 1x ice maker with aroma protection lid)
50'2:(67ERRN6HLWH'RQQHUVWDJ0DL

EN
RMD10 Intended use
19
4 Intended use
The refrigerator is designed for installation in camper vans or mobile homes. It is only
suitable for cooling, freezing and storing food. The refrigerator is not intended for
proper storage of medicine.
!
I
5 Technical description
5.1 Description
The refrigerator is an absorption refrigerator.
The refrigerator is designed for use:
– on a 12 V DC power supply
– on an AC mains
– with liquefied gas (propane or butane)
A
The refrigerator has an automatic operating mode that selects the most economical
connected type of energy.
The refrigerator is equipped with automatic gas ignition and gas monitoring.
The electronic control ensures that the refrigerator temperature is kept constant and
as little power as possible is consumed.
Depending on the model, the refrigerator has either a TFT display (RMD10.5T and
RMD10.5XT) or an LED display (RMD10.5 and RMD10.5X).
CAUTION! Health hazard!
Please check if the cooling capacity of the refrigerator is suitable for
storing the food you wish to cool.
NOTE
To safely operate 12 V consumer units in the camper, it must be ensured
that the towing vehicle provides sufficient voltage. On some vehicles,
the battery management system may automatically switch off the con-
sumer unit to protect the battery. Ask your vehicle manufacturer for
more information.
NOTICE!
The refrigerator may not be run on natural gas or city gas.
50'2:(67ERRN6HLWH'RQQHUVWDJ0DL

EN
Technical description RMD10
20

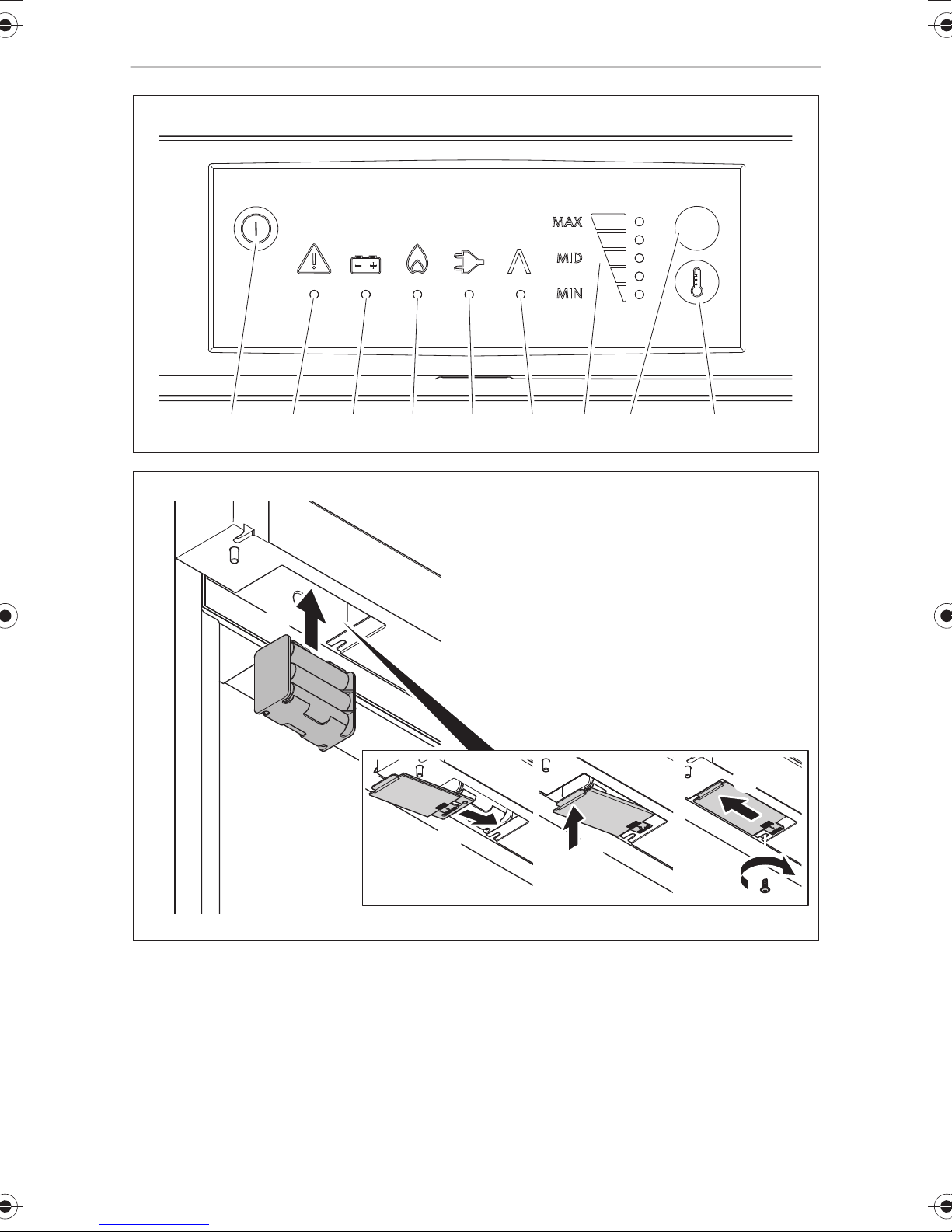

The refrigerator can be equipped with an optional battery compartment in the
electronics housing. The battery compartment (with battery packs) provides a self-
sufficient power supply to ensure gas operation when no external DC power supply
is available.

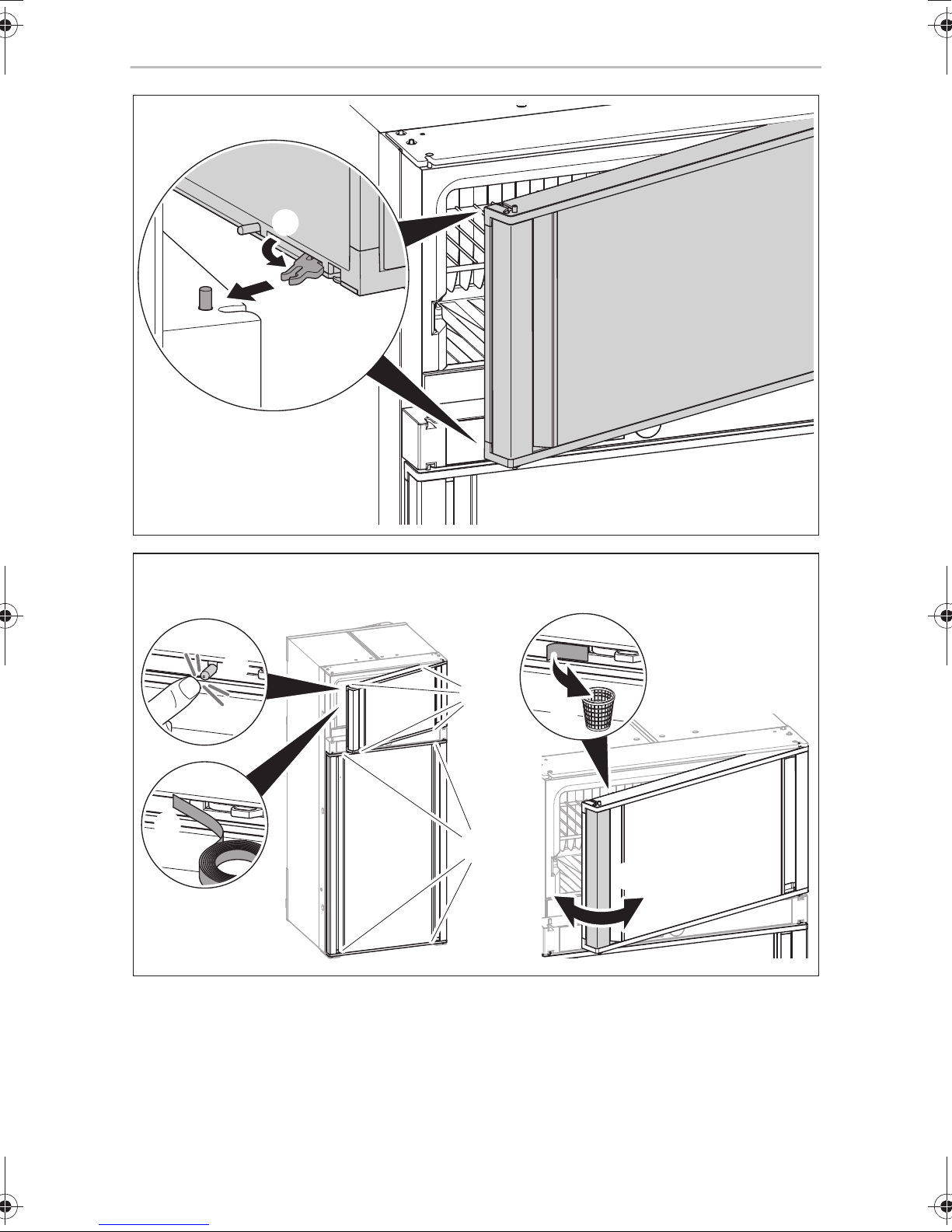

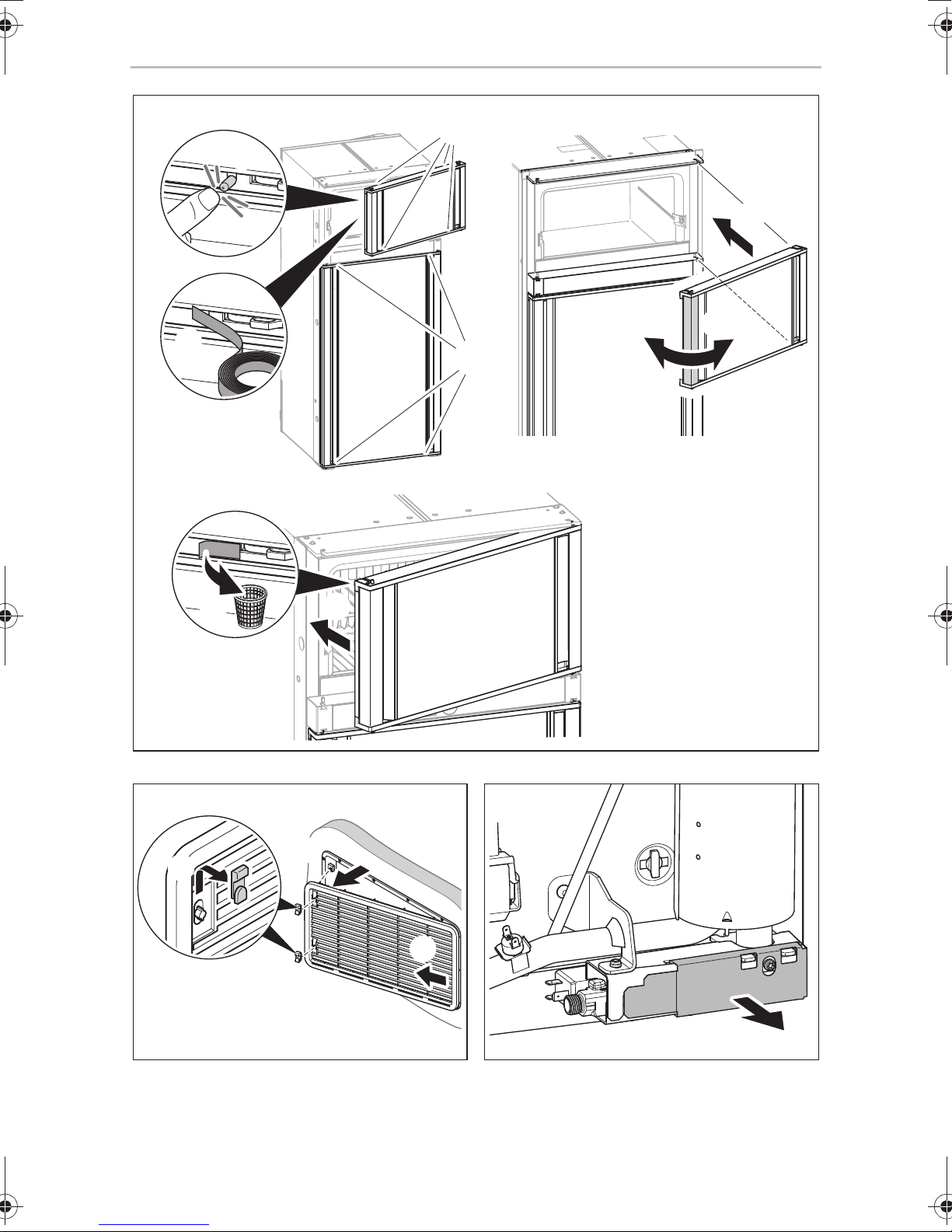

The refrigerator can be opened on both sides.
The refrigerator is equipped with a CI bus interface and can optionally be connected
to a compatible, central control panel (if available).
5.2 Components
5.3 RMD10.5T and RMD10.5XT
Control and display elements
The RMD10.5T and RMD10.5XT refrigerator has a TFT display and a control knob in
the divider between the main compartment and the freezer compartment (fig. 2,
page 3).
No. in

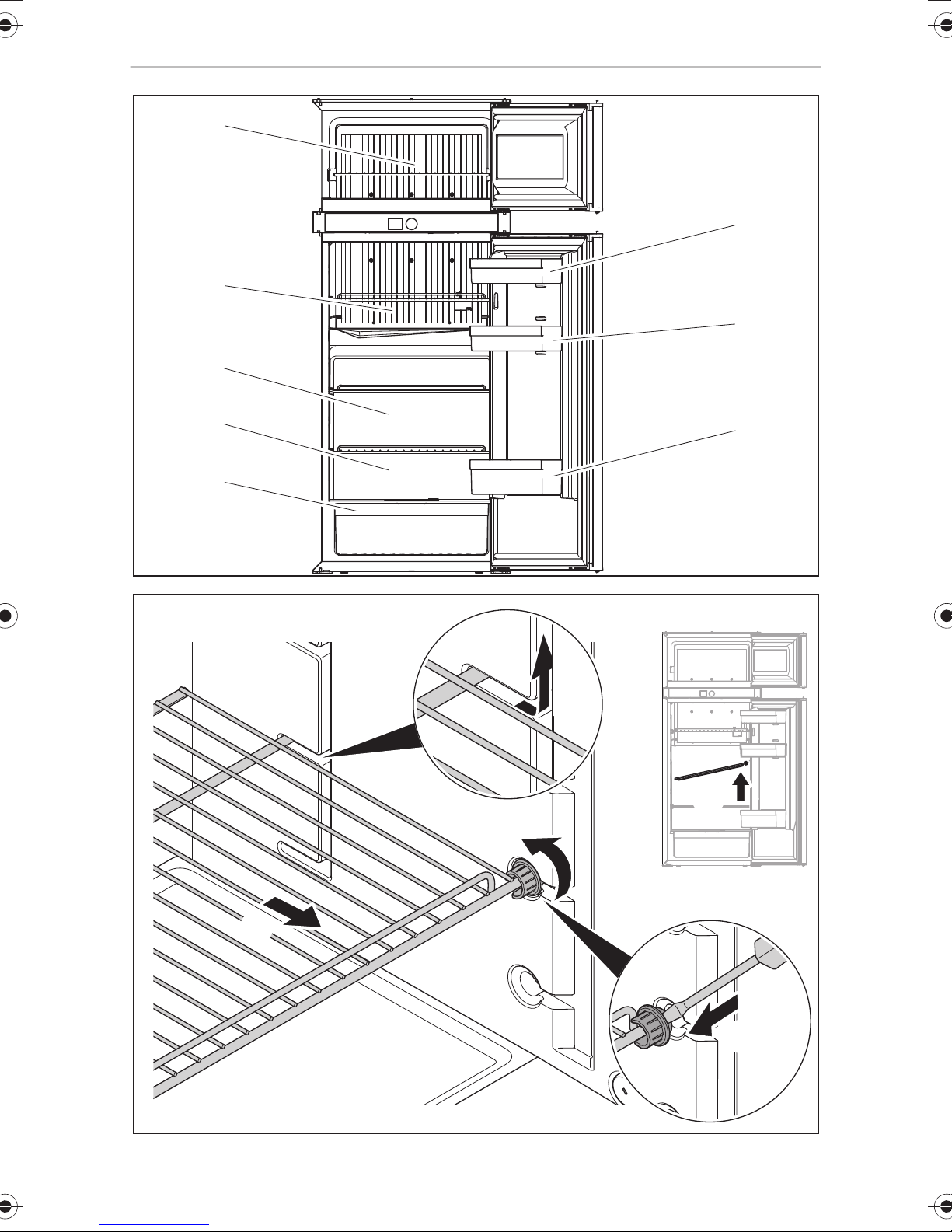

fig. 1, page 3 Description
1Tray
2 Vegetable compartment
3 Type plate (behind the vegetable compartment)
4Shelf
5 Thawed water drain
6 Evaporator for cold storage
7 Control elements
A: RMD10.5T and RMD10.5XT
B: RMD10.5 and RMD10.5X
8 Ice compartment
50'2:(67ERRN6HLWH'RQQHUVWDJ0DL
