Dometic CoolMatic CRX 50 User manual

CRX50,CRX65, CRX80, CRX110,CRX140
Compressor refrigerator
Installation and Operating Manual
EN
REFRIGERATION
CRX
DometicCRX50-65-80-110-140_IOM_4445103148_APAC(en)_20xx-xx-xx.book Seite 1 Montag, 3. August 2020 11:00 11

© 2020 Dometic Group. The visual appearance of the contents of this manual is
protected by copyright and design law. The underlying technical design and the
products contained herein may be protected by design, patent or be patent
pending. The trademarks mentioned in this manual belong to Dometic Sweden AB.
All rights are reserved.
DometicCRX50-65-80-110-140_IOM_4445103148_APAC(en)_20xx-xx-xx.book Seite 2 Montag, 3. August 2020 11:00 11

EN
CRX
3
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
7 Installing and connecting the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . .16
8 Using the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
9 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
10 Limited warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
11 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
12 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
13 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
DometicCRX50-65-80-110-140_IOM_4445103148_APAC(en)_20xx-xx-xx.book Seite 3 Montag, 3. August 2020 11:00 11

EN
Explanation of symbols CRX
4
1 Explanation of symbols
D
!
!
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
• Faulty assembly or connection
• Damage to the product resulting from mechanical influences and incorrect
connection voltage
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in the operating manual
2.1 General safety
DDANGER! Failure to obey these warnings will result in death or
serious injury.
Electrocution hazard
• On boats: If the device is powered by the mains, ensure that the
power supply has a residual current circuit breaker.
DANGER!
Safety instruction: Indicates a hazardous situation that, if not avoided,
will result in death or serious injury.
WARNING!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
CAUTION!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in minor or moderate injury.
NOTICE!
Indicates a situation that, if not avoided, can result in property damage.
NOTE
Supplementary information for operating the product.
DometicCRX50-65-80-110-140_IOM_4445103148_APAC(en)_20xx-xx-xx.book Seite 4 Montag, 3. August 2020 11:00 11

EN
CRX Safety instructions
5
!WARNING! Failure to obey these warnings could result in death
or serious injury.
Electrocution hazard
• Installations in washrooms and areas exposed to water, must be
performed by a qualified technician.
• Do not operate the device if it is visibly damaged.
• If this device's power cable is damaged, it must be replaced by the
manufacturer, customer service or a similarly qualified person in order
to prevent safety hazards.
• This device may only be repaired by qualified personnel. Inadequate
repairs may cause serious hazards.
Health hazard
• This device can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the device in a safe way and understand
the hazards involved.
• Children shall not play with the device.
• Cleaning and user maintenance shall not be made by children without
supervision.
• Children aged from 3 to 8 years are allowed to load and unload
refrigerating devices.
Explosion hazard
• Do not store any explosive substances, such as spray cans with
propellants, in the device.
!CAUTION! Failure to obey these cautions could result in minor or
moderate injury.
Risk of crushing
• Do not put your fingers into the hinge.
Health hazard
• Foodstuff may only be stored in its original packaging or in suitable
containers.
ANOTICE! Damage hazard
• Check that the voltage specification on the type plate is the same as
that of the power supply.
• Never pull the plug out of the socket by the connection cable.
DometicCRX50-65-80-110-140_IOM_4445103148_APAC(en)_20xx-xx-xx.book Seite 5 Montag, 3. August 2020 11:00 11

EN
Safety instructions CRX
6
• If the device is connected to the DC socket: Disconnect the device
and other electric consumers from the battery before connecting the
quick charging device.
• If the device is connected to the DC socket: Disconnect the device or
switch it off when you turn off the engine. Otherwise you may dis-
charge the battery.
• The device is not suitable for storing substances which are caustic or
contain solvents.

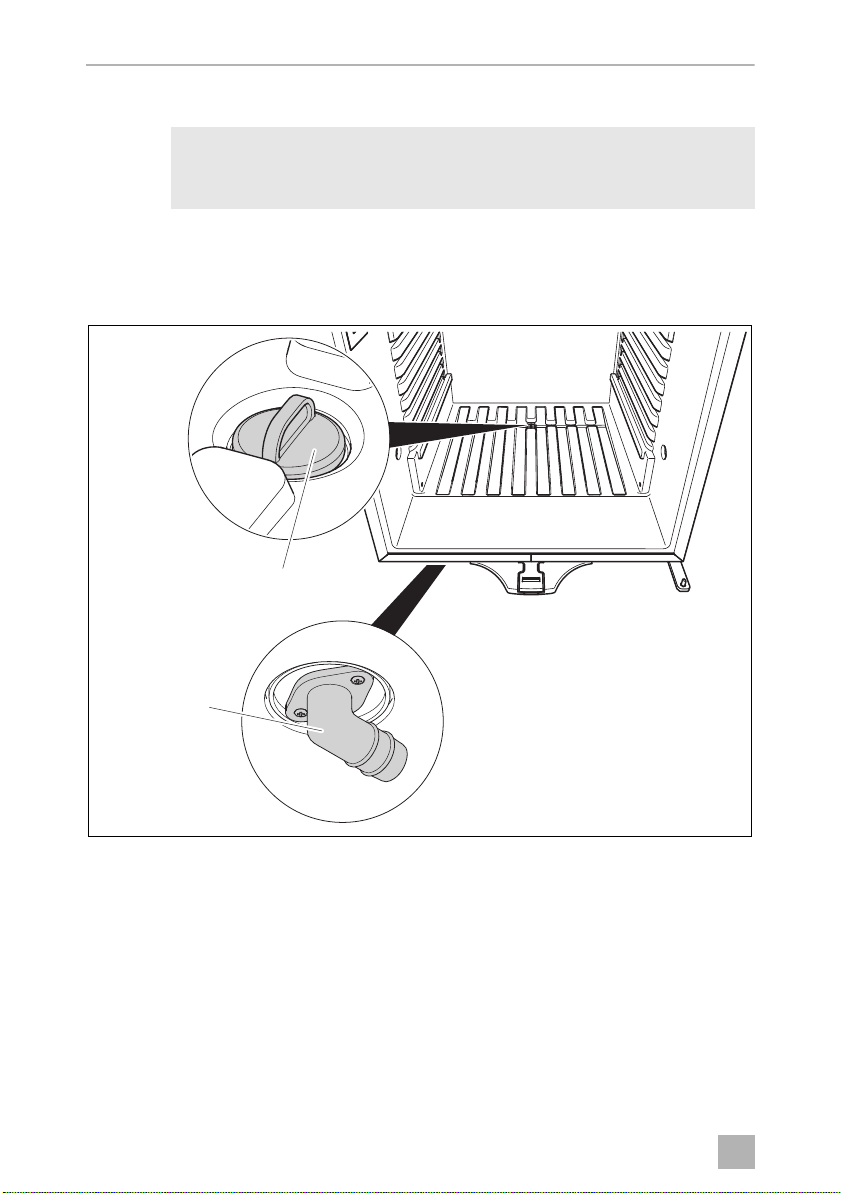

• Keep the drainage outlet clean at all times.
• Do not open the refrigerant circuit under any circumstances.
• Never transport the device in a horizontal position, so that no oil can
leak out of the compressor.
• Make sure that the refrigerant circuit is not damaged during transpor-
tation. The refrigerant in the refrigerant circuit is highly flammable.
In the event of any damage to the refrigerant circuit:
– Avoid naked flames and sparks.
– Air the room well.
• Set up the device in a dry location where it is protected against splash-
ing water.
2.2 Operating the device safely
DDANGER! Failure to obey these warnings will result in death or
serious injury.
Electrocution hazard
• Do not touch exposed cables with your bare hands. This applies
especially when operating the device from the AC mains.
!CAUTION! Failure to obey these cautions could result in minor or
moderate injury.
Electrocution hazard
• Before starting the device, ensure that the power supply line and the
plug are dry.
Health hazard
• Opening the door for long periods can cause significant increase of
the temperature in the compartments of the device.
• Clean regularly surfaces that can come in contact with food and
accessible drainage systems.
DometicCRX50-65-80-110-140_IOM_4445103148_APAC(en)_20xx-xx-xx.book Seite 6 Montag, 3. August 2020 11:00 11

EN
CRX Safety instructions
7
• Store raw meat and fish in suitable containers in the device, so that it is
not in contact with or can drip onto other food.
• If the device is left empty for long periods:
– Switch off the device.
– Defrost the device.
– Clean and dry the device.
– Leave the door open to prevent mould developing within the
device.
ANOTICE! Damage hazard
• Do not use electrical devices inside the cooling device unless they are
recommended by the manufacturer for that purpose.
• Do not place it near naked flames or other heat sources (heaters, direct
sunlight, gas ovens etc.)
•Danger of overheating!
Always ensure sufficient ventilation so that the heat generated during
operation can dissipate. Make sure that the device is sufficiently far
away from walls and other objects so that the air can circulate.
• Ensure that the ventilation vents are not covered.
• Do not fill the inner container with ice or fluid.
• Never immerse the device in water.
• Protect the device and the cable against heat and moisture.
• Make sure that foodstuffs do not touch the walls of the cooling area.
DometicCRX50-65-80-110-140_IOM_4445103148_APAC(en)_20xx-xx-xx.book Seite 7 Montag, 3. August 2020 11:00 11

EN
Scope of delivery CRX
8
3Scopeofdelivery
4Accessories
Available as accessories (not included in the scope of delivery):
If you have any questions, please contact the dealer or your service partner directly.
Quantity Description
1 Refrigerator with shelves
1 Water drain outlet
1 Installation and operating manual
Description Explanation Ref. no.
Rectifier Suitable for CRX50DC, CRX65DC, CRX80DC,
CRX110DC.
Transforms an input voltage of 100 – 240 Vwto 24 Vg,
so that the refrigerator can be connected to an AC
power supply.
9600000445
Mounting
Frames
Flush-mount and standard mounting frames are available
for all CRX models.
Various
DometicCRX50-65-80-110-140_IOM_4445103148_APAC(en)_20xx-xx-xx.book Seite 8 Montag, 3. August 2020 11:00 11

EN
CRX Intended use
9
5 Intended use
The refrigerator is designed for installation in caravans and motorhomes and on
boats. It is recommended the unit is installed into a fixed position. Once it is installed,
only the front of the appliance may be accessible
The refrigerator is only suitable for cooling, freezing and storing foodstuffs. The
refrigerator is not intended for the proper storage of medicine.
For DC only version: The refrigerator must only be supplied at safety extra low
voltage corresponding to the marking on the refrigerator.
!
6 Technical description
The CoolMatic CRX series cooling appliances can cool products and keep them
cool. Products can be deep-frozen in the freezer compartment. If the refrigerator is
operated without a freezer compartment, frozen products can be stored in the short
term using the fast-cooling function.
All materials used in the refrigerator are compatible for use with foodstuffs.
The refrigerant circuit is maintenance-free.
The cooling device can withstand a short-term inclination of 30°, for example on
boats.
The temperature is set using the control panel on the inside left of the refrigerator.
CRX50,CRX65, CRX80
Four temperature ranges from +3 °C (37 °F)to+12°C(54°F),andafast-cooling
function, are available for selection.
CRX110, CRX140
Four temperature ranges from +3 °C (37 °F) to +12 °C (54 °F) are available for
selection.
CRX110ACDC, CRX140ACDC
Four temperature ranges from +3 °C (37 °F) to +12 °C (54 °F), and a winter mode,
are available for selection.
CAUTION! HEALTH HAZARD
Please check if the cooling capacity of the refrigerator is suitable for
storing the food you wish to cool.
DometicCRX50-65-80-110-140_IOM_4445103148_APAC(en)_20xx-xx-xx.book Seite 9 Montag, 3. August 2020 11:00 11

EN
Technical description CRX
10
6.1 Control elements inside the refrigerator
The various types of refrigerators are shown in the following illustrations:
• CRX50: fig. 1
No. Explanation
1 Freezer compartment (detachable: CRX50, CRX65, CRX80 only)
2 Control panel
3 Wire shelf (folding, so that bottles can be put in the refrigerator)
4Shelf
5 Fruit compartment
6 Bottle restraint
(to hold bottles in the door)
7 Compartment with lid (hinged)
CRX 50
1
2
3
5
4
6
7
1
DometicCRX50-65-80-110-140_IOM_4445103148_APAC(en)_20xx-xx-xx.book Seite 10 Montag, 3. August 2020 11:00 11

EN
CRX Technical description
11

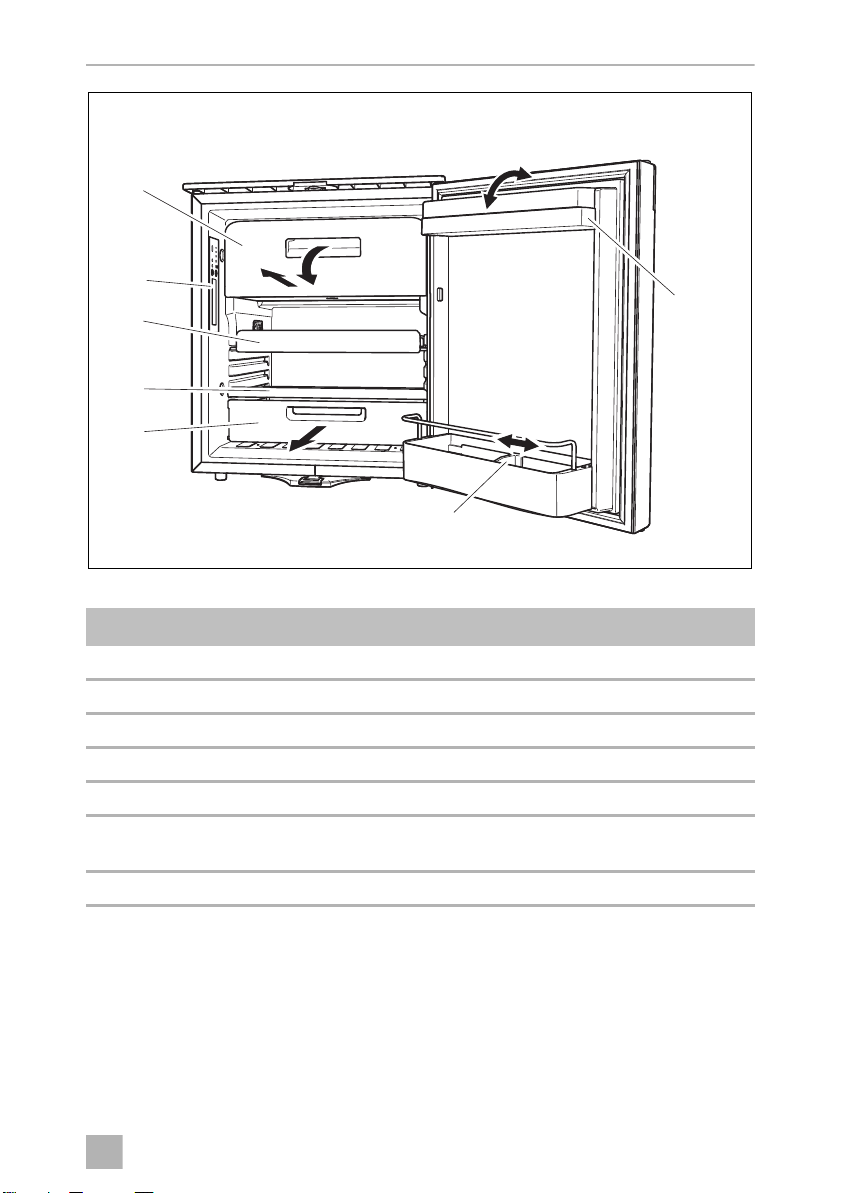

• CRX65: fig. 2
No. Explanation
1 Freezer compartment (detachable: CRX50, CRX65, CRX80 only)
2 Control panel
3 Wire shelf (folding, so that bottles can be put in the refrigerator)
4Shelf
5 Fruit compartment
6 Bottle restraint
(to hold bottles in the door)
7 Compartment with lid (hinged)
1
2
3
5
4
6
7
CRX 65
2
DometicCRX50-65-80-110-140_IOM_4445103148_APAC(en)_20xx-xx-xx.book Seite 11 Montag, 3. August 2020 11:00 11

EN
Technical description CRX
12
• CRX80: fig. 3
No. Explanation
1 Freezer compartment (detachable: CRX50, CRX65, CRX80 only)
2 Control panel
3 Wire shelf (folding, so that bottles can be put in the refrigerator)
4Shelf
5 Fruit compartment
6 Bottle restraint
(to hold bottles in the door)
7 Compartment with lid (hinged)
1
2
3
5
4
6
7
CRX 80
3
DometicCRX50-65-80-110-140_IOM_4445103148_APAC(en)_20xx-xx-xx.book Seite 12 Montag, 3. August 2020 11:00 11

EN
CRX Technical description
13
• CRX110: fig. 4
No. Explanation
1 Freezer compartment (detachable: CRX50, CRX65, CRX80 only)
2 Control panel
3 Wire shelf (folding, so that bottles can be put in the refrigerator)
4Shelf
5 Fruit compartment
6 Bottle restraint
(to hold bottles in the door)
7 Compartment with lid (hinged)
4
1
2
3
5
4
6
7
CRX 110
DometicCRX50-65-80-110-140_IOM_4445103148_APAC(en)_20xx-xx-xx.book Seite 13 Montag, 3. August 2020 11:00 11

EN
Technical description CRX
14
•CRX140:fig.5
No. Explanation
1 Freezer compartment (detachable: CRX50, CRX65, CRX80 only)
2 Control panel
3 Wire shelf (folding, so that bottles can be put in the refrigerator)
4Shelf
5 Fruit compartment
6 Bottle restraint
(to hold bottles in the door)
7 Compartment with lid (hinged)
5
1
2
3
5
4
6
7
CRX 140
DometicCRX50-65-80-110-140_IOM_4445103148_APAC(en)_20xx-xx-xx.book Seite 14 Montag, 3. August 2020 11:00 11

EN
CRX Technical description
15
6.2 Control elements
6CRX50, CRX65, CRX80
1
2
3
4
8
7
6
5
3s
7
CRX110ACDC, CRX140ACDC
1
2
3
4
8
6
5
1
2
3
4
8
7
6
5
3s
CRX110DC
DometicCRX50-65-80-110-140_IOM_4445103148_APAC(en)_20xx-xx-xx.book Seite 15 Montag, 3. August 2020 11:00 11

EN
Installing and connecting the refrigerator CRX
16
7 Installing and connecting the
refrigerator
7.1 Safety instructions for installation on boats
Please note the following instructions for installation on boats:
D
No. in
fig. 6, page 15,
fig. 7, page 15
Explanation
1 IR sensor for switching the interior light
2 LED Service display
3 LED Blue: Compressor is running
LED Orange: Compressor is off
4 On/off button
5 Inner lighting
6 Temperature selection button
7 LED: Fast cooling function on (CRX50, CRX65, CRX80)
LED: Winter mode on (CRX110ACDC, CRX140ACDC)
8 LEDs: Temperature levels
DANGER! DANGER OF ELECTROCUTION
If the device is powered by the mains, ensure that the voltage supply has
a residual current circuit breaker.
DometicCRX50-65-80-110-140_IOM_4445103148_APAC(en)_20xx-xx-xx.book Seite 16 Montag, 3. August 2020 11:00 11

EN
CRX Installing and connecting the refrigerator
17
ca. 50 mm (2 inch)
ca. 50 mm (2 inch)
AB
CRX 50-140 CRX 50-140
11
22
33
4
8
CRX 140
ca. 20 mm
(0.79 inch)
DometicCRX50-65-80-110-140_IOM_4445103148_APAC(en)_20xx-xx-xx.book Seite 17 Montag, 3. August 2020 11:00 11

EN
Installing and connecting the refrigerator CRX
18
A
7.2 Notes on installing the refrigerator
!
Observe the following when installing the refrigerator:
• Install the refrigerator so that the warm air produced can easily flow away
(either upwards or to the sides, fig. 8).
Key for fig. 8
NOTICE! DANGER OF DAMAGE
• The cooling device can withstand a short term inclination of 30°, for
example on boats. When setting up the refrigerator, note that it must
be fastened to take account of this. If you have any questions regard-
ing installation, consult your specialist dealer.
• Install the refrigerator so that the warm air produced can easily flow
away (either upwards or to the sides, fig. 8).
• The appliance is designed for ambient temperatures between
+16 °C (61 °F) and +43 °C (109 °F).
• CRX110ACDC, CRX140ACDC: In winter mode the appliance can be
operated at ambient temperatures between +10 °C (50 °F) and
+16 °C (61 °F).
WARNING! Fire hazard!
• When positioning the device, ensure the supply cord is not trapped
or damaged.
• Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the device.
No. Explanation
1 Cold intake air
2 Hot waste air
3 Condenser
4 Spacing above the refrigerator if there is not sufficient air to circulate
above or at the side.
DometicCRX50-65-80-110-140_IOM_4445103148_APAC(en)_20xx-xx-xx.book Seite 18 Montag, 3. August 2020 11:00 11

EN
CRX Installing and connecting the refrigerator
19
Observe the following installation dimensions:
• Keep objects clear of openings in the housing or installation structure (such as
ventilation slots, etc.).
• Condensate is produced when the refrigerator is operating normally. You can
either wipe up the condensate on the floor of the refrigerator at regular intervals,
or drain it through a water drain outlet in the floor of the refrigerator (see chapter
“Mounting the water drain outlet (optional)” on page 20).
Model Dimensions W x H x D (mm) Dimensions W x H x D (inch)
CRX50 390 x 544 x 550 15.35 x 21.42 x 21.65
CRX65 458 x 535 x 595 18.03 x 21.06 x 23.43
CRX80 485 x 650 x 578 19.09 x 25.59 x 22.76
CRX110 530 x 755 x 608 20.87 x 29.72 x 23.94
CRX140 550 x 825 x 670 21.65 x 32.48 x 26.38
DometicCRX50-65-80-110-140_IOM_4445103148_APAC(en)_20xx-xx-xx.book Seite 19 Montag, 3. August 2020 11:00 11

EN
Installing and connecting the refrigerator CRX
20
7.3 Mounting the water drain outlet (optional)
I8
➤Connect a hose with an inside diameter of 10 mm (0.4 inch) (not included) to the
water drain outlet.
➤Lay the refrigerator on its side in order to access the bottom side.
➤Mount the water drain outlet (fig. 91) aligned to the front or to the back accord-
ing to the desired direction.
➤Remove the water drain plug (fig. 92) inside the refrigerator.
NOTE
The fitment of the drain outlet is recommended in high humidity climates
which will generate more condensate than low humidity applications.
1
2
9
DometicCRX50-65-80-110-140_IOM_4445103148_APAC(en)_20xx-xx-xx.book Seite 20 Montag, 3. August 2020 11:00 11
