Dometic TL200 User manual

TL200, TL300, TL450, FO650, FO200NC, FO450NC, FO800NC, FO850NC,
FO1000NC
Refrigerated container
Operating manual . . . . . . . . . . . . . . . . . . . . .8
Kühlcontainer
Bedienungsanleitung . . . . . . . . . . . . . . . . .24
Conteneur réfrigéré
Notice d’utilisation . . . . . . . . . . . . . . . . . . . 41
Refrigerador
Instrucciones de uso . . . . . . . . . . . . . . . . . .58
Arca de refrigeração
Manual de instruções . . . . . . . . . . . . . . . . .75
Roll isotermico
Istruzioni per l’uso . . . . . . . . . . . . . . . . . . . .93
Koelcontainer
Gebruiksaanwijzing. . . . . . . . . . . . . . . . . . 110
Kølecontainer
Betjeningsvejledning . . . . . . . . . . . . . . . .126
Kylbehållare
Bruksanvisning . . . . . . . . . . . . . . . . . . . . . 142
Kjølebeholder
Bruksanvisning . . . . . . . . . . . . . . . . . . . . . 158
Kylmäsäiliö
Käyttöohje . . . . . . . . . . . . . . . . . . . . . . . . . 173
Охлаждающий контейнер
Инструкция по эксплуатации . . . . . . . . . 189
Kontener chłodniczy
Instrukcja obsługi . . . . . . . . . . . . . . . . . . . 207
Chladiaci kontajner
Návod na obsluhu. . . . . . . . . . . . . . . . . . . 224
Chladicí kontejner
Návod k obsluze . . . . . . . . . . . . . . . . . . . . 240
Hűtőkonténer
Használati utasítás. . . . . . . . . . . . . . . . . . .256
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
REFRIGERATION
REFRIGERATION CONTAINER
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 1 Mittwoch, 17. Juli 2019 4:05 16

TL, FO
2
1333
685
685
848
848
682
753
948
100
1333
782
100
1082
753
975
125
802
120
968
120
TL300
TL450
TL200
FO450NC
FO200NC
1
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 2 Mittwoch, 17. Juli 2019 4:05 16

TL, FO
3
FO800NC
FO1000NCFO850NC
1100
1100
1433
1639
1800
1594
808
808
1383
73
73
73
73
1137
1137
1423
1100
850
FO650
2
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 3 Mittwoch, 17. Juli 2019 4:05 16

TL, FO
4
1
2
34
3
Min. 50 mm
Min. 15 mm
Min. 50 mm
4
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 4 Mittwoch, 17. Juli 2019 4:05 16

TL, FO
5
–
+
1
2
3
rd
bk 25 A
5
-18°C 4°C
OFF
-18°C 4°C
OFF
TL200
TL450
FO200NC
FO450NC
FO850NC
FO1000NC
OFF
4°C
1
FO800NC
TL300 FO650
6
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 5 Mittwoch, 17. Juli 2019 4:05 16

TL, FO
6
TL200
TL300
TL450
FO200NC
FO850NC
FO450NC
127
127
7
1
TL200
TL450
FO200NC
FO450NCTL300
8
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 6 Mittwoch, 17. Juli 2019 4:05 16

TL, FO
7
TL200
TL300
TL450
FO650
FO200NC
FO450NC
FO800NC
FO850NC
FO1000NC
9
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 7 Mittwoch, 17. Juli 2019 4:05 16

EN
Explanation of symbols TL, FO
8
Please read this instruction manual carefully before first use, and storeit in
a safe place. If you pass on the product to another person, hand over this
instruction manual along with it.
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
7 Installing and connecting the refrigerated container . . . . . . . . . . . . . . . . . .14
8 Operating the refrigerated container. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
9 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
10 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
11 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
12 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
13 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
1 Explanation of symbols
D
!
DANGER!
Safety instruction: Indicates a hazardous situation that, if not avoided,
will result in death or serious injury.
WARNING!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 8 Mittwoch, 17. Juli 2019 4:05 16

EN
TL, FO Safety instructions
9
!
A
I
2 Safety instructions
2.1 General safety
!WARNING! Failure to obey these warnings could result in death
or serious injury.
Electrocution hazard
• Do not operate the cooling device if it is visibly damaged.
• If this cooling device's power cable is damaged, it must be replaced
by the manufacturer, customer service or a similarly qualified person in
order to prevent safety hazards.
• This cooling device may only be repaired by qualified personnel.
Improper repairs can lead to considerable hazards.
Health hazard
• This device can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the device in a safe way and understand
the hazards involved.
• Children shall not play with the device.
• Cleaning and user maintenance shall not be made by children without
supervision.
• Children aged from 3 to 8 years are allowed to load and unload
cooling devices.
Explosion hazard
• Do not store any explosive substances such as spray cans with a
flammable propellant in the cooling device.
CAUTION!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in minor or moderate injury.
NOTICE!
Indicates a situation that, if not avoided, can result in property damage.
NOTE
Supplementary information for operating the product.
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 9 Mittwoch, 17. Juli 2019 4:05 16

EN
Safety instructions TL, FO
10
!CAUTION! Failure to obey these cautions could result in minor or
moderate injury.
Electrocution hazard
• Disconnect the cooling device from the power supply
– before each cleaning and maintenance
– after every use
Health hazard
• Food may only be stored in its original packaging or in suitable
containers.
ANOTICE! Damage hazard
• Check that the voltage specification on the type plate corresponds to
that of the energy supply.
• Only connect the cooling device as follows:
– With the DC connection cable to a DC power supply in the vehicle
– Or with the AC connection cable to an AC power supply
• Connect the cooling device with an AC connection cable to the AC
power supply.
• Never pull the plug out of the socket by the cable.
• If the cooling device is connected to a DC outlet: Disconnect the
cooling device and other power consuming devices from the battery
before connecting a quick charging device.
• If the cooling device is connected to a DC outlet: Disconnect the
cooling device or switch it off when you turn off the engine. Otherwise
you may discharge the battery.
• The cooling device is not suitable for transporting caustic materials or
materials containing solvents.
2.2 Operating the cooling device safely
!CAUTION! Failure to obey these cautions could result in minor or
moderate injury.
Electrocution hazard
• Before starting the cooling device, ensure that the power supply line
and the plug are dry.
Health hazard
• Opening the cooling devicefor long periods can cause significant
increase of the temperature in the compartments of the device.
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 10 Mittwoch, 17. Juli 2019 4:05 16

EN
TL, FO Scope of delivery
11
• Clean regularly surfaces that can come in contact with food and
accessible drainage systems.
• Store raw meat and fish in suitable containers in the device, so that it is
not in contact with or drip onto other food.
• If the device is left empty for long periods:
– Switch off the device.
– Defrost the device.
– Clean and dry the device.
– Leave the door open to prevent mould developing within the
device.
ANOTICE! Damage hazard
• Do not use electrical devices inside the cooling device unless they are
recommended by the manufacturer for the purpose.
• Do not place the cooling device near naked flames or other heat
sources (heaters, direct sunlight, gas ovens etc.).
•Risk of overheating!
Ensure at all times that there is a minimum of 50 mm ventilation on all
four sides of the cooling device. Keep the ventilation area free of any
objects that could restrict the air flow to the cooling components.
Do not place the cooling device in closed compartments or areas with
none or minimal air flow.
• Ensure that the ventilation openings are not covered.
• Do not fill the inner container with ice or fluids.
• Never immerse the cooling device in water.
• Protect the cooling device and cables against heat and moisture.
3Scopeofdelivery
Description Quantity
Refrigerated container 1
AC connection cable 1
DC connection cable 1
Key for temperature selection 2
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 11 Mittwoch, 17. Juli 2019 4:05 16

EN
Accessories TL, FO
12
3.1 Models
fig. 1, page 2, fig. 2, page 3:
4Accessories
Available as accessories (not included in the scope of delivery):
A
I
Model Temperature setting Ref. no.
TL200 +4 °C, –18 °C 9103540405
TL300 +4 °C, –18 °C 9600022114
TL450 +4 °C, –18 °C 9103540406
FO650 +4 °C, –18 °C 9600024342
FO200NC +4 °C 9103540408
FO450NC +4 °C 9103540409
FO800NC +4 °C 9600002642
FO850NC +4 °C 9600024343
FO1000NC +4 °C 9600002641
Description Quantity Ref. no.
Wheel set DT25 for TL200, TL450, TL600,
FO200NC, FO450NC
1 9103540412
Metal pallet DT-31 for FO850NC,
FO1000NC
1 9600024929
NOTICE!
Also observe the included instructions.
NOTE Heating DT-23 fixed temperature (optional):
If the outside temperature is below the temperature set on the device,
the heating function is automatically switched on.
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 12 Mittwoch, 17. Juli 2019 4:05 16

EN
TL, FO Intended use
13
5 Intended use
The TL200, TL300, TL450 and FO650 refrigerated containers are ideal for refriger-
ating and freezing food items at a constant temperature of +4 °C or –18 °C.
The FO200NC, FO450NC, FO800NC, FO850NC and FO1000NC refrigerated
containers are ideal for refrigerating food items at a constant temperature of +4 °C.
The refrigerated containers are designed for operating on a DC (12 Vg) and AC
power supply.
Refrigerated containers with integrated heating DT-32 (optional) are designed for
operating on a DC (12/24 Vg) and AC power supply.
The refrigerated container has a lock on the lid (not FO800NC, FO1000NC) and a
holder for the fastening strap.
!
6 Technical description
The refrigerated container can cool and freeze goods at a constant temperature of
+4 °C and –18 °C (TL200, TL300, TL450, FO650) or cool at +4 °C (FO200NC,
FO450NC, FO800NC, FO850NC, FO1000NC). A maintenance-free refrigerant
circuit with compressor provides the cooling.
Depending on the model, the refrigerated container can operate on an AC or DC
power supply.
The refrigerated container has a battery monitor which protects the vehicle battery
from excessive discharging:
• Switch-on voltage = 12.3 V
• Switch-off voltage = 11.7 V
Refrigerated containers with integrated heating DT-32 (optional):
• Switch-on voltage = 16 V
• Switch-off voltage = 32 V
CAUTION! Health hazard!
Please check if the cooling capacity of the device is suitable for storing
the food you wish to cool or freeze (chapter “Models” on page 12).
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 13 Mittwoch, 17. Juli 2019 4:05 16

EN
Installing and connecting the refrigerated container TL, FO
14
6.1 Connections and control elements
7 Installing and connecting the
refrigerated container
!
➤Observe the minimum clearances for the place of installation (fig. 4, page 4).
➤Place the refrigerated container on a stable and even floor.
7.1 Operation with AC power

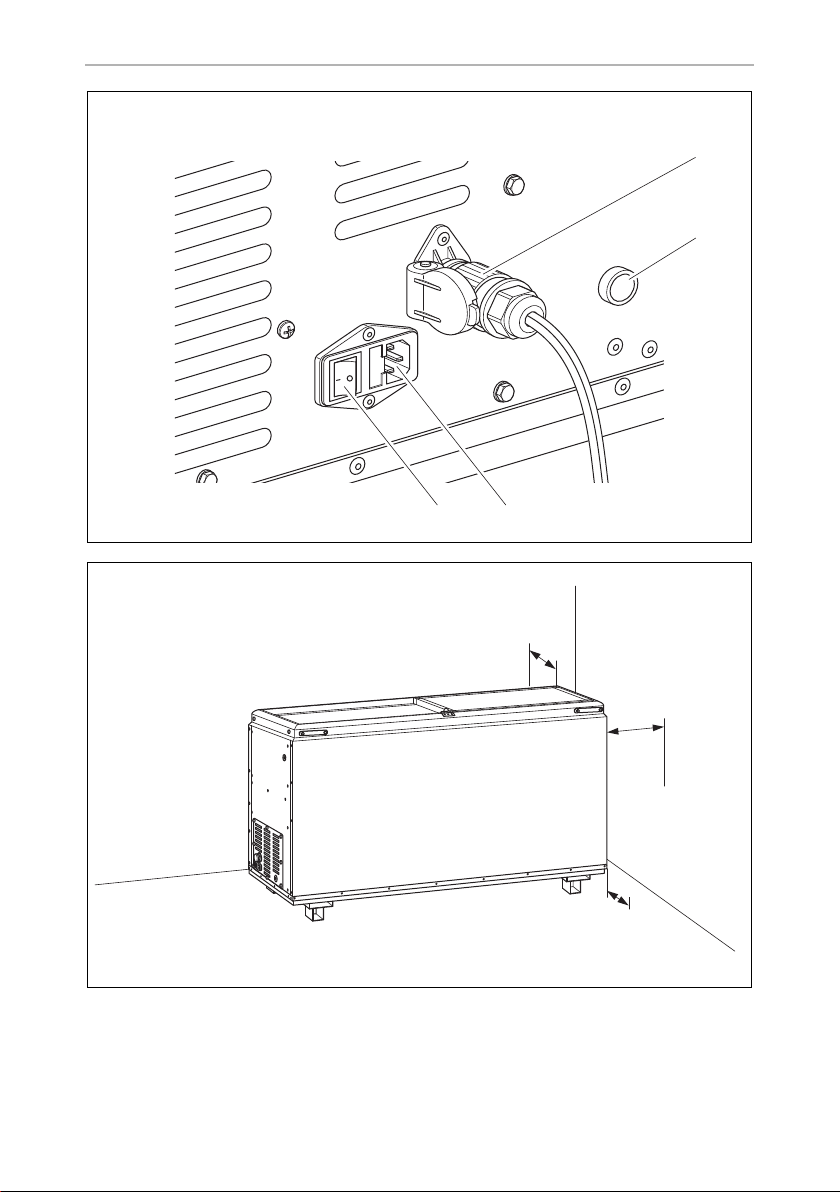

➤Plug the AC connection cable into the AC power supply connection (fig. 32,
page 4).
➤Connect the refrigerated container to the AC power supply.
Item in fig. 3, page 4 Description
1 DC power supply
2 Green status light (ON/OFF)
3 AC power supply
4 On/off switch
Item in fig. 6, page 5 Description
1 Key switch for temperature selection
WARNING! Fire hazard!
• When positioning the device, ensure the supply cord is not trapped
or damaged.
• Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the device.
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 14 Mittwoch, 17. Juli 2019 4:05 16

EN
TL, FO Installing and connecting the refrigerated container
15
7.2 Operation with DC power
A
For safety reasons, the refrigerated container is equipped with an electronic system
to prevent thepolarity being reversed. Thisprotectsit againstreversedpolarity when
connecting to a battery and against short circuiting.
A
➤Determine the required cross section of the cable in relation to the cable length
as follows:
12 V
24 V (on request)
A
➤Before starting up the device for the first time, check whether the operating volt-
age and the battery voltage match (see type plate).

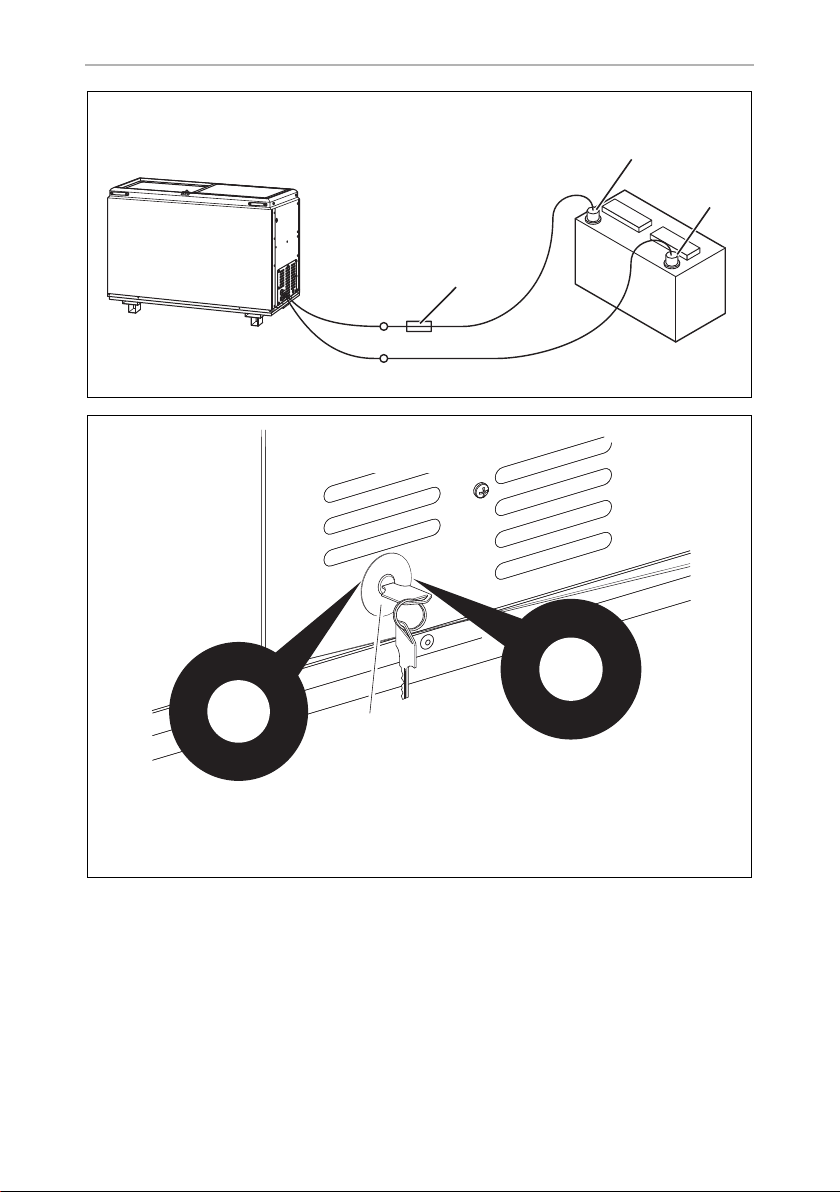

➤Make sure that the cable at the positive battery terminal (fig. 51, page 5) is pro-
tected with a 25 A fuse (fig. 53, page 5).
➤Plug the DC connection cable into the DC socket of the refrigerated container
(fig. 31, page 4).
NOTICE! Risk of damage to the device!
Disconnect the refrigerated container and other electric consumers
from the battery before you connect the battery to a quick charging
device.
Overvoltage can damage the electronics of the device.
NOTICE! Risk of damage to the device!
To avoid voltage drops and loss of performance, keep the cable as short
as possible and avoid joins.
Therefore avoid additional switches, plugs or power strips.
>3m 3.5 m – 5 m 5.5 m – 8.5 m 9m–13m 13.5 m – 15 m
Ø6mm² Ø10mm² Ø16mm² Ø25mm² Ø35mm²
>6m 6.5m–10.5m 11 m – 15 m
Ø 6 mm² Ø 10 mm² Ø 16 mm²
NOTICE! Risk of damage to the device!
Make sure that the polarity is correct.
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 15 Mittwoch, 17. Juli 2019 4:05 16

EN
Operating the refrigerated container TL, FO
16
➤Connect the red cable (fig. 5rd, page 5) to the positive battery terminal
(fig. 51, page 5).
➤Connect the black cable (fig. 5bk, page 5) to the negative battery terminal
(fig. 52, page 5).
Notes on the battery monitor
The product is equipped with a battery monitor that protects your vehicle battery
against excessive discharging when the device is connected to the on-board supply.
If the refrigerated container is operated when the vehicle ignition is switched off, it
switches off automatically as soon as the supply voltage falls below a settable level.
The refrigerated container will switch back on once the battery has been recharged
to the switch-on voltage level.
!
A
8 Operating the refrigerated container
!
I
CAUTION! Health hazard!
If the refrigerated container switches itself off, the food contained inside
it will not be cooled.
NOTICE! Risk of damage!
When the refrigerated container is switched off by the battery monitor,
the battery will no longer be fully charged. Avoid starting repeatedly or
operating power consumers without longer charging phases. Make
sure that the battery recharges.
CAUTION! Health hazard!
Food may only be stored in its original packaging or in suitable
containers.
NOTE
• The key in the key switch for temperature selection can be removed
in any position. The container continues to refrigerate.
• Before starting your refrigerated container for the first time, you
should clean it inside and outside with a damp cloth for hygienic rea-
sons (see also chapter “Cleaning and maintenance” on page 19).
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 16 Mittwoch, 17. Juli 2019 4:05 16

EN
TL, FO Operating the refrigerated container
17
8.1 Storing food items
I
8.2 Energy saving tips
• Choose a well ventilated position which is protected from direct sunlight.
• Allow warm food to cool down first before placing it in the product to freeze.
• Do not open the refrigerated container more often than necessary.
• Do not leave the refrigerated container open for longer than necessary.
• Defrost the refrigerated container once a layer of ice forms.
8.3 Selecting the temperature (only TL200, TL300,
TL450, FO650)
➤Turn the key switch to the required position (fig. 6, page 5).
➤Remove the key and store in a safe place.
8.4 Switching on the refrigerated container
A
➤Set the on/off switch (fig. 33, page 4) to the “I” position.
➤Insert the key into the key switch.
➤Turn the key to the required temperature.
✓The compressor switches on and the refrigerated container starts to cool.
NOTE
At a temperature setting of –18 °C: Only put food in the refrigerated
container that is already frozen at –18 °C. The refrigerated container is
not suitable for freezing food.
NOTICE! Risk of damage!
• Only put food items in the refrigerated container which may be kept
at the selected temperature.
• Ensure that your refrigerated container is well ventilated so that any
heat created can dissipate. Otherwise proper functioning cannot be
ensured. The air vents may not be covered up.
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 17 Mittwoch, 17. Juli 2019 4:05 16

EN
Operating the refrigerated container TL, FO
18
8.5 Installing the wheel set (accessories)
Not for FO800NC, FO650NC, FO1000NC
You can install wheels in place of the stands:
➤Remove the four stands and install the wheels in the same position. To do so, use
two fixed wheels and two movable wheels in the longitudinal direction to make
maneuvering easy (fig. 7, page 6).
8.6 Using the lock for the lid (fig. 8, page 6)
Not for FO800NC, FO1000NC
➤Close the sliding doors all the way to the stop.
➤Insert the knob into the opening until it clicks into place to lock the sliding doors.
➤Pull the knob upwards to unlock the sliding doors.
8.7 Removing condensation (fig. 9, page 7)
During operation of the refrigerated containers, condensation is generated, which is
then discharged to the outside.
➤Make sure that the condensation can drain freely.
TL200, TL300, TL450, FO200NC, FO450NC
The refrigerated container has a drain fitting on the back where you can connect a
drain hose.
FO600, FO800NC, FO850NC, FO1000NC
The refrigerated container has a collection container on the rear for draining conden-
sation water.
INOTE
Ensure that the collection container is regularly emptied. An overfilled
collection container can impair the function of the refrigerated
containers.
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 18 Mittwoch, 17. Juli 2019 4:05 16

EN
TL, FO Cleaning and maintenance
19
8.8 Defrosting the refrigerated container
➤Remove the layer of ice at a thickness of 2 mm using a plastic scraper.
➤Place the open refrigerated container in an environment of approximately 20 °C.
➤Remove the condensation.
9 Cleaning and maintenance
A
➤Occasionally clean the refrigerated container interior and exterior with a damp
cloth.
➤Remove the base plates occasionally and clean these with a damp cloth.
➤Make sure that the air vents on the refrigerated container are free of any dust and
dirt, so that heat can be released and the refrigerated container is not damaged.
10 Warranty
The statutory warranty period applies. If the product is defective, please contact the
manufacturer's branch in your country (see back page) or your retailer.
For repair and warranty processing, please include the following documents when
you send in the device:
• A copy of the receipt with purchasing date
• A reason for the claim or description of the fault
11 Disposal
!
NOTICE! Risk of damage!
• Do not use harsh detergents, hard objectsor high-pressure cleaners
for cleaning.
WARNING! Children beware!
Before disposing of your old refrigerator:
• Take off the doors.
• Leave storage shelves in the refrigerator so that children cannot
climb inside.
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 19 Mittwoch, 17. Juli 2019 4:05 16

EN
Troubleshooting TL, FO
20
➤Place the packaging material in the appropriate recycling waste bins wherever
possible.
MIf you wish to finally dispose of the product, ask your local recycling centre
or specialist dealer for details about how to do this in accordance with the
applicable disposal regulations.
12 Troubleshooting
Fault Possible cause Suggested remedy
The refrigerated container
does not work.
The refrigerated container is
not correctly connected.
Check the voltage supply.
The refrigerated container
does not freeze properly
(for TL200, TL300, TL450,
FO650 only).
The temperature key is not
set to the required
temperature.
Turn the temperature key to the
required temperature.
The goods placed in the
refrigerated container are
too warm.
Only put goods in the refriger-
ated container which are cold
at –18 °C.
The air vents are dusty or
dirty.
Remove the dust and dirt from
the air inlet and outlet vents.
The ventilation around the
refrigerated container is not
sufficient.
Ensure a sufficient circulation of
air around the air vents.
The set temperature is
+4 °C.
Adjust the temperature to
–18 °C.
The refrigerated container
does not cool sufficiently.
The goods placed in the
refrigerated container are
too warm.
Only put goods in the refriger-
ated container which are
already cold.
The air vents are dusty or
dirty.
Remove the dust and dirt from
the air inlet and outlet vents.
The ventilation around the
refrigerated container is not
sufficient.
Ensure a sufficient circulation of
air around the air vents.
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 20 Mittwoch, 17. Juli 2019 4:05 16
