Dometic CRX User manual

CRX50, CRX65, CRX80, CRX110,
CRX140
Compressor refrigerator
Installation and Operating Manual. . . . . . . 15
Kompressor-Kühlschrank
Montage- und Bedienungsanleitung. . . . .39
Réfrigérateur à compression
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . .65
Nevera con compresor
Instrucciones de montaje y de uso . . . . . . . 91
Frigorífico com compressor
Instruções de montagem e manual de
instruções. . . . . . . . . . . . . . . . . . . . . . . . . . 116
Frigorifero con compressore
Istruzioni di montaggio e d’uso . . . . . . . .142
Compressorkoelkast
Montagehandleiding en
gebruiksaanwijzing. . . . . . . . . . . . . . . . . . 167
Kompressor-Køleskab
Monterings- og betjeningsvejledning. . . 192
Kylskåp med kompressor
Monterings- och bruksanvisning . . . . . . . 215
Kompressorkjøleskap
Monterings- og bruksanvisning. . . . . . . . 238
Kompressori jääkaappi
Asennus- ja käyttöohje . . . . . . . . . . . . . . . 261
Компрессорный холодильник
Инструкция по монтажу и
эксплуатации . . . . . . . . . . . . . . . . . . . . . .284
Lodówka kompresorowa
Instrukcja montażu i obsługi. . . . . . . . . . . 310
Kompresorová chladnička
Návod na montáž a uvedenie
do prevádzky. . . . . . . . . . . . . . . . . . . . . . . 335
Kompresorová chladnička
Návod k montáži a obsluze . . . . . . . . . . . 360
Kompresszoros hűtőszekrény
Szerelési és használati útmutató . . . . . . . 383
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
REFRIGERATION
CRX
CRX50-65-80-110-140_IOM_EMEA16.book Seite 1 Mittwoch, 15. Juli 2020 12:51 12

© 2020 Dometic Group. The visual appearance of the contents of this manual is
protected by copyright and design law. The underlying technical design and the
products contained herein may be protected by design, patent or be patent
pending. The trademarks mentioned in this manual belong to Dometic Sweden AB.
All rights are reserved.
CRX50-65-80-110-140_IOM_EMEA16.book Seite 2 Mittwoch, 15. Juli 2020 12:51 12

CRX
3
CRX 50
1
2
3
5
4
6
7
1
1
2
3
5
4
6
7
CRX 65
2
CRX50-65-80-110-140_IOM_EMEA16.book Seite 3 Mittwoch, 15. Juli 2020 12:51 12

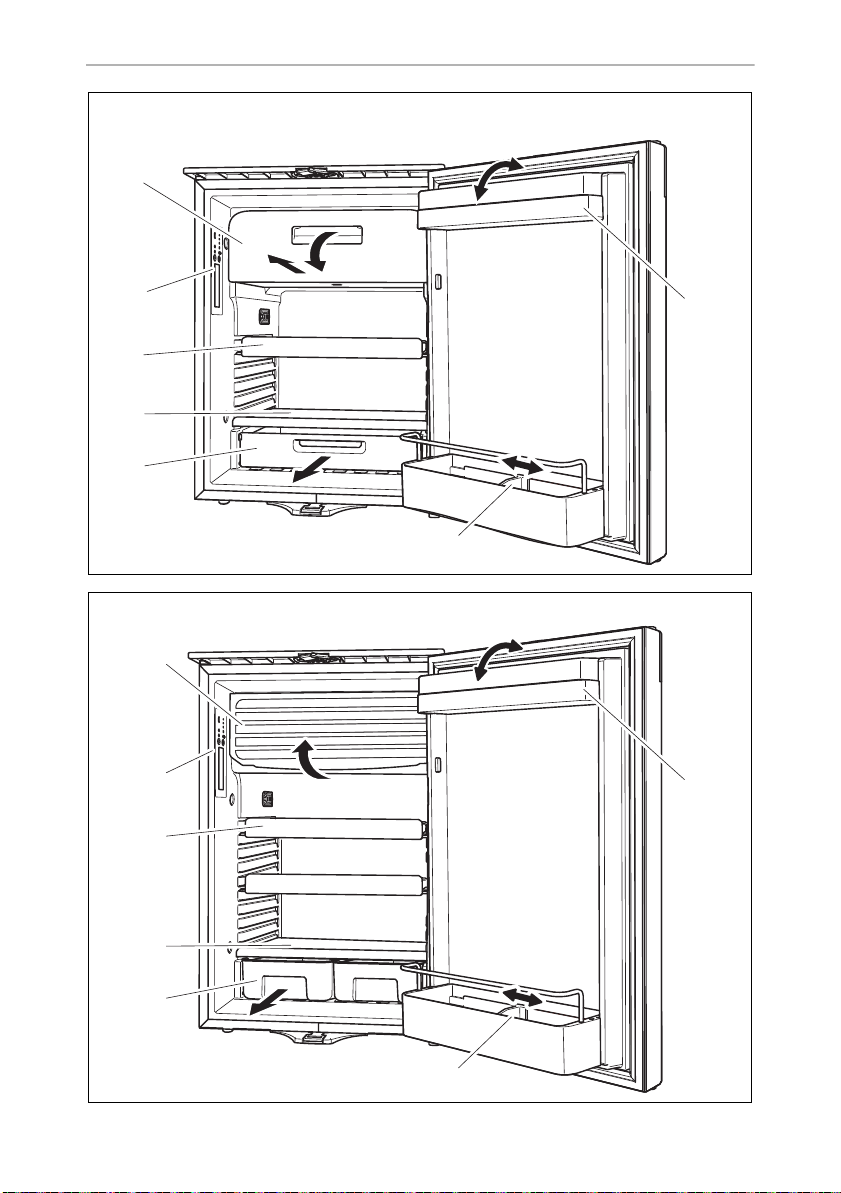

CRX
4
1
2
3
5
4
6
7
CRX 80
3
4
1
2
3
5
4
6
7
CRX 110
CRX50-65-80-110-140_IOM_EMEA16.book Seite 4 Mittwoch, 15. Juli 2020 12:51 12

CRX
5
55
1
2
3
5
4
6
7
CRX 140
6CRX50, CRX65, CRX80
1
2
3
4
8
7
6
5
3s
CRX50-65-80-110-140_IOM_EMEA16.book Seite 5 Mittwoch, 15. Juli 2020 12:51 12

CRX
6
7
CRX110ACDC, CRX140ACDC
1
2
3
4
8
6
5
1
2
3
4
8
7
6
5
3s
CRX110DC
CRX50-65-80-110-140_IOM_EMEA16.book Seite 6 Mittwoch, 15. Juli 2020 12:51 12

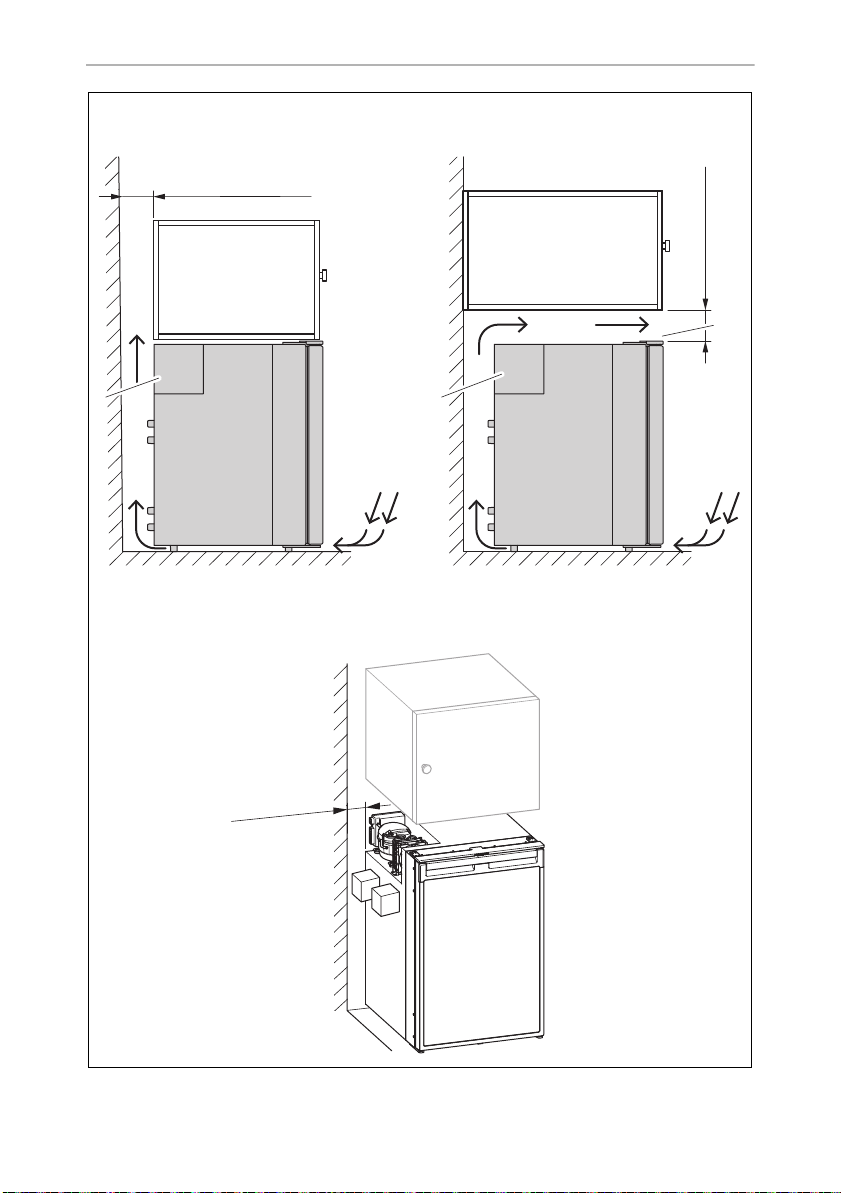

CRX
7
ca. 50 mm
ca. 50 mm
AB
CRX 50-140 CRX 50-140
11
22
33
4
8
CRX 140
ca. 20 mm
CRX50-65-80-110-140_IOM_EMEA16.book Seite 7 Mittwoch, 15. Juli 2020 12:51 12

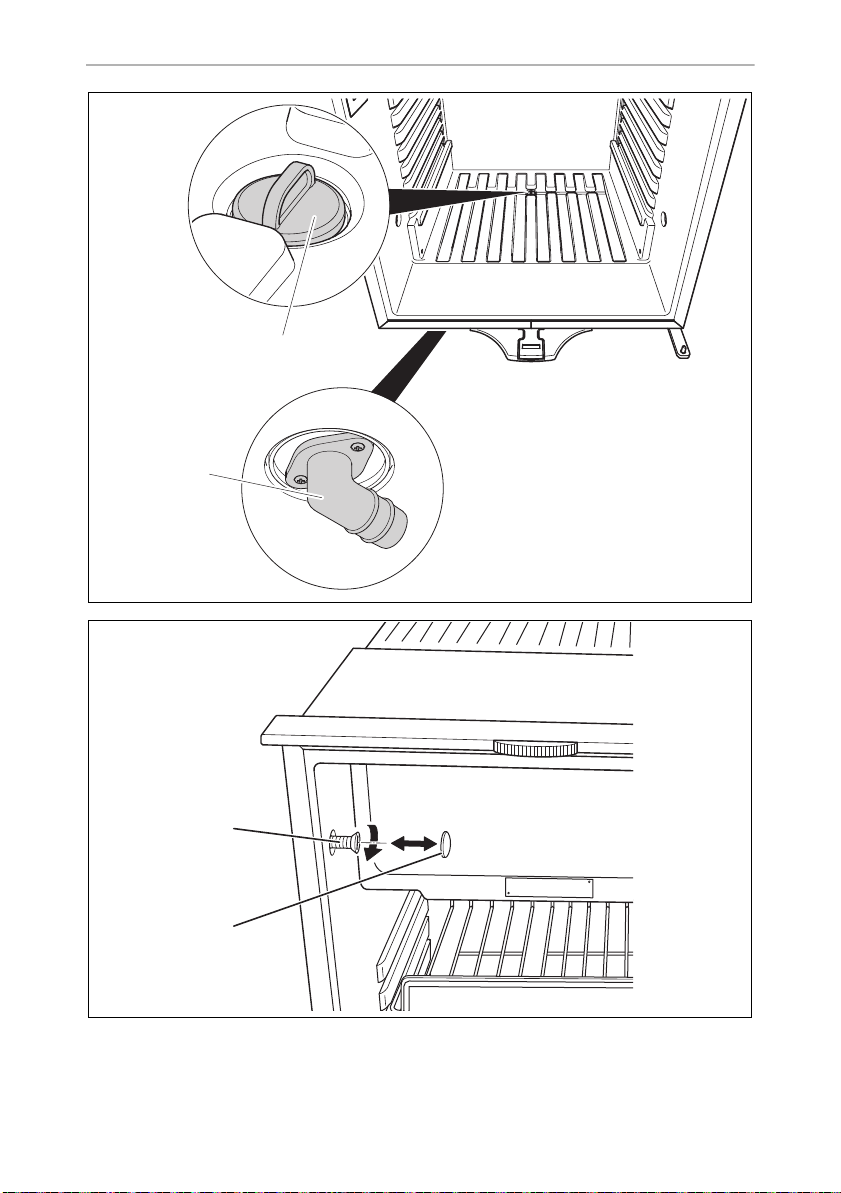

CRX
8
2
1
9
1
2
0
CRX50-65-80-110-140_IOM_EMEA16.book Seite 8 Mittwoch, 15. Juli 2020 12:51 12

CRX
9
a
b
c
CRX50-65-80-110-140_IOM_EMEA16.book Seite 9 Mittwoch, 15. Juli 2020 12:51 12

CRX
10
tØ 2,5 mm²
876543210
0
2
4
6
8
10
12
l/m
Ø/mm²
12 Vg
d
Ø/mm²
l/m
24 V
0 2 4 6 8 10 12 14 16 18 20 22 24 26 28
0
2
6
10
14
e
CRX50-65-80-110-140_IOM_EMEA16.book Seite 10 Mittwoch, 15. Juli 2020 12:51 12

CRX
11
1
rd
bk
f
1
2
g
CRX50-65-80-110-140_IOM_EMEA16.book Seite 11 Mittwoch, 15. Juli 2020 12:51 12

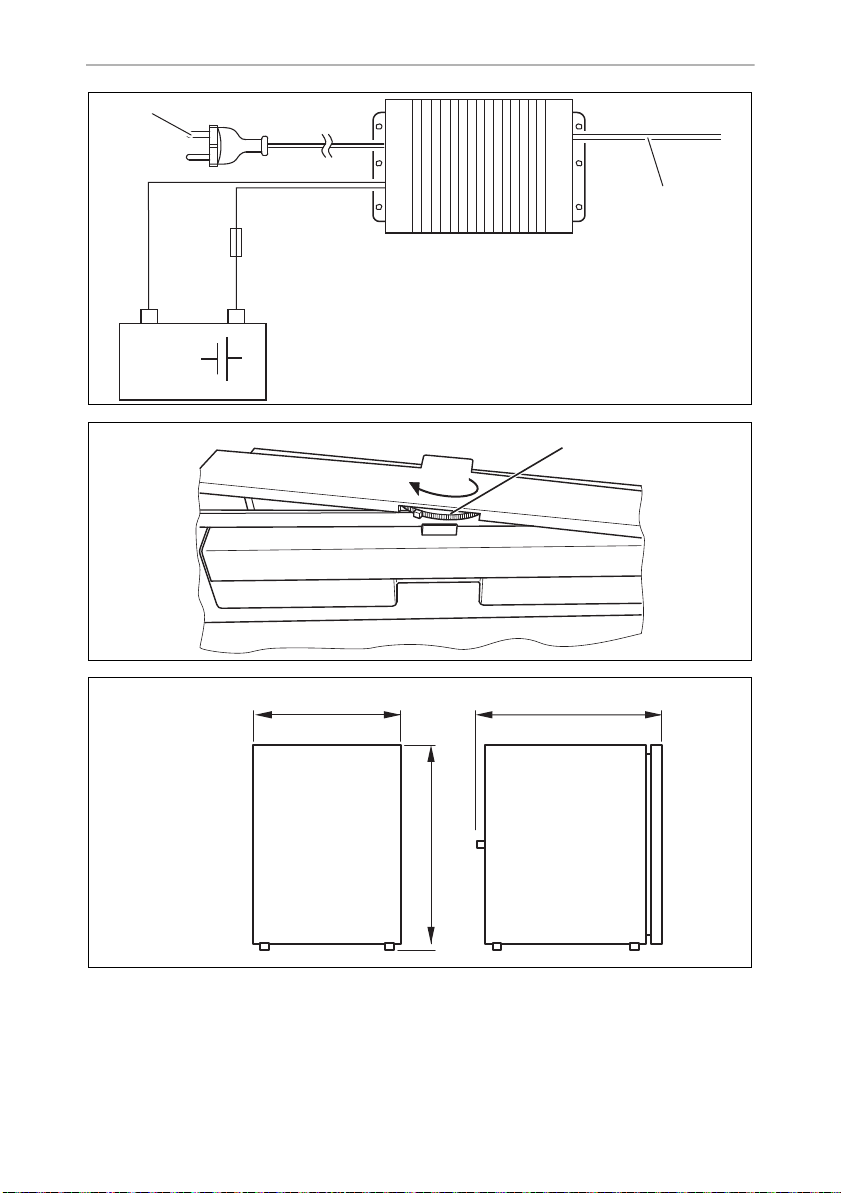

CRX
12
12 V/24 V
10 A
–
–
+
+
2
1
rd/bk
rd
bk
bk
100 – 240 V~
h
1
Vent Lock
i
380
534
500
CRX 50
j
CRX50-65-80-110-140_IOM_EMEA16.book Seite 12 Mittwoch, 15. Juli 2020 12:51 12

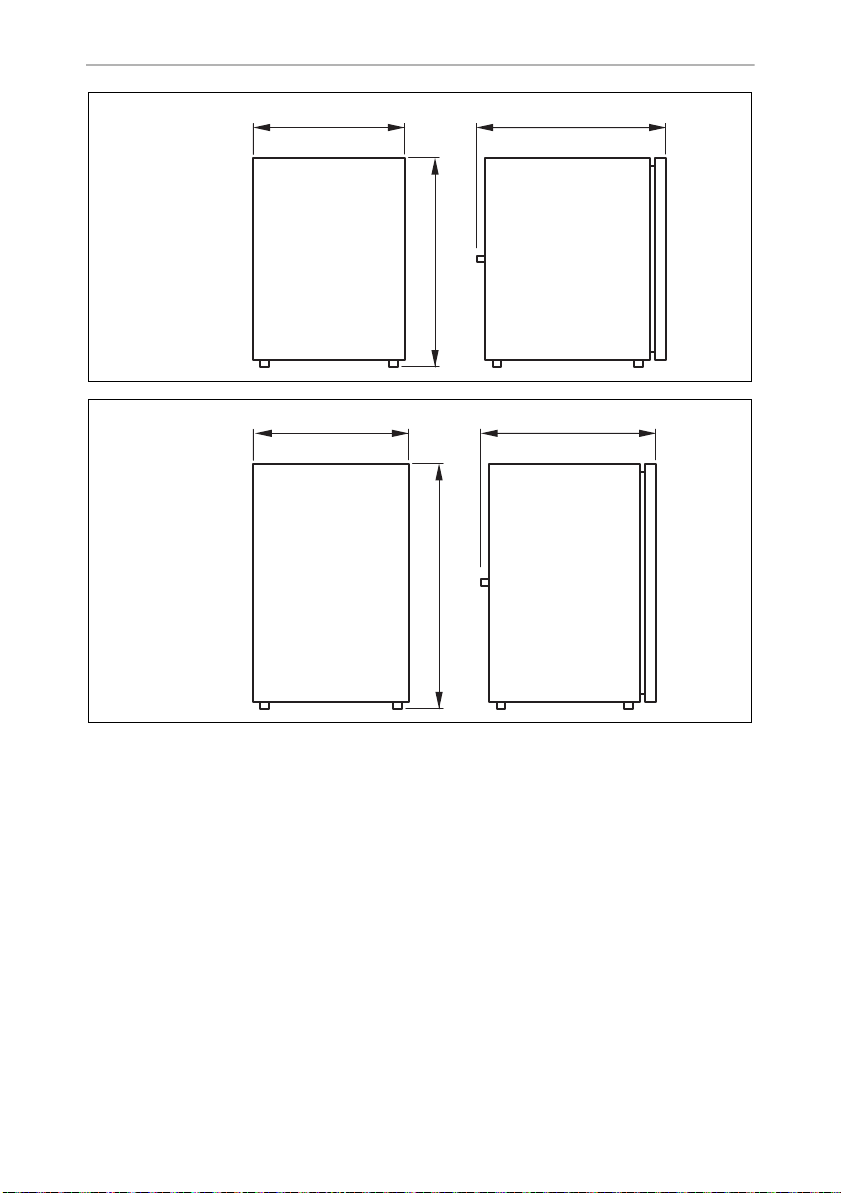

CRX
13
CRX 65
448
525
545
k
CRX 80
475
640
528
l
CRX50-65-80-110-140_IOM_EMEA16.book Seite 13 Mittwoch, 15. Juli 2020 12:51 12

CRX
14
CRX 110
520
745
558
m
CRX 140
525
812
620
n
CRX50-65-80-110-140_IOM_EMEA16.book Seite 14 Mittwoch, 15. Juli 2020 12:51 12

EN
CRX Explanation of symbols
15
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
7 Installing and connecting the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . 22
8 Using the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
9 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
10 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
11 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
12 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
13 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
1 Explanation of symbols
D
!
DANGER!
Safety instruction: Indicates a hazardous situation that, if not avoided,
will result in death or serious injury.
WARNING!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
CRX50-65-80-110-140_IOM_EMEA16.book Seite 15 Mittwoch, 15. Juli 2020 12:51 12

EN
Safety instructions CRX
16
!
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
• Faulty assembly or connection
• Damage to the product resulting from mechanical influences and incorrect
connection voltage
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in the operating manual
2.1 General safety
DDANGER! Failure to obey these warnings will result in death or
serious injury.
Electrocution hazard
• On boats: If the device is powered by the mains, ensure that the
power supply has a residual current circuit breaker.
!WARNING! Failure to obey these warnings could result in death
or serious injury.
Electrocution hazard
• Installations in washrooms and areas exposed to water, must be
performed by a qualified technician.
• Do not operate the device if it is visibly damaged.
• If this device's power cable is damaged, it must be replaced by the
manufacturer, customer service or a similarly qualified person in order
to prevent safety hazards.
CAUTION!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in minor or moderate injury.
NOTICE!
Indicates a situation that, if not avoided, can result in property damage.
NOTE
Supplementary information for operating the product.
CRX50-65-80-110-140_IOM_EMEA16.book Seite 16 Mittwoch, 15. Juli 2020 12:51 12

EN
CRX Safety instructions
17
• This device may only be repaired by qualified personnel. Inadequate
repairs may cause serious hazards.
Health hazard
• This device can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the device in a safe way and understand
the hazards involved.
• Children shall not play with the device.
• Cleaning and user maintenance shall not be made by children without
supervision.
• Children aged from 3 to 8 years are allowed to load and unload
refrigerating devices.
Explosion hazard
• Do not store any explosive substances, such as spray cans with
propellants, in the device.
!CAUTION! Failure to obey these cautions could result in minor or
moderate injury.
Risk of crushing
• Do not put your fingers into the hinge.
Health hazard
• Foodstuff may only be stored in its original packaging or in suitable
containers.
ANOTICE! Damage hazard
• Check that the voltage specification on the type plate is the same as
that of the power supply.
• Never pull the plug out of the socket by the connection cable.
• If the device is connected to the DC socket: Disconnect the device
and other electric consumers from the battery before connecting the
quick charging device.
• If the device is connected to the DC socket: Disconnect the device or
switch it off when you turn off the engine. Otherwise you may dis-
charge the battery.
• The device is not suitable for storing substances which are caustic or
contain solvents.
• Keep the drainage outlet clean at all times.
CRX50-65-80-110-140_IOM_EMEA16.book Seite 17 Mittwoch, 15. Juli 2020 12:51 12

EN
Safety instructions CRX
18
• Do not open the refrigerant circuit under any circumstances.
• Never transport the device in a horizontal position, so that no oil can
leak out of the compressor.
• Make sure that the refrigerant circuit is not damaged during transpor-
tation. The refrigerant in the refrigerant circuit is highly flammable.
In the event of any damage to the refrigerant circuit:
– Avoid naked flames and sparks.
– Air the room well.
• Set up the device in a dry location where it is protected against splash-
ing water.
2.2 Operating the device safely
DDANGER! Failure to obey these warnings will result in death or
serious injury.
Electrocution hazard
• Do not touch exposed cables with your bare hands. This applies
especially when operating the device from the AC mains.
!CAUTION! Failure to obey these cautions could result in minor or
moderate injury.
Electrocution hazard
• Before starting the device, ensure that the power supply line and the
plug are dry.
Health hazard
• Opening the door for long periods can cause significant increase of
the temperature in the compartments of the device.
• Clean regularly surfaces that can come in contact with food and
accessible drainage systems.
• Store raw meat and fish in suitable containers in the device, so that it is
not in contact with or can drip onto other food.
• If the device is left empty for long periods:
– Switch off the device.
– Defrost the device.
– Clean and dry the device.
– Leave the door open to prevent mould developing within the
device.
CRX50-65-80-110-140_IOM_EMEA16.book Seite 18 Mittwoch, 15. Juli 2020 12:51 12

EN
CRX Scope of delivery
19
ANOTICE! Damage hazard
• Do not use electrical devices inside the cooling device unless they are
recommended by the manufacturer for that purpose.
• Do not place it near naked flames or other heat sources (heaters, direct
sunlight, gas ovens etc.)
•Danger of overheating!
Always ensure sufficient ventilation so that the heat generated during
operation can dissipate. Make sure that the device is sufficiently far
away from walls and other objects so that the air can circulate.
• Ensure that the ventilation vents are not covered.
• Do not fill the inner container with ice or fluid.
• Never immerse the device in water.
• Protect the device and the cable against heat and moisture.
• Make sure that foodstuffs do not touch the walls of the cooling area.
3Scopeofdelivery
4Accessories
Available as accessories (not included in the scope of delivery):
If you have any questions, please contact the dealer or your service partner directly.
Quantity Description
1 Refrigerator with shelves
1 Water drain outlet
1 Installation and operating manual
Description Explanation Ref. no.
Rectifier Suitable for CRX50DC, CRX65DC, CRX80DC,
CRX110DC.
Transforms an input voltage of 100 – 240 Vwto 24 Vg,
so that the refrigerator can be connected to an AC
power supply.
9600000445
Mounting
Frames
Flush-mount and standard mounting frames are available
for all CRX models.
Various
CRX50-65-80-110-140_IOM_EMEA16.book Seite 19 Mittwoch, 15. Juli 2020 12:51 12

EN
Intended use CRX
20
5 Intended use
The refrigerator is designed for installation in caravans and motorhomes and on
boats. It is recommended the unit is installed into a fixed position. Once it is installed,
only the front of the appliance may be accessible
Two-star frozen-food compartments are suitable for storing pre-frozen food, storing
or making icecream and making ice cubes.
The refrigerator is only suitable for cooling, freezing and storing foodstuffs. The
refrigerator is not intended for the proper storage of medicine.
For DC only version: The refrigerator must only be supplied at safety extra low
voltage corresponding to the marking on the refrigerator.
!
6 Technical description
The CoolMatic CRX series cooling appliances can cool products and keep them
cool. Products can be deep-frozen in the freezer compartment. If the refrigerator is
operated without a freezer compartment, frozen products can be stored in the short
term using the fast-cooling function.
All materials used in the refrigerator are compatible for use with foodstuffs.
The refrigerant circuit is maintenance-free.

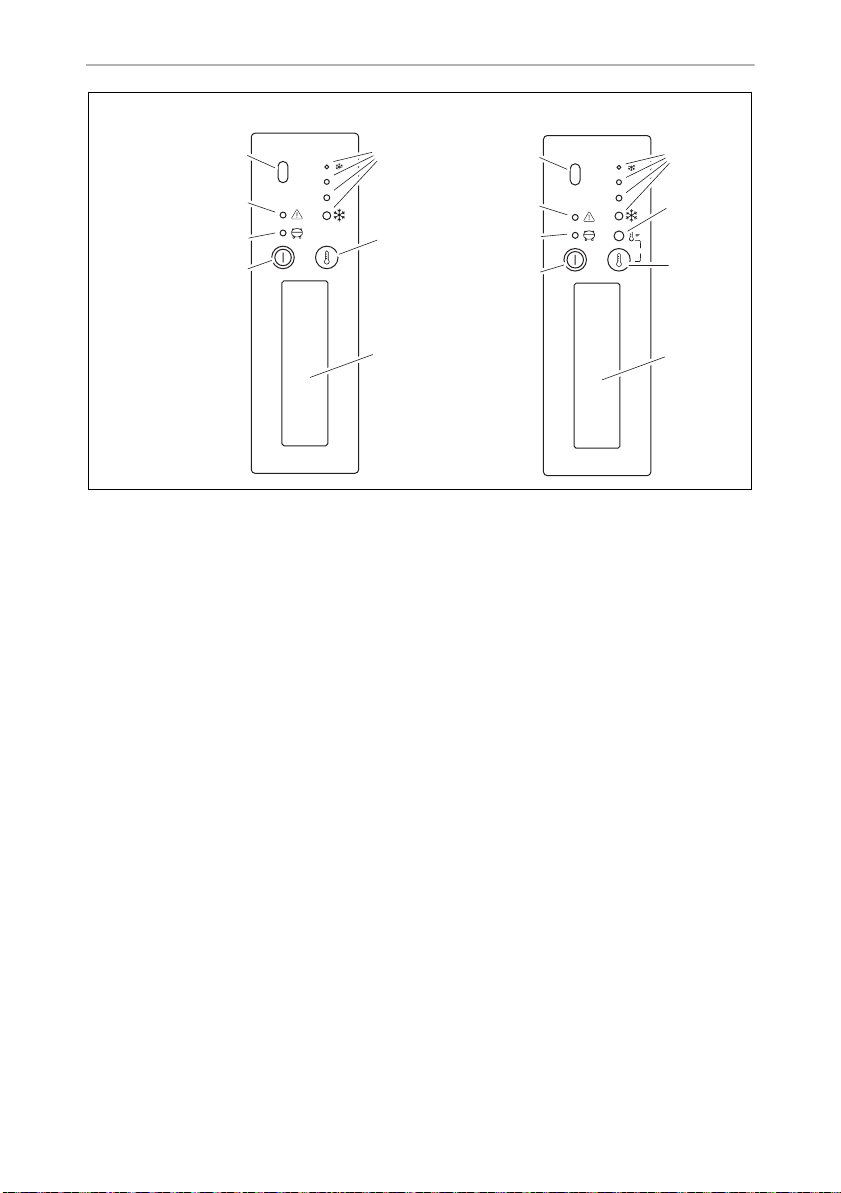

The temperature is set using the control panel on the inside left of the refrigerator.
CRX50,CRX65,CRX80
Four temperature ranges from +3 °C to +12 °C, and a fast-cooling function,
are available for selection.
CRX110, CRX140:
Four temperature ranges from +3 °C to +12 °C are available for selection.
CRX110ACDC, CRX140ACDC
Four temperature ranges from +3 °C to +12 °C, and a winter mode, are available for
selection.
CAUTION! Health hazard
Please check if the cooling capacity of the refrigerator is suitable for
storing the food you wish to cool.
CRX50-65-80-110-140_IOM_EMEA16.book Seite 20 Mittwoch, 15. Juli 2020 12:51 12
