Dometic DM20F User manual

DM20D, DM20F
Drawer Minibar
Installation and Operating Manual. . . . . . . 10
Minibar à tiroir
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . .23
Cajón minibar
Instrucciones de montaje y de uso . . . . . . .36
EN
FR
ES
REFRIGERATION
MINI FRIDGES
DM20-IO-US.book Seite 1 Montag, 5. September 2016 9:28 21

DM20-IO-US.book Seite 2 Montag, 5. September 2016 9:28 21

DM20
3
12
3
1
1 2
2
DM20-IO-US.book Seite 3 Montag, 5. September 2016 9:28 21

DM20
4
12 43
SETPE
3
1 2
4
DM20-IO-US.book Seite 4 Montag, 5. September 2016 9:28 21

DM20
5
AB
C
D
≥200 cm²
≥200 cm²
≥200 cm²
≥200 cm²
≥200 cm² ≥200 cm²
5
DM20-IO-US.book Seite 5 Montag, 5. September 2016 9:28 21

DM20
6
2
2
11
6
DM20-IO-US.book Seite 6 Montag, 5. September 2016 9:28 21

DM20
7
C
BA
1
2
1
1
3
2
7
68
112
AB
8
DM20-IO-US.book Seite 7 Montag, 5. September 2016 9:28 21

DM20
8
23
1
C
B
D
A
11
1
9
1
2
3
4
0
DM20-IO-US.book Seite 8 Montag, 5. September 2016 9:28 21

DM20
9
314
384
160,4
71
369
400
428
31
125
357 365
DM20D
DM20F
384
357 365
71
369
398
31
125
O25,4
a
DM20-IO-US.book Seite 9 Montag, 5. September 2016 9:28 21

EN
DM20
10
Please read this operating manual carefully before starting the device.
Keep it in a safe place for future reference. If the device is passed on to
another person, this operating manual must be handed over to the user
along with it.
The manufacturer cannot be held liable for damage resulting from improper usage
or incorrect operation.
Contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
4 Proper use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
6 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
7 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
9 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
10 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
11 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
DM20-IO-US.book Seite 10 Montag, 5. September 2016 9:28 21

EN
DM20 Explanation of symbols
11
1 Explanation of symbols
!
!
A
I
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
DM20-IO-US.book Seite 11 Montag, 5. September 2016 9:28 21

EN
Safety instructions DM20
12
2 Safety instructions
2.1 General safety
!WARNING!
•Do not operate the device if it is visibly damaged.
•This device may only be repaired by qualified personnel. Improper
repairs can lead to considerable hazards.
•This device can be used by children aged 8 years and above as well as
persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge, if they are supervised or have been
instructed to safely use the device and if they understand the hazards
resulting out of it.
•Cleaning and user maintenance must not be carried out by children
without supervision.
•Always keep and use the device out of the reach of children under the
age of 8 years.
•Children must be supervised to ensure that they do not play with the
device.
•If this device's power cable is damaged, it must be replaced by the
manufacturer, customer service or a similarly qualified person in order
to prevent safety hazards.
•Do not store any explosive substances such as spray cans with a
flammable propellant in the device.
!CAUTION!
•Disconnect the device from the mains
– before each cleaning and maintenance
– after every use
•Do not use an extension cord.
•Food may only be stored in its original packaging or in suitable
containers.
ANOTICE!
•Connect the device with the 120 V connection cable to the 120 V AC
mains supply.
•Check that the voltage specification on the type plate corresponds to
that of the energy supply.
DM20-IO-US.book Seite 12 Montag, 5. September 2016 9:28 21

EN
DM20 Safety instructions
13
•The cooling device is not suitable for transporting caustic materials or
materials containing solvents.
•Never pull the plug out of the socket by the cable.
2.2 Operating the device safely
ANOTICE!
•Do not use electrical devices inside the cooler unless they are
recommended by the manufacturer for the purpose.
•Do not place the device near naked flames or other heat sources
(heaters, direct sunlight, gas ovens etc.).
•The device is designed for built-in installation only, not for free-
standing installation.
•Danger of overheating!
Ensure at all timesthat there is sufficient ventilation so that the heat that
arises during operation does not build up. Make sure that the device
is sufficiently far away from walls and other objects so that the air can
circulate.
•Ensure that the ventilation openings are not covered.
•Do not fill the inner container with ice or fluid.
•Never immerse the device in water.
•Protect the device and the cable against heat and moisture.
DM20-IO-US.book Seite 13 Montag, 5. September 2016 9:28 21

EN
Scope of delivery DM20
14
3Scopeofdelivery
The following main alternatives are obtainable:
•Minibar DM20D with door panel, without lock
•Minibar DM20D with door panel, with lock
•Minibar DM20F without door panel, without lock
•Minibar DM20F without door panel, with lock
Quantity Description
1 Minibar
1 Cable for 120 Vwconnection
2Screw∅4 x 45 mm (Installation)
2Screw∅4 x 25 mm (Installation of the front feet)
2 Screw M4 x 45 mm (Handle installation)
2 Plug (Installation)
1 Handle DM20D only
2 Plug (Handle installation) DM20D only
2 Plug (Wooden panel) DM20F wooden version only
1 Lock decor (Wooden panel) DM20F wooden version with lock
only
2 Key Lock version only
1 Installation and Operating manual
DM20-IO-US.book Seite 14 Montag, 5. September 2016 9:28 21

EN
DM20 Proper use
15
4Properuse
The Minibar DM20D and DM20F are designed for use inside a piece of furniture.
The device must not be operated free-standing.
The device is suitable for cooling beverages and food.
The device is designed for use with a 120 V AC mains supply.
The cooling device is intended to be used in household and similar applications such
as
•staff kitchen areas in shops, offices and other working environments
•farm houses
•clients in hotels, motels and other residential type environments
•bed and breakfast type environments
•catering and similar non-retail applications
!
5 Technical description
The minibar has a drawer with room for 12 cans (plus snacks bars).
The minibar DM20D comes with a anthracite panel and pull handle.
The minibar DM20F is delivered without panel and is prepared for fitting the hotel's
own door decor.
Its cooling system is a non-wearing Peltier cooling system.
A lock is optionally available.
CAUTION! Health hazard!
Please check if the cooling capacity of the device is suitable for storing
the food or medicine you wish to cool.
DM20-IO-US.book Seite 15 Montag, 5. September 2016 9:28 21

EN
Technical description DM20
16
5.1 Description of the device
Front side
Rear side
Control panel (inside the device)
Main drawer
No. in fig. 1,
page 3 Description
1 Lock (optional)
2 Handle (DM20D only)
3 Door panel (DM20D only)
No. in fig. 2,
page 3 Description
1 Drip tray
2 Mains adapter
No. in fig. 3,
page 4 Description
1 Lamp
2 Error LED
3 Status LED
4 Setting button
No. in fig. 4,
page 4 Description
1Divider
2 Bottle finger
DM20-IO-US.book Seite 16 Montag, 5. September 2016 9:28 21

EN
DM20 Installation
17
6 Installation

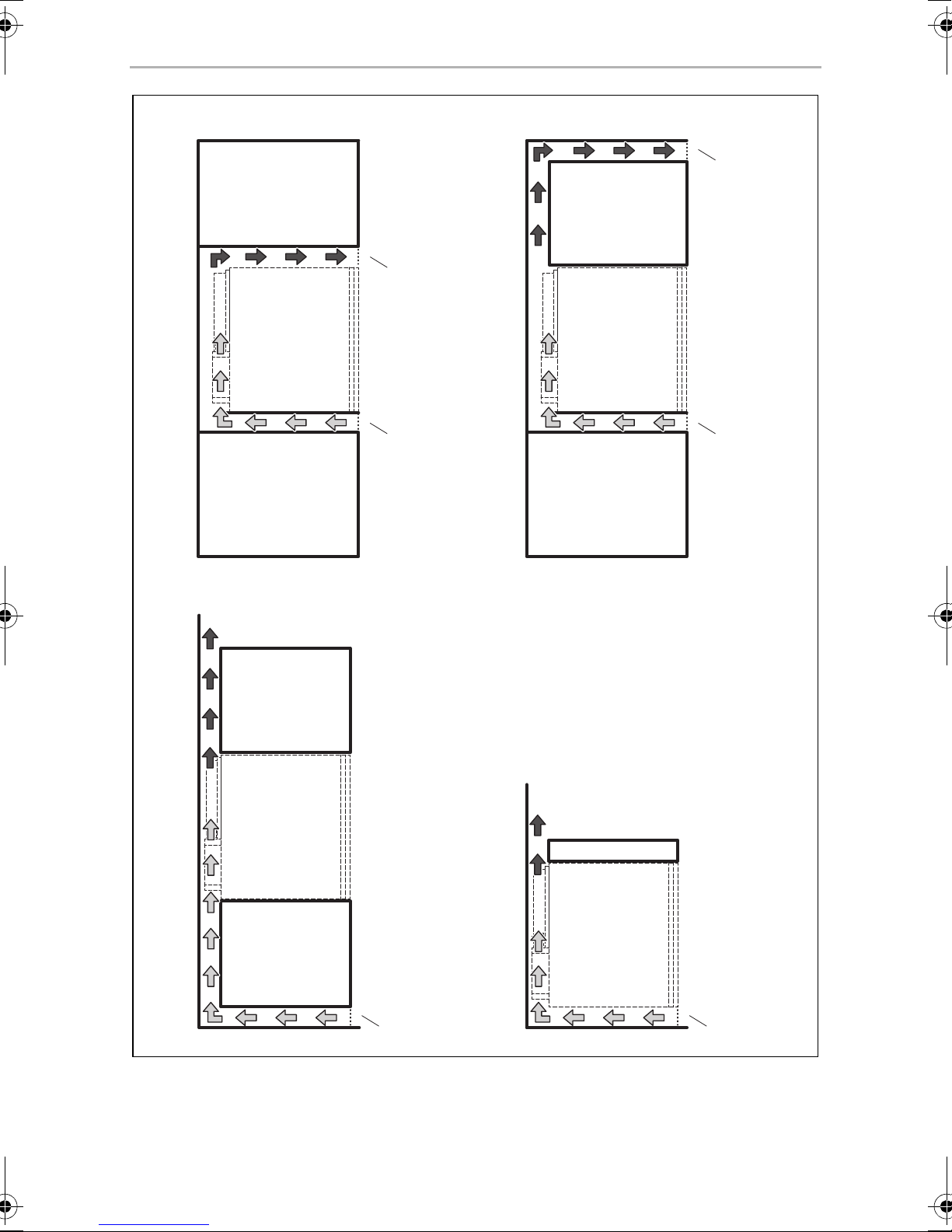

6.1 Notes on mounting into furniture
You can mount the minibar in four ways into furniture. Choose your favoured
alternative (fig. 5, page 5).
Observe the following:

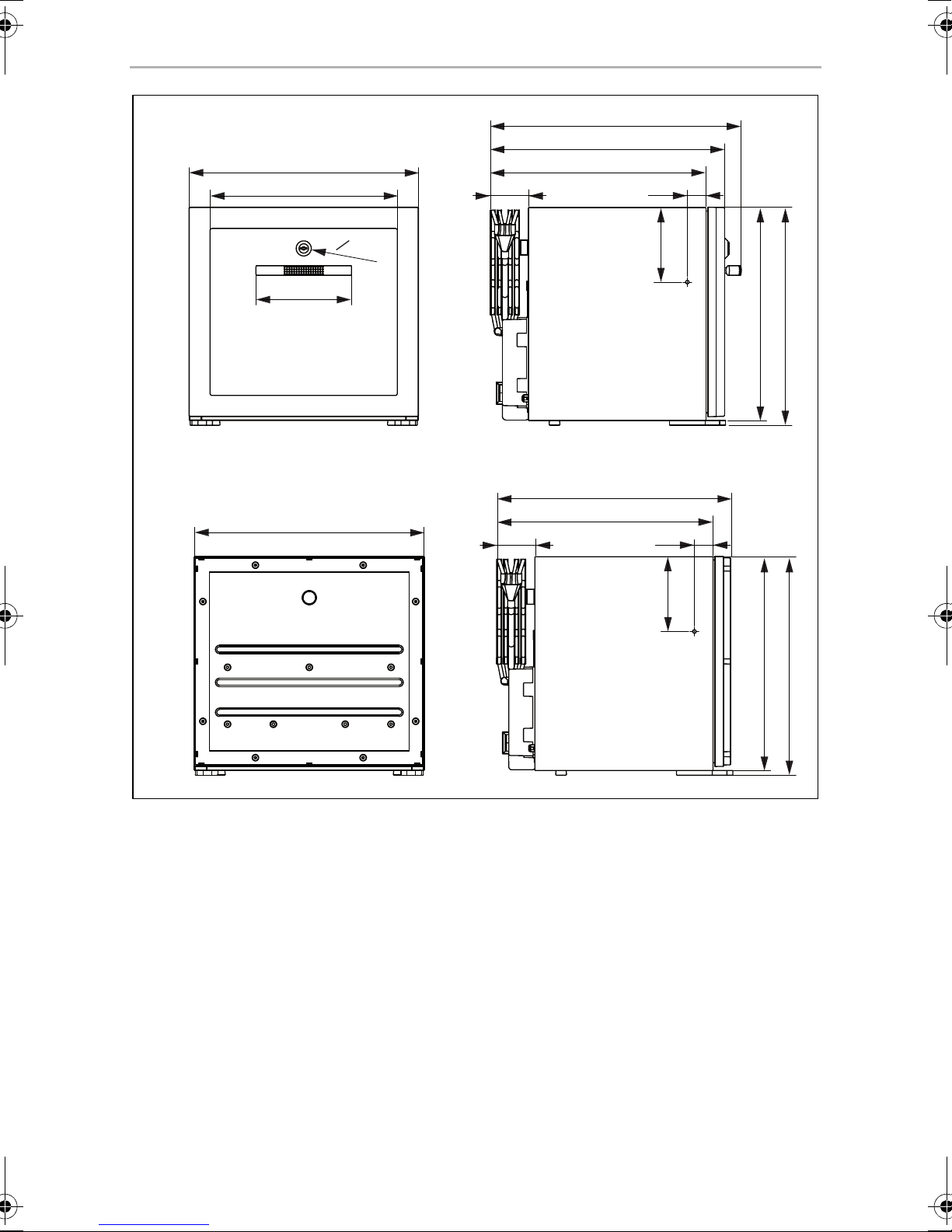

•The cut-out dimensions H x W x D are:
–DM20D: 365 x 404 x 428 mm
–DM20F: 365 x 404 x 426+d mm
d is the thickness of the hotel‘s own decor
•The clearance between the minibar‘s back and the furniture wall should be
approx. 10 mm.
•The ventilation openings for the chosen alternative have to be produced (fig. 5,
page 5).
•Air passing through the inlet air duct must not be heated by any heat sources
(heaters, direct sunlight, gas ovens etc.).
➤Fix the refrigerator in place using suitable screws (fig. 61 and 2, page 6).
6.2 Connecting the minibar electrically
➤Plug the 120 V connection cable into the AC voltage socket and connect it to the
120 V AC mains supply.
✓The status LED lights up.
✓The minibar starts cooling the interior.
6.3 Mounting hotel's own door decor (DM20F only)
The hotel's own door decor has to comply with the following requirements:
•Maximum weight: 2 kg
•Maximum thickness: 14 mm
➤Fasten the decor with four screws.
DM20-IO-US.book Seite 17 Montag, 5. September 2016 9:28 21

EN
Installation DM20
18
6.4 Mounting the lock (lock version only)
➤Drill a hole with a diameter of 35 mm into the decor.
➤Mount the lock together with the lock decor.
6.5 Mounting the lock (no lock version only)

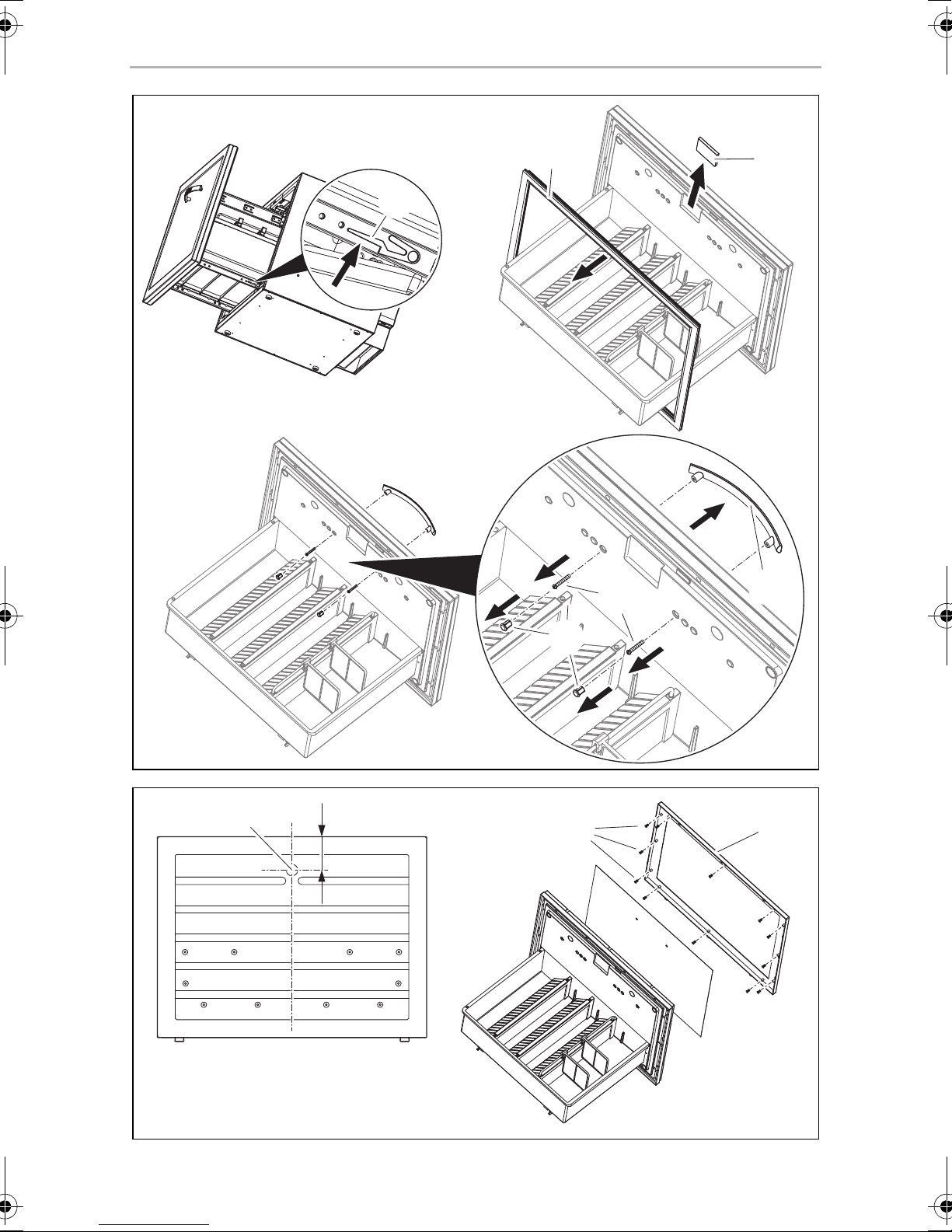

Disassembling the drawer (fig. 7, page 7)
➤Open the drawer completely.
➤Press the rail lock (A 1).
➤Pull the drawer out of the cabinet.
➤Remove the gasket (B 1).
➤Remove the lock cover (B 2).
➤Remove the plugs (C 1) from the screws of the door handle (C 3).
➤Unscrew the screws (C 2) of the door handle (C 3).
➤Remove the door handle (C 3).
Drilling the holes (fig. 8, page 7)
➤Drill a hole with a diameter of 25 mm through the decor and the door (A 1).
➤Unscrew the screws (B 1) of the decor frame (B 2).
➤Remove the decor frame (B 2).

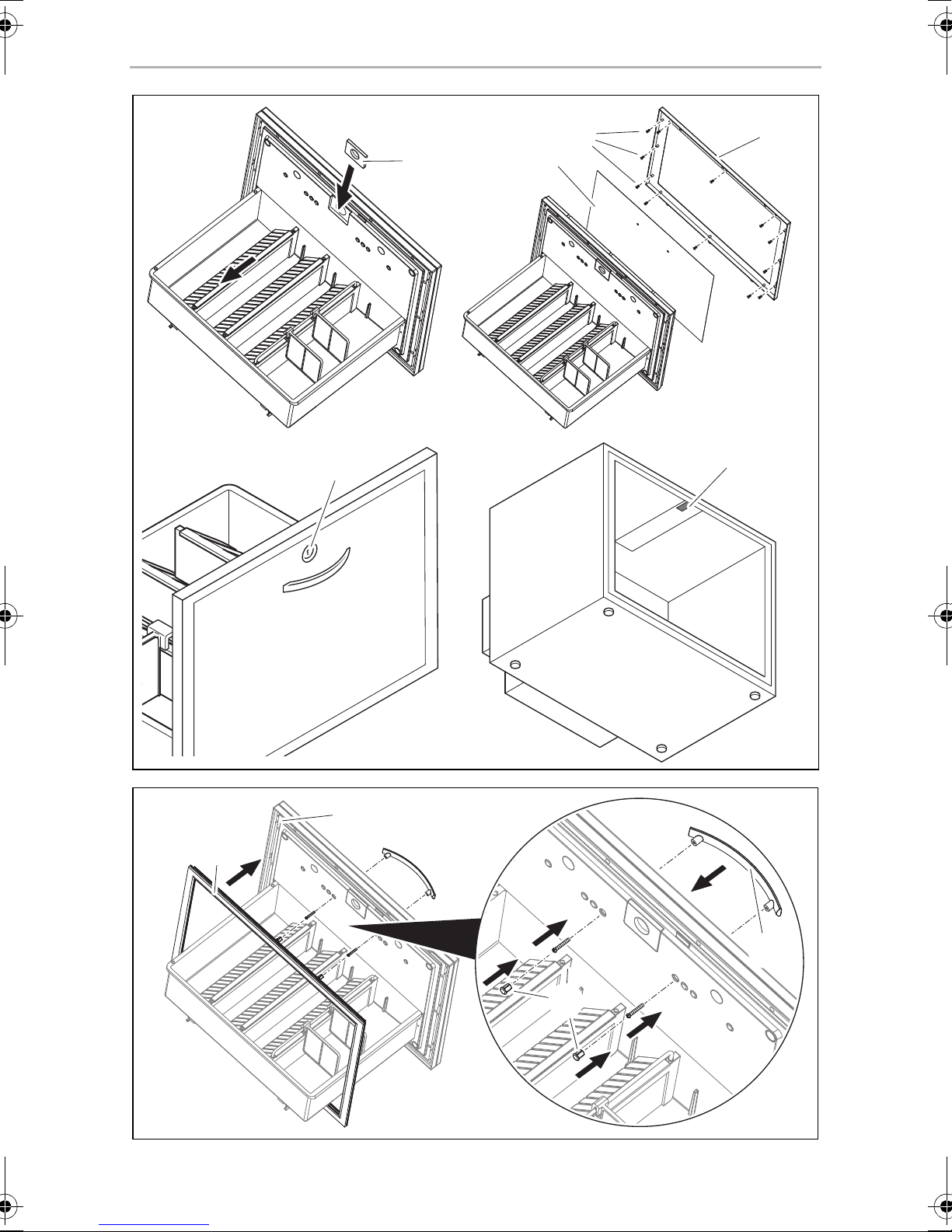

Assembling the lock (fig. 9, page 8)
➤Put the new lock cover (A 1) into place.
➤Put the decor (B 1) into the decor frame (B 3).
➤Screw the decor frame (B 3) onto the door (B 2).
➤Install the door lock (C 1).
➤Install the lock catch in the cabinet (D 1).
DM20-IO-US.book Seite 18 Montag, 5. September 2016 9:28 21

EN
DM20 Operation
19
Assembling the drawer (fig. 0, page 8)
➤Push the gasket (1) on the decor frame (2).
➤Screw the door handle (4) onto the door.
➤Push the plugs (3) on the screws of the door handle (4).
➤Push the drawer into the cabinet.
7Operation
7.1 Energy saving tips
•Do not open the cooling device more often than necessary.
•Do not leave the cooler unit open for longer than necessary.
7.2 Using the minibar
The minibar starts cooling when connected to power. During normal operation the
Status LED is glowing. If an error occurs the Error LED is blinking (see chapter “Trou-
bleshooting” on page 20).
The minibar is set by default to a cooling temperature of 7 °C at an ambient
temperature of 25 °C.
You can use the setting button (fig. 34, page 4) to set the cooling temperature to
one of three values (5 °C, 12 °C and 7 °C).
Thereby the temperature will be changed in the order 5 °C … 12 °C … 7 °C … 5 °C
etc.
➤Press the setting button (fig. 34, page 4) and keep it pressed for 5 s, until the
lamp (fig. 31, page 4) starts to blink.
➤Press immediately the setting button (fig. 34, page 4) again.
✓The lamp (fig. 31, page 4) indicates the setting temperature:
– 5 °C: the lamp flashes five times in three intervals
– 12 °C: the lamp flashes once in three intervals
– 7 °C: the lamp flashes three times in three intervals
INOTE
The minibar sets the cooling temperature automatically to 7 °C, when it
is connected to a power source.
DM20-IO-US.book Seite 19 Montag, 5. September 2016 9:28 21

EN
Troubleshooting DM20
20
8 Troubleshooting
9 Cleaning and maintenance
!
A
➤Occasionally clean the device interior and exterior with a damp cloth.
➤Make sure that the air inlet and outlet vents on the device are free of any dust and
dirt, so that heat can be released and the device is not damaged.
Fault Possible cause Suggested remedy
Device does not
function, Status LED
does not glow.
No voltage present in
the AC voltage socket.
Try using another plug socket.
The mains adapter is
defective.
This can only be repaired by an
authorised repair centre.
The device does not
cool (plug is inserted,
Status LED glows).
The cooling element is
defective.
This can only be repaired by an
authorised repair centre.
The Error LED flashes
once per second.
Temperature sensor is
defective.
This can only be repaired by an
authorised repair centre.
The Error LED flashes
twice per second.
The fan is defective. This can only be repaired by an
authorised repair centre.
Device does not cool
sufficiently, Status LED
glows, Error LED does
not glow.
The cooling element is
defective.
This can only be repaired by an
authorised repair centre.
Poor ventilation Check the ventilation.
Clean the filter underneath the device.
WARNING!
Always disconnect the device from the power supply before you clean
and service it.
NOTICE! Risk of damage
•Never clean the cooler under running water or in dish water.
•Do not use abrasive cleaning agents or hard objects during cleaning
as these can damage the cooler.
DM20-IO-US.book Seite 20 Montag, 5. September 2016 9:28 21
