Dometic DM50D User manual

Drawer Minibar
Installation and Operating Manual . . . 3
EN
DM50

EN
DM50
3
Please read this operating manual carefully before starting the device.
Keep it in a safe place for future reference. If the device is passed on to
another person, this operating manual must be handed over to the user
along with it.
The manufacturer cannot be held liable for damage resulting from
improper usage or incorrect operation.
Contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4 Proper use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
6 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
7 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
9 Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
10 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
11 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

EN
Explanation of symbols DM50
4
1 Explanation of symbols
!
!
A
I
➤Action: This symbol indicates that action is required on your part. The
required action is described step-by-step.
✓This symbol describes the result of an action.
Fig. 15, page 3: This refers to an element in an illustration. In this case,
item 5 in figure 1 on page 3.
2 Safety instructions
2.1 General safety
!WARNING!
Do not operate the device if it is visibly damaged.
This device may only be repaired by qualified personnel.
Improper repairs can lead to considerable hazards.
This device can be used by children aged 8 years and above as
well as persons with reduced physical, sensory or mental capa-
bilities or lack of experience and knowledge, if they are super-
vised or have been instructed to safely use the device and if
they understand the hazards resulting out of it.
WARNING!
Safety instruction: Failure to observe this instruction can cause
fatal or serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to
injury.
NOTICE!
Failure to observe this instruction can cause material damage and
impair the function of the product.
NOTE
Supplementary information for operating the product.

EN
DM50 Safety instructions
5
Cleaning and user maintenance must not be carried out by chil-
dren without supervision.
Always keep and use the device out of the reach of children
under the age of 8 years.
Children must be supervised to ensure that they do not play with
the device.
If this device's power cable is damaged, it must be replaced by
the manufacturer, customer service or a similarly qualified
person in order to prevent safety hazards.
Do not store any explosive substances such as spray cans with
a flammable propellant in the device.
!CAUTION!
Disconnect the device from the mains
– before each cleaning and maintenance
– after every use
Food may only be stored in its original packaging or in suitable
containers.
ANOTICE!
Connect the device with the 230 V connection cable to the
230 V AC mains supply.
Check that the voltage specification on the type plate
corresponds to that of the energy supply.
The cooling device is not suitable for transporting caustic
materials or materials containing solvents.
Never pull the plug out of the socket by the cable.
2.2 Operating the device safely
ANOTICE!
Do not use electrical devices inside the cooler unless they are
recommended by the manufacturer for the purpose.
Do not place the device near naked flames or other heat
sources (heaters, direct sunlight, gas ovens etc.).

EN
Scope of delivery DM50
6
Danger of overheating!
Ensure at all times that there is sufficient ventilation so that the
heat that arises during operation does not build up. Make sure
that the device is sufficiently far away from walls and other
objects so that the air can circulate.
Ensure that the ventilation openings are not covered.
Do not fill the inner container with ice or fluid.
Never immerse the device in water.
Protect the device and the cable against heat and moisture.
3 Scope of delivery
The following main alternatives are obtainable:
Minibar DM50D with door panel, without lock
Minibar DM50D with door panel, with lock
Minibar DM50F without door panel, without lock
Minibar DM50F without door panel, with lock
Quantity Description
1 Minibar
1 Cable for 230 Vwconnection
4 Screw ø4 x 45 mm (Installation)
4 Plug (Installation)
1 Handle DM50D only
2 Plug (Handle installation) DM50D only
1 Inlet filter
6 Screw ø3 x 12 mm(Filter installation)
2 Plug (Wooden panel) DM50F wooden version
only
1 Lock decor (Wooden panel) DM50F wooden version
with lock only
2 Key Lock version only
1 Installation and Operating manual

EN
DM50 Proper use
7
4 Proper use
The Dometic Minibars DM50D and DM50F are designed for use inside a
piece of furniture and are suitable for cooling beverages and food.
The device is designed for use with a 230 V AC mains supply.
The cooling device is intended to be used in household and similar
applications such as
staff kitchen areas in shops, offices and other working environments
farm houses
clients in hotels, motels and other residential type environments
bed and breakfast type environments
catering and similar non-retail applications
!
5 Technical description
The minibar has a main drawer for bottles and cans as well as a mini drawer
for miniatures and snacks. The main drawer has room for 33 bottles with a
maximum height of 30 cm.
The minibar DM50D comes with a anthracite panel and pull handle.
The minibar DM50F is delivered without panel and is prepared for fitting the
hotel's own door decor.
Its cooling system is a non-wearing Peltier cooling system with the heat
discharged by a fan.
A lock is optionally available.
CAUTION! Health hazard!
Please check if the cooling capacity of the device is suitable for
storing the food or medicine you wish to cool.

EN
Technical description DM50
8

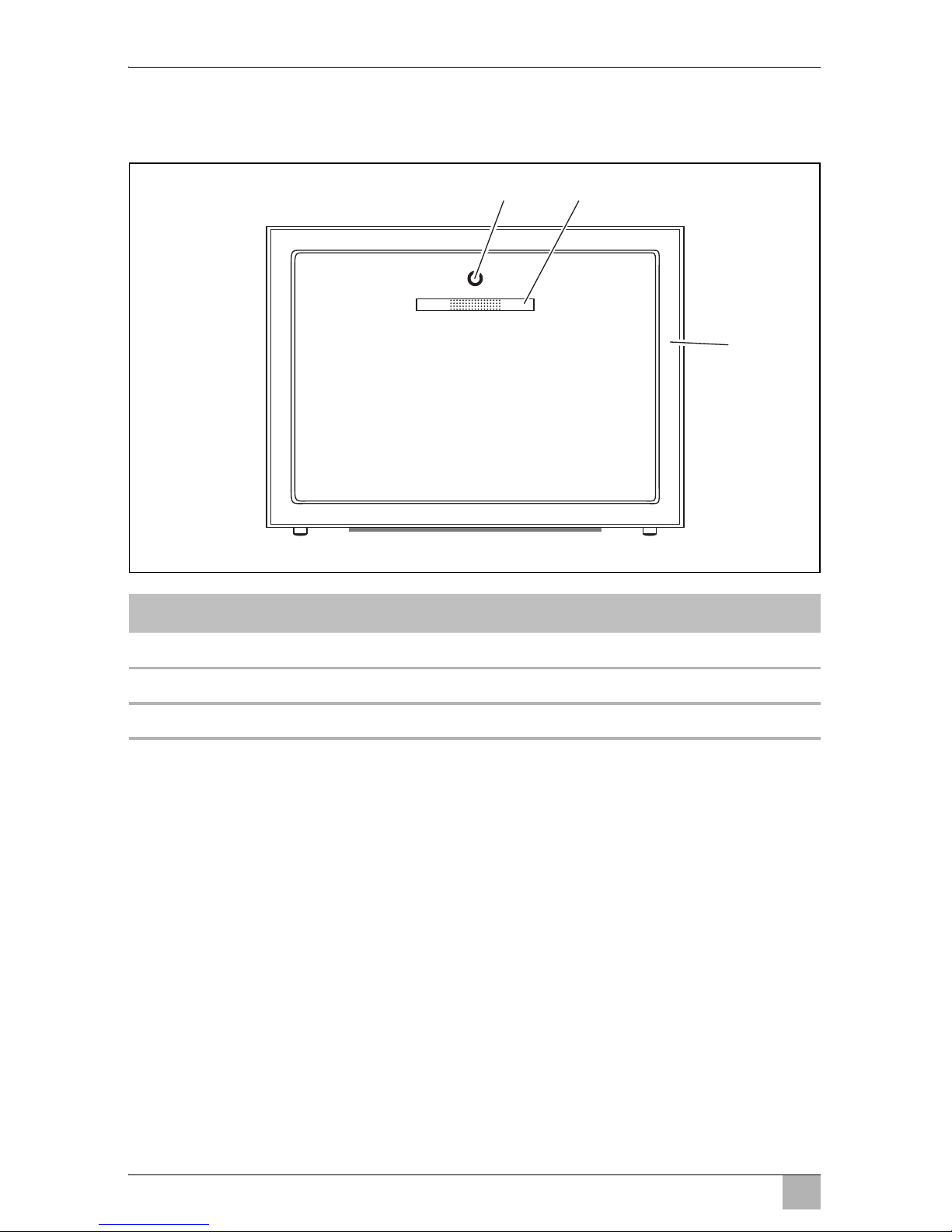

5.1 Description of the device
Front panel
Item Description
1 Lock (optional)
2 Handle (DM50D only)
3 Door panel (DM50D only)
12
3

EN
DM50 Technical description
9
Rear side
Item Description
1 Mains adaptor
2 12 Vgsocket
3 Cooling unit cover
4 Ventillation openings
5 Drip tray
1
2
3
4
5

EN
Technical description DM50
10
Control panel (inside the device)
Item Description
1 Lamp
2 Error LED
3 Status LED
4 Setting button
12 43

EN
DM50 Technical description
11

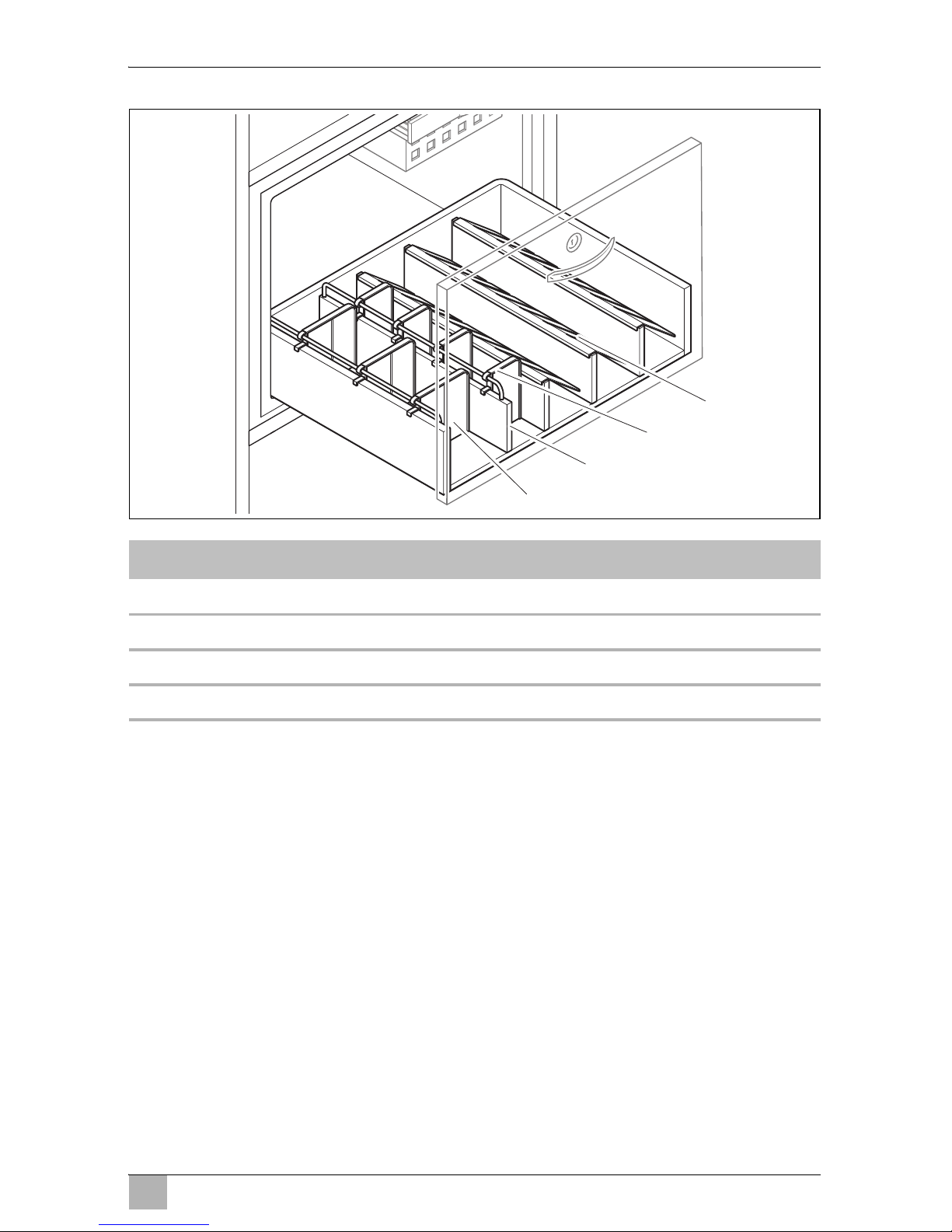

Main drawer
Item Description
1 Wide divider
2 Separator
3 Small divider
4 Bottle finger
4
3
2
1

EN
Technical description DM50
12

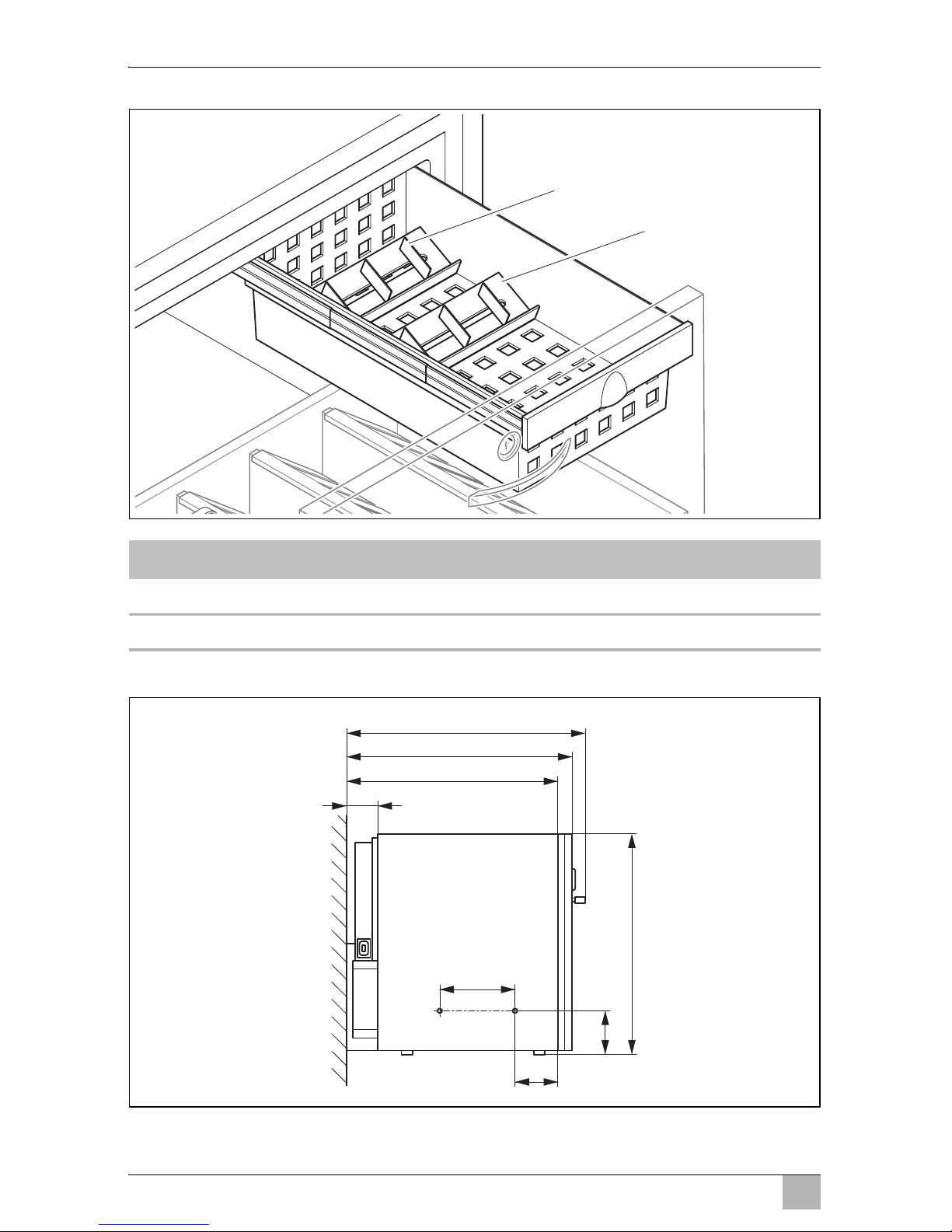

Mini drawer
Dimensions
Item Description
1 Rotatable divider
2 Miniature bottle holder
1
2
160
450
67
480
508
418
91,2
93

EN
DM50 Installation
13
6 Installation
6.1 Notes on mounting into furniture
You can mount the minibar in four ways into furniture. Choose your favoured
alternative according to the following figure (page 14).
Observe the following:
The cut-out dimensions H x W x D are:
– DM50D: 428 x 570 x 485 mm
– DM50F: 428 x 570 x (485 + d) mm
d is the thickness of the hotel‘s own decor
The clearance between the minibar‘s back and the furniture wall should
be approx. 5 mm.
The ventilation openings for the chosen alternative have to be produced
as shown in following figure (page 14).
Air passing through the inlet air duct must not be heated by any heat
sources (heaters, direct sunlight, gas ovens etc.).

EN
Installation DM50
14
1 1
1 1
AB
CD
≥ 15
30
120
≥ 35 cm²
≥ 35 cm²
30
120
260 30 x 300
≥ 150 cm²
≥ 150 cm²
≥ 150 cm²

EN
DM50 Installation
15
6.2 Pressing out the ventilation opening
➤Produce a ventilation opening of 30 x 300 mm in the bottom of the
furniture into which you place the minibar.
Measure the distance of 470 mm from the minibar‘s door front excluding
any own decor.
470
30
300

EN
Installation DM50
16
6.3 Mounting the minibar into a piece of furniture
➤Fasten the minibar with the four screws ø4 x 45 mm (1).
➤Insert the four plugs (2) into the boring.
➤Fasten the inlet filter (5) with the six screws ø3 x 12 mm (6) to ventilation
opening (4) of the furniture (3).
Item Description
1 Screw ø4 x 45 mm
2Plug
3Furniture
4 Ventilation opening
5Filter
6 Screw ø3 x 12 mm
1
3
2
4
5
6
AB

EN
DM50 Operation
17
6.4 Connecting the minibar electrically
➤Plug the 230 V connection cable into the AC voltage socket and connect
it to the 230 V AC mains supply.
✓The status LED lights up.
✓The minibar starts cooling the interior.
6.5 Mounting hotel's own door decor (DM50F only)
The hotel's own door decor has to comply with the following requirements:
Maximum weight: 2 kg
Maximum thickness: 14 mm
➤Fasten the decor with four screws.
Mounting the lock (lock version only)
➤Drill a hole with a diameter of 35 mm into the decor.
➤Mount the lock together with the lock decor.
7 Operation
7.1 Energy saving tips
Do not open the cooling device more often than necessary.
Do not leave the cooler unit open for longer than necessary.

EN
Operation DM50
18
7.2 Using the minibar
The minibar starts cooling when connected to power. During normal
operation the Status LED is glowing. If an error occurs the Error LED is
blinking (see chapter “Troubleshooting” on page 19).
The minibar is set by default to a cooling temperature of 7 °C at an ambient
temperature of 25 °C.
You can use the setting button (1) to set the cooling temperature to one of
three values (5 °C, 12 °C and 7 °C).
Thereby the temperature will be changed in the order 5 °C … 12 °C …
7°C…5°Cetc.
➤Press the setting button (1) and keep it pressed for 3 s, until the lamp (2)
starts to blink.
➤Press immediately the setting button (1) again.
✓The lamp (2) indicates the setting temperature:
– 5 °C: the lamp flashes five times in three intervals
– 12 °C: the lamp flashes once in three intervals
– 7 °C: the lamp flashes three times in three intervals
INOTE
The minibar sets the cooling temperature automatically to 7 °C,
when it is connected to a power source.
2 1

EN
DM50 Troubleshooting
19
8 Troubleshooting
Fault Possible cause Suggested remedy
Device does not
function, Status LED
does not glow.
No voltage present in
the AC voltage socket.
Try using another plug socket.
The mains adapter is
defective.
This can only be repaired by an
authorised repair centre.
The device does not
cool (plug is inserted,
Status LED glows).
The cooling element is
defective.
This can only be repaired by an
authorised repair centre.
The Error LED flashes
once per second.
Temperature sensor is
defective.
This can only be repaired by an
authorised repair centre.
The Error LED flashes
twice per second.
The fan is defective. This can only be repaired by an
authorised repair centre.
Device does not cool
sufficiently, Status LED
glows, Error LED does
not glow.
The cooling element is
defective.
This can only be repaired by an
authorised repair centre.
Poor ventilation Check the ventilation.
Clean the filter underneath the device.

EN
Cleaning and maintenance DM50
20
9 Cleaning and maintenance
!
A
➤Occasionally clean the device interior and exterior with a damp cloth.
➤Make sure that the air inlet and outlet vents on the device are free of any
dust and dirt, so that heat can be released and the device is not damaged.
➤Occasionally clean the inlet filter.
➤If you find water in the drip tray (1) check whether the drainage system is
blocked.
WARNING!
Always disconnect the device from the mains before you clean
and service it.
NOTICE! Risk of damage
Never clean the cooler under running water or in dish water.
Do not use abrasive cleaning agents or hard objects during
cleaning as these can damage the cooler.
P
ES
1
