EN
Explanation of symbols DM50NTE
10
Please read this manual carefully before starting the device. Keep it in a
safe place for future reference. If the device is passed on to another
person, this manual must be handed over to the user along with it.
The manufacturer cannot be held liable for damage resulting from improper usage
or incorrect operation.
Contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
6 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
7 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
9 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
10 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
11 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
1 Explanation of symbols
!
!
WARNING!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
CAUTION!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in minor or moderate injury.
DM50NTE_IOM_EMEA16.book Seite 10 Donnerstag, 8. August 2019 2:05 14

EN
DM50NTE Safety instructions
11
A
I
2 Safety instructions
2.1 General safety
!WARNING! Failure to obey these warnings could result in death
or serious injury.
Electrocution hazard
• Do not operate the cooling device if it is visibly damaged.
• If this cooling device's power cable is damaged, it must be replaced
by the manufacturer, customer service or a similarly qualified person in
order to prevent safety hazards.
• This cooling device may only be repaired by qualified personnel.
Improper repairs can lead to considerable hazards.
Health hazard
• This device can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the device in a safe way and understand
the hazards involved.
• Children shall not play with the device.
• Cleaning and user maintenance shall not be made by children without
supervision.
• Children aged from 3 to 8 years are allowed to load and unload
cooling devices.
Explosion hazard
• Do not store any explosive substances such as spray cans with a
flammable propellant in the cooling device.
NOTICE!
Indicates a situation that, if not avoided, can result in property damage.
NOTE
Supplementary information for operating the product.
DM50NTE_IOM_EMEA16.book Seite 11 Donnerstag, 8. August 2019 2:05 14

EN
Safety instructions DM50NTE
12
!CAUTION! Failure to obey these cautions could result in minor or
moderate injury.
Electrocution hazard
• Disconnect the cooling device from the power supply
– before each cleaning and maintenance
– after every use
Health hazard
• Food may only be stored in its original packaging or in suitable
containers.
ANOTICE! Damage hazard
• Check that the voltage specification on the type plate corresponds to
that of the energy supply.
• Connect the cooling device with an AC connection cable to the
AC power supply.
• Never pull the plug out of the socket by the cable.
• The cooling device is not suitable for transporting caustic materials or
materials containing solvents.
2.2 Operating the cooling device safely
!CAUTION! Failure to obey these cautions could result in minor or
moderate injury.
Health hazard
• Opening the cooling devicefor long periods can cause significant
increase of the temperature in the compartments of the device.
• Clean regularly surfaces that can come in contact with food and
accessible drainage systems.
• Store raw meat and fish in suitable containers in the device, so that it is
not in contact with or drip onto other food.
• If the device is left empty for long periods:
– Switch off the device.
– Defrost the device.
– Clean and dry the device.
– Leave the door open to prevent mould developing within the
device.
DM50NTE_IOM_EMEA16.book Seite 12 Donnerstag, 8. August 2019 2:05 14

EN
DM50NTE Scope of delivery
13
ANOTICE! Damage hazard
• Do not use electrical devices inside the cooling device unless they are
recommended by the manufacturer for the purpose.
• Do not place the cooling device near naked flames or other heat
sources (heaters, direct sunlight, gas ovens etc.).
•Danger of overheating!
Ensure at all times that there is sufficient ventilation so thatthe heat that
arises during operation does not build up. Make sure that the device
is sufficiently far away from walls and other objects so that the air can
circulate.
• Ensure that the ventilation openings are not covered.
• Do not fill the inner container with ice or fluids.
• Never immerse the cooling device in water.
• Protect the cooling device and cables against heat and moisture.
3Scopeofdelivery
The following main alternatives are obtainable:
• Minibar DM50NTE D with door panel, without lock
• Minibar DM50NTE D with door panel, with lock
• Minibar DM50NTE F without door panel, without lock
• Minibar DM50NTE F without door panel, with lock
Quantity Description
1 Minibar
1 Cable for 230 Vwconnection
4 Screw ø4 x 45 mm (Installation)
4 Plug (Installation)
1 Handle DM50NTE D only
2 Plug (Handle installation) DM50NTE D only
1 Inlet filter
6 Screw ø3 x 12 mm(Filter installation)
2 Plug (Wooden panel) DM50NTE F wooden version
only
DM50NTE_IOM_EMEA16.book Seite 13 Donnerstag, 8. August 2019 2:05 14

EN
Intended use DM50NTE
14
4 Intended use
The Minibars DM50NTE D and DM50NTE F are designed for use inside a piece of
furniture and are suitable for cooling beverages and food.
The device is designed for use with a 230 V AC mains supply.
The cooling device is intended to be used in household and similar applications
such as
• staff kitchen areas in shops, offices and other working environments
•farmhouses
• clients in hotels, motels and other residential type environments
• bed and breakfast type environments
• catering and similar non-retail applications
!
5 Technical description
The minibar has a main drawer for bottles and cans as well as a mini drawer for
miniatures and snacks. The main drawer has room for 33 bottles with a maximum
height of 28 cm.
The minibar DM50NTE D comes with a anthracite panel and pull handle.
The minibar DM50NTE F is delivered without panel and is prepared for fitting the
hotel's own door decor.
A lock is optionally available.
1 Lock decor (Wooden panel) DM50NTE F wooden ver-
sion with lock only
2 Key Lock version only
1 Installation and Operating manual
CAUTION! Health hazard!
Please check if the cooling capacity of the device is suitable for storing
the food or medicine you wish to cool.
Quantity Description
DM50NTE_IOM_EMEA16.book Seite 14 Donnerstag, 8. August 2019 2:05 14

EN
DM50NTE Technical description
15

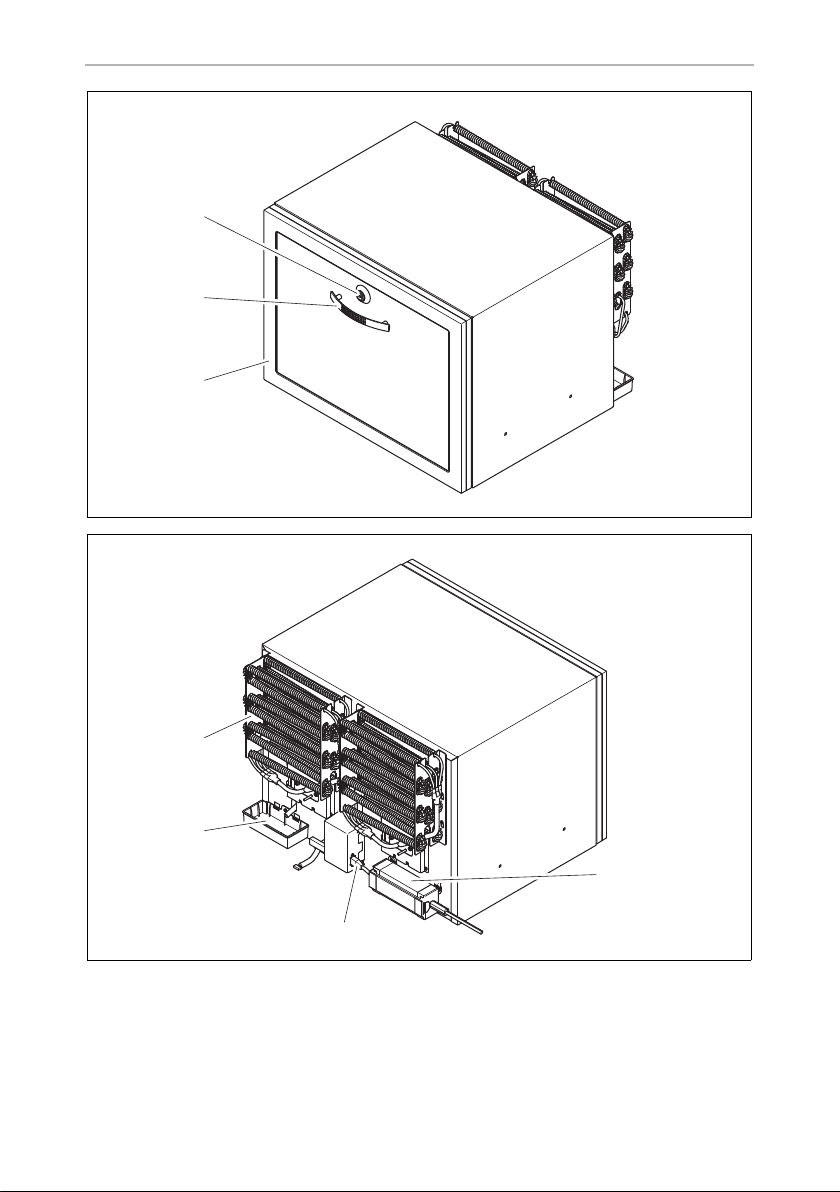

5.1 Description of the device
Front panel
Rear side
Control panel (inside the device)
No in
fig. 1, page 3 Description
1 Lock (optional)
2 Handle (DM50NTE D only)
3 Door panel (DM50NTE D only)
No in
fig. 2, page 3 Description
1 Mains adaptor
2 12 Vgsocket
3 Drip tray
4 Heat pipe
No in
fig. 3, page 4 Description
1 Lamp
2 Error LED
3 Power Status LED
4 Setting button
DM50NTE_IOM_EMEA16.book Seite 15 Donnerstag, 8. August 2019 2:05 14

EN
Installation DM50NTE
16
Main drawer
Mini drawer
6 Installation
!
6.1 Notes on mounting into furniture

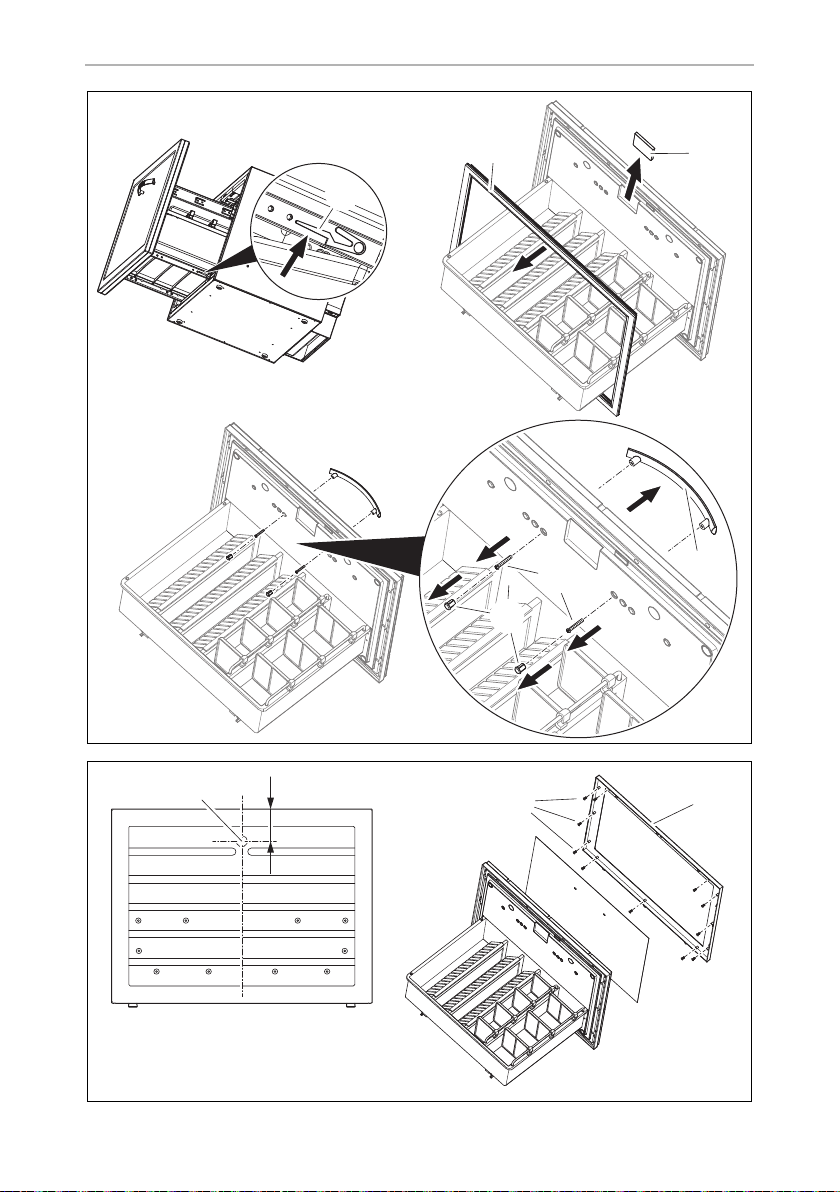

You can mount the minibar in four ways into furniture. Choose your favoured
alternative according to fig. 6, page 6.
Observe the following:
• The cut-out dimensions H x W x D are:
– DM50NTE D: 438 x 570 x 504 mm
– DM50NTE F: 438 x 570 x (502 + d) mm
d is the thickness of the hotel‘s own decor
• The clearance between the minibar‘s back and the furniture wall should be
approx. 15 mm.
• The ventilation openings for the chosen alternative have to be produced as
shown in fig. 6, page 6.
No in
fig. 4, page 4 Description
1 Wide divider
2 Separator
3 Small divider
4 Bottle finger
No in
fig. 5, page 5 Description
1 Rotatable divider
2 Miniature bottle holder
CAUTION! Health hazard
To avoid a hazard due to instability of the device, it must be fixed in
accordance with the instructions.
DM50NTE_IOM_EMEA16.book Seite 16 Donnerstag, 8. August 2019 2:05 14

EN
DM50NTE Installation
17
• Air passing through the inlet air duct must not be heated by any heat sources
(heaters, direct sunlight, gas ovens etc.).
6.2 Pressing out the ventilation opening
fig. 8, page 7
➤Produce a ventilation opening of 75 x 550 mm in the bottom of the furniture into
which you place the minibar.
Measure the distance of 504 mm from the minibar‘s door front excluding any
own decor.
6.3 Mounting the minibar into a piece of furniture
➤Fasten the minibar with the four screws ø4 x 45 mm (fig. 91, page 7).
➤Insert the four plugs (fig. 92, page 7) into the boring.
6.4 Connecting the minibar electrically
➤Plug the 230 V connection cable into the ACvoltage socket and connect it to the
230 V AC mains supply.
✓The Power Status LED lights up.
✓The lamp lights up and the minibar starts cooling the interior.
6.5 Mounting hotel's own door decor (DM50NTE F only)
The hotel's own door decor has to comply with the following requirements:
• Maximum weight: 2 kg
• Maximum thickness: 14 mm
➤Fasten the decor with four screws.
No in
fig. 9, page 7 Description
1Screwø4x45mm
2Plug
DM50NTE_IOM_EMEA16.book Seite 17 Donnerstag, 8. August 2019 2:05 14

EN
Installation DM50NTE
18
6.6 Mounting the lock (lock version only)
➤Drill a hole with a diameter of 35 mm into the decor.
➤Mount the lock together with the lock decor.
6.7 Mounting the lock (no lock version only)
Disassembling the drawer (fig. 0, page 8)
➤Open the drawer completely (A).
➤Press the rail lock (A1).
➤Pull the drawer out of the cabinet (B).
Only for DM50NTE D:
➤Remove the two plugs (C1) from the screws (C2) of the door handle (C3).
➤Unscrew the two screws (C2) of the door handle.
➤Remove the door handle (C3).
➤Remove the gasket.
➤Remove the lock cover.
Drilling the holes (fig. a, page 8)
➤Drill a hole (A1) with a diameter of 23.6 mm through the decor (only
DM50NTE D) and the door.
➤Unscrew the twelve screws (B1) of the decor frame (B2) (only DM50NTE D).
➤Remove the decor frame (only DM50NTE D).
Assembling the lock (fig. b, page 9)
➤Put the new lock cover (A1) into place.
➤Put the decor (B1) into the decor frame.
➤Screw (B2) the decor frame (B3) onto the door.
➤Install the door lock (C1).
➤Install the lock catch (D1) in the cabinet.
DM50NTE_IOM_EMEA16.book Seite 18 Donnerstag, 8. August 2019 2:05 14

EN
DM50NTE Operation
19
Assembling the drawer (fig. c, page 9)
➤Push the gasket (1) on the decor frame (2).
➤Screw the door handle (4) onto the door.
➤Push the plugs (3) on the screws of the door handle (4).
➤Push the drawer into the cabinet.
7Operation
!
A
7.1 Energy saving tips
• Do not open the cooling device more often than necessary.
• Do not leave the cooler unit open for longer than necessary.
7.2 Using the minibar
The minibar starts cooling when connected to power. During normal operation the
Power Status LED is glowing. If an error occurs the Error LED is blinking (see chapter
“Troubleshooting” on page 20).
7.3 Using the temperature setting function
The minibar is set by default to a cooling temperature of 7 °C at an ambient
temperature of 25 °C.
WARNING! Fire hazard!
• When positioning the device, ensure the supply cord is not trapped
or damaged.
• Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the device.
NOTICE! Damage hazard
The lamp can only be replaced by the manufacturer, service agent or
similarly qualified person to avoid hazard.
DM50NTE_IOM_EMEA16.book Seite 19 Donnerstag, 8. August 2019 2:05 14

EN
Troubleshooting DM50NTE
20
You can use the setting button (fig. 34, page 4) to set the cooling temperature to
one of three values (5 °C, 12 °C and 7 °C).
Thereby the temperature will be changed in the order 5 °C … 12 °C … 7 °C … 5 °C
etc.
➤Press the setting button (fig. 34, page 4) and keep it pressed for 5 s, until the
internal lamp (fig. 31, page 4) starts to blink.
➤Press immediately the setting button (fig. 34, page 4) again.
✓The internal lamp (fig. 31, page 4) indicates the setting temperature:
– 5 °C: the lamp flashes five times in three intervals
– 12 °C: the lamp flashes once in three intervals
– 7 °C: the lamp flashes three times in three intervals
I
8 Troubleshooting
NOTE
The minibar sets the cooling temperature automatically to 7 °C, when it
is connected to a power source.
Fault Possible cause Suggested remedy
Device does not
function, Power Status
LED does not glow.
No voltage present in
the AC voltage socket.
Try using another plug socket.
The mains adapter is
defective.
This can only be repaired by an
authorised repair centre.
The device does not
cool (plug is inserted,
Power Status LED
glows).
The cooling element is
defective.
This can only be repaired by an
authorised repair centre.
The Error LED flashes
once per second.
Temperature sensor is
defective.
This can only be repaired by an
authorised repair centre.
The Error LED flashes
twice per second.
The fan is defective. This can only be repaired by an
authorised repair centre.
Device does not cool
sufficiently, Power
Status LED glows, Error
LED does not glow.
The cooling element is
defective.
This can only be repaired by an
authorised repair centre.
Poor ventilation Check the ventilation.
Clean the filter underneath the device.
DM50NTE_IOM_EMEA16.book Seite 20 Donnerstag, 8. August 2019 2:05 14
