Dometic EA3100 User manual

207.5166.20
EA 3100 EA 3080 EA 3140
RA 80 RA 140
RH 200
miniCool
J
Operating Instructions

2
Thank you for choosing our appliance. We are sure it will provide you with trouble free use.
In the following, we would like to familiarise you with some symbols, which we bring to your attention to ensure
the safe and efficient operation of the appliance:
source of danger, in event of improper operation
suggested useful tips to read
information concerning environmental protection
This refrigerator is intended for the storage of food and drinks.
Attention!
This product is designed to be operated by adults. Children should not be
allowed to tamper with the controls or play with the product.
Any electrical work required to install this appliance should be carried out by a
qualified electrician.
This product should be serviced by an authorised Service ngineer, and only
genuine spare parts should be used.
It is dangerous to alter the specifications or modify this product in any way.
Care must be taken to ensure that the appliance does not stand on the
electrical supply cable.
There are working parts in this product which heat up. Always ensure that there
is adequate ventilation as a failure to do this will result in component failure
and possible content loss. See installation instructions.
Parts which heat up should not be exposed. Wherever possible the back of the
product should be close to a wall but leaving the required distance for
ventilation as stated in the installation instructions.
Before defrosting, cleaning or maintenance work is carried out, be sure to
switch off the appliance and unplug it.
DO NOT US SHARP INSTRUM NTS to scrape off frost or ice. Under no
circumstances should solid ice be forced off the cooling fins. Solid ice should
be allowed to thaw when defrosting the appliance. See defrost instructions.
This appliance is heavy. Care should be taken when moving it.
Under no circumstances should you attempt to repair the appliance yourself.
Repairs carried out by inexperienced persons may cause injury or more serious
malfunctioning. Refer to your local Service Centre and always insist on
genuine spare parts.
In this appliance the storage of any toxic or explosive substance is forbidden!
Please read these operating instructions carefully before putting the
refrigeration unit into operation. If you later sell or dispose of it, please ensure
that the new owner receives these operating instructions.
Please follow the installation details below carefully Guarantee is valid for
products installed as described only. (See chapter 4.1)

3
CONT NT
CONT NTS S
1. Unpacking
2. View of the appliance
3. Cleaning
4. Positioning the appliance
4.1. Installation instruction
5. Using the appliance
5.1. Temperature regulation
6. Ice cubes
7. Useful suggestions
8. Defrosting, cleaning and maintenance
9. Changing the lightbulb
10. Reversing the door hang
11. Replacing the decorative door panel
12. Assembly of door handle
13. Changing the feet
14. Customer service
15. Putting into operation, technical data
15.1. Connecting to electrical mains
16. Environmental protection information
17. Recycling

4
1. Unpacking
After removal from the cardboard packaging, make
sure the appliance is not damaged. If you find damage
to the appliance resulting from transport, report it
immediately to the transportation firm.
2. View of the appliance
1. Door lock
2. Sensor
3. Thermostat knob
4. Evaporator
5. Lamp (if available)
Figure 1.
IN CAS IF YOUR R FRIG RATOR IS QUIPP D WITH LOCK, DOM TIC RT DO NOT ACC PT
LIABILITY FOR LOSS OR DAMAG OF K YS. HOW V R W WOULD B HAPPY TO SUPPLY A
COMPL T LOCK AND K Y R PLAC M NT.
EA 3100 EA 3080
EA 3140

5
3. Cleaning
Clean the refrigerator thoroughly at intervals, as
necessary. Remove the shelves; these, the
cabinet interior and the door should be washed with a
warm solution of sodium bi carbonate. Finally wipe
over with a cloth rinsed in warm water only, and dry
with a clean cloth. Do not wash any plastic parts in
water that is more than hand warm, and do not expose
them to dry heat. The outside of the cabinet should be
wiped down regularly with a clean, damp cloth.
NEVER USE STRONG CHEMICALS OR ABRASIVE
CLEANING MATERIALS ON ANY PART OF THE
CABINET.
4. Positioning the appliance
When first using this refrigerator please consider the
following points:
ENSURE REFRIGERATOR IS LEVEL
THE PIPEWORK AT THE BACK GETS HOT IN USE
THE REFRIGERATOR HAS NO 'MOTOR' AND IS
THEREFORE VIRTUALLY SILENT
ALLOW AT LEAST 3 HRS. FOR SIGNS OF
COOLING
During the refrigeration process, the appliance
gives off heat from the condenser (under the
upper part of the rear cover) into the surrounding air.
The more ventilated the condenser is, the more
effective the refrigeration will be.
The other condition for satisfactory operation is that
the appliance stands on a flat surface. This is best
seen by placing a glass of water on top of the
appliance.
It is important that the appliance is not directly
exposed to radiated heat (sunlight, radiator, near an
oven, etc.).
4.1. Installation instructions
The refrigerator is equipped with an electrically heated
absorption cooling unit which is virtually silent in
operation. The fridge is designed for free standing
installation, but can be built in if the following
conditions are complied with to ensure satisfactory
operation and maximum cooling efficiency.
IMPORTANT
Please follow the installation details below
carefully Guarantee is valid for products installed
as described only.
1. The refrigerator must be level both directions
2. There should be 20mm clearance to the wall
Figure 2.

6
3. Ventilation must be provided as shown in
alternatives A, B, C or D (fig 2-3)
4. The ventilation duct must at least measure
105mm x the width of the refrigerator
5. Only the entire cooling unit must project into
the duct as shown
6. Air passing through the duct must not be
preheated by any source of heat
7. Ventilation grills, if used, must have openings
of at least 200cm2 each
During installation, please ensure the mains plug
is accessible at all times.
5. Using the appliance
To start the refrigerator connect the plug to the socket
outlet and switch on the socket. The cooling fins
should show signs of cooling after about 3 hours.
The refrigerator needs about 6 hours at normal
ambient temperature to reach 6 °C in the storage
compartment.
5.1. Temperature regulation
The usual setting required is in the region of 2 to 3 on
the thermostat knob (Fig. 4), but this can vary with
conditions of load and installation. If it is found
necessary to alter the setting,the knob can be turned
to a higher number to produce a colder temperature,
or a lower number to produce a warmer temperature.
The effect of any adjustment can be checked by
means of the thermometer after leaving the
refrigerator operating for a further period to settle
down again.
Figure 4.
Figure 3.

7
6. IC CUB S
Fill the ice tray to 4/5 with drinking water, cover with
the lid and place the closed ice tray on the ice tray
shelf. Wipe off any excess water to prevent the ice tray
from freezing to the surface.
To speed up the making of ice cubes, turn the
thermostat to position 5 for a short while. Remember
to turn the dial to its normal setting when the ice cubes
are frozen.
To remove the cubes from the ice tray, hold it under
running water. Remove the lid with the ice cubes from
the ice tray and the ice cubes can now be taken out
easily.
7. Useful suggestion
Do not overfill the appliance. It is advisable to leave
some space between the products in the cabinet to
ensure efficient and even cooling. If the shelves are
packed too tightly there may be unacceptable
temperature variations.
8. Defrosting, cleaning and
maintenance

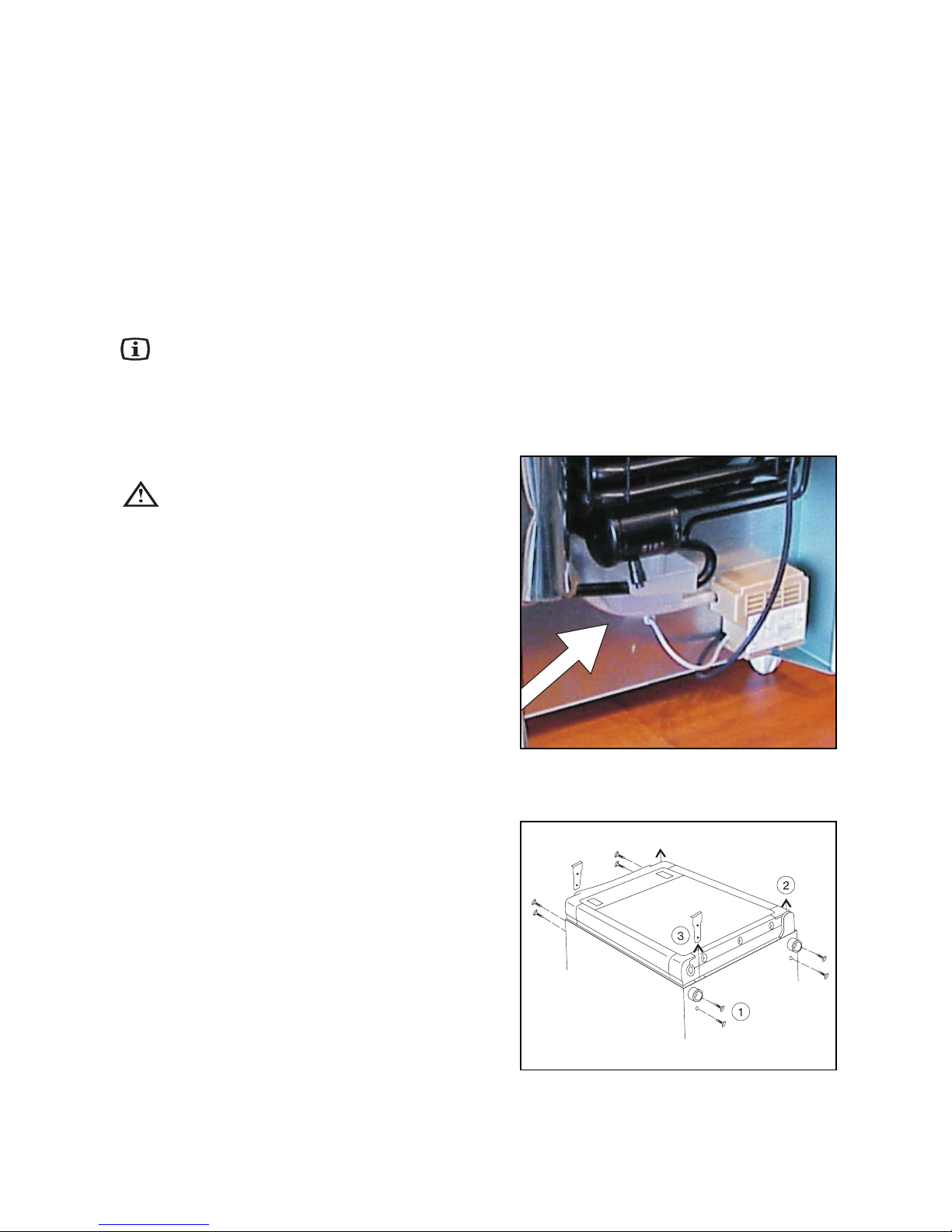

Frost will gradually form on the cooling surfaces and it
must not be allowed to become too thick since it acts
as an insulator and interferes with the cooling.
This frost formation is kept back by the FUZZY LOGIC
system built into the appliance by switching off the unit
for two hours in every 24 hours. The frost will melt and
the defrost water will run through the drain tube from
the drip channel into an evaporating vessel located at
the bottom rear of the refrigerator. (Fig 5) The defrost
water will evaporate automatically into the circulating
air and the vessel will not need emptying manually.
If we want to switch off the unit, turn the thermostat
knob to "0", disconnect the refrigerator from the
electricity supply and leave the cabinet door open.
After defrosting the cabinet interior should be wiped
out with a clean, damp cloth.
9. Changing the lightbulb (If available)
If the lightbulb needs changing, pull out the plug and
proceed as follows:
Press the metal reflector to one side and draw the
lamp covering backwards. Replace the bulb and push
the covering back into place.
A new 10 watt bulb can be obtained at any service
shop.
10. Reversing the door hang, Fig. 6
Lay the appliance on its back. Remove the 8 screws
(1). Remove the door, together with the two hinges
(2), from the housing.
Remove the two cover caps (3) from the housing and
place them in the open hinge holes in the housing.
Place the bottom righthand hinge in the top left of the
door and the top righthand hinge in the bottom left of
the door and hang the door on its hinges in the open
Figure 5.
Figure 6.

8
cover cap holes in the housing. Secure the hinges
and cover caps with the 8 screws.
Check that the door closes easily and is sealed
properly.

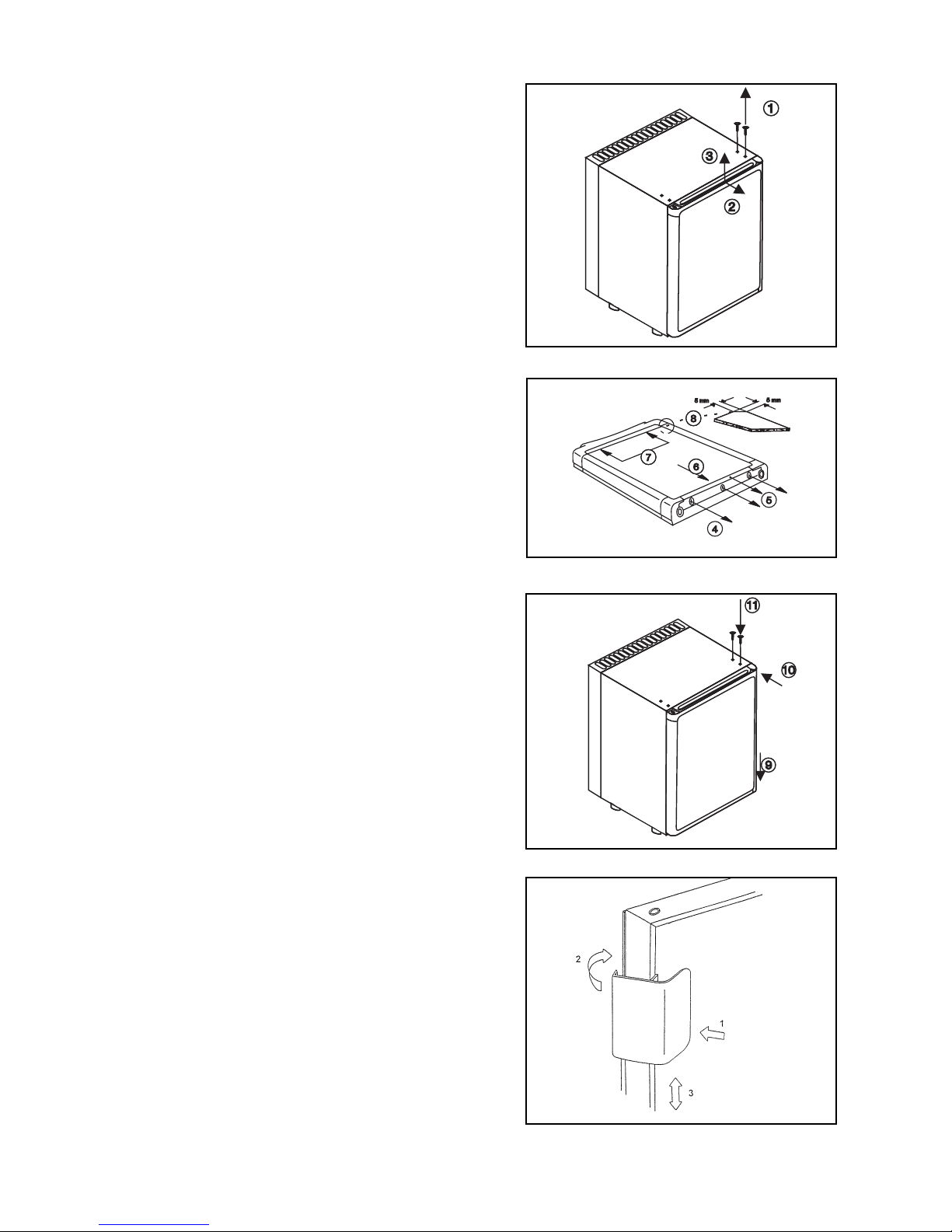

11. Replacing the decorative
door panel, Fig. 7-9
Remove the two screws (1) from the upper hinge of
the door.
Pull the door together with the hinge away from the
housing and up off the lower hinge bolt (2 3).
Remove screws (4) and pull off the frame edge (5).
Slide the decorative panel (6) out of the door frame
and insert the new panel (7), so that the upper edge
of the panel runs exactly parallel to the upper edge of
the frame. A new panel can be inserted more easily
into the upper edge of the frame when the two corners
are cut off by approx. 5 x 5mm (8). Put the frame edge
(5) back in place and secure with screws.
Place the door on the lower hinge (9), slot the upper
hinge into the opening, press together with the door
against the housing and secure with the two screws
(11).
12. Assembly of door handle
(Fig. 10)
Figure 7.
Figure 8.
Figure 9
Figure 10

9

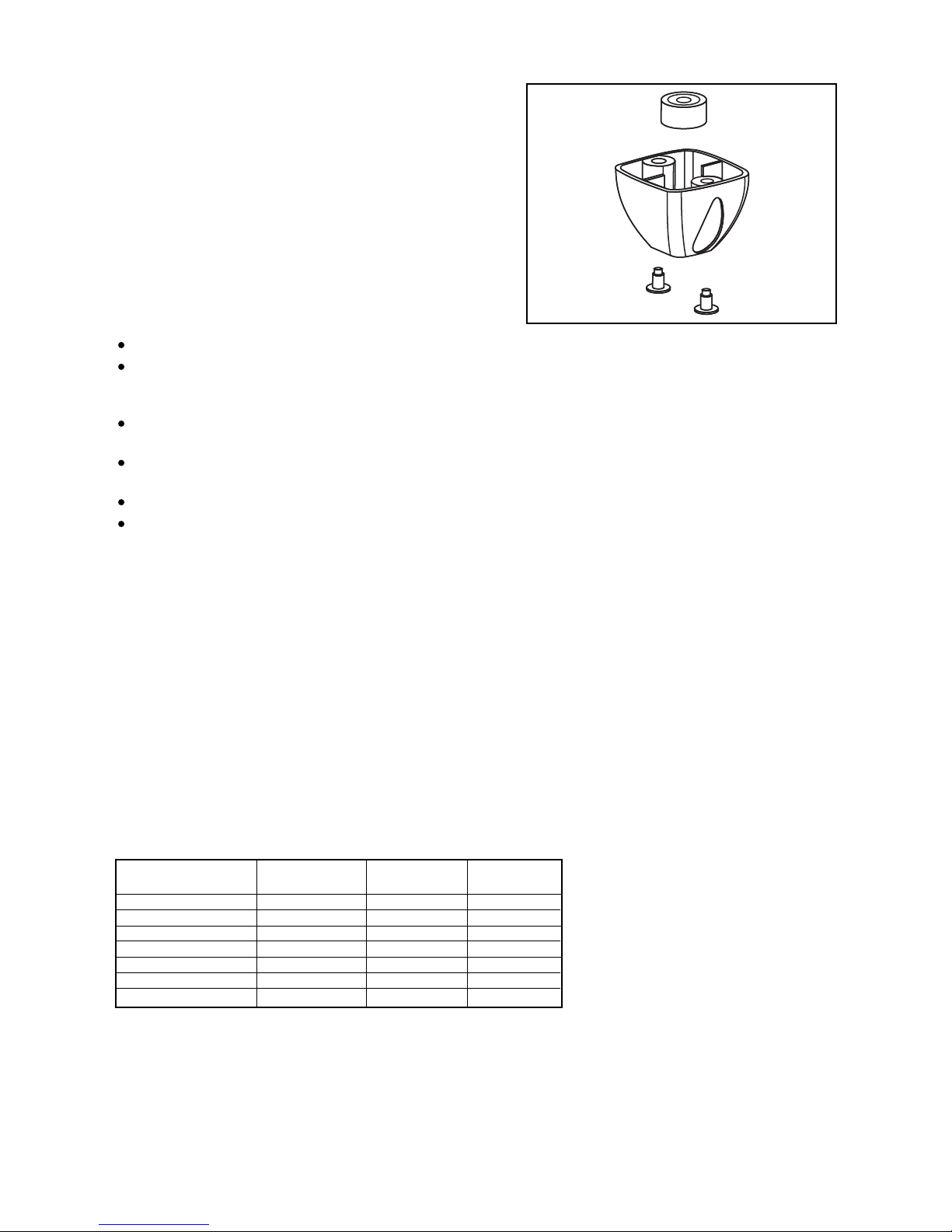

13. Changing the feet
Should you wish to install your miniCool, you will not
need the 40 mm feet. After having removed the 40
mm feet, you can then re attach the 12 mm feet,
located inside the 40 mm feet, to the front and rear
fixing points. The 40 mm feet and the 4 remaining
screws should be retained for future use.
14. Customer service
Before you call a service engineer, carry out the
following simple tests:
Is there a power failure? Check the fuses.
Is the plug firmly connected to the socket and is the
socket switched on? Check the socket by plugging
in another appliance, e.g. a table lamp.
Is the thermostat at the correct setting? (normally 3
or 4).
Has the door not been closed properly causing the
inside temperature to rise too quickly?
Is the refrigerator level?
Has the ventilation become obstructed?
If after checking all the above points, the refrigerator
is still not working satisfactorily, contact your nearest
service engineer. State the problem, model, product
and serial number.
(Details of the model, product and serialnumber are
to be found on the data label in the top left of the
inside compartment.)
This refrigerator is equipped with overheating
protection. An authorised service technician can
check whether this has been triggered or not.
In the event of a fault developing, contact your
nearest Service Centre see local telephone directory.
15. Putting into operation
Technical data:
Model EA 3100 EA 3080 EA 3140
RA 80; RH 200 RA 140
Type MF20-60 MF20-60 MF20-60
Gross volume 31 litre 23 litre 41 litre
M ins oper tion 100V (AC) 100V (AC) 100V (AC)
Input 90W 90W 90W
Energy consumption 0.97 kWh/24h 0,92 kWh/24h 1.07 kWh/24h
Clim te cl ss N N N
Refriger nt 245g NH3+ H2O 245g NH3+ H2O 245g NH3+ H2O
Figure 11

10
15.1 Connecting to electrical mains
The appliance may only be operated from
nominal voltage mains as shown on the data
plate. The appliance mains plug may be connected to
a mains socket earthed in accordance with
regulations.
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
The manufacturer declines any liability should
these safety measures not be observed.
lectrical Requirements
Before switching on, make sure the electricity supply
voltage is the same as that indicated on the appliance
rating plate.
16. nvironmental protection
information
The appliance does not contain any CFCs/HCFCs.
Ammonia (natural hydrogen and nitrogen compound)
is used as a refrigerating agent in the refrigeration unit.
The ozone friendly cyclopentane is activated as a
motive agent for the PU foam insulation.
Sodium chromate is used for corrosion protection
(less than 2 weight % of the coolant).
17. Recycling
After unpacking the appliance, the packing materials
should be delivered to a local collection site. At the
end of its useful lifetime, the appliance should be
delivered to a specialized collection and reprocessing
firm, which reclaims the usable materials. The rest is
properly destroyed.
This appliance complies with the following C
directives:
LVD Directive 73/23/EEC with amendment
90/683/EEC
EMC Directive 89/336/EEC

11

Printed by Xerox Hungary Ltd. Rev.: 2003. 08. 07.
