Dometic ECOLINE CL440LDC User manual

CL440LDC, CL440LGC, CL460LDC,
CL460LGC
Minibar
Installation and Operating Manual. . . . . . . 12
Minibar
Montage- und Bedienungsanleitung . . . . .24
Minibar
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . .37
Minibar
Instrucciones de montaje y de uso . . . . . . .50
Minibar
Instruções de montagem e manual de
instruções . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Minibar
Istruzioni di montaggio e d’uso . . . . . . . . .76
Minibar
Montagehandleiding en
gebruiksaanwijzing . . . . . . . . . . . . . . . . . . .89
Minibar
Monterings- og betjeningsvejledning. . . 101
Minibar
Monterings- och bruksanvisning . . . . . . . 113
Minibar
Monterings- og bruksanvisning . . . . . . . . 126
Minibaari
Asennus- ja käyttöohje . . . . . . . . . . . . . . . 138
Мини-бар
Инструкция по монтажу и эксплуатации 150
Minibar
Instrukcja montażu i obsługi. . . . . . . . . . . 163
Minibar
Návod na montáž a uvedenie
do prevádzky. . . . . . . . . . . . . . . . . . . . . . . 177
Minibar
Návod k montáži a obsluze . . . . . . . . . . . 190
Minibár
Szerelési és használati útmutató . . . . . . . 203
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
REFRIGERATION
ECOLINE
CL440-460-LDC-LGC-R600a-IO-EMEA16.book Seite 1 Freitag, 10. Mai 2019 8:18 20

CL440-460-LDC-LGC-R600a-IO-EMEA16.book Seite 2 Freitag, 10. Mai 2019 8:18 20

CL440, CL460
3
1
1
2
CL440-460-LDC-LGC-R600a-IO-EMEA16.book Seite 3 Freitag, 10. Mai 2019 8:18 20

CL440, CL460
4
A
D
C
B
2
2
3
2
2
3
3
3
1
1
1
1
1
1
11
3
CL440-460-LDC-LGC-R600a-IO-EMEA16.book Seite 4 Freitag, 10. Mai 2019 8:18 20

CL440, CL460
5
1.
2.
3.
4
1.
2.
3.
5
3.
2.
1.
5 mm
5 mm
6
7
3.
2.
1.
CL440-460-LDC-LGC-R600a-IO-EMEA16.book Seite 5 Freitag, 10. Mai 2019 8:18 20

CL440, CL460
6
1.
2.
3.
8
1.
2.
3.

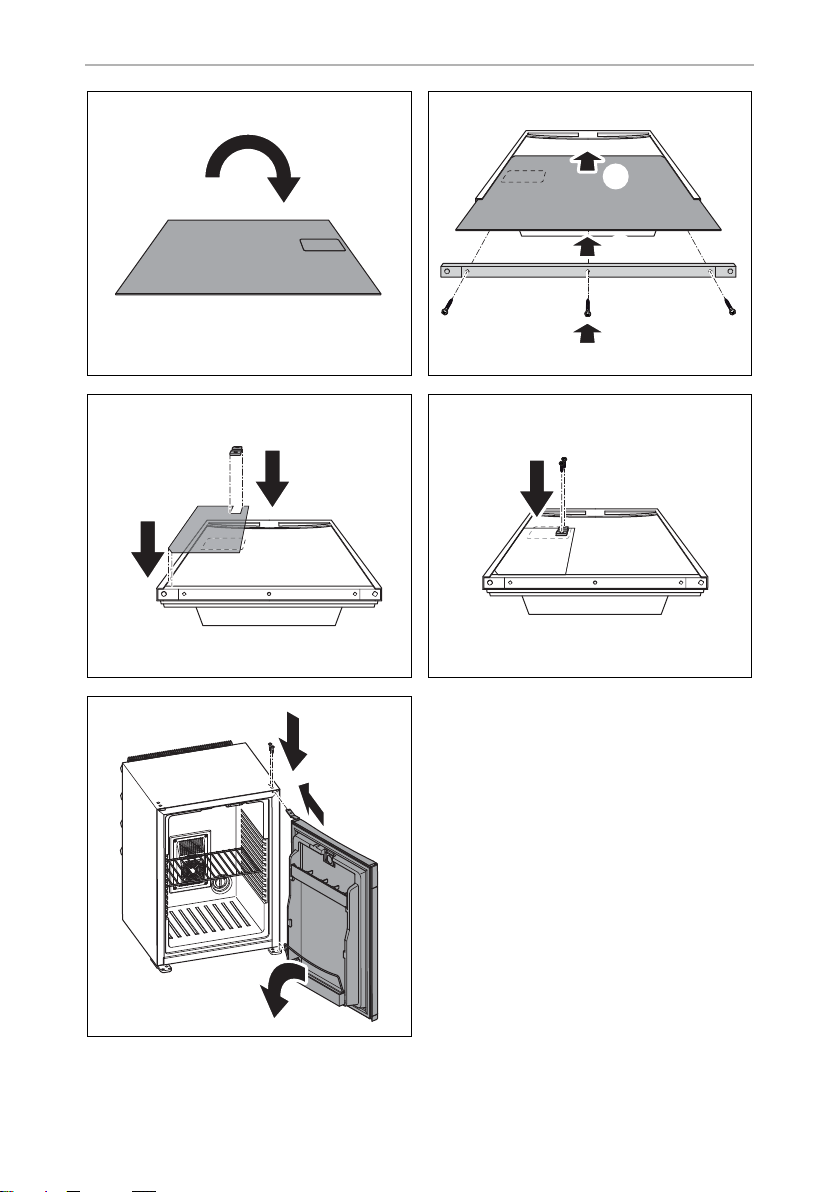

9
180°
0
a
1. 2.
b
c

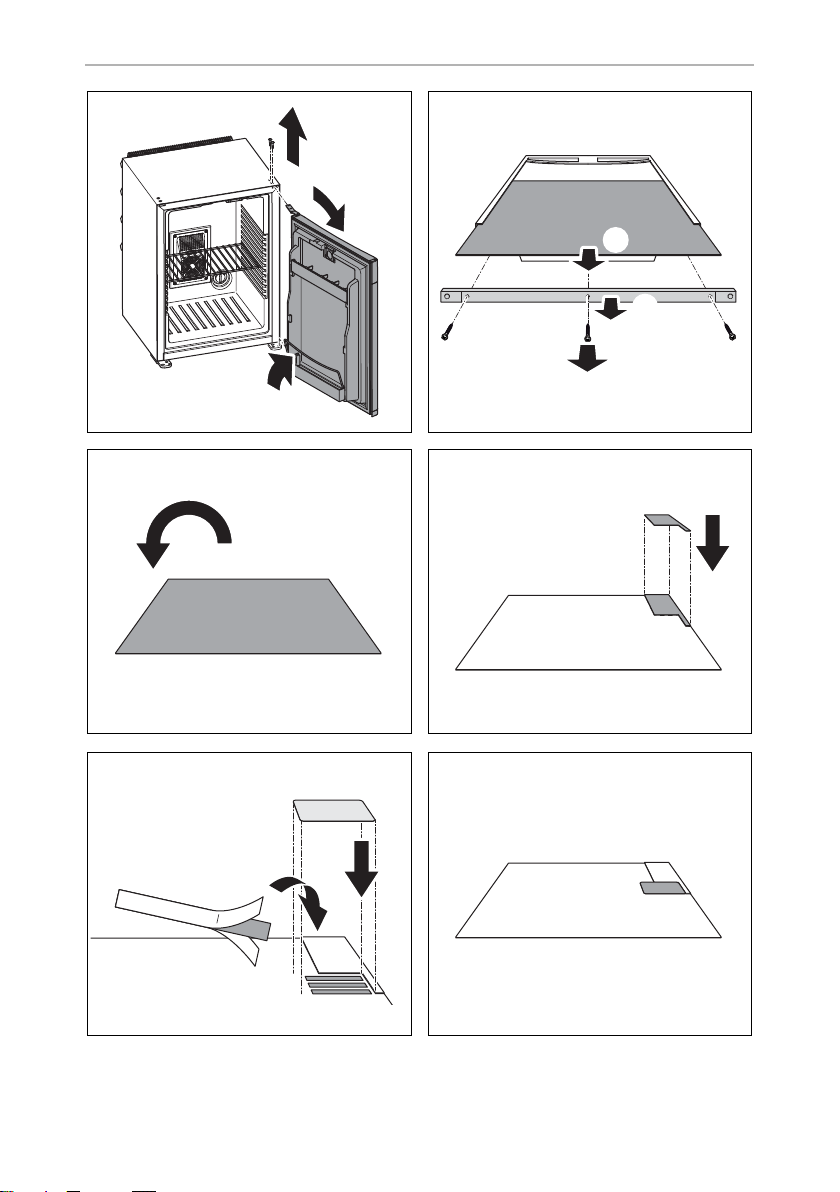

CL440-460-LDC-LGC-R600a-IO-EMEA16.book Seite 6 Freitag, 10. Mai 2019 8:18 20

CL440, CL460
7
180°
d
3.
2.
1.
e
2.
1.
f
g
3.
2.
1.
h
CL440-460-LDC-LGC-R600a-IO-EMEA16.book Seite 7 Freitag, 10. Mai 2019 8:18 20

CL440, CL460
8
1.
2.
40 mm
10 mm
i
1 – 2 mm
6 – 8 mm
j

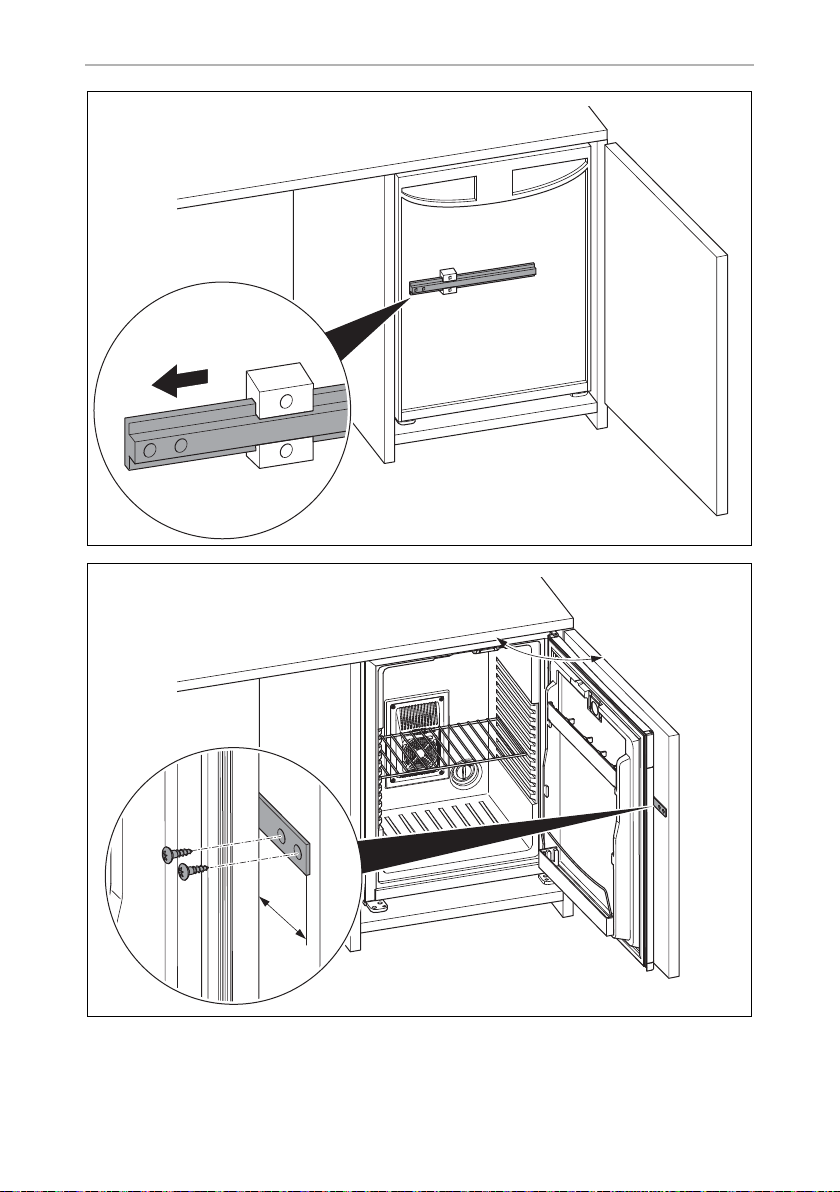

CL440-460-LDC-LGC-R600a-IO-EMEA16.book Seite 8 Freitag, 10. Mai 2019 8:18 20

CL440, CL460
9
k
80 mm
90°
l

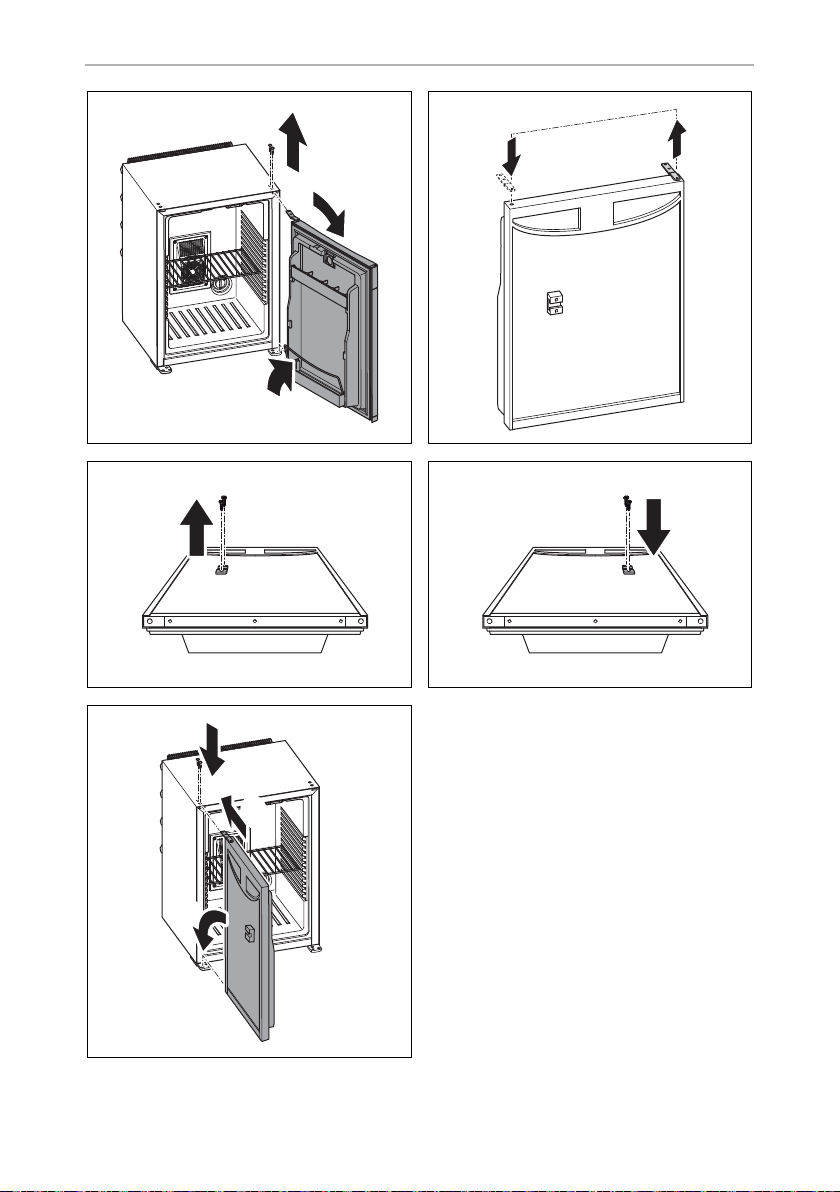

CL440-460-LDC-LGC-R600a-IO-EMEA16.book Seite 9 Freitag, 10. Mai 2019 8:18 20

CL440, CL460
10
1.
2.
3.
m
n
o
p
3.
2.
1.
q
CL440-460-LDC-LGC-R600a-IO-EMEA16.book Seite 10 Freitag, 10. Mai 2019 8:18 20

CL440, CL460
11
r
CL440-460-LDC-LGC-R600a-IO-EMEA16.book Seite 11 Freitag, 10. Mai 2019 8:18 20

EN
Explanation of symbols CL440, CL460
12
Please read this manual carefully before starting the device. Keep it in a
safe place for future reference. If the device is passed on to another
person, this manual must be handed over to the user along with it.
The manufacturer cannot be held liable for damage resulting from improper usage
or incorrect operation.
Contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
3 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
4 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
5 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
6 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
7 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
9 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
10 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
11 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
1 Explanation of symbols
!
!
A
WARNING!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
CAUTION!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in minor or moderate injury.
NOTICE!
Indicates a situation that, if not avoided, can result in property damage.
CL440-460-LDC-LGC-R600a-IO-EMEA16.book Seite 12 Freitag, 10. Mai 2019 8:18 20

EN
CL440, CL460 Safety instructions
13
I
2 Safety instructions
!WARNING! Fire hazard / Flammable materials
• Keep the ventilation openings on the device housing or in installations
free of obstructions.
• Do not use any mechanical objects or other media to speed up the
defrosting process, unless they have been recommended by the
manufacturer for this purpose.
• Do not damage the refrigerant circuit.
• Do not use electrical devices in the food compartments of the cooler
unless they are recommended by the manufacturer for this purpose.
2.1 General safety
!WARNING! Failure to obey these warnings could result in death
or serious injury.
Electrocution hazard
• Do not operate the cooling device if it is visibly damaged.
• If this cooling device's power cable is damaged, it must be replaced
by the manufacturer, customer service or a similarly qualified person in
order to prevent safety hazards.
• This cooling device may only be repaired by qualified personnel.
Improper repairs can lead to considerable hazards.
Health hazard
• This device can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the device in a safe way and understand
the hazards involved.
• Children shall not play with the device.
• Cleaning and user maintenance shall not be made by children without
supervision.
• Children aged from 3 to 8 years are allowed to load and unload
refrigerating devices.
NOTE
Supplementary information for operating the product.
CL440-460-LDC-LGC-R600a-IO-EMEA16.book Seite 13 Freitag, 10. Mai 2019 8:18 20

EN
Safety instructions CL440, CL460
14
Explosion hazard
• Do not store any explosive substances such as spray cans with a
flammable propellant in the cooling device.
!CAUTION! Failure to obey these cautions could result in minor or
moderate injury.
Electrocution hazard
• Disconnect the cooling device from the power supply
– before each cleaning and maintenance
– after every use
Health hazard
• Food may only be stored in its original packaging or in suitable
containers.
ANOTICE! Damage hazard
• Check that the voltage specification on the type plate corresponds to
that of the energy supply.
• Connect the cooling device with an AC connection cable to the AC
power supply.
• Never pull the plug out of the socket by the cable.
• The cooling device is not suitable for transporting caustic materials or
materials containing solvents.
• The insulation of the cooling device contains flammable cyclopentane
and requires special disposal procedures. Deliver the cooling device
at the end of its life-cycle to an appropriate recycling center.
2.2 Operating the cooling device safely
!CAUTION! Failure to obey these cautions could result in minor or
moderate injury.
Electrocution hazard
• Before starting the cooling device, ensure that the power supply line
and the plug are dry.
Health hazard
• Opening the door for long periods can cause significant increase of
the temperature in the compartments of the device.
• Clean regularly surfaces that can come in contact with food and
accessible drainage systems.
CL440-460-LDC-LGC-R600a-IO-EMEA16.book Seite 14 Freitag, 10. Mai 2019 8:18 20

EN
CL440, CL460 Intended use
15
• Store raw meat and fish in suitable containers in the device, so that it is
not in contact with or drip onto other food.
• If the device is left empty for long periods:
– Switch off the device.
– Defrost the device.
– Clean and dry the device.
– Leave the door open to prevent mould developing within the
device.
ANOTICE! Damage hazard
• Do not use electrical devices inside the cooling device unless they are
recommended by the manufacturer for the purpose.
• Do not place the cooling device near naked flames or other heat
sources (heaters, direct sunlight, gas ovens etc.).
•Danger of overheating!
Ensure at all times that there is a minimum of 50 mm ventilation on all
four sides of the cooling device. Keep the ventilation area free of any
objects that could restrict the air flow to the cooling components.
Do not place the cooling device in closed compartments or areas with
none or minimal air flow.
• Ensure that the ventilation openings are not covered.
• Do not fill the inner container with ice or fluids.
• Never immerse the cooling device in water.
• Protect the cooling device and cables against heat and moisture.
3 Intended use
The cooling device is suitable for cooling beverages and snacks.
The device is designed for use with AC mains supply.
The cooling device is intended to be used in household and similar applications such
as
• staff kitchen areas in shops, offices and other working environments
•farmhouses
• clients in hotels, motels and other residential type environments
• bed and breakfast type environments
• catering and similar non-retail applications
CL440-460-LDC-LGC-R600a-IO-EMEA16.book Seite 15 Freitag, 10. Mai 2019 8:18 20

EN
Technical description CL440, CL460
16
!
4 Technical description
The cooling device can cool products and keep them cool. A grid divider can be
used to separate foodstuffs, e.g. bottles and sweets. The cooling device operates
with a compressor cooling system.
Control element
5 Installation
!
A
CAUTION! Health hazard
Please check if the cooling capacity of the device is suitable for storing
the food or medicine you wish to cool.
No. in
fig. 1, page 3 Description
1 Temperature controller
WARNING! Fire hazard
• Damage to the refrigerant circuit at the back of the cooling device
causes a fire hazard as the cooling agent is highly flammable. To
avoid a damage to the refrigerant circuit due to instability of the cool-
ing device, always fix the cooling device in accordance with the
instructions.
• When positioning the device, ensure the supply cord is not trapped
or damaged.
• Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the device.
NOTICE! Risk of damage
When carrying the cooling device handle it with special care.
• Carry the cooling device with two people.
• Only carry the cooling device upright.
• Be careful not to damage the technical components located at the
backside.
CL440-460-LDC-LGC-R600a-IO-EMEA16.book Seite 16 Freitag, 10. Mai 2019 8:18 20

EN
CL440, CL460 Installation
17
A
The cooling device is designed for free-standing installation, but can be built-in if the
following conditions are complied with to ensure satisfactory operation and maxi-
mum cooling efficiency.
• The cooling device must be levelled carefully to ensure proper function.
• For the glass door version: When ambient humidity is above 65 % in 25 °C ambi-
ent temperature, moisture will condense on the door.
• The socket outlet for the mains connection must be freely accessible.
• When the cooling device is positioned, the supply cord must not be trapped or
damaged.
Ventilation (fig. 3, page 4)
• Ventilation must be provided as shown in alternatives A, B, C or D.
• Ventilation grills (1), if used, must have openings of at least 200 cm² each.
• The minimum clearance between the cooling device‘s back and the surrounding
structure should be as follows:
• The ventilation duct must at least measure 105 mm x the width of the cooling
device.
• Only the entire cooling unit must project into the ventilation duct as shown.
• Air passing through the ventilation duct must not be preheated by any source of
heat.
• The ventilation duct must be kept free from any obstacles. Especially portable
multi socket outlets or portable power supplies, which can get warm, must not
be kept at the rear of the cooling device.
5.1 Fixing the cooling device
➤Fix the cooling device through its fixing feet as shown (fig. 2, page 3).
NOTICE! Risk of damage
Do not use extension cords or ungrounded (two prong) adapters.
No. in
fig. 3, page 4 Min. distance
220mm
3105mm
CL440-460-LDC-LGC-R600a-IO-EMEA16.book Seite 17 Freitag, 10. Mai 2019 8:18 20

EN
Operation CL440, CL460
18
5.2 Changing the decorative plate
➤Change the decorative plate as shown (fig. 4to fig. 7, page 5).
5.3 Mounting the sliding hinge (optional)
You can mount a sliding hinge that allows the cooling device door to be opened at
the same time as the door of the built-in cabinet.
➤Mount the sliding hinge as shown (fig. 8, page 6, to fig. l, page 9).
5.4 Reversing the door
➤Reverse the door as shown (fig. m, fig. nand fig. q, page 10).
or ...
➤Reverse a door with a sliding hinge as shown (fig. mto fig. q, page 10).
6Operation
!
I
CAUTION! Health hazard!
Food may only be stored in its original packaging or in suitable
containers.
NOTE
• Before starting your new cooling device for the first time, you should
clean it inside and outside with a damp cloth for hygienic reasons
(please also refer to the chapter “Cleaning and maintenance” on
page 20).
• A few water drops may form inside the cooling device if it has been
cooling for a lengthy period. This is normal because the moisture in
the air condenses to water when the temperature in the cooling
device falls. The cooling device is not defective. Wipe it out with a
dry cloth if necessary.
CL440-460-LDC-LGC-R600a-IO-EMEA16.book Seite 18 Freitag, 10. Mai 2019 8:18 20

EN
CL440, CL460 Operation
19
6.1 Energy saving tips
• Choose a well ventilated location which is protected from direct sunlight.
• Allow warm food to cool down first before placing it in the cooling device to
keep cool.
• Do not open the cooling device more often than necessary.
• Do not leave the cooling device open for longer than necessary.
6.2 Using the cooling device
!
A
➤Place the cooling device on a firm base.
➤Connect the connection cable to the AC mains supply.
✓The cooling device starts cooling the interior.
➤Set the temperature controller (fig. 11, page 3) to the desired position:
– max: lowest temperature
– min: highest temperature
➤If you wish to switch the cooling device off, pull out the connection cable.
➤Clean the interior to make sure it is dry enough.
WARNING! Suffocation hazard
If children climb into unused cooling devices and close the door behind
them, they can suffocate inside the device.
If you are not going to use the cooling device for a long time, take the fol-
lowing precautionary steps:
• Remove the door.
• Leave the shelves in place so that children cannot easily climb inside.
NOTICE! Damage hazard
• Ensure that the objects placed in the cooling device are suitable for
cooling to the selected temperature.
• Ensure that food or liquids in glass containers are not excessively
refrigerated. Liquids expand when they freeze and can therefore
destroy the glass containers.
• Ensure that your cooling device is well ventilated so that any heat
created can dissipate. Otherwise proper functioning cannot be
ensured. It is especially important not to cover the air vents.
CL440-460-LDC-LGC-R600a-IO-EMEA16.book Seite 19 Freitag, 10. Mai 2019 8:18 20

EN
Cleaning and maintenance CL440, CL460
20
6.3 Locking the door
➤Turn the key a quarter turn to the left to lock the cooling device (fig. r, page 11).
6.4 Replacing the lamp
A
7 Cleaning and maintenance
!
A
➤Use a soft cloth, lukewarm water and a mild detergent to clean the inside of the
cooling device.
➤Wash out the cooling device using clean water and dry thoroughly.
➤At annual intervals, remove dust from the cooling aggregate at the back of the
cooling device using a brush or a soft cloth.
NOTICE! Damage hazard
The lamp can only be replaced by the manufacturer, service agent or
similarly qualified person to avoid hazard.
WARNING! Electrocution hazard
Always disconnect the device from the power supply before you clean
and service it.
NOTICE! Damage hazard
• Never clean the cooling device under running water or in dish water.
• Do not use abrasive cleaning agents or hard objects during cleaning
as these can damage the cooling device.
CL440-460-LDC-LGC-R600a-IO-EMEA16.book Seite 20 Freitag, 10. Mai 2019 8:18 20
