Dometic DM50NTE UPOE User manual

DM50NTE
Drawer Minibar
Installation and Operating Manual. . . . . . . . 9
Schubfach-Minibar
Montage- und Bedienungsanleitung . . . . .23
Minibar à tiroir
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . .38
Cajón minibar
Instrucciones de montaje y de uso . . . . . . .53
Minibar de gaveta
Instruções de montagem e manual de
instruções . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Cassetto del minibar
Istruzioni di montaggio e d’uso . . . . . . . . .83
Lade minibar
Montagehandleiding en
gebruiksaanwijzing . . . . . . . . . . . . . . . . . . .98
Skuffe minibar
Monterings- og betjeningsvejledning . . . 112
Låda till minibar
Monterings- och bruksanvisning . . . . . . . 126
Uttrekkbar minibar
Monterings- og bruksanvisning . . . . . . . . 140
Vetolaatikkominibaari
Asennus- ja käyttöohje . . . . . . . . . . . . . . . 154
Минибар с выдвижным ящиком
Инструкция по монтажу и эксплуатации 168
Minibary szufladowe
Instrukcja montażu i obsługi. . . . . . . . . . . 183
Minibar Drawer
Návod na montáž a uvedenie
do prevádzky. . . . . . . . . . . . . . . . . . . . . . . 197
Minibar Drawer
Návod k montáži a obsluze . . . . . . . . . . . 211
Fiókba szerelt minibár
Szerelési és használati útmutató . . . . . . . 224
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
REFRIGERATION
MINI FRIDGES
DM50NTE-IO-16s.book Seite 1 Dienstag, 28. Februar 2017 3:33 15

DM50NTE
2
2
3
1
1
1
2
3
4
2
DM50NTE-IO-16s.book Seite 2 Dienstag, 28. Februar 2017 3:33 15

DM50NTE
3
2 431
3
4
3
2
1
4
DM50NTE-IO-16s.book Seite 3 Dienstag, 28. Februar 2017 3:33 15

DM50NTE
4
1
2
5
DM50NTE-IO-16s.book Seite 4 Dienstag, 28. Februar 2017 3:33 15

DM50NTE
5
AB
CD
≥400cm²
≥400 cm²
≥400 cm²
≥400 cm²
≥400cm²
≥400 cm²≥400 cm²
≥400 cm²
6
DM50NTE-IO-16s.book Seite 5 Dienstag, 28. Februar 2017 3:33 15

DM50NTE
6
180
473,5
83
68
504
532
418
121,5
93
7
495
75
550
8
9
12
DM50NTE-IO-16s.book Seite 6 Dienstag, 28. Februar 2017 3:33 15

DM50NTE
7
C
BA
1
2
1
1
3
2
0
68
112
AB
a
DM50NTE-IO-16s.book Seite 7 Dienstag, 28. Februar 2017 3:33 15

DM50NTE
8
23
1
C
B
D
A
11
1
b
1
2
3
4
c
DM50NTE-IO-16s.book Seite 8 Dienstag, 28. Februar 2017 3:33 15

EN
DM50NTE
9
Please read this operating manual carefully before starting the device.
Keep it in a safe place for future reference. If the device is passed on to
another person, this operating manual must be handed over to the user
along with it.
The manufacturer cannot be held liable for damage resulting from improper usage
or incorrect operation.
Contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
4 Proper use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
6 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
7 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
9 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
10 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
11 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
DM50NTE-IO-16s.book Seite 9 Dienstag, 28. Februar 2017 3:33 15

EN
Explanation of symbols DM50NTE
10
1 Explanation of symbols
!
!
A
I
2 Safety instructions
2.1 General safety
!WARNING!
•Do not operate the device if it is visibly damaged.
•This device may only be repaired by qualified personnel. Improper
repairs can lead to considerable hazards.
•This device can be used by children aged 8 years and above as well as
persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge, if they are supervised or have been
instructed to safely use the device and if they understand the hazards
resulting out of it.
•Cleaning and user maintenance must not be carried out by children
without supervision.
•Always keep and use the device out of the reach of children under the
age of 8 years.
•Children must be supervised to ensure that they do not play with the
device.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
DM50NTE-IO-16s.book Seite 10 Dienstag, 28. Februar 2017 3:33 15

EN
DM50NTE Safety instructions
11
•If this device's power cable is damaged, it must be replaced by the
manufacturer, customer service or a similarly qualified person in order
to prevent safety hazards.
•Do not store any explosive substances such as spray cans with a
flammable propellant in the device.
!CAUTION!
•Disconnect the device from the mains
– before each cleaning and maintenance
– after every use
•Food may only be stored in its original packaging or in suitable
containers.
ANOTICE!
•Connect the device with the 230 V connection cable to the 230 V AC
mains supply.
•Check that the voltage specification on the type plate corresponds to
that of the energy supply.
•The cooling device is not suitable for transporting caustic materials or
materials containing solvents.
•Never pull the plug out of the socket by the cable.
2.2 Operating the device safely
ANOTICE!
•Do not use electrical devices inside the cooler unless they are
recommended by the manufacturer for the purpose.
•Do not place the device near naked flames or other heat sources
(heaters, direct sunlight, gas ovens etc.).
•Danger of overheating!
Ensure at all times that there is sufficient ventilation so thatthe heat that
arises during operation does not build up. Make sure that the device
is sufficiently far away from walls and other objects so that the air can
circulate.
•Ensure that the ventilation openings are not covered.
•Do not fill the inner container with ice or fluid.
•Never immerse the device in water.
•Protect the device and the cable against heat and moisture.
DM50NTE-IO-16s.book Seite 11 Dienstag, 28. Februar 2017 3:33 15

EN
Scope of delivery DM50NTE
12
3Scopeofdelivery
The following main alternatives are obtainable:
•Minibar DM50NTE D with door panel, without lock
•Minibar DM50NTE D with door panel, with lock
•Minibar DM50NTE F without door panel, without lock
•Minibar DM50NTE F without door panel, with lock
Quantity Description
1 Minibar
1 Cable for 230 Vwconnection
4 Screw ø4 x 45 mm (Installation)
4 Plug (Installation)
1 Handle DM50NTE D only
2 Plug (Handle installation) DM50NTE D only
1 Inlet filter
6 Screw ø3 x 12 mm(Filter installation)
2 Plug (Wooden panel) DM50NTE F wooden ver-
sion only
1 Lock decor (Wooden panel) DM50NTE F wooden ver-
sion with lock only
2 Key Lock version only
1 Installation and Operating manual
DM50NTE-IO-16s.book Seite 12 Dienstag, 28. Februar 2017 3:33 15

EN
DM50NTE Proper use
13
4Properuse
The Minibars DM50NTE D and DM50NTE F are designed for use inside a piece of
furniture and are suitable for cooling beverages and food.
The device is designed for use with a 230 V AC mains supply.
The cooling device is intended to be used in household and similar applications such
as
•staff kitchen areas in shops, offices and other working environments
•farm houses
•clients in hotels, motels and other residential type environments
•bed and breakfast type environments
•catering and similar non-retail applications
!
5 Technical description
The minibar has a main drawer for bottles and cans as well as a mini drawer for
miniatures and snacks. The main drawer has room for 33 bottles with a maximum
height of 30 cm.
The minibar DM50NTE D comes with a anthracite panel and pull handle.
The minibar DM50NTE F is delivered without panel and is prepared for fitting the
hotel's own door decor.
A lock is optionally available.
CAUTION! Health hazard!
Please check if the cooling capacity of the device is suitable for storing
the food or medicine you wish to cool.
DM50NTE-IO-16s.book Seite 13 Dienstag, 28. Februar 2017 3:33 15

EN
Technical description DM50NTE
14

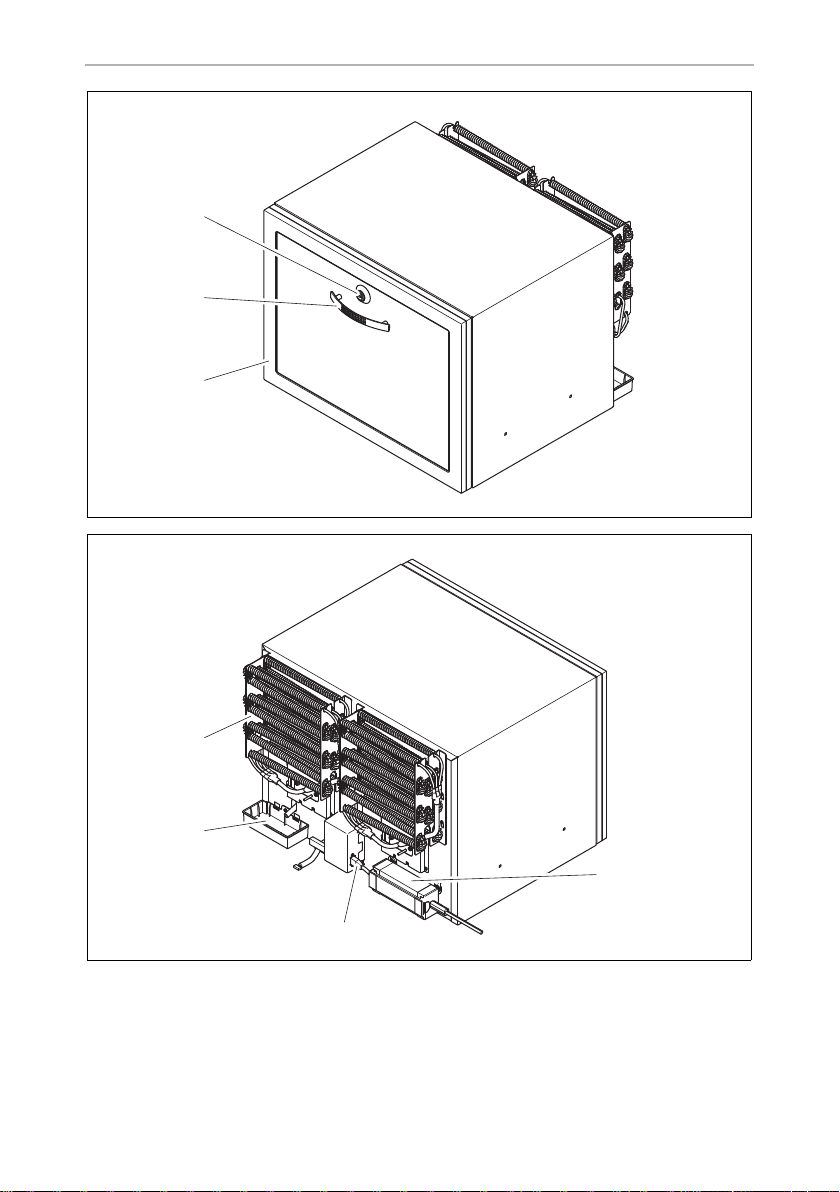

5.1 Description of the device
Front panel
Rear side
Control panel (inside the device)
No in
fig. 1, page 2 Description
1 Lock (optional)
2 Handle (DM50NTE D only)
3 Door panel (DM50NTE D only)
No in
fig. 2, page 2 Description
1 Mains adaptor
2 12 Vgsocket
3 Drip tray
4 Heat pipe

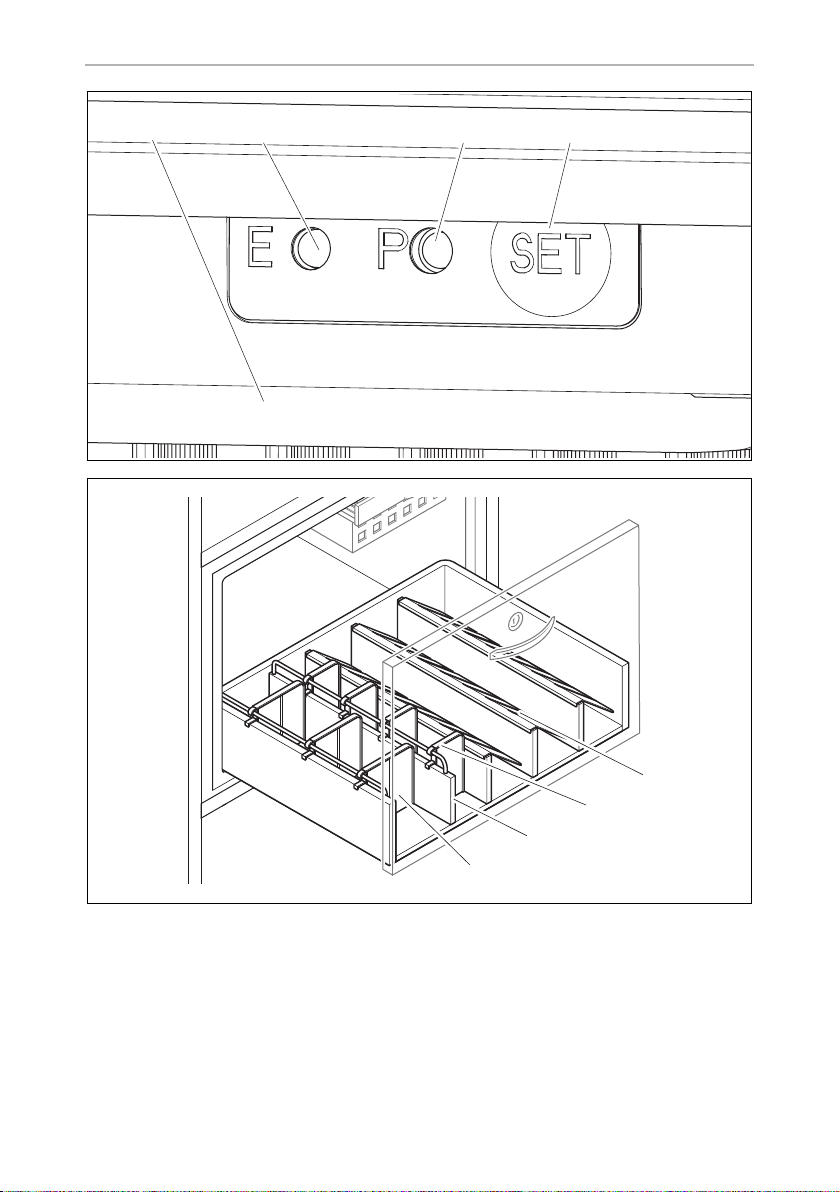

No in
fig. 3, page 3 Description
1 Lamp
2 Error LED
3 Power Status LED
4 Setting button
DM50NTE-IO-16s.book Seite 14 Dienstag, 28. Februar 2017 3:33 15

EN
DM50NTE Installation
15
Main drawer
Mini drawer
6 Installation

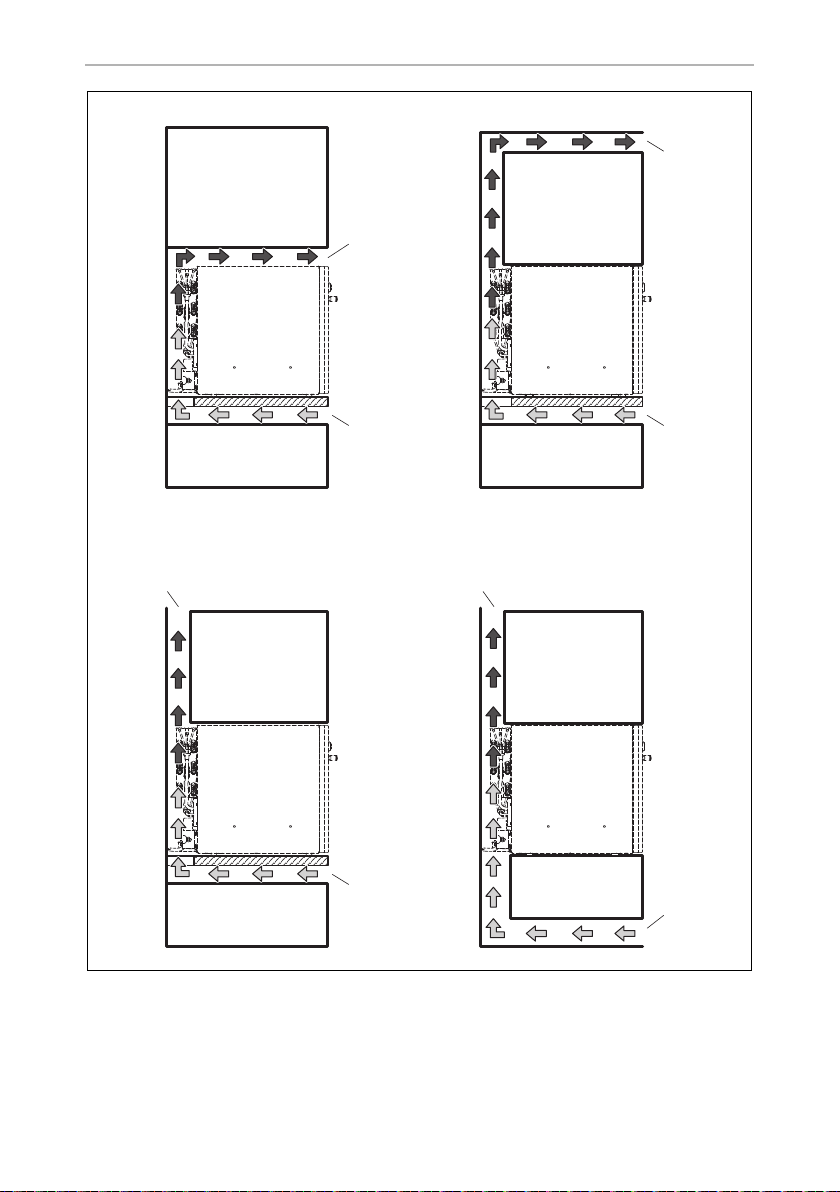

6.1 Notes on mounting into furniture
You can mount the minibar in four ways into furniture. Choose your favoured
alternative according to fig. 6, page 5.
Observe the following:
•The cut-out dimensions H x W x D are:
– DM50NTE D: 438 x 570 x 504 mm
– DM50NTE F: 438 x 570 x (502 + d) mm
d is the thickness of the hotel‘s own decor
•The clearance between the minibar‘s back and the furniture wall should be
approx. 15 mm.
•The ventilation openings for the chosen alternative have to be produced as
shown in fig. 6, page 5.
•Air passing through the inlet air duct must not be heated by any heat sources
(heaters, direct sunlight, gas ovens etc.).
No in
fig. 4, page 3 Description
1 Wide divider
2 Separator
3 Small divider
4 Bottle finger
No in
fig. 5, page 4 Description
1 Rotatable divider
2 Miniature bottle holder
DM50NTE-IO-16s.book Seite 15 Dienstag, 28. Februar 2017 3:33 15

EN
Installation DM50NTE
16
6.2 Pressing out the ventilation opening
fig. 8, page 6
➤Produce a ventilation opening of 75 x 550 mm in the bottom of the furniture into
which you place the minibar.
Measure the distance of 504 mm from the minibar‘s door front excluding any
own decor.
6.3 Mounting the minibar into a piece of furniture
➤Fasten the minibar with the four screws ø4 x 45 mm (fig. 91, page 6).
➤Insert the four plugs (fig. 92, page 6) into the boring.
6.4 Connecting the minibar electrically
➤Plug the 230 V connection cable intothe AC voltage socket and connect it to the
230 V AC mains supply.
✓The Power Status LED lights up.
✓The lamp lights up and the minibar starts cooling the interior.

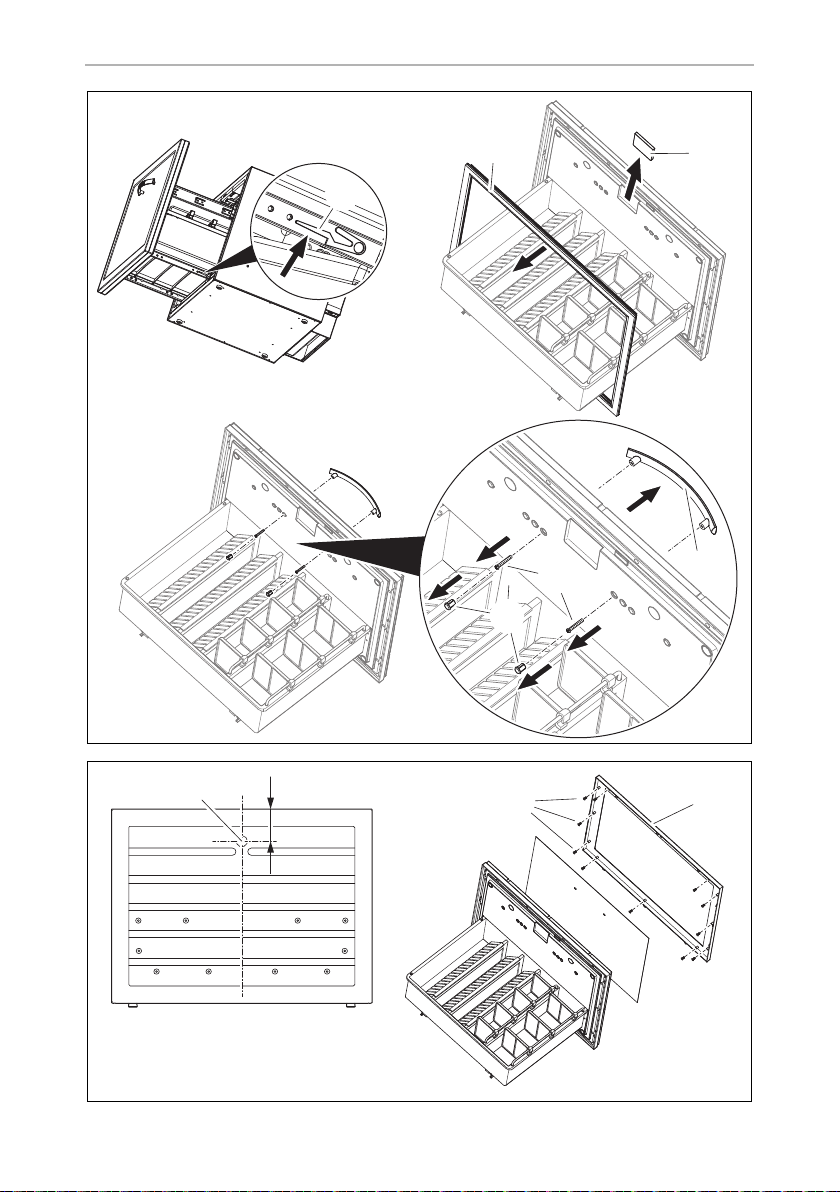

6.5 Mounting hotel's own door decor (DM50NTE F only)
The hotel's own door decor has to comply with the following requirements:
•Maximum weight: 2 kg
•Maximum thickness: 14 mm
➤Fasten the decor with four screws.
No in
fig. 9, page 6 Description
1Screwø4x45mm
2Plug
DM50NTE-IO-16s.book Seite 16 Dienstag, 28. Februar 2017 3:33 15

EN
DM50NTE Installation
17
6.6 Mounting the lock (lock version only)
➤Drill a hole with a diameter of 35 mm into the decor.
➤Mount the lock together with the lock decor.
6.7 Mounting the lock (no lock version only)
Disassembling the drawer (fig. 0, page 7)
➤Open the drawer completely (A).
➤Press the rail lock (A1).
➤Pull the drawer out of the cabinet (B).
Only for DM50NTE D:
➤Remove the two plugs (C1) from the screws (C2) of the door handle (C3).
➤Unscrew the two screws (C2) of the door handle.
➤Remove the door handle (C3).
➤Remove the gasket.
➤Remove the lock cover.
Drilling the holes (fig. a, page 7)
➤Drill a hole (A1) with a diameter of 23.6 mm through the decor (only
DM50NTE D) and the door.
➤Unscrew the twelve screws (B1) of the decor frame (B2) (only DM50NTE D).
➤Remove the decor frame (only DM50NTE D).
Assembling the lock (fig. b, page 8)
➤Put the new lock cover (A1) into place.
➤Put the decor (B1) into the decor frame.
➤Screw (B2) the decor frame (B3) onto the door.
➤Install the door lock (C1).
➤Install the lock catch (D1) in the cabinet.
DM50NTE-IO-16s.book Seite 17 Dienstag, 28. Februar 2017 3:33 15

EN
Operation DM50NTE
18
Assembling the drawer (fig. c, page 8)
➤Push the gasket (1) on the decor frame (2).
➤Screw the door handle (4) onto the door.
➤Push the plugs (3) on the screws of the door handle (4).
➤Push the drawer into the cabinet.
7Operation
7.1 Energy saving tips
•Do not open the cooling device more often than necessary.
•Do not leave the cooler unit open for longer than necessary.
7.2 Using the minibar
The minibar starts cooling when connected to power. During normal operation the
Power Status LED is glowing. If an error occurs the Error LED is blinking (see chapter
“Troubleshooting” on page 20).
DM50NTE-IO-16s.book Seite 18 Dienstag, 28. Februar 2017 3:33 15

EN
DM50NTE Operation
19
7.3 Using the temperature setting function
The minibar is set by default to a cooling temperature of 7 °C at an ambient
temperature of 25 °C.
You can use the setting button (fig. 34, page 3) to set the cooling temperature to
one of three values (5 °C, 12 °C and 7 °C).
Thereby the temperature will be changed in the order 5 °C … 12 °C … 7 °C … 5 °C
etc.
➤Press the setting button (fig. 34, page 3) and keep it pressed for 5 s, until the
internal lamp (fig. 31, page 3) starts to blink.
➤Press immediately the setting button (fig. 34, page 3) again.
✓The internal lamp (fig. 31, page 3) indicates the setting temperature:
– 5 °C: the lamp flashes five times in three intervals
– 12 °C: the lamp flashes once in three intervals
– 7 °C: the lamp flashes three times in three intervals
INOTE
The minibar sets the cooling temperature automatically to 7 °C, when it
is connected to a power source.
DM50NTE-IO-16s.book Seite 19 Dienstag, 28. Februar 2017 3:33 15

EN
Troubleshooting DM50NTE
20
8 Troubleshooting
Fault Possible cause Suggested remedy
Device does not
function, Power Status
LED does not glow.
No voltage present in
the AC voltage socket.
Try using another plug socket.
The mains adapter is
defective.
This can only be repaired by an
authorised repair centre.
The device does not
cool (plug is inserted,
Power Status LED
glows).
The cooling element is
defective.
This can only be repaired by an
authorised repair centre.
The Error LED flashes
once per second.
Temperature sensor is
defective.
This can only be repaired by an
authorised repair centre.
The Error LED flashes
twice per second.
The fan is defective. This can only be repaired by an
authorised repair centre.
Device does not cool
sufficiently, Power
Status LED glows, Error
LED does not glow.
The cooling element is
defective.
This can only be repaired by an
authorised repair centre.
Poor ventilation Check the ventilation.
Clean the filter underneath the device.
DM50NTE-IO-16s.book Seite 20 Dienstag, 28. Februar 2017 3:33 15
