Dometic TL200 User manual

TL200, TL450, TL600, FO200, FO450, FO600, FO800, FO1000
Refrigerated container
Operating manual . . . . . . . . . . . . . . . . . . . . 10
Kühlcontainer
Bedienungsanleitung . . . . . . . . . . . . . . . . .24
Conteneur réfrigéré
Notice d’utilisation . . . . . . . . . . . . . . . . . . .39
Refrigerador
Instrucciones de uso . . . . . . . . . . . . . . . . . .54
Arca de refrigeração
Manual de instruções . . . . . . . . . . . . . . . . .69
Roll isotermico
Istruzioni per l’uso . . . . . . . . . . . . . . . . . . . .84
Koelcontainer
Gebruiksaanwijzing. . . . . . . . . . . . . . . . . . .99
Kølecontainer
Betjeningsvejledning . . . . . . . . . . . . . . . . 114
Kylbehållare
Bruksanvisning . . . . . . . . . . . . . . . . . . . . . 128
Kjølebeholder
Bruksanvisning . . . . . . . . . . . . . . . . . . . . . 142
Kylmäsäiliö
Käyttöohje . . . . . . . . . . . . . . . . . . . . . . . . . 155
Охлаждающий контейнер
Инструкция по эксплуатации . . . . . . . . . 168
Kontener chłodniczy
Instrukcja obsługi . . . . . . . . . . . . . . . . . . . 183
Chladiaci kontajner
Návod na obsluhu. . . . . . . . . . . . . . . . . . . 198
Chladicí kontejner
Návod k obsluze . . . . . . . . . . . . . . . . . . . . 212
Hűtőkonténer
Használati utasítás. . . . . . . . . . . . . . . . . . . 226
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
REFRIGERATION
PROFESSIONAL COOLING
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 1 Dienstag, 19. Dezember 2017 2:25 14

TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 2 Dienstag, 19. Dezember 2017 2:25 14

TL, FO
3
1
TL200
FO200
FO450
TL450
FO600
TL600
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 3 Dienstag, 19. Dezember 2017 2:25 14

TL, FO
4
2
FO800 FO1000
1
23
3
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 4 Dienstag, 19. Dezember 2017 2:25 14

TL, FO
5
Min. 100 mm
Min. 15 mm
Min. 100 mm
4
Ø/mm²
l/m
12 V 24 V
0 2 4 6 8 10 12 14 16 18 20 22 24 26 28
0
2
6
10
14
5
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 5 Dienstag, 19. Dezember 2017 2:25 14

TL, FO
6
–
+
1
2
3
rt
sw 25 A
6
-18°C 4°C
OFF
-18°C 4°C
OFF
TL200
TL450
TL600
FO200
FO450
FO600
FO800
FO1000
OFF
4°C
1
7
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 6 Dienstag, 19. Dezember 2017 2:25 14

TL, FO
7
TL200
TL450
TL600
FO200
FO450
FO600
8
1
TL200
TL450
TL600
FO200
FO450
FO600
9
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 7 Dienstag, 19. Dezember 2017 2:25 14

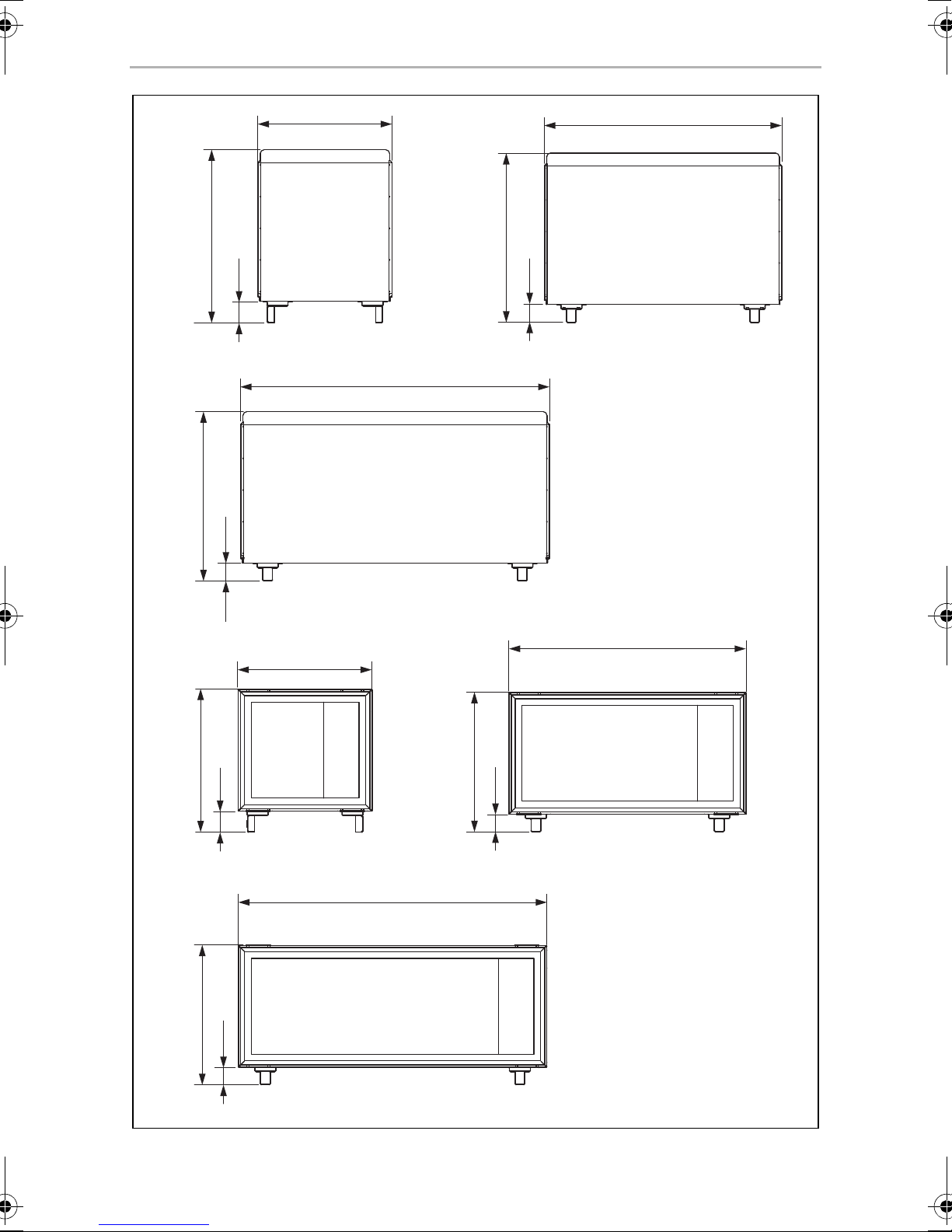

TL, FO
8
0
100
1733
782
100
1333
782
753
802
120
1733
947,50
100
1333
947,50
100
753
967,50
120
TL200 TL450
TL600
FO200 FO450
FO200
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 8 Dienstag, 19. Dezember 2017 2:25 14

TL, FO
9
1100 1135
1100
808
1760
1135
FO800
FO1000
a
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 9 Dienstag, 19. Dezember 2017 2:25 14

EN
TL, FO
10
Please read this instruction manual carefully before first use, and store it in
a safe place. If you pass on the product to another person, hand over this
instruction manual along with it.
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
4 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
5 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
7 Installing and connecting the refrigerated container . . . . . . . . . . . . . . . . . .15
8 Operating the refrigerated container. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
9 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
10 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
11 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 10 Dienstag, 19. Dezember 2017 2:25 14

EN
TL, FO Explanation of symbols
11
1 Explanation of symbols
D
!
!
A
I
2 Safety instructions
2.1 General safety
!WARNING!
•Do not operate the product if it is visibly damaged.
•If the power cable for this product is damaged, it must be replaced by
the manufacturer, customer service or a similarly qualified person in
order to prevent safety hazards.
•This product may only be repaired by qualified personnel. Inadequate
repairs may cause serious hazards.
•This product can be used by children aged 8 years or over, as well as
by persons with diminished physical, sensory or mental capacities or a
lack of experience and knowledge, providing they are supervised or
have been taught how to use the product safely and are aware of the
resulting risks.
DANGER!
Safety instruction: Failure to observe this instruction will cause fatal or
serious injury.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 11 Dienstag, 19. Dezember 2017 2:25 14

EN
Safety instructions TL, FO
12
•Cleaning and user maintenance must not carried out by unsupervised
children.
•Children should not play with the product.
•Children must be supervised to ensure that they do not play with the
product.
•Always keep and use the product out of the reach of children under
8 years of age.
•Do not store any explosive substances, such as spray cans with
propellants, in the product.
!CAUTION!
•Disconnect the product from the mains
– Before cleaning and maintenance
–Afteruse
•Food may only be stored in its original packaging or in suitable
containers.
ANOTICE!
•Only connect the product as follows:
– with the DC connection cable to the vehicle battery
– or plug the AC connection cable into the AC socket
•Check that the voltage specification on the type plate is the same as
that of the power supply.
•Never pull the AC connection cable out of the AC socket by the cable.
•The product is not suitable for storing substances which are caustic or
contain solvents.
•Do not clean the product with a high-pressure cleaner. Exposure to
water can damage the product.
•If the refrigerated container is connected to the battery: Disconnect
the refrigerated container and other power consuming devices from
the battery before connecting the quick charging device.
•If the refrigerated container is connected to the battery: Disconnect
the cooler or switch it off when you turn off the engine. Otherwise the
battery may discharge.
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 12 Dienstag, 19. Dezember 2017 2:25 14

EN
TL, FO Intended use
13
2.2 Operating the product safely
DDANGER!
Do not touch exposed cables with your bare hands. This applies espe-
cially when operating the product from the AC mains.
!CAUTION!
Before starting the device, ensure that the power supply line and the plug
are dry.
ANOTICE!
•Do not use electrical devices inside the product unless they are recom-
mended by the manufacturer for that purpose.
•Do not place the product near naked flames or other heat sources
(heaters, direct sunlight, gas ovens etc.).
•Danger of overheating!
Always ensure sufficient ventilation so that the heat generated during
operation can dissipate. Make sure that the product is sufficiently far
away from walls and other objects so that the air can circulate.
•Ensure that the ventilation openings are not covered.
•Protect the product and the cable against heat and moisture.
3 Intended use
The TL200, TL450, TL600 refrigerated containers are ideal for refrigerating and
freezing food items at a constant temperature of +4 °C or –18 °C.
The FO200, FO450, FO600, FO800, FO1000 refrigerated containers are ideal for
refrigerating food items at a constant temperature of +4 °C.
The refrigerated containers are designed for operating with direct current (standard:
12 Vg; on request: 12/24 Vg) and alternating current versions.
The refrigerated container has a lock on the lid (not FO800, FO1000) and a fastening
strap.
!CAUTION! Health hazard!
Please check if the cooling capacity of the device is suitable for storing
the food you wish to cool or freeze.
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 13 Dienstag, 19. Dezember 2017 2:25 14

EN
Scope of delivery TL, FO
14
4Scopeofdelivery

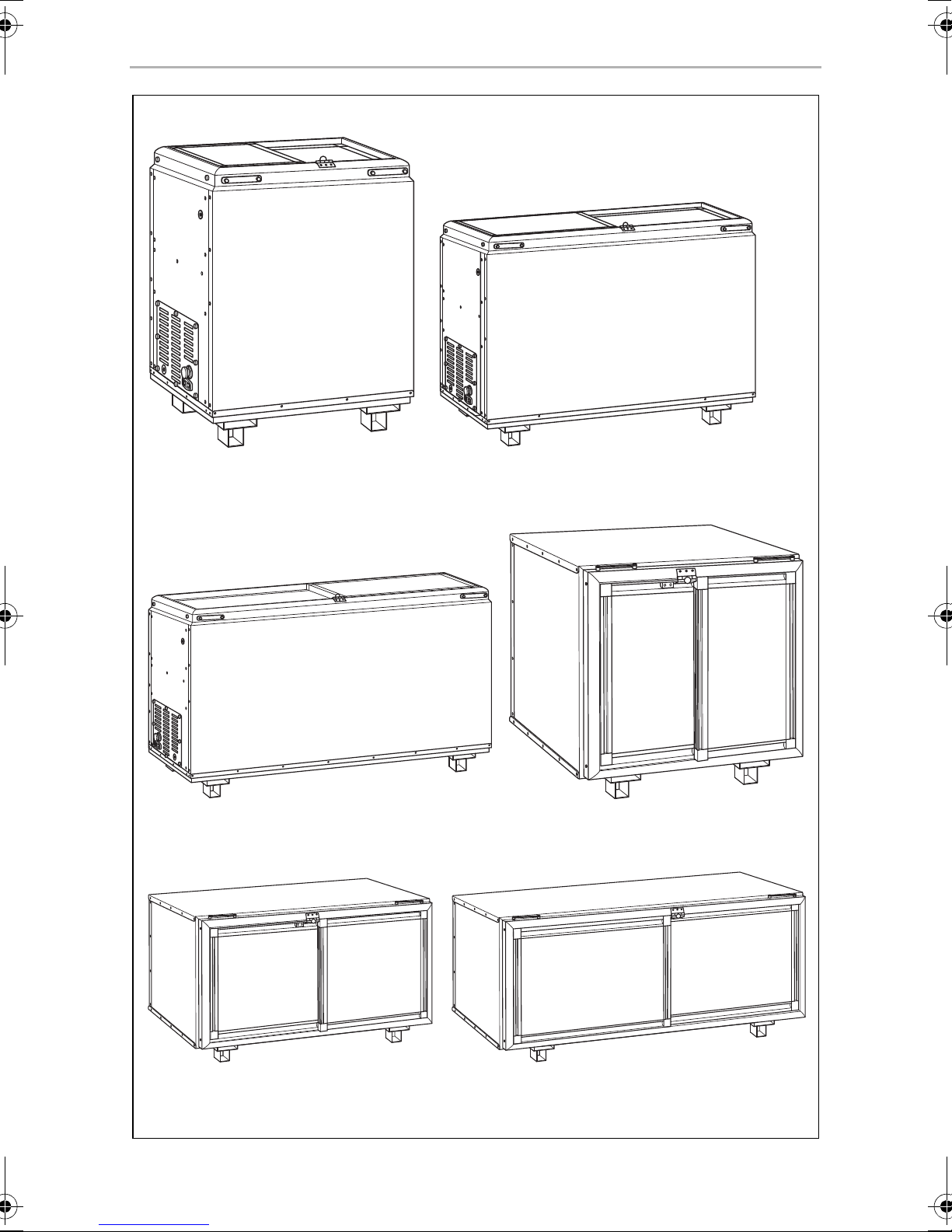

4.1 Models (fig. 1, page 3, fig. 2, page 4)
5Accessories
Available as accessories (not included in the scope of delivery; not for FO800,
FO1000):
Description Quantity
Refrigerator container 1
AC connection cable 1
DC connection cable 1
Key for temperature selection 2
Model Temperature setting Ref. no.
TL200 +4 °C, –18 °C 9103540405
TL450 +4 °C, –18 °C 9103540406
TL600 +4 °C, –18 °C 9103540407
FO200 +4 °C 9103540408
FO450 +4 °C 9103540409
FO600 +4 °C 9103540410
FO800 +4 °C 9600002642
FO1000 +4 °C 9600002641
Description Quantity Ref. no.
Attachable rollers for 800 kg load 4 9103540412
DT24 lead gel battery – 9103540411
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 14 Dienstag, 19. Dezember 2017 2:25 14

EN
TL, FO Technical description
15
6 Technical description
The refrigerated container can cool and freeze goods at a constant temperature of
+4 °C and –18 °C (TL200, TL450, TL600) or cool at +4 °C (FO200, FO450,
FO600, FO800, FO1000). A maintenance-free refrigerant circuit with compressor
provides the cooling.
Depending on the model, the refrigerated container can operate on a AC or DC
power supply.
The refrigerated container has a battery monitor which protects the vehicle battery
from excessive discharging:
•Switch-on voltage = 12.3 V
•Switch-off voltage = 11.7 V
6.1 Connections and controls
7 Installing and connecting the
refrigerated container

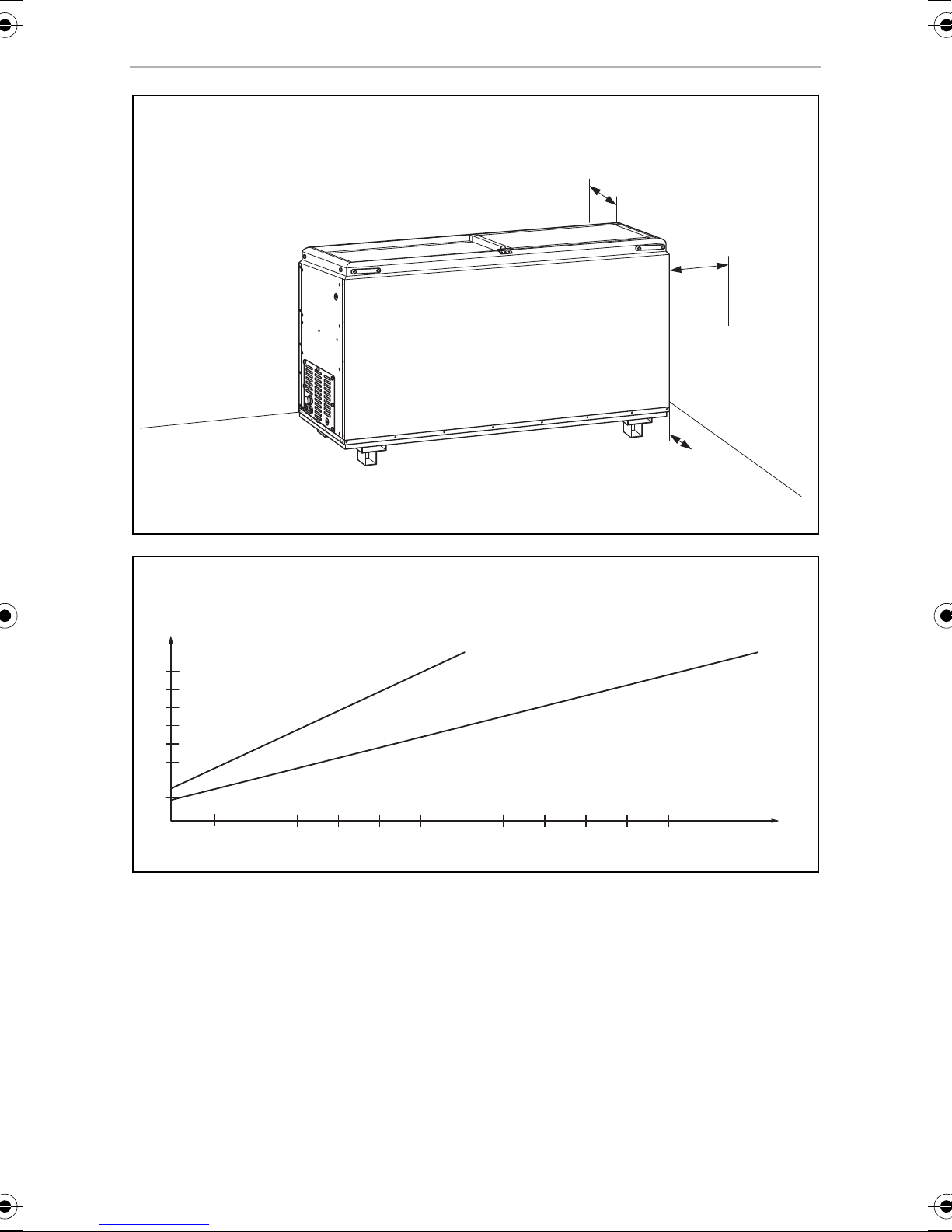

➤Observe the minimum clearances for the place of installation (fig. 4, page 5).
➤Place the refrigerated container on a stable and even floor.
7.1 Operating with AC power supply
➤Plug the AC connection cable into the AC power supply connection (fig. 32,
page 4).
➤Connect the refrigerated container to the AC power supply.

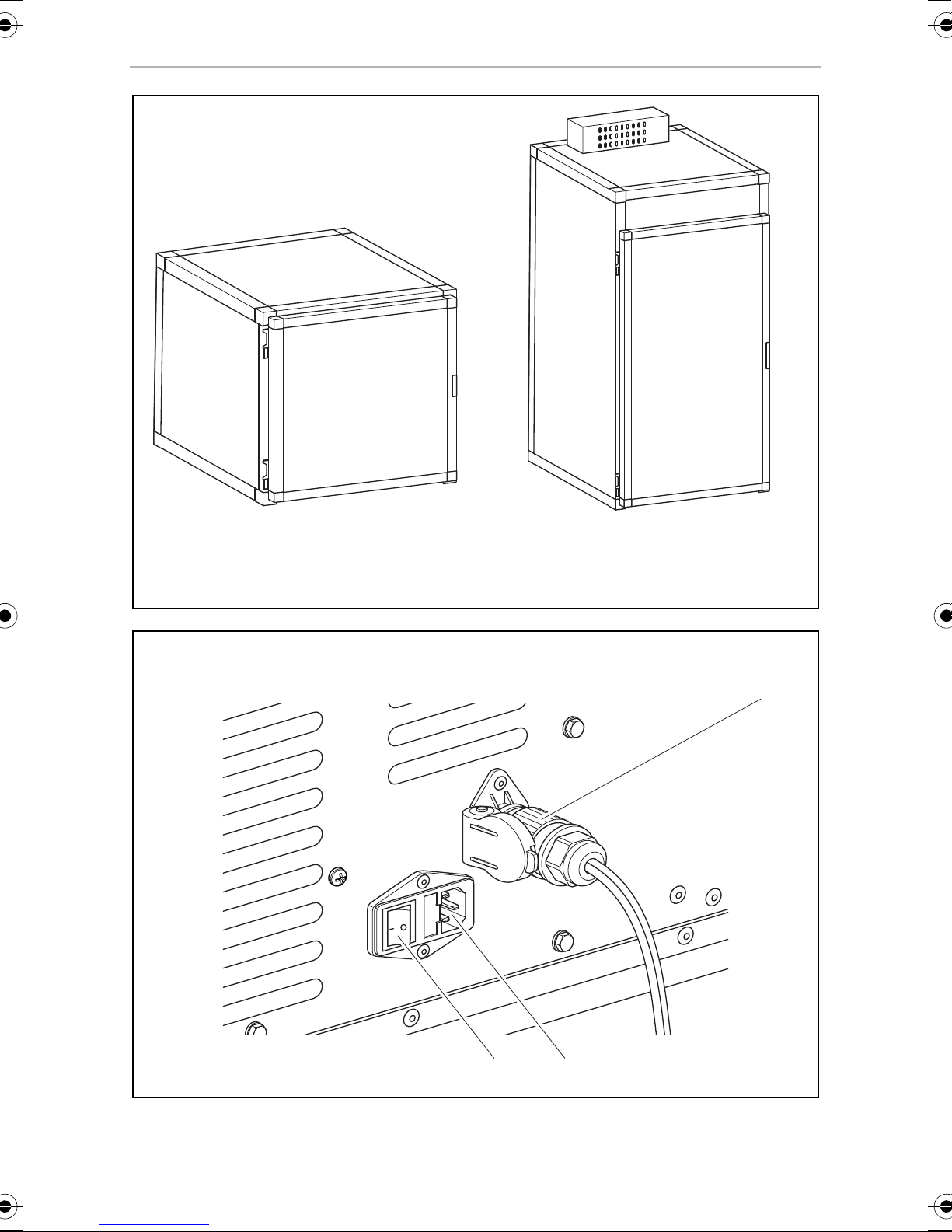

No. in fig. 3, page 4 Description
1 DC power supply
2 AC power supply
3 On/off switch
No. in fig. 7, page 6 Description
1 Key switch for temperature selection
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 15 Dienstag, 19. Dezember 2017 2:25 14

EN
Installing and connecting the refrigerated container TL, FO
16
7.2 Operating with DC power supply
A
For safety reasons, the refrigerated container is equipped with an electronic system
to preventthe polarity being reversed. This protectsit againstreversedpolaritywhen
connecting to a battery and against short circuiting.
A
➤Determine the required cross section of the cable in relation to the cable length
according to fig. 5, page 5.
Key for fig. 5, page 5
A

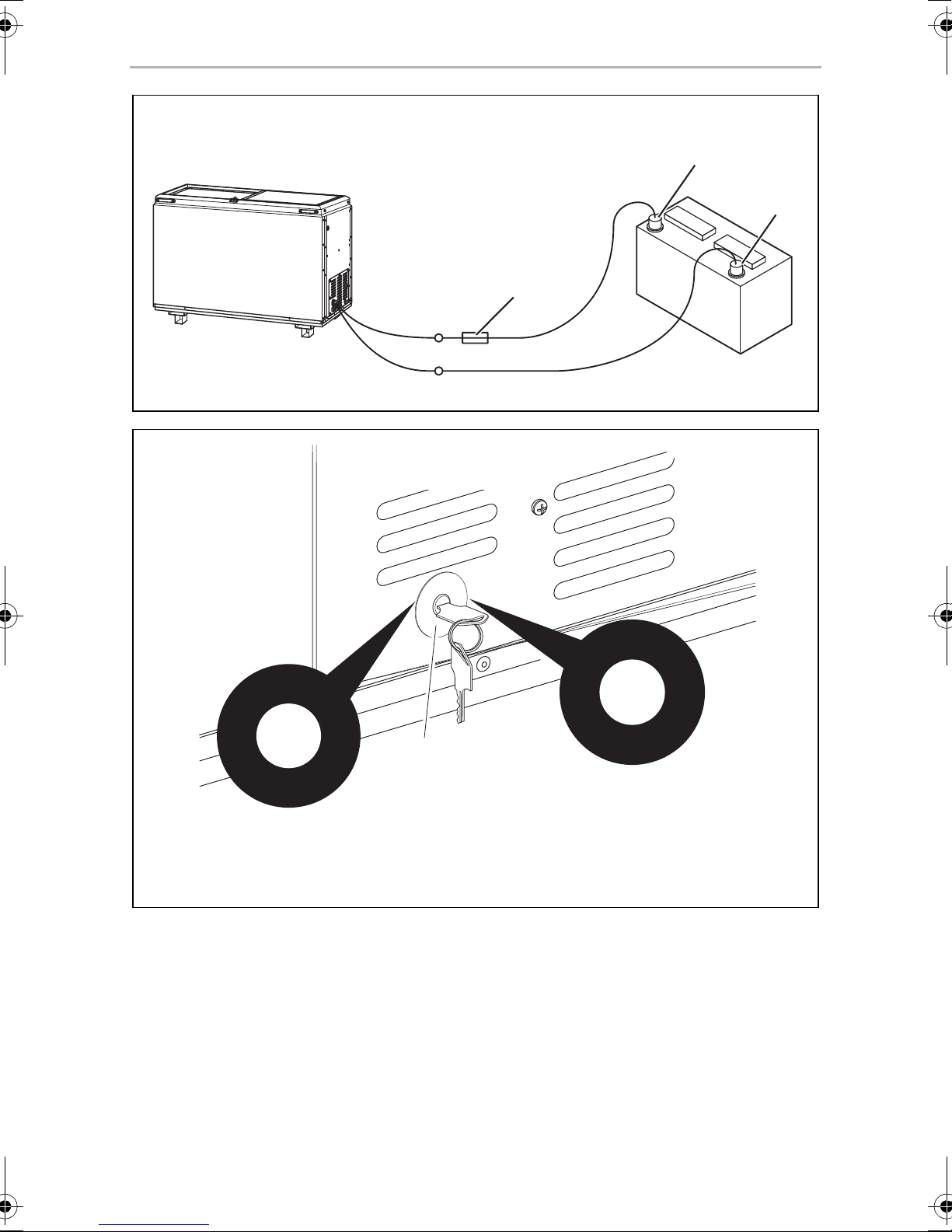

➤Before starting up the device for the first time, check whether the operating
voltage and the battery voltage match (see type plate).
➤Make sure that the cable at the positive battery terminal (fig. 61, page 6) is pro-
tected with a 25 A fuse (fig. 63, page 6).
➤Plug the DC connection cable into the DC socket of the refrigerated container
(fig. 31, page 4).
NOTICE! Risk of damage to the device!
Disconnect the refrigerated container and other electric consumers
from the battery before you connect the battery to a quick charging
device.
Overvoltage can damage the electronics of the device.
NOTICE! Risk of damage to the device!
To avoid voltage drops and loss of performance, keep the cable as short
as possible and avoid joins.
Therefore avoid additional switches, plugs or power strips.
Coordinate axis Meaning Unit
l Cable length m
∅Cable cross section mm²
NOTICE! Risk of damage to the device!
Make sure that the polarity is correct.
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 16 Dienstag, 19. Dezember 2017 2:25 14

EN
TL, FO Operating the refrigerated container
17
➤Connect the red cable (fig. 6rd, page 6) to the positive terminal of the battery
(fig. 61, page 6).
➤Connect the black cable (fig. 6blk, page 6) to the negative terminal of the
battery (fig. 62, page 6).
Notes on the battery monitor
The product is equipped with a battery monitor that protects your vehicle battery
against excessive discharging when the device is connected to the on-board supply.
If the refrigerated container is operated when the vehicle ignition is switched off, it
switches off automatically as soon as the supply voltage falls below a settable level.
The refrigerated container will switch back on once the battery has been recharged
to the restart voltage level.
A
8 Operating the refrigerated container
!
I
8.1 Storing food items
I
NOTICE! Risk of damage!
When switched off by the battery monitor, the battery will no longer be
fully charged. Avoid starting repeatedly or operating electric consumers
without longer charging phases. Make sure that the battery is
recharged.
CAUTION! Health hazard!
Food may only be stored in its original packaging or in suitable
containers.
NOTE
•The key in the key switch for temperature selection can be removed
in any position. The container continues to refrigerate.
•Before starting your refrigerated container for the first time, you
should clean it inside and outside with a damp cloth for hygienic
reasons (see also chapter “Cleaning and maintenance” on page 19).
NOTE
At a temperature setting of –18 °C: Only put goods in the refriger-
ated container which are already frozen at –20 °C. The refrigerated con-
tainer is not suitable for freezing.
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 17 Dienstag, 19. Dezember 2017 2:25 14

EN
Operating the refrigerated container TL, FO
18
8.2 Energy saving tips
•Choose a well ventilated position which is protected from direct sunlight.
•Allow warm food to cool down first before placing it in the product to freeze.
•Do not open the refrigerated container more often than necessary.
•Do not leave the refrigerated container open for longer than necessary.
•Defrost the refrigerated container once a layer of ice forms.
8.3 Selecting the temperature (for TL200, TL450, TL600
only)
➤Turn the key switch to the required position (fig. 7, page 6).
➤Remove the key and store in a safe place.
8.4 Switching on the refrigerated container
A
➤Set the on/off switch (fig. 33, page 4) to the “I” position.
➤Insert the key into the key switch.
➤Turn the key to the required temperature.
✓The compressor switches on and the refrigerated container starts to cool.

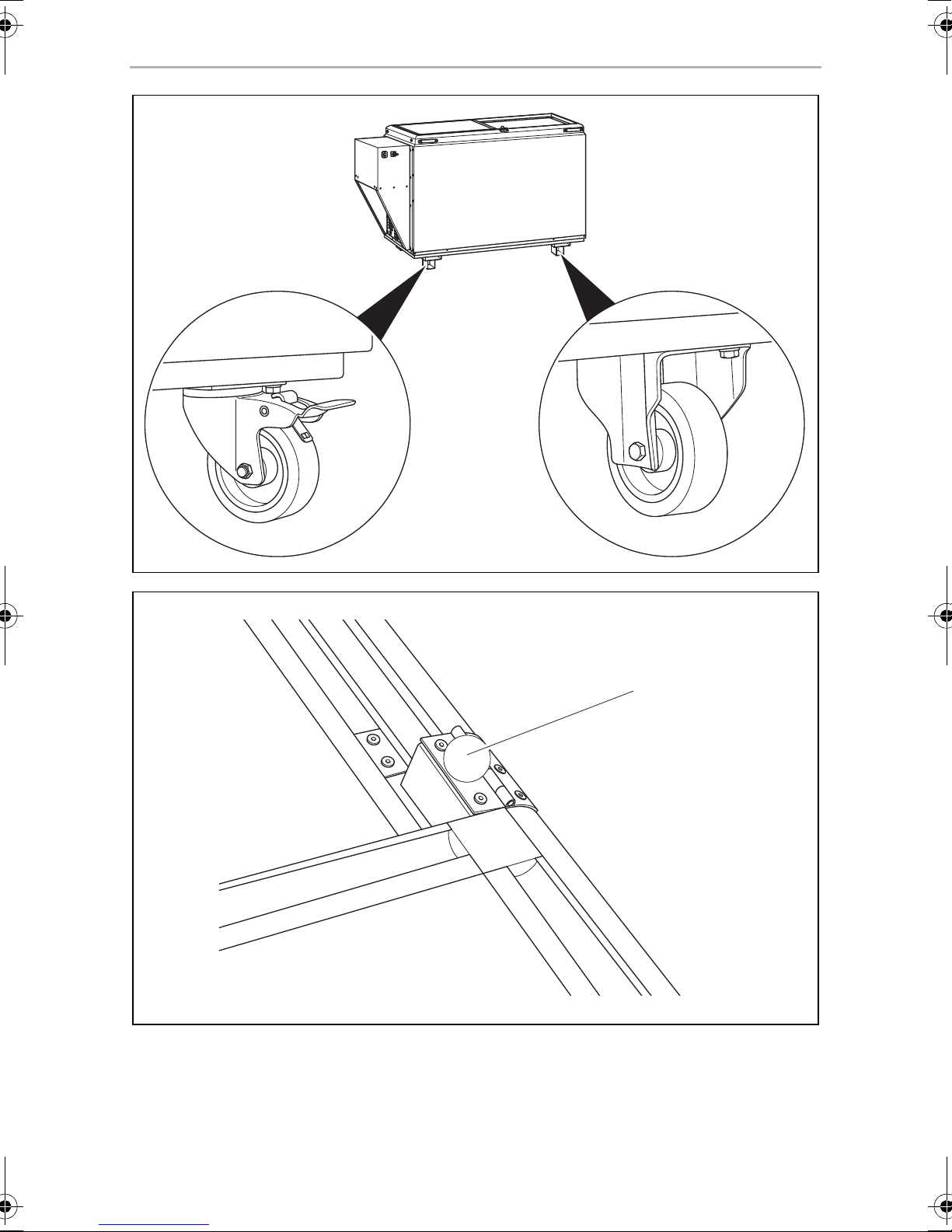

8.5 Mounting the rollers (accessory)
Not for FO800, FO1000
You can fit block rollers or casters instead of the stands:
➤Remove the four stands and screw on the four block rollers or casters into the
same position (fig. 8, page 7).
NOTICE! Risk of damage!
•Only put food items in the refrigerated container which may be kept
at the selected temperature.
•Ensure that your refrigerated container is well ventilated so that any
heat created can dissipate. Otherwise proper functioning cannot be
ensured. The air vents may not be covered up.
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 18 Dienstag, 19. Dezember 2017 2:25 14

EN
TL, FO Cleaning and maintenance
19
8.6 Using the lock for the lid
Not for FO800, FO1000
➤Close the sliding doors on both sides.
➤Slide the catch into the inlet provided so that it clicks into position (fig. 91,
page 7).
8.7 Defrosting the refrigerated container (for TL200,
TL450, TL600, FO800, FO1000 only)
➤Remove the layer of ice at a thickness of 2 mm using a plastic scraper.
➤Defrost the refrigerated container.
➤Remove the thawed water.
I
9 Cleaning and maintenance
A
➤Occasionally clean the refrigerated container interior and exterior with a damp
cloth.
➤Remove the base plates occasionally and clean these with a damp cloth.
➤Make sure that the air vents on the refrigerated container are free of any dust and
dirt, so that heat can be released and the refrigerated container is not damaged.
NOTE
TL200, TL450, TL600: The refrigerated container has an opening on
the back that you can connect a drain hose to for draining the conden-
sate.
FO800, FO1000: The refrigerated container has a drain hose on the
back for draining condensate.
NOTICE! Risk of damage!
Do not use abrasive cleaning agents or hard objects during cleaning as
these can damage the refrigerated container.
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 19 Dienstag, 19. Dezember 2017 2:25 14

EN
Troubleshooting TL, FO
20
10 Troubleshooting
Fault Possible cause Suggested remedy
The refrigerated container
does not work.
The refrigerated container is
not correctly connected.
Check the voltage supply.
The refrigerated container
does not freeze properly
(for TL200, TL450, TL600
only).
The temperature key is not
set to the required tempera-
ture.
Turn the temperature key to the
required temperature.
The goods placed in the
refrigerated container are
too warm.
Only put goods in the refriger-
ated container which are cold
at –20 °C.
The air vents are dusty or
dirty.
Remove the dust and dirt from
the air inlet and outlet vents.
The ventilation around the
refrigerated container is not
sufficient.
Ensure a sufficient circulation of
air around the air vents.
The set temperature is
+4 °C.
Adjust the temperature to
–18 °C.
The refrigerated container
does not cool sufficiently.
The goods placed in the
refrigerated container are
too warm.
Only put goods in the refriger-
ated container which are
already cold.
The air vents are dusty or
dirty.
Remove the dust and dirt from
the air inlet and outlet vents.
The ventilation around the
refrigerated container is not
sufficient.
Ensure a sufficient circulation of
air around the air vents.
TL200-450-600-FO200-450-600-800-1000-O-16s.book Seite 20 Dienstag, 19. Dezember 2017 2:25 14
