Dometic CoolMatic CRX 65 User manual

CRX50,CRX65
Compressor refrigerator
Installation and Operating Manual. . . . . . . 10
Réfrigérateur à compression
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . .29
Nevera con compresor
Instrucciones de montaje y de uso. . . . . . .49
EN
FR
ES
REFRIGERATION
COOLMATIC
CRX50-65-Truck-IO-US.book Seite 1 Donnerstag, 18. Oktober 2018 3:51 15

CRX50-65-Truck-IO-US.book Seite 2 Donnerstag, 18. Oktober 2018 3:51 15

CRX50, CRX65
3
CRX 50
1
2
3
5
4
6
7
1
1
2
3
5
4
6
7
CRX 65
2
CRX50-65-Truck-IO-US.book Seite 3 Donnerstag, 18. Oktober 2018 3:51 15

CRX50, CRX65
4
3
1
2
3
4
8
7
6
5
3s
CRX50-65-Truck-IO-US.book Seite 4 Donnerstag, 18. Oktober 2018 3:51 15

CRX50, CRX65
5
ca. 50 mm (2 inch)
ca. 50 mm (2 inch)
ca. 50 mm (2 inch) ca. 50 mm (2 inch)
ca. 50 mm (2 inch) ca. 50 mm (2 inch)
ca. 50 mm (2 inch) ca. 50 mm (2 inch)
AB
CD
2
2
2 2
1
1
3
33
3
1
1
4
CRX50-65-Truck-IO-US.book Seite 5 Donnerstag, 18. Oktober 2018 3:51 15

CRX50, CRX65
6
2
1
5
1
2
6
CRX50-65-Truck-IO-US.book Seite 6 Donnerstag, 18. Oktober 2018 3:51 15

CRX50, CRX65
7
7
8
9
CRX50-65-Truck-IO-US.book Seite 7 Donnerstag, 18. Oktober 2018 3:51 15

CRX50, CRX65

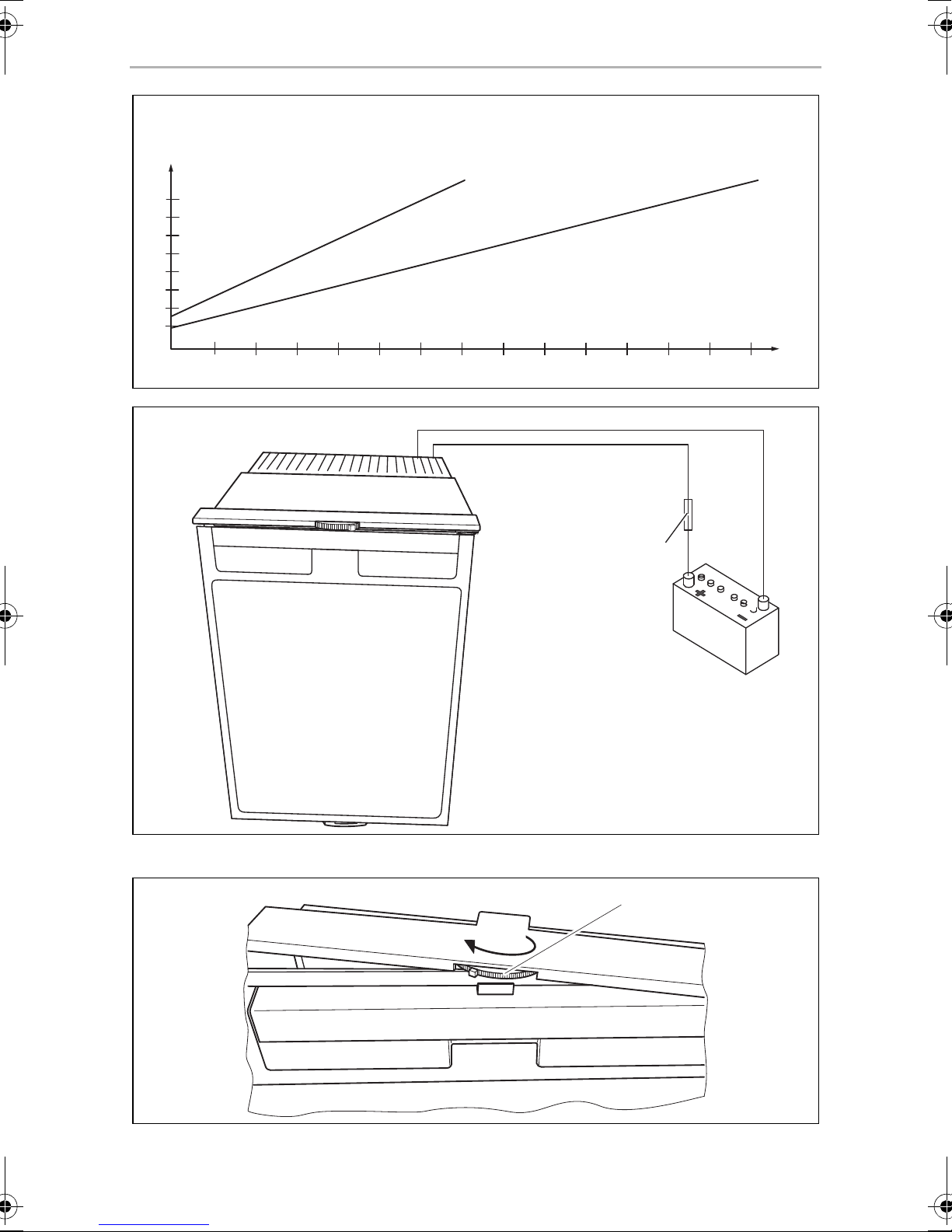

8
Ø/mm²
l/m
12 V 24 V
0 2 4 6 8 10 12 14 16 18 20 22 24 26 28
0
2
6
10
14
0
1
rd
bk
a
1
Vent Lock
b
CRX50-65-Truck-IO-US.book Seite 8 Donnerstag, 18. Oktober 2018 3:51 15

CRX50, CRX65
9
380 mm (14.96 inch)
534 mm (21.02 inch)
500 mm (19.69 inch)
CRX 50
c
CRX 65
448 mm (17.64 inch)
525 mm (20.67 inch)
545 mm (21.46 inch)
d
CRX50-65-Truck-IO-US.book Seite 9 Donnerstag, 18. Oktober 2018 3:51 15

EN
Explanation of symbols CRX50, CRX65
10
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
7 Installing and connecting the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . .16
8 Using the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
9 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
10 Limited warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
11 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
12 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
13 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
1 Explanation of symbols
!
!
A
WARNING!
Safety instruction: Failure to observe this instruction can cause death
or serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
CRX50-65-Truck-IO-US.book Seite 10 Donnerstag, 18. Oktober 2018 3:51 15

EN
CRX50, CRX65 Safety instructions
11
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
• Faulty assembly or connection
• Damage to the product resulting from mechanical influences and incorrect
connection voltage
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in the operating manual
2.1 General safety
!WARNING!
Failure to obey these warnings could result in death or serious injury.
DANGER OF ELECTROCUTION
• Do not operate the cooling device if it is visibly damaged.
• If this cooling device's power cable is damaged, it must be replaced
by the manufacturer, customer service or a similarly qualified person in
order to prevent safety hazards.
• This cooling device may only be repaired by qualified personnel.
Improper repairs can lead to considerable hazards.
HEALTH HAZARD
• This cooling device can be used by children aged 8 years or over, as
well as by persons with diminished physical, sensory or mental capac-
ities or a lack of experience and/or knowledge, providing they are
supervised or have been taught how to use the cooling device safely
and are aware of the resulting risks.
• Cleaning and user maintenance must not be carried out by children
without supervision.
• Children must not play with the cooling device.
• Children must be supervised to ensure that they do not play with the
cooling device.
• Always keep and use the cooling device out of the reach of children
under the age of 8 years.
NOTE
Supplementary information for operating the product.
CRX50-65-Truck-IO-US.book Seite 11 Donnerstag, 18. Oktober 2018 3:51 15

EN
Safety instructions CRX50, CRX65
12
EXPLOSION HAZARD
• Do not store any explosive substances such as spray cans with a
flammable propellant in the cooling device.
!CAUTION!
Failure to obey these cautions could result in minor or moderate injury.
DANGER OF ELECTROCUTION
• Disconnect the cooling device from the power supply
– before each cleaning and maintenance
– after every use
HEALTH HAZARD
• Food may only be stored in its original packaging or in suitable
containers.
DANGER OF CRUSHING
• Do not put your fingers into the hinge.
ANOTICE!
DANGER OF DAMAGE
• Check that the voltage specification on the type plate corresponds to
that of the energy supply.
• Never pull the plug out of the socket by the connection cable.
• Disconnect the cooling device and other power consuming devices
from the battery before connecting a quick charging device.
• Disconnect the cooling device or switch it off when you turn off the
engine. Otherwise you may discharge the battery.
• The cooling device is not suitable for transporting caustic materials or
materials containing solvents.
• Keep the drainage outlet clean at all times.
• Do not open the refrigerant circuit under any circumstances.
• Never transport the device in a horizontal position, so that no oil can
leak out of the compressor.
• Make sure that the refrigerator circuit is not damaged during transpor-
tation. The refrigerant in the refrigerator circuit is highly flammable.
In the event of any damage to the refrigerator circuit:
– Avoid naked flames and sparks.
– Air the room well.
• Set up the device in a dry location where it is protected against
splashing water.
CRX50-65-Truck-IO-US.book Seite 12 Donnerstag, 18. Oktober 2018 3:51 15

EN
CRX50, CRX65 Safety instructions
13
2.2 Operating the device safely
!WARNING!
Failure to obey these warnings could result in death or serious injury.
DANGER OF ELECTROCUTION
• Do not touch exposed cables with your bare hands.
!CAUTION!
Failure to obey these cautions could result in minor or moderate injury.
HEALTH HAZARD
• Make sure that no food comes into contact with the battery acid.
ANOTICE!
DANGER OF DAMAGE
• Do not use electrical devices inside the cooling device unless they are
recommended by the manufacturer for that purpose.
• Do not place it near naked flames or other heat sources (heaters, direct
sunlight, gas ovens etc.)
•Danger of overheating!
Ensure at all times that there is a minimum of 50 mm (2") ventilation on
all four sides of the cooling device. Keep the ventilation area free of
any objects that could restrict the air flow to the cooling components.
Do not place the cooling device in closed compartments or areas with
none or minimal air flow.
• Ensure that the ventilation vents are not covered.
• Do not fill the inner container with ice or fluid.
• Never immerse the cooling device in water.
• Protect the cooling device and the cable against heat and moisture.
• The use of a load dump board is mandatory on all Semi Truck
12 V or 24 V DC applications. Ensure that the load dump board and
the control module are always replaced together.
CRX50-65-Truck-IO-US.book Seite 13 Donnerstag, 18. Oktober 2018 3:51 15

EN
Scope of delivery CRX50, CRX65
14
3Scopeofdelivery
4Accessories
Available as accessories (not included in the scope of delivery):
If you have any questions, please contact the dealer or your service partner directly.
5 Intended use
The refrigerator is designed for installation in trucks. It is recommended the unit is
installed into a fixed position. Once it is installed, only the front of the appliance may
be accessible.
The refrigerator is only suitable for cooling, freezing and storing foodstuffs. The
refrigerator is not intended for the proper storage of medicine.
!
Quantity Description
1 Refrigerator with shelves
1 Water drain outlet
1 Installation and operating manual
Description Explanation Ref. no.
Mounting
Frames
Flush-mount and standard mounting frames are available
for all CRX models.
Various
CAUTION! HEALTH HAZARD
Please check if the cooling capacity of the refrigerator is suitable for
storing the food you wish to cool.
CRX50-65-Truck-IO-US.book Seite 14 Donnerstag, 18. Oktober 2018 3:51 15

EN
CRX50, CRX65 Technical description
15
6 Technical description
The CoolMatic CRX series cooling appliances can cool products and keep them
cool. Products can be deep-frozen in the freezer compartment. If the refrigerator is
operated without a freezer compartment, frozen products can be stored in the short
term using the fast-cooling function.
All materials used in the refrigerator are compatible for use with foodstuffs.
The refrigerant circuit is maintenance-free.
The cooling device can withstand a short-term inclination of 30°.
The temperature is set using the control panel on the inside left of the refrigerator.
Four temperature ranges from +3 °C (37 °F)to+12°C(54°F),andafast-cooling
function, are available for selection.
6.1 Control elements inside the refrigerator
The various types of refrigerators are shown in the following illustrations:
• CRX50: fig. 1, page 3
• CRX65: fig. 2, page 3
No. Explanation
1 Freezer compartment
2 Control panel
3 Wire shelf (folding, so that bottles can be put in the refrigerator)
4Shelf
5 Crisper compartment
6 Bottle restraint
(to hold bottles in the door)
7 Compartment with lid (hinged)
CRX50-65-Truck-IO-US.book Seite 15 Donnerstag, 18. Oktober 2018 3:51 15

EN
Installing and connecting the refrigerator CRX50, CRX65
16

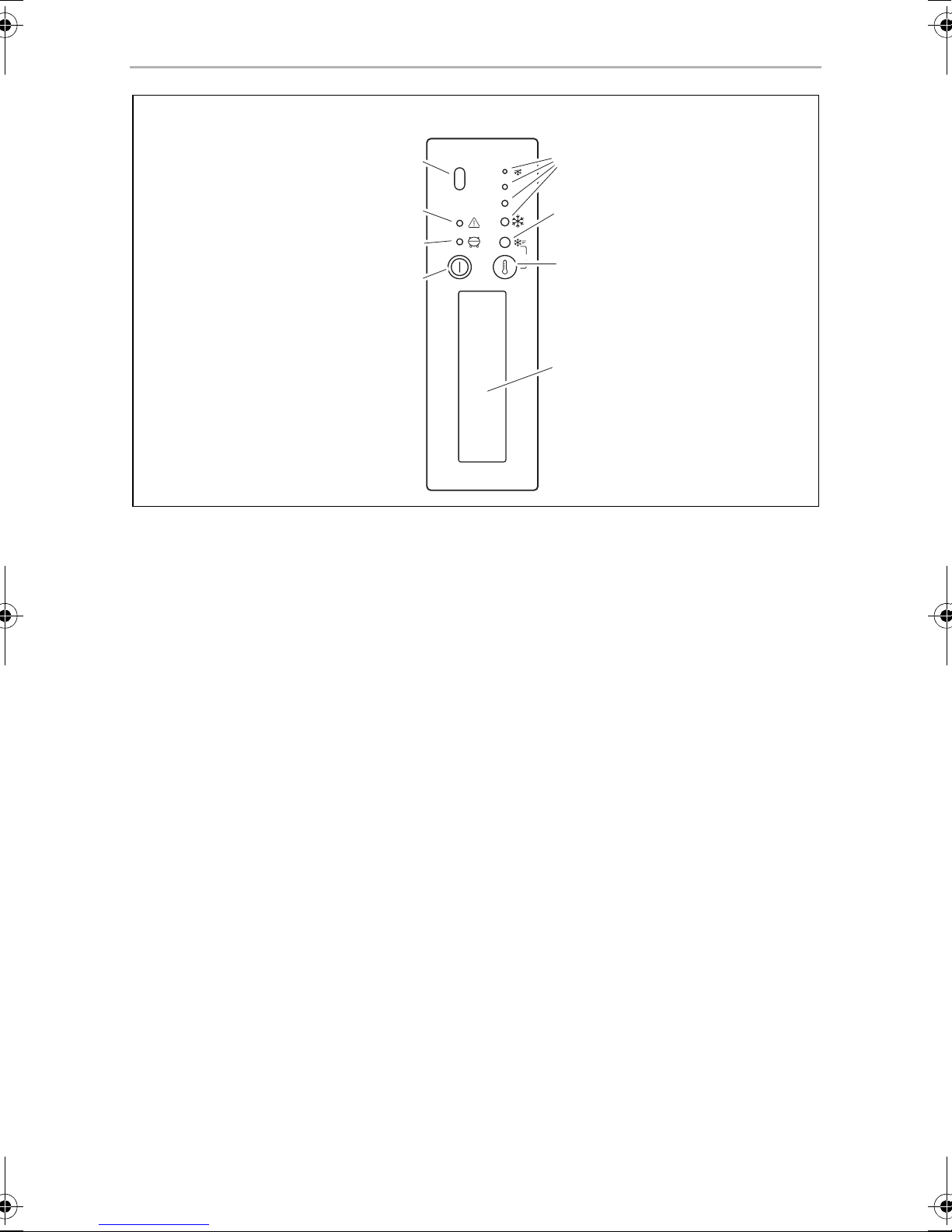

6.2 Control elements
7 Installing and connecting the
refrigerator
7.1 Notes on installing the refrigerator
Observe the following when installing the refrigerator:
• Install the refrigerator so that the warm air produced can easily flow away
(fig. 4, page 5).
Key for fig. 4, page 5
Observe the following installation dimensions:
No. in
fig. 3, page 4 Explanation
1 IR sensor for switching the interior light
2 LED Service display
3 LED Blue: Compressor is running
LED Orange: Compressor is off
4 On/off button
5 Inner lighting
6 Temperature selection button
7 LED: Fast cooling function on
8 LEDs: Temperature levels
No. Explanation
1 Exhaust air
2 Cold intake air
3 Condenser
Model Dimensions W x H x D (mm) Dimensions W x H x D (inch)
CRX50 390 x 544 x 550 15.35 x 21.42 x 21.65
CRX65 458 x 535 x 595 18.03 x 21.06 x 23.43
CRX50-65-Truck-IO-US.book Seite 16 Donnerstag, 18. Oktober 2018 3:51 15

EN
CRX50, CRX65 Installing and connecting the refrigerator
17
• Keep objects clear of openings in the housing or installation structure (such as
ventilation slots, etc.).
• Condensate is produced when the refrigerator is operating normally. You can
either wipe up the condensate on the floor of the refrigerator in regular intervals,
or drain it through a water drain outlet in the floor of the refrigerator (see chapter
“Mounting the water drain outlet (optional)” on page 17).

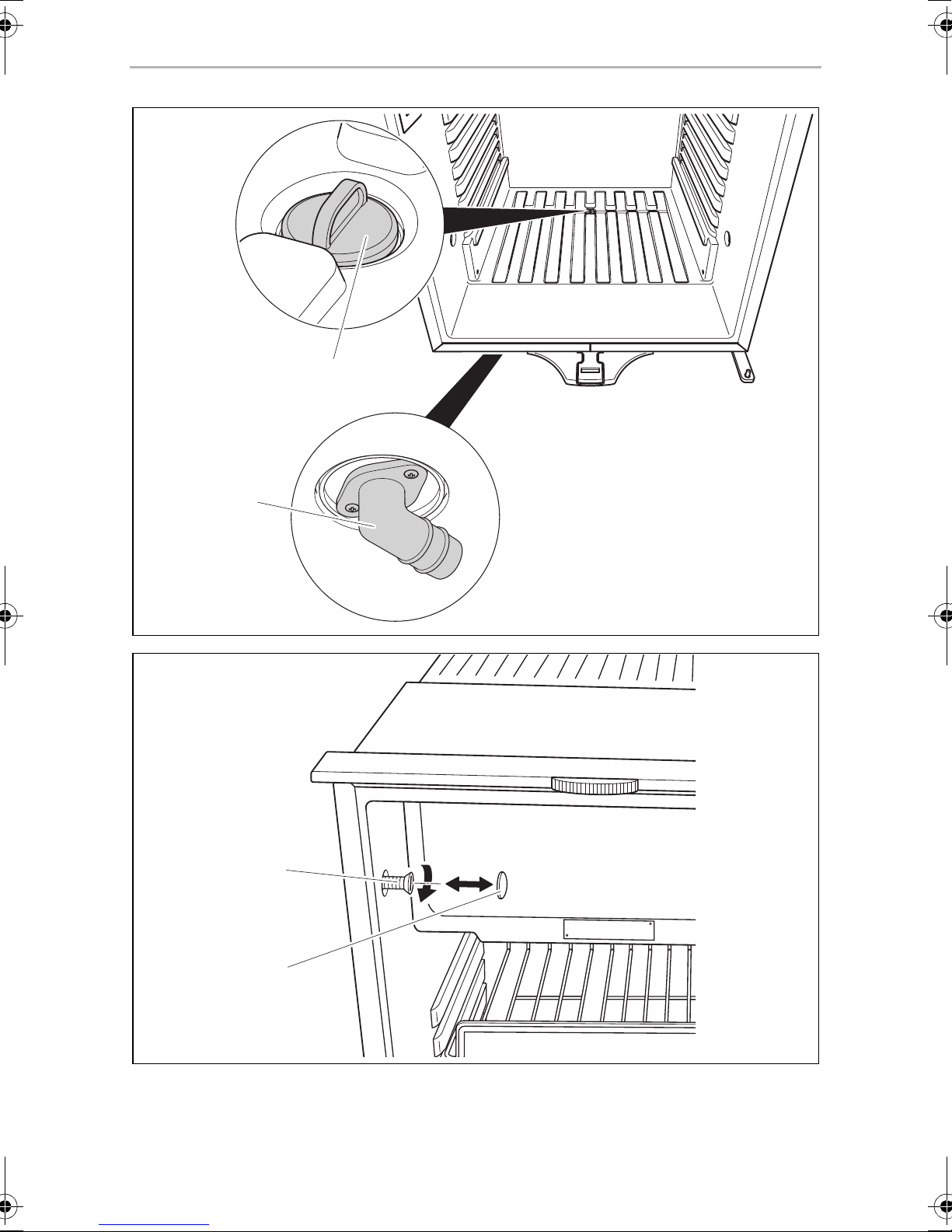

7.2 Mounting the water drain outlet (optional)
➤Connect a hose with an inside diameter of 10 mm (0.4 inch) (not included) to the
water drain outlet.
➤Lay the refrigerator on its side in order to access the bottom side.
➤Mount the water drain outlet (fig. 52, page 6) aligned to the front or to the
back according to the desired direction.
➤Remove the water drain plug (fig. 51, page 6) inside the refrigerator.
7.3 Installing the refrigerator
Proceed as follows to install the refrigerator:
➤If you wish to drain the condensate through a hose:
Mount the water drain port (see chapter “Mounting the water drain outlet
(optional)” on page 17)
➤Undo the transport lock (chapter “Releasing the lock” on page 22).
➤Open the refrigerator door.
➤Remove the blanking plugs (fig. 62, page 6).
➤Push the refrigerator into the recess.
➤Fix the refrigerator in place using suitable screws (fig. 61, page 6).
➤Press the blanking plugs (fig. 62, page 6) into the openings.

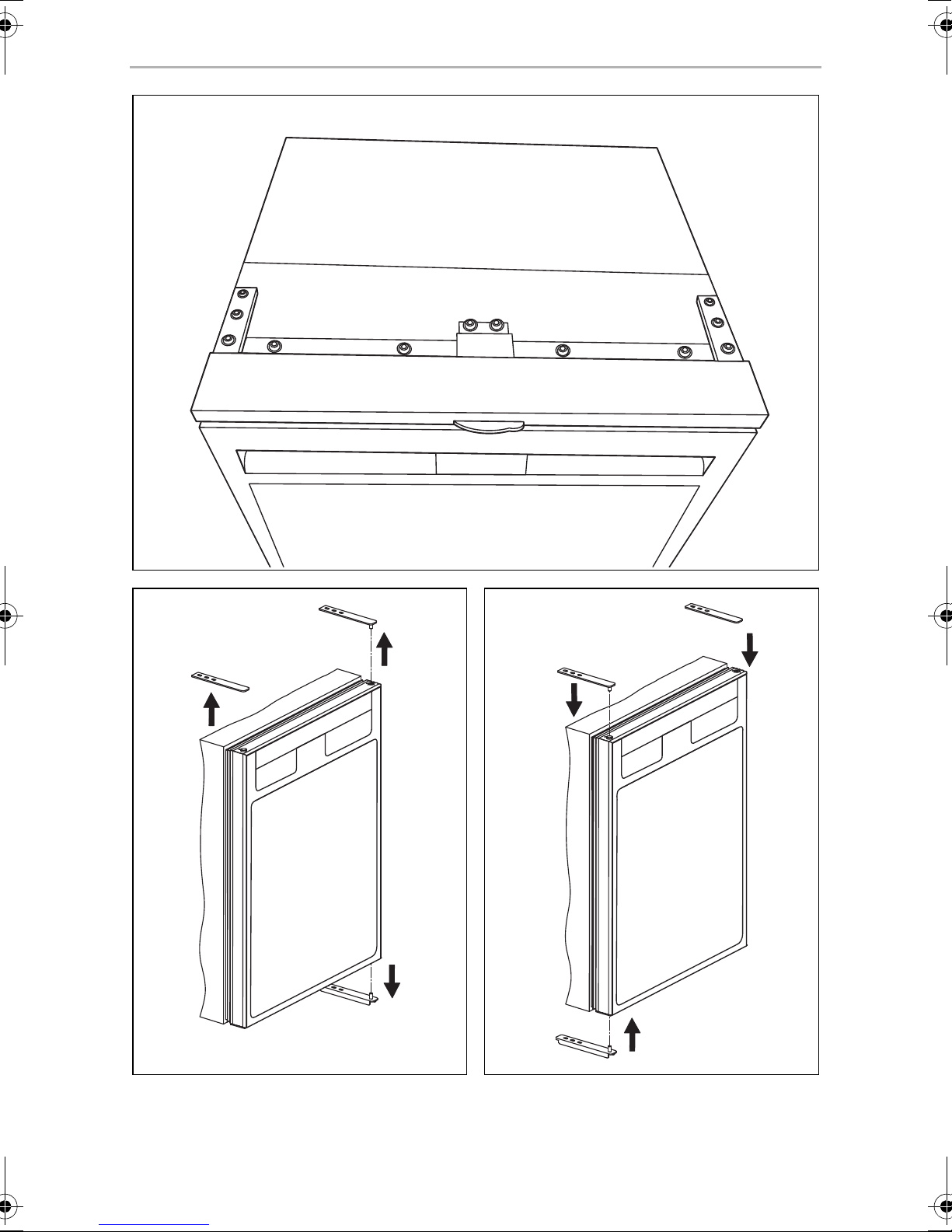

7.4 Changing the door hinge
You can also change the hinge of the door, so that it opens to the left rather than the
right.
➤Proceed as shown (fig. 7, page 7 to fig. 9, page 7).
CRX50-65-Truck-IO-US.book Seite 17 Donnerstag, 18. Oktober 2018 3:51 15

EN
Installing and connecting the refrigerator CRX50, CRX65
18
7.5 Connecting the refrigerator to DC voltage
A
The refrigerator can be operated with a 12 V or a 24 V DC voltage supply.
For safety reasons, the refrigerator is equipped with an electronic system to prevent
the polarity being reversed. This protects the refrigerator against reversed polarity
when connecting to a battery and against short circuiting.
The use of a load dump board installed on the compressor control module electron-
ics is mandatory. If one of the components has to be replaced handle them as one
unit. Always replace both components together.
To protect the battery, the refrigerator switches off automatically if the voltage is
insufficient (see table below):
➤Determine the required cross section of the cable in relation to the cable length
according to fig. 0, page 8.
Key to fig. 0, page 8:
A
NOTICE! MATERIAL DAMAGE
• To avoid voltage drops and loss of performance, keep the
connection cable as short as possible and directly connected from
the power source to the DC wire connection of the unit. Therefore
avoid additional switches, plugs or power strips.
• Disconnect the cooling device and all power source connections
from the battery before you connect the battery to a quick charging
device. Overvoltage can damage the electronics of the device.
12 V 24 V
Cut-off voltage 10.4 V 22.8 V
Cut-in voltage 11.7 V 24.2 V
Coordinate axis Meaning Unit
l Cable length m
∅Cable cross section mm²
NOTICE! MATERIAL DAMAGE
Make sure the polarity is correct.
CRX50-65-Truck-IO-US.book Seite 18 Donnerstag, 18. Oktober 2018 3:51 15

EN
CRX50, CRX65 Using the refrigerator
19
➤Before starting up the device for the first time, check whether the operating volt-
age and the battery voltage match (see type plate).
➤Connect your refrigerator to a plug socket which is fuse-protected at 15 A
(at 12 V) or 7.5 A (at 24 V) (fig. a1, page 8).
➤Connect the red cable (fig. ard, page 8) to the positive terminal of the battery.
➤Connect the black cable (fig. abk, page 8) to the negative terminal of the
battery.
8 Using the refrigerator
The refrigerator conserves fresh foodstuffs. The freezer compartment conserves
frozen foodstuffs and freezes fresh foodstuffs.
A
I
NOTICE! MATERIAL DAMAGE
• Do not place any electrical devices inside the cooler. The
only exceptions are devices approved for the purpose by the
manufacturer.
• Ensure that food or liquids in glass containers are not excessively
refrigerated. Liquids expand when they freeze and can therefore
destroy glass containers.
• Food may only be stored in its original packaging or in suitable
containers.
• Make sure that you only put items in the cooler which may be kept at
the selected temperature.
NOTE
• Before starting your new refrigerator for the first time, you should
clean it inside and outside with a damp cloth for hygienic reasons
(please also refer to the chapter “Cleaning and maintenance” on
page 23).
• Do not use force to press the flap of the freezer.
• Do not pull out the dividing wall if there is ice in the freezer.
• Do not remove the control panel membrane when operating the
refrigerator.
CRX50-65-Truck-IO-US.book Seite 19 Donnerstag, 18. Oktober 2018 3:51 15

EN
Using the refrigerator CRX50, CRX65
20
8.1 Energy saving tips
• Choose a well ventilated location which is protected from direct sunlight.
• Allow hot food to cool down first before you put it in the refrigerator.
• Do not open the refrigerator more often than necessary. If the door is left open for
more than 5 minutes, the light starts to flash.
• Do not leave the door open for longer than necessary.
• Defrost your refrigerator as soon as a layer of ice forms.
• Avoid unnecessarily low temperature settings.
• Clean dust and dirt from the condenser at regular intervals.
8.2 Switching on the refrigerator
➤Switch the refrigerator on by pressing the button.
I8
8.3 Setting the temperature
➤Press the button repeatedly until the desired temperature level is set. The
lower/largest LED is the coldest setting. The upper/smallest LED is the warmest
setting. To switch from the coldest level to the warmest level press the button
again.
I
NOTE
After switching on, the refrigerator needs some time before the
compressor starts up.
NOTE
The cooling performance can be affected by:
• The ambient temperature
• The amount of food to be conserved
• The frequency with which the door is opened.
If the ambient temperature is at 16 °C (61 °F) to 20 °C (68 °F), set the
refrigerator to at least level 2.
CRX50-65-Truck-IO-US.book Seite 20 Donnerstag, 18. Oktober 2018 3:51 15
