Dometic Rooop Tents and Awnings
Operating Manual
TRT140M, TRT120E , TCA100, TMA100

2

3
Operating Manual 4
Safety ......................................................................................... 4
Scope of delivery ......................................................................... 4
Important information................................................................... 5
Product Overview ........................................................................ 5
Intended use ............................................................................... 5
Installing the roof tent ................................................................... 6
Installation material ...................................................................... 8
Setting up the roof tent ................................................................. 9
Important information.................................................................. 11
Installation material .....................................................................12
Operation ..................................................................................13
Main technology and functions .....................................................13
Technical performance and characteristics of the motor ....................14
Tips and tricks.............................................................................14
Important information..................................................................14
Maintenance ..............................................................................14
Tool bag.....................................................................................16
Ladder .......................................................................................16
Power cable................................................................................16
Disassembly of the rooop tent.....................................................17
Technical data.............................................................................17
TCA100......................................................................................18
TMA100 .....................................................................................18
Set up ........................................................................................19
Disassembly .............................................................................. 20
Storage......................................................................................21
Warranty ................................................................................... 22
Disposal.................................................................................... 22
Copyright.................................................................................. 22

4
Operating Manual
Safety
• Before installing your roof tent check your vehicle and roof rack manufacturer’s
instructions to ensure sufficient load capacity including both the tent and intended
occupants.
• We recommend that you DO NOT transport your roof tent over 110 km/h and always keep to
the speed limits.
• At the beginning of each trip and at regular intervals during each trip, check that your roof
tent is firmly attached to your roof racks and that all so belts are securely fastened. Always
check your roof tent is in a safe and appropriate place.
• DO NOT use your roof tent if any part or any of its components is visibly damaged, particular-
ly the so straps and buckles. In such situations, please contact us for assistance.
• Please note that unsecured loads and incorrectly mounted roof racks can be lost during the
journey. This can lead to serious accidents.
• Be sure to adjust your driving behaviour (e.g. crosswind sensitivity, cornering, and braking
behaviour) to accomodate the change in vehicle height.
• The vehicle and roof rack manuals must always be kept with you.
• Do not use cleaning fluids containing bleach, alcohol or ammonia.
Please note the following points when using your roof tent:
• The height of your vehicle can increase by up to 90 cm (depending on your roof racks).
• Beware of low entrances, low hanging branches, etc.
• Wind noise may occur when driving with a roof tent.
• When using an automatic car wash, your roof tent must be removed first.
• In addition to these instructions for use, you should also follow the installation instructions
for your roof rack and the operating instructions for your vehicle.
• For reasons of fuel economy and the safety of other road users, your roof tent and roof rack
should be removed when not in use.
• For your safety, you should only use tested (e.g. GS-tested) roof racks that are approved for
use in conjunction with your vehicle.
• To avoid creating excessive liing force, your roof tent should be mounted parallel to the
road line and not at an angle.
• When climbing in and out of your roof tent, always use the ladder with caution and never let
children use it unsupervised. Make sure the ladder hooks are in good condition. Contact us
if you need replacements.
• Do not allow open flames in or near your roof tent.
Scope of delivery
Please check the contents for completeness using the delivery document.
1x Pre-assembled roof tent
1x Set mounting material
1x Instruction manual
Please make sure to use a suitable roof rack before mounting.

5
Important information
The manufacturer is not liable for damage or accidents resulting from non-observance of these
operating instructions, changes to parts, or the use of parts other than the manufacturer’s
original parts.
The warnings, cautions and instructions in this document cannot cover every imaginable situa-
tion, so it is the user’s responsibility to exercise common sense and caution.
It is your responsibility to pass these instructions on to third parties using this roof tent, includ-
ing second-hand sales.
Product Overview
TRT140M TRT120E
The manual car roof tent can easily be
erected and dismantled in minutes, using the
stretcher poles, by 2 people.
With the wireless remote control, the tent can
be erected and dismantled in seconds.
The lightweight and dismountable design
allows two adults to mount the tent.
The entire frame is made of aluminium alloy,
with parts of the joints made of strong nylon.
Two-layer construction with silver coating
on outer fly for better thermal insulation and
waterproofing.
5 cm thick so foam mattress provides the
comforts of home.
The product uses lightweight aluminum alloy
for the frame, strong nylon for joints, stainless
steel for transmission elements.
100% waterproof and silver coated fabric.
5 cm thick so foam mattress provides the
comforts of home.
Intended use
The roof tents are intended for use on passenger cars. Assembly may only be carried out aer
reading these instructions.

6

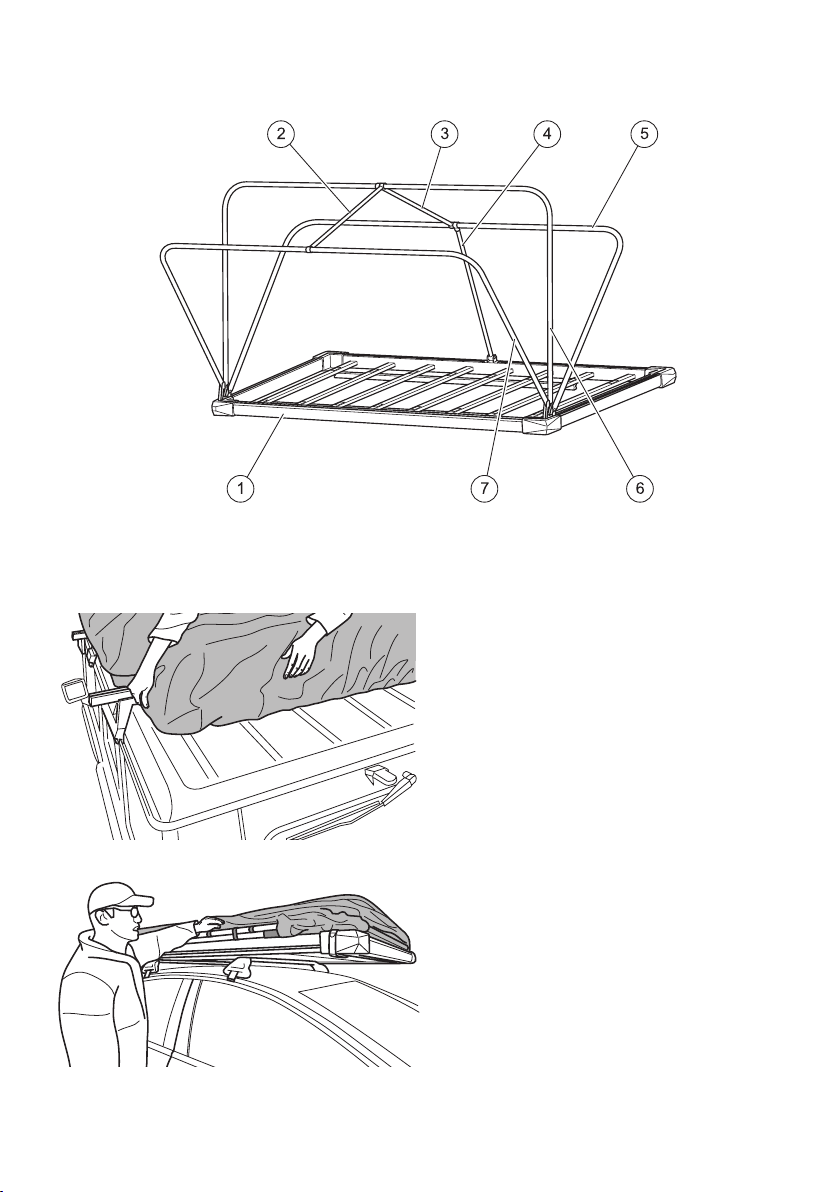

Installing the roof tent
(1) Rack (2) Rail (3) Base frame (4) U-shape bracket
1. You must have roof racks correctly fitted to
your vehicle before installing the roof tent.
2. Ensure when placing the rooop tent
on your car roof that you share the load
across both racks.

7
3. Adjust the tent to the roof’s centre, ensu-
ring the rear door can be opened/closed.
4. Slide the M8X50 hexagon bolt into the
rails from both sides, ensuring you have
positioned 8 in total (see Picture 1). Repla-
ce the plastic covers of your roof racks (see
Picture 2).
5. Use the plastic nut, flat, and split washer
to fix the M8X50 hexagon blot and
U-shaped bracket in place to all 4 corners
(see Picture 3).
Picture 1 Picture 2
Picture 3 Picture 4

8
TRT140M
Installation material
Plastic nuts M8X50 Hexagon bolt
M8 flat washer / M8 split washer Rail cap
U-shape bracket

9

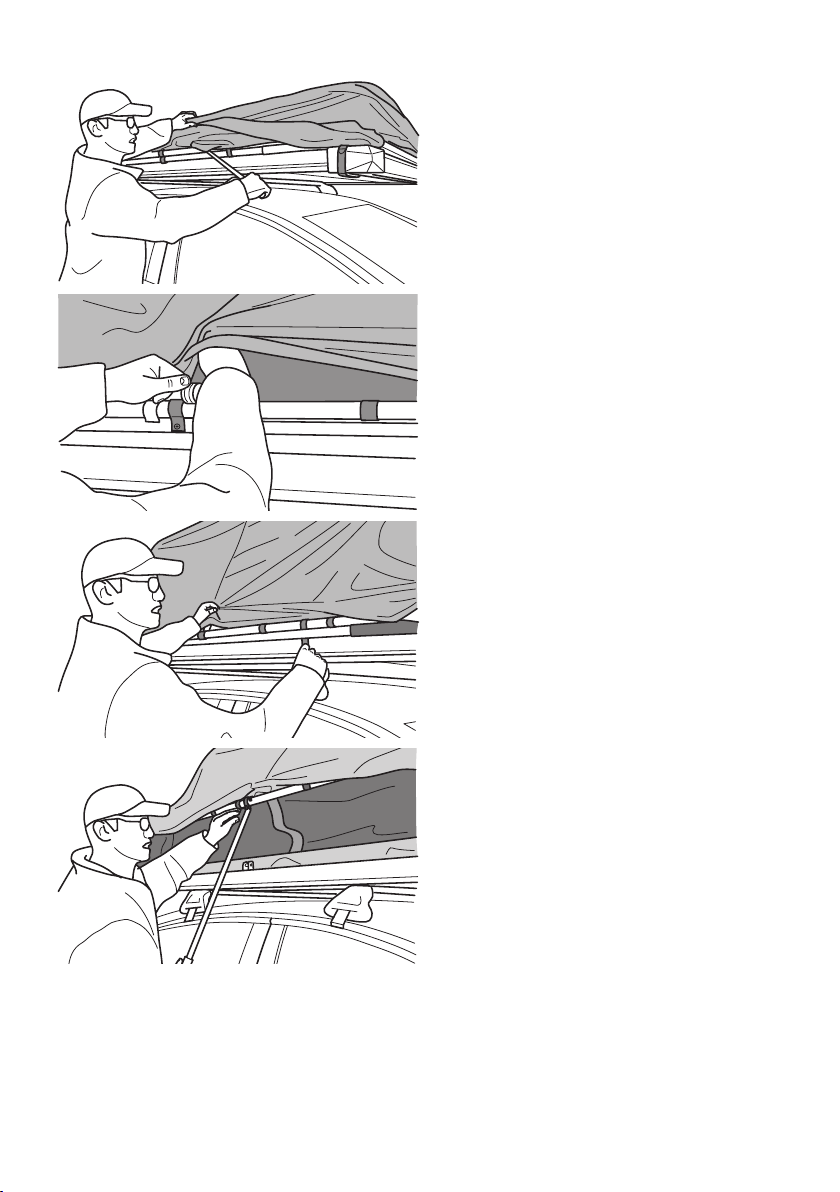

Setting up the roof tent
(1) Base (2) Stretcher pole (3) Stretcher pole (4) Stretcher pole
(5) U-shaped pole (6) U-shaped pole (7) U-shaped pole
1. Remove the tent’s PVC cover.
2. Find stretcher pole (3).

10
3. Li stretcher pole (3).
4. Connect stretcher pole (3) with u-shaped
pole (5).

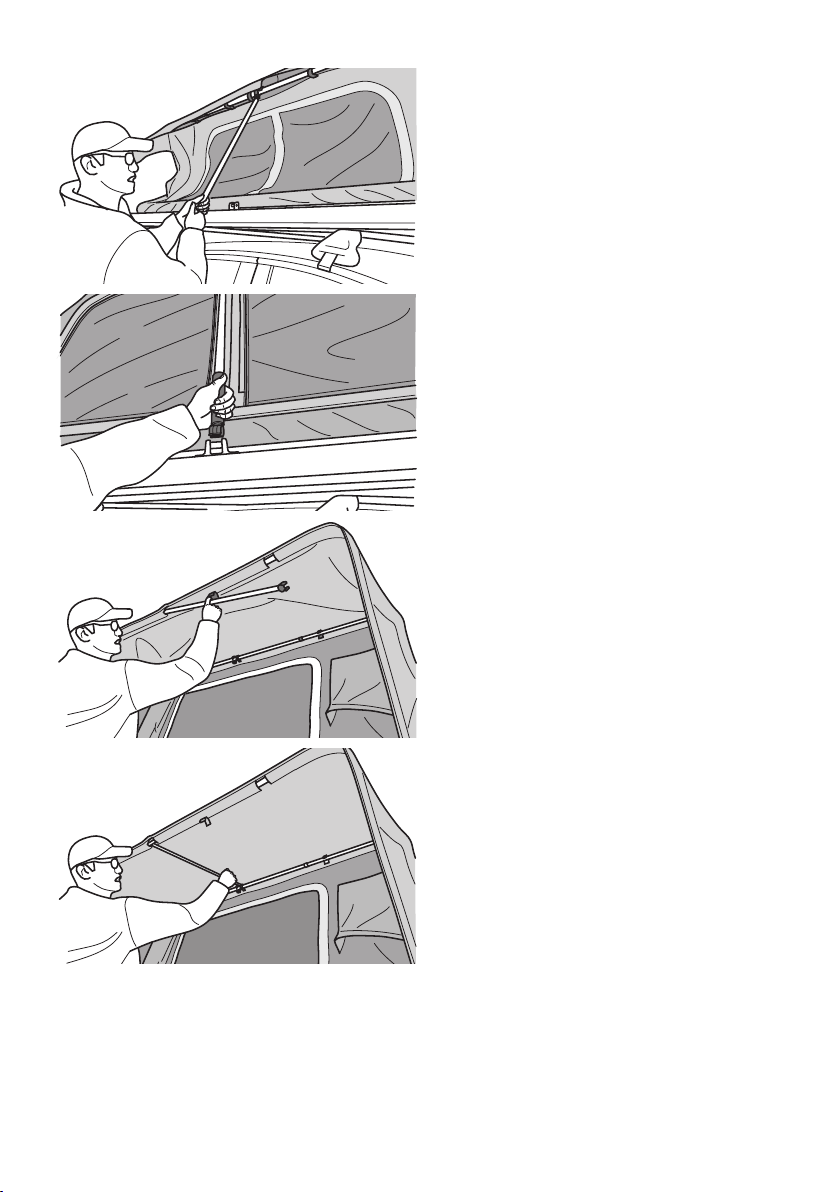

5. Find stretcher pole (4).
6. Li stretcher pole (4).

11
7. Connect stretcher pole (4) with the base.
8. Take out stretcher pole (2), which is loca-
ted in front of the u-shaped pole (6).
9. Connect it with u-shaped pole (6). The
tent is set up and ready now.
10. Reverse operation to fold down the tent.
Important information
If your roof tent will not open, check the following:
• Check the stretcher poles are stucked by fabric or not.
• Check the joints or connect parts are damaged or not, if yes, replace it damaged part.

12
TRT120E
Installation material
Plastic nuts M8X50 Hexagon bolt
M8 flat washer / M8 split washer Rail cap
U-shape bracket

13

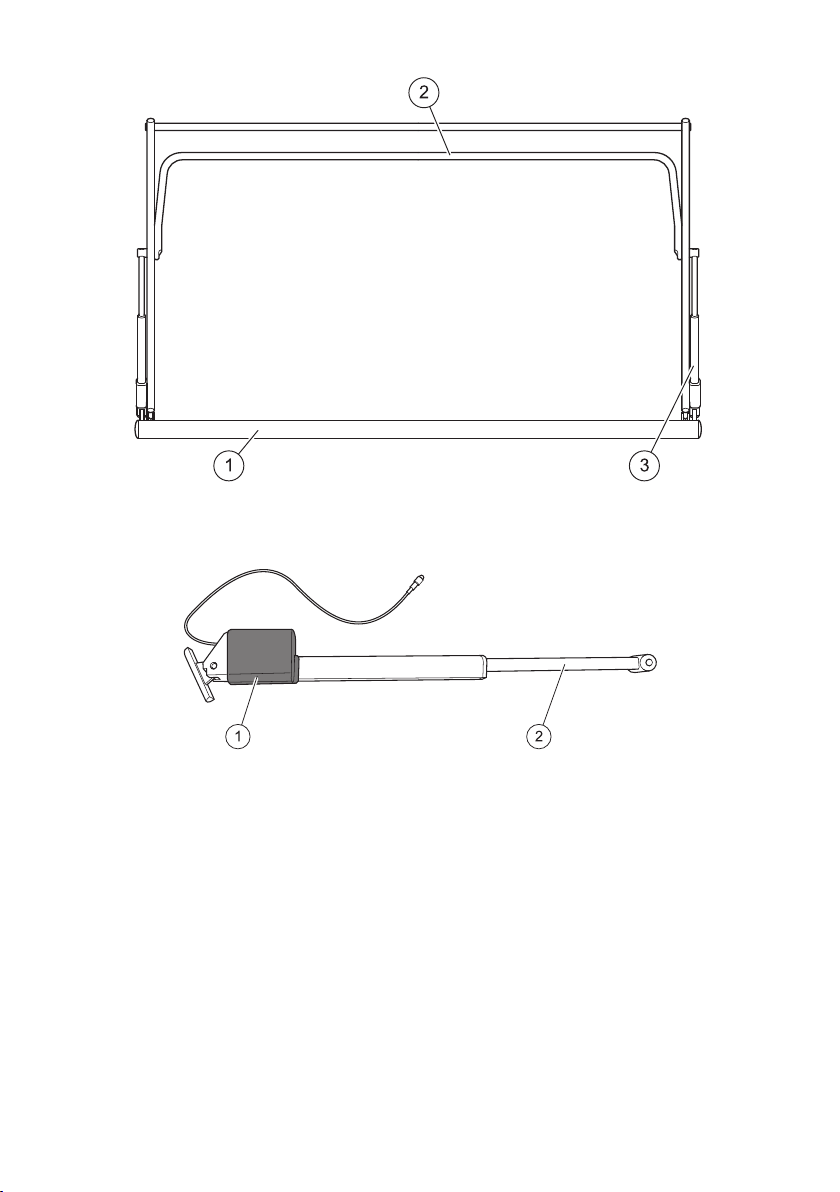

(1) Base frame (2) Pole support system (3) Motorized pushing rod
(1) Motor (2) Push rod
Operation
1. Remove the tent cover.
2. Insert power cable into cigarette lighter.
3. Make sure power is available. Press the “UP” button to set up the tent.
4. Make sure no other objects are in the tent. Press the “DOWN” button to fold down the tent.
5. Press the “STOP” button to stop.
6. Make sure the tent is folded completely. Then attach the cover.
Main technology and functions
• Erection and dismantling of the tent by motorised push rod.
• Wireless remote control.
• The motor is switched off when the pushrod is fully opened or fully closed.

14
Technical performance and characteristics of the motor
• Rated voltage: 12 VDC Power: 20 W
• Wireless remote control
• The erection and dismantling of the tent takes about 50 seconds.
• Motors equipped with overheat protection.
Tips and tricks
• Always ensure the tent is dry before packing away.
• Keep the rail of base clean.
• Ensure ladder is always locked into place and angled away from vehicle.
• Pack the tent down well when driving.
Important information
If your roof tent will not open using the push rods, replace the motor push rods with the sup-
plied two spare poles:
1. Use suitably sized hex key and wrench to
remove motor push rods from both sides.
2. Take the two 92 cm spare poles from the
pocket at the bottom side of the tent.
3. Insert the spare poles instead of the motor
push rods.
Maintenance
• Care for seams and zippers with suitable care products.
• Always ensure good ventilation to avoid moisture.
• Use only lukewarm water and a so brush for cleaning.
• Avoid chemicals, soap and detergents.
• When folding down and covering the tent, make sure the tent is dry.
• If the aluminum frame contains water, erect it to pour out the water.
• Keep the push rod of the motorize pushing rod clean by wiping it with a clean dry cloth.

15
Notice
• Keep the side window open, when you set up or fold down the tent.
• Make sure there is no other object inside the tent, when you set up or fold down the tent,
such as a sleeping bag, pillow etc.
• Do not press the pole when the tent is folded down. This will damage the pole.
• When installing the tent onto the roof of the vehicle. Inspect that all bolts are sufficiently
secure.
• Make sure the tent is folded down and covered, when you drive.
• Do not disassemble attempt repair of the electric motor or push rod.
• Do not fold down during storms or heavy rain.
• Keep the remote control dry.
• Do not pitch the tent if it is very windy or stormy.
• If you notice any noise when erecting or folding down the tent, inspect the pole and joints
immediately.

16

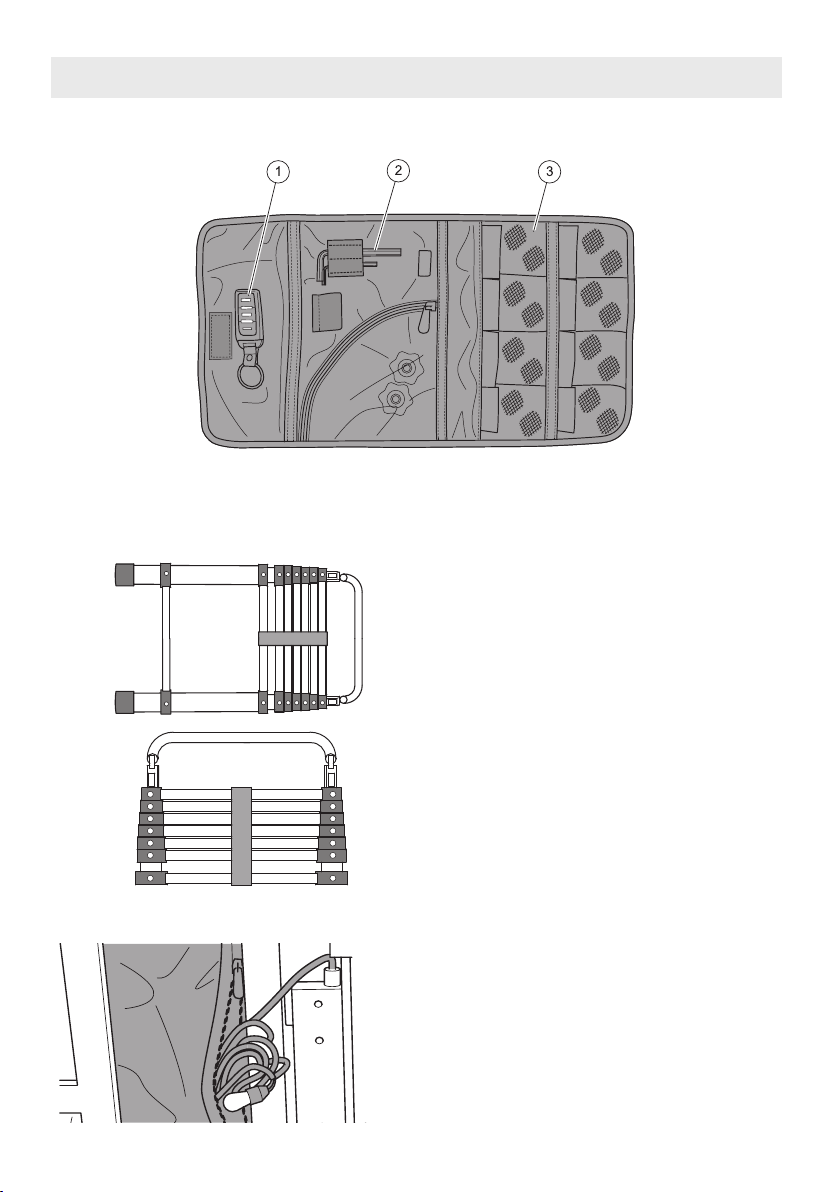

Tools
Tool bag
(1) Remote control (2) Two L-shaped hexagonal wrenches (3) Screws and washers
Ladder
Fit the ladder to the tent frame.
Use the strap to tie down ladder for storage.
Power cable
The power cable can be placed in the pocket
beside the door for storage.

17
Disassembly of the rooop tent
1. Remove all objects from the roof tent (sleeping bag, pillow, etc.).
2. Loosen the stretcher poles.
3. Open the side windows.
4. Fold up the roof tent. Press the tent walls inwards carefully.
5. Attach the tent cover.
Technical data
TRT140M
Fly 210 Drip-stop polyoxford PU 2000 mm with silver coating UPF 50+
Inner tent 190 g polycotton PU 2000 mm
Frame aluminium alloy
Tent cover 600 g/m² Heavy PVC
Mattress 5 cm Foam mattress
Ladder Foldable aluminium ladder
Size Inner tent size: 200 (L) x 140 (W) x 75 / 120 (H) cm
Outer tent size: 217 (L) x 154 (W) x 95 / 143 (H) cm
Packing size: 225 x 30 x 162 cm
N.W. : 56 kg (Including Ladder)
G.W. : 71 kg
TRT120E
Fly 210 g Drip-stop polyoxford PU 2000 mm with silver coating UPF 50+
Inner tent 190 g Drip-stop polycotton PU 2000 mm
Floor 210 g polycotton PU 2000 mm
Tent cover 600 g/m² PVC UPF 50+
Mattress 5 cm high densityfoam mattress
Frame aluminium alloy
Technology Wireless remote control
Size Inner tent size: 200 (L) x 120 (W) x 100 (H) cm
Packing size: 225 (L) x 140 (W) x 30 (H) cm
Packing size: 225 x 30 x 142 cm
N.W. : 49.5 kg (excl. ladder)
G.W. : 65 kg

18

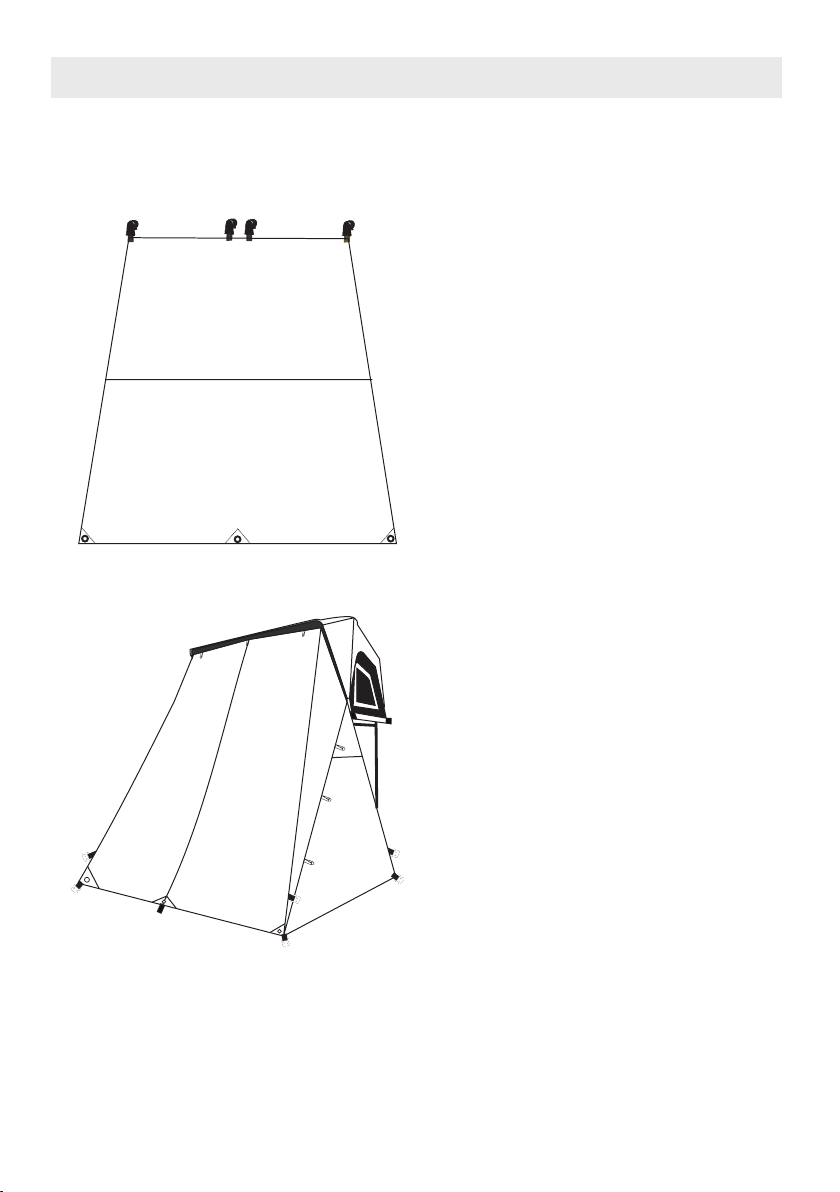

Awnings
Select the orientation of the vehicle so that the entrance of the roof tent and the assembly of the
awning are positioned from the side facing away from the wind.
TCA100
The awning is attached to the poles of the
roof tent with loops. Aer the awning has
been fastened and aligned, it is secured to
the ground with pegs.
TMA100
The awning is attached to the poles of the
roof tent with clips. Aer the awning has
been fastened and aligned, it is secured to
the ground with pegs.
Observe the following assembly instructions.

19

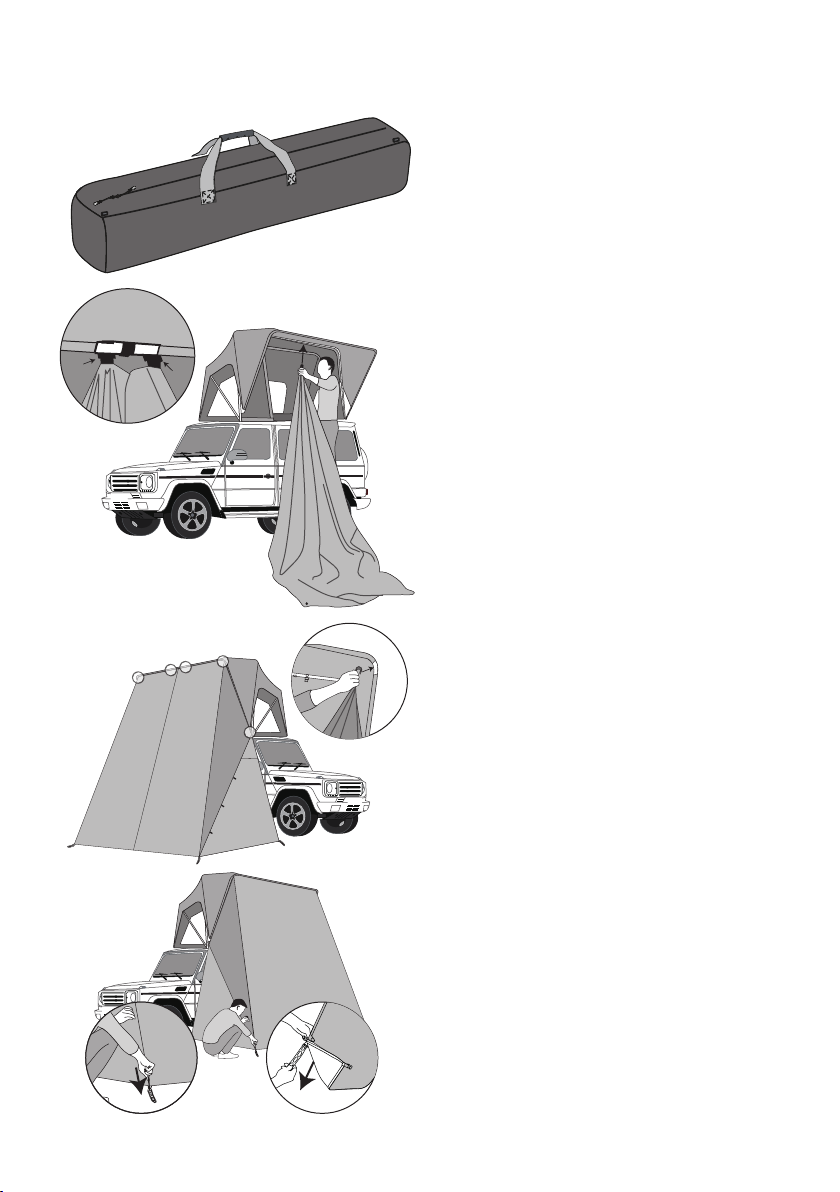

Set up
1. Take the awning out of the carry bag.
2. Clip the awning onto the pole of the roof
tent from the middle to the two sides.
• Adjust the length of the adjustable buckles.
3. Clip the awning onto the u-shaped pole
on the front.
• Adjust the length of the adjustable buckles.
4. Use pegs to tie down awning.

20
5. The awning can be rolled up from the
middle and two sides, and clipped onto
the roof.
6. Put the guy-line on.
7. Set up the awning as a canopy.
Disassembly
1. Take down the poles and the guy-line.
2. Unclip the awning.
