Dometic PRO TRIM PT1000-2 User manual

STEERING SYSTEMS
PRO TRIM
Revision 0 Form No. IS-PT1000/2000-2 04/21 | ©2021 Dometic Corporation
WARNING
Cancer and Reproductive Harm
www.P65Warnings.ca.gov
INSTALLER: THESE INSTRUCTIONS CONTAIN IMPORTANT SAFETY INFORMATION
AND MUST BE FORWARDED TO BOAT OWNER.
PT1000-2 and PT2000-2
EN PRO TRIM™ Single/Dual Bezel
Switch Assembly
Installation Manual.....................2

2EN
Contents PRO TRIM™ Single/Dual Bezel Switch Assembly
1 Explanation of Symbols and Safety
Instructions ............................ 2
1.1 Recognize Safety Information .............2
1.2 Understand Signal Words................2
1.3 Supplemental Directives .................3
1.4 General Safety Messages ................3
2 Intended Use ........................... 3
3 General Information ..................... 3
3.1 Compatibility ..........................3
3.2 Components List .......................4
4 Wiring Diagram......................... 4
5 Installation ............................. 4
5.1 Mounting on an Xtreme or No Feedback
(NFB) Rotary Steering System (Non-Tilt) .....5
5.2 Mounting on a Rack Steering System
(Non-Tilt) .............................6
5.3 Mounting on a Performance Tilt Steering
System ...............................8
5.4 Mounting on a SeaStar or SeaStar Pro
Hydraulic Steering System ..............10
5.5 Wiring the Connections to the Marine
Craft Device .......................... 11
5.6 Testing the Installation..................12
6 Final Adjustments ...................... 12
6.1 Reinstalling the Steering Wheel ..........12
6.2 Adjusting the Lever Distance ............12
7 Disposal .............................. 12
8 Warranty Information................... 13
Contents
Service Center & Dealer Locations
Visit: www.dometic.com
Please read these instructions carefully and follow all instructions,
guidelines, and warnings included in this product manual in order to
ensure that you install, use, and maintain the product properly at all
times. These instructions MUST stay with this product.
By using the product, you hereby confirm that you have read
all instructions, guidelines, and warnings carefully and that you
understand and agree to abide by the terms and conditions as set
forth herein. You agree to use this product only for the intended
purpose and application and in accordance with the instructions,
guidelines, and warnings as set forth in this product manual as well
as in accordance with all applicable laws and regulations. A failure
to read and follow the instructions and warnings set forth herein may
result in an injury to yourself and others, damage to your product,
or damage to other property in the vicinity. This product manual,
including the instructions, guidelines, and warnings, and related
documentation, may be subject to changes and updates. For up-to-
date product information, please visit www.dometic.com.
1 Explanation of Symbols and
Safety Instructions
This manual has safety information and instructions to
help you eliminate or reduce the risk of accidents and
injuries.
1.1 Recognize Safety Information
This is the safety alert symbol. It is used to alert
you to potential physical injury hazards. Obey all
safety messages that follow this symbol to avoid
possible injury or death.
1.2 Understand Signal Words
A signal word will identify safety messages and property
damage messages, and also will indicate the degree or
level of hazard seriousness.
DANGER!
Indicates a hazardous situation that, if not avoided,
will result in death or serious injury.
WARNING
Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
CAUTION
Indicates a hazardous situation that, if not avoided,
could result in minor or moderate injury.
NOTICE: Used to address practices not related to
physical injury.
IIndicates additional information that is not related
to physical injury.

3
EN
PRO TRIM™ Single/Dual Bezel Switch Assembly Intended Use
1.3 Supplemental Directives
To reduce the risk of accidents and injuries, please
observe the following directives before installing this
product:
• Read and follow all safety information and instructions
• Read and understand these instructions before
installing this product
• The installation must comply with all applicable local
or national codes, including the latest edition of the
following standards:
U.S.A.
– ANSI/NFPA70, National Electrical Code (NEC)
– American Boat and Yacht Council (ABYC)
1.4 General Safety Messages
WARNING: ELECTRICAL SHOCK OR FIRE
HAZARD. Failure to obey the following
warnings could result in death or serious
injury:
• Use only Dometic replacement parts and
components that are specifically approved for use
with the product.
• Avoid improper installation, adjustment, alterations,
service, or maintenance of the product.
• Do not modify this product in any way. Modification
can be extremely hazardous.
2 Intended Use
The PRO TRIM™ Single/Dual Bezel Switch Assembly
(hereinaer referred to as “switch assembly” or
“product”) is designed and intended for installation on
a SeaStar Solutions/Dometic steering helm on a marine
cra.
The manufacturer accepts no liability for damage in the
following cases:
• Faulty assembly or connection
• Damage to the product resulting from mechanical
influences and excess voltage
• Alterations to the product
• Use for purposes other than those described in the
operating manual
Dometic Corporation reserves the right to modify
appearances and specifications without notice.
3 General Information
NOTICE: Use only the hardware provided. Do not
substitute.
These instructions describe how to install the switch
assembly onto the steering helm of a compatible marine
cra.
3.1 Compatibility
Before beginning the installation, take a moment to
identify your steering system to be sure it is compatible
with the switch assembly.
Compatible Steering
Systems1
Non-Compatible
Steering Systems
Xtreme™ Rotary Steering
Systems (Tilt and Non-tilt)
N/A
No Feedback™ (NFB) Rotary
Steering Systems (Tilt and
Non-tilt)
Big T
No Feedback™ (NFB) Rack
Steering Systems (Tilt and
Non-tilt)
N/A
Rack Steering Systems, 1984–
Present (Tilt and Non-tilt)
Rack Steering Systems
Before 1984
Optimus™ Tilt Steering
Systems
N/A
SH91800 and SH91900 Tilt
Steering Systems
N/A
HH4314-3 BayStar™ Steering
Systems, 2007–Present
BayStar Kits Before 2007
SeaStar™ Hydraulic Helms,
1991–Present (Tilt and Non-tilt)
SeaStar Hydraulic Helms
Before 1991
SeaStar Pro™ Hydraulic Helms
(Tilt and Non-tilt)
N/A
1If your steering system is not listed, please call Dometic Technical Support

4EN
Wiring Diagram PRO TRIM™ Single/Dual Bezel Switch Assembly

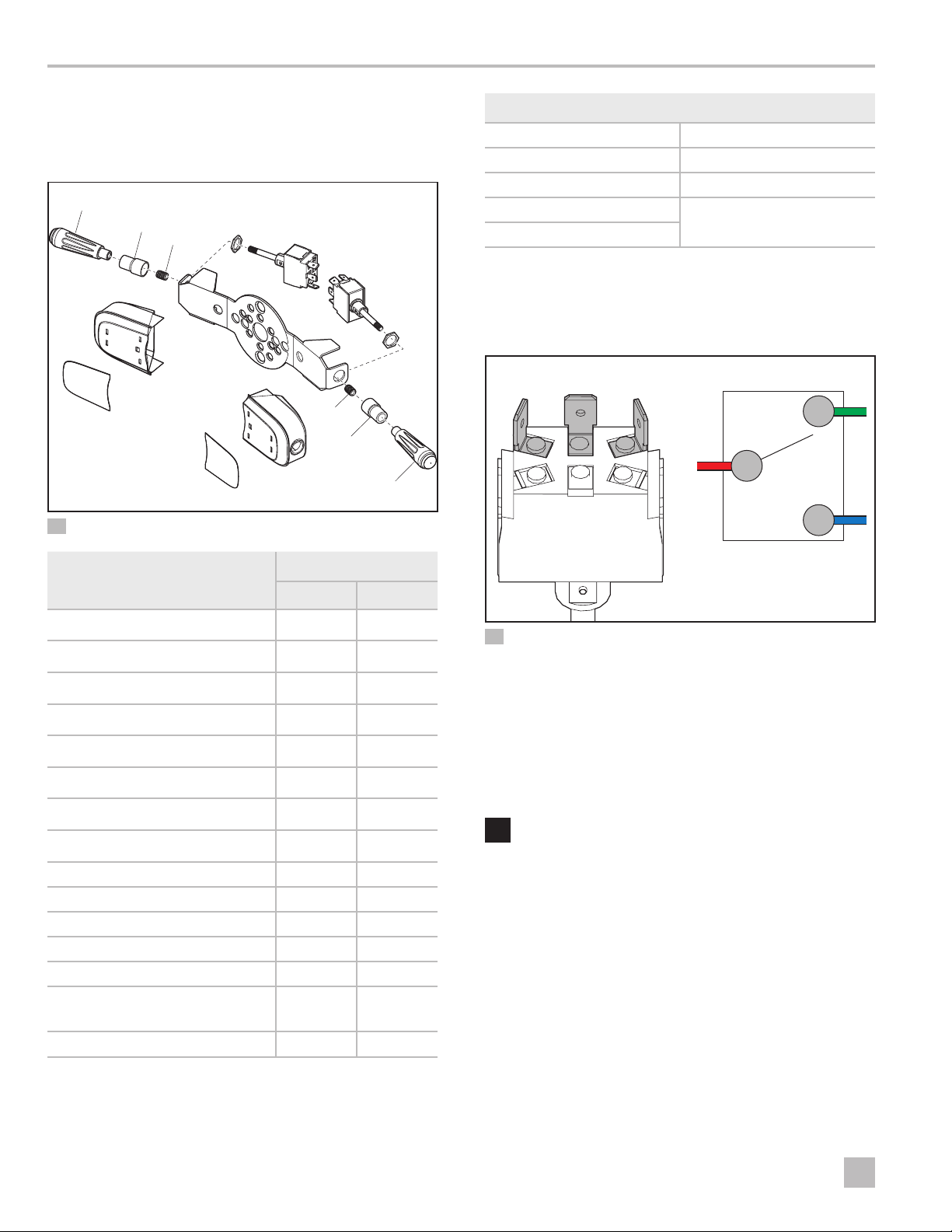

3.2 Components List
IThe images used in this document are for reference
purposes only.
q
w
e
r
i
r
i
e
y
y
t
u
t
u
1 Parts List
Included Parts Quantity
PT1000-2 PT2000-2
qBracket 1 1
wToggle Switch 1 2
eHex Lock Nut 1 2
rCover 1 2
tKnurled Face Nut 1 2
yBoot 1 2
uOperating Lever 1 2
iDecal Set 1 1
*Wire Harness 1 2
*5/8 in. Flat-Head Screw 2 2
*7/16 in. Flat-Head Screw 3 3
*#8-32 Lock Nut 2 2
*5/8 in. Self-Tap, Flat-Head Screw 2 2
*8/32 x 1/2 in. Self-Tap, Flat-
Head Screw
2 2
*Butt Connector 3 6
*Items not shown
Recommended Tools
Phillips Screwdriver Electrical Tape
Crimping Tool 3/16 in. Drill Bit (Optional)
Socket Wrench Drill (Optional)
Wrench Needle Nose Pliers
(Optional)
Flat-Bladed Screwdriver
4 Wiring Diagram
This section shows the wiring diagram for the switch.
w
w
q e q
e
2 Switch Wiring Diagram
qTop Terminal (Green Wire) (Down)
wCenter Terminal (Red Wire) (Power)
eBottom Terminal (Blue Wire) (Up)
5 Installation
CAUTION: ELECTRICAL SHOCK HAZARD
If drilling through the dash, be sure that the drill
will not interfere with any objects such as wires,
instrumentation, or brackets on the inside of the
dash. Failure to obey this caution could result in
minor or moderate injury and property damage.
Follow the appropriate section for your steering system
for the installation instructions.

5
EN
PRO TRIM™ Single/Dual Bezel Switch Assembly Installation
5.1 Mounting on an Xtreme or No
Feedback (NFB) Rotary Steering
System (Non-Tilt)
w
q
3 Xtreme and NFB Rotary Steering System Bezels
qNFB and
Xtreme Bezel
(90°Orientation)
wNFB Bezel
(20°Orientation)
The helm of the Xtreme Rotary Steering System (2012–
present non-tilt) and the NFB Steering System (1990–
present non-tilt) can be identified by the plastic bezel
(trim piece) through which the steering wheel sha
passes.
1. Remove the steering wheel and retain the hardware
for use during reinstallation. Refer to your steering
system and wheel manufacturer instructions to
ensure proper removal of the steering components.
q
q
4 Rotary Steering System Drill Locations
qRotary Steering System Drill Locations
2. Place the switch assembly bracket against the plastic
bezel and mark the holes indicated in Figure 4.
3. Drill two 3/16 in. diameter holes where marked on
the plastic bezel.
IIf your bezel already has recessed holes at these
locations, then no drilling of the bezel is necessary.
q
q
w
w
5 Rotary Steering System Wire Passage—Options 1 and 2 Holes
qOption 1 Holes wOption 2 Holes
4. Provide a passageway for the wires to the inside or
underside of the dash. This can be done one of three
ways:
Option 1. Allow the wires to pass through the dash
while concealed by the bezel:
a. Drill one or two 3/8 in. diameter holes
(one required for single switch; two
required for dual switch) in the beveled
face of the bezel.
b. Drill 3/8 in. diameter holes in the dash.
Option 2. Allow the wires to pass through the dash
and not be concealed by the bezel. Drill
one or two 3/8 in. diameter holes (one
required for single switch; two required for
dual switch) through the dash.
Option 3. Allow passage of the wires underneath the
dash. Drilling holes is not required.
IIf installing a single switch, be sure the hole(s) is
drilled on the side the switch lever will be installed.
5. Attach the wires to the switch; red wire to the center
terminal, green wire to the top terminal, and blue
wire to the bottom terminal (see Figure 2).

6EN
Installation PRO TRIM™ Single/Dual Bezel Switch Assembly
e
q
w

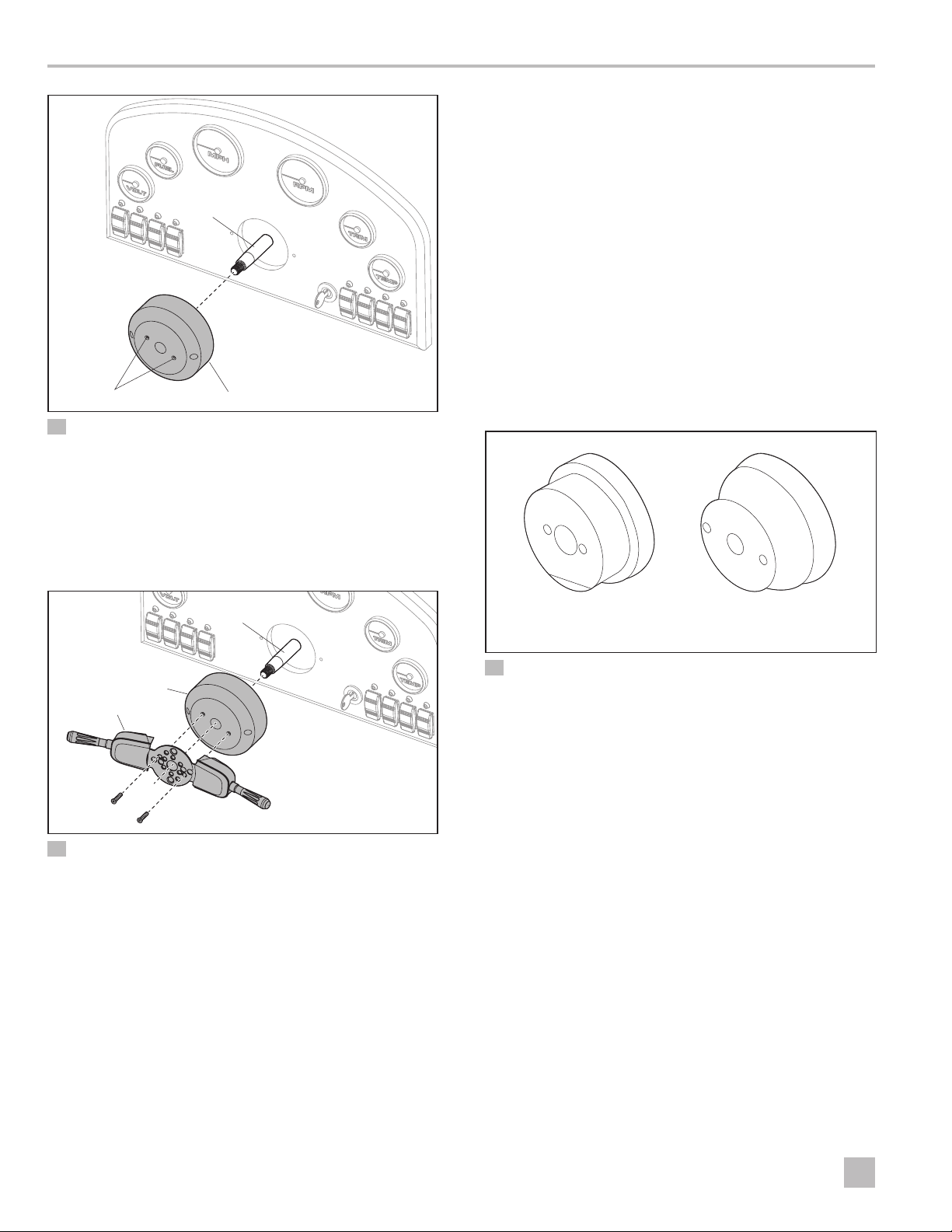

6 Remove the Bezel
qBezel eSteering Wheel Sha
wCountersunk Holes
6. Remove the bezel from the steering wheel sha,
taking care to leave the attachment screws in the
countersunk holes in the bezel.
r
q
w
e
7 Attach the Bezel
qBezel eScrews
wSwitch Assembly rSteering Wheel Sha
7. Attach the switch assembly to the bezel using the
screws provided:
a. If the bezel has no recessed holes, use two
7/16in. screws and lock nuts (provided).
b. If the bezel has recessed holes, use two 5/8 in.
self-tapping screws (provided).
8. Depending on the option chosen in step 4, feed the
wires:
– Through the bezel and dash.
– Through the dash.
– Underneath the dash.
9. Place the bezel with attached switch assembly over
the steering wheel sha (see Figure 7) and tighten
the bezel attachment screws.
10. Proceed to “Wiring the Connections to the Marine
Cra Device” on page 11.
5.2 Mounting on a Rack Steering
System (Non-Tilt)
qw
8 Rack Steering System Bezels
qRack Steering System
Bezel
wBack Mount Rack
Steering System
Bezel
The helm of the Rack Steering System (1984–present)
can be identified by the plastic bezel (trim piece)
through which the steering wheel sha passes.
1. Remove the steering wheel and retain the hardware
for use during reinstallation. Refer to your steering
system and wheel manufacturer instructions to
ensure proper removal of the steering components.

7
EN
PRO TRIM™ Single/Dual Bezel Switch Assembly Installation
q
q
9 Rack Steering System Drill Locations
qRack Steering System Drill Locations
2. Place the switch assembly bracket against the plastic
bezel and mark the holes indicated in Figure 9.
3. Drill two 3/16 in. diameter holes where marked on
the plastic bezel.
IIf your bezel already has recessed holes at these
locations, then no drilling of the bezel is necessary.
10 Rack Steering System Wire Passage—Option 1 Holes
4. Provide a passageway for the wires to the inside or
underside of the dash. This can be done one of two
ways:
Option 1. Allow the wires to pass through the dash
and not be concealed by the bezel. Drill
one or two 3/8 in. diameter holes (one
required for single switch; two required for
dual switch) through the dash.
Option 2. Allow passage of the wires underneath the
dash. Drilling holes is not required.
IIf installing a single switch, be sure the hole is
drilled on the side the switch lever will be installed.
5. Attach the wires to the switch; red wire to the center
terminal, green wire to the top terminal, and blue
wire to the bottom terminal (see Figure 2).
e
q
w
11 Remove the Bezel
qBezel eSteering Wheel Sha
wCountersunk Holes
6. Remove the bezel from the steering wheel sha,
taking care to leave the attachment screws in the
countersunk holes of the bezel.
r
q
w
e
12 Attach the Bezel
qBezel eScrews
wSwitch Assembly rSteering Wheel Sha
7. Attach the switch assembly to the bezel using the
screws provided:
a. If the bezel has no recessed holes, use two
7/16in. screws and lock nuts (provided).
b. If the bezel has recessed holes, use two 5/8 in.
self-tapping screws (provided).

8EN
Installation PRO TRIM™ Single/Dual Bezel Switch Assembly
8. Place the bezel with attached switch assembly over
the steering wheel sha (see Figure 12) and tighten
the bezel screws.
9. Proceed to “Wiring the Connections to the Marine
Cra Device” on page 11.
5.3 Mounting on a Performance Tilt
Steering System
q
w

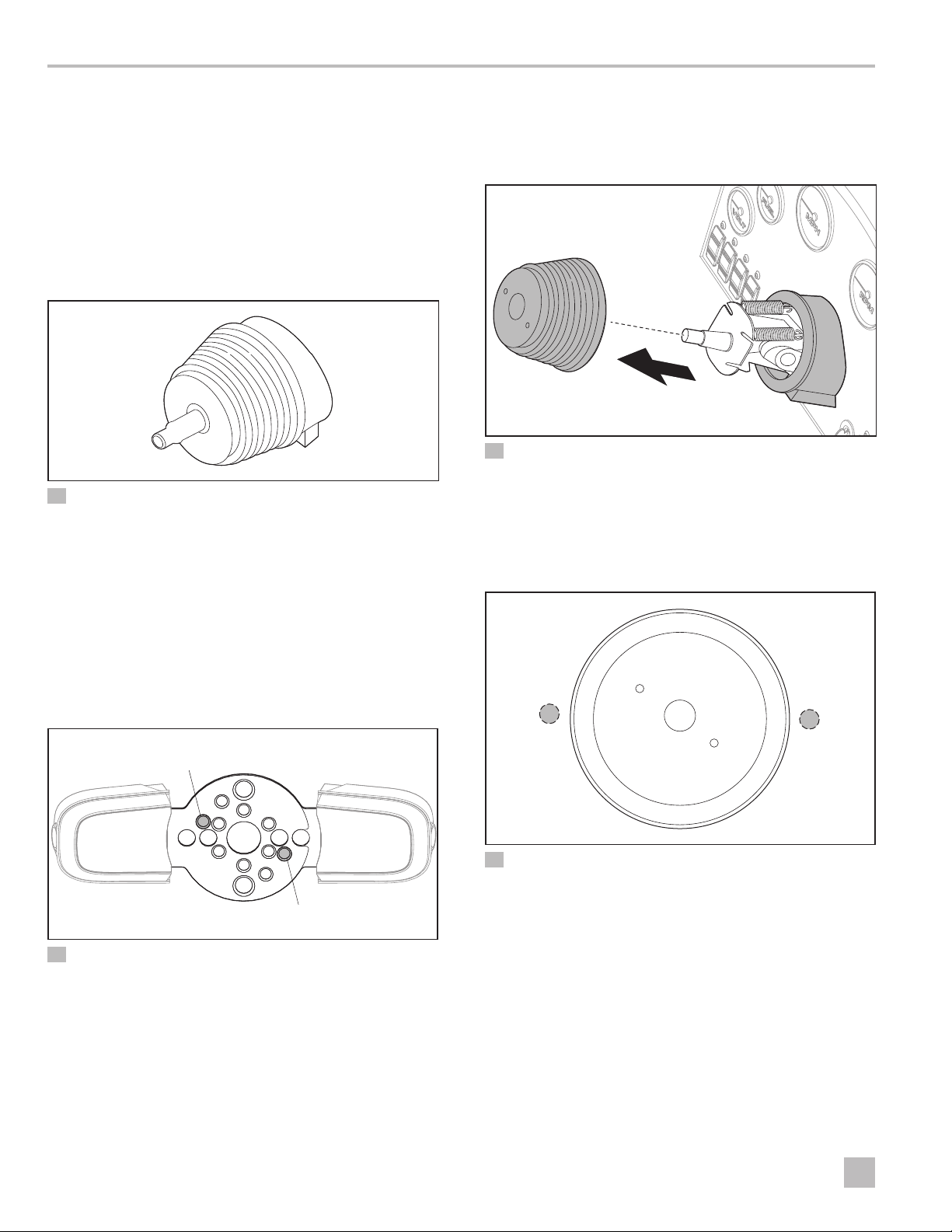

13 Performance Tilt Steering System Boot and Bezel
qBoot wBezel
The Performance Tilt Steering System (1991–present)
helm can be identified by the grooved rubber boot and
plastic bezel attached to the tilt mechanism.
1. Remove the steering wheel and retain the hardware
for use during reinstallation. Refer to your steering
system and wheel manufacturer instructions to ensure
proper removal of the steering components.
q
q
14 Performance Tilt Steering System Drill Locations
qPerformance Tilt Steering System Drill Locations
2. If your steering system is the SH91800 or SH91900,
then proceed to step 6, as these steering systems
have pre-drilled holes.
3. Place the switch assembly bracket against the boot,
lining up the center holes. Punch mark the holes
indicated in Figure 14 through to the tilt mechanism
metal mounting flange.
q
w
15 Performance Tilt Steering System Holes in Mounting Flange
qBoot wTilt Mechanism
4. Carefully pull to remove the rubber boot.
5. Drill two 3/16in. diameter holes in the metal
mounting flange where marked in Step 3.
16 Performance Tilt Wire Passage—Option 1 Holes
6. Provide a passageway for the wires to the inside or
underside of the dash. This can be done one of two
ways:
Option 1. Allow the wires to pass through the dash
and not be concealed by the bezel. Drill
one or two 3/8 in. diameter holes (one
required for single switch; two required for
dual switch) through the dash.
Option 2. Allow passage of the wires underneath the
dash. Drilling holes is not required.

9
EN
PRO TRIM™ Single/Dual Bezel Switch Assembly Installation
IIf installing a single switch, be sure the hole is
drilled on the side the switch lever will be installed.
7. Attach the wires to the switch; red wire to the center
terminal, green wire to the top terminal, and blue
wire to the bottom terminal (see Figure 2).
q
r
ew
17 Mount the Boot
qBoot eSteering Wheel Sha
wTilt Mechanism rBezel
8. Place the tilt mechanism in the middle position.
9. Align the punch marks on the boot with the drilled
holes on the metal mounting flange.
10. Install the boot onto the tilt mechanism by doing the
following:
a. Push down completely around the top of the boot
to engage it on the metal mounting flange.
b. Use a rolling motion with your fingers over the
corners to ensure that the boot face is resting flush
on the metal mounting flange. There is an undercut
inside the boot near the face that accepts the
edges of the metal mounting flange.
c. Make sure the boot is flush against the metal
mounting flange before proceeding.
d. Do not attach the boot to the plastic bezel at this
time.
18 Mount the Switch Assemby
11. Place the tilt mechansim in the full up position.
12. Hold the switch assembly in place against the boot
face.
13. For the SH91800 tilt unit, secure the switch assembly
with two 8/32 x 1/2 in. self-tapping screws
(provided). Proceed to step 20.
14. Insert one 5/8 in. flat-head screw (provided) into
the right side through the assembly switch bracket,
boot, and drilled hole of the metal mounting flange.
Do not tighten at this time.
15. While holding the screw in place, li the boot
from the bottom right side and thread a locknut
(provided) onto the flat-head screw. Do not tighten
at this time.
16. Place the tilt mechanism in the full down position.
17. Repeat steps 14 and 15 for the le side screw.
18. Place the tilt mechanism in the middle position.
19. Align the switch assembly bracket to the steering
wheel sha and boot. Tighten the screws as follows:
a. With the tilt mechanism in the full up position, pull
the rubber boot up from the bottom at the right
side and tighten the locknut.
b. With the tilt mechanism in the full down position,
pull the rubber boot up from the bottom on the
le side and tighten the locknut.

10 EN
Installation PRO TRIM™ Single/Dual Bezel Switch Assembly
20. Aer fully tightening the screws, follow the
instruction manual for your tilt mechanism to learn
how to attach the boot to the bezel.
21. Work the lip on the rubber boot into the accessory
channel on the bezel.
22. Proceed to “Wiring the Connections to the Marine
Cra Device” on page 11.
5.4 Mounting on a SeaStar or
SeaStar Pro Hydraulic Steering
System
w
e
q

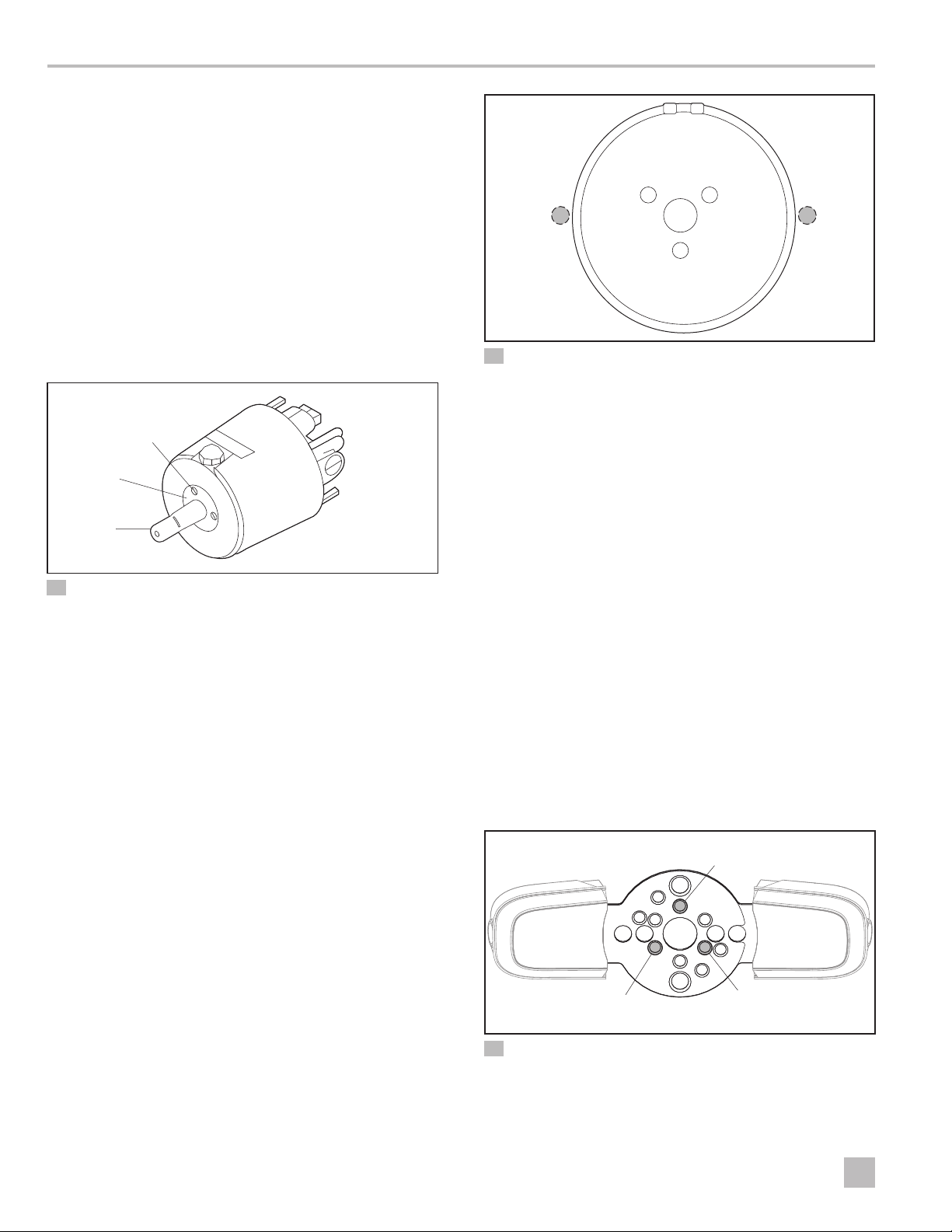

19 SeaStar and SeaStar Pro Hydraulic Steering System Bezel
qSha Seal Retaining
Ring
eSteering Wheel Sha
wCountersunk Screws
The SeaStar and SeaStar Pro Hydraulic Steering System
(1991–present) helm can be identified by a metallic
“SeaStar” decal behind the oil fill plug.
PRO TRIM fits helms with an oil seal retaining ring held by
three countersunk screws. This ring is on the front of the
helm and surrounds the steering wheel sha.
If your SeaStar helm does not have the ring with the
three screws around the steering wheel sha, the switch
assembly cannot be fitted.
1. Remove the steering wheel and retain the hardware
for use during reinstallation. Refer to your steering
system and wheel manufacturer instructions to
ensure proper removal of the steering components.
20 Hydraulic Steering System Wire Passage—Option 1 Holes
2. Provide a passageway for the wires to the inside or
underside of the dash. This can be done one of two
ways:
Option 1. Allow the wires to pass through the dash
and not be concealed by the bezel. Drill
one or two 3/8 in. diameter holes (one
required for single switch; two required for
dual switch) through the dash.
Option2. Allow passage of the wires underneath the
dash. Drilling holes is not required.
IIf installing a single switch, be sure the hole is
drilled on the side the switch lever will be installed.
3. Attach the wires to the switch; red wire to the center
terminal, green wire to the top terminal, and blue
wire to the bottom terminal (see Figure 2).
4. Remove the three countersunk screws that hold the
sha seal retaining ring in place (see Figure 19), but
do not remove the sha seal retaining ring.
q
q
q
21 Hydraulic Steering System Mounting Locations
qHydraulic Steering System Mounting Locations

11
EN
PRO TRIM™ Single/Dual Bezel Switch Assembly Installation
5. Place the switch assembly over the steering wheel
sha.
6. Align the holes in the switch assembly bracket (see
Figure 21) with the three holes of the sha seal
retaining ring.
7. Attach the switch assembly using three (short)
7/16in. screws (provided).
8. Tighten the screws, alternately and gradually, until all
three are tightened securely.
9. Proceed to “Wiring the Connections to the Marine
Cra Device” below.
5.5 Wiring the Connections to the
Marine Cra Device
WARNING: SHOCK HAZARD
Before attempting to make any electrical
connections, ensure electrical power is OFF. Failure
to do so could result in death or serious injury.
CAUTION: SHOCK HAZARD
All wire connections must be secure and sealed to
protect from arcing. Failure to do so could result in
minor or moderate injury and property damage.
The instructions below are for all compatible steering
systems.
1. Disconnect the battery.
2. Locate the appropriate existing wires on the marine
cra to complete the needed connections.
3. See the appropriate wiring instructions below for the
device the switch assembly will control:
– Wiring for engine trim connection:
Engine trim wiring consists of three conductors (1
red, 1 green, 1 blue) running together. Engine trim
wires are typically routed from the engine to the
side-mounted shi and throttle control.
– Wiring for jack plate connection:
Jack plate wires are typically found under the
dash. Refer to the manufacturer wiring diagrams
for the wire colors to properly configure your new
switch assembly.
– Wiring for horn connection:
Horn wires are typically found under the dash.
It may be necessary to use a jumper wire on
the switch for the horn to operate in both the
toggle-up and toggle-down positions. Refer to
manufacturer wiring diagrams for the wire colors
to properly configure your new switch assembly.
4. Feed the switch wires to the inside or underside
of the dash, according to the passageway option
chosen at installation.
5. Make the wire connections to the marine cra by
cutting into the marine cra’s trim, jack plate, or
horn’s wiring (as appropriate):
a. Cut only one wire at a time.
b. Strip both ends.
c. Use the provided butt connector and insert the
two stripped wires from step b into one end of the
butt connector and crimp.
d. Insert the appropriate color wire from the
assembly switch into the other end of the butt
connector and crimp.
e. If not using the provided butt connector, be sure
the butt connector you use will accept:
– Two 16-gauge wires on one end
– One 16-gauge wire on the other end
f. Repeat steps a–e (one wire at a time) for the
remaining trim, jack plate, or horn wires (as
appropriate).
6. When all wires are connected, reconnect the battery.
7. Test the installation and intended function. (See
“Testing the Installation” on page 12 for
instructions.)

12 EN
Final Adjustments PRO TRIM™ Single/Dual Bezel Switch Assembly
5.6 Testing the Installation
This section describes the proper procedure to test the
installation of the switch assembly.
1. When installed for control of engine trim or jack
plate operation, make sure the engine moves in the
direction you expect when the switch is activated.
– Push the lever up to make the engine tilt or move
upward.
– Push the lever down to make the engine tilt or
move downward.
2. When installed for horn operation, operate the
switch in both directions and check that the horn
functions.
3. If the switch assembly is not working properly,
perform the following checks:
a. Check the wire connections at the toggle switch.
b. Check the wire connections at the wire harness.
IGo to www.dometic.com to find technical support
in your area.
4. If applicable, check the functionality of the marine
cra’s original dash or control mounted trim switch
to ensure it is still working properly.
5. If all systems are working properly, make a final
inspection of the wire connections.
6. Wrap the wiring assembly with a quality electrical
tape (not provided) to keep connections clean and
secure.
6 Final Adjustments
This section describes the proper procedure for
reinstalling the steering wheel and making any final
adjustments to the switch assembly.
6.1 Reinstalling the Steering Wheel
Reinstall the steering wheel using the hardware removed
with the steering wheel. Refer to your steering system
and wheel manufacturer instructions to insure proper
installation of the steering components.
6.2 Adjusting the Lever Distance
IDometic recommends the driver operate the
switch assembly lever(s) for a period of time without
adjustment until they determine the most suitable
lever distance.
1. With the seat (and wheel position, if equipped with
tilt) adjusted properly, activate the switch from a
normal driving grip.
2. If the lever seems too close or too far from the
steering wheel rim, adjust by carefully bending
the bracket (see Figure 1) slightly in the required
direction to move the lever closer to or farther from
the rim of the steering wheel. Adjust to suit the
driver’s preference.
7 Disposal
MPlace the packaging material in the appropriate
recycling waste bins, whenever possible. Consult
a local recycling center or specialist dealer for
details about how to dispose of the product in
accordance with all applicable national and local
regulations.

13
EN
PRO TRIM™ Single/Dual Bezel Switch Assembly Warranty Information
8 Warranty Information
LIMITED TWO-YEAR WARRANTY AVAILABLE AT
WWW.SEASTARSOLUTIONS.COM/SUPPORT-2/
WARRANTY-2/SEASTAR-SOLUTIONS-WARRANTY.
IF YOU HAVE QUESTIONS, OR TO OBTAIN A COPY
OF THE LIMITED WARRANTY FREE OF CHARGE,
CONTACT:
DOMETIC CORPORATION : SEASTAR SOLUTIONS
640 NORTH LEWIS ROAD
LIMERICK, PENNSYLVANIA 19468
1-610-495-7011 EXT 2
[email protected]
INSTALLER: THESE INSTRUCTIONS CONTAIN IMPORTANT SAFETY INFORMATION
AND MUST BE FORWARDED TO MARINE CRAFT OWNER.

14 EN
PRO TRIM™ Single/Dual Bezel Switch Assembly

15
EN
PRO TRIM™ Single/Dual Bezel Switch Assembly

Mobile living made easy.
A complete list of Dometic companies, which comprise the Dometic Group, can be found in the public filings of:
DOMETIC GROUP AB Hemvärnsgatan 15 SE-17154 Solna Sweden
CONTACT US
dometic.com/en-us/terms-and-conditions-consumer/contact-us
dometic.com
