domoova DRS40 User manual

EN
Soup Maker
User Manual
DRS40

EN
User Manual
Thank you for choosing DOMOOVA! We hope you are fully satised
using your appliance as part of your day-to-day routine.
If you should encounter situations that have not been properly
addressed in this User Manual or were to have any queries, do not
hesitate to contact us and a member of our Technical Customer
Service Department will be more than happy to answer your
questions.
For more information, you can visit the ocial DOMOOVA website:
www.domoova.com
We reserve the right to make technical alterations to the appliance
without prior notice with the objective of continually improving our
products and customer satisfaction.
Please carefully read all instructions in this manual before using this
appliance. DOMOOVA will not be liable for damage due to incorrect
use.

1
Contents
EN
Safety instructions and precautions .............................. 2
Product overview ................................................................ 6
Product contents ..................................................................................... 6
Product diagram ..................................................................................... 6
Operating the appliance ................................................... 8
Before rst use ........................................................................................ 8
Using the appliance ................................................................................ 9
Pre-programmed setting indicators ................................................... 11
Stopping the appliance ........................................................................ 12
Maintenance ......................................................................13
Motor unit .............................................................................................. 13
Jug ........................................................................................................... 13
Indicator lights and sounds ............................................15
Troubleshooting ................................................................16
Table: Malfunctions and possible causes .......................................... 16
Warranty and after-sales service ..................................18
Technical specications .................................................. 19
Recycling instructions .....................................................20
Recipes ................................................................................21
Creamy tomato soup ............................................................................ 21
Creamy butternut squash and coconut soup ................................... 22
Chunky vegetable and lamb soup ...................................................... 23
Apple and kiwi compote....................................................................... 24
Strawberry smoothie ............................................................................ 25

2
Safety instructions and precautions
EN
• The appliance must be cleaned before use.
• Under no circumstance should you place the DRS40 in water.
• Do not use water on the control panel or the connectors.
• Only the two-point blade and inside the jug can be cleaned with
hot water and washing-up liquid.
• DRS40 is designed for domestic indoor use only.
• DRS40 must be used on dry, at, heat-resistant surfaces.
• Handle the blades with extreme care because they are very sharp
and could cause injury.
• Do not touch the appliance's hot surfaces while it is operating, as
they can cause scalding and burns.
• Steam can escape from the DRS40 and cause scalding and burns.
• Always hold the appliance by the side handle. The jug surface
can overheat after use and can cause scalding and burns.

3
Safety instructions and precautions
EN
• Always unplug your appliance as soon as you nish using it, before
cleaning it or in the event of a power failure. Do not unplug your
appliance by pulling the power cord.
• Do not operate the appliance empty.
• Do not use your appliance if it does not operate correctly, if it has
been damaged or if the cord or plug are damaged. If the power
cable is damaged, it must be replaced by the manufacturer or by
a qualied person to avoid danger.
• Take into account the jug's minimum and maximum level lines.
• Defrost all ingredients before placing them into the DRS40.
• Never operate the appliance empty, with only dry ingredients or
with frozen ingredients and do not pour boiling liquids into it.
• Do not carry the appliance by the top handle as it could fall.
• Do not use the jug in a microwave.
• Wait for the appliance to cool down before handling or cleaning
it.
• Some ingredients may leave an overcooked or burnt residue on
the bottom of the jug. If that were the case, add hot water with
a couple of drops of washing-up liquid to the jug, leave for 15
minutes and then rinse.
• Always rinse the jug and two-point blades after cleaning.
• This appliance is not intended to be used by children or any person
with reduced physical, sensory or mental capacities, unless they
have been given supervision or instruction concerning use of the
device from a person responsible for their safety.
• Do not allow children to play with the appliance.
• The appliance must be kept out of the reach of children and
animals.

4
Safety instructions and precautions
EN
• Children should not clean or perform maintenance on the
appliance without supervision.
• The appliance must be kept out of the reach of children and
animals while switched on.
• The appliance must not be used if it has suered a fall or presents
visible signs of damage.
• Do not pull, lift or move the appliance by the power cable.
• Keep the power cable away from sources of heat.
• Only use the power cord supplied by the manufacturer.
• Never use the appliance if the plug, power cable or appliance
itself are damaged.
• First, unplug the power cable from the mains socket and then
remove it from the appliance.
• To protect against the risk of electrical shock, do not place liquid
in the power plug or on the appliance's control panel.
• Do not touch the power plug or the appliance with wet hands.
• Make sure your power supply voltage matches the power voltage
marked on the appliance.
• Only use accessories recommended or supplied by the
manufacturer.
• Wait until the appliance completely stops before lifting the motor
unit o.
• Store the appliance away from heat and ammable materials.
• Do not use the appliance in extremely hot or cold environments
(below 0˚C, above 40˚C).
• Store the appliance in a safe, dry place, at a temperature between
0°C and 40°C.

5
Safety instructions and precautions
EN
• DRS40 is not designed to be used in the following cases, which
are not covered by the warranty:
• In kitchen areas, reserved for sta in shops, oces and other
workplace environments.
• By patrons of hotels or other environments of a residential
nature.
• In guesthouse-type environments.
• Only use your DOMOOVA DRS40 as described in this manual.

6
Product overview
EN
Product contents
1 2 3
1. DOMOOVA DRS40 Soup
Maker
2. Power cable
3. User manual
1. Top handle
2. Control panel
3. Motor unit
4. Overow sensor
5. Two-point blade
6. Jug
7. Motor unit connector
8. Jug connector
9. Side handle
10. Maximum level
11. Minimum level
12. Socket for power cord
Product diagram
Appliance parts
Max
Min
1
3
2
4
5
6
7
8
9
10
11
12

7
Product overview
EN
Control panel
1
2
3
1. Display screen
2. Settings button
3. Pre-programmed setting indicator lights
a. Creamy soup
b. Chunky soup
c. Compote
d. Juice
e. Keep warm
f. Blend
4. ON/OFF button
4
a
d
b
e
c
f

8
Operating the appliance
EN
Before rst use
Clean the appliance before the rst use.
Open the appliance by lifting the top handle. Clean inside the jug
with a damp sponge and a little washing-up liquid, then rinse. Do
not pour water on the outside of the jug or the appliance's power
socket. Clean the two-point blade with hot water and wipe it. Handle
the blade with caution, it is very sharp.
Clean the outside jug surface and motor unit with a damp cloth, then
dry them carefully.
Under no circumstance should you place the appliance in water.
Never place liquid on the motor unit, control panel or power plug.
The appliance must be completely dry before use.
NOTE: The appliance is not dishwasher safe so it must not be cleaned in a dishwash-
er, as this would damage it.

9
Operating the appliance
EN
Using the appliance
Switching on the appliance

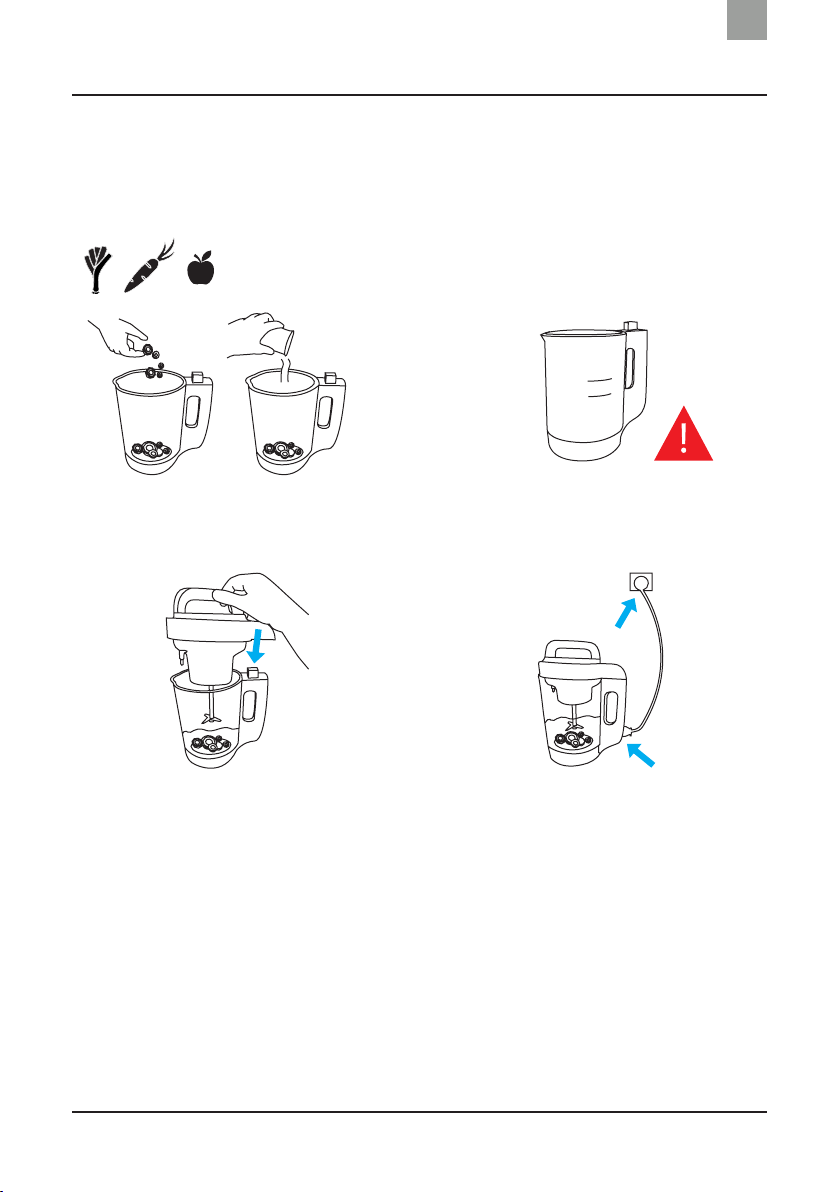

Roughly chop the ingredients into 2cm cubes. Open the appliance by
lifting the top handle and place all of the ingredients and water into
the jug (Figure 1). Respect the maximum and minimum levels when
adding ingredients (Figure 2). Place the lid back onto the appliance
making sure that the motor unit and jug connectors align correctly
(Figure 3).
Figure 1
Figure 3 Figure 4
Figure 2
Max
Min
MAX
MIN

10
Operating the appliance
EN
Plug the appliance into the mains using the power cable (Figure 4).
The appliance beeps and the pre-programmed setting indicator
lights ash in turn.
NOTES:
• For recipes that include meat, please note you should cook the meat
beforehand.
• You are recommended to place vegetables in the jug rst.
• The jug has a maximum capacity of 1400ml.
Selecting a setting
Press the Settings button, as many times as needed to select the
setting you wish to use. The indicator light ashes to display the
selected setting.
Press the ON/OFF button to start the appliance.
NOTES:
• To cancel a setting, press and hold the ON/OFF button for some seconds. Then
select another pre-programmed setting by pressing the Settings button.
• When the pre-programmed setting has nished, the appliance beeps for 1
minute and all the indicator lights ash. Then, the appliance automatically
switches to standby mode.
• If you remove the motor unit while the appliance is in use, it stops immediately.

11
Operating the appliance
EN
Settings Heat Mode Indication
Creamy soup Yes 24 min
This setting evenly blends ingredients at an
ideal temperature. It is perfect for smooth,
velvety vegetable soups.
Chunky soup Yes 30 min
Great for making meat- or starch-based
soups, this setting cooks the ingredients
for longer without blending them. You
are therefore recommended to chop the
ingredients into small pieces.
Compote Yes 24 min This pre-programmed setting is suitable for
making quick compotes or jams.
Juice No 3 min
The Juice setting is perfect for preparing
fresh fruit/vegetable juices or smoothies.
This setting does not heat or cook the
ingredients in the jug.
Keep warm Yes 30 min
Great for reheating soups or keeping them
warm, this setting stays at an ideal heating
temperature of 80°C.
Pre-programmed setting indicators

12
Operating the appliance
EN
Blend No Manual
The Blend setting manually blends the
ingredients in the jug without cooking them.
It is great for modifying a soup's consistency.
To activate it, you need to press and hold
the ON/OFF button.
NOTE: Do not place ice cubes into the appliance's jug as it could damage it and the
two-point blade.
Stopping the appliance
Unplug the appliance before handling it. Remove the motor unit by
taking hold of the top handle and serve.

13
Maintenance
EN
Motor unit
Clean the bottom of the motor unit with a damp sponge. Never
immerse this part of the appliance in water as this may damage it.
To clean the two-point blade, handle the motor unit with care to
avoid any cuts and remove any burnt-on food with a thick sponge.
The blade can be cleaned with clean water.
Clean the outside surface of the motor unit with a damp cloth and
then gently dry it.
Jug
To clean the jug, add water and a little washing-up liquid to the jug.
Close the lid and select the Blend setting for a few seconds. This
cleans the two-point blade and the inside of the jug without any
risks. Empty the jug and repeat this step with clean water to rinse it.
For stubborn burnt-on food, add hot soapy water to the jug. Leave to
soak for a few hours and then rinse.
Clean the outside of the jug with a damp sponge.

14
Maintenance
EN
Gently dry all parts thoroughly with a soft cloth.
NOTES:
• Blades are sharp and can cause severe injury when handling the appliance.
• The appliance is not dishwasher safe.
• It is important to wait for the appliance to cool down before cleaning it.
• Do not use metal utensils to clean the bottom of the jug.

15
Indicator lights and sounds
EN
Robot status Indications
Ingredients are being heated Heating animation
Ingredients are being blended Blending animation
Pre-programmed setting paused Resting animation
Pre-programmed setting nished Completed animation + beeps + ashing
indicator lights
Appliance ready to be used Appliance beeps once when plugged in
Alternating between blending and heating
ingredients 1 beep during a pre-programmed setting
Jug overow warning Code E1 on the display screen + beeps
Malfunctions The appliance beeps and all the indicator
lights ash
Display screen
Heating Blending Resting Completed

16
Troubleshooting
EN
Please contact DOMOOVA technical department in the following
cases:
• If the appliance has been dropped, damaged or if the motor has
come into contact with water.
• If the power cable is damaged.
Table: Malfunctions and possible causes
To avoid breakdowns/malfunctioning, regularly check and clean the
appliance.
No Malfunction Cause Solution
1
The appliance
does not
operate.
1. The appliance is not
switched on.
2. The motor unit is not
connected to the jug.
3. The appliance
temperature is too
high or the motor is
overheating.
1. Plug the appliance
into a power outlet.
2. Place the motor unit
on the jug and align
the connectors.
3. Wait for the appliance
to cool down before
using it again.
2
The appliance
is vibrating
abnormally.
1. The appliance is not
steady.
2. There are too many
ingredients in the jug.
1. Place the appliance
on a at surface.
2. Remove some of the
ingredients from the
jug.

17
Troubleshooting
EN
If none of the above-mentioned steps provide a solution for your
problem, please contact the DOMOOVA after-sales department.
3
The overow
sensor is not
working.
The sensor is too dirty so it
cannot detect the amount
of ingredients in the jug.
Clean the sensor.
4
The ingredients
do not blend
together
correctly.
1. The ingredients in the
jug are chopped too
large.
2. There are too many
ingredients in the jug.
1. Chop the ingredients
into 2cm cubes.
2. Remove some of the
ingredients from the
jug.
5
The appliance
trips the
electrical supply.
There is moisture inside
the appliance.
Leave the appliance to
dry for 24 hours. If the
problem persists, contact
the DOMOOVA after-sales
service.

18
Warranty and after-sales service
EN
Customer service in France
Our DOMOOVA customer service department is ready to help you:
By email: [email protected]
NOTE: The warranty does not cover damage caused by rusting, a collision or misuse.
Accessories are not covered by the warranty.
