DOMUSA TEKNIK DS-matic 1.15 User manual

INSTALLATION AND OPERATING INSTRUCTIONS
DS-matic 1.15 / 1.15 Duo / PLUS 1.15 / PLUS 1.15 Duo
DS-matic 1.25 / 1.25 Duo / PLUS 1.25 / PLUS 1.25 Duo
DS-matic 2.25 / 2.25 Duo / PLUS 2.25 / PLUS 2.25 Duo
ER-0170/1996
CGM-04/392

Thank you for choosing a DOMUSA TEKNIK product. From the range of
DOMUSA TEKNIK products you have chosen the DS-Matic model, an
automatic solar heating system for producing domestic hot water (DHW)
withadouble chamber.
This manual refers to the installation, operation and maintenance of the
DS-matic automatic solar heating system. It forms an essential part of the
product and it must be given to the user. Read the warnings and
recommendations in the manual carefully, as they contain important
informationonthesafetyoftheinstallationanditsuseandmaintenance.
These systems are to be installed by skilled personnel only, in accordance
withthelegislationinforceandfollowing the manufacturer’sinstructions.
The start-up of these boilers and any maintenance operations must only
be carried out by DOMUSA TEKNIK is Authorised Technical Assistance
Services.
Incorrect installation of these systems could result in damage to people,
animals or property, and the manufacturer will hold no liability in such
cases.
DOMUSA TEKNIK informs all parties concerned that, in compliance with
section 1 of the first additional provision of Law 11/1997, the
responsibility for delivering packaging waste or used packaging for its
proper environmental management will be that of the final owner of the
product (Article 18.1 Royal Decree 782/1998). At the end of its useful life,
the product must be taken to a selected collection point for electrical and
electronic equipment or must be returned to the distributor at the time of
purchasing a new equivalent appliance. For more detailed information on
the collection schemes available, contact either the collection facilities of
thelocalauthorityorthedistributor where the purchase was made.

1
USERGUIDE
INDEX Page
1 SAFETY COMPONENTS...........................................................................................................................................................2
2LOCATION...................................................................................................................................................................................2
3SOLARPOWERUNIT................................................................................................................................................................4
3.1MODELS.......................................................................................................................................................................................4
3.2DISPLAY AND CONTROL PANEL ..................................................................................................................................................5
3.3EQUIPMENT .................................................................................................................................................................................5
3.4PARAMETERS...............................................................................................................................................................................6
3.4.1DISPLAYPARAMETERS............................................................................................................................................................................6
3.4.2ADJUSTMENT PARAMETERS ...................................................................................................................................................................6
3.5DISPLAYAND ADJUSTMENTS...................................................................................................................................................11
3.5.1TEMPERATURE DISPLAY........................................................................................................................................................................11
3.5.2CONFIGURING THE BASIC ADJUSTMENT PARAMETERS.......................................................................................................................11
3.5.3CONFIGURING THE ADVANCED ADJUSTMENT PARAMETERS..............................................................................................................12
4 STARTING UP THE INSTALLATION..................................................................................................................................14
5FROSTPROTECTION.............................................................................................................................................................14
6DRAININGTHESOLAR CIRCUIT........................................................................................................................................15
7SWITCHINGOFF THE UNIT.................................................................................................................................................16
8MAINTENANCE.......................................................................................................................................................................16
8.1MAINTENANCE WORK ..............................................................................................................................................................16
9TECHNICALDATA..................................................................................................................................................................18
10GUARANTEECONDITIONS..............................................................................................................................................19

DS-matic
2
1SAFETYCOMPONENTS
The DS-matics are equipped with two safety valves. The solar circuit safety valve is calibrated to 0.3
MPa and the DHW valve to 0.7 MPa (this valve is optional and it is included with KIT M). The valves
prevent overpressure in the two circuits by discharging the liquid as required when the pressure
exceedsthecalibratedvalues.
The solar power unitisalready adjustedbydefault on supply, so no adjustment is necessary.
2LOCATION
It is very important to choose a correct location for the solar collectors, as an unsuitable location can
reducethesystem’sefficiency:wrongorientation,shadowscastonthesolarcollector,etc.
DOMUSA TEKNIK recommends taking the following indications into account when choosing a
location:
1. Before choosing the location, the accessibility of the site must be taken into account, with a
view to both the installation itselfand for maintenance work on the solar collectors.
2. The solar collectors must face South.Adifference of up to 10°-15° is not significant, but a greater
differencecould considerably effect their efficiency.
3. Ideally, the solar collectors should be installed at an angle of 45º from the horizon line (in
countries at a latitude of 40°). In general, the inclination should be 5° greater than the latitude of
thelocation.Anydifferencefromthisanglewillreducetheirefficiency.
4. Formodelswithbuilt-insupports,theminimumslopemustbe27º(51%).
5. Thesolarcollectorsmustbelevelledforinstallation,withtheupper part horizontal.
6. The weight of the full hot water tank must be taken into account whenchoosingalocation.
7. The premises the hot water tank is to be installed on must be protected from the weather and
any risk of freezing. Thelocationmustbe free from dust or a corrosive atmosphere.
8. The hot water tank must be installed as close as possible to the solar collectors and the
domestic hot water consumption point, to reduce heat loss from the pipes. The minimum and
maximumdistancesindicated belowmustbeobserved.
9. A free height of 500mm must be left above the hot water tank so that maintenance work can be
carried out.
10. The maximum snow load (sk) and main wind speed (vm) values the solar collector-support unit
can withstand with the sloping roof supports are sk = 0.66 and vm = 1.75, and so the system
may only be installed in areas with values lowerthanthese.

3
When installing the solar collectors, ensure that no objects cast shadow on them, particularly in
winter, when the sun is lower in the sky. The minimum distance from an obstacle the solar collectors
can be installed at depends on the height of the obstacle and the latitude of the place of installation,
asshowninthetablebelow:
Øreturn
Øflow
Figure 1
When making the hydraulic connection between the solar collectors and the hot water tank, the
followinglimitationsmustbetakenintoaccount:
Min.height(H) Max. height
(H)* Max. horizontal
length
(flow+return) Maximum
length Minimum slope Diameter solarpipe
DS-matic1.15
DS-matic1.25
DS-matic2.25 3m. 10m. 20m. 35m. 4% 10/12mm.
DS-maticPLUS1.15
DS-maticPLUS1.25
DS-maticPLUS2.25 3m. 15m. 20m. 40m. 4% 10/12mm.
! The DS-MATICs are specially designed to function with a 12 mm connection tube (external) between
the accumulator and the solar collectors. If other tube diameters are used it cannot be guaranteed to
work properly, and there may also be riskofnoiseonfunctioning.
DOMUSA TEKNIK supplies tubes with insulation and a cable for the sensor, together with the
connectorsformakingtheconnectionstothecollectorsandtheaccumulator.
Latitude 40º Latitude 45º Latitude 50º
Calculation of X Y x 2 Y x 2,25 Y x 2,5

DS-matic
4
3SOLARPOWERUNIT
3.1 Models
There are two families of hot water tank, depending on the type of power unit: DS-matic and DS-matic
Duo.
DS-MATIC
The power unit of the DS-matic models is designed for controlling the solar pumps only. It is equipped
with two sensor inputs for this purpose - the collector sensor input and the hot water tank sensor
input - and two outputs for the solar pumps. The power unit activates or deactivates the pumps
dependingontheparametersprogrammed.
Figure 2
DS-MATIC DUO
This power unit is designed to control a heating-only boiler as a back-up power supply for the DS-
matic Duo range. Apart from all the DS-matic power
unit inputs and outputs, it therefore has another
input for the sensor on the upper part of the hot
water tank (for measuring the temperature of the
water heated by the boiler) and another switched
outputfortheboiler.
The connection of the sensor to the upper part of
the hot water tank is different depending on
whether the back-up boiler has an input for a thermostat or an electronic sensor. Follow the
instructionsinpoint7.5.1Electricaldiagramforthispurpose(seepage46).
Figure3
CollectorsensorLED
HotwatertanksensorLED
SOLA
R
SolarpumpLED
CollectorsensorLED
Lower hot water tank sensorLED
Upper hot water tank sensorLED
SOLA
R
SolarpumpLED
AUX Auxiliarypump LED

5
3.2 Display andcontrol panel
The power units have three buttons.The purposeofeachbuttonisasfollows:
Led 6
Figure 4
The power units also have 6 LEDs providing information on the sensors and the pump functioning
mode.
LED ON FLASHING
The temperature of the solar collector is
displayed. Solar collector sensor error. Text: ER 1
The temperature of the lower part of the
hot water tank is displayed. Lower hot water tank sensor error. Text: ER2
The temperature of the upper part of the
hot water tank is displayed. Upper hot water tank sensor error. Text: ER3
SOLA
R
Solar pumps activated 90%OFF -10%ON: Solar pumps deactivated
manually.
90%ON - 10%OFF: Solar pumps activated manually.
Led6
90%ON - 10%OFF: Solar pumps activated at 100%
PWM manually.
100%OFF: Solar pumps activated to “RVB”
manually.
AUX Auxiliar pump activated 90%ON - 10%OFF: Auxiliar pump activated manually.
10%ON - 90%OFF: Auxiliar pump deactivated
manually.
3.3 Equipment
The solar power unit is equipment with different sensors, according to the model. The different types
of sensor depend on the hot water tank volume and on whether it is a DS-matic or a DS-matic Duo
model.
DS-matic1.15
DS-matic PLUS 1.15 DS-matic 1.25 / 2.25 DS-matic PLUS 1.25 / 2.25 DS-matic 1.15 Duo DS-matic PLUS 1.15 Duo DS-matic 1.25 / 2.25 Duo DS-matic PLUS 1.25 / 2.25 Duo
SENSORS
1 x CELC000285
(solar)
1xCELC000234 (DHW) 1 x CELC000285 (solar)
1 x CELC000211 (DHW) 1 x CELC000285 (solar) 2 x CELC000234 (DHW) 1 x CELC000285 (solar)
1 x CELC000211(DHW)
1 x CELC000234 (DHW)
!IMPORTANT:
CHECK THE COMPATIBILITY OF THE SENSORS SUPPLIED BEFORE CONNECTING THEM
TO A BOILER.
BUTTON FUNCTION
For scrolling up the menu and increasing
the value displayed.
For scrolling back down the menu and
reducing the value displayed.
For entering the basic parameter menu
and programming the value displayed.
x8" For entering the advanced adjustment
parameter menu.
+
For exiting to the main display.

DS-matic
6
3.4 Parameters
The system is supplied with all its power unit parameters adjusted for maximum efficiency, so none of
the parameters need adjusting. There follows a description of all the power unit parameters.
3.4.1 Display parameters
The display parameters are for information purposesonly,i.e. they provide data on the temperatures.
Therefollowsalistofdisplayparametersforeachofthesolarpowerunits.

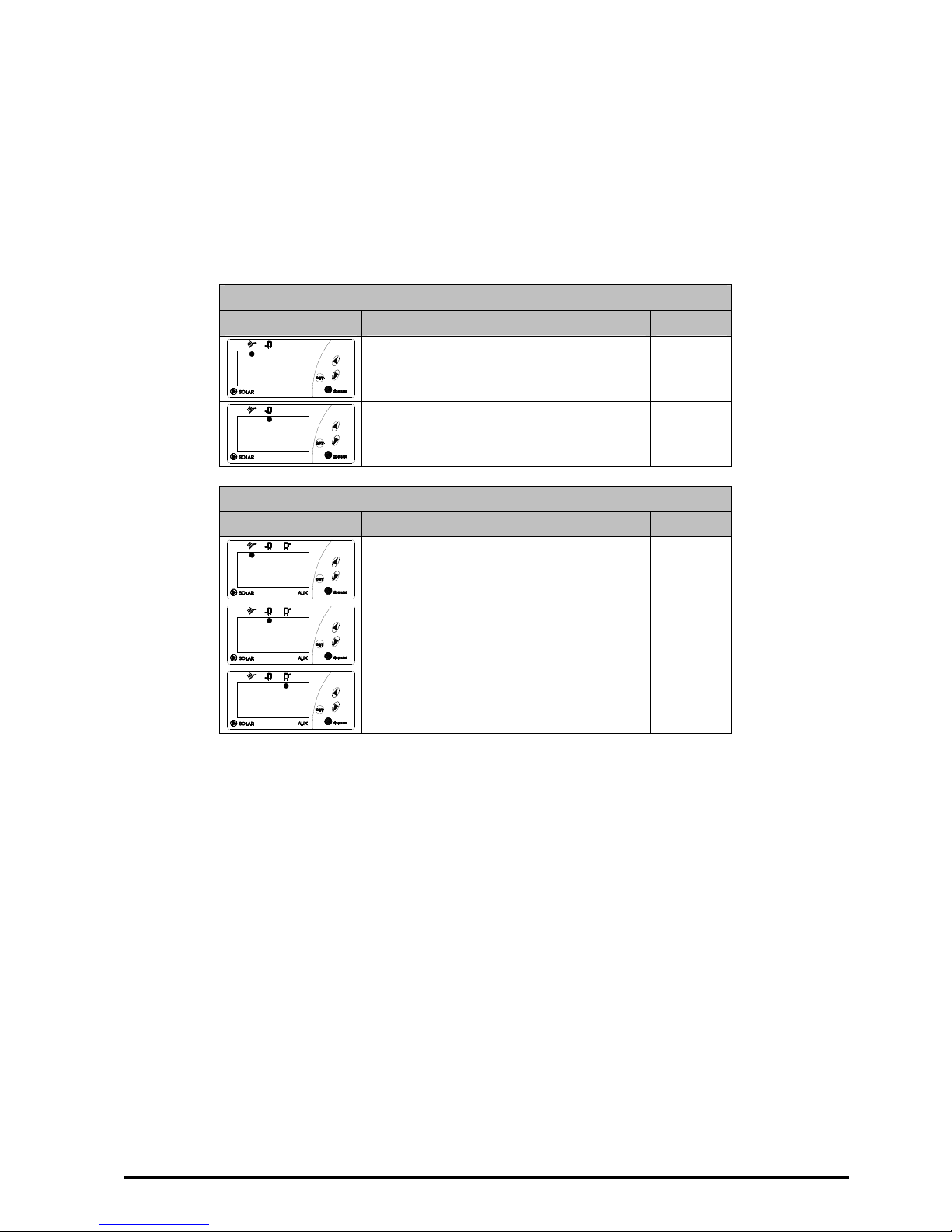

DISPLAY PARAMETERS FOR DS-MATIC POWER UNITS
Display Function Range
85
Indicatesthe current temperatureof the
collector. -50-150ºC
38
Indicatesthe current temperatureof the hot
watertank. -50-150ºC
DISPLAY PARAMETERS FOR DS-MATIC DUO POWERUNITS
Display Function Range
85
Indicatesthe current temperatureof the
collector. -50-150ºC
38
Indicatesthe current temperatureof the hot
watertank. -50-150ºC
45
Indicatesthe current temperatureof the
collector. -50-150ºC
3.4.2 Adjustment parameters
The adjustment parameters regulate the functioning of the hot water tank. These parameters can be
adjustedtochangethewaythe system functions, adjusting them to eachparticularuser’sneeds.
There are two types of adjustment parameters: the basic parameters, which affect the hot water tank
setpoint temperatures, and the advanced parameters, foradjustingthefunctioningofthesystem.
The system is supplied with all the parameters programmed for optimum functioning, so none of the
values need to be adjusted.
As is the case with the display parameters, the adjustment parameters are also different on the DS-
matic and the DS-matic Duo models, and the adjustment parameters are therefore shown for each
typeofpowerunit.

7
Adjustment parameters for DS-matic power units

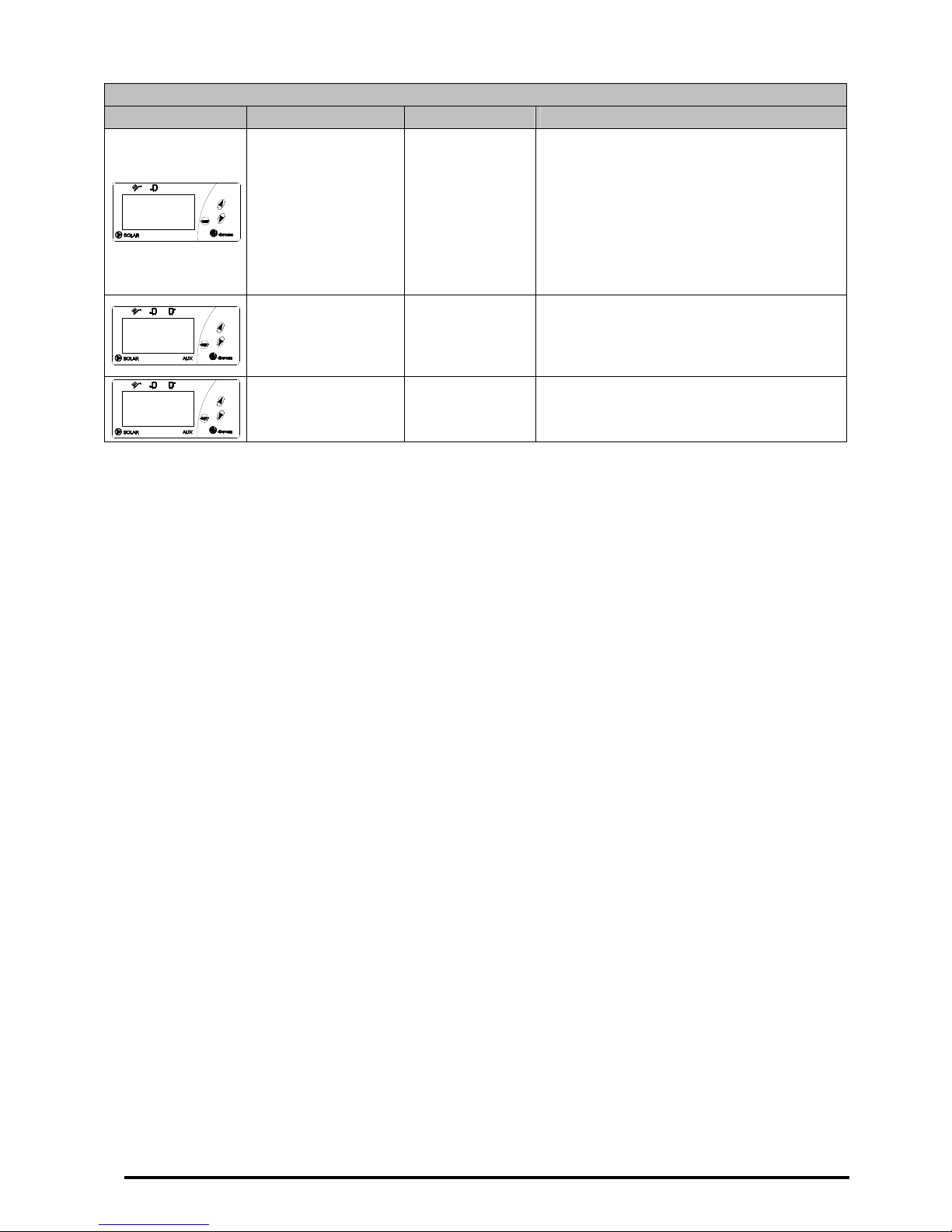

BASIC ADJUSTMENT PARAMETERS FOR DS-MATIC POWER UNITS
Display Function Range Options
TSA
Hotwater tank setpointtemperature with
solarenergyinput. 2…95ºC Adjustment:60ºC

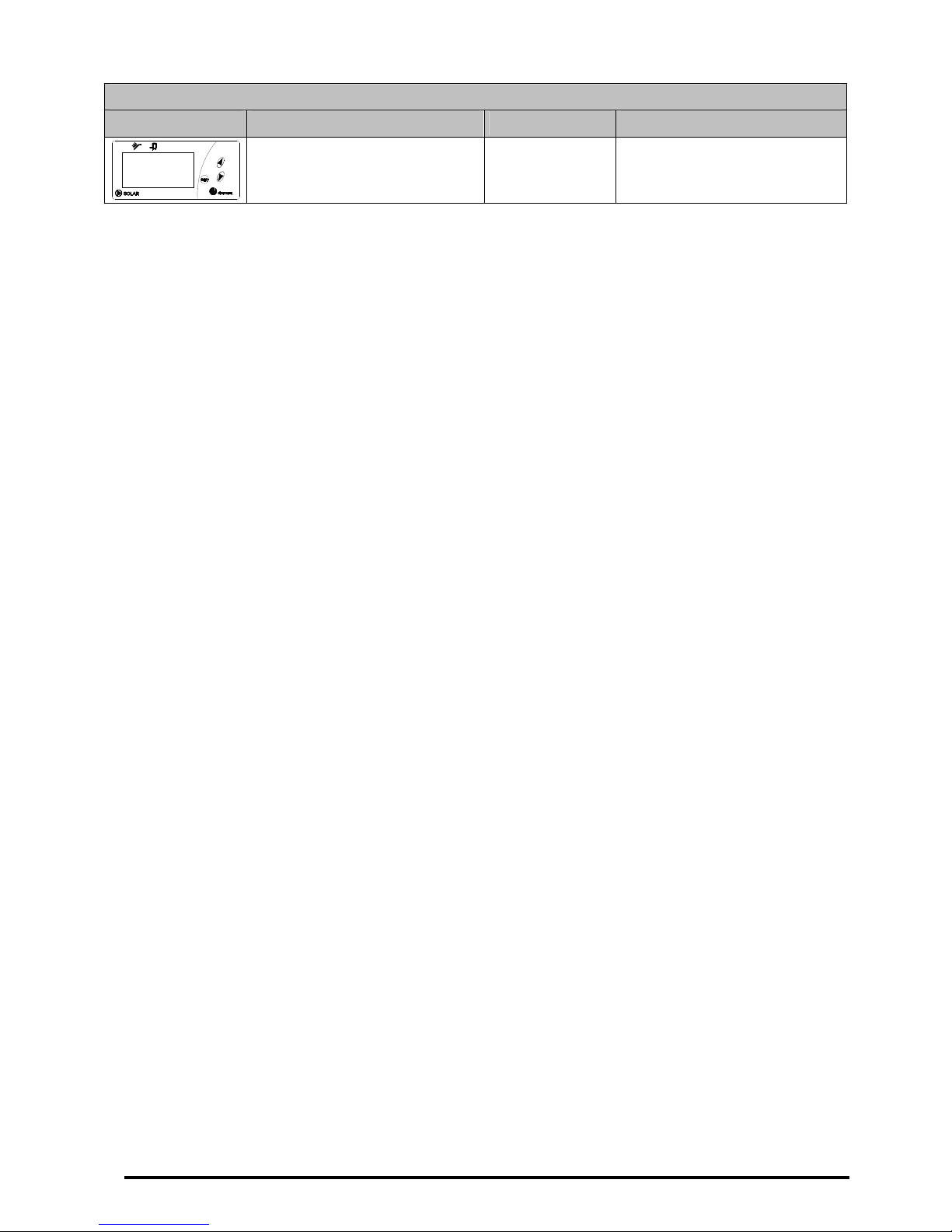

ADVANCED ADJUSTMENT PARAMETERS FOR DS-MATIC POWER UNITS
Display Function Range Options
HNS
Solarpump operating mode (relay1
and2). 0…3 Adjustment:0
0:Pumps in automaticmode.
1: Pumps always off.
2:Pumps always on.
3:Pumps activated at thespeed set
inparameter “RVB”.
TSA
Hotwater tank setpointtemperature
with solar energy input. 2…95ºC Adjustment:60ºC
DTO
Switch-ontemperaturedifference. DTF+1…21ºC
Adjustment:6K
The temperature difference
between the solar collector and the
hot water tank must exceed this
value for the solar pumps to start up
automatically.
DTF
Switch-offtemperaturedifference. 1…DT0-1ºC
Adjustment:4K
When the temperature difference
between the solar collector and the
hot water tank is below this value
and the pumps are running
automatically, the solar heating
circuitpumps switch off.
TCL
Minimumtemperature of solar
collector. -10…90ºC Adjustment:10ºC
The temperature of the solar
collector must exceed this value for
the solar pumps to start up
automatically.
TDB
Upperpump switch-off time. OFF,5…30min
Adjustment:15min
When this time elapses with the two
solar pumps running in automatic
mode, the PWM signal is set as
definedin the parameter“RVB”.
RVB
Speedregulation of the solar pump. 15…100% Units:1%
Adjustment:70%
Percentage of pump operation for
thecorrect regulation of the flow.
FEC
Solarcollectors cooling 0…1
Adjustment:0
0:Functionoff.
1: If the collector temperature raises
to 140 ºC, the solar pumps remain
activated until collector
temperature is less than 90 ºC. If the
store temperature is higher than
hot water tank setpoint
temperature (TSA) and the collector
temperature is lower by 5 ºC than
the store temperature, the solar
system remains activated until the
store is again cooled down by the
hotwater tank setpoint.

DS-matic
8
ADVANCED ADJUSTMENT PARAMETERS FOR DS-MATIC POWER UNITS
Display Function Range Options
HS
Accesscode. 0…255
Adjustment:0 This code must be entered to view
and/or change the advanced
adjustmentparameters.

9
Adjustment parameters for DS-matic Duo power units
BASIC ADJUSTMENT PARAMETERS FOR DS-MATIC DUO POWER UNITS
Display Function Range Options
TSA
Hotwater tank setpointtemperature
with solar energy input. 1…95ºC Adjustment:60ºC Minimum value: TAC + 1ºC
TAC
Hotwater tank setpointtemperature
withauxiliary energy input. 0…94ºC Adjustment:45ºC Maximum value:TSA -1ºC
ADVANCED ADJUSTMENT PARAMETERS FOR DS-MATIC DUO POWERUNITS
Display Function Range Options
HNS
Solarpump operating
mode(relay 1 and 2). 0…3 Adjustment:0
0:Pumps in automaticmode.
1: Pumps always off.
2:Pumps always on.
3:Pumps activated at thespeed set inparameter
“RVB”.
TSA
Hotwater tank setpoint
temperaturewith solar
energyinput. 1…95ºC
Adjustment:60ºC Minimum value: TAC + 1ºC
TAC
Hotwater tank setpoint
temperaturewith
auxiliaryenergy input. 0…94ºC
Adjustment:45ºC Maximum value:TSA -1ºC
DTO
Switch-ontemperature
difference. DTF+1…21ºC
Adjustment:6K
The temperature difference between the solar
collector and the hot water tank must exceed this
value for the solar pumps to start up
automatically.
DTF
Switch-offtemperature
difference. 1…DT0-1ºC
Adjustment:4K
When the temperature difference between the
solar collector and the hot water tank is below
this value and the pumps are running in
automatic mode, the solar heating circuit pumps
switchoff.
TCL
Minimumtemperature
ofthe solar collector. -10…90ºC Adjustment:10ºC The temperature of the solar collector must
exceed this value for the solar pumps to start up
automatically.
HNC
Relay3 operating
mode. Aut- on -oFF Adjustment:Aut. Aut: Relay 3 in automatic mode.
on:Relay3 always in NC position.
oFF:Relay3 always in NO position.
TDB
Upperpump switch-off
time. OFF,5…30min Adjustment:15min
When this time elapses with the two solar pumps
running in automatic mode, the PWM signal is
setas defined in the parameter “RVB”.
RVB
Speedregulation of the
solarpump. 15…100%
Units:1%
Adjustment:70%
Percentage of pump operation for the correct
regulationof the flow.

DS-matic
10
ADVANCED ADJUSTMENT PARAMETERS FOR DS-MATIC DUO POWERUNITS
Display Function Range Options
FEC
Solarcollectors cooling 0…1
Adjustment:0
0:Functionoff.
1: If the collector temperature raises to 140 ºC,
the solar pumps remain activated until collector
temperature is less than 90 ºC. If the store
temperature is higher than hot water tank
setpoint temperature (TSA) and the collector
temperature is lower by 5 ºC than the store
temperature, the solar system remains activated
until the store is again cooled down by the hot
watertank setpoint.
H0
Softwareconfiguration. 0…1
Adjustment:0
0: For installations with the upper hot water tank
sensorconnectedonthepower unit.
1: For installations where the upper hot water
tank sensor is not connected on the power
unit.
HS
Accesscode. 0…255
Adjustment:0 This code must be entered to view and/or change the advanced adjustment parameters.

11
3.5 Display and adjustments
All the power unit functions are controlled by three buttons to the right of the display. There follows a
description of the procedure for viewing the temperatures and adjusting the basic and advanced
parameters.
3.5.1 Temperaturedisplay
The temperatures of the sensors installed are displayed on the main screen. To go from one sensor to
another, press the and . buttons. Those displayed on a grey background are visible on all the
power units, and those with a white background are only displayed onthe DS-matic Duo models.
4585 38
Press
Press
Press
Press
Collector
temperature
T
emperature of the lower
part of the hot water tank
T
emperature of the upper
part of the hot water tank
Figure 5
3.5.2 Configuring the basic adjustment parameters
The basic adjustment parameters are used for regulating the desired DHW temperature. On DS-matic
models only one temperature is adjusted, while on DS-matic Duo both the temperature of the upper
part (heated using auxiliary energy) and that of the lower part (heated using solar energy) can be
adjusted. The procedure for adjusting theseparameters is as follows:
1-Press the SETbutton. The parameter TSA .
2-Select thedesired parameterusingthe and buttons.
3- Press the SET button again. The value programmed on theselected parameter will be displayed.
4-Change the programmedvalue using the and buttons.
5- Press the SET button again to store the value displayed.
6- Press the SET buttons and simultaneously to exit to the main display (the buttons can be
pressedregardless of the parameter displayed).
A flow diagram of the basic adjustment parameters is shown below. Those displayed on a grey
background are visible on all the power units, and those with a white background are only displayed
onthe DS-matic Duo models.
85
TSA 60
Press SET
Press
SET + Press
to increase value
Press to reduce value
TAC 45
Press to increase value
Press to reduce value
Press
Press SET
Press SET
Press SET
Press SET
Press
Figure 6
!IMPORTANT: THE DISPLAYS WITH A WHITE BACKGROUND ONLY APPEAR ON THE DS-
MATIC DUO MODELS.

DS-matic
12
3.5.3 Configuring the advanced adjustment parameters
The advanced adjustment parameters are used for regulating the functioning of the DS-matic models.
The system is supplied with all the parameters programmed for optimum functioning, so none of the
values need to be adjusted.The procedure for adjusting these parameters is as follows.
1-Press the SET buttonand hold it down for 8 seconds. The value 0 will appear on the display.
2- Select the access code (0 by default) using the and buttons and press the SET button. The
parameter HNS .
2-Select thedesired parameterusingthe and buttons.
3- Press the SET button again. The value programmed on the selected parameter will appear on the
display.
4-Change the value programmed using the
and buttons.
5- Press the SET button again to store the value displayed.
6- Repeat steps 2 - 5 for the parameters you wish to change.
7-Press the SET and
buttons simultaneously to exit to the main display (the buttons can be pressed
regardlessofthe parameter displayed).

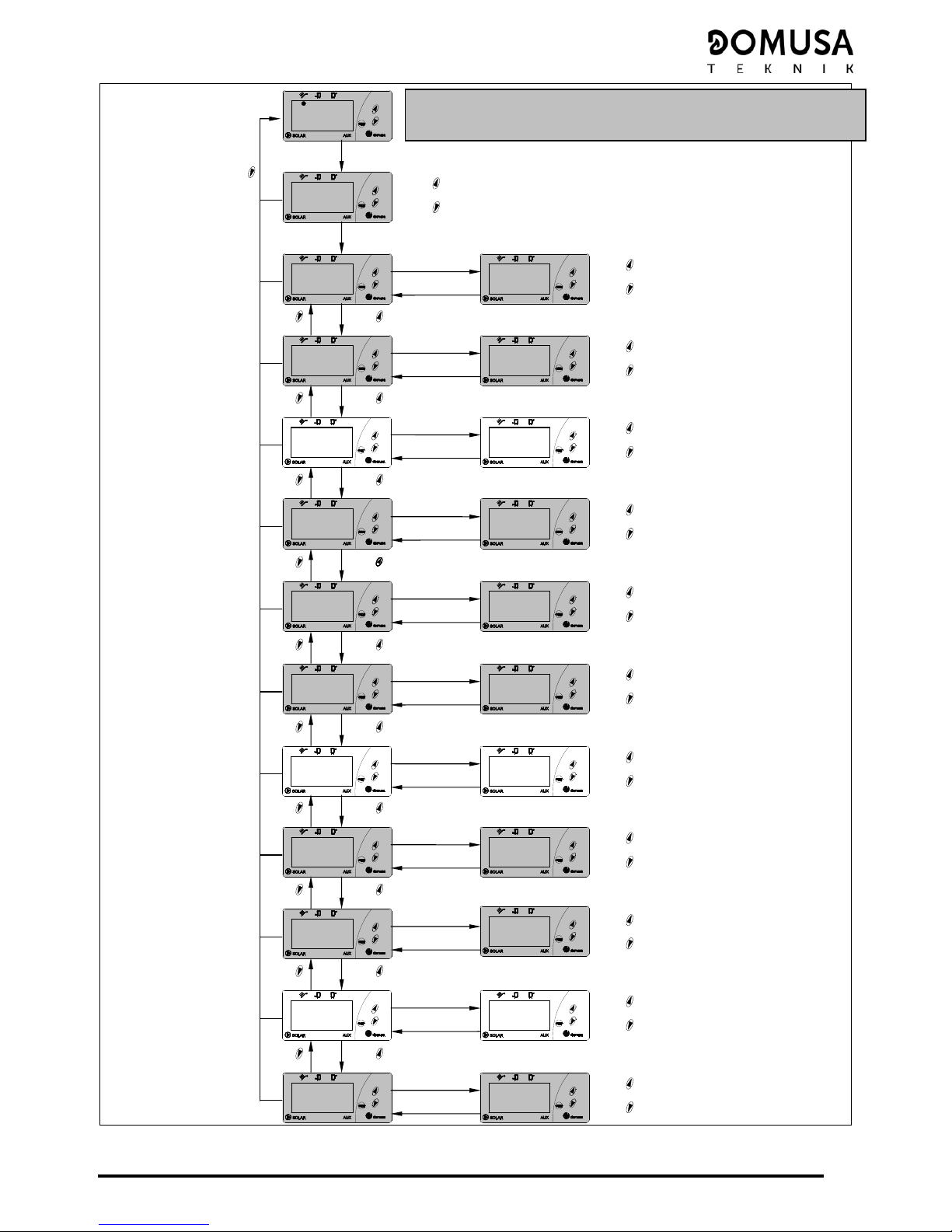

A flow diagram for the advanced adjustment parameters is shown below. As for the other parameters,
those displayed on a grey background are visible on all the power units, and those with a white
background are only displayedon the DS-matic Duo models.

13
85
0
Press SET for8 seconds
Press
SET + Press toincreace value
Press to reduce value
HNS 0
Press SET
Press SET
Press toincreace value
Press to reduce value
Press SET
TSA 60
Press toincreace value
Press to reduce value
Press Press
TAC 45
Press toincreace value
Press to reduce value
Press Press
DTO 6.0
Press toincreace value
Press to reduce value
Press Press
DTF 4.0
Press toincreace value
Press to reduce value
Press
Press
TCL 10
Press toincreace value
Press to reduce value
Press Press
HNC AVT
Press toincreace value
Press toreduce value
Press Press
TDB 15
Press toincreace value
Press to reduce value
Press Press
H0 0
Press toincreace value
Press toreduce value
Press Press
HS 0
Press toincreace value
Press toreduce value
Press Press
Press SET
Press SET
Press SET
Press SET
Press SET
Press SET
Press SET
Press SET
Press SET
Press SET
Press SET
Press SET
Press SET
Press SET
Press SET
Press SET
Press SET
Press SET
FEC
Press to reduce value
Press Press
Press SET
Press SET
0
Press toincreace value
Figure 7
!IMPORTANT: THE DISPLAYS WITHA WHITE BACKGROUND
ONLY APPEAR ON THE DS-MATICDUO MODELS.

DS-matic
14
4STARTINGUPTHE INSTALLATION
Before starting up the installation, ensure the safety valves and the safety unit (if the installation has
one) are working correctly, and check that the accumulator and the solar circuit have been filled
followingthe instructions provided in point 8 of the instructions booklet.
5FROST PROTECTION
The DS-matic pumps are deactivated when the temperature difference between the collector and the
accumulator is less than the value programmed (4ºC by default). This means the liquid in the solar
heating circuit flows down from the solar collectors to the accumulator and there is no risk of it
freezing.
In any case, to prevent risk in case of incomplete draining, DOMUSA TEKNIK supplies an inhibitor
liquid, which in addition to protecting the different components of the installation from corrosion,
also serves as an anti-freeze. DOMUSA TEKNIK inhibitor liquid has a resistance and heat transmission
making it suitable for use in solar installations. DOMUSA TEKNIK recommends using a minimum
concentrationof 30% inhibitor liquid.
!IMPORTANT:
THE INHIBITOR LIQUID MUST ALWAYS BE MIXED WITH WATER BEFORE USE, AS OTHERWISE IT
COULD DAMAGE THE INSTALLATION.
!IMPORTANT:
DOMUSA TEKNIK WILL ONLY BE LIABLE FOR THE CORRECT FUNCTIONING OF THE SYSTEM IF IT HAS
BEEN FILLED WITH DOMUSA TEKNIK INHIBITOR LIQUID.

15
6DRAININGTHE SOLAR CIRCUIT
If the solar circuit needs draining, the
procedureis as follows:
1.Connect a hose to the filling/emptying
valve and another hose to the level valve,
and run them to a drain.
2.Runthe hoses to a suitable container.
3.Open the filling/emptying valve and the
levelvalve.
4.Completely drain the solar heating circuit
(seetable below).
5.Disconnectthe hoses used.
Filling/emptying
valve
Auxilia
r
y
valve
Figure 8
DS-matic 1.15 - 1.15 Duo
PLUS 1.15 , PLUS 1.15 Duo DS-matic 1.25 - 2.25 PLUS 1.25 - 2.25 DS-matic 1.25 - 2.25 Duo PLUS 1.25 - 2.25 Duo
Solar circuit
volume 28 L 48 L 43 L

DS-matic
16
7SWITCHINGOFF THE UNIT
If you wish to deactivate the unit, adjust the HNS parameter to value 1, so that the pumps are
permanently deactivated.
In case of prolonged absence, apart from deactivating the pumps (or disconnecting the unit from the
electricity supply) you should also drain the accumulator primary circuit, following the instructions
givenin the previous point.
8MAINTENANCE
Maintenance must only be carried out by qualified staff. All work carried out on the system must be
done by the Official Technical Assistance Service, as changing the configuration could cause
functioningerrors and damageto thesystem and its surrounding environment.
8.1 Maintenancework
The table belowshows a listof recommended maintenance work.
Interval de maintenance
Hotwater tank
Checkthe connections are correctly sealed1 Yearly
Checkthe correct functioning of the safety valve Yearly
Collector
Checkthe state of the collectors: dirt, dents, connections,
supportsand levelling of the collectors2 Yearly
Regulation
Check the sensors are working correctly3Yearly
Checkthe powerunit adjustment channels4Yearly
Checkthe pump is working correctly on automatic and
manual(on/off)5Yearly
Checkthe mixing valve is working correctly, if the system has
one6 Yearly
Solarcircuit
Checkthe fillinglevel of the solar liquid7 Yearly
Renew the solar liquid with a concentration of at least 30% of
theinhibitor liquid At least once every3 years.
Checkthe plates are self-draining8 Yearly
Pipes
Checkthe state of the insulation9Yearly
Checkthe installationiscorrectly sealed10 Yearly
1Check the connections are correctly sealed
With the circulation pump running (see point ¡Error! No se encuentra el origen de la referencia. of
theInstallation guide), visually check the accumulator connections.
2Check thestate of the collectors
Visually check the state of the collectors (dirt, dents, connections, etc.) and rectify any anomalies
found.

17
3Check the sensors are working correctly
Checkthat the temperatures indicated by the power unit coincide with the real temperature.
4Checkthe power unit adjustment parameters
Check that the parameters are correctly adjusted(see point 2.2 of User guide).
5Checkthe pump is working correctly in automatic and manualmode (on/off)
Programme the HNS parameter in all its configurations, checking the pumps are working correctly for
eachof the configurations.
6Checkthe mixing valve is working correctly, if the unit hasone
Checkthe water is coming out at the temperature calibrated on the mixing valve.
7Checkthe solar liquid filling level
Open the level valve. If no water comes out, fill the solar circuit following the instructions in point
¡Error! No se encuentra el origen de la referencia. of Intallation guide. If you fill the solar circuit,
ensurea minimum concentration of 30% of inhibitor liquid.
8Checkthe plates are self-draining
Set the pumps running (see point ¡Error! No se encuentra el origen de la referencia. of Intallation
guide), ensure the water is returning to the hot water tank and then disconnect the pumps. When 15
minutes have elapsed, remove the connection of the tubes with the solar collectors and check no
wateris coming out of the collectors.
9Checkthe state of the insulation
Visuallycheck the state of the insulation.
10 Check the installation is correctly sealed
With the circulating pump running (see point ¡Error! No se encuentra el origen de la referencia. of
Intallation guide), visually check thesystem connections.

DS-matic
18
9TECHNICALDATA
DS-matic DS-matic DS-matic
1.15 1.15 Duo 1.25 1.25 Duo 2.25 2.25 Duo
Hot water tank
Volume 150 litres 250 litres
Insulation Polyuréthaneexpansé
External diameter 581 mm
Width 747,5 mm
Depth 581 mm
Height 1028 mm 1628 mm
Weight of empty hot water tank 84 Kg 113 Kg
Weight of full hot water tank 234 Kg 363 Kg
Type of solar liquid Mélange glycol-eau
L/hour* 250 416
* This data is for a full accumulator at 60ºC. The data may vary depending onthe solar radiation on each particularday.
1.15 1.15 Duo 1.25 1.25 Duo 2.25 2.25 Duo
Solarexchanger
Exchanger area 1,3 m22,1 m21,9 m22,1 m21,9 m2
Liquidevolume 28 L 48L 43 L 48 L 43L
Max. liquide temperature 110°C
Auxiliar exchanger
Exchanger area --- 0.38m2--- 0.7 m2--- 0.7 m2
Max. liquide temperature 90°C
DHWheated volume --- 55L --- 84 L --- 84L
Electricalconsume DS-matic DS-matic PLUS
Electrical consume with pumps activated 58 watt/h 108 watt/h
Electrical consume with pumps and power unit in
2000h 116 kW 216 kW
1.15 1.15 Duo 1.25 1.25 Duo 2.25 2.25 Duo
Electricalelement
Voltage 230 V - 50 Hz
Power 1.5 kW 2.5kW
DHWheated volume 45 L 40L 76 L 56 L 76 L 56L
Power unit
Sensor wire diameter 0,75 mm2
Min. power cable wire diameter 1,5 mm2(1,5 kW) - 2 mm2(2,5 kW) - 2,5 mm2(3,5kW)
Voltage 230V - 50Hz
SOLAR COLLECTOR
DS-matic DS-matic DS-matic
1.15 1.15 Duo 1.25 1.25 Duo 2.25 2.25 Duo
Absorption surface 2.26 m22 x 2.26 m2
Width 1246 mm
Height 2046 mm
Depth 90mm
Weightof empty collector 53 Kg
Weightof full collector 54,88 Kg
