INSTRUCTION MANUAL
5drum4cymbals

FUNCTION INTRODUCTION
● Six layers of force are adopted to make it closer to the original drum playing.
● Supports double triggers with edge-hit response.
● Fifteen sets of drum group and one sets of custom drum group.
● Number of timbres 225 and GM standard timbre library. (song use)
● Thirty songs, adjustable GM volume and drum volume .(for learning)
● Effect: reverberation type 0-5, two-band EQ equalization.
● Supporting adjustment of sensitivity parameters of drum discs.
● Speed control: 30-250 beats/minute.
● Metronome: 9 kinds.
● Other functions: customize settings, store and restore factory settings.
● Interpoles: USB MIDI, headphones, audio input, audio output, adding cymbal socket.
1MY ELECTRONIC DRUM
Dear Customer,
Thank you for ordering from Donner! This is Donner Customer Service Team.
After received the package, please test and see if there's any problem.
Any problem please feel free to contact us by amazon (the order page) or the
email address below.
Thank you again for choosing Donner!Please enjoy making your own music.
Best regards
Donner Customer Service Team.
Gmail：[e-mail]
Website：https://www.donnerdeal.com/
Welcome to Donner

CATALOG
2
MY ELECTRONIC DRUM
FUNCTION INTRODUCTION ----------------------------------------------------------------
CATALOG -------------------------------------------------------------------------------------
INSTALLATION GUIDE -----------------------------------------------------------------------
Check the attached items -------------------------------------------------------------------------------
Kick drum installation -----------------------------------------------------------------------------------
Install hammer stick -------------------------------------------------------------------------------------
Kick drum and pedal fixation ---------------------------------------------------------------------------
Installation module bracket -----------------------------------------------------------------------------
Drum stand-----------------------------------------------------------------------------------------------
Drum stand installation----------------------------------------------------------------------------------
Installation of support rod and module box ------------------------------------------------------------
Installation of strike components -----------------------------------------------------------------------
Insert Connection Line ----------------------------------------------------------------------------------
DIAGRAM OF MODULE BOX SOCKET ------------------------------------------------------
POWER TERMINAL CONNECTION ---------------------------------------------------------------------
USB MIDI PORT -----------------------------------------------------------------------------------------
EARPHONE PORT ---------------------------------------------------------------------------------------
AUDIO OUTPUT PORT ----------------------------------------------------------------------------------
AUDIO INPUT PORT ------------------------------------------------------------------------------------
ADDING CYMBAL SOCKET -----------------------------------------------------------------------------
OPERATION GUIDE --------------------------------------------------------------------------
POWER ON ---------------------------------------------------------------------------------------------
MASTER VOLUME --------------------------------------------------------------------------------------
TIMBRE SELECTION OF DRUM GROUP ---------------------------------------------------------------
PLAY THE DRUM ---------------------------------------------------------------------------------------
METRONOME ------------------------------------------------------------------------------------------
DEMONSTRATION MUSIC PLAYING ------------------------------------------------------------------
PLAY SPEED --------------------------------------------------------------------------------------------
DRUM DISC SENSITIVITY ADJUSTMENT --------------------------------------------------------------
REVERBERATION/EQUILIBRIUM OPTIMIZATION -----------------------------------------------------
FACTORY RESET ----------------------------------------------------------------------------------------
APPENDIX -----------------------------------------------------------------------------------
Timbre --------------------------------------------------------------------------------------------------
Drum combination timbre -----------------------------------------------------------------------------
Demonstration music ----------------------------------------------------------------------------------
User drum group ---------------------------------------------------------------------------------------
PRODUCT MAINTENANCE -----------------------------------------------------------------
SAFETY PRECAUTIONS ---------------------------------------------------------------------
WARRANTY CARD --------------------------------------------------------------------------
1
2
3
3
4
4
4
4
5
5
6
7
8
9
9
9
9
9
9
9
10
10
10
11
11
12
12
13
13
13
13
14
14
14
14
14
15
16
19

REMARK！
● Please follow the instructions and read the "safety precautions" in the User Manual carefully
before using it.
● When you have completed the connection, please turn on the power according to the instructions
in the User's Manual and check whether you can hear the sound.
● This product needs adult to install, do not let the minor install it independently.
INSTALLATION GUIDE
3MY ELECTRONIC DRUM
01
Check the attached items
Sound module Module bracket Hi hat Ride
Tom-tom
(3pcs)
Snare Cymbal mounts
（3pcs）
Drum mount
（4pcs）
KickFixed partsSupporting parts Fastening screw Kick pedalStick hammer
Hi hat pedal
Signal Connection Linedrum stick power adapter Drum keyBolt driver Inner six angle
● After opening the package, please check whether it contains all the items immediately.
If there are any omissions, please contact your dealer.
Crash（2pcs） Crash2 line
2pcs 2pcs 2pcs4pcs
Hi hat mount

INSTALLATION GUIDE
4
MY ELECTRONIC DRUM
Push the sound bracket in the
right direction to jam the
sound sodule box
02
Kick drum installation
● During installation, tighten the screws and be careful not to pinch your finger!
Use screwdriver to lock the kick drum, fixing
parts and supporting parts with 6 small screws
according to the figure.
Then insert two springs into two anti-skid screws,
lock in the bottom of the support until it is against
the ground.
05
Installation module bracket
03
Install hammer stick
● Tighten the screw to avoid
loosening.
04
Kick drum and pedal fixation
● Bottom drum and pedal should be fixed and
tightened to avoid falling off.
The top two are pointed screw
Insert the hammer rod into
the round hole according to
the figure, rotate the wool
hammer head to align it with
the drum face, and tighten
it with the drum key.
Insert the fixed iron bar into the hole
position according to the figure.
The protruding edge of
the bottom drum is
inserted into the pedal
fixing clamp and the
screw is tightened.

5MY ELECTRONIC DRUM
INSTALLATION GUIDE
06
Drum stand
07
Drum stand installation
● During installation, tighten the screws and be careful not to pinch your finger!
● Assemble the drum stand according to the direction indicated.
● After opening the package, please check whether it contains all the items immediately.
If there are any omissions, please contact your dealer.
2pcs
A
L=450mm 2pcs
B
L=550mm
C D
E F
L=350mm
H

INSTALLATION GUIDE
Insert three cymbal support rods, four
drum support rods and module boxes
into corresponding positions respectively,
and tighten the plastic head screw.
1.2 meters
For safety considerations, the expansion width of the bracket should not be greater than 1.2 meters.
08
Installation of support rod and module box
● Support rods and module boxes need to be inserted in place, and tighten the plastic head
screw to avoid falling.
6
MY ELECTRONIC DRUM

Install cymbals, Tom drums and army drums in corresponding positions according
to the figures.
Attention: Each cymbal, Tom drum and army drum has different functions. It needs
to be installed correctly with reference to the identification of accessories.
INSTALLATION GUIDE
09
Installation of strike components
● After inserting the drum disc, tighten the screw to avoid loosening.
● Do not screw the cymbals tightly, leave some space for them to sway up and down.
hi-hat
crash ride
tom1 tom2
tom3
snare
7MY ELECTRONIC DRUM
crash

8
MY ELECTRONIC DRUM
Plug the parallel plug into the
host box according to the figure,
then insert the corresponding
hole position of the hitting part
follow the English label of the
head of the connecting line.
INSTALLATION GUIDE
10

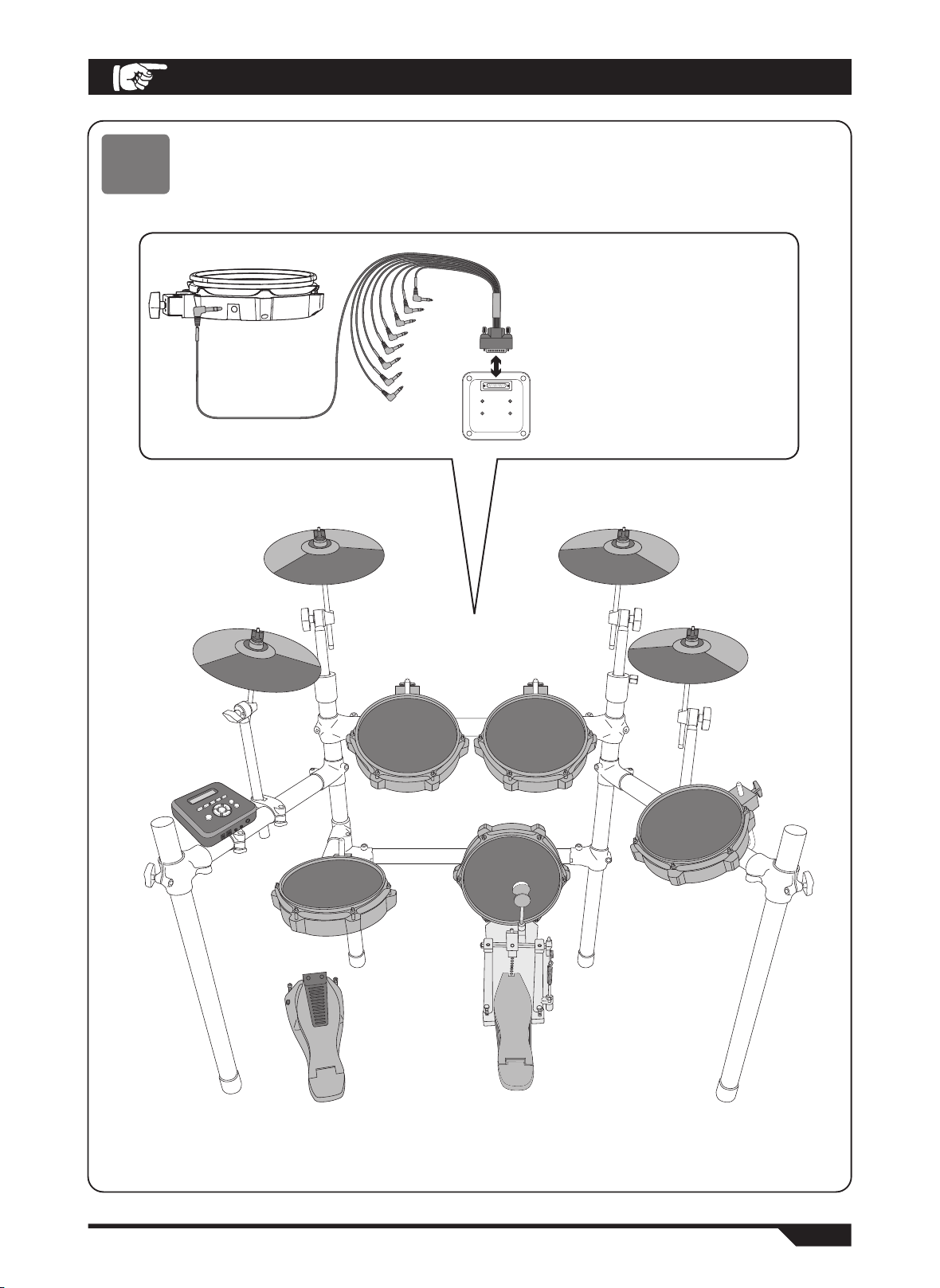

Insert Connection Line
● Please insert the connecting wire in place to avoid bad contact and insert it correctly
follow the diagram.
hi-hat
crash ride
tom1
module box
tom2
snare
Kick drum
hi-hat pedal
tom3
crash

DC9V 1A USB
PHONE
DC9V 1A USB
PHONE
AUDIO IN
AUDIO OUT
MANU
MP3
SONG
CRASH 2（Add cymbals)
5
21 6
4
3
REMARK！
● To prevent damage to the equipment, make sure to turn down the volume and shut down all the
equipment before making any connection.
● Additional cymbals, speakers, headphones and peripherals are all purchased separately. They are
not in standard configuration.

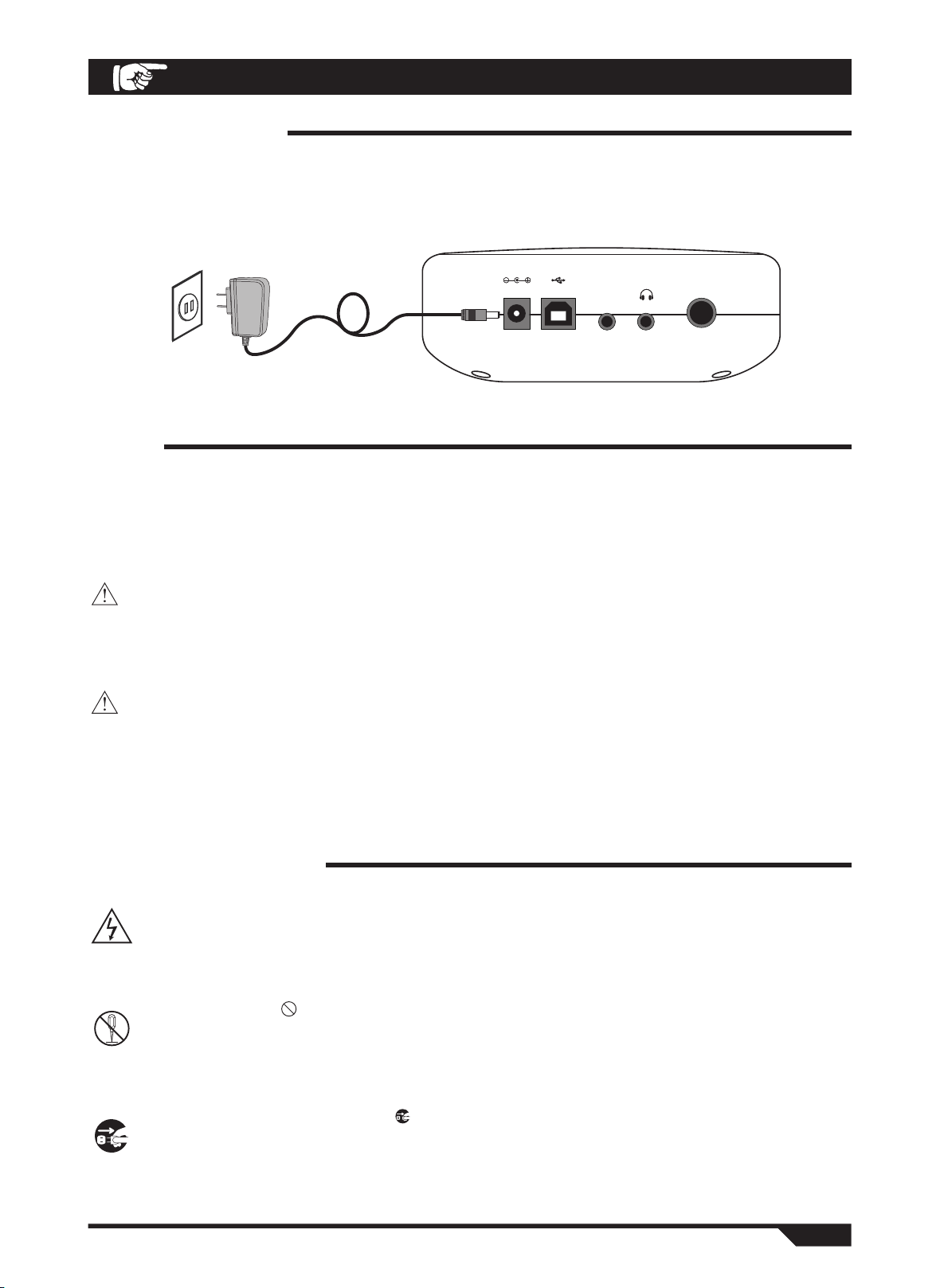

1. When in use, connect the power terminal according to the diagram, insert the power outlet of the
module box at one end and 100-240V household power outlet at the other end. (Fig. 1)
2.
If you do not use this product for a long time, please pull out the power plug and keep it properly.
1POWER TERMINAL CONNECTION
Connecting headphones monitors the details of percussion and does not disturb others when
playing without connecting speakers. (Fig. 3)
3EARPHONE PORT
Audio output port can be connected with active speaker (special electronic drum speaker) and large
audio equipment. (Fig. 4)
4AUDIO OUTPUT PORT
Audio input port can connect the sound source playback device to the module box for playback
(such as MP3. mobile phone and other audio signal input). (Fig. 5)
5AUDIO INPUT PORT
This socket can add a cymbal to facilitate expansion. (Fig. 6)
6ADDING CRASH
The use of electronic drum MIDI USB interface can interact with music devices with MIDI.
1. Through the pre-installed Music software on computers and mobile phones, we can learn to play,
compose music, store and other functions. (Fig. 2)
2. When connected to a computer or mobile phone, the audio output of the device needs to be
connected to the audio input socket of the module box in order to synchronize the sound effects
on the device. (Fig. 5)
2USB MIDI PORT
DIAGRAM OF MODULE BOX SOCKET
9MY ELECTRONIC DRUM

Use the "VOLUME +-" button to increase or decrease the total volume. Please adjust the volume to
a satisfactory position. (Fig. 2)
2MASTER VOLUME
2
4
2
5
1
5
4
3 7 6
1. Turn on the "POWER" switch, and you can enter the playing state. (Fig. 1)
2. Please turn off the power when not in use.
● Processor chips of this product are complex, similar to computer systems. Sometimes they can
not respond. Please turn off the power switch and then turn it on to work properly.
1POWER ON
OPERATION GUIDE
10
MY ELECTRONIC DRUM

11 MY ELECTRONIC DRUM
This product has double trigger induction, making the hitting sound effect closer to the original
sound drum effect.
1. "Snare drum" can tap drum face and drum edge.
2. "Crash cymbal" and "Ride cymbal" can tap cymbal face and edge, and hold cymbal edge with
finger to stop the sound.
3. Different combinations of "Hi-hat cymbal" and "Hi-hat pedal" will change the timbre.
● Open hi-hat cymbal timbre: Click on the surface of cymbals.
● Close hi-hat cymbal timbre: Step on the pedal and keep it closed while tapping the cymbal
surface.
● Hi-hat pedal timbre: Step on the pedal and don't hit the cymbal surface.
4PLAY THE DRUM
surface
Grasp the edge of the
cymbal and silence it.
surface
edge
edge
1. Press the "VOICE" button, display the screen (Voice), and enter the drum group adjustment
mode. (Fig. 3)
2. Using the "UP/DOWN" button, you can choose the following options as an adjustment. (Fig. 4)
Display screen display:
●（KitNum 001-015）：Drum combination timbre selection, a total of 15 sets of preset drum group.
●（KitVol 000-127）：The volume of drum combination can be adjusted at 128 levels.
●（Kick 001-015）：Kick drum timbre selection, a total of 15 timbres can be adjusted.
●（Snare 001-015）：Snare drum timbre selection, a total of 15 timbres can be adjusted.
●（SnareRim 001-015）：Snare drum edge-click timbre selection, a total of 15 timbres can be adjusted.
●（Tom1 001-015）：Tom-tom drum 1 timbre selection, a total of 15 timbres can be adjusted.
●（Tom2 001-015）：Tom-tom drum 2 timbre selection, a total of 15 timbres can be adjusted.
●（Tom3 001-015）：Tom-tom drum 3 timbre selection, a total of 15 timbres can be adjusted.
●（Cras 001-015）：Crash cymbal timbre selection, a total of 15 timbres can be adjusted.
●（CrasRim 001-015）：Crash cymbal edge-click timbre selection, a total of 15 timbres can be adjusted.
●（Cras2 001-015）：Crash cymbal 2 timbre selection, a total of 15 timbres can be adjusted.
●（Cras2Rim 001-015）：Crash cymbal 2 edge-click timbre selection, a total of 15 timbres can be adjusted.
●（Ride 001-015）：Ride cymbal timbre selection, a total of 15 timbres can be adjusted.
●（RideRim 001-015）：Ride cymbal edge-click timbre selection, a total of 15 timbres can be adjusted.
●（OpenHat 001-015）：Open hi-hat cymbal timbre selection, a total of 15 timbres can be adjusted.
●（CloseHat 001-015）：Close the high-hat cymbal timbre selection, a total of 15 timbres can be adjusted.
●（Pedal 001-015）：Hi-hat pedal timbre selection, a total of 15 timbres can be adjusted.
3. Use the "+/-" button to adjust the parameters of the above options. (Fig. 5)
4. Press the "SAVE/RESET" button to save the adjusted drum group for later invocation. (Fig. 6)
5. Press the "DRUM KIT" button to call the previously customized adjusted drum group. (Fig. 7)
3TIMBRE SELECTION OF DRUM GROUP
Hi-hat cymbal
+ Hi-hat pedal
OPERATION GUIDE

12
MY ELECTRONIC DRUM
1. Press the "METRONOME" button and display (Metro) on the screen. (FIG. 8)
2. Using the "UP/DOWN" button, you can choose the following options as an adjustment. (Fig. 4)
Display screen display:
●（Time 002-016）：Metrometer Speed - A total of 4 levels of standard speed can be adjusted.
●（Beat 001-009）：Metrometer type - 9 types can be adjusted.
●（MetroVol 000-127）：Metrometer volume - 128 levels adjustable.
3. Use the "+/-" button to adjust the parameters of the above options. (Fig. 5)
4. Press the "PLAY" button to start playing the metronome and press again to stop. (Fig. 9)
5METRONOME
1. Press the "MENU" button several times until the display screen (Song) enters the sub-option
music mode. (FIG. 10)
2. Using the "UP/DOWN" button, you can choose the following options as an adjustment. (Fig. 4)
Display screen display:
●（Num 001-030): Music Selection - A total of 30 built-in pieces.
●（GmVol 000-127): Chord accompaniment volume - 128 levels adjustable.
●（DrmVol 000-127: Volume of drum group - 128 levels adjustable.
3. Use the "+/-" button to adjust the parameters of the above options. (Fig. 5)
4. Press the "PLAY" button to start playing the music and press again to stop. (Fig. 9)
6DEMONSTRATION MUSIC PLAYING
4
5
5
4
8
10
9 6
OPERATION GUIDE

1. Press the "MENU" button several times until the display screen displays (Utility) and enter the
sub-option reverberation/balancing optimization mode. (FIG. 10)
2. Using the "UP/DOWN" button, you can choose the following options as an adjustment. (Fig. 4)
Display screen display:
●（RevType 000-005）：Reverberation Category - altogether 6 levels adjustable.
●（Revlevel 000-127）：Reverberation size - 128 levels can be adjusted, when the value is "000",
the reverberation is closed.
●（EQ_H 000-127）：High Frequency Equilibrium - 128 levels adjustable.
●（EQ_L 000-127）：Low Frequency Equilibrium - 128 levels adjustable.
3. Use the "+/-" button to adjust the parameters of the above options. (Fig. 5)
4. Press "SAVE/RESET" button to save the adjusted parameters for future use. (Fig. 6)
9REVERBERATION/EQUILIBRIUM OPTIMIZATION
In the mode of demonstration music or metronome playing, adjusting speed can control the speed
of demonstration music and metronome playing.
1. Press the "MENU" button several times until the display screen (Tempo) enters the sub-option
playback speed mode. (FIG. 10)
Display screen display:
●（Speed 030-250）: Play speed selection - 221 level speed adjustable.
2. Use the "+/-" button to adjust the parameters. The adjustment range (Speed 030-250) is 221 levels.
(Fig. 5)
7PLAY SPEED
1. Press the "MENU" button several times until the display screen displays (Sensity) and enter the
sensitivity adjustment mode of the sub-option components. (FIG. 10)
2. Hit the drum tray you want to adjust with a drum stick.
3. Using the "UP/DOWN" button, you can choose the following options as adjustments. (Fig. 4)
Display screen display:
●（PadSen 001-006）：Strike surface sensitivity - 6 levels adjustable.
●（RimSen 001-006）：Strike Side Ring Sensitivity - 6 levels adjustable.
●（HHCLevel 001-003）：Hi-hat cymbal sensitivity-three levels adjustable.
●（HHCSen 001-003）：Hi-hat cymbal closure speed-three levels adjustable.
●（Threhold 001-032）：Trigger threshold - 32 levels adjustable.
●（XTalk 001-032）：Crosstalk threshold - 32 levels adjustable.
●（Retriger 001-032）：Repeated trigger - 32 levels adjustable.
●（Velocity 001-003）：Force Curve - 3 levels adjustable.
●（Volume 000-127）：Drum disc volume - 128 levels adjustable.
4. With the "+/-" button, the parameters of the above options can be adjusted according to the
custom. (Fig. 5)
5. Press the "SAVE/RESET" button to save the adjusted parameters for future use. (Fig. 6)
8DRUM DISC SENSITIVITY ADJUSTMENT
Press the "SAVE/RESET" button for more than 3 seconds to restore the factory settings. (Fig. 6)
10 FACTORY RESET
OPERATION GUIDE
13 MY ELECTRONIC DRUM

14
MY ELECTRONIC DRUM
Timbre
1 Acoustic
2 Military
3 Original
4 Funk
5 Standard
6 Dance
7 Rock
8 Jazz
9 808
1 Drum & Bass
2 Blues
3 Jazz1
4 Rock1
5 Electrophonic & Funk
6 Country1
7 R & B
8 Pop1
9 Pop2
10 Pop3
11 March
12 Pop Bossa
13 Fusion
14 Dance
15 Jazz Swing
16 Pop Rock
17 Country Blues
18 Pop4
19 Scotland
20 Latin Jazz
21 Swing1
22 Swing2
23 Country2
24 Modern Pop
25 Electrophonic
26 Swing3
27 Jazz2
28 Country3
29 Rock2
30 Pop5
10 Songo
11 909
12 Fairfax
13 Dancehall
14 70`s
15 Clean
16 Kit Num
Drum combination timbre
Demonstration music
User drum group
APPENDIX
KICK
1 Acoustic Kick
2 Military Kick
3 Original Kick
4 Funk Kick
5 Standard Kick
6 Dance Kick
7 Rock Kick
8 Jazz Kick
9 808 Kick
10 Songo Kick
11 909 Kick
12 Fairfax Kick
13 Dancehall Kick 3
14 70`s Kick
15 Clean Kick
SNARE
16 Acoustic Snare
17 Military Snare
18 Original Snare
19 Funk Snare
20 Standard Snare
21 Dance Snare
22 Rock Snare
23 Jazz Snare
24 808 Snare1
25 Songo Snare
26 909 Snare
27 Fairfax Snare
28 Dancehall Snare
29 70`s Snare
30 Clean Snare
31 Acoustic Snare Rim
32 Military Snare Rim
33 Original Snare Rim
34 Funk Snare Rim
35 Standard Snare Rim
36 Dance Snare Rim
37 Rock Snare Rim
38 Jazz Snare
39 808 Snare Rim
40 Songo Snare Rim
41 909 Snare Rim
42 Fairfax Snare Rim
43 Dancehall Snare Rim
44 70`s Snare Rim
45 Clean Snare Rim
Tom
46 Acoustic Tom1
47 Military Tom1
48 Original Tom1
49 Funk Tom1
50 Standard Tom1
51 Dance Tom1
52 Rock Tom1
53 Jazz Tom1
54 808 Tom1
55 Songo Tom1
56 909 Tom1
57 Fairfax Tom1
58 Dancehall Tom1
59 70`s Tom1
60 Clean Tom1
61 Acoustic Tom2
62 Military Tom2
63 Original Tom2
64 Funk Tom2
65 Standard Tom2
66 Dance Tom2
67 Rock Tom2
68 Jazz Tom2
69 808 Tom2
70 Songo Tom2
71 909 Tom2
72 Fairfax Tom2
73 Dancehall Tom2
74 70`s Tom2
75 Clean Tom2
76 Acoustic Tom3
77 Military Tom3
78 Original Tom3
79 Funk Tom3
80 Standard Tom3
81 Dance Tom3
82 Rock Tom3
83 Jazz Tom3
84 808 Tom3
85 Songo Tom3
86 909 Tom3
87 Fairfax Tom3
88 Dancehall Tom3
89 70`s Tom3
90 Clean Tom3
CRASH
91 Acoustic Crash1
92 Military Crash1
93 Original Crash1
94 Standard Crash1
95 Funk Crash1
96 Dance Crash1
97 Rock Crash1
98 Jazz Crash1
99 808 Crash1
100 Songo Crash1
101 909 Crash1
102 Fairfax Crash1
103 Dancehall Crash1
104 70`s Crash1
105 Clean Crash1
106 Acoustic Crash1 Rim
107 Military Crash1 Rim
108 Original Crash1 Rim
109 Standard Crash1 Rim
110 Funk Crash1 Rim
111 Dance Crash1 Rim
112 Rock Crash1 Rim
113 Jazz Crash1 Rim
114 808 Crash1 Rim
115 Songo Crash1 Rim
116 909 Crash1 Rim
117 Fairfax Crash1 Rim
118 Dancehall Crash1 Rim
119 70`s Crash1 Rim
120 Clean Crash1 Rim
121 Acoustic Crash2
122 Military Crash2
123 Original Crash2
124 Standard Crash2
125 Funk Crash2
126 Dance Crash2
127 Rock Crash2
128 Jazz Crash2
129 808 Crash2
130 Songo Crash2
131 909 Crash2
132 Fairfax Crash2
133 Dancehall Crash2
134 70`s Crash2
135 Clean Crash2
136 Acoustic Crash2 Rim
137 Military Crash2 Rim
138 Original Crash2 Rim
139 Standard Crash2 Rim
140 Funk Crash2 Rim
141 Dance Crash2 Rim
142 Rock Crash2 Rim
143 Jazz Crash2 Rim l
144 808 Crash2 Rim l
145 Songo Crash2 Rim
146 909 Crash2 Rim
147 Fairfax Crash2 Rim
148 Dancehall Crash2 Rim
149 70`s Crash2 Rim
150 Clean Crash2 Rim
RIDE
151 Acoustic Ride
152 Military Ride
153 Original Ride
154 Standard Ride
155 Funk Ride
156 Dance Ride
157 Rock Ride
158 Jazz Ride
159 808 Ride
160 Songo Ride
161 909 Ride
162 Fairfax Ride
163 Dancehall Ride
164 70`s Ride
165 Clean Ride
166 Acoustic Ride Rim
167 Military Ride Rim
168 Original Ride Rim
169 Standard Ride Rim
170 Funk Ride Rim
171 Dance Ride Rim
172 Rock Ride Rim
173 Jazz Ride Rim
174 808 Ride Rim
175 Songo Ride Rim
176 909 Ride Rim
177 Fairfax Ride Rim
178 Dancehall Rim
179 70`s Ride Rim
180 Clean Ride Rim
HI-HAT
181 Acoustic Hi-hat Open
182 Military Hi-hat Open
183 Original Hi-hat Open
184 Standard Hi-hat Open
185 Funk Hi-hat Open
186 Dance Hi-hat Open
187 Rock Hi-hat Open
188 Jazz Hi-hat Open
189 808 Hi-hat Open
190 Songo Hi-hat Open
191 909 Hi-hat Open
192 Fairfax Hi-hat Open
193 Dancehall Hi-hat Open
194 70`s Hi-hat Open
195 Clean Hi-hat Open
196 Acoustic Hi-hat Close
197Military Hi-hat Close
198 Original Hi-hat Close
199 Standard Hi-hat Close
200 Funk Hi-hat Close
201 Dance Hi-hat Close
202 Rock Hi-hat Close
203 Jazz Hi-hat Close
204 808 Hi-hat Close
205 Songo Hi-hat Close
206 909 Hi-hat Close
207 Fairfax Hi-hat Close
208 Dancehall Hi-hat Close
209 70`s Hi-hat Close
210 Clean Hi-hat Close
211 Acoustic Hi-hat Pedal
212 Military Hi-hat Pedal
213 Original Hi-hat Pedal
214 Standard Hi-hat Pedal
215 Funk Hi-hat Pedal
216 Dance Hi-hat Pedal
217 Rock Hi-hat Pedal
218 Jazz Hi-hat Pedal
219 808 Hi-hat Pedal
220 Songo Hi-hat Pedal
221 909 Hi-hat Pedal
222 Fairfax Hi-hat Pedal
223 Dancehall Hi-hat Pedal
224 70`s Hi-hat Pedal
225 Clean Hi-hat Pedal

Do not over expose the product to direct sunlight, or place it near air conditioning or extremely
hot place.
1AVOID HEATING, DAMPNESS OR DIRECT SUNLIGHT
This product may cause video or audio interference to the reception of TV and radio. If this
happens, the product should be removed from the TV or radio.
2DO NOT USE NEAR THE TV OR RADIO
Clean the product with a soft cloth wetted with weak water solution and neutral detergent.
Soak the cloth in a solution and wring it dry until it approaches drying.
3
NO DILUENTS OR SIMILAR CHEMICALS SHOULD BE USED FOR CLEANING
When moving, the product should be handled carefully and lightly. Violent vibration and collision
are strictly prohibited in order to avoid damage to the shell or internal electronic components.
4DO NOT SHAKE, AVOID COLLISION
Careful maintenance and protection of the product, to extend the service life of the product, reduce
the fault has a very important role.
PRODUCT MAINTENANCE
15 MY ELECTRONIC DRUM

DC9V 1A USB
PHONE
DC9V 1A USB
PHONE
AUDIO IN
AUDIO OUT
SIGN
POWER SUPPLY
To ensure that you use this product safely and correctly, to prevent harm to users and others and
financial damage, this manual and products are marked with a series of safety signs. The various
signs and their meanings are as follows:
This product can be powered by standard indoor wall sockets. Please only use the power cord
specified in this product. When not in use, please turn off the power supply. When not in use for a
long time, pull out the power cord and keep it properly.
WARNING
This sign indicates that there is a potential risk of death or serious injury if this mark is ignored and
the product is mishandled.
BE CAREFUL
This sign indicates that there is a potential danger of injury to personnel or other financial damage
if this sign is ignored and the product is operated incorrectly.
EXAMPLE OF LOGO
This triangle sign (△) indicates what users should pay attention to.
(The left example is careful shocks)
A circular sign ( ) with an oblique line indicates prohibitions. The icons in or beside the
logo indicate the contents specifically prohibited. (The example on the left is no
disassembly)
The round black bottom sign ( ) indicates what must be observed. The diagrams in this
sign indicate the contents of the specific matters that must be observed.
(The example on the left is that the power plug must be pulled out of the socket)
SAFETY PRECAUTIONS
16
MY ELECTRONIC DRUM

BE CAREFUL
The improper use of power cord may cause
fire and electric shock. The following
precautions must be observed:
● Never put the power cord near the oven
or other heat source.
● Do not pull the cable when pulling out of
the power socket. The main body of the
plug must be grasped.
● The power cord plug must be inserted in
the socket to the end.
● Make sure the power supply is off before
connecting or disconnecting it.
● When thunderstorms occur or before
traveling or other long-term departure,
disconnect the power cord from the wall
outlet.
● At least once a year, remove the power
cord from the wall outlet and clean the
dust accumulated around the plug.
Do not burn this product
Do not put this product in the fire,
otherwise it will lead to product
combustion and explosion of internal
electronic components, which will cause
fire and personnel injury.
Water and foreign bodies
Water, other liquids and (metal sheets, etc.)
entering this product are in danger of
causing fire and electric shock. In case of
the above situation, the following
operations shall be performed immediately:
1. Turn off the power supply.
2. If you are using a power cord for power
supply, unplug it from the wall outlet.
3. Contact your distributor.
Disassembly and transformation
Do not disassemble or transform the
product in any way, otherwise there is a
risk of electric shock, scald or other
personal injury. All internal inspection,
adjustment and maintenance operations
should be entrusted to your distributor.
WARNING
Smoke, odor, overheating
When the product smokes, smells or
overheats, there is a danger of fire and
electric shock when it is used continually.
In case of the above situation, the following
operations should be performed immediately:
1. Turn off the power supply.
2. Pull the plug out of the power outlet.
3. Contact your dealer.
Power cord
1. The improper use of power cord may
cause fire and electric shock. The following
precautions must be observed:
● The special power cord designated for
this product must be used.
● The AC power supply with output
voltage within the rated voltage range
for household use must be used.
● Do not overload power sockets and
extension lines.
2. The improper treatment of power line
will lead to its damage or breakage,
which will cause fire and electric shock
hazards. The following precautions must
be observed:
● Do not place or heat heavy objects on
power lines.
● Do not attempt to alter or bend the
power cord too much.
● Do not twist or pull the power cord.
● If the power cord or plug is damaged,
please replace the same type of power
cord.
3. Do not touch the power cord and plug
with wet hands, otherwise there is a
danger of electric shock.
4. Please use the power cord where the
water will not splash. Water is in danger
of causing fire and electric shock.
5. Never place vases or any other container
containing water on this product. Water
is dangerous of causing fire and electric
shock.
6. Do not allow minors to unplug and touch
power lines or connection boards. Minors
have no common sense of electricity
safety, which may cause electric shock.
SAFETY PRECAUTIONS
17 MY ELECTRONIC DRUM

18
MY ELECTRONIC DRUM
Location selection
It should be avoided to place the product
in the following places, otherwise there is
a risk of fire and electric shock.
● High temperature or dusty places.
● Kitchen or other places with lampblack.
● Where the product is exposed to direct
sunlight, or any other place where the
product will produce high temperature.
Volume
Don't play music long and loud. Pay special
attention when using headphones.
Excessive volume can damage your hearing.
Heavy
Do not place heavy objects on this product.
Otherwise, the top of the product will be
overweight, causing the product to
overturn or drop objects on it, which will
lead to the risk of injury.
Correct assembly of scaffolds
The incorrect assembly of the bracket may
overturn, causing the product to fall off
and posing a risk of injury to personnel.
Therefore, it must be assembled according
to the instructions in the attached
installation guide to ensure that the
product is properly mounted on its
bracket.
Falling or colliding
If the product falls or is damaged by strong
impact, it will be in danger of causing fire
and electric shock. In case of the above
situation, the following operations shall be
performed immediately:
1. Turn off the power supply.
2. If you are using a power cord for power
supply, you need to unplug it from the
wall outlet.
3. Contact your distributor.
Plastic bag
Do not let anyone put plastic bags for this
product on his head or in his mouth.
Otherwise, there is a risk of asphyxia.
Families with young children should pay
special attention to it.
Keep a distance from the product
and the bracket
Climbing the bracket is dangerous of
overturning or damage. Families with
young children should pay special
attention to it.
Put
Avoid placing the product on an uneven
surface or any other unstable place.
Otherwise, it will cause the product to fall
down, which will lead to the risk of injury.
Product Mobility
Before moving this product, you must
unplug the power cord plug from the wall
outlet and pull out all other cables and
connecting wires. Otherwise, it will lead to
damage of power or connection wires,
resulting in fire and electric shock.
clean
Before cleaning this product, you must
unplug the power cord plug from the wall
outlet, otherwise there is a risk of fire and
electric shock.
Jack
The socket of this product can only be
connected to the designated equipment
and devices. Connecting non-designated
equipment or devices is dangerous of
causing fire and electric shock.
SAFETY PRECAUTIONS

Date Maintenance record Repairman
1. Faults arising from normal use of this product can be guaranteed free of charge for _________days
from the date of purchase.
2. Failure occurs during the warranty period. This warranty card and shopping ticket must be
presented during maintenance.
3. In the following cases, no free warranty will be provided:
● Damage caused by improper use by users.
● Fault damage caused by irresistible factors such as fire, flood, earthquake and lightning strike.
● Failure caused by unauthorized self-disassembly.
4. After exceeding the warranty period, the company is responsible for maintenance, but it needs to
charge a cost fee.
Seller: __________________________________________________________
Address: _______________________________________________________
Telephone: ____________________________________________________
Warranty rules
Maintenance record
WARRANTY CARD
19 MY ELECTRONIC DRUM
