dooch NSQ-0075S User manual

INSTRUCTION MANUAL
NSQ Drive

Warning
Caution
Safety Instructions
Preface
Thank you for choosing DOOCH’s high performance NSQ-Drive series.
Describing specification, installation, operation, function, and maintenance of the NSQ-Drive
series provided for the users who are familiar with and having basic experience in using a
variable frequency drive.
Be sure to understand function, performance, installation, and operation of the product by
reading through this User's Manual completely prior to your use of NSQ-Drive series that
you have purchased. In addition, you are required to have this User's Manual properly
delivered to the end-user and maintenance manager.
Safety Precautions
Remark
To prevent injury and property damage, follow these instructions. Incorrect operation
due to ignoring instructions will cause harm or damage.
The seriousness of which is indicated by the following symbols.
Even if the instructions are indicated as ‘Caution’, it can cause a serious result according to the kind
of operation and the environment.
The meaning of each symbol in this manual and on your equipment is as follows.
Warning :
This symbol indicates the possibility of death or serious injury.
Caution :
This symbol indicates the possibility of injury or damage to property.


Do not remove the cover while power is applied or the unit is in operation.
Otherwise, electric shock could occur.
Do not run the inverter with the front cover removed.
Otherwise, you may get an electric shock due to high voltage terminals or
charged capacitor exposure.
Do not remove the cover except for periodic inspections or wiring, even if
the input power is not applied.
Otherwise, you may access the charged circuits and get an electric shock.
Wiring and periodic inspections should be performed at least 10 minutes
after disconnecting and after checking the DC link voltage is discharged
with a meter (below DC 30V).
Otherwise, you may get an electric shock.
Operate the switches with dry hands.
Otherwise, you may get an electric shock.
Do not use the cable when its insulating tube is damaged.
Otherwise, you may get an electric shock.
Do not subject the cables to scratches, excessive stress, heavy loads or
pinching.
Otherwise, you may get an electric shock.
Install the VFD on a non-flammable surface. Do not place flammable
material nearby.
Otherwise, fire could occur.
Disconnect immediately the input power if the inverter gets damaged.
Otherwise, it could result in a secondary accident and fire.
After the input power is applied or removed, the VFDwill remain hot for
a couple of minutes.
Otherwise, you may get bodily injuries such as skin-burn or damage.
Do not apply power to a damaged inverter or to the VFD with parts missing
even if the installation
Otherwise, electric shock could occur.
Do not allow lint, paper, wood chips, dust, metallic chips or other foreign
matter into the drive.
Otherwise, fire or accident could occur.
Caution
Warning
Safety Instructions


Safety Instructions
Cautions for Use
A. Transportation and Installation
Be sure to carry VFD in a proper way suitable for its weight, or it may result in damage to the VFD.
Be sure to use heat-treated wooden crate when you adopt wooden packaging for the product.
Do not pile up VFD's above allowable limit.
Be sure to install the VFD as directed in this instruction manual.
Do not turn off the power supply to the damaged VFD.
Do not open the front cover while carrying the VFD.
Do not place the heavy material on the VFD.
The direction of installation should be observed properly as criterions specified in this manual show.
Make sure that you should not put screw, metal material, water, oil and the inflammable something else.
Keep in mind that the VFD is very vulnerable to drop from the mid air and strong shock.
Don't let the inverter exposed to rain, snow, fog, dust, etc.
Do not cover, nor block, the ventilating system having cooling fan. It may cause the VFD overheated.
Be sure to check the power is off when installing the VFD.
To prevent the risk of fire or electric shock, keep the connected wire in a sound condition.
Use the wire that meets the standard in a recommended length.
B. Wiring
A professional installer should have done the wiring and checking.
Do wiring after installing the VFD body.
Do not connect phase-leading capacitors, surge filter, radio noise filter to the output of the VFD.
Output terminals (terminals named U, V, W respectively) should be connected in a proper phase
sequence.
Make sure that there is not any short circuit terminal, wrong wiring. It may cause spurious operation
or failure.
Refrain from using a cable other than the cable shielded when you connect control circuit wiring.
Adopt the shielded wire only when wiring the control circuit. It may cause the failure of the VFD in its
operation.
Use the twisted pair shield wire for the ground terminal of the VFD
Installation Location Free of corrosive gas, inflammable gas, oil sludge and dust, etc
Temperature/Humidity -10 ~ 40℃/ Below 90% RH (Dewdrop should not be formed)
Storage Temperature -20~65℃
Elevation/Vibration Altitude 1,000m or lower / below 5.9m/sec²(=0.6g)
Ambient Atmospheric Pressure 70~106 kpa


Do not supply the excessive range of voltage displayed in the user manual to the each terminal.
It may cause damage to the inverter.
Current hunting can be occurred in the low speed territory during testing. It occurs where the capacity is
above 110kW with no-load and the axis is not connected.
The current hunting has a gap according to the motor characteristic. It will be disappeared when the load
is connected and it is not the indication of abnormal condition.
If the hunting is occurred seriously, please stop the testing and operates with the load.
Be sure to check relevant parameters for the application before starting trial operation.
C. Adjustment before starting trial operation
Safety Instructions
If the VFD is damaged and then gets into uncontrollable situation, the machine may lead to the dangerous
situation, therefore to avoid this situation, be sure to install the additional equipments such as brake.
E. Reaction on Failure and Malfunction
Do not perform the megger (insulation resistance check) test on the control board.
F. Maintenance, inspection and parts replacement
Be sure not to approach the machine when retry function is selected. The machine may start working
suddenly.
Stop key on the keypad should be set to be in use. For safety, additional emergency stop circuit should
be required.
Never modify the VFD for inappropriate use
When a magnetic contactor is installed on the power source, do not frequently start or stop using this
magnetic contactor. It may cause the failure of VFD.
Noise filter should be used for the minimization of troubles by electro-magnetic noise.
Electronic equipments close to the inverter should be protected against the damage caused by troubles.
Be sure to install the AC reactor at the input of inverter in case of input voltage unbalance.
Otherwise, generator or phase-leading capacitors may be destroyed by the harmonic current from inverter.
Be sure to set the parameters once more, in case of initialization of parameters, all values of parameters
is set to values of factory setting.
DC braking function cannot produce a zero-servo torque.
If required, additional equipment should be installed.
Do not change wiring, nor disconnect connector or option card during the operation of the VFD.
Do not disconnect the motor wiring while the voltage of inverter is output.
Mishandling may cause damage to the VFD.
D. How to Use


CONTENTS
Chapter 1. Basics
91.1 Confirmation of Specification on Nameplate
91.2 Type of product
101.3 Installation
101.4 Wiring
Chapter 4. Installation
174.1 Caution on Installation

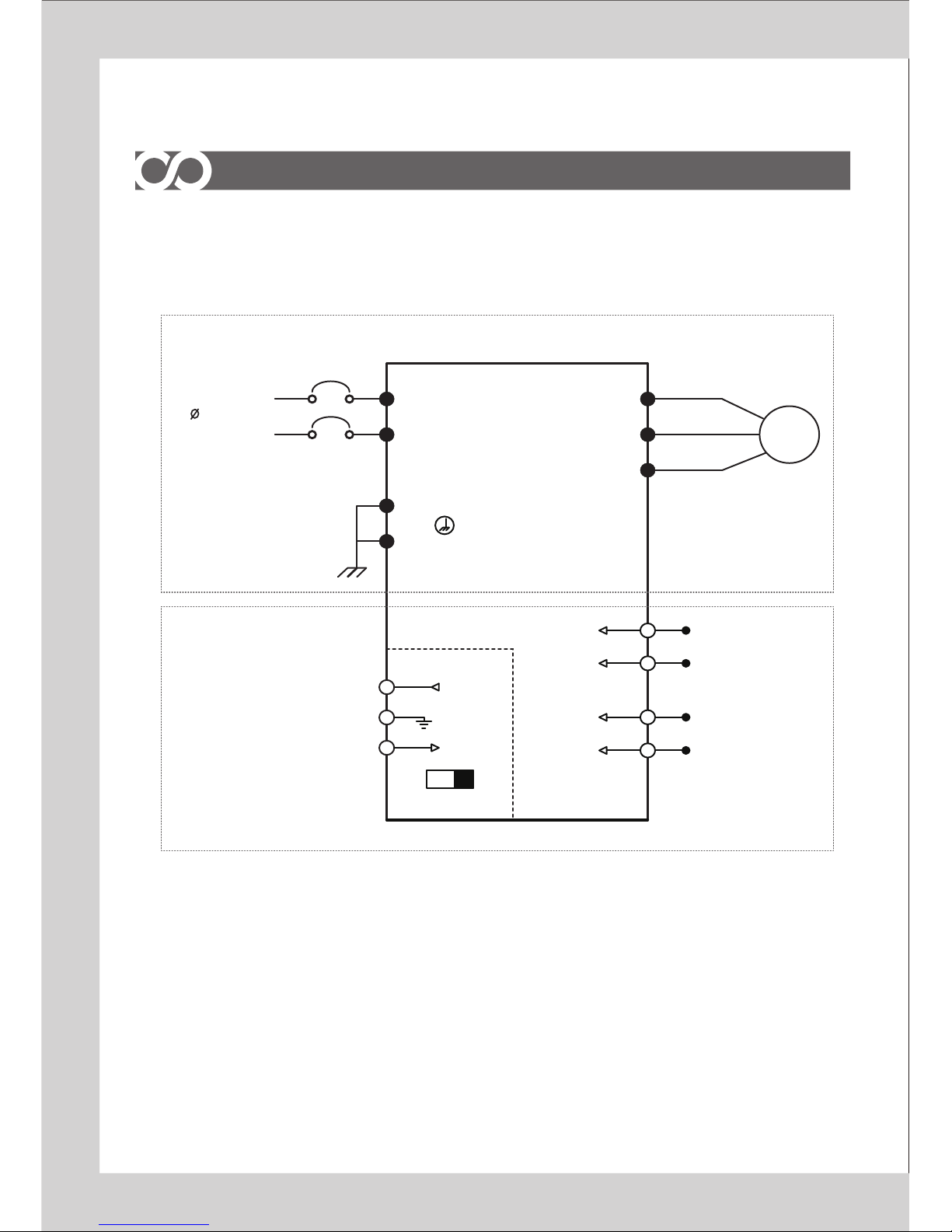

184.2 Wiring Diagram of Terminals
204.3 Wiring of Main Power Supply Circuit
204.3.1 Description on Main Power Supply Terminals
204.3.2 Caution when wiring the Main Power Supply
214.3.3 Cautions on Ground Wiring
214.3.4 Caution on Ground Wiring
234.4 Control Circuit Wiring
234.4.1 Arrangement of Control Terminal Block
264.4.2 Functions of Control Terminal Block
274.4.3 Cautions on Control Circuit Wiring
274.4.4 Connection of Pressure Sensor and Low Water Level Sensor
Chapter 3. External Dimension

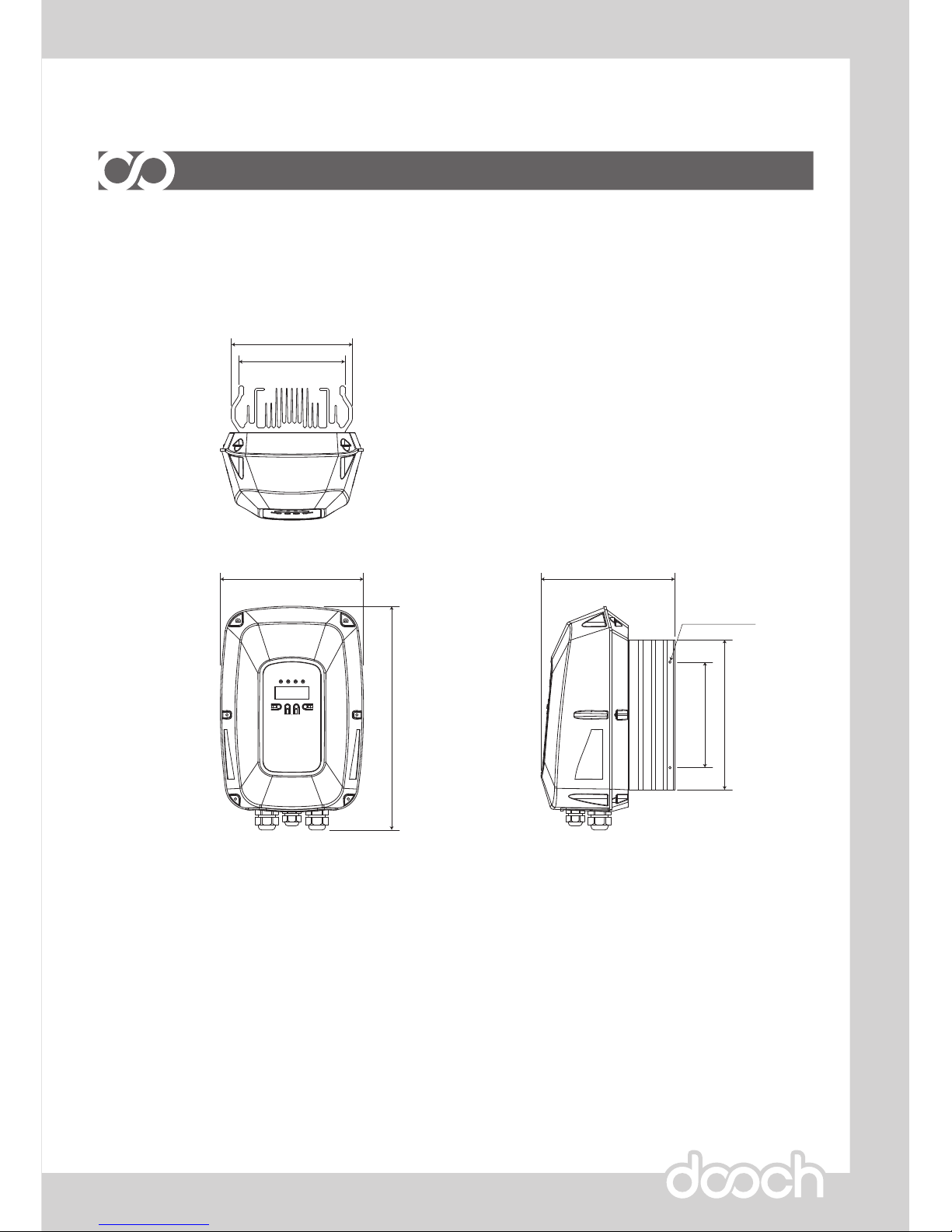

133.1 NSQ-0040S ~ NSQ-0150SE
14
3.2 NSQ-0150S ~ NSQ-0220SE
NSQ-0075T ~ NSQ-0400T
Chapter 2. Specification
112.1 Specification of Product (1 Phase)
122.2 Specification of Product (3 Phase)
284.4.5 Sink Mode and Source Mode
284.4.6 Communication Line Wiring
15
3.3 NSQ-0550T ~ NSQ-0750T
163.4 NSQ-1100T ~ NSQ-2200T


426.2 Pump Control Group
446.3 Drive Control Group
466.4 Description on Function of Parameter Settings
466.4.1 Pump Control Group
576.4.2 Drive Control Group
848.2 Accessories
848.2.1 EMC Filter
Chapter 5. Operation
295.1 FND
295.1.1 Appearance and Description of FND
305.1.2 Functional Description of each Part
315.1.3 How to change Parameter Settings
325.2 Function Setup
325.2.1 Basic Function Setup
345.2.2 Expansion Function Setup
CONTENTS
Chapter 6. Function Table & Description
416.1 Display of present status
365.3 Basic Operation
365.3.1 Constant Pressure Control Mode
CHAPTER 8 Appendix
788.1 RS-485
697.2 Measures to be taken in case of fault or alarm.
697.3 Cause of Fault and Reaction
Chapter 7. Cause of Fault and Reaction
687.1 Fault History Table


Chapter 1 Basics
1. What You Should Know before Use

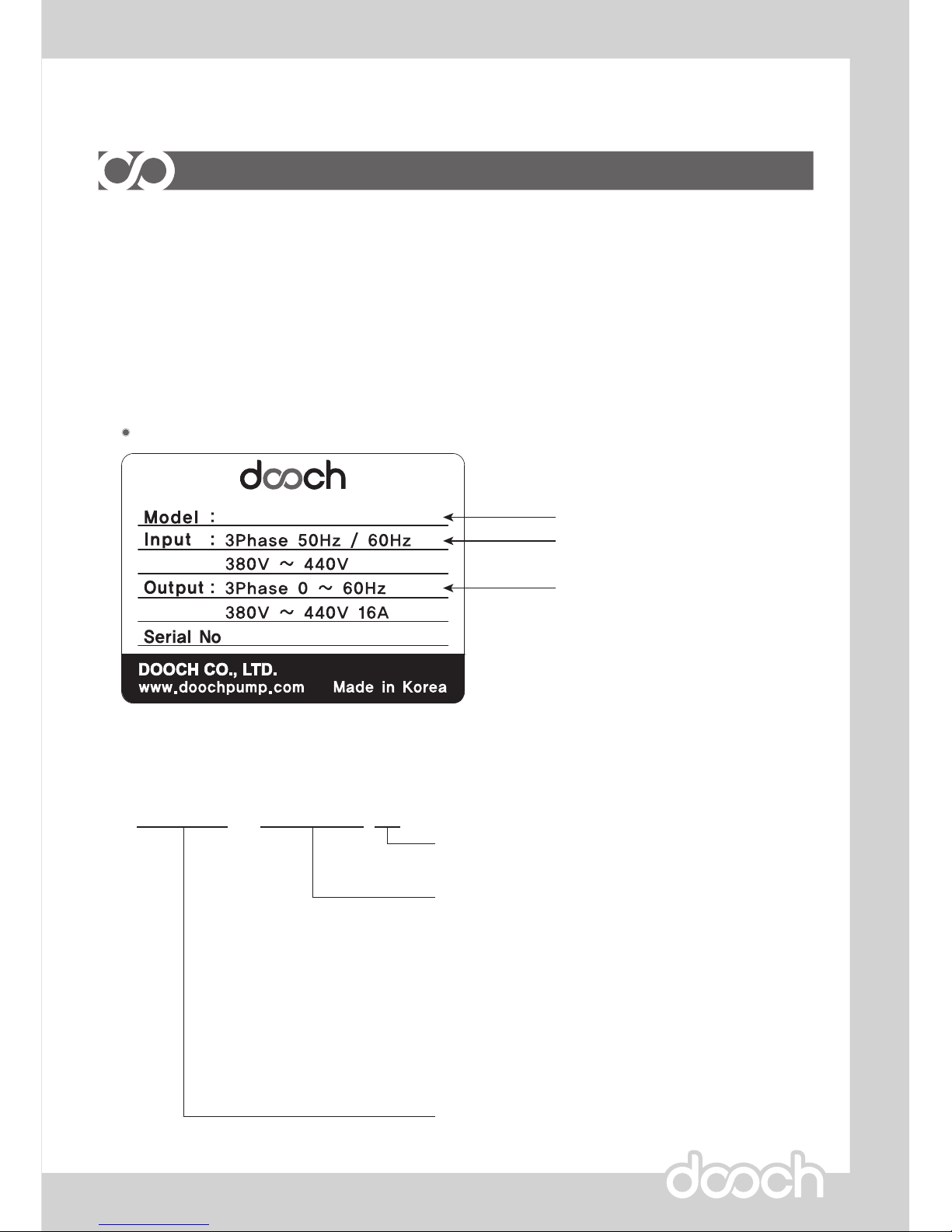

1.1 Nameplate Information
Take the VFD out of the box, check the rating shown on a side of the product body and whether the
VFD type and rated output are exactly what you ordered. Check also whether the product has been
damaged during delivery.


Type of Drive


  
  
  
  
  
  
  
  
  
  
1.2 Type of Product



Nameplate of the Product
Input specification
Output specification


Product model name is indicated as above. Initial four digits indicate driving capacity of the drive in
00.00kW unit. Decimal point is not indicated.
'S' refers Single phase.
'T' refers Three phase.
Make sure you install the product correctly considering the place, direction or surroundings in order
to prevent decrease in the life and performance of the VFD.
Chapter 1 Basics
1.3 Installation
Connect the power supply, electric motor and operating signals (control signals) to the terminal block.
If you fail to connect them correctly, the VFD and peripheral devices might be damaged.
1.4 Wiring


Model NSQ-_____S
Standard Motor [kW]
Standard Motor [HP]
Output Capacity[ [kVA]
Rated Output Current [A]
0.4
0.5
1
2.5
0.75
1
2
5
1.5
2
3.2
8
2.2
3
4.8
12
Output Voltage [V]
Output Frequency [Hz]
Rated Input Voltage [V]
Input Frequency [Hz]
Protection Class
Switching Frequency [kHz]
Cooling
Control Operation Display
Operation
Status
Operation
Conditions
Controlling Method
Frequency Stability
Overload Resistance
Torque Boost
Operation Method
Frequency Setting
Acceleration
/Deceleration Time
Abnormal Reset
Abnormal Output
Operation Status
Natural Cooling Fan Cooling
Other Functions
Protection Structure
Drive Info.
Abnormality
Environment
Ambient Temp.
Storage Temp.
Surrounding Humidity
0.05 ~ 50/60
1 200V ~ 230V
50/60
IP55
1 ~ 15
V/F Control, Slip Compensation Control
1% of Rated Frequency
120% 1 Minute
Manual Torque Boost (0~10%)
FND / Terminal / Communication (CAN) Operation
FND / Terminal (0~10V or 4~20mA)
1 ~ 600 sec.
Automatic Reset upon Automatic Restart Setting
LED Output
LED Output
Freezing Protection for Pump, Auto Recovery after Power Fail, High/Low Pressure
Alarm, Low Water Level Detection, Multi-Drive Control, Failure History Storage,
Forced Alternative Operation, PID Control,
Fixed Frequency Operation, Dry running Protection
High Voltage, Low Voltage, Over Current, Surge, Overload, Inverter Overheating,
Output Wire Disconnection, Communication Error
Current pressure, Setting pressure, Output frequency, DC link voltage, Output ampere
Pressure Sensor Error, High/Low Pressure Alarm, Low Level Alarm, Drive Error
Altitude 1,000M or lower. Keep out of Corrosive Gases and Liquid, Dust
℃℃
℃℃
Below 90% RH of relative humidity (with no dew formation)
0040
Model Specification
0075 02200150
3 200V ~ 230V
Chapter 2 Specifications of product
2.1 Rated Input and Outputt (Single Phrase)


Chapter 2 Specifications of product
Freezing Protection for Pump, Auto Recovery after Power Fail, High/Low Pressure
Alarm, Low Water Level Detection, Multi-Drive Control, Failure History Storage,
Forced Alternative Operation, PID Control,
Fixed Frequency Operation, Dry running Protection
High Voltage, Low Voltage, Over Current, Surge, Overload, Inverter Overheating,
Output Wire Disconnection, Communication Error
Model NSQ-_____T
Standard Motor [kW]
0.75 1.5 2.2 45.5 7.5 11 15 18.5 22
Standard Motor [HP] 1235.5 7.5 10 15 20 25 30
Output Capacity[ [kVA] 22.6 45.9 7.9 10.5 15.8 19.7 25.7 29.6
Rated Output Current [A]    912 16 24 30 39 45
Operation Method
Frequency Setting
Abnormal Reset
Abnormal Output
Operation Status
Natural Cooling
Other Functions
Protection Structure
Drive Info.
Abnormality
Environment
Ambient Temp.
Storage Temp.
Surrounding Humidity
380 ~ 440
0.05 ~ 50/60
3 380V ~ 440V
50/60
IP55
1 ~ 15
V/F Control, Slip Compensation Control
1% of Rated Frequency
120% 1 Min,
Manual Torque Boost (0~10%)
FND / Terminal / Communication (CAN) Operation
FND / Terminal (0~10V or 4~20mA)
1 ~ 600 sec.
Automatic Reset upon Automatic Restart Setting
Output(FLT-AT,CT,BT), LED Output
Output(FLT-AT,CT,BT), LED Output
Current pressure, Setting pressure, Output frequency, DC link voltage, Output ampere
Pressure Sensor Error, High/Low Pressure Alarm, Low Level Alarm, Drive Error
Altitude 1,000M or lower. Keep out of Corrosive Gases and Liquid, Dust
℃℃
℃℃
Below 90% RH of relative humidity (with no dew formation)
0075 0150 0400 0550 0750 1100 1500 1850 22000220
Model Specification
2.2 Rated Input and Output (Three Phase)
Output Voltage [V]
Output Frequency [Hz]
Rated Input Voltage [V]
Input Frequency [Hz]
Protection Class
Switching Frequency [kHz]
Cooling
Controlling Method
Frequency Stability
Overload Resistance
Torque Boost
Control Operation
Acceleration
/Deceleration Time
Display Operation
Conditions
Operation
Status
Fan Cooling


 



  
Chapter 3 External Dimension
3. External Dimension
3.1 NSQ-0040S, 0075S, 0075SE, 0150SE


Chapter 3 External Dimension




  

3.2 NSQ-0150S ~ NSQ-0220SE
NSQ-0075T ~ NSQ-0400T
NSQ-0075T, 0150T, 0220T, 0400T exterior sizes are identical
NSQ-0075T, 0150T, 0220T (*Note: Cooling Fan not Included*)
NSQ-0400T (*Note: Cooling Fan Included)



3.3 NSQ-0550T ~ NSQ-0750T



  

Chapter 3 External Dimension
NSQ-0550T, 0750T *Note: All external dimensions are identical*


Chapter 3 External Dimension







3.4 NSQ-1100T ~ NSQ-2200T
NSQ-1100T, 2200T *Note: All external dimensions are identical*


4. Installation
4.1 Cautions on Installation
Be careful so that the plastic parts of the inverter may not be damaged.
Do not move the product holding the cover only.
Do not install the product where there is vibration, a press or truck.
Life of the inverter greatly influenced by the surround ing temperatures, make sure that the surrounding
temperature does not exceed th e permitted temperature (-10~0℃).
The life of the inverter is affected by ambient temperature. Place that inverter installed in of ambient
temperatures should not exceed the following allowable temperature.
When the inverter is installed inside the panel, panel temperature must not exceed the following allowable
temperature. In other word, the ambient temperature insi de or outside of the panel, regardless of the
installation, needs to be measured a round 5cm of the inverter.
Install the inverter on an inflammable surface because its temperature rises high during operation.
Sufficient space is required to prevent heat saturation because the inverter emits heat.
Chapter 4 Installation
Caution
Avoid direct rays of light or a warm and humid place.
Install the inverter in a closed panel or clean place free from foreign substances such as oil mist and
fiber dust.


4.2 Wiring Diagram of Terminals
Chapter 4 Installation
MCCB
1200~230V
50/60 Hz
L2
U
V
W
FG
S1P
S1N
LV1
LV2
L1
CG
CANL
CANH
SHORTOPEN
AC Input
Main Power Circuit
MOTOR
Control Circuit
CAN Com. Option)
Pressure Sensor 1
(4~20mA)
Low Level Sensor (Pulse)
4.2.1 Wiring Diagram of Terminals (Single Phase)


MCCB
3 380~440V
50/60 Hz
S
T
U
V
W
FG
S1P
S1N
S2P
S2N
(4~20mA)
(4~20mA)
LV1
LV2
(Pulse)
CANH
CG
CANL
BT
R
CAN
AC250V(DC30V), 5A
V1
VGND
I1
4~20mA
0~10V
AT
CT
BT
AT
CT
RUN
FAULT
(RUN)
CG
EST
P1
CG
24V
(ESTOP)
AC250V(DC30V), 5A
485+
CG
485-
RS 485
RS 485
NPN Connection
NPNPNP
SHORTOPEN
AC Input
Main Power Circuit
MOTOR
Control Circuit
Command
Emergency
Setting Frequency Input
Setting Frequency Input
Output Operation Condition
Drive Fault Output
Pressure Sensor 1
Pressure Sensor 2
Low Level Sensor
Communication
Terminal
Comm. Temrinal
(Option)
Chapter 4 Installation
4.2.2 Wiring Diagram of Terminals (3 Phase)


Chapter 4 Installation
4.3 Wiring of Main Power Supply Circuit
4.3.1 Description on Main Power Supply Terminals
4.3.2 Cautions when wiring the Main Power Supply
U V W FG FG L2 L1
Execute wiring work after checking if DC power of drive is discharged (under 30V).
Be sure to install wiring breaker (MCCB) between AC input power and drive input power terminals (R,S,T).
Use the wiring breaker (MCCB) with 1.5~2 times larger capacity than rated current of the drive.
Sometimes EMI occurs due to high speed switching of the drive and it makes radio
interference on electronic devices used around the drive. For that case, install EMC filters
between AC power input and the drive to reduce interference.
If AC input power is connected to output terminals (U,V,W) of drive, drive will be
damaged. Be sure to connect it to input terminals.
Even though power input terminals (R,S,T) may be connected regardless to phase
sequence of AC input power, it is required to consider rotation direction of the motor when
connecting input terminals of the motor to output terminals of the drive (U,V,W). If rotation
direction of the motor is reversed, 2 lines from drive output terminals (U,V,W) should be
exchanged each other.
Do not make short circuit nor ground with drive output terminals (U,V,W). Short circuit or
ground of output terminals may damage on the drive.


Terminal Sign Description: 1 Phase
L1, L2
FG
U, V, W
Terminal Name
AC Input
Ground
Drive output
To connect commercial AC Input.
It is a ground terminal on drive enclosure. Please ground it.
To connect Motor.
R S T FG FG U V W
Terminal Sign Description: 3 Phase
R, S, T
FG
U, V, W
Terminal Name
AC Input
Ground
Drive output
To connect commercial AC Input.
It is a ground terminal on drive enclosure. Please ground it.
To connect Motor.

