Doran 7000XL User manual

7000XL Series
Digital Weight Indicator
Technical Manual
MAN330 – Rev 4.8 Doran Scales, Inc. www.doranscales.com

Table of Contents
Introduction ........................................................................................................................... 1
Unpacking Your Scale ....................................................................................................................... 1
7000XL Indicator Specifications ........................................................................................................ 2
Scale Annunciators .......................................................................................................................... 3
Power Up ......................................................................................................................................... 4
Basic Weighing Operation ................................................................................................................ 4
ZERO ................................................................................................................................................ 4
UNITS .............................................................................................................................................. 4
PRINT ............................................................................................................................................... 4
Battery Operation ................................................................................................................... 5
Power Off ........................................................................................................................................ 5
Low Battery Indication ..................................................................................................................... 5
Recharging Battery .......................................................................................................................... 5
Installation Guide ................................................................................................................... 6
Removing and Replacing the Rear Panel .......................................................................................... 6
Heartbeat LED .................................................................................................................................. 6
Load Cell Connection ....................................................................................................................... 7

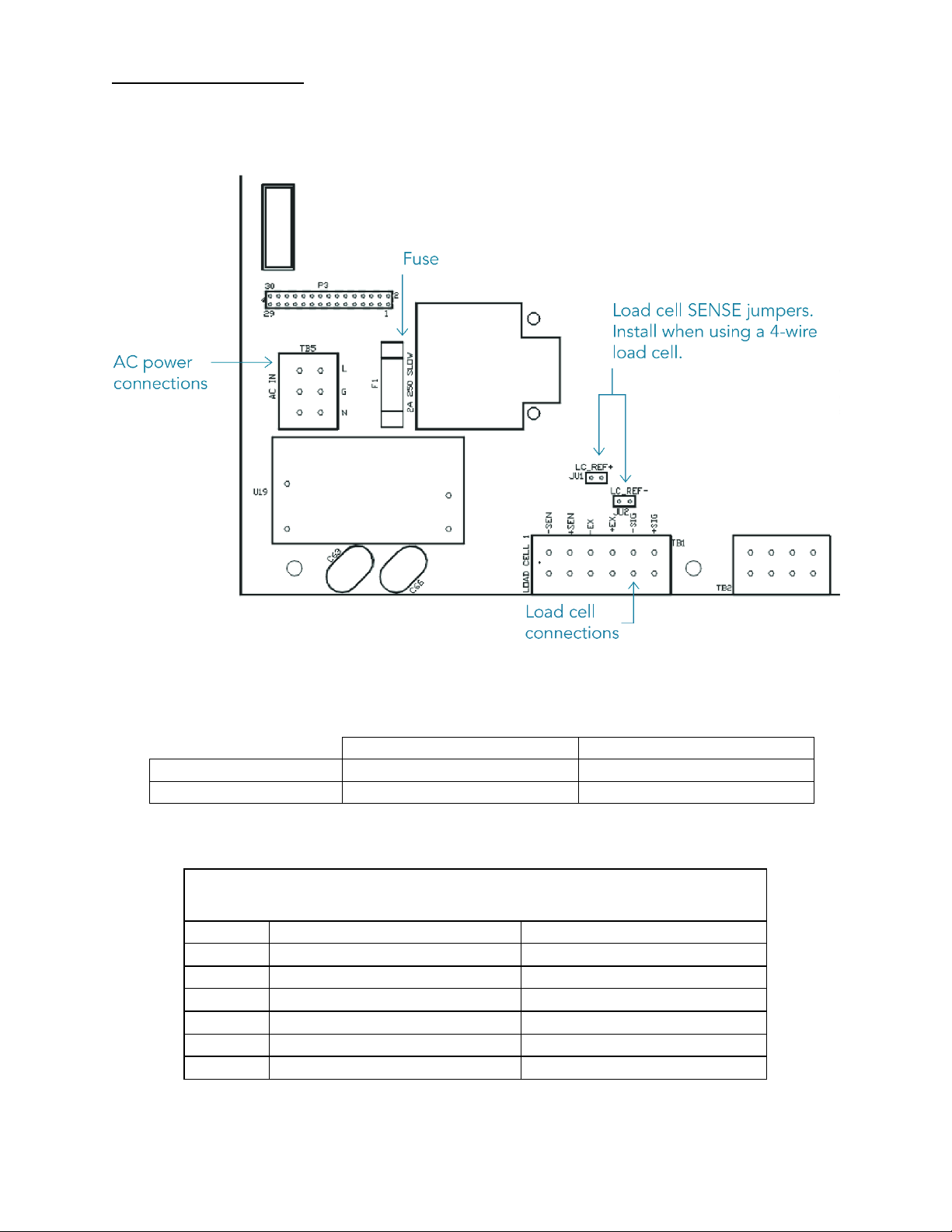

Power Connection and Fuse ............................................................................................................. 8

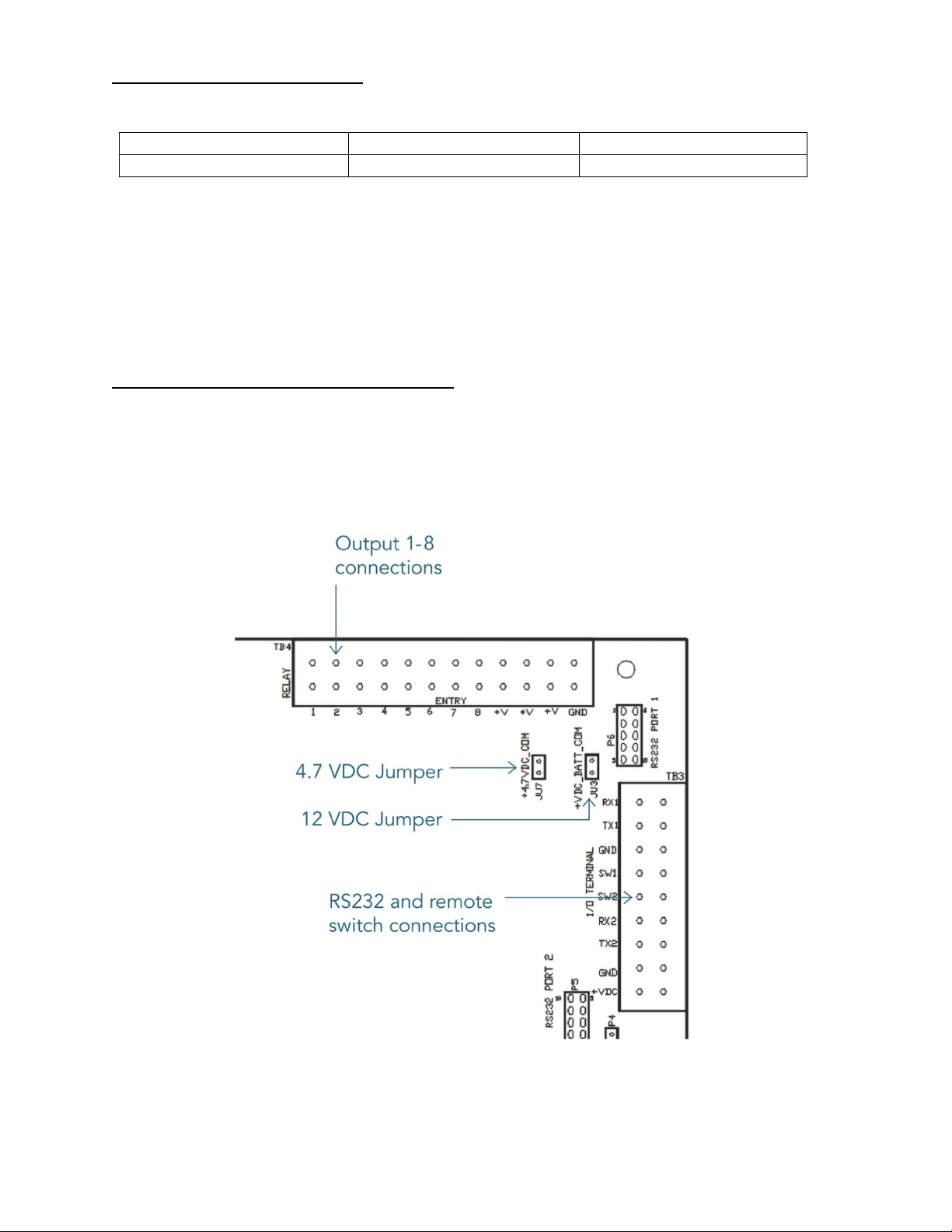

RS232 and Remote Switch Connection ............................................................................................. 8
Output Connections ....................................................................................................................... 10
Calibration Guide .................................................................................................................. 11
Entering Calibration and Parameter Setup Mode ........................................................................... 11
Exit Calibration and Parameter Setup Mode .................................................................................. 11
Set Scale Capacity .......................................................................................................................... 11
Set Scale Count By ......................................................................................................................... 12
Calibration ..................................................................................................................................... 12
Scale Calibration Error Troubleshooting ......................................................................................... 13
Scale Parameter Setup .......................................................................................................... 14
Entering Calibration and Parameter Setup Mode ........................................................................... 14
Exit Calibration and Parameter Setup Mode .................................................................................. 14
Navigating Parameter Menu .......................................................................................................... 14
Parameter Groups ......................................................................................................................... 15
Legal for Trade Restrictions ............................................................................................................ 15
Audit Counters ............................................................................................................................... 15
Software Part Number and Revision Level ..................................................................................... 15
Capacity and Calibration -
1 CAL
.................................................................................................... 16
General Settings -
2 Cnfg
.............................................................................................................. 19
Serial (RS232) Port 1 -
3 SEr1
........................................................................................................ 21
Serial (RS232) Port 2 - 4
SEr2
........................................................................................................ 22
Ethernet -
5 Eth
............................................................................................................................ 24
Wireless Ethernet -
6 uufi
............................................................................................................ 26
Bluetooth -
7 bt
............................................................................................................................ 28
USB -
8 USb
.................................................................................................................................... 29
Exit -
99 don
.................................................................................................................................. 29
Data Communications .......................................................................................................... 30
Data String Formatting ................................................................................................................... 31
Custom Data String Configuration .................................................................................................. 35

Indicator Commands ...................................................................................................................... 37
4-20mA Analog Output Option ............................................................................................. 39
Wired Ethernet Option ......................................................................................................... 40
Wireless 802.11b/g Ethernet Option ..................................................................................... 41
Troubleshooting Wifi ..................................................................................................................... 42
Bluetooth Option .................................................................................................................. 43
Bluetooth Pairing Instructions ........................................................................................................ 44
Troubleshooting ................................................................................................................... 48
Scale Messages .............................................................................................................................. 49
Error Messages .............................................................................................................................. 49
Default to Factory Settings ............................................................................................................. 51

1
Introduction
Thank you for purchasing a Doran Scales product. Please read this manual to ensure
obtaining all the benefits that the indicator can provide. This manual is intended for
revision 4.8 and greater scales. If required, Doran can upgrade the software in your
scale to the current revision. Please contact the Doran Scales Technical Support
Department at [email protected] for upgrade details.
Unpacking Your Scale
Before unpacking your Doran scale, please read the instructions in this section. Your
new scale is a durable industrial product, but it is also a sensitive weighing instrument.
Normal care should be taken when handling and using this product. Improper handling
or abuse can damage the scale and result in costly repairs that will not be covered by
the warranty. If you notice any shipping damage, notify the shipper immediately. Please
observe the following precautions to insure years of trouble-free service from your new
scale.
• DO NOT drop the scale.
• DO NOT immerse the scale.
• DO NOT drop objects on the platform.
• DO NOT pick up the scale by the top of the weighing platform.
• Carefully remove the scale from the shipping carton.

2
7000XL Indicator Specifications
NTEP Certificate
Class III – 10,000d; Cert. #99-129A4
CWM Certificate
Class III – 10,000d; Cert. #AM-5347
Enclosure
304 Stainless Steel
Product Dimensions
10” W x 6.75” H x 3.5” D
Environmental Protection
IP69K
Legal for Trade
Temperature Range
14 F to 104F (-10 C to +40 C)
Resolution Range
200d to 50,000d
Analog Signal Sensitivity
0.16 µV/e minimum, 0.5 µV/e typical
System Linearity
0.01% full scale
Analog Signal Range
-0.5mV/V to 5 mV/V with 4 and 6 wire input
Excitation Voltage
5 VDC
Number of Load Cells
Up to 8 350 Ohm
Scale Inputs
One
Calibration Range
Calibrate between 100% and 2% of capacity
Power Input
100 – 240VAC 50/60Hz
Battery Option
Internal Rechargeable Sealed Lead Acid Battery
6VDC, 60 hours of continuous use, 1000 recharge cycles
Display
0.8" high, 6 digit LED
Displayed Units
lb, kg, oz, g, lb:oz
Capacity Range
1 to 999,000 lb
Serial Interface
Two Bi-directional RS-232 ports standard
Optional Communication
Options
Ethernet
Wi-Fi – 802.11b/g
Bluetooth – 4.0, Class 3, SPP Protocol
USB – 2.0, CDC Protocol
4-20 mA – Active current loop
Controls
ZERO, UNITS and PRINT
Digital IO
Two remote switch inputs
Eight outputs – 4.7 or 12 VDC configurable up to 800mA.
Current-sinking Darlington pair

3
Fig. 1: Model 7000XL Front Panel Layout
The operational controls for the Model 7000XL consist of the ZERO, PRINT and UNITS
buttons. A six digit LED display is used to display weight and operator messages during
scale operation.
Scale Annunciators
Unit of measure lb, oz, kg, g or lb:oz. The units annunciator to the right of
the display will indicate the current unit of measure.
Battery option status indicator. When the annunciator illuminates, the
battery charge is low and the scale should be plugged in to recharge the
battery. While the scale is charging, the battery annunciator will flash.
When the charging is complete, the annunciator will turn off.
Center of zero. The annunciator will illuminate while the scale is displaying
a zero weight.
Motion indicator. This symbol represents motion or instability of the
weight. The annunciator will illuminate when motion is sensed on the
platform. Changes in weight, vibration or air currents can cause the scale
to go into motion.

4
Power Up
Connect the cord to a compatible power source.
For indicators with battery option, press and hold ZERO.
Basic Weighing Operation
1) Remove all items from the scale platform
2) Press the ZERO button to zero the scale
3) The weight display now reads zero
4) Place an item on the scale platform and wait for the motion annunciator to turn
off, indicating an accurate, stable weight
ZERO
ZERO is used to zero the scale. To zero the scale, wait until the scale is stable and
press the ZERO button. The scale will not zero if the scale is in motion. The zero
function will operate over the entire capacity of the scale.
The scale is equipped with a Zero on Demand parameter which zeros the scale upon
the next stable reading after ZERO is pressed.
UNITS
UNITS selects the current unit of measure. Press UNITS to change the current unit.
The units annunciator to the right of the display will indicate the current unit or measure:
lb, oz, kg, g or lb:oz.
Each unit can be enabled or disabled in the scale parameter setup. Lb:oz is disabled by
default. Lb:oz not available for tolerance values and cannot be transmitted as data.
PRINT
PRINT transmits data to a printer or other external devices. When the data is
transmitted, the leftmost display digit will momentarily display an "r" to confirm data
transmission.
There are many parameters that customize the control of manual and automatic
transmission of data. Data can be transmitted via standard RS232, Ethernet, WiFi,
Bluetooth or USB. Contact Doran Tech Support at [email protected] for support.

5
Battery Operation
The 7000XL can be optionally configured with a self-contained Rechargeable Sealed
Lead-Acid battery and charging circuit, both internal. The scale is designed to run
continuously for up to 60 hours with a single 350 ohm load cell. To maximize battery
life, leave the auto-off timer enabled which will automatically power down the scale after
a period of non-use.
Power Off
1) Manual - Press and hold the ZERO push button until the display turns off. The scale
will not turn off if plugged in but will instead display “rel pb”.
2) Automatic - At the end of the Unit On Timer (
tdy
) scale parameter setting. The scale
will not turn off if plugged in.
Low Battery Indication
The battery annunciator indicates that the battery is in need of
recharging. Once it turns on, there will be approximately one hour of
battery life remaining before the scale turns off. Multiple load cells,
USB, Bluetooth, Ethernet, 4-20mA and WiFi communications will
reduce battery life.
Recharging Battery
To charge the battery, plug the line cord into a wall outlet. While the scale is charging,
the battery annunciator will flash. The charging circuit will fully charge the battery in
approximately eight hours. When the charging is complete, the annunciator will turn off.
The scale can be used while recharging the battery.
Leaving the scale plugged in will ensure a fully charged battery and will not affect the life
of the battery. The battery is able to support up to 1000 recharges. This is an estimate
as many factors can affect battery life, including severe temperature changes and
charging before the scale displays low battery.

6
Installation Guide
Fig. 2: Motherboard Layout
Removing and Replacing the Rear Panel
Before you remove the rear panel, remove AC power. Power down the scale if the
optional battery power is present. Removing the rear panel requires a 5/16” nut driver.
To replace the rear panel and achieve a tight seal, each screw requires a rubber
bonded washer and the gasket needs to be in place. Tighten screws to 20 in-lb to
achieve proper sealing. Tighten all watertight glands until the cable exiting the watertight
can no longer slide through the watertight – this is usually finger tight plus a quarter turn
with a wrench for a seal.
Heartbeat LED
Between the keypad connection and the microprocessor exists a green heartbeat LED.
When this LED is blinking, it indicates that the microprocessor has successfully loaded
software and is receiving power.

7
Load Cell Connection
Load cell connections are made through terminal block TB1. The power cord connects
to terminal block TB5 adjacent to the transformer.
Fig. 3: Load Cell and Power (lower left of board)
4 wire load cell
6 wire load cell
J1 Jumper
In
Out
J2 Jumper
In
Out
Load Cell Input (TB1)
Description
Load Cell Color Code
+ SIG
+ Signal
Red
- SIG
- Signal
White
+ EX
+ Excitation
Green
- EX
- Excitation
Black
+ SEN
+ Sense Signal
Blue
- SEN
- Sense Signal
Brown
