Dorel Home Products 4356939N User manual

DO NOT RETURN TO THE STORE !
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739
4356939N
B344356939N00
Date of Purchase
Upholstered Bed
KT. - 2019/1/29
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Lot Number
Thank you for purchasing from DHP!
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
1
© 2014 Dorel Home Products All Rights Reserved
Queen
Light Green Linen
Weight Limit: 500 Lb / 227 Kg

Contact Us!
[e-mail]
DHP Consumer Services
12345 Albert Hudon, Suite 100,
Montreal, Quebec, Canada H1G 3L1
Read Before Beginning Assembly
1-800-267-1739
Warranty Information
2
Caution
DHP warrants this product to be free from defects in material and workmanship and
agrees to remedy any such defect. This warranty covers one year from the date of
original purchase. This is solely limited to the repair or replacement of defective
parts and assembly labor is not included.
This warranty does not apply to any product which has been improperly assembled,
subjected to misuse or abuse or which has been altered or repaired in any way.
Liability for consequential damages is excluded to the extent exclusion is permitted
by law. This warranty gives you specific legal rights and you may also have other
rights which vary from state to state.
To obtain warranty service, purchaser must present original bill of sale. Components
repaired or replaced are warranted through the remainder of the original warranty
period only. The defective components will be repaired or replaced without charge,
subject to the terms and conditions described above.
Visit www.dhpfurniture.com to view the limited warranty valid in the U.S. and
Canada.
● Call our toll free number if you need assistance.
● Work in a spacious area and near where the unit will be used, preferably on a
carpet, or use a piece of the cardboard packaging to protect your floor and product.
● Recommended # of people needed for assembly: 2 (however it is always better
to have an extra hand). Estimated assembly time is 1 h 30 min.
● Make sure all parts are included. Most parts are labeled or stamped on the raw
edge.
● Read each step carefully. It is very important that each step of the instructions is
performed in the correct order. If these steps are not followed in sequence,
assembly difficulties will occur.
● You can visit our site https://helpcenter.dhpfurniture.com (Scan below
QR-code if you possess a smartphone or tablet) for assembly videos and more!
● This product is designed for home use and not intended for commercial use.
● This product contains small components. Please ensure that they are kept away
from small children.
● Do not use power tools to assemble your furniture. Power tools may strip or
damage the parts.
For help with assembly, identifying parts, product information or to order parts,
please contact us:
9:00 am to 9:00 pm (Eastern Time)
10 am to 6:30 pm (Eastern Time)
11 am to 7 pm (Eastern Time)
Monday to Friday
Saturday
Sunday
SCAN me
& I'll guide you to
DHP Helpcenter!

3
Parts
All in 1 big box!
Before you throw the package, please use the
Check Box to identify the parts and ensure that
you have all the parts needed for the assembly.
There are inner box(es) that include components
required to complete this assembly.
Replacement Parts, visit
www.dhpfurniture.com/eng/replacement-parts
A
Headboard
T970000
X 1
Footboard
T970010
X 1
Side Panel
T970020
X 2
Side Panel
T970030
X 2
BCD
F
EI
Side Rail
T947970
X 2
Side Rail
T946910
X 2
Center Rail
T947980
X 2
K
L
O1ST
XY
Cross Brace
T947990
X 1
Leg
T948030
X 4
Double Slat Cap
T926380
X 12
Single Slat Cap
T926370
X 24
Bracket
T948010
X 2
Wooden Slats
T926780
X 24
Support Leg
T948000
X 2
Z
A
B
C
D
C
D
Z
E
F
I
O1
L
K
T
S
Bracket
T948020
X 2

4
Hardware Pack
Hardware Pack #: T4135439N-01
Please do not completely tighten all the hardware,
until the entire assembly is complete, unless
otherwise indicated in the step-by-step
instructions.
The screw(s), bolt(s) to be used at each step are
shown in actual size in the lower right corner of
the page.
4
123
4mm
X 1
1/4" X 1 9/16"
X 18
1/4" X 1 3/16"
X 12
1/4" X 3/4"
X 40

5
Step 1
Attach Z X 4 to A and B with u;
Screw v into A and B as illustrated.
X 16
Z
1
A
B
Do not completely tighten
the BOLTS v, leave half of
the thread exposed.
Z
ZZ
2
2
2
2
Z
1
X 8
2
A
Leg tip slants towards outside.
To avoid fraying the fabric during assembly,
please lay A and B on a piece of cardboard.
2

6
Step 2
C
D
F
E
3
X 16
Attach E&F to C&D with w.
Repeat the same step for remaining parts
C/D/E/F.
Slat holes towards upside!
The holes shown in circle are located
on the lower side.
X 2

7

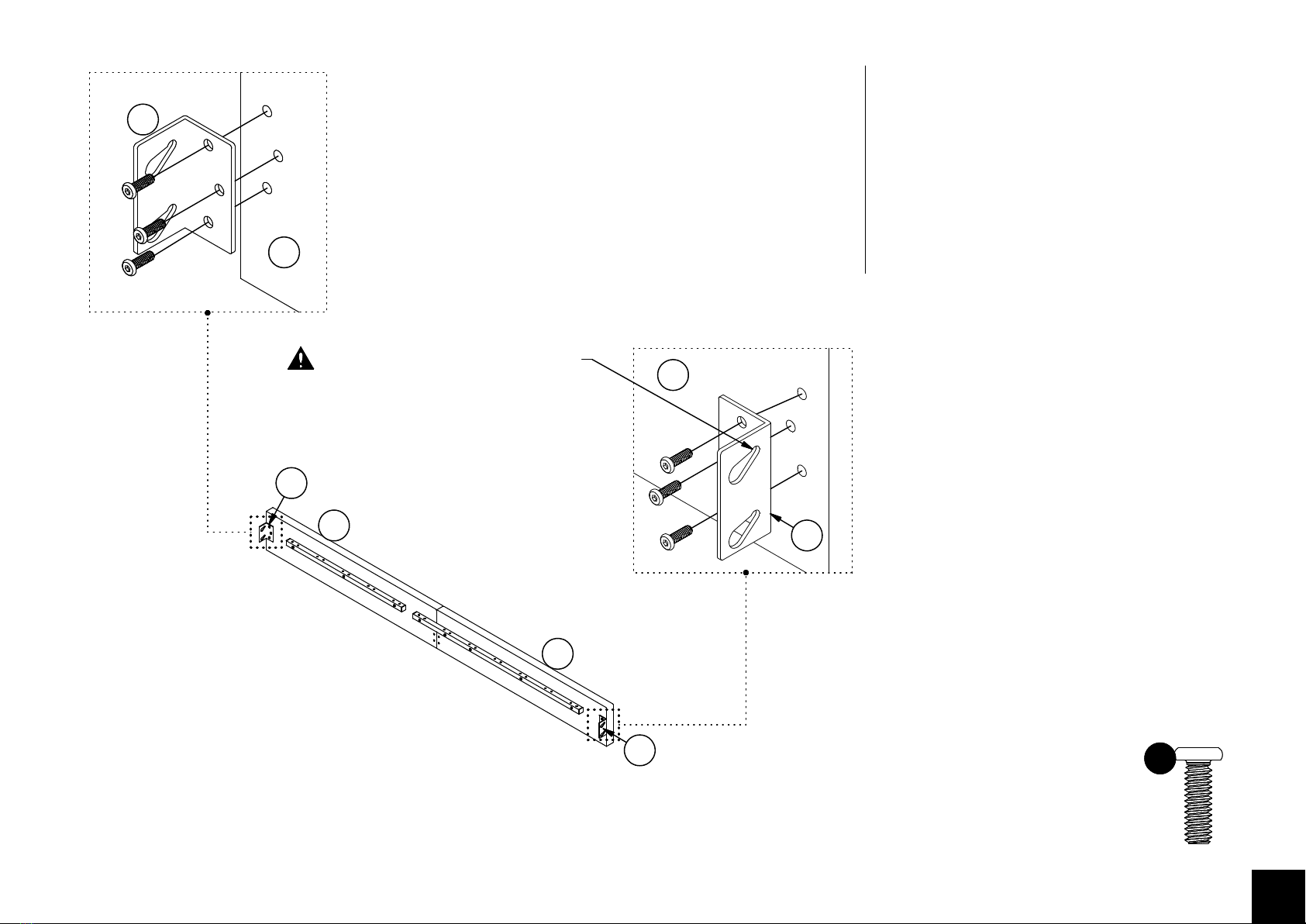

Step 3
Attach S to D and T to C with u.
Repeat the same step for the other
subassembly C & D.
X 12
1
T
T
S
C
D
Pay special attention that small
holes on slots of S and T should
be facing upward!
X 2
C
D
S

8

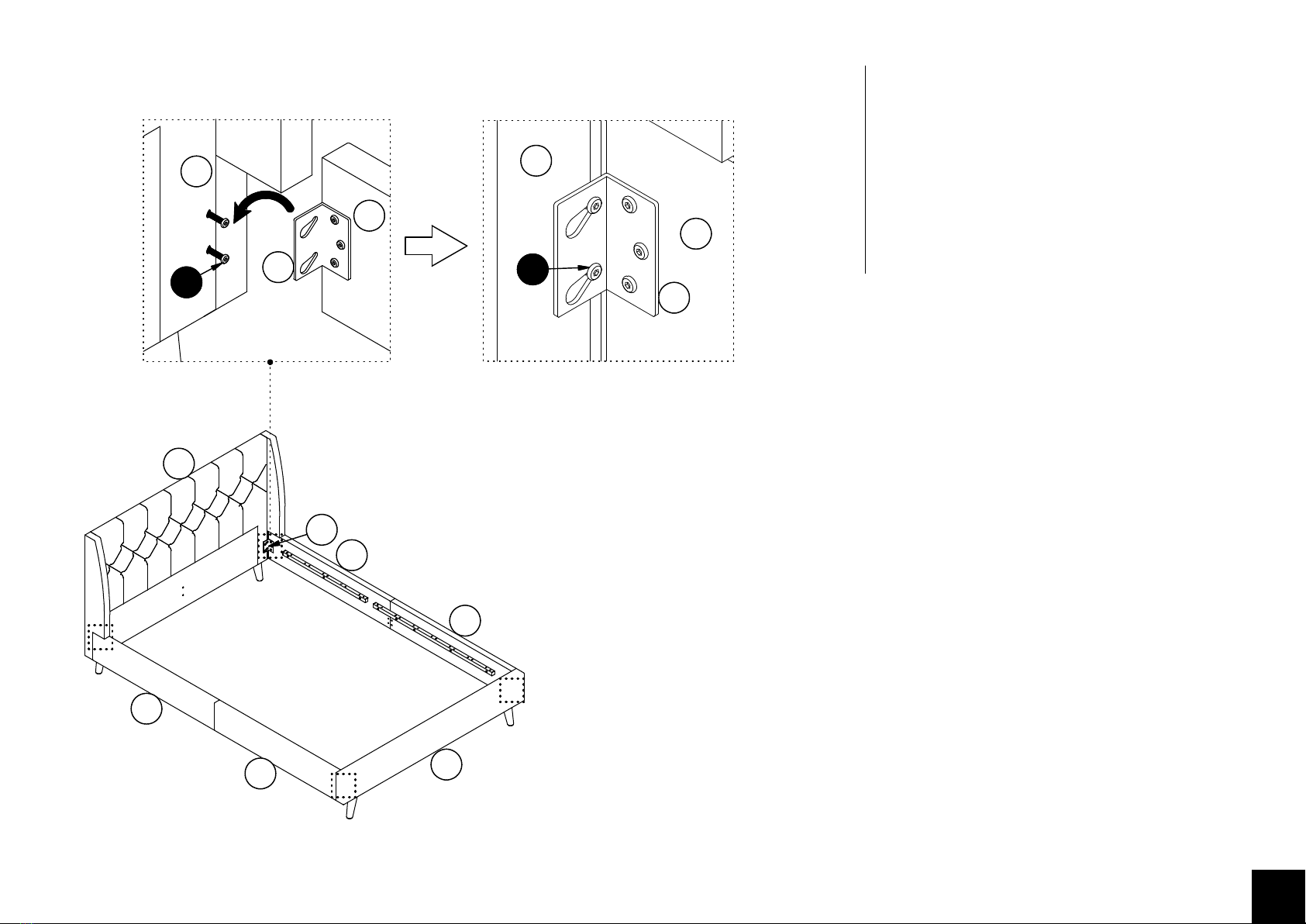

Step 4
Hang C & D on A & B as illustrated, don't
completely tighten the bolts until STEP 7 is
complete.
A
B
C
D
D
C
A
T
2
C
T
A
C
T
2

9

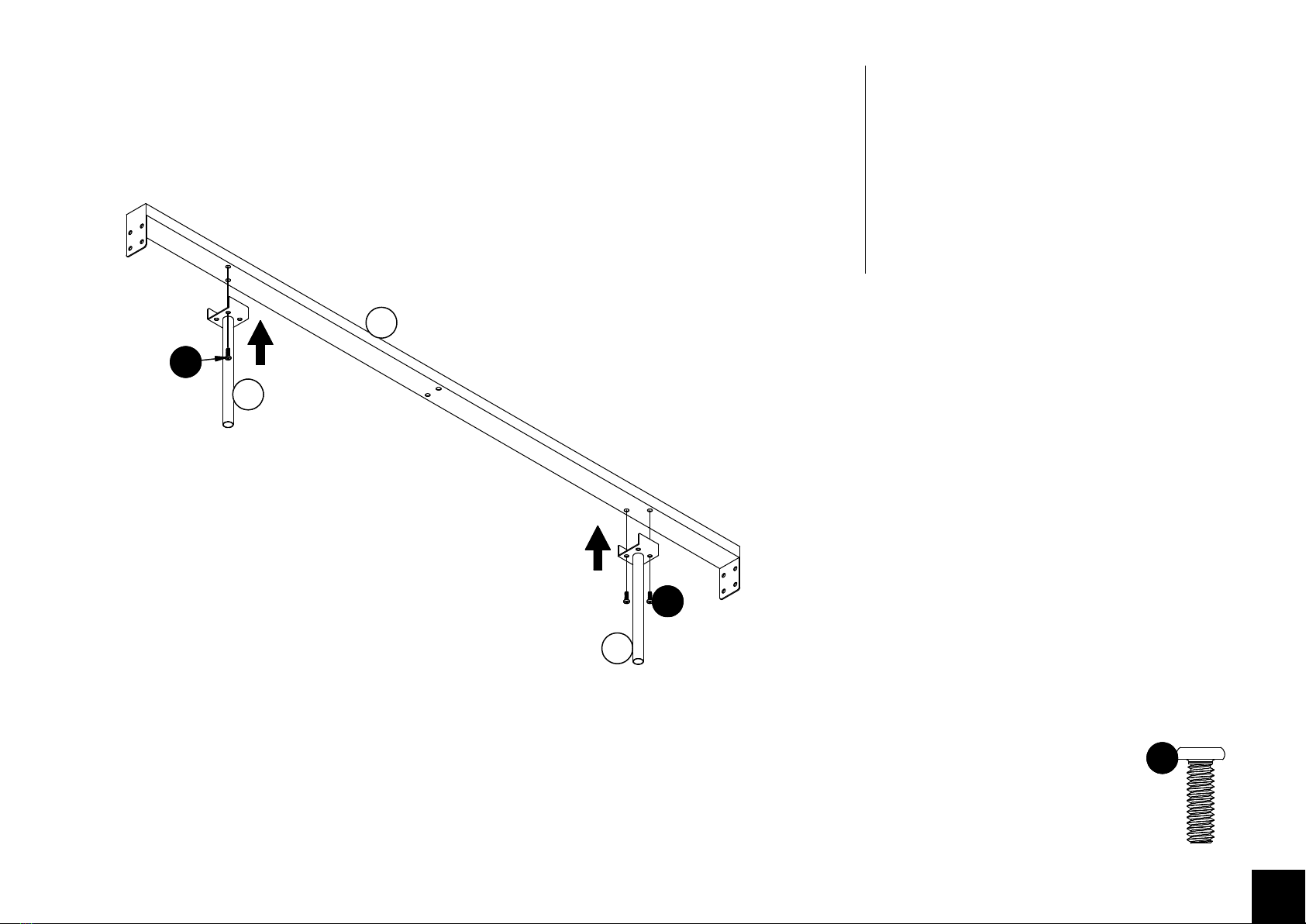

Step 5
Attach L X 2 to K with u.
X 4
1
K
L
L
1
1

10

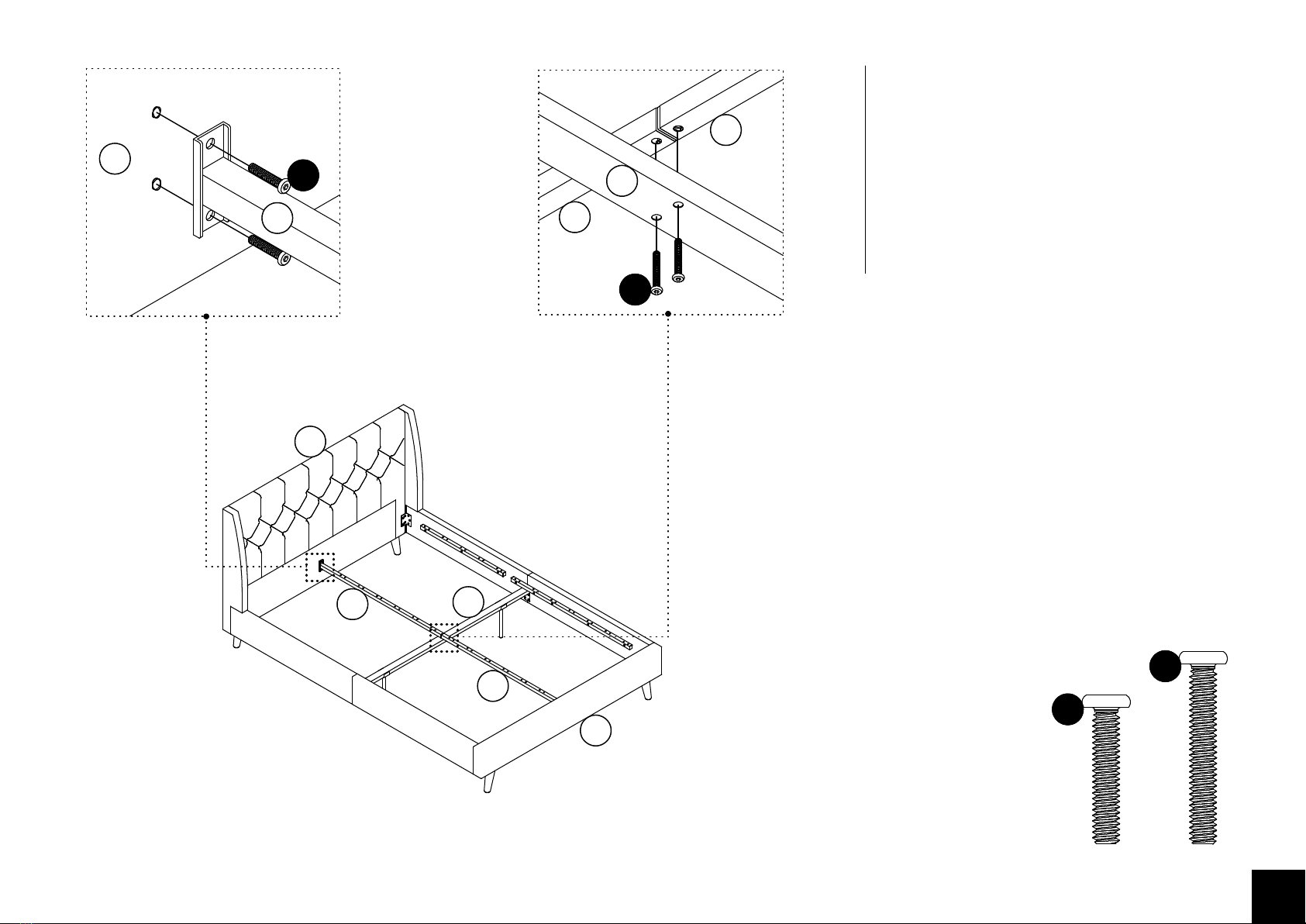

Step 6
Attach sub-assembly K/L from previous step
to C and D with u.
X 8
1
K
C
D
1
A
B
D
C
D
C
KL
