Dorel Living DL7696 User manual

Model Number: UPC Code:
DL7696
0-65857-17505-9
Date of Purchase: _____ / _____ / _____ Lot Number:
(taken from carton)
3 PC METAL PUB SET WITH WOOD TOP
Congratulations on your latest furniture purchase! Dorel Living furniture has been developed with quality,
convenience and style in mind. We trust it will provide you with many years of exceptional comfort and service.
Before beginning assembly, we encourage you to familiarize yourself with your new furniture piece by taking a
few minutes to go through this booklet. It contains important information on our warranty and care tips to keep
your furniture looking as good as new.
Customer satisfaction is important to us at Dorel Asia. Our agents are available Monday to Friday 8am to 5pm
(EST) to answer any question you may have. For faster service, always have the model number ready when
calling our toll free number 1-800-295-1980 or emailing us at [email protected] .
For more great furniture ideas, check out our website at www.dorelliving.com
You can also keep up to date on all the latest trends by liking our Facebook page.
DO NOT RETURN PRODUCT TO THE STORE. If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ
AND KEEP FOR FUTURE REFERENCE.

Check bolts/screws periodically and tighten them if necessary.
CUSTOMER SERVICE
If you are missing parts or have any questions about this product, contact our customer service representative first!
CALL 1-800-295-1980
You can also order parts by writing to the address listed below. Please include the product model number, color
and a detailed description of the part.
Customer Service Department No. 413
12345 Albert-Hudon Boulevard, Suite 100
* DO NOT use power tools.
* Phillips head screw driver is not included.
CARE AND CLEANING
Montreal, Quebec
Canada, H1G 3L1
E-MAIL: [email protected]
NOTES
* Ensure all parts and components are present before beginning assembly.
* Assemble on a soft, smooth surface to prevent damage to product finish.
* CAUTION: Adult assembly required
* Assembly and handling may require two people.
* Estimated assembly time is 45 - 60 minutes.
Dust table regularly with a soft, dry cloth to prevent soil build up. A dampened cloth may be used occasionally to clean the surface. Dry
immediately and buff lightly, following the grain. Avoid using harsh cleaners and abrasive products.
Use coasters to prevent the formation of moisture rings and trivets to protect from hot items. Cover extension leaves (if applicable)
with a soft protective fabric before storing. Do not slide objects across the surface - always lift them.
MAINTENANCE
LIMITED WARRANTY
Dorel warrants its product to be free from defects in material and workmanship and agrees to remedy any such
defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon
presentation of proof of purchase. This is solely limited to the repair or replacement of defective furniture
components and no assembly labor is included. This warranty does not apply to any product which has been
improperly assembled, subjected to misuse or abuse or which has been altered or repaired in any way. This
warranty gives you specific legal rights and you may also have other rights which vary from State to State

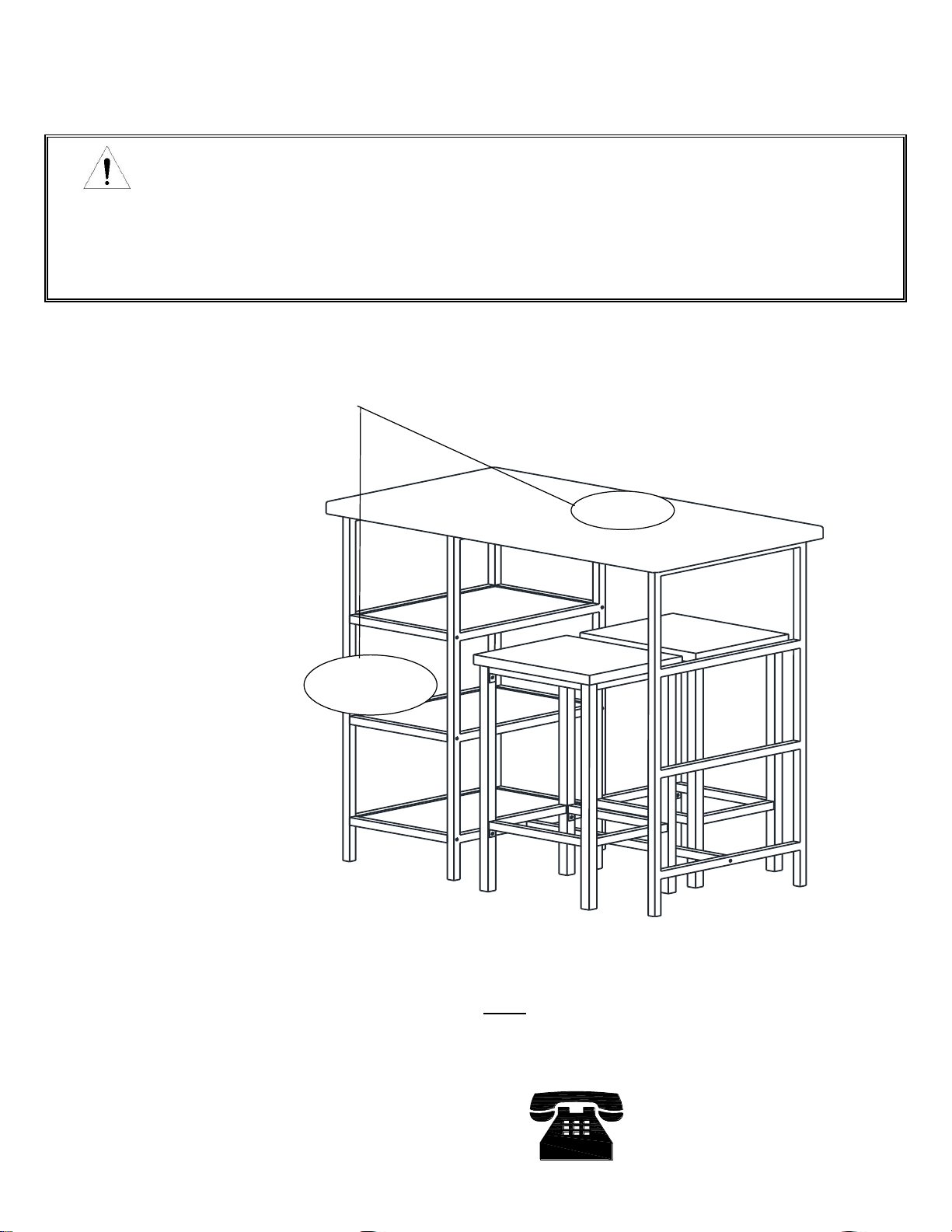

WARNING: Should this product become damaged,
and/or components are broken or missing, DO NOT USE.

3 PC METAL PUB SET WITH WOOD TOP
DL7696

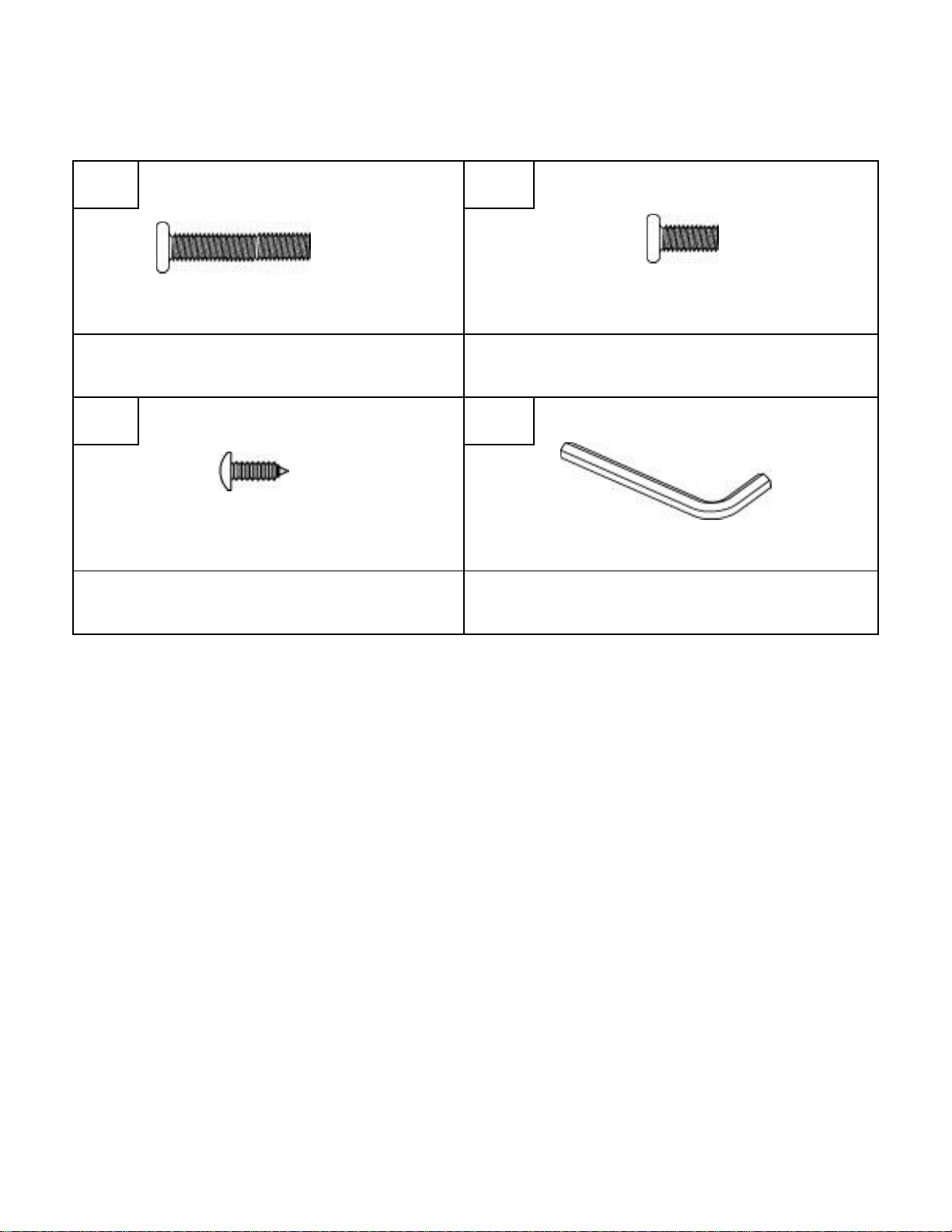

HARDWARE LIST
1
2
35 PCS
18 PCS
3
4
φ1/4"*1-1/4"
φ1/4"*1/2"
BOLT
BOLT
18 PCS
1 PC
φ1/8"*1/2"
M4
SCREW
ALLEN KEY

4 PCS
J
K
BOTTOM STRETCHER
4 PCS
TOP STRETCHER
SEAT BOARD
STOOL PANEL
3 PCS
2 PCS
4 PCS
SHELF
1 PC
1 PC
6 PCS
G
H
I
D
E
F
STRETCHER
RAIL
RIGHT SIDE PANEL
TABLE TOP
LEFT SIDE PANEL
MIDDLE PANEL
1 PC
1 PC
1 PC
3 PC METAL PUB SET WITH WOOD TOP
DL7696
PARTS LIST
A
B
C

STEP 1
3 PC METAL PUB SET WITH WOOD TOP
DL7696
Attach the left side panel (B), middle panel (C), and right side panel (D) to table top
(A) with bolts (1). Use Allen Key (4) to install the bolts.
NOTE: Do not fully tighten the bolts. Loose bolts will facilitate assembly in the
following steps.

STEP 2
3 PC METAL PUB SET WITH WOOD TOP
DL7696
Attach stretcher (E) to middle and right side panel (C & D) with bolts (1) & (2). Use Allen
Key (4) to install the bolts.
NOTE: Do not fully tighten the bolts. Loose bolts will facilitate assembly in the following
steps.

STEP 3
3 PC METAL PUB SET WITH WOOD TOP
DL7696
Attach rails (F) to left side panel (B) and middle panel (C) with bolts (1). Use Allen Key (4)
to install the bolts.
NOTE: Do not fully tighten the bolts. Loose bolts will facilitate assembly in the following
steps.

STEP 4
Tighten all bolts previously installed in steps 1~4.
With the help of another person, turn the table upright.
3 PC METAL PUB SET WITH WOOD TOP
DL7696

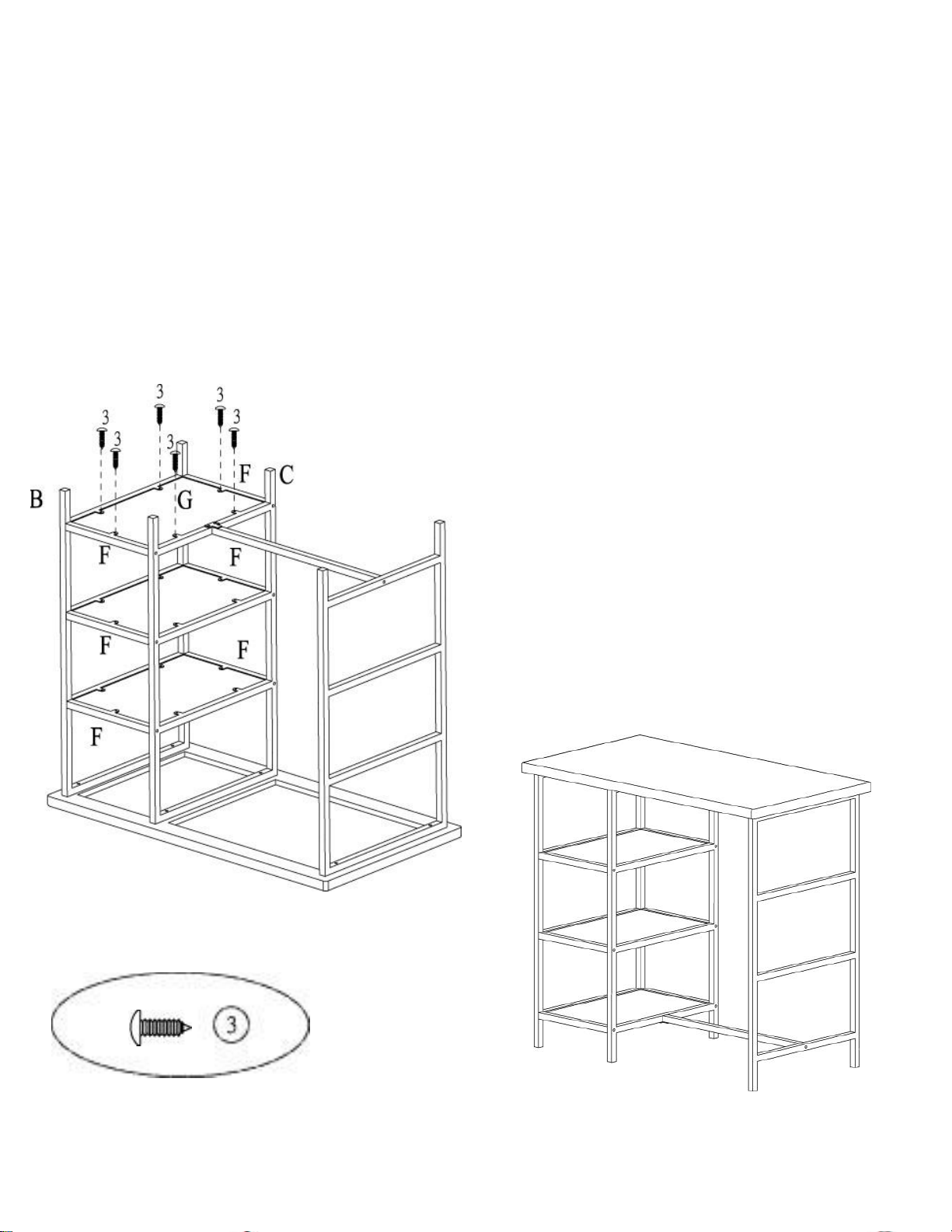

Attach shelves (G) to left side panel (B), middle panel (C), and rails (F) as shown below using screws
(3) and a Phillips head screwdriver (not included).
NOTE: Phillips round head screws (3) will make their own holes. Do not use power tools and do not
over tighten the screws.

STEP 5
3 PC METAL PUB SET WITH WOOD TOP
DL7696

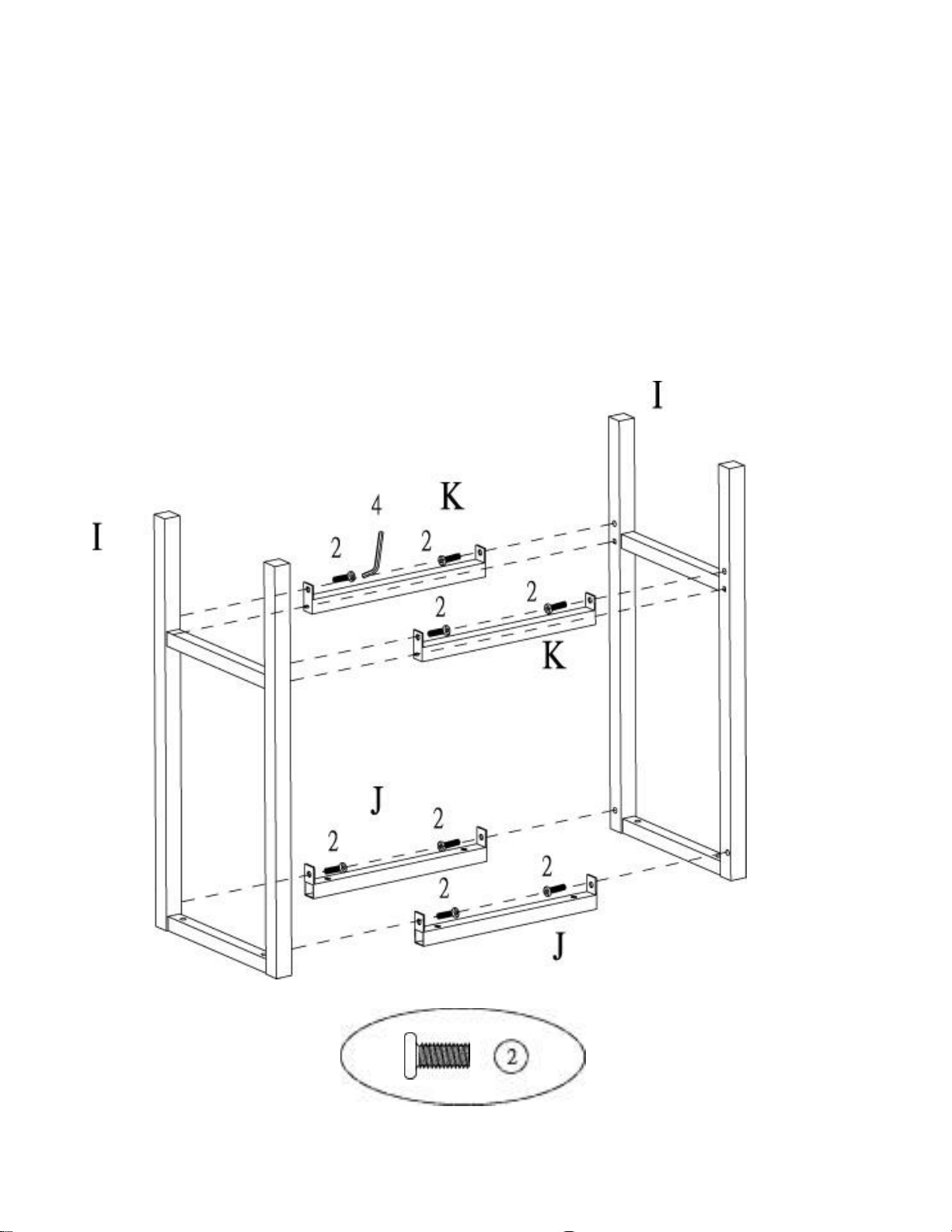

Attach bottom and top stretchers (K & J) to stool panels (I) with bolts (2).
Use Allen Key (4) to install the bolts.
NOTE: Do not fully tighten the bolts. Loose bolts will facilitate assembly in the following steps.

STEP 6
Repeat steps 5-6 to assemble the other stool.
3 PC METAL PUB SET WITH WOOD TOP
DL7696

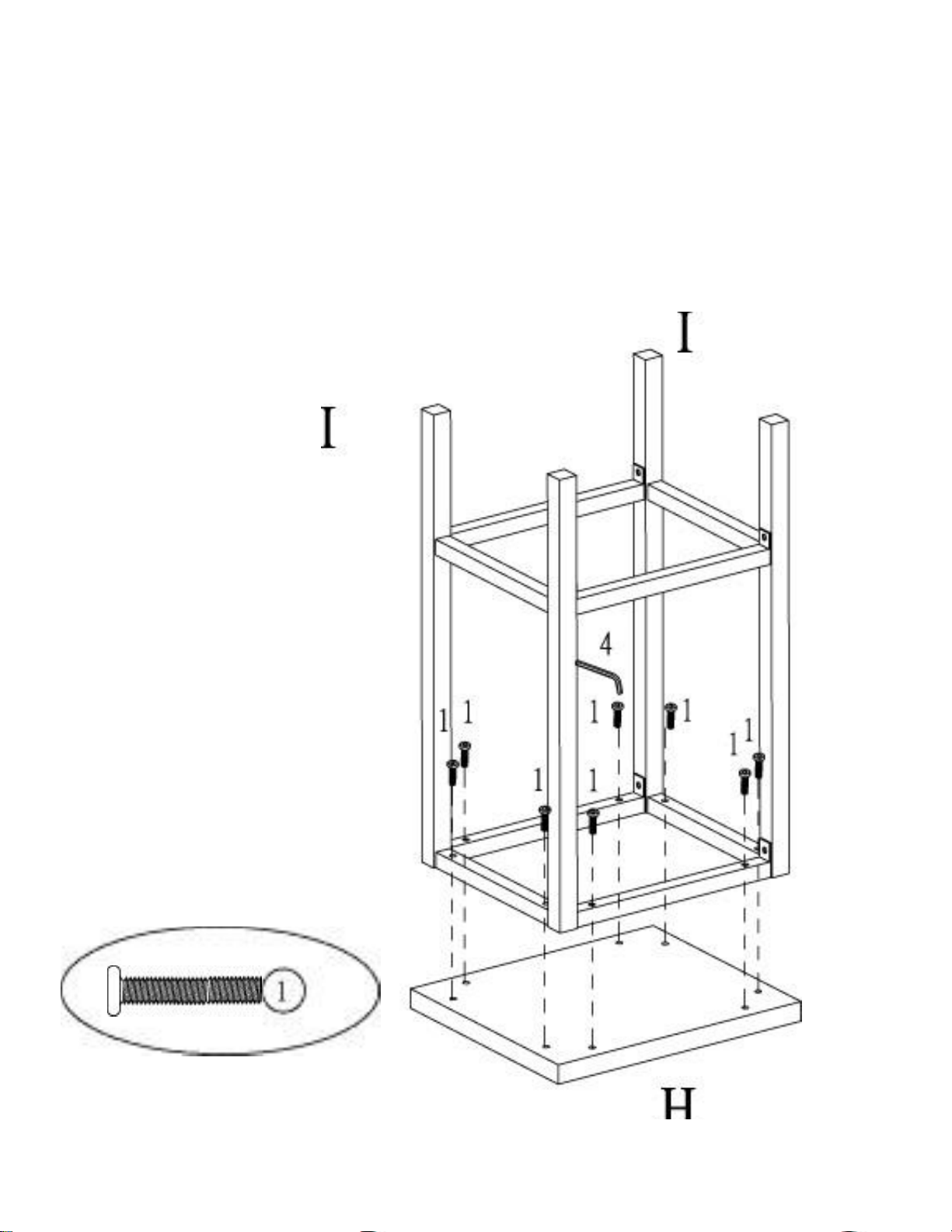

Attach seat board (H) to stool panels (I) with bolts (1) and Allen key (4).
Tighten all bolts previously installed in steps 5~6.
