TWIN LOFT BED
DA8377-BL
UPC Code:
Model Number:
0-65857-19907-9
0-65857-19287-2
0-65857-19262-9
DA8377
DA8377-E
DA8377-BK
0-65857-19908-6
Our agents are available Monday to Friday 8am to 5pm (EST) to take your call and
answer any questions. For faster service, always have the model number ready when contacting us.
Toll free #: 1-800-295-1980
You can also reach us by email or by visiting our website and clicking on the Support tab:
[email protected]
www.dorelliving.com
NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Congratulations on your latest furniture purchase! Dorel Living furniture has been developed with quality,
convenience and style in mind. We trust it will provide you with
many years of exceptional comfort and service.
Before beginning assembly, we encourage you to familiarize yourself with your new furniture piece by taking a
few minutes to go through this booklet. It contains important information on our warranty and care tips to keep
your furniture looking as good as new.
For more great furniture ideas, check out our website at www.dorelliving.com
You can also keep up to date on all the latest trends by liking our Facebook page and Instagram page.
Questions, concerns, missing parts? Customer satisfaction is important to us at Dorel
Asia. CONTACT OUR CUSTOMER SERVICE DEPARTMENT BEFORE RETURNING
PRODUCT TO THE RETAILER.
DA8377-GR
0-65857-19909-3

*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
USE ONLY COIL SPRING MATTRESSES ON BED. FAILURE TO DO SO CAN RESULT IN INJURY.
USE ONLY MATTRESSES WHICH IS 74"-75" LONG AND 37 1/2" - 38 1/2" WIDE ON BED. ENSURE
THICKNESS OF MATTRESS DOES NOT EXCEED 6". SURFACE OF MATTRESS MUST BE AT LEAST 5"
(127MM) BELOW THE UPPER EDGE OF GUARDRAILS.
THE USE OF WATER OR SLEEP FLOTATION MATTRESSES IS PROHIBITED.
ALWAYS USE THE LADDER FOR ENTERING AND LEAVING THE UPPER BUNK.
PROHIBIT MORE THAN ONE PERSON ON UPPER BUNK.
KEEP THESE INSTRUCTIONS FOR FUTURE USE.
DO NOT USE SUBSTITUTE PARTS. CONTACT CUSTOMER SERVICE FOR REPLACEMENT PARTS.
USE OF A NIGHT LIGHT MAY PROVIDE ADDED SAFETY PRECAUTION FOR A CHILD USING THE UPPER
BUNK.
PERIODICALLY CHECK AND ENSURE THAT THE GUARDRAIL, LADDER AND OTHER COMPONENTS ARE
IN THEIR PROPER POSITION, FREE FROM DAMAGE, AND THAT ALL CONNECTORS ARE TIGHT.
DO NOT ALLOW HORSEPLAY ON OR UNDER THE BED AND PROHIBIT JUMPING ON THE BED.
DO NOT ALLOW CHILDREN UNDER 6 YEARS OF AGE TO USE THE UPPER BUNK.
ALWAYS USE GUARDRAILS ON BOTH LONG SIDES OF THE UPPER BUNK. IF THE BUNK BED WILL BE
PLACED NEXT TO THE WALL, THE GUARDRAIL THAT RUNS THE FULL LENGTH OF THE BED SHOULD
BE PLACED AGAINST THE WALL TO PREVENT ENTRAPMENT BETWEEN THE BED AND WALL
(APPLICABLE FOR BUNK BEDS WITH FULL LENGTH GUARDRAILS ON ONE SIDE).
NOTES AND INSTALLATION
WARNING
STRANGULATION HAZARD - NEVER ATTACH OR HANG ITEMS TO ANY PART OF THE BUNK BED THAT
ARE NOT DESIGNED FOR USE WITH THE BED; FOR EXAMPLE, BUT NOT LIMITED TO, HOOKS, BELTS
AND JUMP ROPES.
FOLLOW THE INFORMATION ON THE WARNINGS APPEARING ON THE UPPER BUNK END STRUCTURE
AND ON THE CARTON. DO NOT REMOVE WARNING LABEL FROM BED.
THE MATTRESS PLATFORM IS DESIGNED TO SUPPORT A MATTRESS WITHOUT THE NEED FOR A
POSTURE BOARD OR BOX SPRING.
ALWAYS USE THE RECOMMENDED SIZE MATTRESS OR MATTRESS SUPPORT, OR BOTH, TO HELP
PREVENT THE LIKELIHOOD OF ENTRAPMENT OR FALLS.
CUSTOMER SERVICE
You can also contact us by writing to the address listed below. Please include the product model number, color and
a detailed description of your enquiry.
Dorel Living - Customer Service Department
12345 Albert-Hudon Boulevard, Suite 100
Montreal, Quebec
Canada, H1G 3L1

*
*
*
*
*
*
*
*
NOTES
READ EACH STEP CAREFULLY BEFORE STARTING. IT IS VERY IMPORTANT THAT EACH STEP OF
INSTRUCTION IS PERFORMED IN THE CORRECT ORDER. IF THESE STEPS ARE NOT FOLLOWED IN
SEQUENCE, ASSEMBLY DIFFICULTIES WILL OCCUR AND CAN RESULT IN INJURY.
CAUTION: ADULT ASSEMBLY REQUIRED.
MAKE SURE ALL PARTS ARE INCLUDED. WORK IN SPACIOUS AREA, PREFERABLY ON A SMOOTH
SOFT SURFACE.
ASSEMBLY WILL REQUIRE TWO PEOPLE.
MOST BOARD PARTS ARE LABELED OR STAMPED ON THE RAW EDGE.
1-YEAR LIMITED WARRANTY
Dorel warrants its product to be free from defects in material and workmanship and agrees to remedy any
such defect. This warranty covers 1 year from the date of original purchase from authorized retailers. This
warranty is valid only upon presentation of proof of purchase. This is solely limited to the repair or
replacement of defective furniture components and no assembly labor is included. This warranty does not
apply to any product which has been improperly assembled, subjected to misuse or abuse or which has
been altered or repaired in any way. The warranty does not cover wearing, tearing, fading or splitting of the
fabric (where applicable). This warranty gives you specific legal rights and you may also have other rights
which vary from State to State or Province to Province.
WARNING: Should this product become damaged, and/or
components are broken or missing, DO NOT USE.
PHILLIPS SCREWDRIVER (NOT INCLUDED) IS REQUIRED.
A RUBBER MALLET (NOT INCLUDED) IS RECOMMENDED TO FACILITATE ASSEMBLY.
BED IS DESIGNED FOR CHILDREN RANGING FROM 6 YEARS OF AGE TO YOUNG TEENAGERS.
CARE, CLEANING AND MAINTENANCE
Dust regularly with a soft, dry cloth. We do not recommend the use of chemical cleaners or wax on
our lacquered furniture as it may damage the finish. Keep solvents, alcohol, nail polish and polish
removers away from your hardwood furniture surfaces.
Check all bolts, screws and fasteners periodically and tighten them if necessary.

1 2
3 4
5 6
7 8
WOOD DOWEL
34 PCS
∅11.8mm x 15mm
BARREL NUT
8 PCS
ALLEN KEY
1 PC
FLAT HEAD WOOD SCREW
6 PCS
TWIN LOFT BED
DA8377 / DA8377-E / DA8377-BL / DA8377-BK / DA8377-GR
HARDWARELIST
WOOD JOINT CONNECTOR (4mm HEX HEAD)
16 PCS
FLAT HEAD WOOD SCREW
12 PCS
∅6.5mm x 100mm
∅4mm x 35mm
∅4mm x 30mm
∅10mm x 50mm
∅1/4" x 100mm
∅6.5mm x 48mm
JOINT CONNECTOR (4mm HEX HEAD)
8 PCS
WOOD JOINT CONNECTOR (4mm HEX HEAD)
6 PCS

A B C
D E F
HEADBOARD TOP CROSS
2 PCS
HEADBOARD CENTER CROSS
2 PCS
HEADBOARD BOTTOM CROSS
2 PCS
POST
2 PCS
POST
1 PC
POST
1 PC
TWIN LOFT BED
DA8377 / DA8377-E / DA8377-BL / DA8377-BK / DA8377-GR

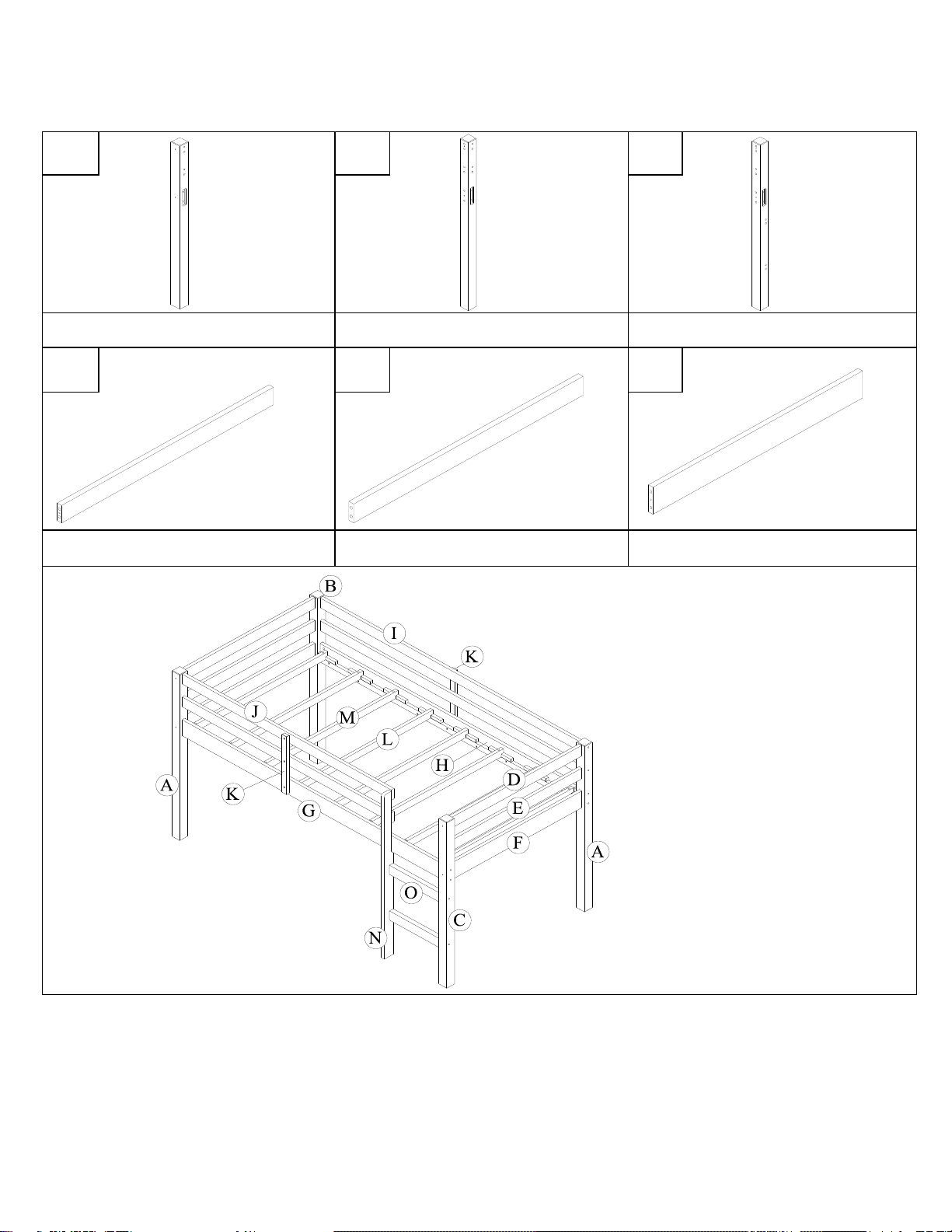

PARTS LIST

G H I
J K L
M N O
TWIN LOFT BED
DA8377 / DA8377-E / DA8377-BL / DA8377-BK / DA8377-GR
PARTS LIST
SIDE RAIL (WITH 3 HOLE)
1 PC
SIDE RAIL (WITH 1 HOLE)
1 PC
LONG GUARDRAIL
2 PCS
SLAT
6 PCS
LADDER END
1 PC
LADDER STEP
2 PCS
SHORT GUARDRAIL
2 PCS
GUARDRAIL LEG
2 PCS
SLAT
2 PCS

TWIN LOFT BED
DA8377 / DA8377-E / DA8377-BL / DA8377-BK / DA8377-GR
NOTE: Pull the headboard crosses (D, F, E) closer together or further apart in order to allow the wood
dowels (6) to align with the holes on posts (A) and (B).
STEP 1
One of the headboard top crosses (D) has a label on it, use it in this step.
Insert wood dowels (6) into the ends of headboard top cross (D), headboard bottom cross (F) and
headboard center cross (E).
Attach hardboard crosses (D, F, E) to posts (A) & (B) using wood joint connectors (3) as shown below.
Use the Allen key (7) to tighten the wood joint connectors.
Repeat the previous step to assemble the other headboard using the bottom posts (C) and (A).
Warning label

STEP 2
TWIN LOFT BED
DA8377 / DA8377-E / DA8377-BL / DA8377-BK / DA8377-GR
Insert wood dowels (6) into each end of the long guardrails (I). Attach long guardrails (I) and side rails
(G) and (H) to posts (A & B) and (A & C) as shown below.
Fasten the side rails (G) and (H) with joint connectors (1) and barrel nuts (8). Fasten long guardrails
(I) with wood joint connectors (3) .
Use Allen key (7) to tighten all joint connectors.

STEP 3
TWIN LOFT BED
DA8377 / DA8377-E / DA8377-BL / DA8377-BK / DA8377-GR

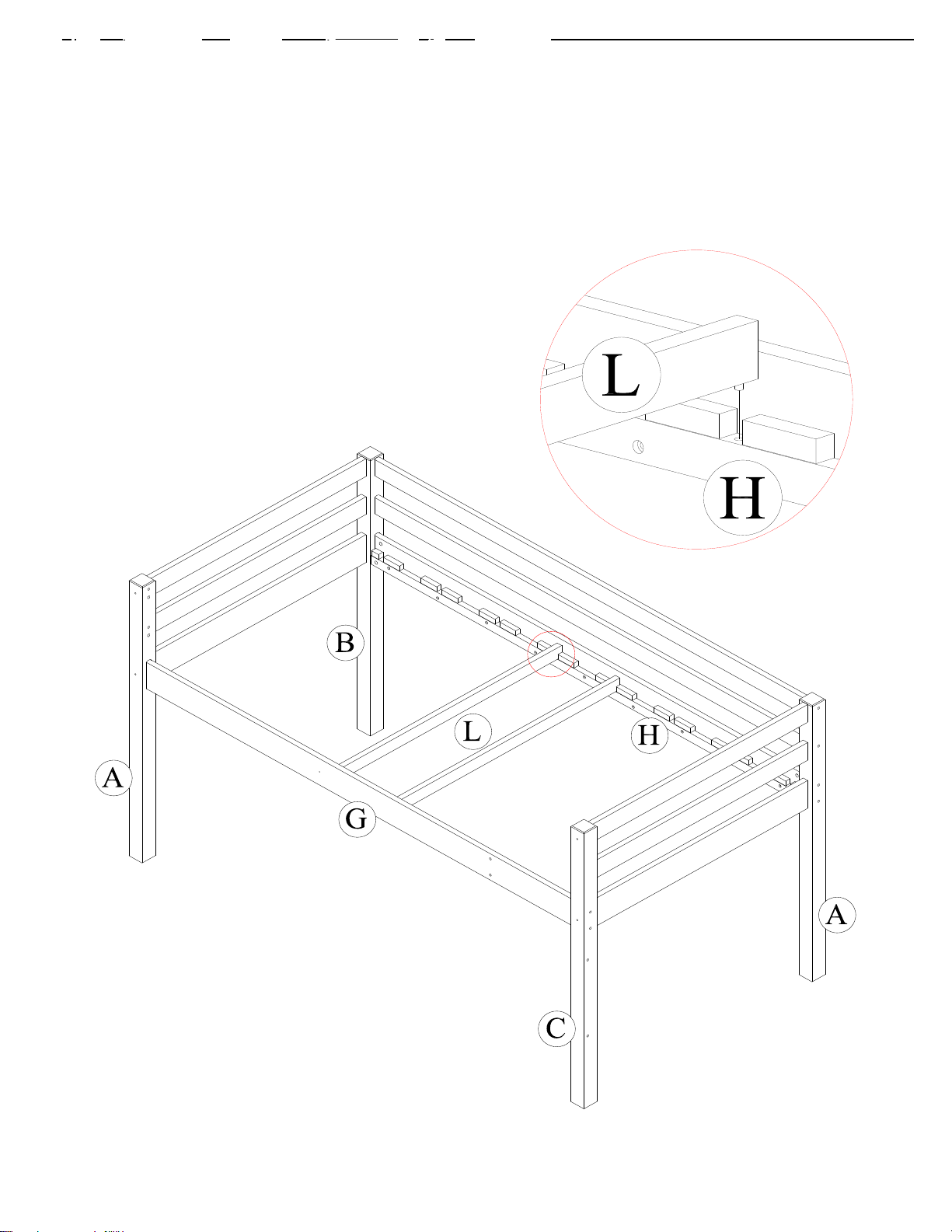

Insert two slats (L) into the center slots of the side rails (G) and (H) as shown below.
NOTE: Once the two (L) slats are inserted, there should be three empty spaces left on each side.

STEP 4
TWIN LOFT BED
DA8377 / DA8377-E / DA8377-BL / DA8377-BK / DA8377-GR
Insert slats (M) into remaining holes on the side rails (G) and (H).
Secure slats (M) to the side rails (G) and (H) with flat head wood screws (4) using a Phillips-head
screwdriver (not included).
NOTE: Slats (M) and (L) will be placed between two wooden blocks.
