dosatron Dilution ETATRON ePC User manual

INSTRUCTIONS
Indicate whether the Water Meter is 1PPG (1 gallon
per contact) or 10PPG (10 gallons per contact).
The lead wire next to the power cable connects to
the Water Meter.
The lead wire in front of the power cable connects
to either the house controller or Pump #1. The next
wire connects to pump #2.

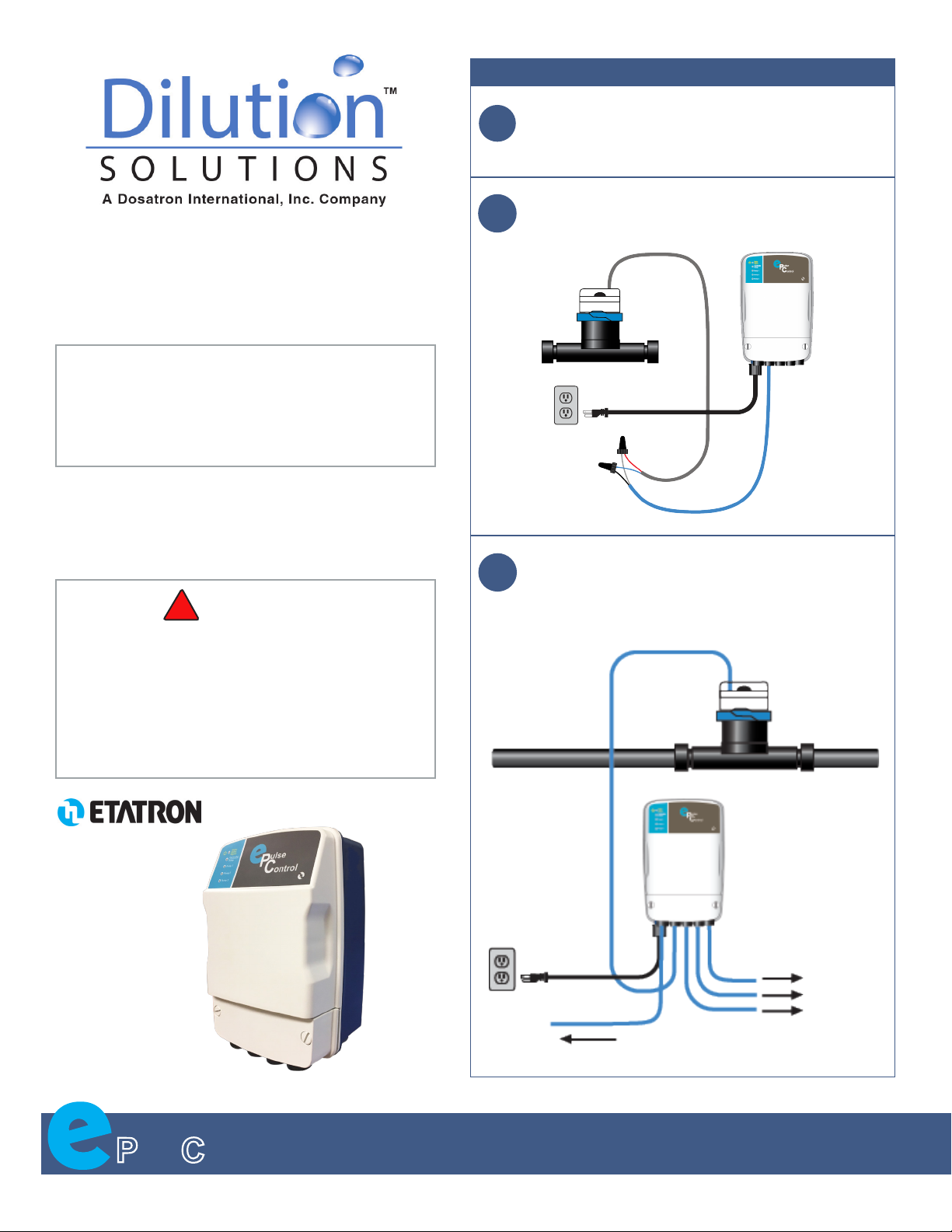

ePC Quick Start Guide
ulse
P
1
2
3
CAUTION
- See operating manual for complete instructions
and safety standards.
- When connecting a metering pump either to a
public water supply or to its own water source,
you must respect the regulations in force
concerning protection of the source i.e. backflow
prevention, etc.
Included in the box
• ePulse Control
• Bracket Mounting Kit
• Operating instructions and maintenance manual
NOTE: Remove safety labels before
installing and remember that pumps may
hold water inside.
!
ontrol
C
ePulse Control Water Meter Splitter
To house
control
pump #1
pump #2
pump #3
(Continue to back)

Plug in the ePC. The Power LED light will be
lit green.
When the Water Meter closes the contact, all
four (4) LEDs will light up indicating the signal is
being made for each device installed.
If you need to install a 3rd or 4th pump, remove
the lower access panel in front of the ePC.
With the use of a punch tool, run a small hole
through the rubber cap, and thread the lead
wires to connect the pumps.
ulse
P
45
6
ontrol
C
Rubber Cap
NEED HELP? Call 1-800-451-6628
ePC Installation
(Continue)
NOTE: Installation illustrations are to be used as a reference guide only.
