Dot Hill AssuredSAN Ultra48 Series Parts list manual

AssuredSAN Ultra48 Series
FRU Installation and Replacement Guide
For firmware release GL210 or later
P/N 83-00006722-12-01
Revision A
June 2015
Abstract
This document describes removal and installation of field-replaceable units for Dot Hill AssuredSAN Ultra48 Series controller
enclosures, and is intended for use by storage system administrators familiar with servers and computer networks, network
administration, storage system installation and configuration, storage area network management, and relevant protocols.

Copyright © 2015 Dot Hill Systems Corp. All rights reserved. Dot Hill Systems Corp., Dot Hill, the Dot Hill logo, AssuredSAN, AssuredSnap,
AssuredCopy, AssuredRemote, R/Evolution, and the R/Evolution logo are trademarks of Dot Hill Systems Corp. All other trademarks and registered
trademarks are proprietary to their respective owners.
The material in this document is for information only and is subject to change without notice. While reasonable efforts have been made in the
preparation of this document to assure its accuracy, changes in the product design can be made without reservation and without notification to its
users.

AssuredSAN Ultra48 Series FRU Installation and Replacement Guide 3
About this guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
AssuredSAN Ultra48 Series enclosure user interfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Intended audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Related documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Document conventions and symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1 FRUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Available FRUs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Storage enclosure overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
FRUs addressing 48-drive enclosures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Enclosure bezel for 48-drive model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Supported drive enclosures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2 Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Electrostatic discharge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Preventing electrostatic discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Grounding methods to prevent electrostatic discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Replacing chassis FRU components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Attaching and removing the enclosure bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Attaching the enclosure bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Removing the enclosure bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Replacing a controller module or expansion module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Before you begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Configuring partner firmware update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Using the SMC or RAIDar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Using the CLI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Verifying component failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Stopping I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Shutting down a controller module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Using the SMC or RAIDar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Using the CLI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Removing a controller module or expansion module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Installing a controller module or expansion module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Verifying component operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Using the SMC or RAIDar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Using the CLI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Updating firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Accessing a drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Opening and closing a drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Replacing a disk drive module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
FDE considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Air management solution insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Installing an air management insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Removing an air management insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Before you begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Verifying component failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Removing a disk drive module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Installing a disk drive module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Determine if a disk is missing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Using the SMC or RAIDar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Using the CLI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Verifying component operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Contents

4Contents
Replacing a power supply module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Before you begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Verifying component failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Power supply units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
AC PSUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Removing a power supply unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Installing a power supply unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Connecting a power cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Verifying component operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Replacing ear components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Before you begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Removing ear components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Installing ear kit components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Verifying component operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Transceivers used in CNC ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Replacing a Fibre Channel transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Before you begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Verifying component failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Removing an SFP module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Installing an SFP module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Verifying component operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Replacing a 10GbE SFP+ transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Replacing a 1Gb RJ-45 SFP transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Replacing a storage enclosure chassis. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Before you begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Verifying component failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Preparing to remove a damaged storage enclosure chassis. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Removing a damaged storage enclosure chassis from the rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Installing the replacement storage enclosure in the rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Completing the process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Verifying component operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Using LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Using management interfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
A Drawer description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Drawer configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Loading requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
LED descriptions for drawer components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Drawer front panel LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Disk LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

AssuredSAN Ultra48 Series FRU Installation and Replacement Guide 5
Figures
1 Exploded view: controller or expansion enclosure (2U48). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2 Ultra48 Series CNC controller module with SFP transceiver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3 Enclosure assembly with bezel installed (2U48) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4 Enclosure assembly with bezel removed (2U48) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5 Enclosure architecture: internal components sub-assembly (2U48) . . . . . . . . . . . . . . . . . . . . . . . . . . 14
6 Partial assembly showing bezel alignment with 2U48 chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
7 Partial assembly showing bezel alignment (2U48) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
8 Disengaging a controller module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
9 Extracting a controller module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
10 Removing a controller module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
11 Inserting a controller module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
12 Loosen the drawer stop screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
13 Revolve the handle to drawer-pull position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
14 Opening and closing a drawer: pull or push drawer along slide . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
15 Align AMS or disk module for installation into the drawer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
16 Orient the AMS for installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
17 Secure the AMS into the disk bay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
18 Remove the AMS from the disk bay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
19 Disengaging a disk drive module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
20 Removing a disk drive module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
21 Aligning the disk drive module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
22 Installing a disk drive module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
23 AC PSU with power switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
24 Removing a power supply unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
25 Orienting a power supply unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
26 Replacing left ear components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
27 Replacing right ear components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
28 Sample SFP connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
29 Disconnect fibre-optic interface cable from SFP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
30 Flip SFP actuator upwards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
31 Install the SFP into the CNC port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
32 Enclosure front face pictorial featuring drawers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
33 Schematic representation of drawers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
34 2U48 enclosure: sample disk bay population . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
35 2U48 enclosure: sample drawer population . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
36 LEDs: 2U48 drawer status front panel layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
37 LED: 2U48 disk drive module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

6Tables
Tables
1 Related documents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2 Document conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3 Individual enclosure models comprising Ultra48 Series storage systems . . . . . . . . . . . . . . . . . . . . . . . 10
4 Ultra48 Series product components for 2U48 enclosures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5 Compatible drive enclosures for adding storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6 Power supply faults and recommended actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
7 Power supply unit LED descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
8 Removing and replacing a 10GbE SFP+ transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
9 Removing and replacing a 1 Gb SFP transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
10 Removing and replacing a storage enclosure chassis and its FRUs . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

AssuredSAN Ultra48 Series FRU Installation and Replacement Guide 7
About this guide
Overview
This guide identifies Ultra48 Series FRUs (field-replaceable units), and describes how to remove or install
them within the AssuredSAN™ Ultra48 Series storage enclosure products listed below:
•CNC (Converged Network Controller) Controller enclosure (4844 models):
• Qualified Fibre Channel SFP option supporting (4/8/16 Gb)
• Qualified Internet SCSI (10GbE) SFP option
• Qualified Internet SCSI (1 Gb) Copper RJ-45 SFP option
•HD mini-SAS (12 Gb) Controller enclosure: 4544
For a complete description of product models, see the “Components” chapter within the Setup Guide.
AssuredSAN Ultra48 Series enclosures support both traditional linear storage and new virtual storage,
which uses paged-storage technology. For linear storage, a group of disks with an assigned RAID level is
called a vdisk or linear disk group. For virtual storage, a group of disks with an assigned RAID level is
called a virtual disk group. This guide uses the term vdisk when specifically referring to linear storage, and
uses the term disk group otherwise.
AssuredSAN Ultra48 Series enclosure user interfaces
The Ultra48 Series enclosures support two versions of the web-based application for configuring,
monitoring, and managing the storage system. Both web-based application GUI versions (v3 and v2), and
the command-line interface are briefly described:
•Storage Management Console (SMC) is the new primary web interface (v3) for the enclosures,
providing access to all common management functions for both linear and virtual storage.
•RAIDar is a secondary web interface (v2) for the enclosures, providing access to traditional linear
storage functions. This legacy interface provides certain functionality that is not available in the primary
interface.
•The command-line interface (CLI) enables you to interact with the storage system using command syntax
entered via the keyboard or scripting. You can set a CLI preference to use v3 or v2 terminology in
command output and system messages.
NOTE: For more information about enclosure user interfaces, see the following:
•AssuredSAN Ultra48 Series Storage Management Guide or online help
The guide describes SMC (v3) and RAIDar (v2) GUIs
• AssuredSAN Ultra48 Series CLI Reference Guide
Intended audience
This guide is intended for storage system administrators.
Prerequisites
Prerequisites for installing and using this product include knowledge of:
•Servers and computer networks
•Network administration
•Storage system installation and configuration
•Storage area network (SAN) management and direct attach storage (DAS)
•Fibre Channel (FC), Internet SCSI (iSCSI), Serial Attached SCSI (SAS), and Ethernet protocols

8 About this guide
Related documentation
* Printed document included in product shipkit.
For additional information, see Dot Hill’s Customer Resource Center web site: https://crc.dothill.com.
Document conventions and symbols
Table 1 Related documents
For information about See
Enhancements, known issues, and late-breaking
information not included in product documentation
Release Notes
Overview of product shipkit contents and setup tasks Getting Started*
Regulatory compliance and safety and disposal
information
AssuredSAN Product Regulatory Compliance and Safety*
Using a rackmount bracket kit to install an enclosure
into a rack
AssuredSAN Ultra48 Rackmount Bracket Kit Installation*
Product hardware setup and related troubleshooting AssuredSAN Ultra48 Series Setup Guide
Obtaining and installing a license to use licensed
features
AssuredSAN 4004 Series Obtaining and Installing a
License
Using the v3 and v2 web interfaces to configure and
manage the product
AssuredSAN 4004 Series Storage Management Guide
Using the command-line interface (CLI) to configure
and manage the product
AssuredSAN 4004 Series CLI Reference Guide
Event codes and recommended actions AssuredSAN Event Descriptions Reference Guide
Product hardware setup and related troubleshooting
AssuredSAN 4004 Series Setup Guide (for J6G24/J6G12)
Identifying and installing or replacing field-replaceable
units (FRUs)
AssuredSAN 4004 Series FRU Installation and
Replacement Guide (for J6G24/J6G12)
Using a rackmount bracket kit to install an enclosure
into a rack
AssuredSAN Rackmount Bracket Kit Installation*or
AssuredSAN 2-Post Rackmount Bracket Kit Installation*
(for J6G24/J6G12)
Table 2 Document conventions
Convention Element
Blue text Cross-reference links and e-mail addresses
Blue, underlined text Web site addresses
Bold text •Key names
•Text typed into a GUI element, such as into a box
•GUI elements that are clicked or selected, such as menu and list
items, buttons, and check boxes
Italic text Text emphasis
Monospace text •File and directory names
•System output
•Code
•Text typed at the command-line
Monospace, italic text •Code variables
•Command-line variables
Monospace, bold text Emphasis of file and directory names, system output, code, and text
typed at the command-line

AssuredSAN Ultra48 Series FRU Installation and Replacement Guide 9
CAUTION: Indicates that failure to follow directions could result in damage to equipment or data.
IMPORTANT: Provides clarifying information or specific instructions.
NOTE: Provides additional information.
TIP: Provides helpful hints and shortcuts.

10 FRUs
1FRUs
Available FRUs
You can determine which FRUs pertain to your storage enclosure using the Command-line Interface (CLI).
Access the controller via a Telnet client; log into the controller over the network (default user name manage
and password !manage). If the default user or password—or both—have been changed for security
reasons, enter the secure login credentials instead of the defaults shown above.
Enter a show frus query.
Execution of the show frus CLI command displays controller metadata, followed by the FRU
information pertaining to chassis (with midplane), I/O modules (IOMs), disk drawers, and power
supplies.
NOTE: See AssuredSAN 4004 Series CLI Reference Guide for more information.
You can also determine which FRUs pertain to your storage enclosure by visual inspection of the
component, noting serial number and part number. This method applies to disk drives. FRUs and FRU
make-up are subject to change independent of documentation versions. Information about FRUs and other
components can also be viewed via the SMC or RAIDar.
See Dot Hill’s products: http://www.dothill.com/products page for the latest product information. See the
customer resource center (CRC) site for interoperability information: https://crc.dothill.com.
Storage enclosure overview
NOTE: Tables and companion illustrations describe field-replaceable units for Ultra48 Series products.
FRUs used in 2U12, 2U24, and 4U56 chassis are addressed in 4004 and Ultra56 documentation.
Table 3 provides summary descriptions of individual controller enclosure models comprising Ultra48 Series.
1CNC ports support same-type or mixed-type SFPs in combination as described in Transceivers used in CNC ports on page 45.
Table 3 Individual enclosure models comprising Ultra48 Series storage systems
AssuredSAN Ultra48 Series controller enclosure matrix
2.5" 48-drive Controller enclosures: SFF disks in high-capacity drawers (16 drive slots x 3 drawers)
Model Form Description
4844 2U48
Fibre Channel (8/16 Gb) SFP
1
This model uses a qualified FC SFP option within the CNC ports (used for host connection or replication).
When in FC mode, the SFPs must be a qualified 8 Gb or 16 Gb fibre optic option. A 16 Gbit/s SFP can run
at 16 Gbit/s, 8 Gbit/s, 4 Gbit/s, or auto-negotiate its link speed. An 8 Gbit/s SFP can run at 8 Gbit/s, 4
Gbit/s, or auto-negotiate its link speed.
4844 2U48 Internet SCSI (10GbE) SFP1
This model uses a qualified 10GbE iSCSI option within the controller module CNC ports (used for host
connection or replication).
4844 2U48 Internet SCSI (1 Gb) SFP1
This model uses a qualified 1 Gb iSCSI SFP option within the controller module CNC ports (used for host
connection or replication).
4544 2U48 HD mini-SAS (12 Gb)
This model uses SFF-8644 connectors and qualified cable options for host connection.

AssuredSAN Ultra48 Series FRU Installation and Replacement Guide 11
Table 4 shows components for 2.5" 48-drive enclosure models (2U48). Tables and supporting illustrations
show components for Ultra48 Series that can be ordered for replacement in the field. Contact your account
manager for packaged FRU numbers and ordering information.
FRUs addressing 48-drive enclosures
The numbered items listed in Table 4 below are pictorially shown in the companion illustrated parts
breakdown (see Figure 1 on page 12).
Table 4 Ultra48 Series product components for 2U48 enclosures
Item Enclosure component descriptions
1 Enclosure drawer (one drawer shown—pulled forward to drawer stop—included with chassis)
a) Empty drawer chassis assembly (PCBAs, power module and SAS data cable connector)
b) 2.5" disk drive module (disks of differing type/speed and storage capacity: SAS, SSD)
c) Air Management Solution insert (blank to maintain optimum air flow within enclosure)
2Earkit
a) Left ear assembly
b) Right ear assembly
Also see Partial assembly showing bezel alignment with 2U48 chassis on page 15
3 Chassis [with drawer slide and igus chain (data and power cables) shown]
4 Midplane (included with chassis)
5 Power supplies (one AC PSU module shown)
6 Controller module for enclosure [ two per controller enclosure ] (see Figure 2 on page 13)
a) 4844, 1RM, 4-port CNC, FC [8/16 Gbit/s] SFP option
b) 4844, 1RM, 4-port CNC, iSCSI [10GbE] SFP option
c) 4844, 1RM, 4-port CNC, iSCSI [1 Gbit/s] RJ-45 SFP option
d) 4544, 1RM, HD mini-SAS, 4-port [12 Gbit/s] SFF-8644 external connector
7 Small form-pluggable (SFP) connector (applies to CNC controller modules only)
8 Enclosure cover (included with chassis)
Not
shown
Expansion module (two per chassis when configured as an expansion enclosure)
J6G48, 1JM, mini-SAS (SFF-8088), 2-port [6 Gbit/s]
Not
shown
Rail kit [Rack mount rail kit, assembly, All HW]
Not
shown
Cable kit [Cable package: mini-SAS (SFF-8088) to mini-SAS (SFF-8088)]
Cable kit [Cable package: HD mini-SAS (SFF-8644) to HD mini-SAS (SFF-8644)]
Cable kit [Cable package: HD mini-SAS (SFF-8644) to mini-SAS (SFF-8088)]
Not
shown
Cable kit [Cable package: USB Type B; CLI (USB)]
Not
shown
AC power cord compatible with AC power supply unit.

12 FRUs
90°
1a
1c 1b
2a
2b
(Note 1)
(Note 1)
3
4
5
6
7
8
Illustrated Parts Breakdown: 2U48 Chassis FRUs
(For clarity, redundant assembly components are not shown)
1. The enclosure bezel is only partially shown.
2. The bezel is equipped with an EMI shield.
3. The bezel must be attached during enclosure operation.
4. Remove the bezel to access front panel components.
Notes:
Fore
Aft
Front
Right Side
Orientation Key
5. Use management interfaces in lieu of removing bezel.

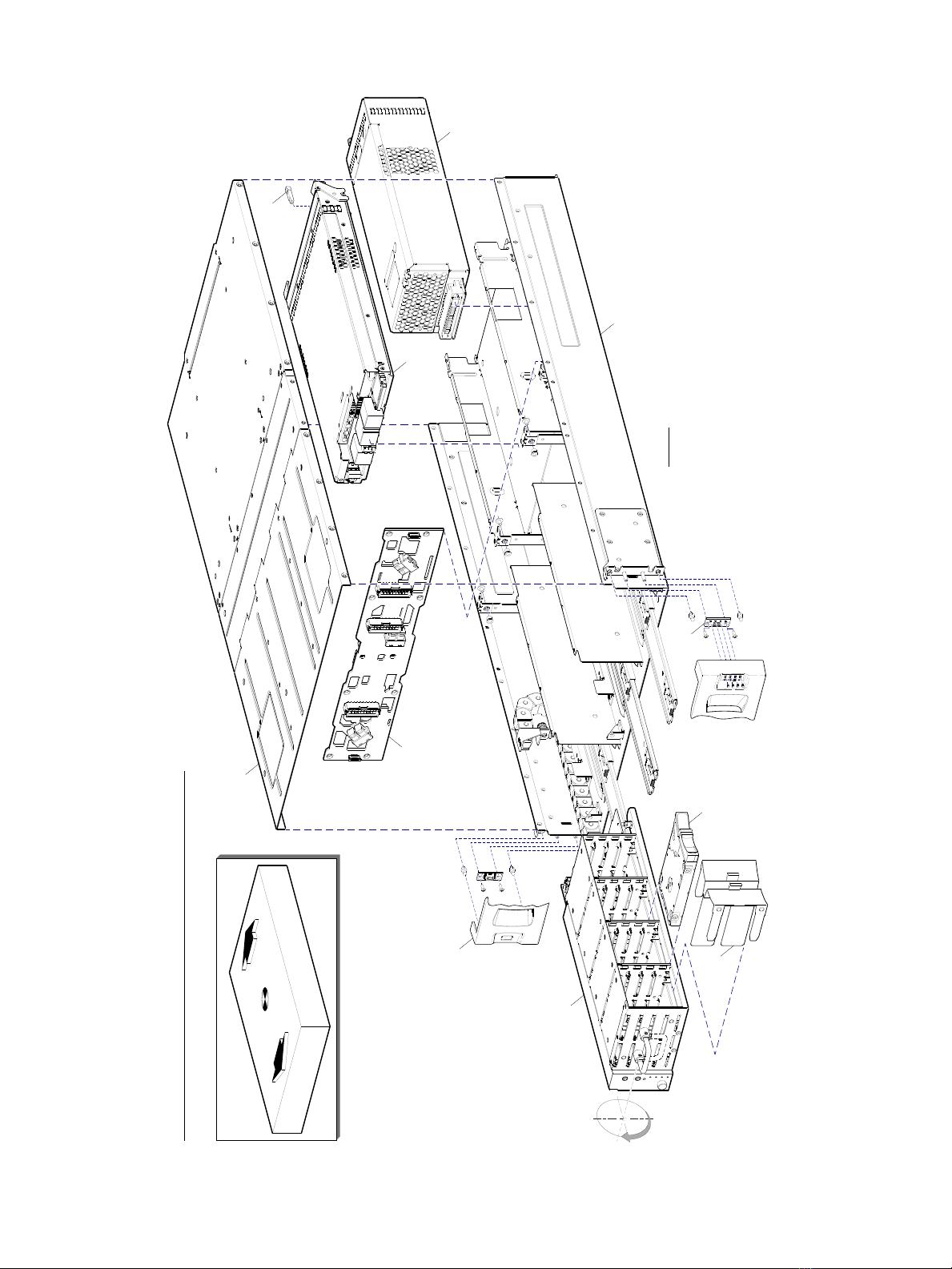

Figure 1 Exploded view: controller or expansion enclosure (2U48)

AssuredSAN Ultra48 Series FRU Installation and Replacement Guide 13
Figure 1 through Figure 5 illustrate 48-drive enclosure models. The 2U48 product models use an enclosure
bezel during operation. The enclosure bezel is only partially shown in Figure 1 on page 12. The enclosure
bezel is shown in its entirety in Figure 6 on page 15 (removed) and in Figure 3 on page 13 (installed).
NOTE: The following illustrations further describe Table 4 components for the 2U48 chassis:
•Controller module pictorial — Figure 2
•Assembly — Figure 3, Figure 4 on page 14, and Figure 6 on page 15
•Internal components sub-assembly — Figure 5 on page 14
Figure 2 Ultra48 Series CNC controller module with SFP transceiver
The transceiver is shown exploded from the IOM in the CNC example. Controller modules equipped with
CNC ports support qualified FC (8 Gbit/s, 16 Gbit/s), 10GbE iSCSI, and 1 Gb RJ-45 SFP options.
Controller modules equipped with HD mini-SAS ports use qualified SFF-8644 external connectors.
Figure 3 Enclosure assembly with bezel installed (2U48)
CNC controller module
(enlarged relative to Figure 1)

14 FRUs
Figure 4 Enclosure assembly with bezel removed (2U48)
Figure 5 Enclosure architecture: internal components sub-assembly (2U48)
Enclosure bezel for 48-drive model
The 48-drive 2U48 enclosure supports a bezel sub-assembly that attaches to the front of the chassis (see
Figure 6 on page 15). The bezel—comprised of a vented cover attached to an EMI (Electromagnetic
Interference) shield—is pre-assembled and packed with foam into a box included in the master shipping
container.
Drawer handles shown in stowed and pull positions
90°
Disk drive module
Power supply unit
IOM
Midplane
AMS insert
Enclosure drawer

AssuredSAN Ultra48 Series FRU Installation and Replacement Guide 15
Figure 6 Partial assembly showing bezel alignment with 2U48 chassis
Supported drive enclosures
1These 4004 Series-compatible expansion enclosure models feature 6 Gbit/s internal disk and SAS expander link speeds. See the
4004 Series Setup and FRU guides for information about 2U24 and 2U12 enclosures
2See the Ultra56 Setup and FRU guides for information about 4U56 enclosures.
3
See the AssuredSAN Ultra48 Series Setup Guide—and this guide—for information about the high-capacity 2U48 chassis form factor.
4See the Ultra48 Series Setup Guide for maximum enclosure limits and associated cabling configurations.
5The 4004 Series and Ultra56 Series—which includes the J6G56—are designed for NEBS compliance, but the Ultra48 Series
—which includes the J6G48—is not.
6Reference documents for the J6G12 (2U12), J6G24 (2U24), and J6G56 (4U56) are listed below.
7See http://www.dothill.com/products for most current information concerning support of drive enclosures for storage expansion.
Within the AssuredSAN Ultra48 Series product line, the 2U48 chassis can be configured as either a
controller enclosure or a drive enclosure for adding storage. These enclosures look very similar to one
another. Only the IOM geometry differs: either it is a controller module or an expansion module. The
remaining FRUs are common.
Within the AssuredSAN Ultra48 Series product line, the high-capacity 4U56 chassis is supported as an
expansion enclosure (J6G56) for adding storage to 2U48 controller enclosures.
IMPORTANT: For illustrations and information about the 4U56 chassis—which is supported as a drive
enclosure option for Ultra48 Series controller enclosures—refer to the following documents:
•AssuredSAN Ultra56 Series Setup Guide
•AssuredSAN Ultra56 Series FRU Installation and Replacement Guide
•AssuredSAN Ultra56 Rackmount Bracket Kit Installation
Ball stud on chassis ear
(typical 4 places)
Enclosure bezel sub-assembly
(Includes EMI shield for disks)
Pocket opening (typical 2 places)
Table 5 Compatible drive enclosures for adding storage
Model Form Enclosure description Disk drives Rear panel connection NEBS
J6G48 2U48 48-drive 6 Gbit/s chassis with FRUs 2.5" (SFF) mini-SAS to mini-SAS Note 5
J6G24 2U24 24-drive 6 Gbit/s chassis with FRUs 2.5" (SFF) mini-SAS to mini-SAS Note 5
J6G12 2U12 12-drive 6 Gbit/s chassis with FRUs 3.5" (LFF) mini-SAS to mini-SAS Note 5
J6G56 4U56 56-drive 6 Gbit/s chassis with FRUs 3.5" (LFF) mini-SAS to mini-SAS Note 5

16 FRUs
Within the AssuredSAN Ultra48 Series product line, the 2U12 and 2U24 chassis are supported as
optional expansion enclosures (J6G12/J6G24) for adding storage to 2U48 controller enclosures.
IMPORTANT: For illustrations and information about the 2U12 and 2U24 chassis—which are supported
as drive enclosure options for Ultra48 Series controller enclosures—refer to the following documents:
•AssuredSAN 4004 Series Setup Guide
•AssuredSAN 4004 Series FRU Installation and Replacement Guide
•AssuredSAN Rackmount Bracket Kit Installation

AssuredSAN Ultra48 Series FRU Installation and Replacement Guide 17
2Procedures
This chapter provides procedures for replacing FRUs (field-replaceable units), including precautions,
removal instructions, installation instructions, and verification of successful installation. Each procedure
addresses a specific task. Certain procedures refer to related documentation. See Related documentation
on page 8 for a list of these documents and where to find them online.
IMPORTANT: Procedures pertain to FRUs used in Ultra48 Series (2U48) products. Procedures pertaining to
FRUs used in 2U12, 2U24, and 4U56 chassis are described in 4004 and Ultra56 documentation
.
Electrostatic discharge
Before you begin any of the procedures, consider the following precautions and preventive measures.
Preventing electrostatic discharge
To prevent electrostatic discharge (ESD) from damaging the system, be aware of the precautions to
consider when setting up the system or handling parts. A discharge of static electricity from a finger or
other conductor may damage system boards or other static-sensitive devices. This type of damage may
reduce the life expectancy of the device.
CAUTION: Parts can be damaged by electrostatic discharge. Follow these precautions:
•Avoid hand contact by transporting and storing products in static-safe containers.
•Keep electrostatic-sensitive parts in their containers until they arrive at static-protected workstations.
•Place parts in a static-protected area before removing them from their containers.
•Avoid touching pins, leads, or circuitry.
•Always be properly grounded when touching a static-sensitive component or assembly.
•Remove clutter (plastic, vinyl, foam) from the static-protected workstation.
Grounding methods to prevent electrostatic discharge
Several methods are used for grounding. Adhere to the following precautions when handling or installing
electrostatic-sensitive parts.
CAUTION: Parts can be damaged by electrostatic discharge. Use proper anti-static protection:
•Keep the replacement FRU in the ESD bag until needed; and when removing a FRU from the enclosure,
immediately place it in the ESD bag and anti-static packaging.
•Wear an ESD wrist strap connected by a ground cord to a grounded workstation or unpainted surface
of the computer chassis. Wrist straps are flexible straps with a minimum of 1 megohm (± 10 percent)
resistance in the ground cords. To provide proper ground, wear the strap snug against the skin.
•If an ESD wrist strap is unavailable, touch an unpainted surface of the chassis before handling the
component.
•Use heel straps, toe straps, or boot straps at standing workstations. Wear the straps on both feet when
standing on conductive floors or dissipating floor mats.
•Use conductive field service tools.
•Use a portable field service kit with a folding static-dissipating work mat.

18 Procedures
If you do not have any of the suggested equipment for proper grounding, have an authorized reseller
install the part. For more information about static electricity or assistance with product installation, contact
an authorized reseller.
Replacing chassis FRU components
Chassis FRUs replace a damaged chassis or chassis components. A fully functional chassis requires
successful installation of the following components:
•Two controller modules of the same model (for a given controller enclosure)*
See Replacing a controller module or expansion module on page 20 for more information.
•All disk drive modules (inserted into three pre-installed drawers within the chassis)
See Accessing a drawer on page 29 for more information.
See Replacing a disk drive module on page 30 for more information.
•All air management solution (AMS) inserts (if applicable)
See Installing an air management insert on page 32 and Removing an air management insert on
page 33 for more information.
•Two power supply modules of the same type (both AC)
See Replacing a power supply module on page 38 for more information.
•Two ears with components installed (complementary left and right ear kits)
See Replacing ear components on page 42 for more information; also see Figure 7 on page 19 for
2U48 enclosure bezel alignment.
•Two expansion modules of the same model (per optional expansion enclosure)*
See Replacing a controller module or expansion module on page 20 for more information.
*Each I/O module (IOM) slot within the chassis must contain an IOM to enable sufficient air flow through the enclosure
during operation. Whether configured as a controller enclosure or a drive enclosure, the Ultra48 Series chassis
supports dual-controller configuration only. Single-controller support is provided only when a controller fails over to its
partner controller.
In addition to the FRUs identified above, replacement procedures are provided to address specific interface
protocols and replacement of the enclosure chassis:
•Removal and installation of a Fibre Channel transceiver
See Replacing a Fibre Channel transceiver on page 45 more information.
•Removal and installation of a 10GbE SFP+ transceiver
See Replacing a 10GbE SFP+ transceiver on page 47 for more information.
•Removal and installation of a 1 Gb RJ-45 SFP transceiver
See Replacing a 1Gb RJ-45 SFP transceiver on page 48 for more information.
•Removal and installation of a storage enclosure chassis
See Replacing a storage enclosure chassis on page 49 for more information.
Replacement of chassis FRU components are described within this chapter.
NOTE: AssuredSAN Ultra48 Series controller enclosures support hot-plug replacement of redundant
controller modules, fans, power supplies, and I/O modules. Hot-add of drive enclosures is also supported.
TIP: Many procedures refer to component LEDs and LED statuses. See the AssuredSAN Ultra48 Series
Setup Guide for descriptions of model-specific front panel and rear panel LEDs.

AssuredSAN Ultra48 Series FRU Installation and Replacement Guide 19
TIP: Within the AssuredSAN Ultra48 Series Setup Guide, see “Troubleshooting > Fault isolation
methodology” for information about using health icons/values—in addition to using LEDs—for verifying
component failure before actually replacing the FRU.
Attaching and removing the enclosure bezel
Before accessing front panel LEDs, you must first remove the enclosure bezel.
Figure 7 Partial assembly showing bezel alignment (2U48)
Attaching the enclosure bezel
1. Orient the bezel to align its back side with the front face of the enclosure as shown in the figures above.
2. Face the front of the enclosure, and while supporting the base of the bezel, position it such that the
mounting sleeves within the integrated ear caps align with the ball studs.
3. Gently push-fit the bezel onto the ball studs to attach the bezel to the front of the enclosure.
Removing the enclosure bezel
1. While facing the front of the enclosure, insert the index finger of each hand into the top of the
respective (left or right) pocket opening shown in the figures above.
2. Insert the middle finger of each hand into the bottom of the respective opening, with thumbs on the
bottom of the bezel face.
3. Gently pull the top of the bezel while applying slight inward pressure below, to release the bezel from
the ball studs.
Ball stud on chassis ear
(typical 4 places)
Enclosure bezel sub-assembly
(Includes EMI shield for disks)
Pocket opening (typical 2 places)

20 Procedures
Replacing a controller module or expansion module
In a dual-controller configuration, controller and expansion modules are hot-swappable, which means you
can replace one module without halting I/O to disk groups, or powering off the enclosure. In this case, the
second module takes over operation of the storage system until you install the new module.
You may need to replace a controller module or an expansion module when:
•The Fault/Service Required LED is illuminated
•Health status reporting in RAIDar indicates a problem with the module
•Events in RAIDar indicate a problem with the module
•Troubleshooting indicates a problem with the module
NOTE: Ultra48 Series controller enclosures equipped with CNC controller modules support the
optionally-licensed AssuredRemote™ replication feature; whereas enclosures equipped with SAS controller
modules do not.
CAUTION: When replacing a Ultra48 Series controller set supporting AssuredRemote with a Ultra48
Series controller set that does not support this licensed feature, you must first delete all replication sets
before swapping the controller modules. Not doing so will lead to unexpected results, and there is no way
to delete replication sets after the installation. See the following for additional information:
•AssuredSAN 4004 Series RAIDar User Guide
•AssuredSAN 4004 Series CLI Reference Guide
Before you begin
Removing a controller or expansion module from an operational enclosure significantly changes air flow
within the enclosure. Openings must be populated for the enclosure to cool properly. Leave modules in the
enclosure until ready to install a replacement. If replacing both controllers in the dual-control enclosure, use
the SMC or RAIDar to record configuration settings before installing the new controller modules. See
Removing a controller module or expansion module on page 24, and Installing a controller module or
expansion module on page 26 for instructions.
CAUTION: When replacing a controller module, ensure that less than 10 seconds elapse between
inserting it into a slot and fully latching it in place. Not doing so might cause the controller to fail. If it is not
latched within 10 seconds, remove the controller module from the slot, and repeat the process.
The two controller modules installed in the enclosure must be of the same model type. When replacing
both controller modules in an operational enclosure, follow these guidelines:
1. Replace one controller as described in these instructions.
2. Wait 30 minutes: this pause ensures that the controller and its ownership of disk groups has sufficient
time to stabilize (also see Verifying component operation on page 26).
3. Check the system status and event logs to verify that the system is stable.
4. Replace the partner controller as described in these instructions.
Configuring partner firmware update
In a dual-controller system in which Partner Firmware Update (PFU) is enabled, when you update firmware
on one controller, the system automatically updates the partner controller. Disable partner firmware update
only if requested by a service technician.
Use the SMC, RAIDar, or the CLI to change the PFU setting.
