DOTWORKZ HD12-CD-HB User manual

Installation Instructions
HD12-CD-HB

2
INTENTIONALLY BLANK

3
Table of Contents
LIMITED WARRANTY ..................................................................................................................................... 4
PRODUCT INSTALLATION PRECAUTIONS –WARNINGS –ADDITIONAL INFORMATION............................... 5
1. Required Hardware........................................................................................................................... 6
2. Mount Installation ............................................................................................................................ 6
2.1 Pendant Mount ......................................................................................................................... 6
2.2 Wall Mount ............................................................................................................................... 7
2.3 Pole Mount................................................................................................................................ 9
3. Enclosure Preparation....................................................................................................................... 9
4. Enclosure Installation...................................................................................................................... 11
5. Electrical Conduit Guidelines ..........................................................................................................13
6. Mounting Detail .............................................................................................................................. 15
6.1 Pendant Mount ....................................................................................................................... 15
6.2 Wall Mount .............................................................................................................................16

4
LIMITED WARRANTY
DOTWORKZ,INC.PRODUCTS
DOTWORKZ SYSTEMS INC. Warrants this Product to be free from defects in material or workmanship, as follows:
PRODUCT CATEGORY PARTS LABOR
All Enclosures and Electronics One (1) Year One (1) Year
Power Supplies One (1) Year One (1) Year
Accessory Brackets One (1) Year One (1) Year
During the warranty period, to repair the Product the Purchaser will deliver it to Dotworkz Systems Inc. San Diego, CA, or return the defective product, freight prepaid. The
Product to be repaired is to be returned in either its original carton or a similar package presenting an equal degree of protection with a Return Materials Authorization
number displayed on the outer box or packing slip. To obtain RMA # you must contact our Technical Support Team at 866-575-4689. Dotworkz Systems will return the
repaired Product, freight paid. Dotworkz Systems is not obligated to provide Purchaser with a substitute unit during the warranty period or at any time. After the applicable
warranty period, Purchaser must pay all labor and/or parts and shipping charges.
The limited warranty stated in these product instructions is subject to all of the following terms and conditions:
1. NOTIFICATION OF CLAIMS: WARRANTY SERVICE: If Purchaser believes that the Product is defective in material or workmanship, then a written notice
with an explanation of the claim shall be given promptly by Purchaser to Dotworkz Systems but all claims for warranty service must be made within the warranty period. If
after investigation Dotworkz Systems determines that the reported problem was not covered by the warranty, Purchaser shall pay Dotworkz Systems for the cost of
investigating the problem at its then prevailing per incident billable rate. No repair or replacement of any Product or part thereof shall extend the warranty period as to the
entire Product. The specific warranty on the repaired part only shall be in effect for a period of ninety (90) days following the repair or replacement of that part or the
remaining period of the Product parts warranty, whichever is greater
2. EXCLUSIVE REMEDY: ACCEPTANCE: Purchaser's exclusive remedy and Dotworkz System’s sole obligation is to supply (or pay for) all labor necessary to repair any
Product found to be defective within the warranty period and to supply, at no extra charge, new or rebuilt replacements for defective parts
3. EXCEPTIONS TO LIMITED WARRANTY: Dotworkz Systems shall have no liability or obligation to Purchaser with respect to any Product requiring service during the
warranty period which is subjected to any of the following: abuse, improper use, negligence, accidents, lightning damage or other acts of God (i.e., hurricanes, earthquakes),
modification, failure of the end-user to follow the directions outlined in the product instructions, failure of the end-user to follow the maintenance procedures written and
recommended in the product instructions and service manual, or recommended by the International Security Industry Organization. Furthermore, Dotworkz Systems shall
have no liability where a schedule is specified for regular replacement, maintenance or cleaning of certain parts (based on usage) that the end-user has failed to abide to
such schedule; attempted repair by non-qualified personnel; operation of the Product outside of the published environmental and electrical parameters; if such Product's
original identification (trademark, serial number) markings have been defaced, altered, or removed. Dotworkz Systems excludes from warranty coverage Products sold AS IS
and/or WITH ALL FAULTS and excludes used Products which have not been sold by Dotworkz Systems to the Purchaser. All software and accompanying documentation furnished
with, or as part of the Product is furnished "AS IS" (i.e., without any warranty of any kind), except where expressly provided otherwise in any documentation or license
agreement furnished with the Product.
4. PROOF OF PURCHASE: The purchaser’s dated bill of sale must be retained as evidence of the date of purchase and to establish warranty eligibility.
DISCLAIMER OF WARRANTY EXCEPT FOR THE FOREGOING WARRANTIES, DOTWORKZ SYSTEMS HEREBY DISCLAIMS AND EXCLUDES ALL OTHER WARRANTIES, EXPRESSED OR IMPLIE D, INCLUDING, BUT
NOT LIMITED TO ANY AND/OR ALL IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND/OR ANY WARRANTY WITH REGARD TO ANY CLAIM OF 1NFRINGEMENT THAT MAY BE
PROVIDED IN SECTION 2-312(3) OF THE UNIFORM COMMERCIAL CODE AND/OR IN ANY OTHER COMPARABLE STATE STATUTE. DOTWORKZ SYSTEMS HEREBY DISCLAIMS ANY REPRESENTATIONS OR WARRANTY
THAT THE PRODUCT IS COMPATIBLE WITH ANY COMBINATION OF NON-V1DEOLARM PRODUCTS OR NON-DOTWORKZ SYSTEMS RECOMMENDED PRODUCTS THAT THE PURCHASER CHOOSES TO CONNECT TO THE
PRODUCT.
LIMITATION OF LIABILITY THE LIABILITY OF DOTWORKZ SYSTEMS, IF ANY, AND PURCHASER'S SOLE AND EXCLUSIVE REMEDY FOR DAMAGES FOR ANY CLAIM OF ANY KIND WH ATSOEVER,
REGARDLESS OF THE LEGAL THEORY AND WHETHER ARISING IN TORT DP CONTRACT SHALL NOT BE GREATER THAN THE ACTUAL PURCHASE PRIC E OF THE PRODUCT WITH RESPECT TO WHICH SUCH
CLAIM IS MADE. IN NO EVENT SHALL DOTWORKZ SYSTEMS BE LIABLE TO PURCHASER FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY KIND INCLUDING BUT NOT LIMITED TO
COMPENSATION, REIMBURSEMENT OR DAMAGES ON ACCOUNT OF THE LOSS OF PRESENT OR PROSPECTIVE PROFITS, OR FOR ANY OTHER REASON WHATSOEVER.

5
PRODUCT INSTALLATION PRECAUTIONS –WARNINGS –
ADDITIONAL INFORMATION
(RETAIN THIS DOCUMENT)
IMPORTANT SAFEGUARDS
1 Read Instructions - All the safety and operating instructions should be read
before the unit is operated.
2 Retain Instructions -The safety and operating instructions should be retained for
future reference.
3. Heed Warnings - All warnings on the unit and in the operating instructions
should be adhered to.
4. Follow Instructions -All operating & user instructions should be followed.
5. Electrical Connections - Only a qualified electrician should make electrical
connections.
6. Attachments - Do not use attachments not recommended by the product
manufacturer as they may cause hazards
7. Cable Runs - All cable runs must be within permissible distance
8. Mounting -This unit must be properly and securely mounted to a supporting
structure capable of sustaining the weight of the unit. Accordingly:
a. Installation should be made by a qualified installer.
b. Installation should be in compliance with local codes
c. Care should be exercised to select suitable hardware to install the unit,
taking into account both the composition of the mounting surface and
the weight of the unit. Be sure to periodically examine the unit and the
supporting structure to make sure that the integrity of the
installations intact. Failure to comply with the foregoing could result
in the unit separating from the support structure and falling, with
resultant damages or injury to anyone or anything struck by the failing
unit.
SERVICE
If the unit ever needs repair service, customer should contact Dotworkz Systems +1
(619) 224-LIVE (5483) for return authorization & shipping instructions.
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT EXPOSE
COMPONENTS TO WATER OR MOISTURE
The lightning flash with an arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of non-insulated "dangerous
voltage" within the product's enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock to
persons
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and
maintenance (servicing) instructions
in the literature accompanying the
appliance
UNPACKING
Unpack carefully. Electronic components can be damaged if improperly handled or
dropped. If an item appears to have been damaged in shipment, replace it
properly in its carton and notify the shipper. Be sure to save
1. The shipping carton and packaging material. They are the safest material in
which to make future shipments of the equipment.
2. These Installation and Operating Instructions.
For technical questions or product returns –call Dotworkz Customer Service (866-575-4689) 7:30 AM to 4:30 PM
(PST). The proper technician will contact you as soon as possible.
The External Nut on All electrical wire feed Glands must be tightened to create a weather tight seal prior to putting
HD-12 in service. Failure to create this seal may result in water incursion into enclosure. This may lead to electrical
shock, product failure and damage to electrical systems installed within enclosure, including but not limited to
damage to camera, heater and blower circuitry, cooling circuitry and other systems installed in unit.
All screws supplied for hinged lower must be tightened to create seal on enclosure. Failure to create this seal may
result in water incursion into enclosure. This may lead to electrical shock, failure and damage to electrical systems
installed within enclosure, including but not limited to damage to camera, heater and blower circuitry, cooling
circuitry and other systems installed in unit.
Do not over tighten any Screws, Stand Offs, or other fasteners on this unit. Failure to heed this warning will cause
damage or failure of the HD-12 enclosure.
This installation requires a minimum of two people. Do not attempt to install this enclosure by yourself.
Be sure to take extra care to protect domed (“bubble”) lens of unit prior to installation, during installation, and during
service. Failure to protect lens will adversely affect product performance.

6
1. Required Hardware
Ensure that all required hardware is included before beginning the installation.
4 x 3/8-16 Concrete anchors, washers, and nuts, torque nuts to 247 in-lbs. [27.9 Nm]
12 x 6-32 flat head screws (installed on unit), torque to 10 in-lbs. [1.1 Nm]
4 x 10-32 button head screws, torque to 30 in-lbs. [3.4 Nm]
2 x 1/4-20 socket head cap screw, nylon locking, torque to 78 in-lbs. [8.9 Nm]
2. Mount Installation
2.1 Pendant Mount
2.1.1 Separate the Mounting Plate form the enclosure. Place hardware aside in a safe place for
later re-installation.
2.1.2 Hold the Mounting Plate up to the desired mounting location. Using the Mounting Plate as a
template, mark the mounting surface at the location of the 4 indicated mounting holes for
MOUNTING PLATE
REMOVE SCREWS AND WASHERS
4 PLACES
MARK SURFACE USING THESE HOLES

7
Drilling. Ensure that the holes are marked as accurately as possible. Set the Mounting Plate
aside after marking the drilling locations.
2.1.3 Use a hammer drill to make 3/8 inch diameter holes at each of the 4 mounting locations
marked in the previous step. A hammer drill is required for this operation. Clean the holes
of all concrete dust using a wire brush and compressed air or a vacuum. Install the 3/8-16
concrete anchors in each of the 4 drilled holes by hammering them in to the appropriate
depth. Leave the nut on while hammering so that the threads of the concrete anchor are
protected and not damaged. Ensure that the Mounting Plate fits over the concrete anchors,
and then set it aside.
Warnings:
The supplied anchors are for concrete only. Do not attempt to use in brick, block or other
materials. Other fasteners are required for brick, block and other materials and are not
included. Minimum engagement of the supplied concrete anchors is 2” [50 mm]. If the
provided fasteners are not appropriate for the installation surface, it is the responsibility of
the customer to specify and source appropriate fasteners for the application.
Holes for concrete anchors should be drilled a minimum of 1/2 inch [13 mm] deeper than
the overall length of the anchor, provided that the mounting surface can tolerate such a
depth. This allows the anchor to be hammered flush should a mistake be made or a location
change be necessary.
2.2 Wall Mount
2.2.1 Remove the Wall Mount Cover from the Wall Mount by unscrewing the four 6-32 flat head
screws in the corners of the bracket system. Set the cover and four fasteners aside in a safe
place for later use.
REMOVE SCREWS, 4 PLACES

8
2.2.2 Hold the Wall Mount up to the desired mounting location. Ensure that the mount is level
and oriented properly in the correct location. Using the Wall Mount as a template, mark the
4 mounting holes for drilling. There are two suitable mounting patterns to allow for
installation flexibility, as indicated below. With the hole locations marked, set the Wall
Mount aside for later use.
2.2.3 Use a hammer drill to make 3/8 inch diameter holes at each of the 4 mounting locations
marked in the previous step. A hammer drill is required for this operation. Clean the holes
of all concrete dust using a wire brush and compressed air or a vacuum. Install the 3/8-16
concrete anchors in each of the 4 drilled holes by hammering them in to the appropriate
depth. Leave the nut on while hammering so that the threads of the anchor are not
damaged. Ensure that the Wall Mount fits over the concrete anchors, and then set it aside.
Warnings:
The supplied anchors are for concrete only. Do not attempt to use in brick, block, or other
materials. Other fasteners are required for brick, block and other materials and are not
included. Minimum engagement of the supplied concrete anchors is 2” [50 mm]. If the
provided fasteners are not appropriate for the installation surface, it is the responsibility of
the customer to specify and source appropriate fasteners for the application.
Holes for concrete anchors should be drilled a minimum of 1/2 inch [13 mm] deeper than
the overall length of the anchor, provided that the mounting surface can tolerate such a
depth. This allows the anchor to be hammered flush should a mistake be made or a location
change be necessary.
HOLE PATTERN 1
HOLE PATTERN 2

9
2.3 Pole Mount
2.3.1 Install the BR-MPM1, BR-MPM2 or KT-CDR2 pole mount bracket system on the desired pole
at the appropriate height using pole strapping or hose clamps. Pole straps are not included
and are the responsibility of the customer to source for their particular application.
3. Enclosure Preparation
3.1 Install the camera manufacturer supplied ceiling mount bracket (typically twist-to-lock) onto the
black Camera Bracket inside the enclosure. For example, the Panasonic “mount bracket” can be
found on page 9 of the “Operating Instructions, Basics” for the AW-HE120. The black bracket
inside the enclosure is designed to accept typical ceiling mount brackets via four M4 fasteners
and four M4 nylon locking nuts. If this hardware cannot be sourced, the camera can also be
directly installed using the supplied 2 x 1/4-20 socket head cap screws from the hardware kit.
Using the camera manufacturer supplied “mount bracket” is highly recommended to minimize
overall weight while the enclosure is being lifted for mounting.
POLE MOUNT BRACKET
POLE STRAPS

10
3.2 Install the supplied domed lens on the hinged lid of the enclosure. Remove the 12 x 6-32 flat
head screws and set aside in a safe place for reinstallation. Remove the metal retaining ring to
expose the seal. Remove the protective film from the domed lens and align the mounting holes
of the dome with the holes in the gasket. Place the retaining ring over the domed lens and align
the holes of the retaining ring with the mounting holes in the domed lens. Reinstall the twelve
6-32 flat head screws and torque them to the appropriate value, making sure to alternate from
one side of the lens to the other when tightening the 12 screws to minimize stresses in the
domed lens.
3.3 Plan your cable management before installing the enclosure. Pay particular attention to bend
radii and sealing of cable glands. The cable glands installed on the enclosure can be used as
plugs or break through, multi-hole glands for smaller diameter cables. The cable glands provided
in the hardware kit are designed to accommodate 1 cable per cable gland. The cable diameters
accommodated are 4.3 mm –11.4 mm. Other cable diameters will require alternative cable
glands to create an environmental seal. It may be required to cut connectors off of terminated
cables and re-terminate a connector on the opposite side of the gland if a connector does not fit
through the prescribed gland.
DOMED LENS
RETAINING RING
12 X 6-32
FLAT HEAD
SCREWS

11
4. Enclosure Installation
4.1 Install the Mounting Plate or Wall Mounting Bracket on the HD12 Enclosure using four 1/4-20
fasteners and washers.
4.2 Without the camera installed, bring the enclosure up to the mounting location.
Warnings:
The enclosure weighs 32 lbs. [15 kg] without a camera installed. The final mounting of the
enclosure requires a minimum of 2 people to complete in a safe manner. Do not attempt
to complete this step by yourself.
If the manufacturer provided camera mounting plate is not being used for camera
mounting, it may be easier to mount the camera inside the enclosure before bringing the
enclosure up to the mounting surface.
4.3 Secure the enclosure to the mounting surface by tightening the nuts on the concrete anchors,
screwing the enclosure to the pole mount, or by using alternative fasteners that are appropriate
for the installation. Ensure appropriate torque is applied to each fastener. A thread locking
compound is recommended for these connections.
4.4 Install the camera in the enclosure using the manufacturer provided “twist-to-lock”mounting
plate. If the camera manufacturer does not supply a “twist-to-lock” mounting plate, use the 2 x
1/4-20 fasteners that were supplied (see 4.5). This is more easily achieved prior to mounting the
enclosure.
4.5 Establish all video and communication connections to the camera before applying power. Once
all other lines are connected, connect the coaxial power cable from the Dotworkz electronics to
the camera. This cable is included and connected to a 12VDC source.
4.6 Connect line power to the Dotworkz electronics via the supplied terminal that is marked black
(hot), white (neutral) and green (protective ground). This will provide power to the
environmental controls and to the camera.

12
Warning:
Only a certified electrician should make electrical connections. The above listed electrical
connections may contain dangerous voltages. Only professionally trained electricians should
interface with electrical components.
4.7 Test camera functionality to ensure proper operation of the unit.
4.8 Close the lid of the enclosure and engage the 4 latches at the 3 unhinged edges. Install the four
10-32 button head screws through the 4 corners of the lid to ensure adequate long term sealing.
4.9 If a Wall Mount is used, re-install the Wall Mount Cover onto the Wall Mount by using the four
6-32 flat head screws.
Run 110 VAC into HD12-CD-HB and
connect wire to appropriate color
coded terminal shown here
RE-INSTALL SCREWS, 4 PLACES

13

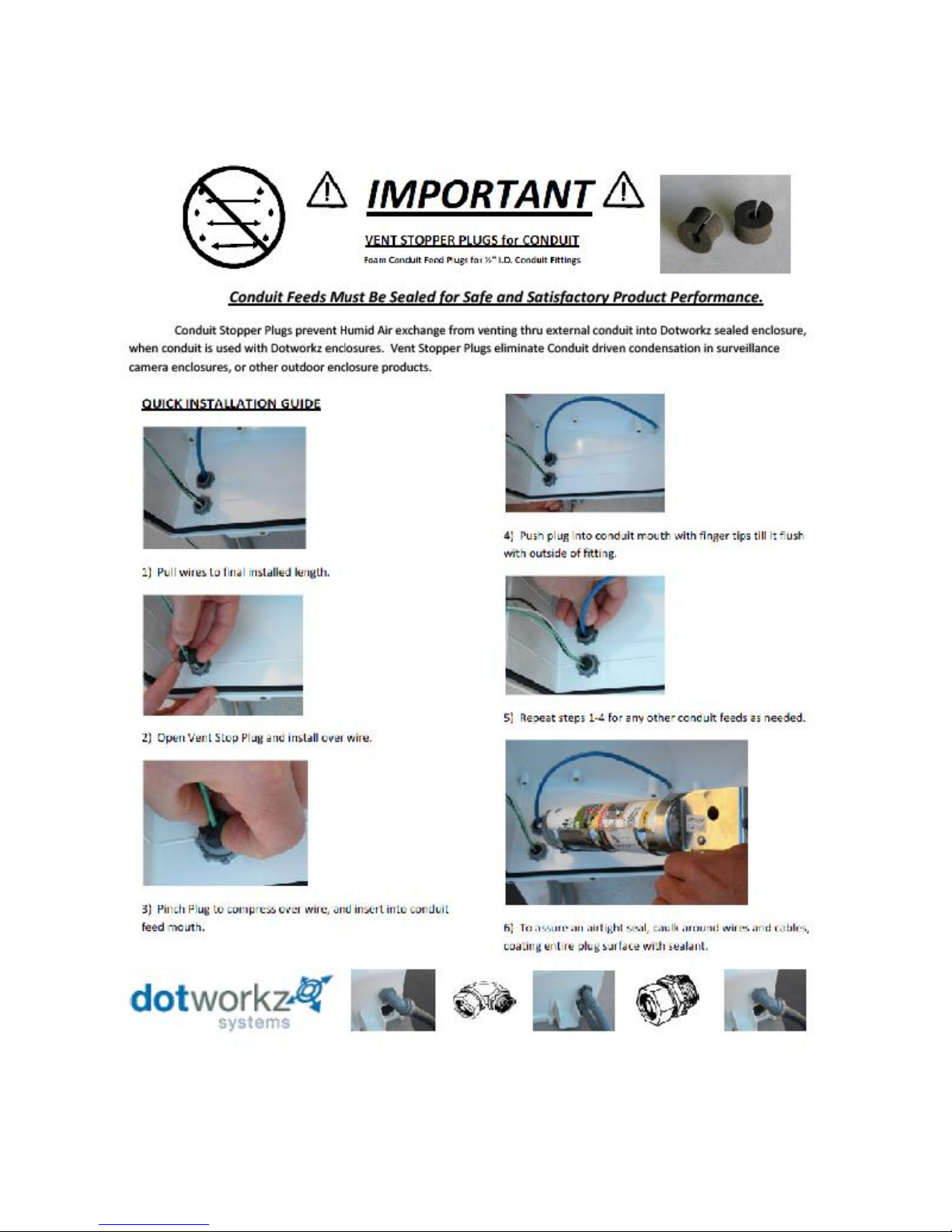

5. Electrical Conduit Guidelines
The below information applies to the HD12-CD-HB and should be followed strictly.

14

15
6. Mounting Detail
These are the mounting dimensions for the HD-12 Enclosure. See Section 2 for recommended steps
to follow.
Warning: It is recommended to use the Mounting Plate or Wall Mount as a template for
marking drill locations. This helps account for fabrication tolerances in the mounting plate.
6.1 Pendant Mount

16
6.2 Wall Mount
