D-Link DCS-934L User manual

DCS-934L
Quick Install Guide
Day & Night Wi-Fi Camera
Cloud Camera

If any of the above items are missing, please contact your reseller.
Minimum Requirements
DCS-934L Day & Night Wi-Fi Camera
Wall Mount Kit
Ethernet Cable
Quick Install Guide
Package Contents
Computer with:
Web Browser
• 1.3GHz processor or above and at least 128MB RAM
• Windows® 8, 7, Vista®, or Mac OS® X 10.6 or higher
• Internet Explorer® 8, Firefox®12, Safari® 6, or Chrome™ 20 or higher
• Installed and enabled Java and ActiveX® controls
• A wireless router (802.11 g/n) with Internet service
• An e-mail account (required to create a mydlink® account)
Network Device and Service
Power Adapter
• Wired 10/100 Fast Ethernet or Wireless 802.11g/n network
(Wireless N network recommended for optimum performance)
For mydlink and mydlink app requirements refer to:
• http://www.mydlink.com
2

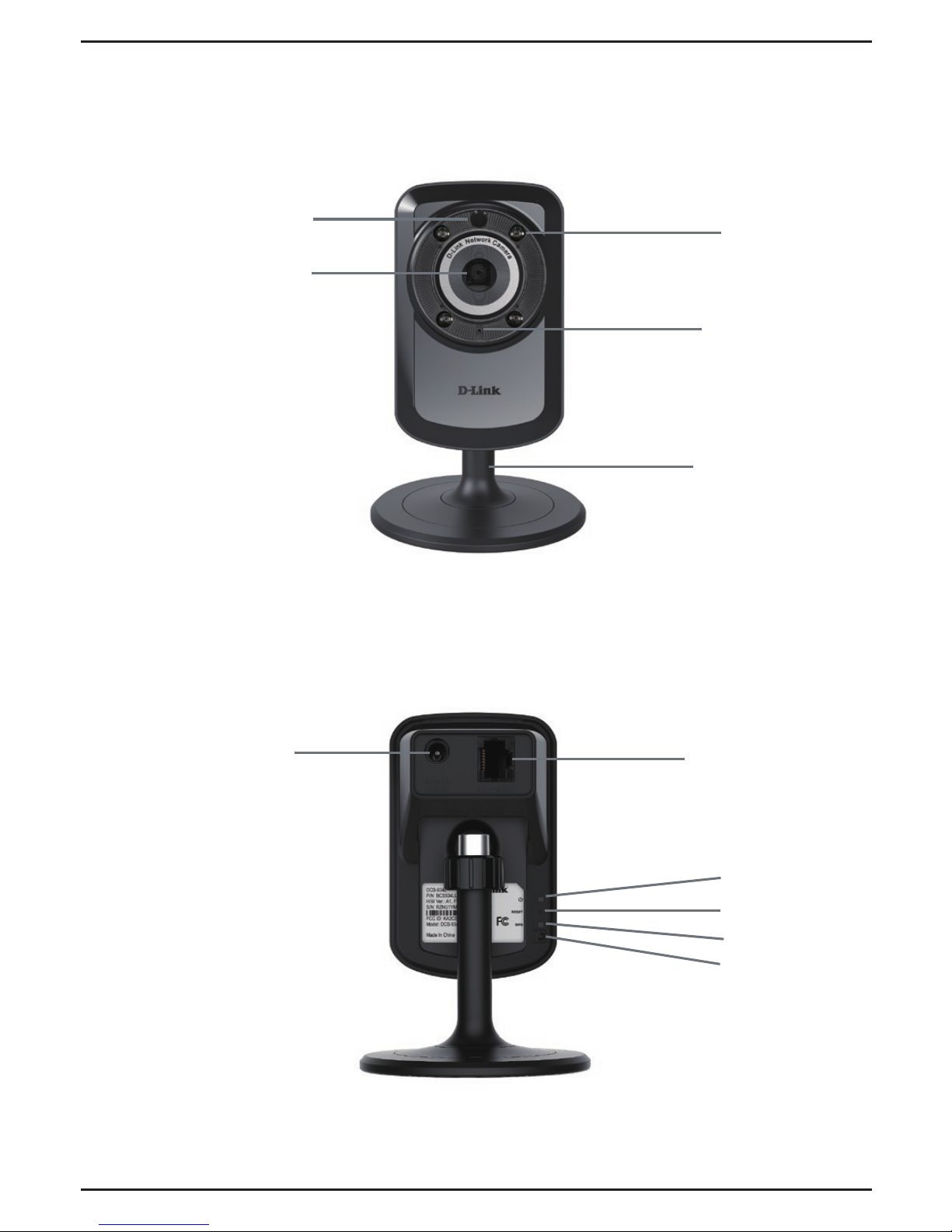

Product Overview
Camera Lens
Microphone
Camera Stand
WPS LED
Power Connector Ethernet Port
Reset Button
WPS Button
Front
Back
Power &
Link LED
Light Sensor IR LEDs
3
ENGLISH

The Zero Conguration Setup will only work with a registered
Cloud Router and an active mydlink account. Your Cloud Router will
automatically assign your network settings (both wired and wireless) to
your camera, and add it to your mydlink account.
If you do not have a D-Link Cloud Router, skip to the Easy Setup section on
the next page.
Zero Conguration Setup
1
2
From a computer connected to the
Internet, open a Web browser, and go
to http://www.mydlink.com. Sign
in to your mydlink account. Once
mydlink detects your camera, a Zero
Conguration notice will appear. Click
on the notication and you will see
a conrmation request. Click Yes to
add the camera to your account.
3
Your setup is complete!

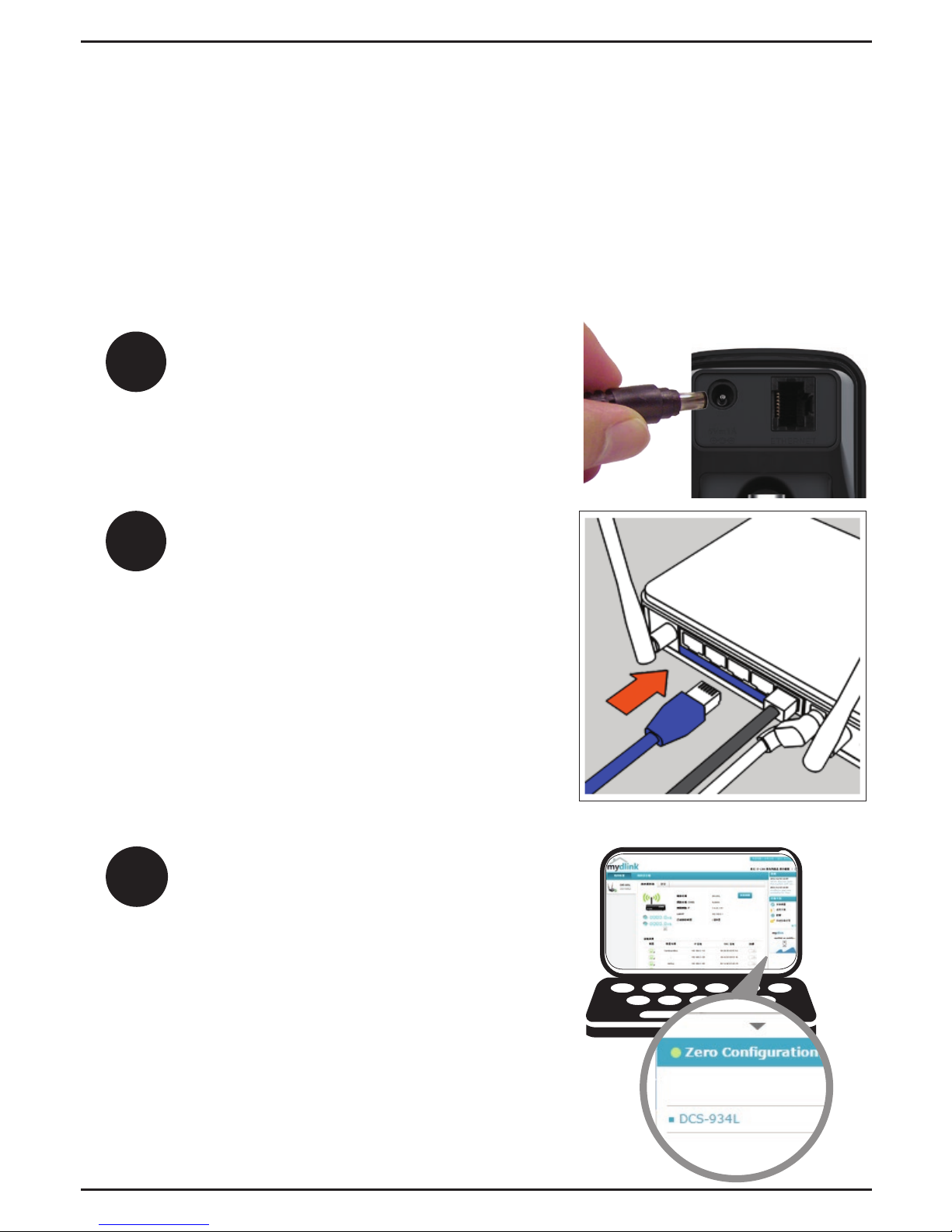

Attach the power supply to the
power connector located on the back
of the DCS-934L and connect it to a
wall outlet or power strip. Power is
conrmed when the Power LED is lit.
If using an Ethernet connection:
Connect the included Ethernet cable
to the Ethernet port located on the
back of the DCS-934L and connect it
to your router.
If using a wireless connection: Press
and hold the WPS button on the back
of the camera for ve seconds. The
blue WPS status LED will start to blink.
Then, press the WPS button on your
Cloud Router within two minutes.
4

Easy Setup (All Other Routers)

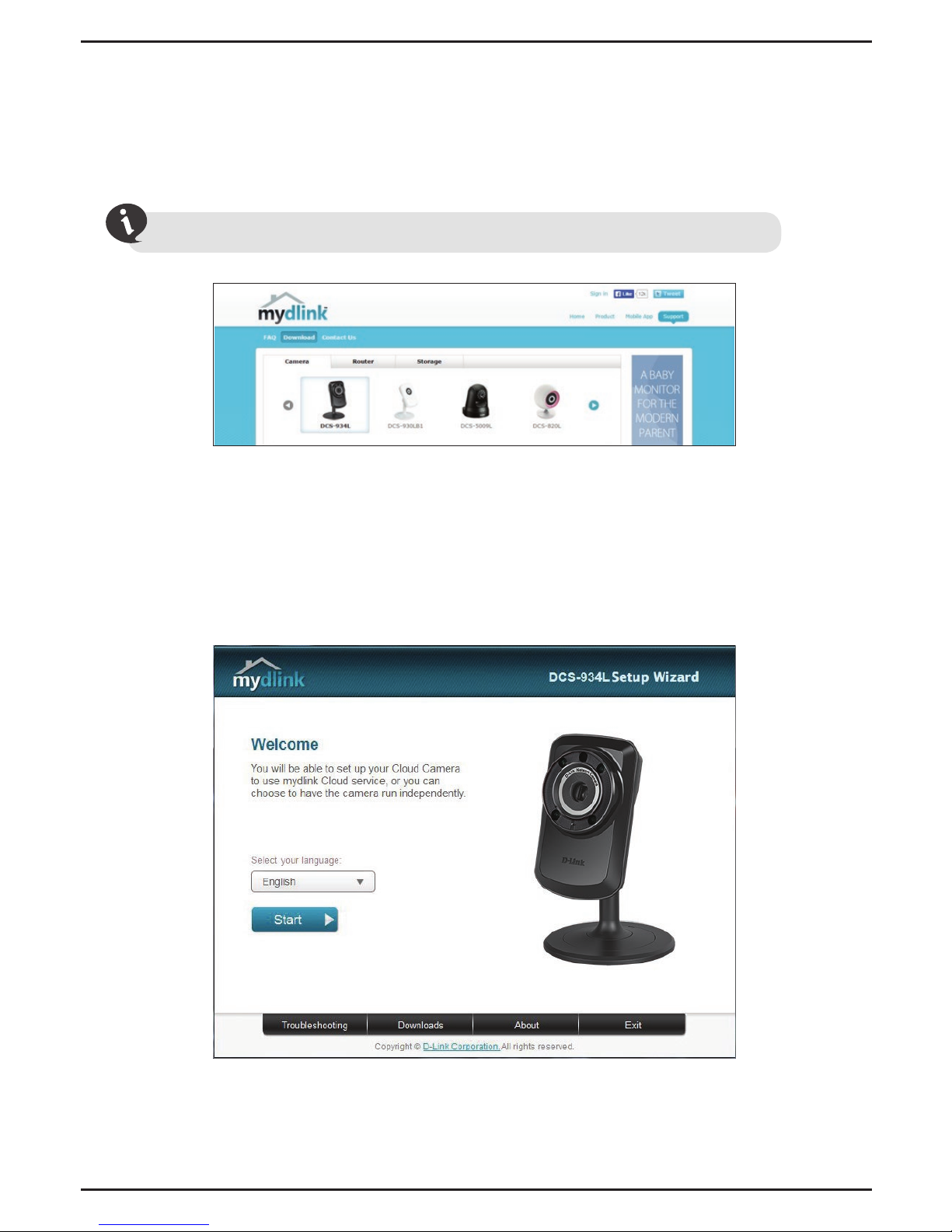

Download the Setup Wizard from http://www.mydlink.com/support.
If you do not have a D-Link Cloud Router, you can use any Windows or Mac
computer to go through the Setup Wizard, which will guide you through the
installation process.
Windows Users - When you select the DCS-934L, you will see a list of setup wizards
below. Download the Windows Setup Wizard le.
Within 20-30 seconds, the Setup Wizard will open, which will guide you step-by-step
through the installation process, from connecting your hardware to conguring your
camera and registering it with your mydlink account.
Mac Users - Download the Mac OS Setup Wizard. Open the SetupWizard le and
launch the application.
5
ENGLISH

Start mydlink
Open a web browser and go to http://www.mydlink.com.
mydlink is a Web-based service that allows you to view and control
your mydlink-enabled devices through any computer connected to the
Internet. After you register your DCS-934L with mydlink, you can remotely
access your camera from the www.mydlink.com website.
1
With a mydlink-enabled camera, you can stay connected to everything
you love from anywhere, anytime. mydlink provides users with a
quick and easy way to view and to manage multiple cameras over
the Internet.
You can add the DCS-934L to your mydlink account during the Setup
Wizard. After you download one of the mydlink apps (refer to page 8),
you will be able access the camera with your smartphone or tablet.

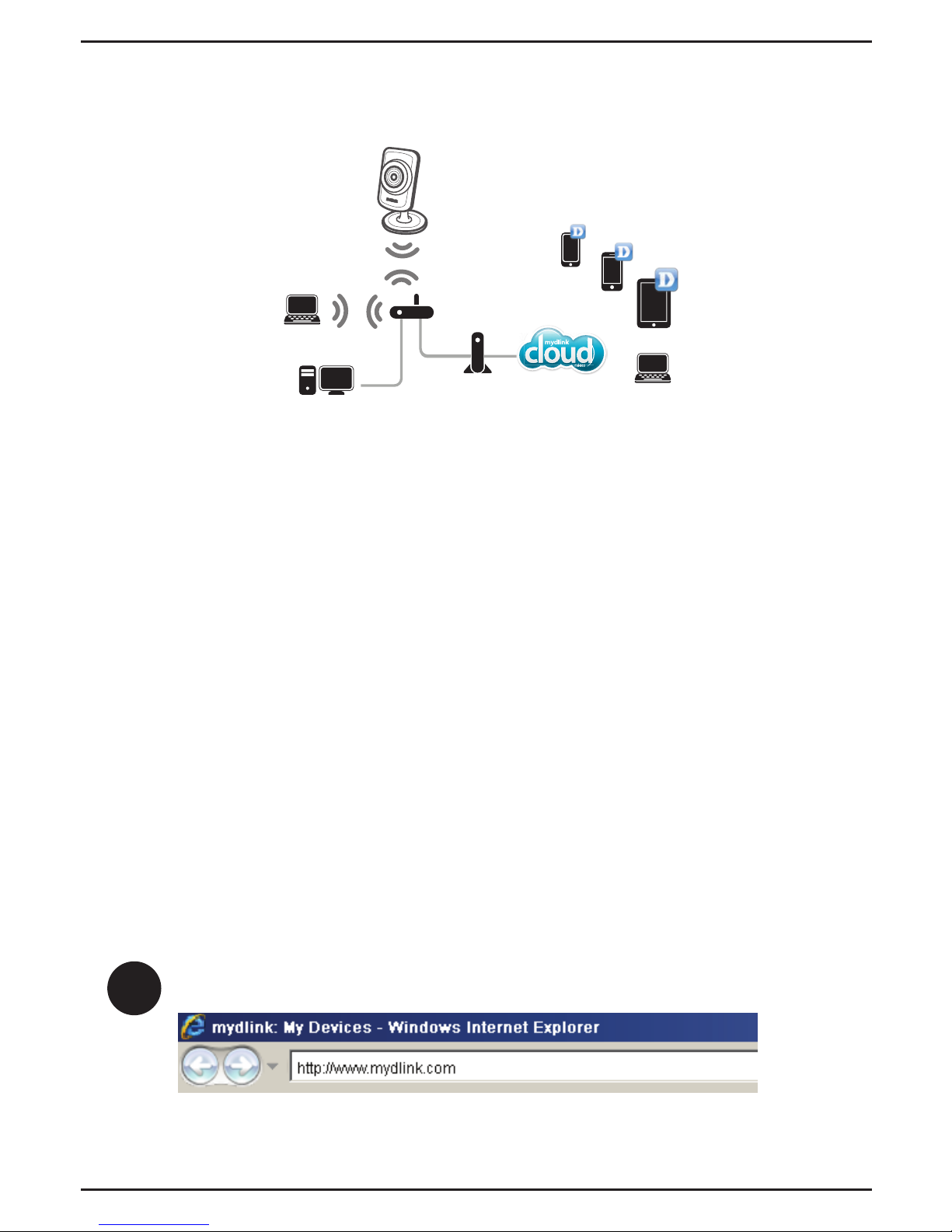

What is mydlink?
Cloud Router
mydlink cloud
services
Cloud Camera
iPod
Smartphone
Tablet
Laptop
Laptop
Desktop
mydlink app
modem
1
6

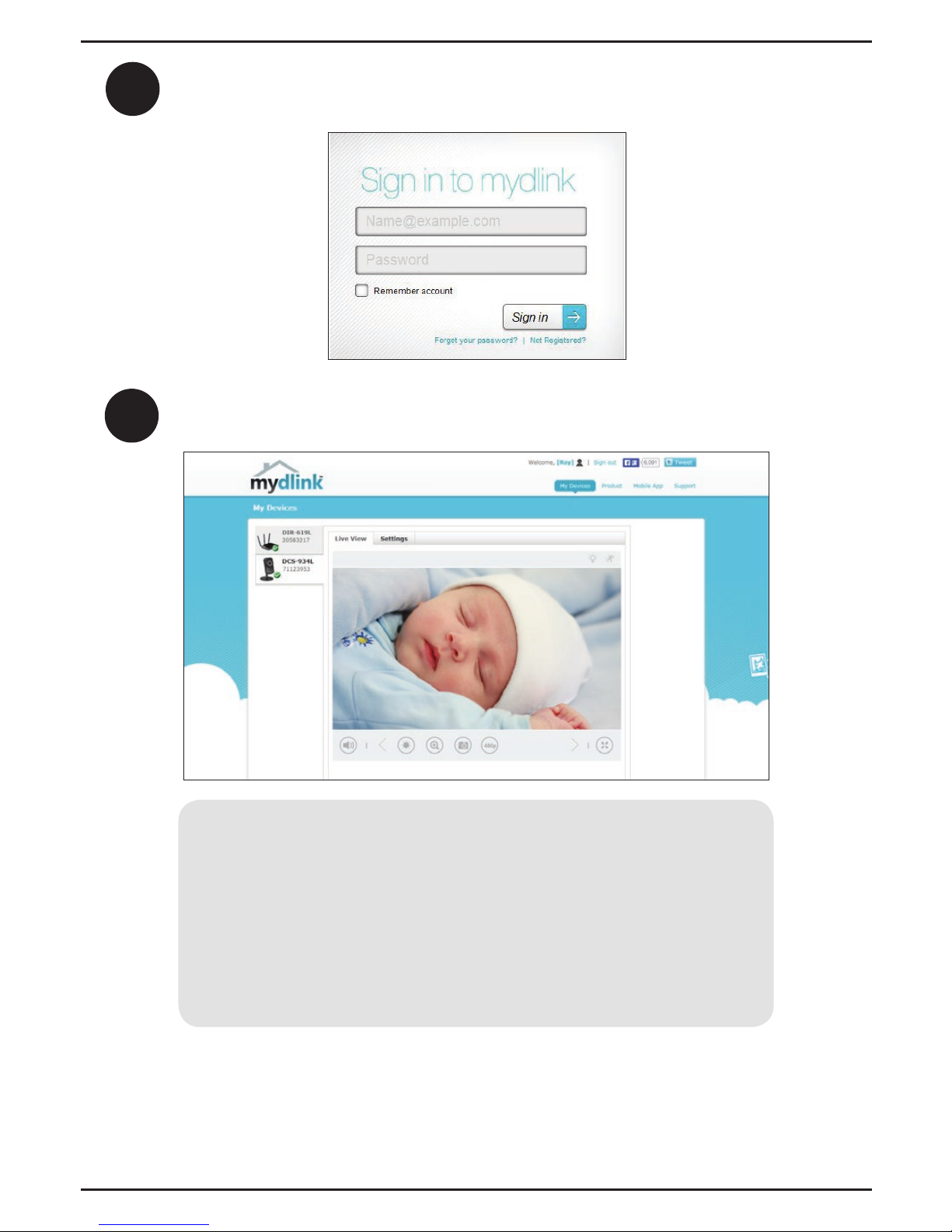

2Sign in to your mydlink account. (If you don’t have an account, click on Not
Registered? and follow the instructions.)
3Select your DCS-934L from the device list, and your camera’s Live Video
will appear.
• Windows does not have Java installed by default. Download it
from http://www.java.com.
• In Mac OS X 10.7.x, Java applets are disabled by default. Click the
Finder > Applications > Utilities > Java Preferences and check
the Enable applet plug-in and Web Start applications option.
• The ActiveX® controls in IE will install automatically if needed. We
suggest that you make sure that you have enabled the related
options in Tools > Internet Options > Security > Custom Level.
Note: If you experience issues registering this camera with your mydlink account,
or if you purchased an open box or resold unit, perform a hard reset by pressing and
holding the reset button on the device for 10 seconds while the device is powered
on. If you are returning the device to the place of purchase, please perform a
hard reset to clear the device of any personal data.
7
ENGLISH

mydlink Lite App (Free)
Search for “mydlink lite” on the App Store, Google Play, or Windows Phone
Store. Download and install the app on your smartphone or tablet when
connected to the Internet. You can also nd the app by scanning the QR code
below with a QR code scan app.
mydlink+ App (Paid - Tablet Only)
Search for the word “mydlink+” on the App Store or Google Play. Download
and install the app on your tablet when connected to the Internet.You can also
nd the app by scanning the QR code below with a QR code scan app.
mydlink Requirements: for mydlink and mydlink app requirements refer to: www.mydlink.com
mydlink Requirements: for mydlink and mydlink app requirements refer to: www.mydlink.com
mydlink Apps
Note: Tablet users can buy the mydlink+ app in order to view multiple cameras at
the same time without a PC.
8

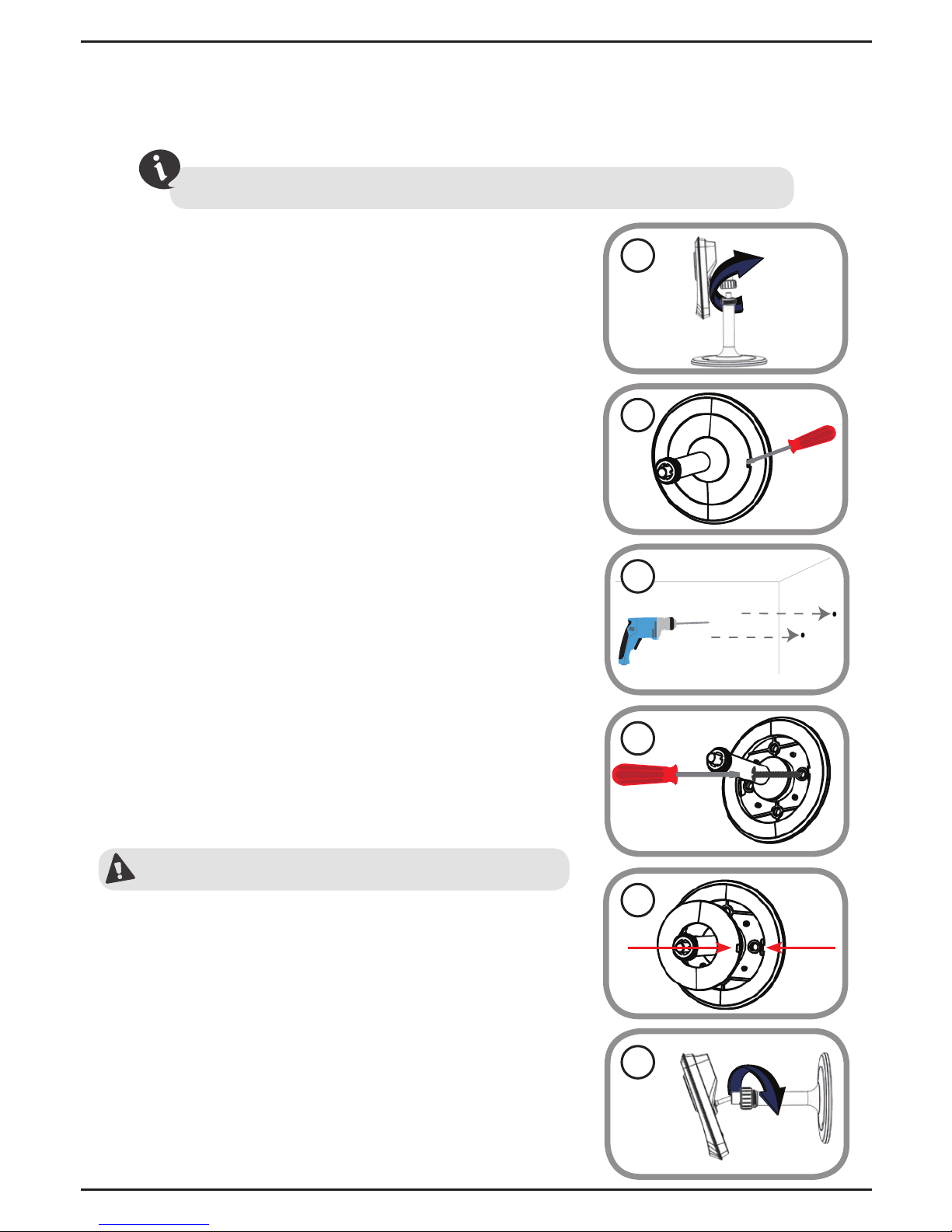

Mount the Camera
Please refer to the steps below to assist you with mounting the camera.
Do not overtighten the screws as this may crack the base.
We suggest that you congure the camera before mounting.
2. Use a athead screwdriver to remove the
base cover from the mounting base. Place the
mounting base where you want to position
the camera and use a pencil to mark the
holes.
1. The camera must be separated from the base
to expose the holes in the mounting base.
Unscrew the camera head from the mounting
base by turning it counterclockwise.
3. Depending on the material of the wall or
ceiling, use a 6mm drill bit to drill two holes
where you marked. If the wall is made out
of concrete, after drilling the holes, insert the
plastic anchors to support the screws.
4. Position the mounting base over the holes that
you drilled, and align the mounting base holes
with the holes in the wall. Use the supplied
screws to attach the mounting base to the
surface of the wall.
5. Place the base cover on the base. Make sure to
align the base cover notch with the mounting
base for future removal.
6. Reattach the camera head onto the mount-
ing base. Adjust the angle of the camera as
desired, then tighten the collar on the camera
stem to lock it in place.
1
2
3
4
5
6
9
ENGLISH

1. What is a mydlink No.? What is it used for?
Each camera has a unique eight-digit mydlink number which will be shown
on the label on the back of your camera. This eight-digit number identies
your device, and is required to add your device to your mydlink account.
2. What can I do if my DCS-934L is not working correctly?
• Try using the Setup Wizard.
• To make sure your hardware is installed correctly, make sure that:
- the power LED is lit solid green
- your Internet connection is working
- your router’s LAN & WAN connections are okay
- your router supports UPnP®
- your camera is on the same network as your PC
- both your PC and camera have a working Internet connection
• If your camera is still not working, check your router and make sure it has
the latest rmware.
3. What can I do if I forget my password?
FAQs

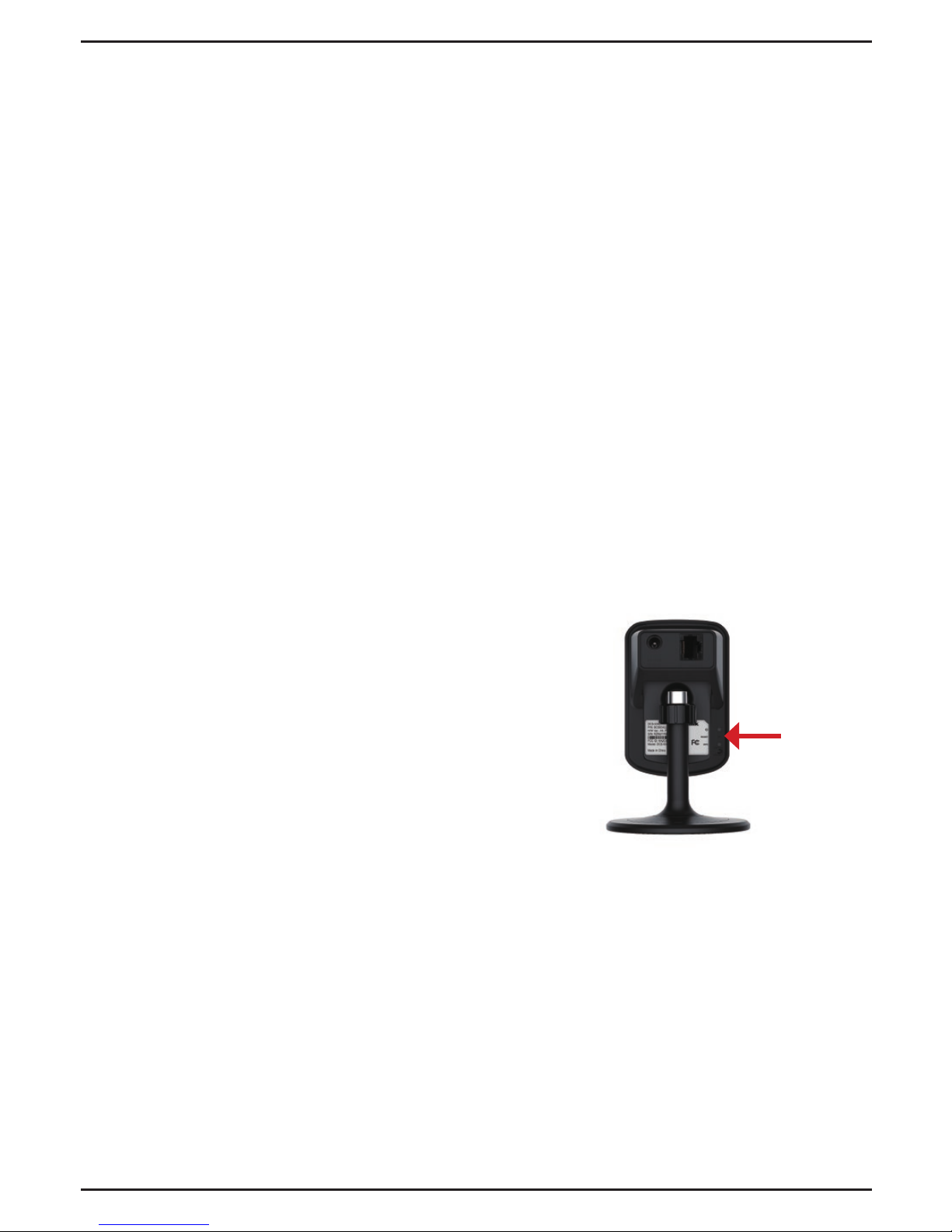

If you forget your password, you must reset the
camera. Unfortunately, this process will change
your settings back to factory default. To reset the
camera, locate the reset button on the back of
the camera. With the camera powered on, use an
unfolded paper clip to hold the button down for
10 seconds.
Reset
Button
4. Why is there a white haze when viewing in night vision mode?
When viewing in night vision mode, the IR lights on the camera may be
reecting o a nearby surface. Try repositioning the camera in order to avoid
glare from IR LEDs.
10

Notes
11
ENGLISH

Notes
12

Notes
13
ENGLISH

Notes
14

Notes
15
ENGLISH

Technical Support
This guide is only for initial conguration. Please refer to the user manual to learn
more or visit http://www.mydlink.com for more information. Also feel free to contact
us. U.S. and Canadian customers can contact D-Link Technical Support through our
websites.
http://support.dlink.com
USA
Version 1.00(US)_90x130
December 8, 2014
6DCS934LQ.01G
©2014 D-Link. All Rights Reserved. D-Link and the D-Link logo are trademarks or registered trademarks of D-Link. All
other third party marks mentioned herein may be trademarks of their respective owners. Maximum wireless signal rate
derived from IEEE Standard 802.11g and 802.11n specications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network trac, building materials and construction, and network overhead,
lower actual data throughput rate. Environmental conditions will adversely aect wireless signal range. Product
specications, size and shape are subject to change without notice, and actual product appearance may dier from that
depicted on the packaging. This publication may not be reproduced, in whole or in part, without prior express written
permission from D-Link Systems, Inc.
http://support.dlink.ca
Canada
