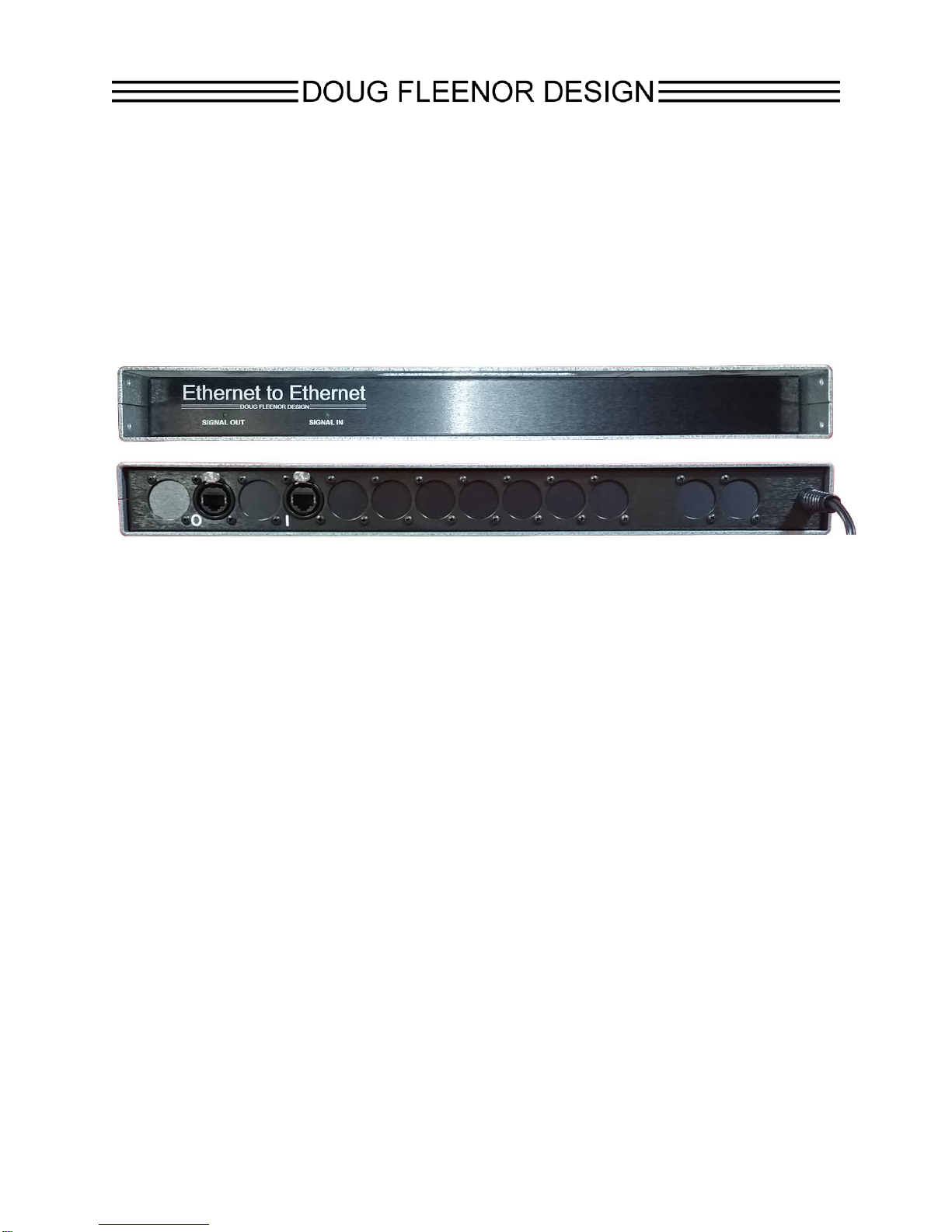

Ethernet to Ethernet Protocol Converter
Model E2E: Configuration Manual
Doug Fleenor Design, Inc.
396 Corbett Canyon Road
Arroyo Grande, CA 93420
[phone] Voice and FAX
Revision: Jan 10, 2017

Page 2 of 8
Product Description
The Ethernet to Ethernet (E2E) device supports conversion of four universes from one Ethernet
protocol to another Ethernet protocol. The following protocols can be configured on the input
and output Ethernet interfaces:
E1.31 sACN
ArtNet v3
KiNeT
Shownet
Draft sACN
Each interface supports one of these protocols at a time.
The E2E can relieve issues of compatibility in Ethernet lighting systems where a transmitter and
receiver do not support a common protocol. In addition to handling issues of protocol support
the E2E may help with network traffic relief. The E2E uses two separate physical interfaces to
allow separation of streams and preserve network resources.
Configuration Overview
Both input and output on the Ethernet to Ethernet protocol converter are configured using two
separate web servers. These web servers may be accessed by a PC using any web browser,
and a properly configured IP address. Ethernet in and Ethernet out are initially configured for
DHCP, but will use the assigned static IP in the absence of a DHCP server.
The Node Discovery program, which is available for download at www.dfd.com may assist users
to connect to the E2E using a Windows PC. Using DHCP and Node Discovery is a simple way
to get to the configuration pages within the interface.
Below a screenshot displays the output of a successful Node Discovery with a DHCP enabled
router and both in and out connections connected on the same network with a Windows PC.

Page 3 of 8

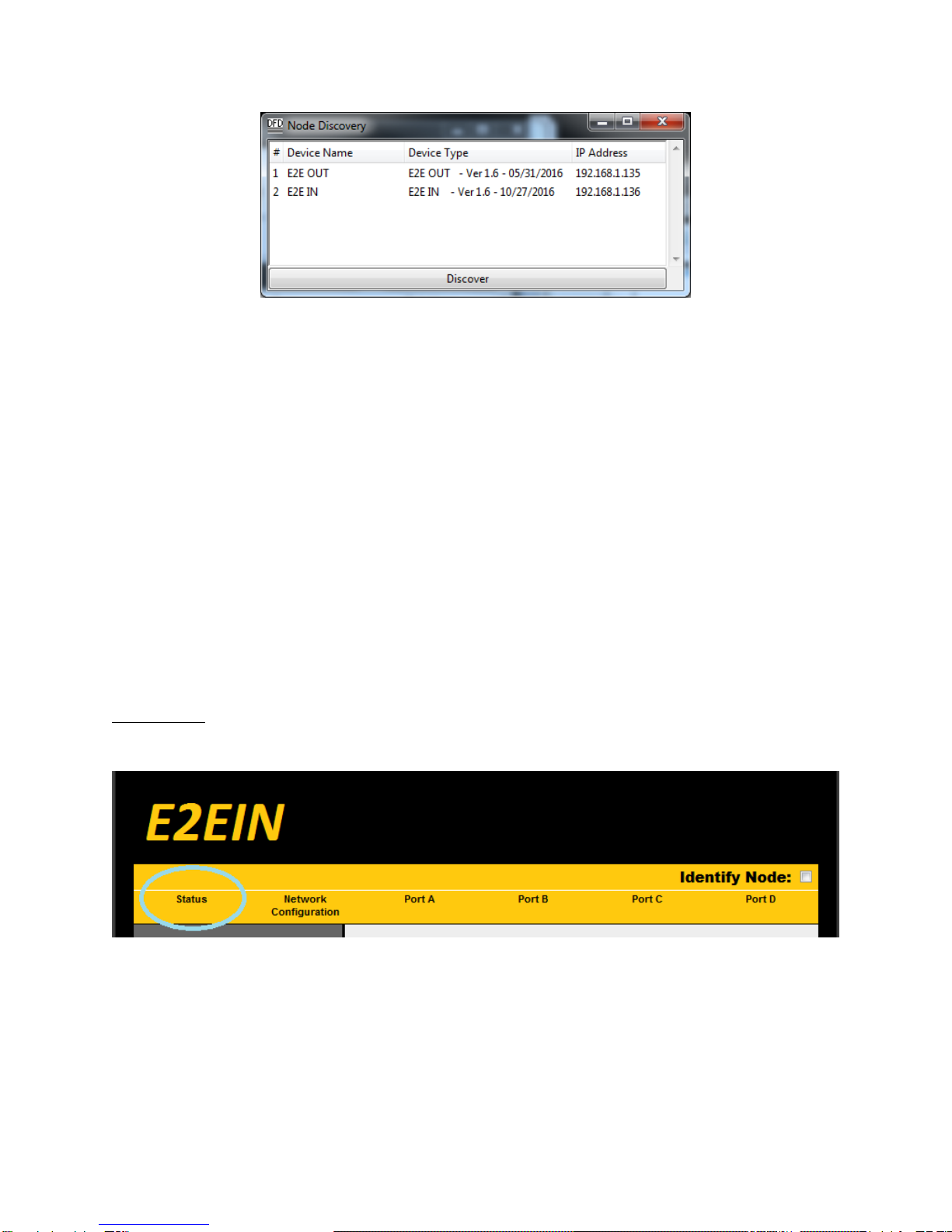

Figure 1: Node Discovery after finding both input and output
Double clicking on an entry in the Node Discovery program will open a default browser to the
address listed in the IP Address column. The status page shows by default, and all configuration
information for the E2E (IN or OUT) may be observed.
For cases where DHCP is unavailable, each interface is physically marked with a default IP
address. A PC with an IPv4 enabled Ethernet adapter set to a 10.?.?.? / 255.0.0.0 address and
subnet mask is suitable for direct communications with the default E2E static IP address.
Web Server
There are status and configuration pages contained on the two embedded web servers hosted
by the E2E. In and out configure similarly, with the exception that the Ethernet in interface
always has its virtual ports as output, and the Ethernet out interface always has its virtual ports
as input.
Status Page
The status tab shows the user all current configuration settings on the E2E interface.
The Status page will indicate Device name and Description, DHCP and other IP settings, the
universe number of each virtual port, and additional status.

Page 4 of 8
Network Configuration Page

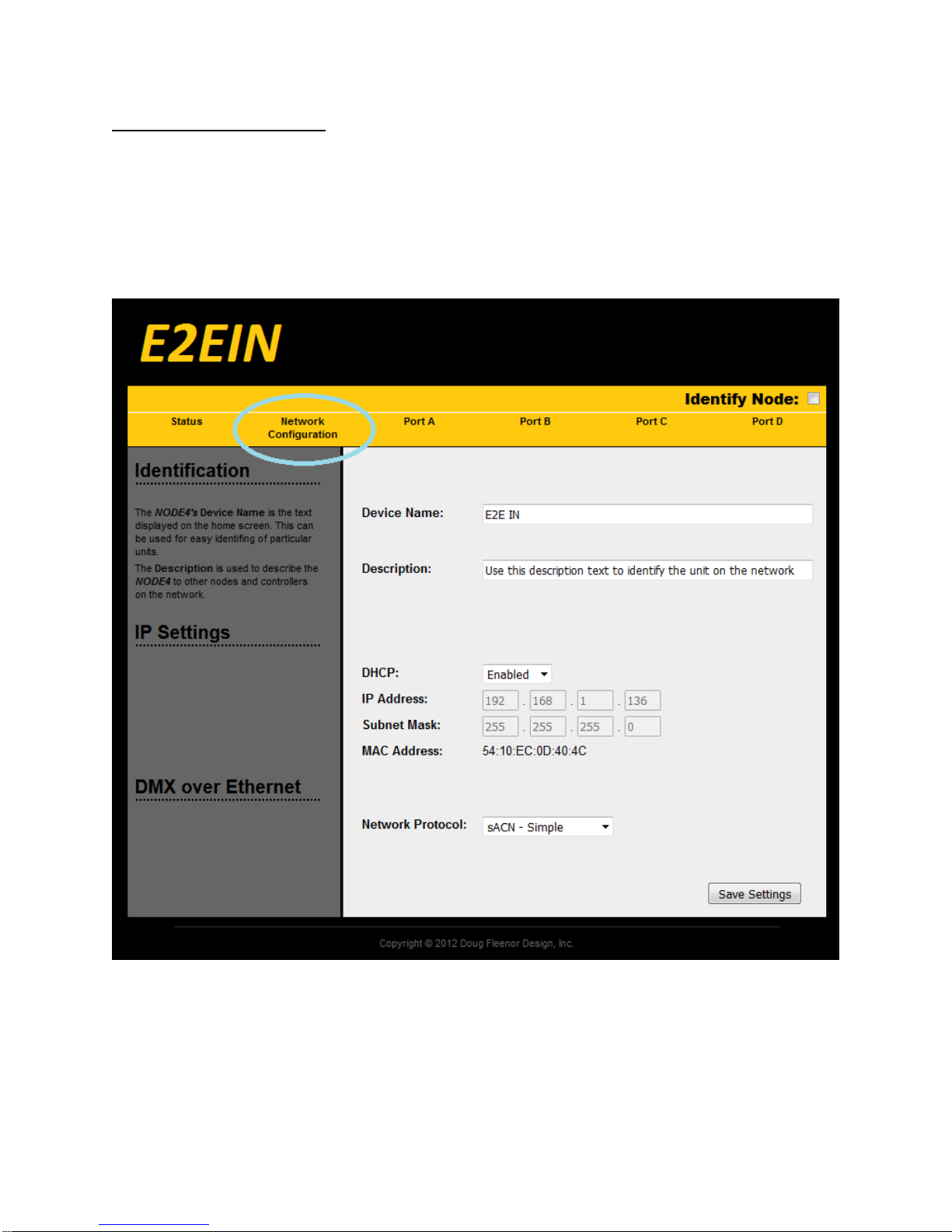

Under the Network Configuration tab, key network configuration options are set. The user may
change the lighting protocol supported by the interface by clicking on the Network Protocol box.
Use of static IP or DHCP is selected here. A user may change the default IP address when
DHCP is turned off. The device name and description may be set here, and will display in Node
Discovery, and other programs that request this data.

Page 5 of 8
Virtual Ports
The E2E communicates between its two Ethernet interfaces using virtual Ports. The four virtual
Ports are always connected by letter. This means Port A on the E2E in side will communicate
universe data to Port A on the E2E out side. These virtual connections remain linked at all times
for each of the four ports. The configuration for universe number and other protocol specific
details are configurable on the web server. The direction of the virtual port is not configurable.
The Ethernet in side will have a virtual port set to an output, which then feeds to the Ethernet
out side’s virtual input.
Figure 2: An E2E’s virtual Port A configuration for sACN in and ArtNet out

Page 6 of 8
Network Topologies
The two network interfaces on the E2E can provide physical separation between the two data
streams. Systems wishing to minimize network usage may isolate the output stream to a
separate network. Below are two examples, the first isolates ArtNet data from a larger sACN
system, the second allows all traffic to reach all devices, and has a simple configuration. Please
note that the protocols used in the example can be changed to any of the supported protocols
on the supported protocols list located at the top of this manual.
Example 1 –Traffic Separation –sACN system with ArtNet dimmer:
In the below example ArtNet traffic is not seen by the sACN equipment, and the sACN light
board traffic gets converted to ArtNet based on the virtual port settings in the E2E. The Ethernet
Router may or may not use DHCP, and the E2E out and ArtNet dimmer use static IP. In cases
where the sACN side uses static addressing, or the light board provides a DHCP server, the
Ethernet router should be changed to an Ethernet switch in the example below.
Figure 3: Traffic Separation described in Example 1

Page 7 of 8
Example 2 –No Traffic Separation –sACN system with ArtNet dimmer:
When there is a single router in a system, and network traffic is not a concern, both the Ethernet
in and Ethernet out may be connected to the router. The router will issue IP addresses to all of
the DHCP enabled devices on the network, and Node Discovery will be able to see both
interfaces on the E2E. The network usage is doubled for each universe going into the E2E in
port. This is represented with the black/red lines in the below diagram. In cases where the
network uses static addressing, or the light board provides a DHCP server, the Ethernet router
should be changed to an Ethernet switch in the example below.
Figure 4: Single Network described in Example 2

Page 8 of 8
Environmental
Operating temperature: 0-40º C
Operating humidity: 10-90% non-condensing
Indoor use only
Warranty
Products manufactured by Doug Fleenor Design carry a five year parts and labor warranty
against manufacturing defects. It is the customer's responsibility to return the product to Doug
Fleenor Design (at the customer's expense) for service. Doug Fleenor Design will repair the unit
and return it to the customer (at Doug Fleenor Design's expense). If a trip is necessary to the
customer's site to solve a problem, the expenses of the trip must be paid by the customer.
1. Note that this warranty covers Manufacturing Defects. It does not include damage due to
misuse or abuse. Most non-warranty repairs are made for a fixed $30.00 fee.
