DR PILOT XT Quick start guide

Serial No.
Order No.
DR Power Equipment
Toll-free phone: 1-800-DR-OWNER (376-9637)
Website: www.DRpower.com
DR®WALK-BEHIND LEAF AND LAWN VACUUM
SAFETY & OPERATING INSTRUCTIONS
Model:
PILOT XT
PILOT XTSP
Read and understand this manual and all instructions before operating the DR WALK-BEHIND LEAF AND LAWN
VACUUM.

2DR® LEAF and LAWN VACUUM
This indicates a hazardous situation, which, if not avoided, will result in death or serious injury.
Table of Contents
Chapter 1: General Safety Rules............................................................................................................................................................ 3
Chapter 2: Setting Up The DR®WALK-BEHIND LEAF AND LAWN VACUUM .................................................................................. 7
Chapter 3: Operating the DR WALK-BEHIND LEAF AND LAWN VACUUM ...................................................................................... 14
Chapter 4: Maintaining the DR WALK-BEHIND LEAF AND LAWN VACUUM................................................................................... 17
Chapter 5: Troubleshooting .................................................................................................................................................................. 23
Chapter 6: Parts Lists and Schematic Diagrams.................................................................................................................................. 26
Conventions used in this manual
Serial Number and Order Number
A Serial Number is used to identify your machine and is located on the
Serial Number Label on your machine (Figure 1). An Order Number is used
to check and maintain your order history and is located on the packing slip.
For your convenience and ready reference, enter the Serial Number and
Order Number in the space provided on the front cover of this manual.
Additional Information and Potential Changes
DR Power Equipment reserves the right to discontinue, change, and
improve its products at any time without notice or obligation to the
purchaser. The descriptions and specifications contained in this manual
were in effect at printing. Equipment described within this manual may be
optional. Some illustrations may not be applicable to your machine.
California Proposition 65
This indicates a hazardous situation, which, if not avoided, could result in minor or moderate injury.
This information is important in the proper use of your machine. Failure to follow this instruction could result in damage to your
machine or property.
This indicates a hazardous situation, which, if not avoided, could result in death or serious injury.
Figure 1

CONTACT US AT www.DRpower.com 3
Read this safety & operating Instructions manual before you use the DR WALK-BEHIND LEAF AND LAWN VACUUM. Become
familiar with the operation and service recommendations to ensure the best performance from your machine. If you have any
questions or need assistance, please contact us at www.DRpower.com or call toll-free 1-800-DR-OWNER (376-9637) and one of
our Technical Support Representatives will be happy to help you.
#137581
#A0000330988
Chapter 1: General Safety Rules
Labels
Your DR WALK-BEHIND LEAF AND LAWN VACUUM carries prominent labels as reminders for its proper and safe use.
Shown below are copies of all the Safety and Information labels that appear on the equipment. Take a moment to study them
and make a note of their location on your DR WALK-BEHIND LEAF AND LAWN VACUUM as you set up and before you
operate the unit. Replace damaged or missing safety and information labels immediately.

4DR® LEAF and LAWN VACUUM
Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the machine and
the vacuuming activity. Never assume that children will remain where you last saw them.
•Keep children out of the work area and under the watchful care of a responsible adult.
•Be alert and always turn off the DR Walk-Behind Leaf and Lawn Vacuum engine if children or pets enter the work area.
•Before, and while moving backwards, look behind, and down for small children and pets.
•Never allow children to operate the vacuum.
•Use extra care when approaching blind corners, shrubs, trees, or other objects that may obscure your vision.
This is a high-powered machine, with moving parts operating with high energy at high speeds. Use proper clothing and safety
gear when operating this machine to prevent or minimize the risk of severe injury. You must operate the machine safely. Unsafe
operation can create a number of hazards for you, as well as anyone else in the nearby area. Always take the following precautions
when operating this machine:
•Always wear protective goggles or safety glasses with side shields while operating this vacuum system to protect your eyes
from possible foreign objects thrown from the machine.
•Wear shoes with non-slip treads when using your DR Walk-Behind Leaf and Lawn Vacuum. If you have safety shoes, we
recommend wearing them. Do not use the machine while barefoot or wearing open sandals.
•Avoid wearing loose clothing or jewelry, which can catch on the machine’s moving parts.
•We recommend wearing gloves while using your DR Walk-Behind Leaf and Lawn Vacuum. Be sure your gloves fit properly
and do not have loose cuffs or drawstrings.
•We recommend changing the debris bag after vacuuming glass and other debris and before using the system to vacuum
material that may be used for compost or mulch.
•Wear long pants while operating the machine.
•Use Hearing Protectors or Ear Plugs rated for at least 20 dba to protect your hearing.
•Never allow people who are unfamiliar with these instructions to use the vacuum. Allow only responsible individuals who are
familiar with these rules of safe operation to use your machine.
•Never place your hands, feet, or any part of your body near or under any moving part while the machine is running.
•Keep bystanders away from your work area at all times. Stop the engine when another person or pet approaches.
•Never use the machine with the collection bag removed.
•Clear the work area of objects such as rock, string-like material, wire, rope, or rags. Ingesting these objects into the vacuum
could damage the machine and/or cause injury.
•Never, under any conditions, remove, bend, cut, fit, weld, or otherwise alter standard parts on the DR Walk-Behind Leaf and
Lawn Vacuum. This includes all shields and guards. Modifications to your machine could cause personal injuries and
property damage and will void your warranty
•Inspect the Bag before each use and if worn or damaged, replace before using machine.
Protecting Yourself and Those Around You
Safety for Children and Pets

CONTACT US AT www.DRpower.com 5
Slopes are a major factor related to slip and fall accidents, which can result in severe injury. All slopes require caution. If you feel
uneasy on a slope, do not vacuum it. Always take the following precautions when using this machine on slopes:
Always:
•Vacuum across the face of slopes; never up and down. Exercise extreme caution when changing direction on slopes.
•Remove objects such as stones, wire, rope, or rags.
•Watch for holes, ruts, or bumps in the landscape.
Never:
•Never vacuum near drop-offs, ditches, or embankments; you could lose your footing or balance.
•Never vacuum on slopes greater than 20 degrees, or any excessively steep slopes.
•Never vacuum on wet, or slippery slopes; reduced traction could result in slipping.
•Never park the vacuum on a steep grade or slope.
Gasoline is a highly flammable liquid. Gasoline also gives off flammable vapor that can be easily ignited and cause a fire or
explosion. Never overlook the hazards of gasoline. Always follow these precautions:
•Never operate the engine with the air cleaner or cover over the carburetor air-intake removed, except for adjustment. Removal
of such parts could create a fire hazard. Do not use flammable solutions to clean air filter.
•Never run the engine in an enclosed area or without proper ventilation as the exhaust from the engine contains carbon
monoxide, which is an odorless, tasteless, and deadly poisonous gas.
•Store all fuel and Oil in containers specifically designed and approved for this purpose and keep away from heat and open
flame, and out of the reach of children.
•Fill the gasoline tank outdoors with the engine off and allow the engine to cool completely. Do not handle gasoline if you or
anyone nearby is smoking, or if you are near anything that could cause it to ignite or explode. Replace the fuel tank and fuel
container caps securely.
•If you spill gasoline, do not attempt to start the engine. Move the machine away from the area of the spill and avoid creating
any source of ignition until the gas vapors have dissipated. Wipe up any spilled fuel to prevent a fire hazard and properly
dispose of the waste.
•Allow the engine to cool completely and empty the debris bag before storing the DR Walk-Behind Leaf and Lawn Vacuum in
any enclosure. Remember, decomposing material generates heat and could start a fire. Never store the machine with gas in
the tank or a fuel container, near an open flame or spark such as a water heater.
•Never make adjustments or repairs with the engine running. Disconnect the spark plug wire and keep the wire away from the
spark plug to prevent accidental starting.
•Never check for an ignition spark with the spark plug or spark plug wire removed. Use an approved spark tester.
•Never tamper with safety devices. Check their proper operation regularly.
•Never change the engine governor settings or modify the engine speed. Modifications will void your warranty.
•To reduce fire hazard, keep the engine and muffler area free of debris build-up such as leaves, grass, Oil, grease, or any other
combustible material. Clean the engine area after each use.
•Never operate the engine without the muffler. Inspect the muffler periodically and replace if necessary. If equipped with a
muffler deflector, inspect the deflector periodically and replace if necessary.
•The muffler and engine become very hot and can cause a severe burn; do not touch.
•Always check fuel lines and fittings frequently for cracks or leaks, replace if necessary.
•Replace rubber fuel lines and grommets when worn or damaged and after 5 years of use.
Safety with Gasoline-Powered Machines
Safety on Slopes

6DR® LEAF and LAWN VACUUM
Operating this Vacuum safely is necessary to prevent or minimize the risk of death or serious injury. Unsafe operation can create
a number of hazards for you. Always take the following precautions when operating this vacuum:
•Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people, their property, and
themselves.
•Your DR Walk-Behind Leaf and Lawn Vacuum is a powerful tool. Exercise extreme caution at all times. The design of this
machine is to vacuum debris. Do not use it for any other purpose.
•Know how to stop the vacuum quickly.
•Never allow people or pets to ride on the DR Walk-Behind Leaf and Lawn Vacuum.
•Never start the engine without the Hose fully inserted and secured at both ends.
•Never attempt to remove the Debris Bag while the DR Walk-Behind Leaf and Lawn Vacuum engine is running. Debris may
exit at high velocity out of the openings created in the seams as you unlatch the debris bag.
•Remove or empty the debris bag after each use to prevent spontaneous combustion due to decaying material.DO NOT
STORE DEBRIS BAGS INDOORS.
•Do not vacuum in sandy areas where you will vacuum large quantities of sand.
•Never operate the vacuum near hot or burning debris
•Never operate the vacuum near toxic or explosive materials.
•Never operate the vacuum near campfire sites. Even seemingly extinguished fires may retain hot embers and coals.
•If the machine should start making an unusual noise or vibration, stop the engine and wait five minutes to cool. Vibration is
generally a warning of trouble. Disconnect the spark plug wire and inspect for clogging, damaged, or worn impeller, loose
impeller bolt, or loose engine mounting bolts. Clean and repair and/or replace damaged parts.
•Always shut off the DR Walk-Behind Leaf and Lawn Vacuum engine, wait five minutes to cool, and disconnect the spark plug
wire before attempting to clear any obstructions.
•Always keep the equipment in a good safe operating condition. Always make sure that nuts and bolts are tight and nothing is
damaged.
•Use the DR Walk-Behind Leaf and Lawn Vacuum only in daylight.
•While using the vacuum, do not hurry or take things for granted. When in doubt about the equipment, or your surroundings,
stop the machine and take the time to look things over.
•Never leave the machine unattended with the engine running.
•Do not operate the machine when under the influence of alcohol, drugs, or medication.
•See manufacturer’s instructions for proper operation and installation of accessories. Only use accessories approved by DR
Power Equipment.
General Safety
A Note to All Users
Under California law, and the laws of some other states, you are not permitted to operate an internal combustion Engine
using hydrocarbon fuels without an Engine spark arrester. This also applies to operation on US Forest Lands. All DR Walk-
Behind Leaf and Lawn Vacuums shipped are provided with spark arresters. Failure of the owner or operator to maintain this
equipment in compliance with state regulations is a misdemeanor under California law and may be in violation of other state
and/or federal regulations. Contact your State Park Association or the appropriate state organization for specific information
in your area.
No list of warnings and cautions can be all-inclusive. If situations occur that are not covered by this manual, the operator
must apply common sense and operate this Lawn Vacuum in a safe manner. Contact us at www.DRpower.com or call 1 (800)
DR-owner (376-9637) for assistance.

CONTACT US AT www.DRpower.com 7
Snout Height
Adjuster Handle
Collection Bag
10″Rear Wheels
Fuel Tank Cap
Vacuum Snout
Air Vent
Bag Top Cover
Vacuum
Housing
Snout Lid
Figure 2
Handlebar with
Foam Grip
Oil Fill/Dipstick
Air Filter
Chipper Chute
(XTSP Only)
Chute Tube
Self Propel
Drive Lever
(XTSP Only)
Drive Cable
Adjuster
(XTSP Only)
Muffler
Handlebar
Height Adjuster
Bag Holder
8″Front Wheels
Chapter 2: Setting Up The DR®WALK-BEHIND LEAF AND LAWN VACUUM
It may be helpful to familiarize yourself with the controls and features of your DR WALK-BEHIND LEAF AND LAWN VACUUM
as shown in Figures 2a and 2b before beginning these procedures. If you have any questions at all, please feel free to contact
us at www.DRpower.com.
DR WALK-BEHIND LEAF AND LAWN VACUUM PILOT XT and XTSP Controls and Features

8DR® LEAF and LAWN VACUUM
Specifications
PILOT XT
PILOT XTSP (electric start)
Engine
DR
HP
6 HP
Fuel Tank Capacity
1.0 L
Engine Oil Capacity
0.5 Liters (16.9 oz)
Engine Oil Type
SAE 30W HD
Impeller Drive Method
Direct Drive
Clearing Width
24″
Chipper Knife Material
N/A
Hardened Tool Steel
Chipping Capacity
N/A
1.5" Dia.
Height Adjustment Range
1" to 4" (4 positions)
Collection Bag Type
Paper or Canvas
Collection Bag Volume
3.8 cu ft (3 Bushel)
Collection Bag Weight Capacity
50 lbs
Leaf Reduction
10:1
Handlebar Height
Adjustable from 32”to 42”
Front Wheel Size
8″x 2″
Rear Wheel Size
10″x 2″
Spare Bag Carrier
1 Carrier included (10 Bag Capacity), 2nd Carrier Optional (for 20 Bag total Capacity)
Drive
Push
Transmission, Flex Speed Cone Clutch
Speeds
N/A
Reverse: N/A, Forward: Max 2.0 mph
Battery
N/A
12V, 2.3AH
Machine Dimensions
26"W x 42"H x 52"L
Machine Weight
105 Lbs
120 Lbs
Parts Supplied (Figure 3 and list below):
Item # Description Qty
1 ............................ Walk-Behind Leaf Vacuum...................................... 1
2 ............................. Product Package (User Manuals and Hardware) .. 1
3 ............................. A0000330868 - Bolt, Flange, 5/16-18 X 1/2″.......... 4
4 ............................. A0000330872 - Bag, Paper, 5 Pack ......................... 1
Compare the contents of the Shipping Crate, with the Parts Supplied list
above. If you have any questions, please contact us at www.DRpower.com
or call 1-800-DR-OWNER (376-9637) for assistance.
Figure 3
3
2
4

CONTACT US AT www.DRpower.com 9
Assembling the DR WALK-BEHIND LEAF AND LAWN VACUUM
Note: Assembly should be done on a clean, level surface.
Tools Needed:
•1/2" Wrench
1. Remove the machine from the pallet and place it on a clean, level surface for
assembly (Figure 4).
2. For the Pilot XT: Remove the Upper Handlebar and place it to the side.
For the Pilot XTSP: Rotate the Upper Handlebar and set it on the ground
behind the machine (Note: The Drive Cable comes attached to the Upper
Handlebar)
3. Rotate the Lower Handlebar upright, align the mounting holes, and install
the four 5/16-18 X 1/2″Bolts by hand (Figure 5).
4. Tighten the four Lower Handlebar Bolts using a 1/2″Wrench
5. Rotate the Bag Support Platform down (Figure 6).
6. Remove the knobs from each side of the Lower Handlebar.
7. Install the Upper Handlebar onto the Lower Handlebar, and loosely reattach
the Knobs to retain the Upper Handlebar.
8. Adjust the Upper Handlebar to the preferred working height, then tighten
down the Knobs to lock the Upper Handlebar in place. (Figure 7).
9. Slowly pull the pull start cord out, lace the cord through the Wire Recoil
Holder, then slowly release the pull start cord (Figure 8).
Figure 4
Figure 5
Figure 7
Figure 6
Figure 8
Upper
Handlebar
Lower
Handlebar
Handlebar
Bolts
Bag Support
Platform
Knob
Wire Recoil
Holder

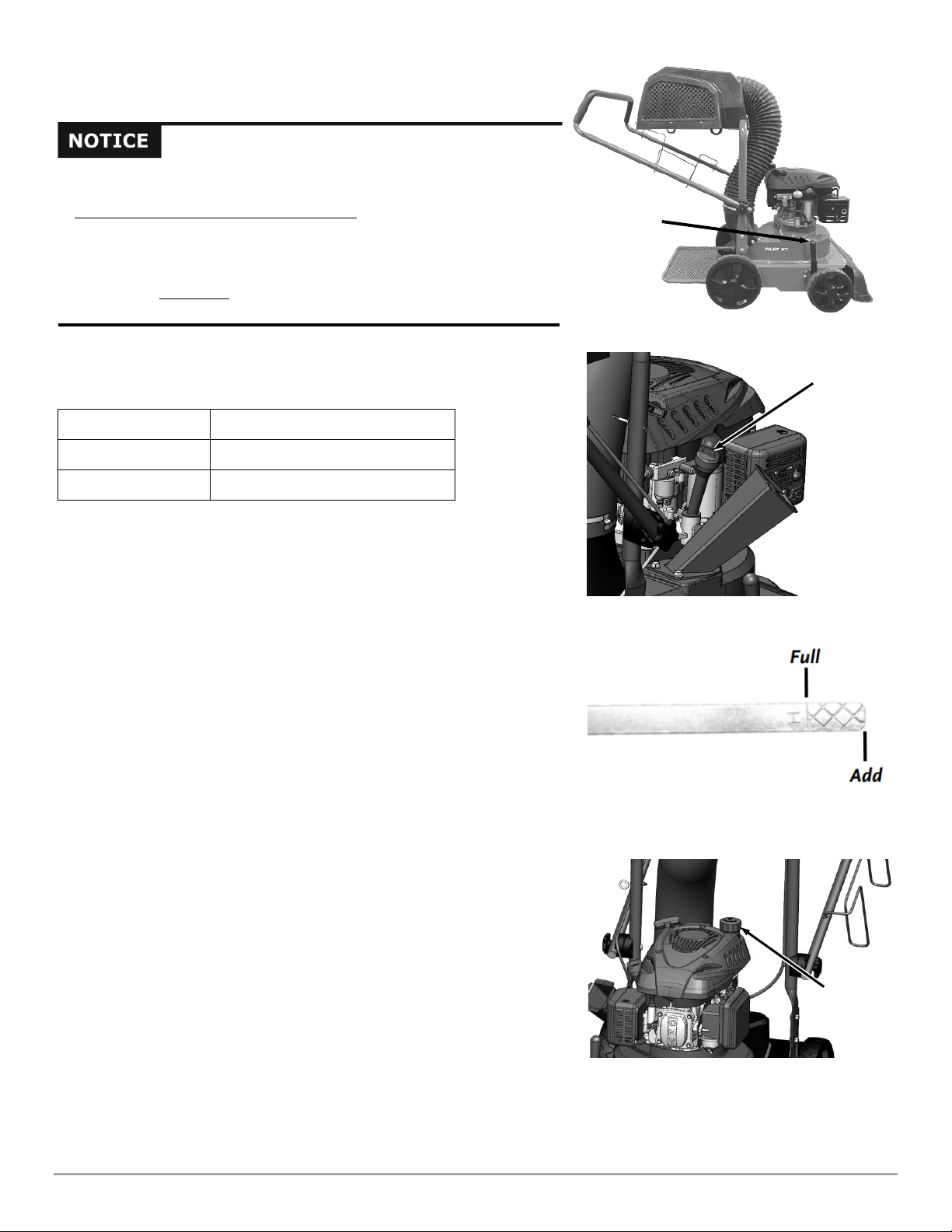

10 DR® LEAF and LAWN VACUUM
Figure 9
Adding the Engine Oil and Gasoline
Note: Use only the recommended high detergent Oil. Other types of Oil could
cause problems operating your machine. Please refer to your Engine
Owner’s Manual for detailed Oil information.
Engine Oil Type
SAE 30W HD
Engine Oil Capacity
0.5 Liters (16.9 oz)
Fuel Capacity
Unleaded gasoline; 1.0L
Adding Engine Oil:
1. Ensure the machine is on a flat surface and locate the Height Adjust Lever to
level the Frame and Engine (Figure 9).
2. Remove the Oil Fill/Dipstick and add an initial quantity of the Oil
recommended by the Engine Manufacturer (refer to your Engine Owner’s
Manual for recommended quantities) and wait one minute for the Oil to
settle (Figure 10).
3. Insert the Dipstick, but do not screw it down. Remove the Dipstick to check
the Oil level.
4. Continue adding a few ounces of Oil at a time, rechecking the Dipstick until
the Oil reaches the fill mark (Figure 11).Be careful not to overfill.
5. Replace the Dipstick and screw all the way down when full.
Adding Gasoline
1. Remove the Fuel Tank Cap from the Fuel Tank (Figure 12).
2. Fill the Fuel Tank with fresh, clean Unleaded Gasoline to 1 inch below the
bottom of the filler neck to provide space for any fuel expansion.
Note: It may be helpful to use a clean Funnel when adding fuel to the Fuel Tank
3. Reinstall the Fuel Fill Cap securely and wipe up any spilled gasoline.
Oil Fill Dipstick
Figure 10
Figure 12
Fuel Tank
Cap
•You must add Oil before starting the Engine. This machine is shipped
without Oil. Traces of Oil may be in the reservoir from factory testing, but
you must add Oil before starting the Engine. Fill the reservoir slowly,
checking the level frequently to avoid overfilling.
•The Engine needs to be on a level surface or overfilling could occur which
could damage the Engine during use.
•The Dipstick should not be screwed down to ensure an accurate Oil level
reading.
Figure 11
Height Adjust
Lever

CONTACT US AT www.DRpower.com 11
Figure 14
Connecting the Battery Wire (Electric Start Models)
We ship all Electric-Starting DR WALK-BEHIND LEAF AND LAWN
VACUUMS with the Black Negative Battery Wire disconnected. This
prevents the Battery from discharging during shipment. You must connect
the Battery wire before using your machine.
1. Locate the Negative Terminal on the Battery. (Figure 13)
2. Remove the protective Cap that comes on the Battery Terminals for
shipping.
3. Insert the Negative Wire Connector onto the Negative Terminal of the
Battery.
Installing the Collection Bag
1. Locate the Cover Latch Handle (Figure 14), then lift the handle to open
the Bag Top Cover. Lift the Bag Top Cover just past vertical where the Bag
Top Cover will stay up by itself. (Figure 15).
2. Unfurl the bag until it can stand on its own.
3. Position the top of the bag around the outside of the Bag Clamping Ring
while allowing the bag to stand on the Bag Support Platform. (Figure
16).
4. Fold the Bag edges over and into the Bag Clamping Ring and crimp the
Bag around the Bag Clamping Ring. (Figure 17).
5. Close the Bag Top Cover and ensure the Latch is secured. (Figure 18).
Note: The machine will not turn on if the Bag Top Cover isn’t secured
completely.
Figure 13
Battery
Protective Cap
Negative
(Black)
Wire
Negative
Terminal
Never start the Engine without the Collection Bag attached firmly to the
Discharge Chute and Outlet Hose.
Inspect each bag before use. Don’t use a bag with a tear or wet spot.
Using a wet or torn bag could lead to bag failure during operation
Cover Latch
Handle
Figure 15
Vertical

12 DR® LEAF and LAWN VACUUM
Figure 16
Figure 17
Figure 18
Bag Clamping
Ring

CONTACT US AT www.DRpower.com 13
Figure 15
Figure 19
Figure 20
Figure 21
Emptying/Replacing the Collection Bag
The Debris bags can be reused if they are in good condition. Do not reuse if
there are tears or overly wet/soiled areas.
•Replace or empty the Bag as soon as it is full (check by feeling sides of Bag).
Overfilling the bag will cause the vacuuming performance to decrease or stop
completely and could lead to clogging of the discharge tube, snout, or both.
•Empty or remove the Bag completely BEFORE storing the machine to prevent
premature deterioration of the Bag caused from rotting debris and the
possibility of a fire occurring as a result of heat generated by decomposing
debris.
Emptying the Collection Bag:
6. Shut off the Engine and wait for all moving parts come to a complete stop.
7. Lift the Latch Handle and open the Bag Top Cover to its resting position.
(Figure 19).
8. Unwrap the top of the Collection Bag from the Bag Clamping Ring. (Figure
20).
9. Pull the bottom of the bag off the Bag Support Platform. (Figure 21).
10. Either move the machine forward or continue pulling the bag until it is out
from under the handlebar.
11. Empty the Bag for reuse, or fold over the top of the Bag for disposal.

14 DR® LEAF and LAWN VACUUM
Chapter 3: Operating the DR WALK-BEHIND LEAF AND LAWN VACUUM
It may be helpful to better familiarize yourself with the features of your DR WALK-BEHIND LEAF AND LAWN VACUUM by
reviewing Figure 2 in Chapter 2 before beginning the steps outlined in this
chapter. Always refer to the Engine manual for more specific Engine
information.
Starting the Engine (Manual Start)
1. Press the On/Off Switch to the ON position (Figure 22).
2. Slowly pull the Starter Cord until you feel resistance, then pull quickly. Once
the Engine starts, release the Cord and it will recoil back into position.
Starting the Engine (Electric Start)
1. Press and hold the Ignition Switch to the start position until the Engine
starts and then release (Figure 23). The Switch will go back to the central run
position and the Engine will continue to run.
Stopping the Engine
2. Press the On/Off Switch to the OFF position (Figure 22 and Figure 23).
Operating the Drive System (Self Propel Models)
TO TRAVEL FORWARD
1. Start the machine and slowly pull the Self Propel Drive Lever toward the
Handlebar Grip and hold for maximum speed as needed (Figure 24).
Note: You can vary the speed of the machine by the position of the
Drive Lever. Pulling the Drive Lever fully against the Handlebar Grip
produces the maximum travel speed. Slowly releasing the Drive
Lever will produce lower speeds until the Lever is fully released to
stop forward travel.
TO STOP TRAVEL FORWARD
1. Fully release the Drive Lever (Figure 24).
Wheel Drive Operating Tips
•Never go up or down a slope at an angle as the machine may become
unstable and tip over. If the machine does tip over, immediately shut down
the Engine and move the machine to stable ground. Check the machine for
damage.
On/Off Switch
Figure 22
Start Pull Cord
On/Off/Start
Switch
Figure 23
Traction
Drive Lever
Figure 24

CONTACT US AT www.DRpower.com 15
Using the Chipper Chute
The Chipper can chip twigs and branches ranging in size up to 1.5" in
diameter. Cut your materials into manageable lengths before feeding them
into the Chipper Hopper. The revolving Chipper Knife mounted on a Rotor,
turns branches fed into the Hopper into “chips”.
•Be sure that the collection bag is in place and has enough room for the
new debris before chipping.
•Always wear safety goggles, gloves, and hearing protection when
chipping.
•Start the Engine on level ground.
•Keep a moderate feed rate to prevent overloading the machine.
•Use common sense when using the chipper. Learn to recognize the
change in sound when the Engine is overloading. Pull back on the material you are chipping if overloading should occur.
•Green or dry branches chip easily and soft wood will chip easier than hard wood.
•Use caution with small diameter green saplings and branches less than 1" in diameter. Chip these grouped or bundled
together to provide support for each other. If the material is 1" or larger, feed only one at a time into the Chipper Chute.
•Some side shoots or side branches may have to be trimmed from the main stalk before chipping.
•Short stubs of branches may be pushed through the Chipper section with the next branch. NEVER ALLOW YOUR HANDS
TO ENTER THE CHIPPER CHUTE. If necessary, push the material further down with a long stick or branch.
•When chipping branches occasionally a “tail” will be left at the end of the branch (usually green wood), which increases in
length as you chip and eventually wraps around the shaft. To avoid this, slowly turn the branch as you feed it into the
Chipper tube. This will also improve the chipping performance.
•When chipping, frequently empty the Collection Bag to make it easier because of the weight of the accumulative chips.
•If the machine does not chip well, the Chipper Knife may need to be replaced.
Using the Vacuum
•Before leaves drop, mow your lawn to the shortest recommended height. Your DR WALK-BEHIND LEAF AND LAWN
VACUUM will perform better on short grass.
•The DR WALK-BEHIND LEAF AND LAWN VACUUM is designed to be used frequently during periods when leaves are
dropping. It is not recommended to let leaves get 4″, or deeper.
•The drier the leaves the better.
•The thicker the leaf layer the slower you should proceed. If leaves are wet or matted down use light pressure on the Drive
Lever and it may be necessary to fluff up leaves before using the vac. If the snout clogs, try going at a slower speed.
•Snout height is critical. The snout should be positioned just above the leaf layer to allow proper vacuuming. As a general
reference, the front of the snout should scrape the top of the grass.
•You should avoid vacuuming twigs and branches into the snout. This will cause clogging. Twigs and branches should be
processed through the Chipper Chute.
•Avoid overfilling the Vacuum Snout, this will cause clogging.
•Vacuuming wet and soggy material will also cause clogging. A steady pace with a smaller flow of materials provides the
most effective results.
•Avoid clogging when vacuuming loose, stringy material such as hay or pine straw, by picking up a small amount at a time.
Check and empty the Collection Bag frequently.
•Avoid vacuuming in sandy areas, as this will cause excessive wear.
•Use care when vacuuming near plantings, ornamentals, mulches.
•Use extra caution when vacuuming around stone and gravel.
Chipper
Chute
Figure 25

16 DR® LEAF and LAWN VACUUM
Adjusting the Vacuum Snout Height
The height of the Vacuum Snout can be adjusted to allow you to vary the
suction to meet the surface conditions.
•For short turf with light leaf fall, the Snout should be lowered closer to
the surface.
•For long turf and heavy leaf fall, the Snout should be raised above the
debris.
•For moving the machine long distances, you will avoid damage to the
snout by raising the Snout to the highest setting.
1. To raise the Snout: Pull the Height Adjust Handle out of the slot and move it forward to the next desired slot (Figure 26).
2. To lower the Snout: Pull the Height Adjust Handle out of the slot and move it rearward to the next desired slot.
Clearing the Machine of Debris Clogs
A clog in the machine can cause the vacuuming , shredding, and chipping
operations to decrease or even stop completely. If clogging occurs, check
(and clean if necessary) the following areas.Tools needed:
•1/2" Wrench
•Stick
1. Make sure the machine is off and the Impeller has stopped spinning.
2. Remove any material left in the Chipper Hopper with a stick (XTSP
Models).
3. Lift the Bag Cover Latch to open the Cover fully.
4. Check that the Collection Bag is not overfilled. Empty the Bag if Full.
5. Check the end of the Hose for debris buildup inside the Bag Top Cover. Remove any buildup and close the Cover. If you
found and removed debris from the Bag Top Cover, you can try turning the machine on to see if the clog is cleared, or if
the machine will be able to clear the remaining clog itself. If you find the machine is still clogged, turn the machine off and
make sure the Impeller has stopped spinning before continuing on to step 6.
6. Remove the four Bolts that secure the Outlet Tube to the Impeller using a 1/2" Wrench (Figure 27). Remove the Outlet
Tube from the Impeller Housing.
7. Remove any clogged debris from the Hose and Impeller Housing.
8. Reinstall the Outlet Tube and fasten it to the Impeller housing with the four bolts.
9. Tilt the machine back and insert Blocks under the front Wheels to gain access to the Snout opening.
Snout Height
Adjust Lever
Figure 26
Raise
Lower
Before performing any maintenance procedure or inspection, stop the
Engine, wait for all moving parts to come to a complete stop and wait five
minutes to allow all parts to cool. Disconnect the Spark Plug Wire,
keeping it away from the Spark Plug.
Outlet
Tube
Figure 27
Bolts
The machine may try to fall to the lowest Snout height setting when
the Height Adjust Handle is moved out of the slot.

CONTACT US AT www.DRpower.com 17
Figure 28
10. Clear any debris from the Snout opening.
Extra Debris buildup under impeller
If there is excess buildup of debris in the Impeller area.
1. Remove the five Bolts underneath the Vacuum Snout and two Bolts on
top that secure the Snout to the Frame using a 1/2" Wrench (Figure 28).
Remove the Snout.
2. Remove any clogged debris using a stick.
3. Reinstall the Snout, securing with five Bolts on bottom and two on top
using a 1/2" Wrench.
Chapter 4: Maintaining the DR WALK-BEHIND LEAF AND LAWN VACUUM
Regular maintenance is the way to ensure the best performance and long life of your machine. Please refer to this manual
and the Engine Manufacture’s Owner’s Manual for maintenance procedures. Service intervals listed in the checklist below
supersede those listed in the Engine Manufacture’s Owner’s Manual.
Regular Maintenance Checklist
PROCEDURE
BEFORE EACH
USE
EVERY 25 HOURS
EVERY 50 HOURS
Check Engine Oil Level

Check Fuel Level

Check General Equipment Condition

Visually inspect Collection Bag for rips, tears, wet/soiled
areas, and proper installation.

Visually inspect Knife (XTSP model) for damage and
sharpness

Check for clogs and debris build up

Clean Engine Exterior & Cooling Fins

Clean Engine Air Filter

Change Engine Oil
1st time 5 hours

Replace Drive Belt

Replace Spark Plug

Replace Air Filter

Before performing any maintenance procedure or inspection, stop the Engine and wait five minutes to allow all parts to cool.
Disconnect the Spark Plug Wire, keeping it away from the Spark Plug.
Bolts
Use caution if you need to tip the machine back more than 20
degrees. This could potentially lead to gas spilling from the machine.

18 DR® LEAF and LAWN VACUUM
Changing The Engine Oil
Tools and Supplies Needed:
•Engine Oil (see your Engine Manual for Oil specifications)
•Oil Extractor*
•Small Funnel
•Rags
*The Engine does not have a Drain Plug. An Oil Extractor can be used to
remove Oil. Visit our website to purchase an Oil Extractor.
Note: Remove the Oil when the Engine is warm. Warm Oil siphons quicker
and more completely.
1. Remove the Engine Oil Fill/Dipstick. (Figure 36).
2. Use an Oil Extractor to remove the Oil from the Engine.
3. Initially add 14 oz. of Oil (type recommended by the Engine
Manufacturer) into the Oil Fill and wait one minute for the Oil to settle.
4. Check the Dipstick and continue adding a few ounces of Oil at a time, rechecking the Dipstick until the Oil reaches the fill
mark. Be careful not to overfill.
Bag Maintenance
•Store bags in a dry area.
Adjusting the Traction Drive Cable (Model XTSP)
Note: When properly adjusted, tension on the Traction Drive Lever should increase when the Lever is about parallel to (almost
touching) the Handlebar Grip.
1. Locate the Traction Drive Cable along the Right Side of the Handlebar
(Figure 37). There is an In-Line Adjuster to change the length of the
Cable.
2. Rotate the center portion of the In-Line Adjuster clockwise while holding
the ends stationary to expand the In-Line Adjuster and remove slack
from the Cable.

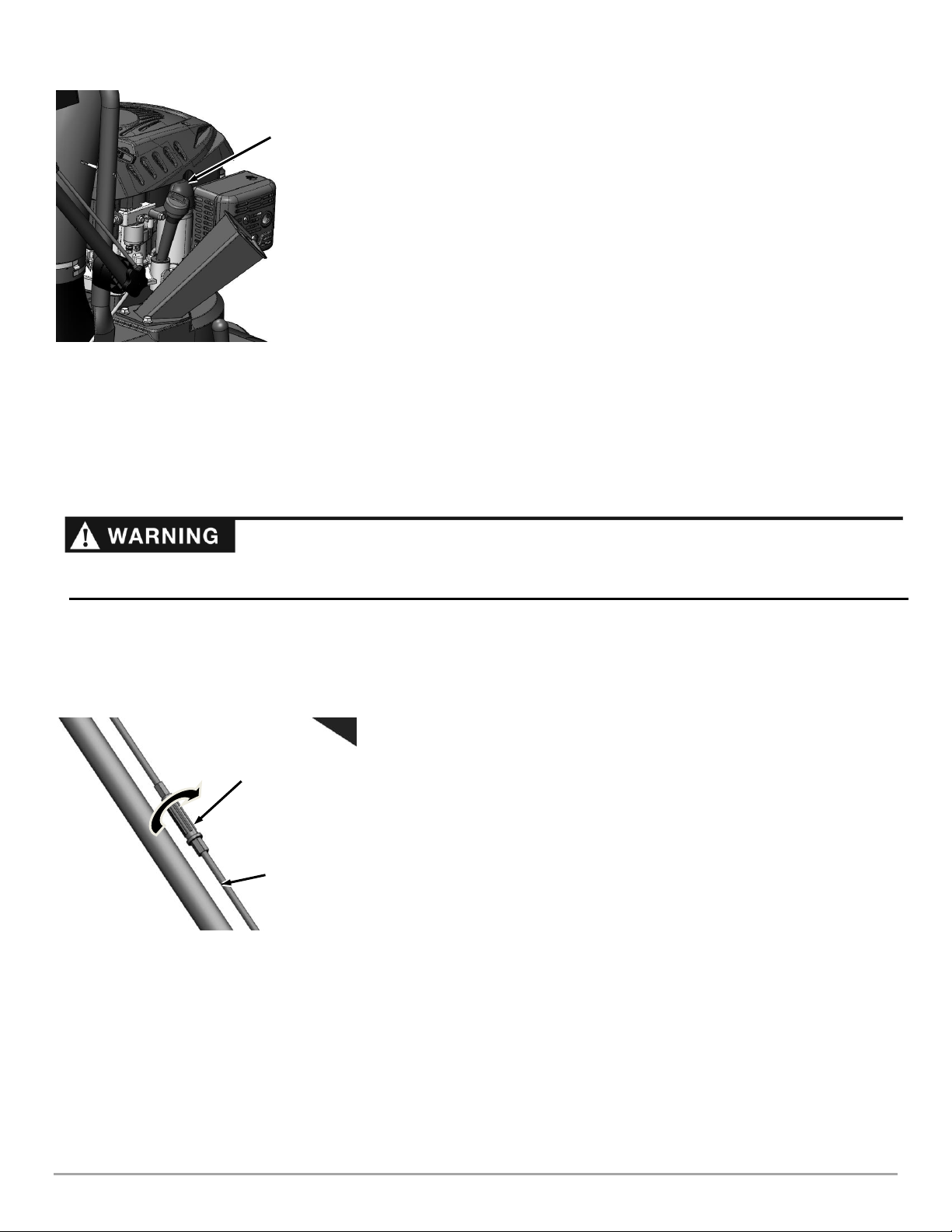

Oil
Fill/Dipstick
Figure 36
In-Line Adjuster
Figure 37
Traction
Drive Cable
Rotate Center
Section
Clockwise to
Tighten
Inspect each bag before use. Don’t use a bag with a tear or wet spot. Using a wet or torn bag could lead to bag failure during
operation.

CONTACT US AT www.DRpower.com 19
Removing/Replacing the Chipper Knife (PILOT XTSP)
The PILOT XTSP model is shipped with a sharp Chipper Knife and, depending
upon material being chipped, will remain acceptably sharp for 40 plus hours.
When you notice diminished feeding, it is time to replace the knife. You may
also choose to have the knife sharpened instead as described on the next page.
Tools and Supplies Needed:
•1/2" Wrench
•7/16" Wrench
•Awl
•4mm Allen Wrench
1. Remove the three Bolts that secure the Chipper Chute to the Housing using
a 1/2" Wrench (Figure 38). Remove the Discharge Chute from the Frame
and set it aside to gain access inside the Impeller Housing.
2. Remove the four Bolts securing the Discharge Chute to the Frame using a
1/2″Wrench.
3. Clean out the Allen Screws using an Awl.
4. Hold the Allen Screw from turning using a 4mm Allen Wrench as you remove the Locknut from the underside of the
Impeller using a 7/16″Wrench. Remove the second Bolt and Lock Nut to remove the Knife.
5. Visually inspect the Knife mounting surface and be sure it is clean. Metal burrs may need filing so the Knife mounts flush
against the Flywheel.
6. Install a new or sharpened Knife with the sharp edge toward the Slotted Opening (Figure 39). Install In reverse order of
removal, inserting the Screws first.
Note: It is important that you use the new Allen Screws and Lock Nuts provided with each new Chipper Knife.
7. Reinstall the Outlet Tube and Chipper Chute.
Replacing the Drive Belt (PILOT XTSP)
Tools and Supplies needed:
•1/2" Wrench
•Pliers
•Diagonal Cutting Pliers
1. Locate a clean flat surface to work on.
2. Remove the two Bolts that Secure the Belt Cover to the Frame using a
1/2" wrench (Figure 40). Remove the Belt Cover.
3. Look closely at the Belt to find a small black arrow (Figure 41). The black
arrow shows the direction of rotation. The arrow would be pointing left
when viewed from the left side of the machine. The new Belt will need to
be installed in the same direction for the Belt to work properly.
Belt
Cover
Figure 40
Bolts
Chipper
Chute
Figure 38
Discharge
Tube
Bolts
Before performing any maintenance procedure or inspection, stop the
Engine, wait for all moving parts to come to a complete stop and wait five
minutes to allow all parts to cool. Disconnect the Spark Plug Wire,
keeping it away from the Spark Plug.
Figure 39
Slotted
Opening
Knife
Allen Screws
and Locknuts

20 DR® LEAF and LAWN VACUUM
Figure 41
Note: Another way to quickly tell what direction the Belt should be assembled
is to see what direction the “V” shaped opening is pointing. The “V”
is pointing right when viewed from the left side of the machine.
4. Cut the old Belt to be replaced using Diagonal Cutters or equivalent
and remove Belt from the Pulleys.
Note: You may want to practice assembling the Linked Belt out of the
machine before it is in placed inside where there is limited access. See
the following section “Assembling the Belt Links”.
5. Before connecting the belt into a loop, route the belt around the pulley
under the engine. Make sure the black arrow marked on the belt is
pointing left when viewed from the left side of the machine.
6. Assemble the belt links together to form a continuous belt.
7. Roll the belt over the Pulley as you turn the Pulley until the Belt falls fully into the groove of the Pulley. Check that the Belt
is seated in the groves of the Drive and Impeller Pulley’s
8. Replace the Belt Cover and the two Bolts using a 1/2”wrench.
Belt Direction
Belt
Pulley
