DragonSat DS-5500HD User manual

Full HD Digital Satellite Receiver
Digital Innovation Life
User's Manual
DS-5500HD

3
INDEX
Precautions ........................................................................................................................... 5
1. Important Safety Instructions......................................................................................................5
2. Notice .........................................................................................................................................5
3. Copyright....................................................................................................................................6
4. Disclaimer...................................................................................................................................6
Before You Begin.................................................................................................................. 7
1. Main Features ............................................................................................................................7
2. Accessories................................................................................................................................8
Hardware Description........................................................................................................... 9
1. Front Panel Configuration ..........................................................................................................9
2. Rear Panel Configuration.........................................................................................................10

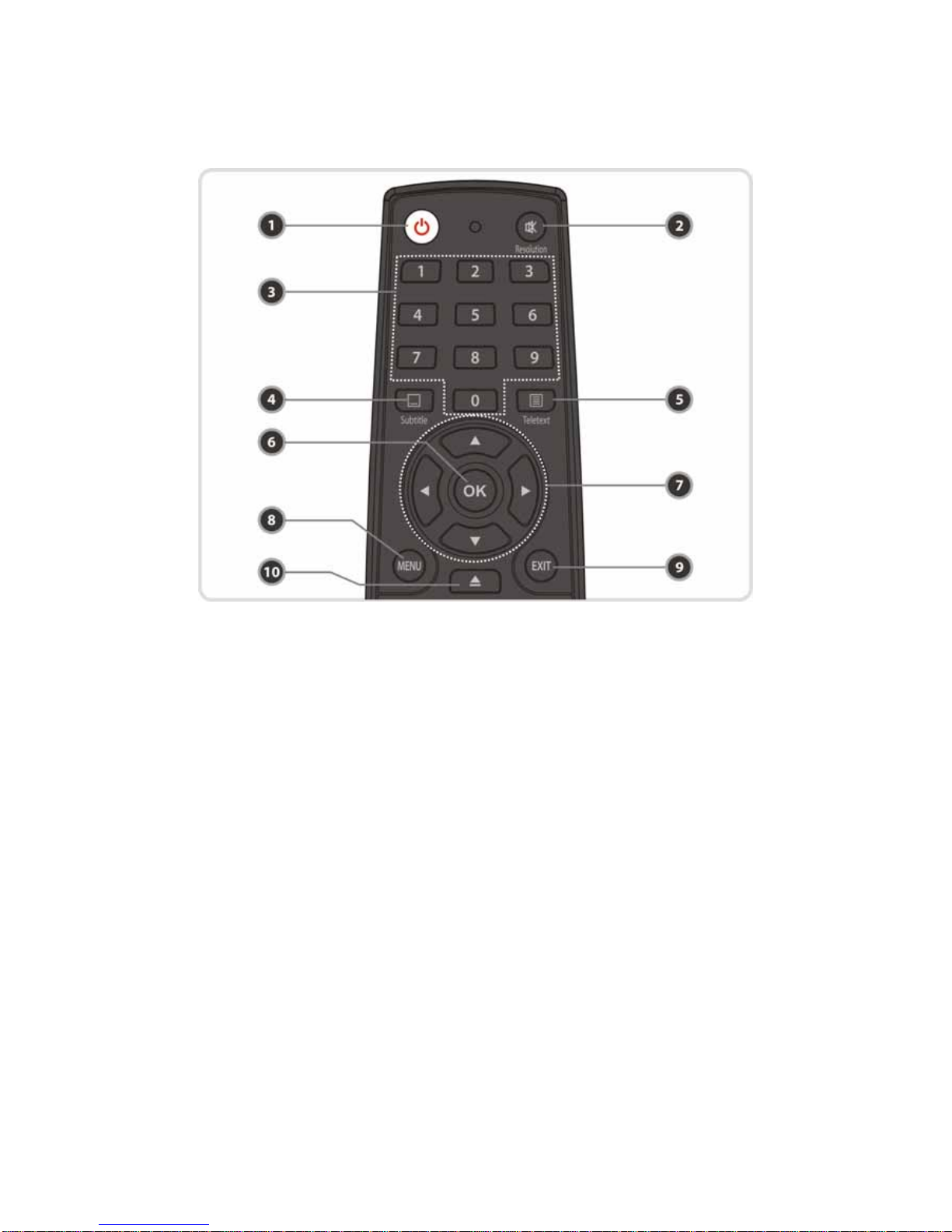

3. Remote Control Unit.................................................................................................................11
Connecting diagram ........................................................................................................... 14
1. Receiver to Adaptor..................................................................................................................14
2. Receiver to TV with Digital A/V Output.....................................................................................14

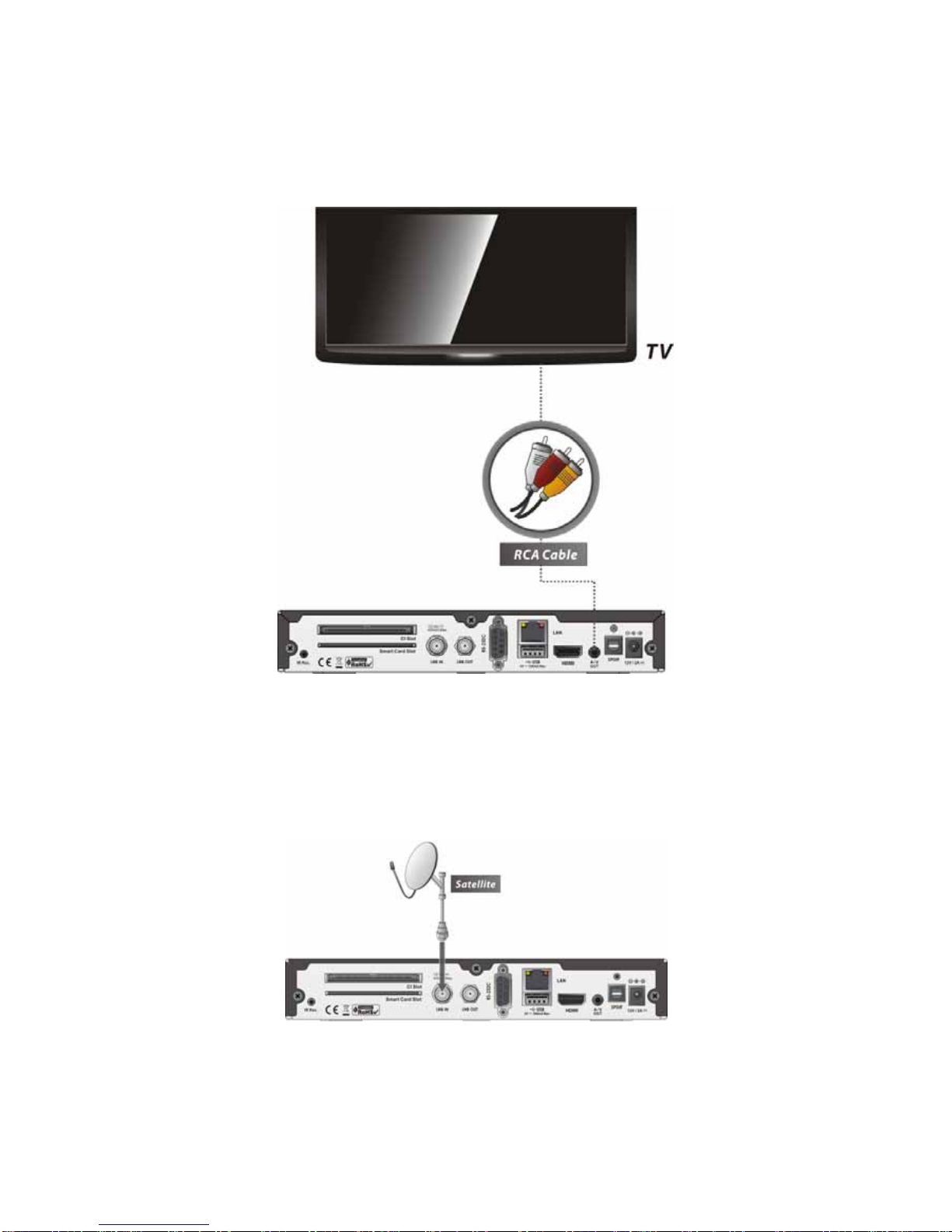

3. Receiver to TV with Analog A/V Output....................................................................................15
4. Connecting to Antenna Cable ..................................................................................................15

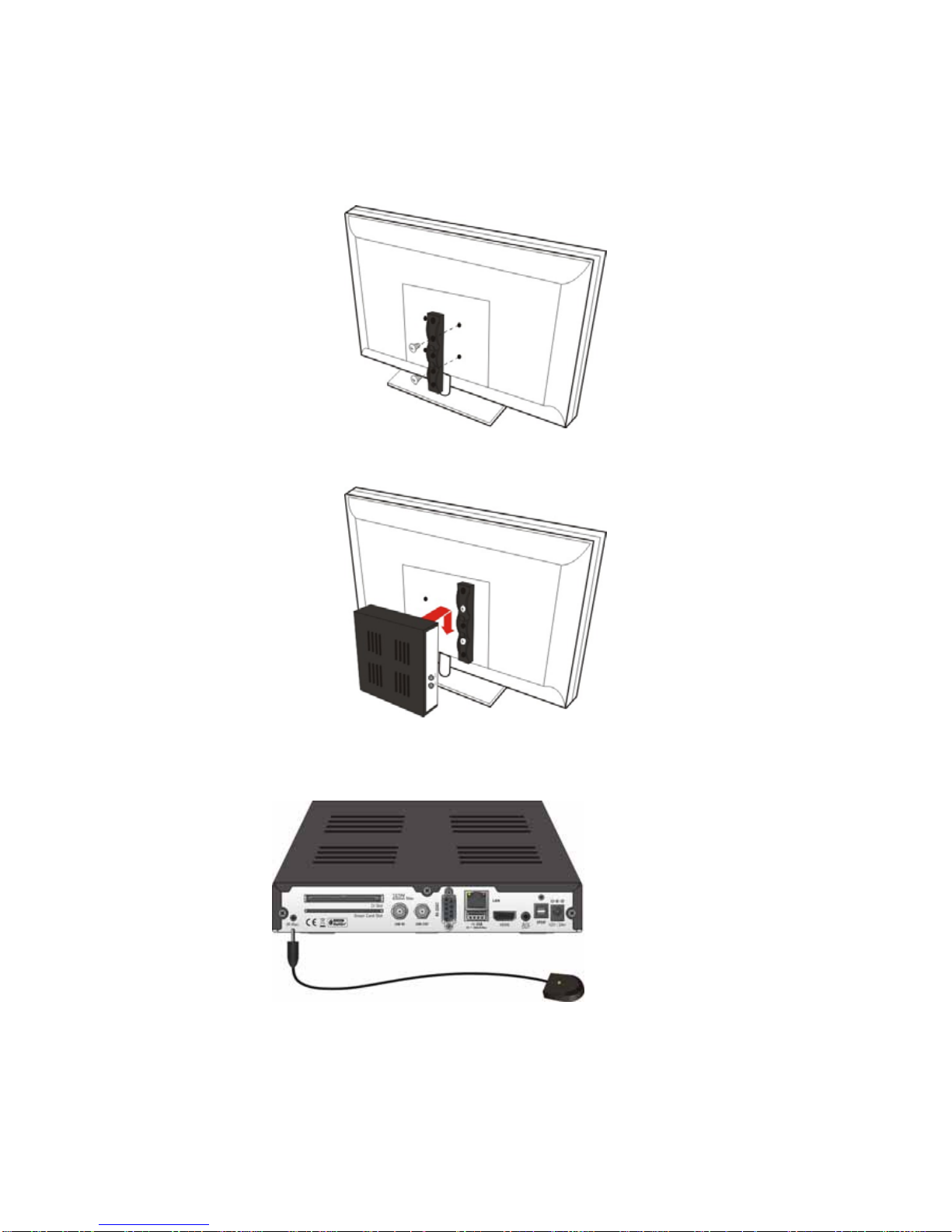

5. Guide to mounting an STB on TV back panel (Optional).........................................................17
Guide of Functions ............................................................................................................. 18
1. Selecting a Service...................................................................................................................18
1.1 Using CH UP/DOWN buttons..............................................................................................18

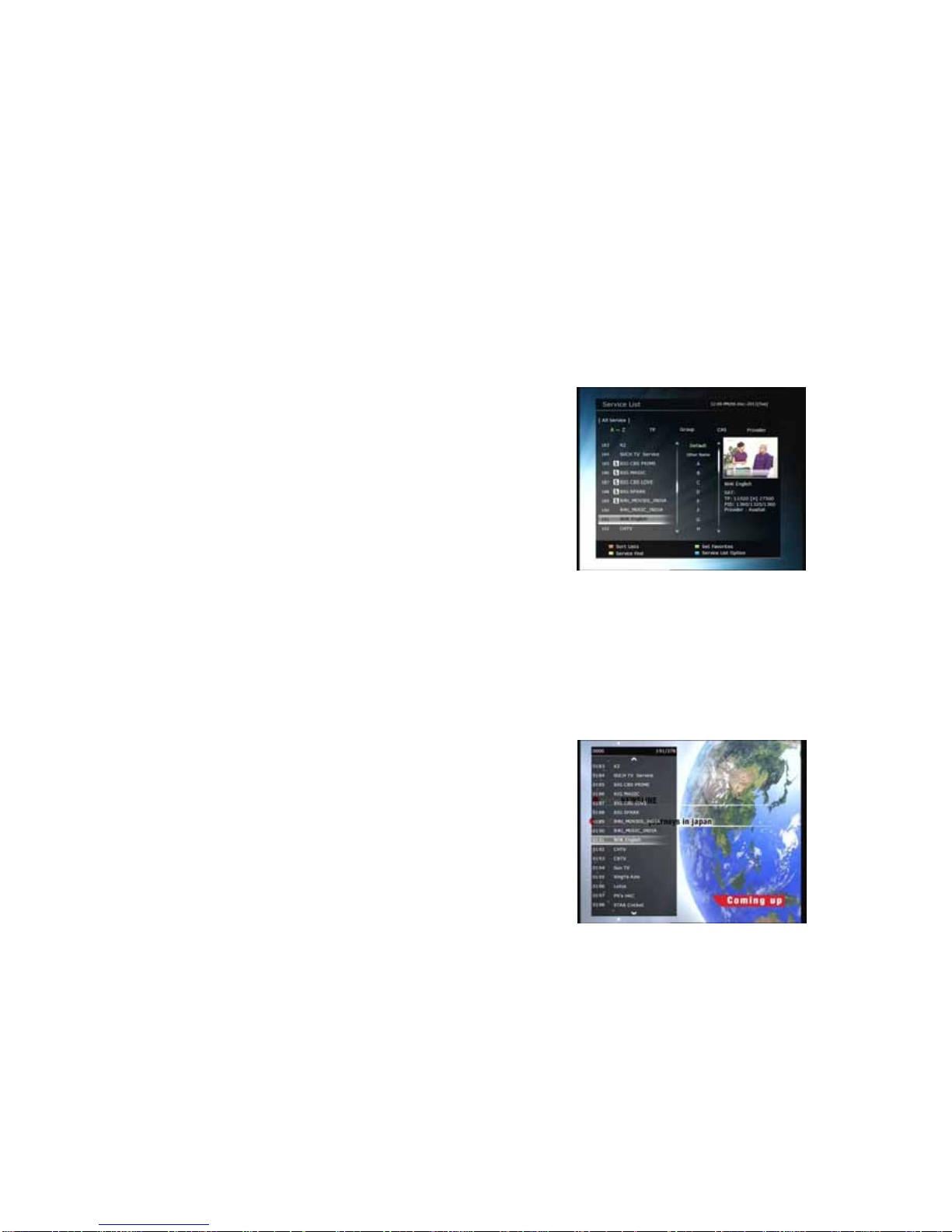

1.2 Using Service List ...............................................................................................................18
1.3 Using Simple Service List ...................................................................................................18
1.4 Using Recent Service List...................................................................................................19
2. Information Window..................................................................................................................19
3. Multi-Picture Display.................................................................................................................19
4. Electronic Program Guide (EPG).............................................................................................19
5. Favorite Group .........................................................................................................................20
6. Volume Control.........................................................................................................................20
7. Pause .......................................................................................................................................20
8. Subtitle .....................................................................................................................................21
9. Audio Control............................................................................................................................21
10.Teletext.....................................................................................................................................22
11. PIP (Picture in Picture).............................................................................................................22
PVR (Personal Video Recorder) Function ........................................................................ 24
1. Recording.................................................................................................................................24
1.1 Recording methods.............................................................................................................24
1.2 Recording Edit.....................................................................................................................26
1.3 Long Time recording ...........................................................................................................26
1.4 Pause during recording.......................................................................................................26
2. Time Shifting.............................................................................................................................28
3. Playback (Play List)..................................................................................................................29
3.1 Recorded Files....................................................................................................................29
3.2 Imported Files .....................................................................................................................30
3.3 Music...................................................................................................................................30
3.4 Photo...................................................................................................................................30
4. Bookmark .................................................................................................................................31
5. Trick mode................................................................................................................................31

4
Menu Map ............................................................................................................................ 32
Main Menu of Guide............................................................................................................ 33
1. System Tools............................................................................................................................33
1.1 Storage Manager.................................................................................................................33
1.2 Timer Settings.....................................................................................................................34
1.3 Service List Manager ..........................................................................................................34
1.4 Data Transfer.......................................................................................................................36
2. Configuration............................................................................................................................36
2.1 Recording Option................................................................................................................36
2.2 Parental Control ..................................................................................................................37
2.3 Display Setting....................................................................................................................37
2.4 Time Setting........................................................................................................................38
2.5 Language Setting................................................................................................................38
2.6 A/V Output Setting ..............................................................................................................39
3. Installation ................................................................................................................................40
3.1 Dish Setting.........................................................................................................................40
3.2 Positioner Setting................................................................................................................40
3.3 Service Search....................................................................................................................41
3.4 Network Setting...................................................................................................................42
3.5 System Recovery................................................................................................................43
3.6 System Information.............................................................................................................44
4. Utility.........................................................................................................................................44
4.1 Calculator............................................................................................................................44
4.2 Calendar..............................................................................................................................44
4.3 CAS (Conditional Access System)......................................................................................44
4.4 Plugin ..................................................................................................................................45
4.5 Free TV+ .............................................................................................................................46
4.6 Internet TV+ ........................................................................................................................47
Troubleshooting.................................................................................................................. 48
Specifications...................................................................................................................... 49

5
Precautions
1. Important Safety Instructions
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
Do not reverse the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or third prong is provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
Unplug this apparatus during lightning storms or when unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
WARNING : To Prevent fire or shock hazard do not expose the set to rain or moisture.
2. Notice
These servicing instructions are for use by qualified service personnel only. To reduce the risk of
electric shock, do not perform any servicing other than that contained in the operating instructions
unless you are qualified to do so.
The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,
such as vases, shall be placed on the apparatus.
The mains plug is used as the disconnect device. The disconnect device shall remain readily operable.

6
To reduce the risk of electric shock, do not remove
the cover (or back).
No user serviceable parts are inside.
Refer servicing to qualified service personnel.
The Lightning Flash with arrowhead symbol
within an equilateral triangle, is intended to
alert the user to the presence of un-insulated
"dangerous voltage" within the product
enclosure that may be of sufficient magnitude
to constitute a risk of shock to persons
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance
(servicing) instructions in the
literature accompanying the product
3. Copyright
This manual is protected by copyright laws.
Copy, use and reproduction of this manual in part or whole without Manufacturer’s prior written
approval are prohibited.
NOTE : Contents of this manual and features/specifications of the STB are subjected to
change without prior notice.
4. Disclaimer
The manufacturers, distributors and agents are not liable to any kind of damage caused by the
use of the information contained in this manual.
The instruction and descriptions which this manual contains are based on the time of this
manual's production.
The manufacturer constantly updates it with new functions and technology.
All the specifications are subject to change without prior notice.

7
Before You Begin
1. Main Features
Full HD Satellite PVR receiver
HDMI Video & Audio Output (576i, 576p, 720p, 1080i, 1080p)
H.264 / MPEG4 - HD,SD / DVB-S2 Compliant
Recording & Playback with External USB 2.0 Devices
Recording and Time Shifting Simultaneously
Event Recording by EPG
USB 2.0 Host ports (MP3 Player & JPEG Viewer)
Various Media File Format Playback (Xvid file Playback)
10/100 Base-Tx RJ-45 port
4-Digit Alphanumeric LED Display
Fully compliant with DVB-S2
Blind scan
Multi-LNB Controlled by DiSEqC Control Version 1.0, 1.1, 1.2 and USALS
Multi-Satellite Search
Support EPG (Electronic Program Guide)
On-Screen Display with Full Color & Resolution
Favorite Service Groups
Powerful Service Control by Favorites, Lock, Skip, Move and Delete
Service Sorting by Alphabet, Transponder and CAS
Multi-language Supported ( OSD & Menu )
Teletext Support
Maximum 10,000 Services Programmable
PIP(Picture in Picture)
Parental Lock / System Lock / Installation Lock
CVBS Video & Audio Output via RCA
Optical Output for Digital Audio(SPDIF)
Software & Service Database update via USB and Ethernet port

8
2. Accessories
NOTE : If any accessories listed above are missing, contact the sales representative where you
purchased this unit.
It is ready to be mounted behind of the TV. Use the screws provided to hold the components
in place.
User's Manual
A
AA size Batteries X2
A
DAPTOR
Remote Control
HDMI Cable
RCA cable (Option)

9
Hardware Description

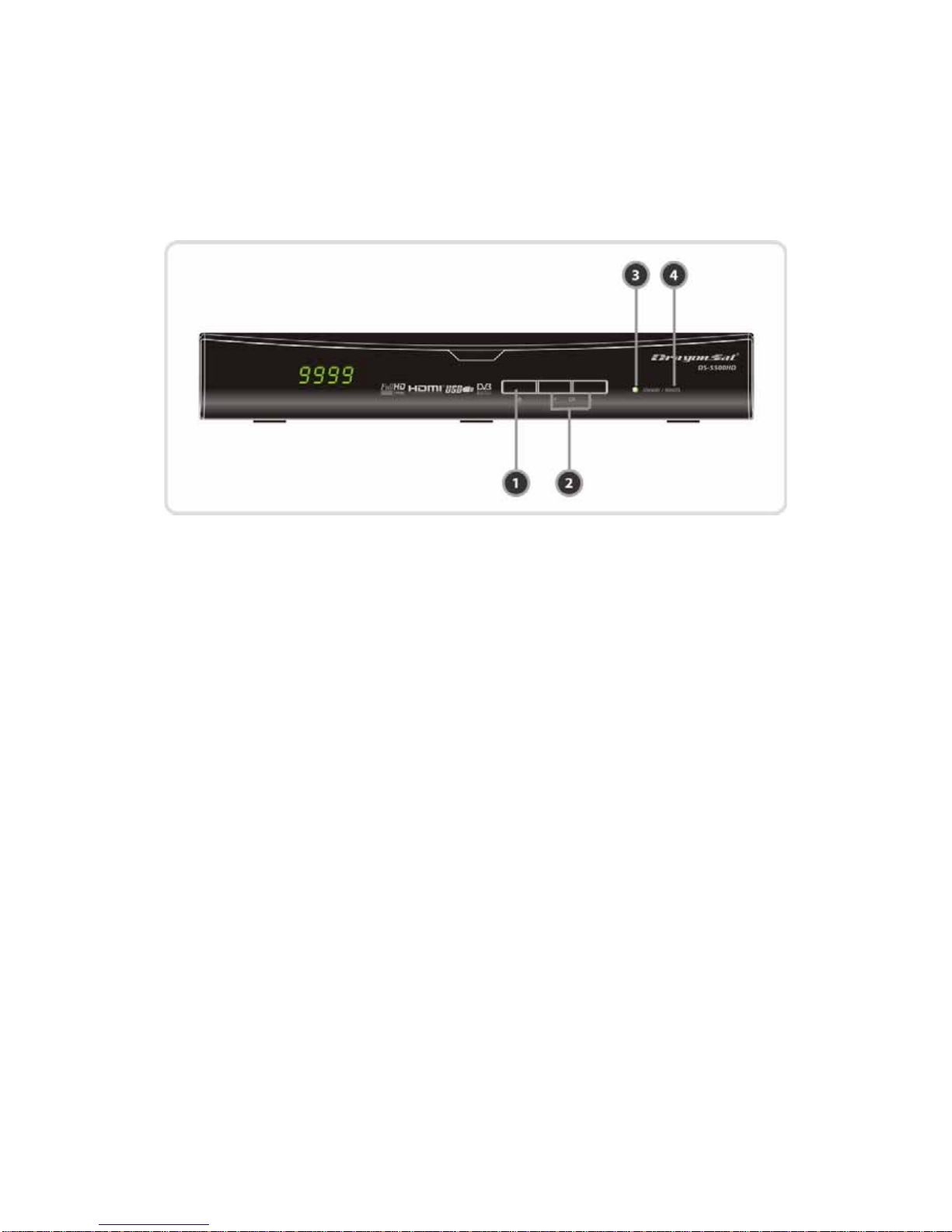

1. Front Panel Configuration
1. Display :
The 4-digit shows channel number or menu state in normal mode, shows local time in standby
mode.
2. POWER Button:
Press to switch between STANDBY and POWER ON modes.
3. CH Up/Down Button:
Press to change services in normal mode, to move the highlighted-bar UP/DOWN in menu mode.
4. STANDBY / REMOTE Indication LED (RED / GREEN):
The LED (RED) lights on in standby mode. / The LED (GREEN) lights on when a key on the Remote
Control is pressed.
5. Remote Sensor:
Receives signal from remote controller.

10
2. Rear Panel Configuration
1. IR extension : The 2.5mm mini plug is connected to the “IR Rec” jack to use IR extension when HS 7110
is mounted with optional bracket. (Front remote sensor will not be operated when IR Extension is
connected)
2. PCMCIA : To receive other pay-tv service you need a CA-Module(Viaccess, Irdeto, Nagravison, etc.)
and a smart card from the service provider.
3. SMART CARD READER : Insert smart card for encrypted service access.
4. LNB IN: Use to connect a satellite antenna.
5. LNB OUT: Use it when connecting to another STB for loop-through.
6. RS-232C : Serial port for firmware update and data transfer.
7. Ethernet : Local area network port for direct computer connection.
8. USB : Use it when connecting to external USB storage device.
9. HDMI : Connects to the TV by using a HDMI cable for the best quality picture and audio.
10. A/V OUT : Connects to the TV or VCR using a optional RCA cable (Stereo audio output / White, Red,
Composite video output / Yellow)
11. SPDIF : Connects to the audio system using a S/PDIF cable. (digital audio)
12. D/C power socket : Connects the adaptor
