Draper STORM FORCE HG1800SF User manual

These instructions accompanying the product are the original instructions. This document is part of the product,
keep it for the life of the product passing it on to any subsequent holder of the product. Read all these
instructions before assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been
designed, and contains all the necessary information to ensure its correct and safe use. By following all the
general safety instructions contained in this manual, it will ensure both product and operator safety, together
with longer life of the product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper
Tools policy of continuous improvement determines the right to make modifications without prior warning.

230V
HEAT GUN
58329
IMPORTANT:
The heating wire element of this heat
gun has a protective coating. Please note
that due to the vaporization of this
coating, some smoke may be
generated during the first 20 – 30
seconds of use only.

1. TITLE PAGE
1.1 INTRODUCTION:
USER MANUAL FOR: 230V Heat Gun
Stock No: 58329
Part No: HG1800SF
As our user manuals are continually updated, users should make sure that they use
the very latest version.
Downloads are available from: http://drapertools.com/manuals
Draper Tools Limited
Hursley Road
Chandler’s Ford
Eastleigh
Hampshire
SO53 1YF
UK
Website: drapertools.com
Product Help Line: [phone]
General Fax: [phone]
1.3 UNDERSTANDING THIS MANUALS SAFETY CONTENT:
WARNING! – Information that draws attention to the risk of injury or death.
CAUTION! – Information that draws attention to the risk of damage to the product or
surroundings.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited.
Permission is granted to reproduce this publication for personal and educational use
only. Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any
other form or means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.
1.2 REVISIONS:
Date first published May 2019.

2. CONTENTS
1 TITLE PAGE
1.1 INTRODUCTION .............................................................................................................2
1.2 REVISION HISTORY ......................................................................................................2
1.3 UNDERSTANDING THIS MANUAL ................................................................................2
1.4 COPYRIGHT NOTICE......................................................................................................2
2 CONTENTS
2.1 CONTENTS......................................................................................................................3
3 GUARANTEE
3.1 WARRANTY.....................................................................................................................4
4 INTRODUCTION
4.1 SCOPE ............................................................................................................................5
4.2 SPECIFICATION ..............................................................................................................5
4.3 HANDLING AND STORAGE ............................................................................................5
5 HEALTH AND SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE ...................................6
5.2 SPECIFIC SAFETY INSTRUCTIONS FOR HEAT GUNS................................................7
5.3 RESIDUAL RISK ..............................................................................................................8
5.4 CONNECTION TO THE POWER SUPPLY .....................................................................8
6 TECHNICAL DESCRIPTION
6.1 IDENTIFICATION .............................................................................................................9
7 UNPACKING AND CHECKING
7.1 PACKAGING ..................................................................................................................10
7.2 WHAT’S IN THE BOX.....................................................................................................10
8 BASIC HEAT GUN OPERATIONS
8.1 ON/OFF SWITCH ..........................................................................................................11
8.2 FREE-STANDING OPERATION ....................................................................................11
8.3 THERMAL OVERLOAD PROTECTION.........................................................................11

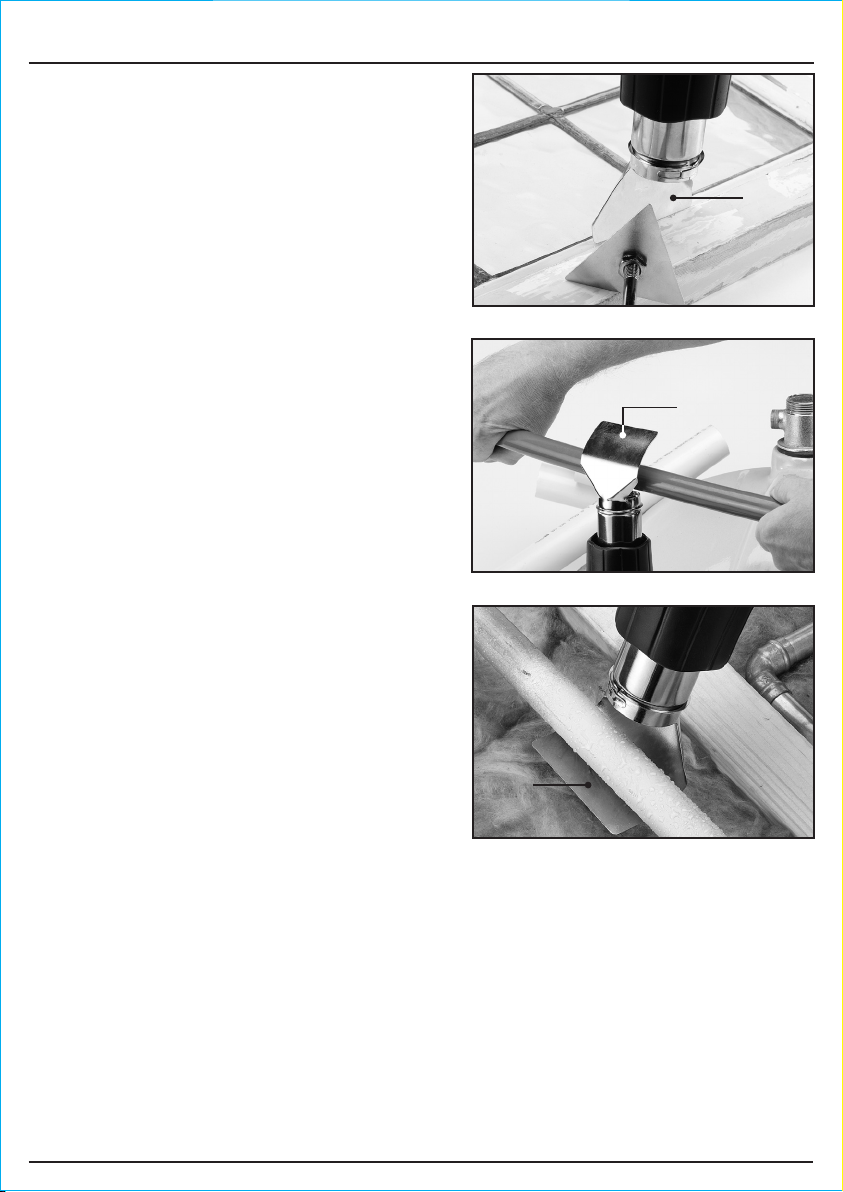

8.4 PAINT REMOVAL FROM WINDOW FRAMES...............................................................12
8.5 HEATING AND SHAPING PLASTIC TUBING................................................................12
8.6 DEFROSTING WATER PIPES.......................................................................................12
9 MAINTENANCE AND TROUBLESHOOTING
9.1 MAINTENANCE ............................................................................................................13
9.2 TROUBLESHOOTING GUIDE.......................................................................................13
10 OPTIONAL ACCESSORIES
10.1 OPTIONAL ACCESSORIES...........................................................................................14
11 DISPOSAL
11.1 DISPOSAL......................................................................................................................14
12 EXPLANATION OF SYMBOLS
12.1 EXPLANATION OF SYMBOLS ......................................................................................15
DECLARATION OF CONFORMITY .............................................................................. ENCLOSED
- 3 -

3. WARRANTY
3.1 WARRANTY
Draper tools have been carefully tested and inspected before shipment and are guaranteed to be
free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor or
contact
Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.
Telephone Sales Desk: [phone] or Product Help Line [phone].
A proof of purchase must be provided with the tool.
If upon inspection it is found that the fault occurring is due to defective materials or workmanship,
repairs will be carried out free of charge. This warranty period covering labour is 12 months from
the date of purchase except where tools are hired out when the warranty period is 90 days from
the date of purchase. The warranty is extended to 24 months for parts only. This warranty does not
apply to any consumable parts, any type of battery or normal wear and tear, nor does it cover any
damage caused by misuse, careless or unsafe handling, alterations, accidents, or repairs
attempted or made by any personnel other than the authorised Draper warranty repair agent.
Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges will
be quoted and made accordingly.
This warranty applies in lieu of any other warranty expressed or implied and variations of its terms
are not authorised.
Your Draper warranty is not effective unless you can produce upon request a dated receipt or
invoice to verify your proof of purchase within the warranty period.
Please note that this warranty is an additional benefit and does not affect your statutory rights.
Draper Tools Limited.
- 4 -

4. INTRODUCTION
4.1 SCOPE
Ideal for paint stripping, thawing pipes and other DIY applications.
This product is intended for domestic and infrequent light trade use only. Any application other
than that it was intended for, is considered misuse.
4.2 SPECIFICATION
Stock No................................................................................................................................... 58329
Part No. ............................................................................................................................ HG1800SF
Rated voltage ................................................................................................................ 230V~50Hz
Rated input ............................................................................................................................ 1800W
Temperature (approx.)
Setting 1 ......................................................................................................................... 400°C
Setting 2 ......................................................................................................................... 600°C
Air flow volume
Setting 1 .................................................................................................................... 250L/min
Setting 2 .................................................................................................................... 500L/min
Weight (machine only):........................................................................................................... 0.75kg
4.3 HANDLING AND STORAGE
– Care must be taken when handling this product.
● Dropping this power tool could have an effect on its accuracy and could also result in
personal injury. This product is not a toy and must be respected.
– Environmental conditions can have a detrimental effect on this product if neglected.
● Exposure to damp air can gradually corrode components.
● If the product is unprotected from dust and debris, components will become clogged.
● If not cleaned and maintained correctly or regularly, the machine will not perform at its best.
- 5 -

5. HEALTH AND SAFETY INFORMATION
- 6 -
5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE
Warning! Read all safety warnings, instructions, illustrations and specifications provided with this
power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
Work area safety
– Keep work area clean and well lit. Cluttered or dark areas invite accidents.
– Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
– Keep children and bystanders away while operating a power tool. Distractions can cause you
to lose control.
Electrical safety
– Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
– Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
– Do not expose power tools to rain or wet conditions. Water entering a power tool will increase
the risk of electric shock.
– Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
– When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of electric shock.
– If operating a power tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
Personal safety
– Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the influence of drugs, alcohol or medication.
A moment of inattention while operating power tools may result in serious personal injury.
– Use personal protective equipment. Always wear eye protection. Protective equipment such as
a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate
conditions will reduce personal injuries.
– Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool.
– Carrying power tools with your finger on the switch or energising power tools that have the
switch on invites accidents.
– Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
– Do not overreach. Keep proper footing and balance at all times. This enables better control of
the power tool in unexpected situations.
– Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
– If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related
hazards.

5. HEALTH AND SAFETY INFORMATION
– Do not let familiarity gained from frequent use of tools allow you to become complacent and
ignore tool safety principles. A careless action can cause severe injury within a fraction of a
second.
Power tool use and care
– Do not force the power tool. Use the correct power tool for your application. The correct power
tool will do the job better and safer at the rate for which it was designed.
– Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and must be repaired.
– Disconnect the plug from the power source and/or remove the battery pack, if detachable, from
the power tool before making any adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the power tool accidentally.
– Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the
hands of untrained users.
– Maintain power tools and accessories. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tool’s operation. If
damaged, have the power tool repaired before use. Many accidents are caused by poorly
maintained power tools.
– Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
– Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
– Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles
and grasping surfaces do not allow for safe handling and control of the tool in unexpected
situations.
Service
– Have your power tool serviced by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
5.2 SPECIFIC SAFETY INSTRUCTIONS FOR HEAT GUNS
Warning! Danger of explosion!
– This hot air gun can explosively ignite combustible fluids and gases.
– Do not work in a potentially explosive environment. Check the surrounding before starting to
work.
– Do not work on fuels or gas containers or in their vicinity, even when they are empty.
Warning! Danger of fire!
– Heat can ignite combustible materials including those that are hidden behind coverings, in
ceilings, floors or cavities.
– Inspect the work area before starting work and in case of doubt, abstain from using the hot air
tool.
– Do not point the unit at the same spot for extended periods.
- 7 -

5.3 RESIDUAL RISK
Important note: Although the safety instructions and operating manuals for our tools contain
extensive instructions of safe working with power tools, every power tool involves a certain
residual risk which can not be completely excluded by safety mechanisms. Power tools must
therefore always be operated with caution!
5.4 CONNECTION TO THE POWER SUPPLY
Caution: Risk of electric shock. Do not open.
This appliance is supplied with a moulded 3 pin mains plug for your safety. The value of the fuse
fitted is marked on the pin face of the plug. Should the fuse need replacing, ensure the substitute
is of the correct rating, approved to BS1362 and ASTA or BSI Kite marked.
ASTA
BSI
The fuse cover is removable with a small plain slot screwdriver. Ensure the fuse cover is replaced
before attempting to connect the plug to an electrical outlet. If the cover is missing, a replacement
must be obtained or the plug replaced with a suitable type.
If a replacement plug is to be fitted this must be carried out by a qualified electrician.
The damaged or incomplete plug, when cut from the cable should be disabled to prevent
connection to a live electrical outlet.
This appliance is Class II†and is designed for connection to a power supply matching that detailed
on the rating label and compatible with the plug fitted.
If an extension lead is required, use an approved and compatible lead rated for this appliance.
Follow all the instructions supplied with the extension lead.
†Double insulated : This product requires no earth connection as supplementary insulation is
applied to the basic insulation to protect against electric shock in the event of failure of the basic
insulation.
IMPORTANT
If using an extension lead, follow the instructions that came with your lead regarding maximum
load while cable is wound. If in doubt, ensure that the entire cable is unwound. Using a coiled
extension lead will generate heat which could melt the lead and cause a fire.
5. HEALTH AND SAFETY INFORMATION
- 8 -

6. TECHNICAL DESCRIPTION
6.1 IDENTIFICATION
- 9 -
(1) Moulded plug and cable.
(2) Heat selector.
(3) Metal nozzle.
(4) Air intake vents.
(3)
(4)
(2)
(1)

7. UNPACKING AND CHECKING
7.1 PACKAGING
Carefully remove the product from the packaging and examine it for any sign of damage that may
have happened during shipping. Lay the contents out and check them against the parts shown
below. If any part is damaged or missing, please contact the Draper Help Line (the telephone
number appears on the Title page) and do not attempt to use the product.
The packaging material should be retained at least during the warranty period, in case the
machine needs to be returned for repair.
Warning!
● Some of the packaging materials used may be harmful to children. Do not leave any of these
materials in the reach of children.
● If any of the packaging is to be thrown away, make sure they are disposed of correctly,
according to local regulations.
7.2 WHAT’S IN THE BOX
As well as the main product, there are several parts not fitted or attached to it.
(5) Triangular scraper.
(6) Conical reducer nozzle.
(7) Glass protection nozzle.
(8) Flat reducer nozzle.
(9) Hooked reflector nozzle.
- 10 -
(5)
(8)
(7)
(9)
(6)

8. BASIC HEAT GUN OPERATIONS
Note: Isolate the power source by either removing
the power supply plug from the socket, or battery
from the tool, before carrying out adjustment,
servicing or maintenance.
IMPORTANT: Ensure that the machine is switched
OFF before connecting to the power supply.
8.1 ON/OFF SWITCH – FIG.1
The ON/OFF switch has three positions/settings:
– Position O is off.
– Position 1 (I)is a 400°C heat (approx.)
– Position 2 (II)is high heat approximately 600°C.
8.2 FREE-STANDING OPERATION
– FIG.2
This heat gun can be positioned free-standing. This
allows the user to have both hands free which is
essential for certain applications, e.g. pipe bending,
plastic welding, etc. Position the heat gun on it's
end, only on a level suitable surface.
Note: Never leave the heat gun unattended or
switched on.
8.3 THERMAL OVERLOAD
PROTECTION
Please note this machine is fitted with a safety
thermal overload protection. If the product, is
continuously used too close to the workpiece resulting in over heating and the machine potentially
catching fire, the thermal overload protection will be activated and heat production will stop.
Note: The fan and motor will continue to run, drawing in cool air past the thermal overload
protection device. After a short time (10 seconds) the hot air gun will automatically start producing
heat again.
Warning! Remember the nozzle will remain hot for sometime – a safe storage location should be
used.
Continued thermal overload protection activation may cause permanent damage. If the heat gun
becomes too hot as in misuse situations then a permanent fail safe will operate and the heat gun
will become inoperable.
- 11 -
FIG.1
FIG.2

8. BASIC HEAT GUN OPERATIONS
- 12 -
FIG.3
FIG.4
FIG.5
Note: The following instructions should only be
used as a guide as the ideal temperature should be
ascertained by performing a test on the workpiece.
Heating efficiency will vary depending on the
properties of the workpiece, and the distance kept
between the metal nozzle and the workpiece itself.
8.4 PAINT REMOVAL FROM WINDOW
FRAMES – FIG.3
Important: Do not direct the hot air gun at the glass
during use as it may crack. Always use the glass
protection nozzle (7). Do not touch the glass with
the hot nozzle.
8.5 HEATING AND SHAPING PLASTIC
TUBING – FIG.4
Fit the reflector hook nozzle (9) . Switch the hot air
gun on to the low heat setting and, carefully heat
the tubing evenly moving it from side to side.
8.6 DEFROSTING WATER PIPES
– FIG.5
Important: Do not defrost plastic tubing/piping.
Fit the reflector hook nozzle
(9) . Switch the hot air
gun on to the higher heat setting and, gently heat
the frozen area of the pipe starting from the edge of
the area and moving in towards the centre.
Important: Take care not to heat the pipe too
quickly as this could cause the pipe to crack and
burst. Do not overheat water pipe joints as these
are only soldered together (max. 200ºC).
(7)
(9)
(9)

- 13 -
Problem Possible Cause Remedy
Motor does not start. 1. Blown fuse in plug. 1. Replace fuse.
2. Return to an authorised
service agent for diagnosis.
2. Unknown.
9. MAINTENANCE AND TROUBLESHOOTING
9.1 MAINTENANCE
Regular inspection and cleaning reduces the necessity for maintenance operations and will keep
your tool in good working condition.
The motor must be correctly ventilated during tool operation. Avoid blocking the air inlets and
vacuum the ventilation slots regularly.
9.2 TROUBLESHOOTING GUIDE
Note: Isolate the power source by either removing the power supply plug from the socket, or
battery from the tool, before carrying out adjustment, servicing or maintenance.

- 14 -
11. DISPOSAL
11.1 DISPOSAL
– At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is
disposed of according to national regulations.
– Contact your local authority for details of collection schemes in your area.
In all circumstances:
● Do not dispose of power tools with domestic waste.
● Do not incinerate.
● Do not dispose of WEEE* as unsorted municipal waste.
* Waste Electrical & Electronic Equipment.
10. OPTIONAL ACCESSORIES
10.1 OPTIONAL ACCESSORIES
A full range of accessories are available from Draper Tools.
Please visit our website for details:
www.drapertools.com

- 15 -
12.1 EXPLANATION OF SYMBOLS
12. EXPLANATION OF SYMBOLS
WEEE –
Waste Electrical &
Electronic Equipment.
Do not dispose of Waste Electrical
& Electronic Equipment in with
domestic rubbish.
Class II construction
(Double insulated).
Read the instruction manual.
Wear face mask and safety
glasses.
Wear protective gloves.
Do not abandon into the
environment.
Keep out of the reach of children.
Warning!

Draper Tools Limited, Hursley Road,
Chandler’s Ford, Eastleigh, Hampshire. SO53 1YF. U.K.
Help line: [phone]
Sales Desk: [phone]
Internet: drapertools.com
E-mail: [email protected]
General Enquiries: [phone]
Service/Warranty Repair Agent:
For aftersales servicing or warranty repairs, please contact the
Draper Tools Help line for details of an agent in your local area.
©Published by Draper Tools Limited.
No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means,
electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
CONTACTS
YOUR DRAPER STOCKIST
TACH0719
