1. TITLE PAGE
1.1 INTRODUCTION:
USER MANUAL FOR: 230V Circular Saws
Stock No: 56791
Part No: CS1300D185
As our user manuals are continually updated, users should make sure that they use
the very latest version.
Downloads are available from: http://drapertools.com/manuals
Draper Tools Limited
Hursley Road
Chandler’s Ford
Eastleigh
Hampshire
SO53 1YF
UK
Website: drapertools.com
Product help line: [phone]
General Fax: [phone]
1.3 UNDERSTANDING THIS MANUALS SAFETY CONTENT:
WARNING! – Information that draws attention to the risk of injury or death.
CAUTION! – Information that draws attention to the risk of damage to the product or
surroundings.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited.
Permission is granted to reproduce this publication for personal and educational use
only. Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any
other form or means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.
1.2 REVISIONS:
Date first published November 2018.
- 198 -
NOTES

2. CONTENTS
1. TITLE PAGE
1.1 INTRODUCTION..........................................................................................................2
1.2 REVISION HISTORY ..................................................................................................2
1.3 UNDERSTANDING THIS MANUAL .............................................................................2
1.4 COPYRIGHT NOTICE .................................................................................................2
2. CONTENTS
2.1 CONTENTS..................................................................................................................3
3. WARRANTY
3.1 WARRANTY................................................................................................................. 4
4. INTRODUCTION
4.1 SCOPE........................................................................................................................5
4.2 SPECIFICATION .......................................................................................................... 5
4.3 HANDLING & STORAGE .............................................................................................5
5. HEALTH AND SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE ............................6-7
5.2 ADDITIONAL SAFETY INSTRUCTIONS FOR ALL SAWS.......................................7-8
5.3 PENDULUM GUARDS................................................................................................. 8
5.4 ADDITIONAL SAFETY INSTRUCTIONS FOR CIRCULAR SAW BLADES..............8-9
5.5 ADDITIONAL SAFETY INSTRUCTIONS FOR LASER PRODUCTS .......................... 9
5.6 RESIDUAL RISK ..........................................................................................................9
5.7 CONNECTION TO THE POWER SUPPLY................................................................10
6. TECHNICAL DESCRIPTION
6.1 IDENTIFICATION ....................................................................................................... 11
7. UNPACKING AND CHECKING
7.1 PACKAGING .............................................................................................................. 12
7.2 WHAT’S IN THE BOX................................................................................................. 12
8. PREPARING THE CIRCULAR SAW
8.1 BLADE INSTALLATION AND REPLACEMENT......................................................... 13
9. BASIC CIRCULAR SAW OPERATIONS
9.1 ON/OFF TRIGGER SWITCH ..................................................................................... 14
9.2 DUST EXTRACTION .................................................................................................14
9.3 CUTTING DEPTH ADJUSTMENT............................................................................. 14
9.4 CUTTING ANGLE ADJUSTMENT ............................................................................. 14
9.5 PARALLEL GUIDE ..................................................................................................... 15
9.6 LASER GUIDE ...........................................................................................................15
9.7 SAW OPERATION .....................................................................................................15
10. MAINTENANCE AND TROUBLESHOOTING
10. MAINTENANCE .........................................................................................................16
10.2 TROUBLESHOOTING ...............................................................................................16
11. OPTIONAL ACCESSORIES
11.1 OPTIONAL ACCESSORIES.......................................................................................16
12. DISPOSAL
12.1 DISPOSAL..................................................................................................................17
13. EXPLANATION OF SYMBOLS
13. EXPLANATION OF SYMBOLS ..................................................................................18
DECLARATION OF CONFORMITY .............................................................................. ENCLOSED
- 3 -
- 18 -

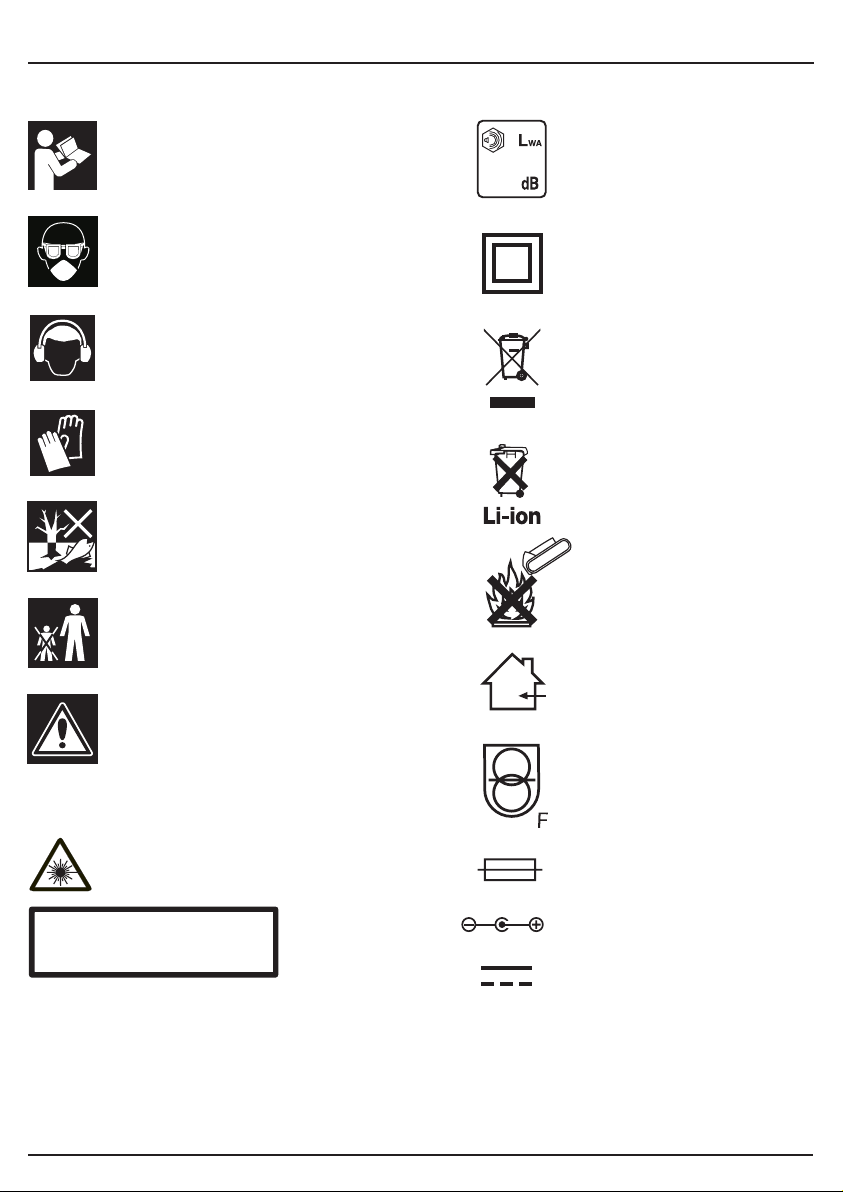

13.1 EXPLANATION OF SYMBOLS
13. EXPLANATION OF SYMBOLS
Read the instruction manual.
Wear face mask and safety
glasses.
Wear ear defenders.
Wear protective gloves.
Do not abandon into the
environment.
Keep out of the reach of children.
Warning!
99
Single value noise marking.
(Maximum declared A-Weighted
sound power level in decibels).
For indoor use only.
Do not expose to rain.
Short-circuit-proof safety
isolating transformer.
Lithium-ion product.
WEEE –
Waste Electrical &
Electronic Equipment.
Do not dispose of Waste Electrical
& Electronic Equipment in with
domestic rubbish.
Class II construction
(Double insulated).
Polarity indication.
Rated voltage.
Do not incinerate or
throw onto fire.
Fuse.
130°
Warning!
Laser product
WARNING: LASER RADIATION – DO NOT STARE INTO BEAM
Class 2 LASER PRODUCT
Maximum Output Power
________________________
1mW
Emitted Wavelength
____________________________
650nM
EN60825-1:1994 Safety of Laser Products
1. TITLE PAGE
1.1 INTRODUCTION:
USER MANUAL FOR: 230V Circular Saws
Stock No: 56791
Part No: CS1300D185
As our user manuals are continually updated, users should make sure that they use
the very latest version.
Downloads are available from: http://drapertools.com/manuals
Draper Tools Limited
Hursley Road
Chandler’s Ford
Eastleigh
Hampshire
SO53 1YF
UK
Website: drapertools.com
Product help line: [phone]
General Fax: [phone]
1.3 UNDERSTANDING THIS MANUALS SAFETY CONTENT:
WARNING! – Information that draws attention to the risk of injury or death.
CAUTION! – Information that draws attention to the risk of damage to the product or
surroundings.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited.
Permission is granted to reproduce this publication for personal and educational use
only. Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any
other form or means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.
1.2 REVISIONS:
Date first published November 2018.
- 198 -
NOTES

3. WARRANTY
3.1 WARRANTY
Draper tools have been carefully tested and inspected before shipment and are guaranteed to be
free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor or
contact
Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.
Telephone Sales Desk: [phone] or Product Help Line [phone].
A proof of purchase must be provided with the tool.
If upon inspection it is found that the fault occurring is due to defective materials or workmanship,
repairs will be carried out free of charge. This warranty period covering labour is 12 months from
the date of purchase except where tools are hired out when the warranty period is 90 days from
the date of purchase. The warranty is extended to 24 months for parts only. This warranty does not
apply to any consumable parts, any type of battery or normal wear and tear, nor does it cover any
damage caused by misuse, careless or unsafe handling, alterations, accidents, or repairs
attempted or made by any personnel other than the authorised Draper warranty repair agent.
Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges will
be quoted and made accordingly.
This warranty applies in lieu of any other warranty expressed or implied and variations of its terms
are not authorised.
Your Draper warranty is not effective unless you can produce upon request a dated receipt or
invoice to verify your proof of purchase within the warranty period.
Please note that this warranty is an additional benefit and does not affect your statutory rights.
Draper Tools Limited.
- 4 -
- 17 -
12. DISPOSAL
12.1 DISPOSAL
– At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is
disposed of according to national regulations.
– Contact your local authority for details of collection schemes in your area.
In all circumstances:
● Do not dispose of power tools with domestic waste.
● Do not incinerate.
● Do not dispose of WEEE* as unsorted municipal waste.
* Waste Electrical & Electronic Equipment.

3. WARRANTY
3.1 WARRANTY
Draper tools have been carefully tested and inspected before shipment and are guaranteed to be
free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor or
contact
Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.
Telephone Sales Desk: [phone] or Product Help Line [phone].
A proof of purchase must be provided with the tool.
If upon inspection it is found that the fault occurring is due to defective materials or workmanship,
repairs will be carried out free of charge. This warranty period covering labour is 12 months from
the date of purchase except where tools are hired out when the warranty period is 90 days from
the date of purchase. The warranty is extended to 24 months for parts only. This warranty does not
apply to any consumable parts, any type of battery or normal wear and tear, nor does it cover any
damage caused by misuse, careless or unsafe handling, alterations, accidents, or repairs
attempted or made by any personnel other than the authorised Draper warranty repair agent.
Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges will
be quoted and made accordingly.
This warranty applies in lieu of any other warranty expressed or implied and variations of its terms
are not authorised.
Your Draper warranty is not effective unless you can produce upon request a dated receipt or
invoice to verify your proof of purchase within the warranty period.
Please note that this warranty is an additional benefit and does not affect your statutory rights.
Draper Tools Limited.
- 4 - - 17 -
12. DISPOSAL
12.1 DISPOSAL
– At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is
disposed of according to national regulations.
– Contact your local authority for details of collection schemes in your area.
In all circumstances:
● Do not dispose of power tools with domestic waste.
● Do not incinerate.
● Do not dispose of WEEE* as unsorted municipal waste.
* Waste Electrical & Electronic Equipment.
4. INTRODUCTION
4.1 SCOPE
As part of our core range, this product is suitable for enthusiasts and tradespeople alike.
As part of our core range, this product is suitable for enthusiasts and tradespeople alike. Any
application other than that it was intended for, is considered misuse.
4.2 SPECIFICATION
Stock No........................................................................................................................................56791
Part No. ............................................................................................................................. CS1300D185
Motor:
Rated voltage .................................................................................................................. 230V~
Rated frequency ............................................................................................................... 50Hz
Rated input .................................................................................................................... 1300W
Saw blade:
Diameter................................................................................................................................185mm
Bore Ø.....................................................................................................................................16mm
Thickness ...............................................................................................................................2.4mm
Maximum depth of cut:
90°.......................................................................................................................................... 63mm
45°.......................................................................................................................................... 42mm
Revolutions per minute (no load): ......................................................................................... 4,500r/min
Sound pressure level (LpA)*: ................................................................................................ 95.5dB(A)
Sound power level (LWA)**: ................................................................................................ 106.5dB(A)
Uncertainty (K): .......................................................................................................................... 3dB(A)
Vibration level Main handle†: ..............................................................................
2.462m/s2 , K=1.5 m/s2
Weight (machine only):.................................................................................................................. 4.4kg
†When sawing in wood.
* Continuous A-Weighted Sound Pressure Level at the workstation in accordance to and declared
according to EN60745.
** The typical A-weighted noise level determined according to EN60745
4.3 HANDLING & STORAGE
– Care must be taken when handling this product.
● Dropping this power tool could have an effect on its accuracy and could also result in personal
injury. This product is not a toy and must be respected.
– Environmental conditions can have a detrimental effect on this product if neglected.
● Exposure to damp air can gradually corrode components.
● If the product is unprotected from dust and debris, components will become clogged.
● If not cleaned and maintained correctly or regularly, the machine will not perform at its best..
10. MAINTENANCE AND TROUBLESHOOTING
- 5 -
- 16 -
10.1 MAINTENANCE
Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your
tool in good working condition.
The motor must be correctly ventilated during tool operation. Avoid blocking the air inlets and vacuum
the ventilation slots regularly.
10.2 TROUBLESHOOTING
11. OPTIONAL ACCESSORIES
11.1 OPTIONAL ACCESSORIES
A full range of accessories are available from Draper Tools.
Please visit our website for details: www.drapertools.com
Note: Remove the plug from the socket before carrying out adjustment, servicing or maintenance.
3. Other.
2. Have brushes replaced by an
authorised service centre.
3. Contact an authorised service
centre.
Problem Cause Remedy
2. Brushes worn.
Machine does not
start.
1. Fuse. 1. Replace time delay fuse or
reset circuit breaker.
Poor cutting
performance.
1. Saw blade blunt. 1. Replace saw blade.
2. Saw blade incorrectly mounted. 2. Remove & refit saw blade as
per instructions.
3. Incorrect saw blade selection. 3. Seek advice on suitable saw
blades.
Saw vibrates. 1. Saw blade distorted. 1. Stop machine immediately &
replace blade.
2. Saw blade incorrectly mounted. 2. Stop machine immediately.
Remove & refit saw blade as
per instructions.

(6)
(7)
9.5 PARALLEL GUIDE – FIG.8
– Pass the parallel guide (6) through the slots in the
base and secure with locking knob
(7) .
– Set the required cutting width, using the width scale
markings as a guide.
– Make a test cut on a scrap piece of timber prior to
making any cuts on the workpiece and adjust
accordingly.
– For greater accuracy, measure between the edge of
the blade allowing for the kerf of the blade and the
parallel guide's face.
9.6 LASER GUIDE – FIG.9
Warning! Laser radiation. Do not stare into
beam. Class 2 laser product.
The laser beam aperture
(10) is
activated by pressing button
(9) and
will stay on until the button is pressed
again.
– Mark the line of the cut on the
workpiece.
– Adjust the depth and/or bevel angles
of the cut as required.
– Turn on the laser guide by pressing the laser on/off
button
(9) and align the line of the cut on the
workpiece.
– When the blade is at its maximum speed (approx. 2
sec.) make the cut.
– On completion of the cut, switch off the laser.
9.7 SAW OPERATION
Caution: When using, always cut forward in a straight
line without forcing the saw. Forcing or twisting the saw
will put a strain on the motor, and at the very least result
in decreased efficiency or possible overheating
damage. More seriously, it could cause dangerous
kickback of the saw resulting in severe injury.
– Always operate the saw firmly, using the rear and
auxiliary handles.
– Offer the base of the saw to the workpiece without
blade contact.
– Switch on and wait until full speed is attained, then
advance the saw, keeping it flat and cutting
smoothly until the cut is complete – Straight line
sawing at a uniform speed of advance will obtain
the best clean cuts.
– After releasing the trigger switch, wait until the blade
has fully stopped before withdrawing.
5. HEALTH AND SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE
When using any type of power tool there are steps that should be taken to make sure that you, as the
user, remain safe.
Common sense and a respect for the tool will help reduce the risk of injury.
Read the instruction manual fully. Do not attempt any operation until you have read and understood
this manual.
Most important you must know how to safely start and stop this machine, especially in an emergency.
Keep the work area tidy and clean. Attempting to clear clutter from around the machine during use
will reduce your concentration. Mess on the floor creates a trip hazard. Any liquid spilt on the floor
could result in you slipping.
Find a suitable location. If the machine is bench mounted, the location should provide good natural
light or artificial lighting as a replacement. Avoid damp and dust locations as it will have a negative
effect on the machine’s performance. If the machine is portable do not expose the tool to rain. In all
cases do not operate power tools near any flammable materials.
Keep bystanders away. Children, onlookers and passers by must be restricted from entering the work
area for their own protection. The barrier must extend a suitable distance from the tool user.
Unplug and house all power tools that are not in use. A power tool should never be left unattended
while connected to the power supply. They must be housed in a suitable location, away locked up and
from children. This includes battery chargers.
Do not overload or misuse the tool. All tools are designed for a purpose and are limited to what they
are capable of doing. Do not attempt to use a power tool (or adapt it in any way) for an application it is
not designed for. Select a tool appropriate for the size of the job. Overloading a tool will result in tool
failure and user injury. This covers the use of accessories.
Dress properly. Loose clothing, long hair and jewellery are all dangerous because they can become
entangled in moving machinery. This can also result in parts of body being pulled into the machine.
Clothing should be close fitted, with any long hair tired back and jewellery and neck ties removed.
Footwear must be fully enclosed and have a non-slip sole.
Wear personal protective equipment (PPE). Dust, noise, vibration and swarf can all be dangerous if
not suitably protected against. If the work involving the power tool creates dust or fumes wear a dust
mask. Vibration to the hand, caused by operating some tools for longer periods must be protected
against. Wear vibration reducing gloves and allow long breaks between uses. Protect against dust and
swarf by wearing approved safety goggles or a face shield. These are some of the more common
hazards and preventions, however, always find out what hazards are associated with the
machine/work process and wear the most suitable protective equipment available.
Do not breathe contaminated air. If the work creates dust or fumes connect the machine (if possible)
to an extraction system either locally or remotely. Working outdoors can also help if possible.
Move the machine as instructed. If the machine is hand held, do not carry it by the power supply
cable. If the product is heavy, employ a second or third person to help move it safely or use a
mechanical device. Always refer to the instructions for the correct method.
Do not overreach. Extending your body too far can result in a loss of balance and you falling. This
could be from a height or onto a machine and will result in injury.
Maintain your tools correctly. A well maintained tool will do the job safely. Replace any damaged or
missing parts immediately with original parts from the manufacturer. As applicable, keep blades sharp,
moving parts clean, oiled or greased, handles clean, and emergency devices working.
- 6 -
- 15 -
9. BASIC CIRCULAR SAW OPERATIONS
FIG.8
FIG.9
(9)
(10)

5. HEALTH AND SAFETY INFORMATION
Wait for the machine to stop. Unless the machine is fitted with a safety brake, some parts may
continue to move due to momentum. Wait for all parts to stop, then unplug it from the power supply
before making any adjustments, carrying out maintenance operations or just finishing using the tool.
Remove and check setting tools. Some machinery requires the use of additional tools or keys to set,
load or adjust the power tool. Before starting the power tool always check to make certain they have
been removed and are safely away from the machine.
Prevent unintentional starting. Before plugging any machine in to the power supply, make sure the
switch is in the OFF position. If the machine is portable, do not hold the machine near the switch and
take care when putting the machine down, that nothing can operate the switch.
Carefully select an extension lead. Some machines are not suitable for use with extension leads. If
the tool is designed for use outdoors, use an extension lead also suitable for that environment. When
using an extended lead, select one capable of handling the current (amps) drawn by the machine in
use. Fully extend the lead regardless of the distance between the power supply and the tool. Excess
current (amps) and a coiled extension lead will both cause the cable to heat up and can result in fire.
Concentrate and stay alert. Distractions are likely to cause an accident. Never operate a power tool if
you are under the influence of drugs (prescription or otherwise), including alcohol or if you are feeling
tired. Being disorientated will result in an accident.
Have this tool repaired by a qualified person. This tool is designed to conform to the relevant
international and local standards and as such should be maintained and repaired by someone
qualified, using only original parts supplied by the manufacturer. This will ensure the tool remains safe
to use.
5.2 ADDITIONAL SAFETY INSTRUCTIONS FOR ALL SAWS
Keep hands away from cutting area and the blade. Keep your second hand on the auxiliary handle,
or motor housing. If both hands are holding the saw, they cannot be cut by the blade.
Do not reach underneath the workpiece. The guard cannot protect you from the blade below the
workpiece.
Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth
should be visible below the workpiece.
Never hold piece being cut in your hands or across your leg. Secure the workpiece to a stable
platform. It is important to support the work properly to minimise body exposure, blade binding or loss
of control.
Hold power tool by insulated gripping surfaces when performing an operation where the
cutting tool may contact hidden wiring or its own cord. Contact with a “live” wire will also make
exposed metal parts of the power tool “live” and shock the operator.
When ripping always use a rip fence or straight edge guide. This improves the accuracy of cut and
reduces chance of blade binding.
Always use blade with correct size and shape (diamond versus round) of arbour holes. Blades
that do not match the mounting hardware of the saw will run eccentrically, causing loss of control.
Never use damaged or incorrect blade washers or bolt. The blade washers and bolt were specially
designed for your saw, for optimum performance and safety of operation.
Causes and operator prevention of kickback:
– Kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an
uncontrolled saw to lift up and out of the workpiece towards the operator.
– When the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the motor
reaction drives the unit rapidly back towards the operator.
– If the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can
dig into the top surface of the wood causing the blade to climb out of the kerf and jump back toward
the operator.
- 7 -
9. BASIC CIRCULAR SAW OPERATIONS

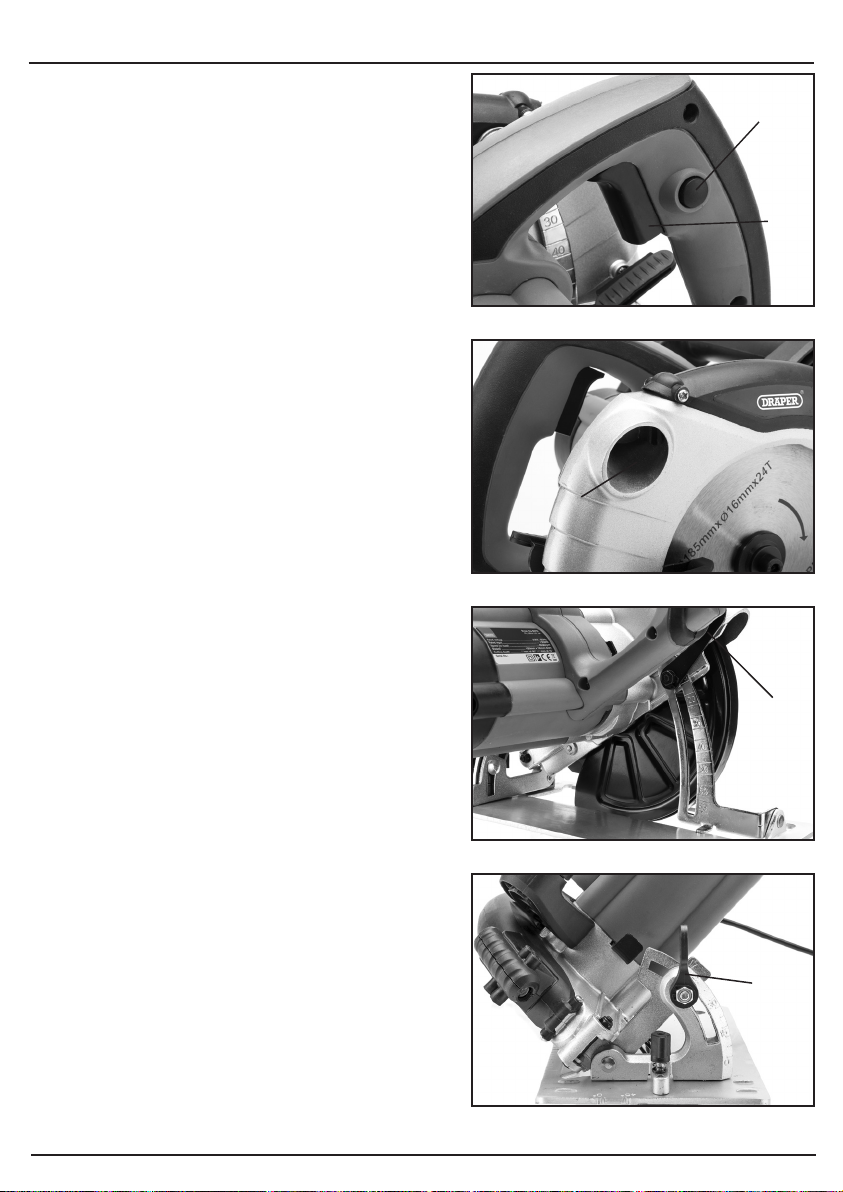

9.1 ON/OFF TRIGGER SWITCH – FIG.4
The trigger switch (16) is operated in conjunction with
a safety release button
(15) so that it is not possible
to start the circular saw by accident.
– To start the saw, press the safety button
(15) first
and then depress the trigger switch
(16) .
● Always wear ear defenders during use.
9.2 DUST EXTRACTION – FIG.5
Inhalation of dust particles can be detrimental to
health. The dust outlet
(1) must be connected with a
dust extraction machine.
Note: Due to the outlet diameter, a size adaptation
may be necessary.
Warning! All wood dust (including dust from
composites like chipboards and fibre boards etc.) is
hazardous to health. It can affect the nose, the
respiratory system and the skin. For example MDF
(medium density fibreboard) which contains
formaldehyde is a known carcinogen. In addition to
the above measures a correctly fitted dust mask,
suitable for the activity and in accordance to the
relevant standard, must be worn.
9.3 CUTTING DEPTH ADJUSTMENT –
FIG.6
– To adjust the cutting depth, loosen the cutting
depth adjustment knob
(12) .
– Set the required cutting depth, using the depth
scale markings as a guide.
Note: For greater accuracy measure the tip of the
blade back to the base.
– Re-tighten the cutting depth adjustment knob
(12)
when the required depth is set.
9.4 CUTTING ANGLE ADJUSTMENT –
FIG.7
To alter the angle between 0° to 45°, loosen the bevel
angle locking knob
(8) .
Note: The scale is a guide. If more accuracy is
required a protractor should be used off the underside
of the base against the blade.
– When the required angle is set, re-tighten the
bevel angle locking knob
(8) .
FIG.4
FIG.5
FIG.6
FIG.7
(15)
(16)
(1)
(12)
(8)
- 14 -
(6)
(7)
9.5 PARALLEL GUIDE – FIG.8
– Pass the parallel guide (6) through the slots in the
base and secure with locking knob
(7) .
– Set the required cutting width, using the width scale
markings as a guide.
– Make a test cut on a scrap piece of timber prior to
making any cuts on the workpiece and adjust
accordingly.
– For greater accuracy, measure between the edge of
the blade allowing for the kerf of the blade and the
parallel guide's face.
9.6 LASER GUIDE – FIG.9
Warning! Laser radiation. Do not stare into
beam. Class 2 laser product.
The laser beam aperture
(10) is
activated by pressing button
(9) and
will stay on until the button is pressed
again.
– Mark the line of the cut on the
workpiece.
– Adjust the depth and/or bevel angles
of the cut as required.
– Turn on the laser guide by pressing the laser on/off
button
(9) and align the line of the cut on the
workpiece.
– When the blade is at its maximum speed (approx. 2
sec.) make the cut.
– On completion of the cut, switch off the laser.
9.7 SAW OPERATION
Caution: When using, always cut forward in a straight
line without forcing the saw. Forcing or twisting the saw
will put a strain on the motor, and at the very least result
in decreased efficiency or possible overheating
damage. More seriously, it could cause dangerous
kickback of the saw resulting in severe injury.
– Always operate the saw firmly, using the rear and
auxiliary handles.
– Offer the base of the saw to the workpiece without
blade contact.
– Switch on and wait until full speed is attained, then
advance the saw, keeping it flat and cutting
smoothly until the cut is complete – Straight line
sawing at a uniform speed of advance will obtain
the best clean cuts.
– After releasing the trigger switch, wait until the blade
has fully stopped before withdrawing.
5. HEALTH AND SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE
When using any type of power tool there are steps that should be taken to make sure that you, as the
user, remain safe.
Common sense and a respect for the tool will help reduce the risk of injury.
Read the instruction manual fully. Do not attempt any operation until you have read and understood
this manual.
Most important you must know how to safely start and stop this machine, especially in an emergency.
Keep the work area tidy and clean. Attempting to clear clutter from around the machine during use
will reduce your concentration. Mess on the floor creates a trip hazard. Any liquid spilt on the floor
could result in you slipping.
Find a suitable location. If the machine is bench mounted, the location should provide good natural
light or artificial lighting as a replacement. Avoid damp and dust locations as it will have a negative
effect on the machine’s performance. If the machine is portable do not expose the tool to rain. In all
cases do not operate power tools near any flammable materials.
Keep bystanders away. Children, onlookers and passers by must be restricted from entering the work
area for their own protection. The barrier must extend a suitable distance from the tool user.
Unplug and house all power tools that are not in use. A power tool should never be left unattended
while connected to the power supply. They must be housed in a suitable location, away locked up and
from children. This includes battery chargers.
Do not overload or misuse the tool. All tools are designed for a purpose and are limited to what they
are capable of doing. Do not attempt to use a power tool (or adapt it in any way) for an application it is
not designed for. Select a tool appropriate for the size of the job. Overloading a tool will result in tool
failure and user injury. This covers the use of accessories.
Dress properly. Loose clothing, long hair and jewellery are all dangerous because they can become
entangled in moving machinery. This can also result in parts of body being pulled into the machine.
Clothing should be close fitted, with any long hair tired back and jewellery and neck ties removed.
Footwear must be fully enclosed and have a non-slip sole.
Wear personal protective equipment (PPE). Dust, noise, vibration and swarf can all be dangerous if
not suitably protected against. If the work involving the power tool creates dust or fumes wear a dust
mask. Vibration to the hand, caused by operating some tools for longer periods must be protected
against. Wear vibration reducing gloves and allow long breaks between uses. Protect against dust and
swarf by wearing approved safety goggles or a face shield. These are some of the more common
hazards and preventions, however, always find out what hazards are associated with the
machine/work process and wear the most suitable protective equipment available.
Do not breathe contaminated air. If the work creates dust or fumes connect the machine (if possible)
to an extraction system either locally or remotely. Working outdoors can also help if possible.
Move the machine as instructed. If the machine is hand held, do not carry it by the power supply
cable. If the product is heavy, employ a second or third person to help move it safely or use a
mechanical device. Always refer to the instructions for the correct method.
Do not overreach. Extending your body too far can result in a loss of balance and you falling. This
could be from a height or onto a machine and will result in injury.
Maintain your tools correctly. A well maintained tool will do the job safely. Replace any damaged or
missing parts immediately with original parts from the manufacturer. As applicable, keep blades sharp,
moving parts clean, oiled or greased, handles clean, and emergency devices working.
- 6 - - 15 -
9. BASIC CIRCULAR SAW OPERATIONS
FIG.8
FIG.9
(9)
(10)

8. PREPARING THE CIRCULAR SAW
5. HEALTH AND SAFETY INFORMATION
- 8 -
– Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can
be avoided by taking proper precautions as given below.
●Maintain a firm grip with both hands on the saw and position your arms to resist kickback forces.
Position your body to either side of the blade, but not in line with the blade. Kickback could
cause the saw to jump backwards, but kickback forces can be controlled by the operator, if
proper precautions are taken.
●When blade is binding, or when interrupting a cut for any reason, release the trigger and hold
the saw motionless in the material until the blade comes to a complete stop. Never attempt to
remove the saw from the work or pull the saw backward while the blade is in motion or kickback
may occur. Investigate and take corrective actions to eliminate the cause of blade binding.
●When restarting a saw in the workpiece, centre the saw blade in the kerf and check that saw
teeth are not engaged into the material. If saw blade is binding, it may walk up or kickback from
the workpiece as the saw is restarted.
●Support large panels to minimise the risk of blade pinching and kickback. Large panels tend to
sag under their own weight. Supports must be placed under the panel on both sides, near the
line of cut and near the edge of the panel.
●Do not use dull or damaged blades. Unsharpened or improperly set blades produce narrow
kerf causing excessive friction, blade binding and kickback.
●Blade depth and bevel adjusting locking levers must be tight and secure before making cut. If
blade adjustment shifts while cutting, it may cause binding and kickback.
●Use extra caution when making a “plunge cut” into existing walls or other blind areas. The
protruding blade may cut objects that can cause kickback.
5.3 PENDULUM GUARDS
Check lower guard for proper closing before each use. Do not operate the saw if lower guard does
not move freely and close instantly. Never clamp or tie the lower guard into the open position. If the
saw is accidentally dropped, the lower guard may be bent. Raise the lower guard with the retracting
handle and make sure it moves freely and does not touch the blade or any other part, in all angles and
depths of cut.
Check the operation of the lower guard spring. If the guard and spring are not operating properly,
they must be serviced before use. The lower guard may operate sluggishly due to damaged parts,
gummy deposits, or a build up of debris.
Lower guard should be retracted manually only for special cuts such as “plunge cuts” and
“compound cuts”. Raise lower guard by retracting handle and as soon as the blade enters the
material, the lower guard must be released. For all other sawing, the lower guard should operate
automatically.
Always observe that the lower guard is covering the blade before placing saw down on bench
or floor. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in
its path. Be aware of the time it takes for the blade to stop after the switch is released.
5.4 ADDITIONAL SAFETY INSTRUCTIONS FOR CIRCULAR SAW BLADES
Safe Working Practice
Maximum speed. The maximum speed marked on the tool shall not be exceeded. Where stated, the
speed range shall be adhered to.
Circular saw blades
– Circular saw blades, the bodies of which are cracked, shall be scrapped (repairing is not
permitted).
– Composite (tipped) circular saw blades, where the tip dimension is reduced to less than 1mm, shall
be taken out of service.
- 13 -
Warning! Do not use abrasive wheels. Only use saw
blades recommended.

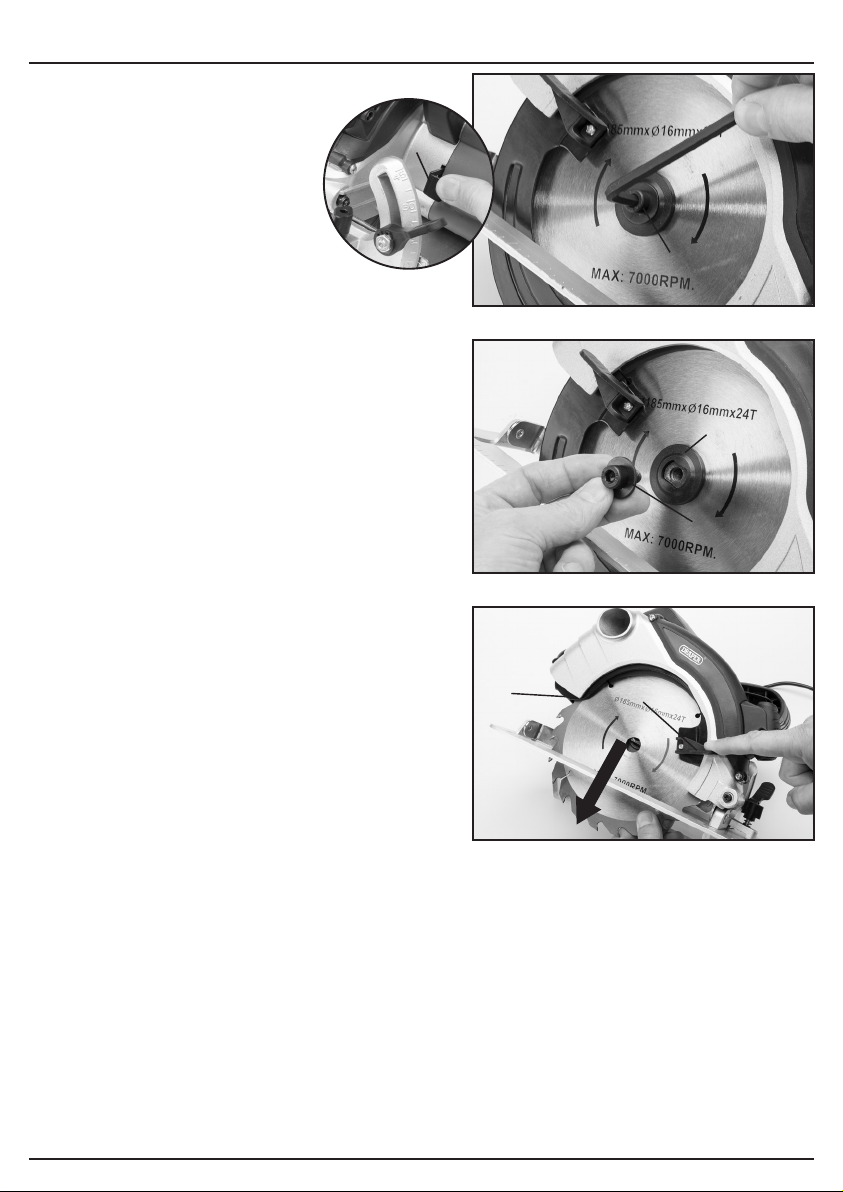

8.1 BLADE INSTALLATION
AND REPLACEMENT –
FIGS. 1 – 2
– Press and hold the spindle lock
button
(17) . The spindle may
rotate slightly before the spindle
lock fully engages.
– Loosen the saw blade locking hex. bolt
(3)
anti-clockwise.
– Remove the hex. bolt
(3) and the saw blade
locking flange
(4) . If the rear flange is removed for
cleaning, ensure it is replaced in its correct
orientation.
– Slide the lower blade guard
(5) back using tab
(2) and hold.
– Ensure the specification of the replacement blade
conforms with the machine (i.e. outer diameter,
bore diameter, width, rpm and type, e.g.
woodcutting etc.). Before fitting the new blade
wipe a drop of oil on the inner and outer flanges
where the arbor locates.
– Insert the new blade.
Note: Install the blade with the direction of rotation
arrow matching the direction of rotation arrows on the
machine. The teeth face upward at the front of the
saw.
– Reassemble the locking flange
(3) and secure the
locking hex. bolt
(3) firmly.
Note: This saw is not designed to cut metal or masonry.
It is intended for cutting wood and analogous materials
only.
FIG.1
FIG.2
FIG.3
(17)
(3)
(3)
(4)
(2)
(5)

5. HEALTH AND SAFETY INFORMATION
- 9 -
- 12 -
One piece tools
–Clamping screws shall be tightened according to instructions provided by the manufacturer. Where
instructions are not provided, clamping screws shall be tightened in sequence from the centre
outwards.
– Use of loose rings or bushes to “make up” bore sizes on circular saw blades shall not be permitted.
– Use of fixed rings, e.g. pressed or held by adhesive fixing, in circular saw blades or flanged bushes
for other tools shall be permitted if made to the manufacturers specification.
– Resin shall only be removed from light alloys with solvents that do not affect the mechanical
characteristics of these materials.
Repair of tools
– Repair of tools is only allowed according to the tool manufacturers instructions. Particular attention
is drawn to the following.
– The design of composite (tipped) tools shall not be changed in the process of repair.
– Composite tools shall be repaired by a competent person, i.e. a person of training and experience,
who has knowledge of the design requirements and understands the levels of safety to be
achieved.
– Repair shall therefore include, e.g. use of spare parts which are in accordance with the
specification of the original parts provided by the manufacturer.
– Tolerances which ensure correct clamping shall be maintained.
– For one piece tools care shall be taken that regrinding of the cutting edge will not cause weakening
of the hub and the connection of the cutting edge to the hub.
5.5 ADDITIONAL SAFETY INSTRUCTIONS FOR LASER PRODUCTS
– Laser radiation. DO NOT STARE INTO BEAM! Class 2 laser product.
– Viewing the laser output with certain optical instruments (for example, eye loupes, magnifiers and
microscopes) with a distance of 100mm may pose an eye hazard.
– Viewing the laser output with certain optical instruments designed for use at a distance (for
example, telescopes and binoculars) may pose an eye hazard.
– Caution: Use of controls or adjustments or performance of procedures other than those specified
herein may result in hazardous radiation exposure.
– NEVER direct the beam towards a person's eyes!
– Avoid positioning the laser such that it may lead to
unintentional eye exposure to any potential passing
pedestrians/traffic.
– DO NOT direct the beam towards animals.
– DO NOT use in the vicinity of children.
– DO NOT direct the beam onto reflective surfaces.
– Always switch off when not in use and do not leave
unattended. Remove the batteries before storing the circular saw away.
– This laser product has no serviceable parts. Do not attempt to disassemble or repair.
5.6 RESIDUAL RISK
Important note: Although the safety instructions and operating manuals for our tools contain extensive
instructions for safe working with power tools, every power tool involves a certain residual risk which
can not be completely excluded by safety mechanisms. Power tools must therefore always be
operated with caution!
7. UNPACKING AND CHECKING
7.1 PACKAGING
Carefully remove the product from the packaging and examine it for any sign of damage that may have
happened during shipping. Lay the contents out and check them against the parts shown below. If any
part is damaged or missing, please contact the Draper Help Line (the telephone number appears on
the Title page) and do not attempt to use the product.
The packaging material should be retained at least during the guarantee period: in case the machine
needs to be returned for repair.
Warning!
● Some of the packaging materials used may be harmful to children. Do not leave any of these
materials in the reach of children.
● If any of the packaging is to be thrown away, make sure they are disposed of correctly,
according to local regulations.

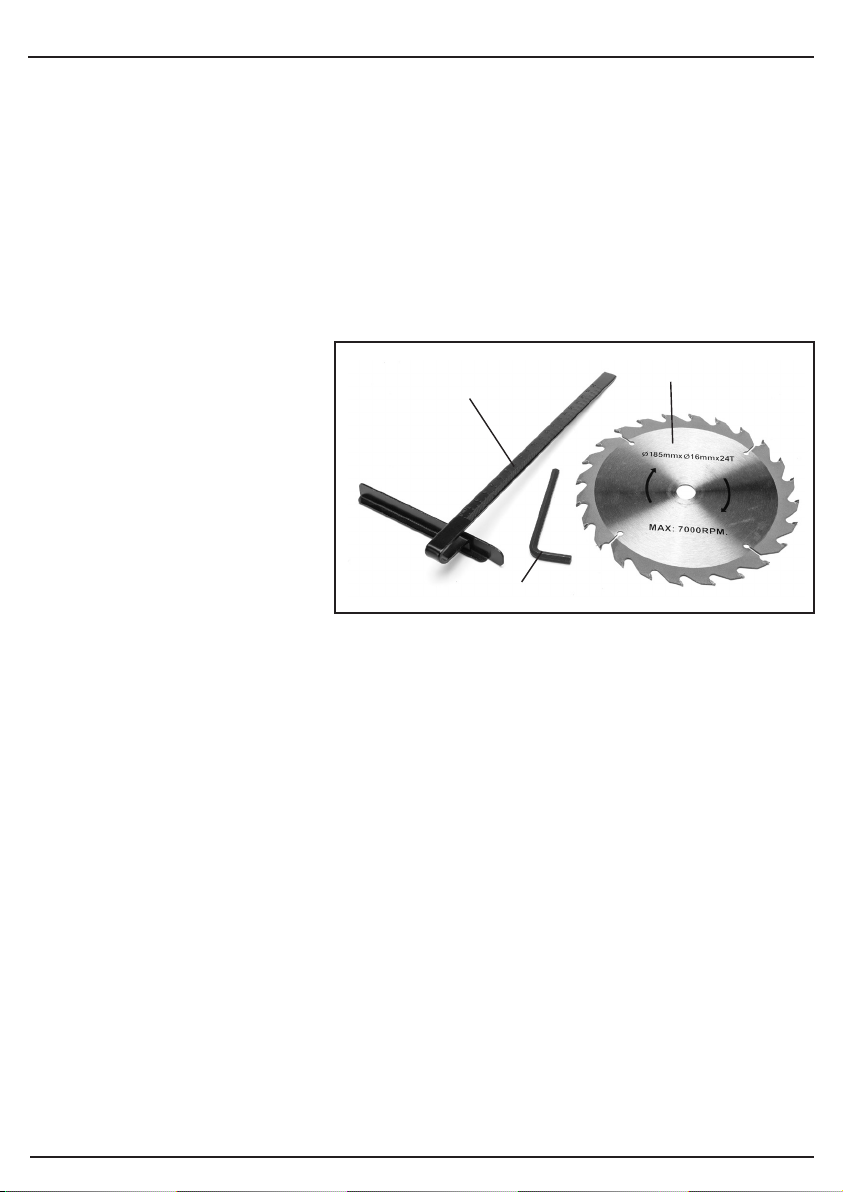

7.2 WHAT’S IN THE BOX
As well as the main product, there are
also several other parts not fitted or
attached to it:
(6) Parallel guide .
(20) Hex. key.
(21) Blade.
(6)
(20)
(21)
Warning!
Laser product
WARNING: LASER RADIATION – DO NOT STARE INTO BEAM
Class 2 LASER PRODUCT
Maximum Output Power
________________________
1mW
Emitted Wavelength
____________________________
650nM
EN60825-1:1994 Safety of Laser Products

- 10 -
5. HEALTH AND SAFETY INFORMATION
- 11 -
6. TECHNICAL DESCRIPTION

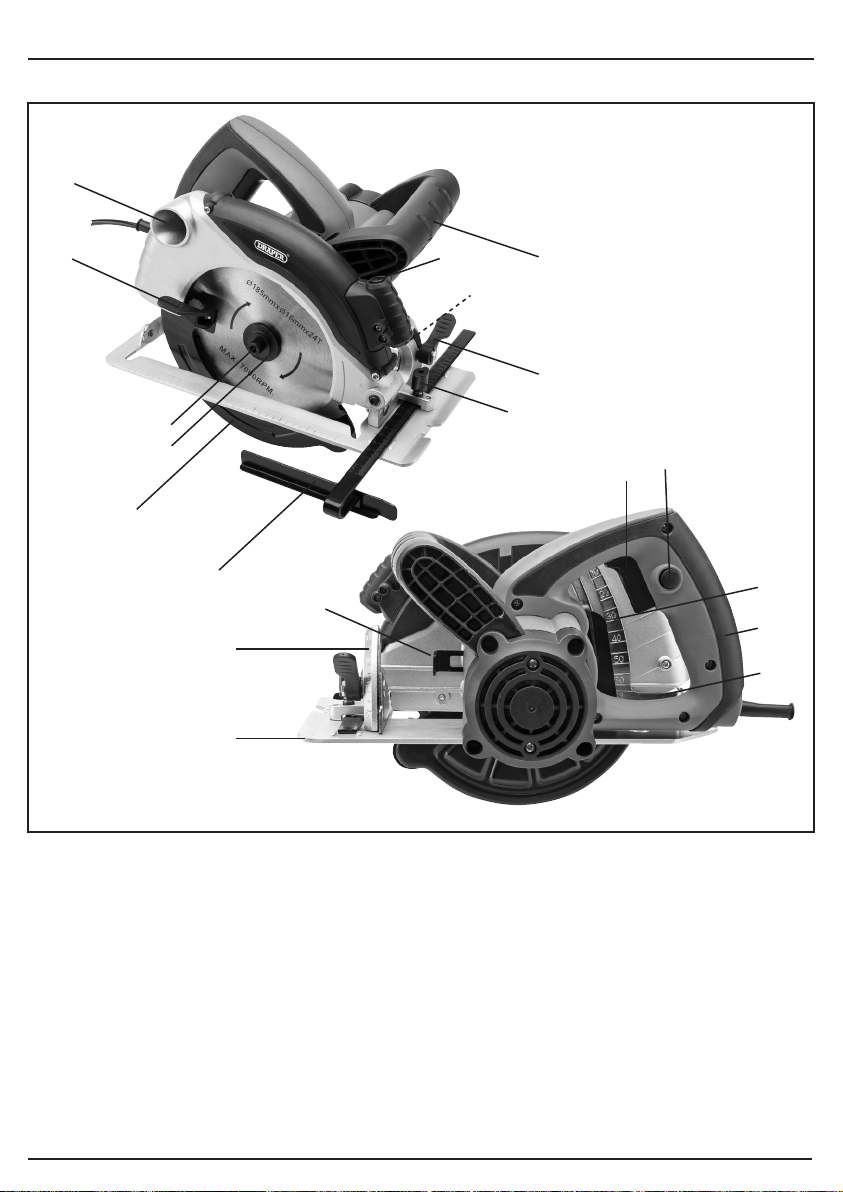

6.1 IDENTIFICATION
5.7 CONNECTION TO THE POWER SUPPLY
Caution: Risk of electric shock. Do not open.
This appliance is supplied with a moulded 3 pin mains plug for your safety. The value of the fuse
fitted is marked on the pin face of the plug. Should the fuse need replacing, ensure the substitute
is of the correct rating, approved to BS1362 and ASTA or BSI Kite marked.
ASTA
BSI
The fuse cover is removable with a small plain slot screwdriver. Ensure the fuse cover is replaced
before attempting to connect the plug to an electrical outlet. If the cover is missing, a replacement
must be obtained or the plug replaced with a suitable type.
If a replacement plug is to be fitted this must be carried out by a qualified electrician.
The damaged or incomplete plug, when cut from the cable should be disabled to prevent
connection to a live electrical outlet.
This appliance is Class II†and is designed for connection to a power supply matching that detailed
on the rating label and compatible with the plug fitted.
If an extension lead is required, use an approved and compatible lead rated for this appliance.
Follow all the instructions supplied with the extension lead.
†Double insulated : This product requires no earth connection as supplementary insulation is
applied to the basic insulation to protect against electric shock in the event of failure of the basic
insulation.
IMPORTANT
If using an extension lead, follow the instructions that came with your lead regarding
maximum load while cable is wound. If in doubt, ensure that the entire cable is unwound.
Using a coiled extension lead will generate heat which could melt the lead and cause a fire.
(1) Dust extraction outlet.
(2) Guard opening tab.
(3) Saw blade locking hex. bolt.
(4) Saw blade locking flange.
(5) Lower blade guard (pendulum).
(6) Parallel guide.
(7) Parallel guide locking knob.
(8) Bevel angle locking knob.
(9) On/off switch (laser).
(10) Laser beam aperture.
(11) Auxiliary handle.
(12) Cutting depth adjustment knob.
(13) Rear handle.
(14) Cutting depth scale.
(15) Safety lock release button.
(16) Trigger switch.
(17) Spindle lock button.
(18) Bevel angle scale.
(19) Base plate.
(7)
(1)
(2)
(3)
(4)
(5)
(6)
(17)
(19)
(16)
(12)
(8)
(11)
(9)
(10)
(15)
(14)
(13)
(18)

- 10 -
5. HEALTH AND SAFETY INFORMATION
- 11 -
6. TECHNICAL DESCRIPTION
6.1 IDENTIFICATION
5.7 CONNECTION TO THE POWER SUPPLY
Caution: Risk of electric shock. Do not open.
This appliance is supplied with a moulded 3 pin mains plug for your safety. The value of the fuse
fitted is marked on the pin face of the plug. Should the fuse need replacing, ensure the substitute
is of the correct rating, approved to BS1362 and ASTA or BSI Kite marked.
ASTA
BSI
The fuse cover is removable with a small plain slot screwdriver. Ensure the fuse cover is replaced
before attempting to connect the plug to an electrical outlet. If the cover is missing, a replacement
must be obtained or the plug replaced with a suitable type.
If a replacement plug is to be fitted this must be carried out by a qualified electrician.
The damaged or incomplete plug, when cut from the cable should be disabled to prevent
connection to a live electrical outlet.
This appliance is Class II†and is designed for connection to a power supply matching that detailed
on the rating label and compatible with the plug fitted.
If an extension lead is required, use an approved and compatible lead rated for this appliance.
Follow all the instructions supplied with the extension lead.
†Double insulated : This product requires no earth connection as supplementary insulation is
applied to the basic insulation to protect against electric shock in the event of failure of the basic
insulation.
IMPORTANT
If using an extension lead, follow the instructions that came with your lead regarding
maximum load while cable is wound. If in doubt, ensure that the entire cable is unwound.
Using a coiled extension lead will generate heat which could melt the lead and cause a fire.
(1) Dust extraction outlet.
(2) Guard opening tab.
(3) Saw blade locking hex. bolt.
(4) Saw blade locking flange.
(5) Lower blade guard (pendulum).
(6) Parallel guide.
(7) Parallel guide locking knob.
(8) Bevel angle locking knob.
(9) On/off switch (laser).
(10) Laser beam aperture.
(11) Auxiliary handle.
(12) Cutting depth adjustment knob.
(13) Rear handle.
(14) Cutting depth scale.
(15) Safety lock release button.
(16) Trigger switch.
(17) Spindle lock button.
(18) Bevel angle scale.
(19) Base plate.
(7)
(1)
(2)
(3)
(4)
(5)
(6)
(17)
(19)
(16)
(12)
(8)
(11)
(9)
(10)
(15)
(14)
(13)
(18)

5. HEALTH AND SAFETY INFORMATION
- 9 -
- 12 -
One piece tools
–Clamping screws shall be tightened according to instructions provided by the manufacturer. Where
instructions are not provided, clamping screws shall be tightened in sequence from the centre
outwards.
– Use of loose rings or bushes to “make up” bore sizes on circular saw blades shall not be permitted.
– Use of fixed rings, e.g. pressed or held by adhesive fixing, in circular saw blades or flanged bushes
for other tools shall be permitted if made to the manufacturers specification.
– Resin shall only be removed from light alloys with solvents that do not affect the mechanical
characteristics of these materials.
Repair of tools
– Repair of tools is only allowed according to the tool manufacturers instructions. Particular attention
is drawn to the following.
– The design of composite (tipped) tools shall not be changed in the process of repair.
– Composite tools shall be repaired by a competent person, i.e. a person of training and experience,
who has knowledge of the design requirements and understands the levels of safety to be
achieved.
– Repair shall therefore include, e.g. use of spare parts which are in accordance with the
specification of the original parts provided by the manufacturer.
– Tolerances which ensure correct clamping shall be maintained.
– For one piece tools care shall be taken that regrinding of the cutting edge will not cause weakening
of the hub and the connection of the cutting edge to the hub.
5.5 ADDITIONAL SAFETY INSTRUCTIONS FOR LASER PRODUCTS
– Laser radiation. DO NOT STARE INTO BEAM! Class 2 laser product.
– Viewing the laser output with certain optical instruments (for example, eye loupes, magnifiers and
microscopes) with a distance of 100mm may pose an eye hazard.
– Viewing the laser output with certain optical instruments designed for use at a distance (for
example, telescopes and binoculars) may pose an eye hazard.
– Caution: Use of controls or adjustments or performance of procedures other than those specified
herein may result in hazardous radiation exposure.
– NEVER direct the beam towards a person's eyes!
– Avoid positioning the laser such that it may lead to
unintentional eye exposure to any potential passing
pedestrians/traffic.
– DO NOT direct the beam towards animals.
– DO NOT use in the vicinity of children.
– DO NOT direct the beam onto reflective surfaces.
– Always switch off when not in use and do not leave
unattended. Remove the batteries before storing the circular saw away.
– This laser product has no serviceable parts. Do not attempt to disassemble or repair.
5.6 RESIDUAL RISK
Important note: Although the safety instructions and operating manuals for our tools contain extensive
instructions for safe working with power tools, every power tool involves a certain residual risk which
can not be completely excluded by safety mechanisms. Power tools must therefore always be
operated with caution!
7. UNPACKING AND CHECKING
7.1 PACKAGING
Carefully remove the product from the packaging and examine it for any sign of damage that may have
happened during shipping. Lay the contents out and check them against the parts shown below. If any
part is damaged or missing, please contact the Draper Help Line (the telephone number appears on
the Title page) and do not attempt to use the product.
The packaging material should be retained at least during the guarantee period: in case the machine
needs to be returned for repair.
Warning!
● Some of the packaging materials used may be harmful to children. Do not leave any of these
materials in the reach of children.
● If any of the packaging is to be thrown away, make sure they are disposed of correctly,
according to local regulations.
7.2 WHAT’S IN THE BOX
As well as the main product, there are
also several other parts not fitted or
attached to it:
(6) Parallel guide .
(20) Hex. key.
(21) Blade.
(6)
(20)
(21)
Warning!
Laser product
WARNING: LASER RADIATION – DO NOT STARE INTO BEAM
Class 2 LASER PRODUCT
Maximum Output Power
________________________
1mW
Emitted Wavelength
____________________________
650nM
EN60825-1:1994 Safety of Laser Products

8. PREPARING THE CIRCULAR SAW
5. HEALTH AND SAFETY INFORMATION
- 8 -
– Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can
be avoided by taking proper precautions as given below.
●Maintain a firm grip with both hands on the saw and position your arms to resist kickback forces.
Position your body to either side of the blade, but not in line with the blade. Kickback could
cause the saw to jump backwards, but kickback forces can be controlled by the operator, if
proper precautions are taken.
●When blade is binding, or when interrupting a cut for any reason, release the trigger and hold
the saw motionless in the material until the blade comes to a complete stop. Never attempt to
remove the saw from the work or pull the saw backward while the blade is in motion or kickback
may occur. Investigate and take corrective actions to eliminate the cause of blade binding.
●When restarting a saw in the workpiece, centre the saw blade in the kerf and check that saw
teeth are not engaged into the material. If saw blade is binding, it may walk up or kickback from
the workpiece as the saw is restarted.
●Support large panels to minimise the risk of blade pinching and kickback. Large panels tend to
sag under their own weight. Supports must be placed under the panel on both sides, near the
line of cut and near the edge of the panel.
●Do not use dull or damaged blades. Unsharpened or improperly set blades produce narrow
kerf causing excessive friction, blade binding and kickback.
●Blade depth and bevel adjusting locking levers must be tight and secure before making cut. If
blade adjustment shifts while cutting, it may cause binding and kickback.
●Use extra caution when making a “plunge cut” into existing walls or other blind areas. The
protruding blade may cut objects that can cause kickback.
5.3 PENDULUM GUARDS
Check lower guard for proper closing before each use. Do not operate the saw if lower guard does
not move freely and close instantly. Never clamp or tie the lower guard into the open position. If the
saw is accidentally dropped, the lower guard may be bent. Raise the lower guard with the retracting
handle and make sure it moves freely and does not touch the blade or any other part, in all angles and
depths of cut.
Check the operation of the lower guard spring. If the guard and spring are not operating properly,
they must be serviced before use. The lower guard may operate sluggishly due to damaged parts,
gummy deposits, or a build up of debris.
Lower guard should be retracted manually only for special cuts such as “plunge cuts” and
“compound cuts”. Raise lower guard by retracting handle and as soon as the blade enters the
material, the lower guard must be released. For all other sawing, the lower guard should operate
automatically.
Always observe that the lower guard is covering the blade before placing saw down on bench
or floor. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in
its path. Be aware of the time it takes for the blade to stop after the switch is released.
5.4 ADDITIONAL SAFETY INSTRUCTIONS FOR CIRCULAR SAW BLADES
Safe Working Practice
Maximum speed. The maximum speed marked on the tool shall not be exceeded. Where stated, the
speed range shall be adhered to.
Circular saw blades
– Circular saw blades, the bodies of which are cracked, shall be scrapped (repairing is not
permitted).
– Composite (tipped) circular saw blades, where the tip dimension is reduced to less than 1mm, shall
be taken out of service.
- 13 -
Warning! Do not use abrasive wheels. Only use saw
blades recommended.
8.1 BLADE INSTALLATION
AND REPLACEMENT –
FIGS. 1 – 2
– Press and hold the spindle lock
button
(17) . The spindle may
rotate slightly before the spindle
lock fully engages.
– Loosen the saw blade locking hex. bolt
(3)
anti-clockwise.
– Remove the hex. bolt
(3) and the saw blade
locking flange
(4) . If the rear flange is removed for
cleaning, ensure it is replaced in its correct
orientation.
– Slide the lower blade guard
(5) back using tab
(2) and hold.
– Ensure the specification of the replacement blade
conforms with the machine (i.e. outer diameter,
bore diameter, width, rpm and type, e.g.
woodcutting etc.). Before fitting the new blade
wipe a drop of oil on the inner and outer flanges
where the arbor locates.
– Insert the new blade.
Note: Install the blade with the direction of rotation
arrow matching the direction of rotation arrows on the
machine. The teeth face upward at the front of the
saw.
– Reassemble the locking flange
(3) and secure the
locking hex. bolt
(3) firmly.
Note: This saw is not designed to cut metal or masonry.
It is intended for cutting wood and analogous materials
only.
FIG.1
FIG.2
FIG.3
(17)
(3)
(3)
(4)
(2)
(5)

5. HEALTH AND SAFETY INFORMATION
Wait for the machine to stop. Unless the machine is fitted with a safety brake, some parts may
continue to move due to momentum. Wait for all parts to stop, then unplug it from the power supply
before making any adjustments, carrying out maintenance operations or just finishing using the tool.
Remove and check setting tools. Some machinery requires the use of additional tools or keys to set,
load or adjust the power tool. Before starting the power tool always check to make certain they have
been removed and are safely away from the machine.
Prevent unintentional starting. Before plugging any machine in to the power supply, make sure the
switch is in the OFF position. If the machine is portable, do not hold the machine near the switch and
take care when putting the machine down, that nothing can operate the switch.
Carefully select an extension lead. Some machines are not suitable for use with extension leads. If
the tool is designed for use outdoors, use an extension lead also suitable for that environment. When
using an extended lead, select one capable of handling the current (amps) drawn by the machine in
use. Fully extend the lead regardless of the distance between the power supply and the tool. Excess
current (amps) and a coiled extension lead will both cause the cable to heat up and can result in fire.
Concentrate and stay alert. Distractions are likely to cause an accident. Never operate a power tool if
you are under the influence of drugs (prescription or otherwise), including alcohol or if you are feeling
tired. Being disorientated will result in an accident.
Have this tool repaired by a qualified person. This tool is designed to conform to the relevant
international and local standards and as such should be maintained and repaired by someone
qualified, using only original parts supplied by the manufacturer. This will ensure the tool remains safe
to use.
5.2 ADDITIONAL SAFETY INSTRUCTIONS FOR ALL SAWS
Keep hands away from cutting area and the blade. Keep your second hand on the auxiliary handle,
or motor housing. If both hands are holding the saw, they cannot be cut by the blade.
Do not reach underneath the workpiece. The guard cannot protect you from the blade below the
workpiece.
Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth
should be visible below the workpiece.
Never hold piece being cut in your hands or across your leg. Secure the workpiece to a stable
platform. It is important to support the work properly to minimise body exposure, blade binding or loss
of control.
Hold power tool by insulated gripping surfaces when performing an operation where the
cutting tool may contact hidden wiring or its own cord. Contact with a “live” wire will also make
exposed metal parts of the power tool “live” and shock the operator.
When ripping always use a rip fence or straight edge guide. This improves the accuracy of cut and
reduces chance of blade binding.
Always use blade with correct size and shape (diamond versus round) of arbour holes. Blades
that do not match the mounting hardware of the saw will run eccentrically, causing loss of control.
Never use damaged or incorrect blade washers or bolt. The blade washers and bolt were specially
designed for your saw, for optimum performance and safety of operation.
Causes and operator prevention of kickback:
– Kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an
uncontrolled saw to lift up and out of the workpiece towards the operator.
– When the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the motor
reaction drives the unit rapidly back towards the operator.
– If the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can
dig into the top surface of the wood causing the blade to climb out of the kerf and jump back toward
the operator.
- 7 -
9. BASIC CIRCULAR SAW OPERATIONS
9.1 ON/OFF TRIGGER SWITCH – FIG.4
The trigger switch (16) is operated in conjunction with
a safety release button
(15) so that it is not possible
to start the circular saw by accident.
– To start the saw, press the safety button
(15) first
and then depress the trigger switch
(16) .
● Always wear ear defenders during use.
9.2 DUST EXTRACTION – FIG.5
Inhalation of dust particles can be detrimental to
health. The dust outlet
(1) must be connected with a
dust extraction machine.
Note: Due to the outlet diameter, a size adaptation
may be necessary.
Warning! All wood dust (including dust from
composites like chipboards and fibre boards etc.) is
hazardous to health. It can affect the nose, the
respiratory system and the skin. For example MDF
(medium density fibreboard) which contains
formaldehyde is a known carcinogen. In addition to
the above measures a correctly fitted dust mask,
suitable for the activity and in accordance to the
relevant standard, must be worn.
9.3 CUTTING DEPTH ADJUSTMENT –
FIG.6
– To adjust the cutting depth, loosen the cutting
depth adjustment knob
(12) .
– Set the required cutting depth, using the depth
scale markings as a guide.
Note: For greater accuracy measure the tip of the
blade back to the base.
– Re-tighten the cutting depth adjustment knob
(12)
when the required depth is set.
9.4 CUTTING ANGLE ADJUSTMENT –
FIG.7
To alter the angle between 0° to 45°, loosen the bevel
angle locking knob
(8) .
Note: The scale is a guide. If more accuracy is
required a protractor should be used off the underside
of the base against the blade.
– When the required angle is set, re-tighten the
bevel angle locking knob
(8) .
FIG.4
FIG.5
FIG.6
FIG.7
(15)
(16)
(1)
(12)
(8)
- 14 -

(6)
(7)
9.5 PARALLEL GUIDE – FIG.8
– Pass the parallel guide (6) through the slots in the
base and secure with locking knob
(7) .
– Set the required cutting width, using the width scale
markings as a guide.
– Make a test cut on a scrap piece of timber prior to
making any cuts on the workpiece and adjust
accordingly.
– For greater accuracy, measure between the edge of
the blade allowing for the kerf of the blade and the
parallel guide's face.
9.6 LASER GUIDE – FIG.9
Warning! Laser radiation. Do not stare into
beam. Class 2 laser product.
The laser beam aperture
(10) is
activated by pressing button
(9) and
will stay on until the button is pressed
again.
– Mark the line of the cut on the
workpiece.
– Adjust the depth and/or bevel angles
of the cut as required.
– Turn on the laser guide by pressing the laser on/off
button
(9) and align the line of the cut on the
workpiece.
– When the blade is at its maximum speed (approx. 2
sec.) make the cut.
– On completion of the cut, switch off the laser.
9.7 SAW OPERATION
Caution: When using, always cut forward in a straight
line without forcing the saw. Forcing or twisting the saw
will put a strain on the motor, and at the very least result
in decreased efficiency or possible overheating
damage. More seriously, it could cause dangerous
kickback of the saw resulting in severe injury.
– Always operate the saw firmly, using the rear and
auxiliary handles.
– Offer the base of the saw to the workpiece without
blade contact.
– Switch on and wait until full speed is attained, then
advance the saw, keeping it flat and cutting
smoothly until the cut is complete – Straight line
sawing at a uniform speed of advance will obtain
the best clean cuts.
– After releasing the trigger switch, wait until the blade
has fully stopped before withdrawing.
5. HEALTH AND SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE
When using any type of power tool there are steps that should be taken to make sure that you, as the
user, remain safe.
Common sense and a respect for the tool will help reduce the risk of injury.
Read the instruction manual fully. Do not attempt any operation until you have read and understood
this manual.
Most important you must know how to safely start and stop this machine, especially in an emergency.
Keep the work area tidy and clean. Attempting to clear clutter from around the machine during use
will reduce your concentration. Mess on the floor creates a trip hazard. Any liquid spilt on the floor
could result in you slipping.
Find a suitable location. If the machine is bench mounted, the location should provide good natural
light or artificial lighting as a replacement. Avoid damp and dust locations as it will have a negative
effect on the machine’s performance. If the machine is portable do not expose the tool to rain. In all
cases do not operate power tools near any flammable materials.
Keep bystanders away. Children, onlookers and passers by must be restricted from entering the work
area for their own protection. The barrier must extend a suitable distance from the tool user.
Unplug and house all power tools that are not in use. A power tool should never be left unattended
while connected to the power supply. They must be housed in a suitable location, away locked up and
from children. This includes battery chargers.
Do not overload or misuse the tool. All tools are designed for a purpose and are limited to what they
are capable of doing. Do not attempt to use a power tool (or adapt it in any way) for an application it is
not designed for. Select a tool appropriate for the size of the job. Overloading a tool will result in tool
failure and user injury. This covers the use of accessories.
Dress properly. Loose clothing, long hair and jewellery are all dangerous because they can become
entangled in moving machinery. This can also result in parts of body being pulled into the machine.
Clothing should be close fitted, with any long hair tired back and jewellery and neck ties removed.
Footwear must be fully enclosed and have a non-slip sole.
Wear personal protective equipment (PPE). Dust, noise, vibration and swarf can all be dangerous if
not suitably protected against. If the work involving the power tool creates dust or fumes wear a dust
mask. Vibration to the hand, caused by operating some tools for longer periods must be protected
against. Wear vibration reducing gloves and allow long breaks between uses. Protect against dust and
swarf by wearing approved safety goggles or a face shield. These are some of the more common
hazards and preventions, however, always find out what hazards are associated with the
machine/work process and wear the most suitable protective equipment available.
Do not breathe contaminated air. If the work creates dust or fumes connect the machine (if possible)
to an extraction system either locally or remotely. Working outdoors can also help if possible.
Move the machine as instructed. If the machine is hand held, do not carry it by the power supply
cable. If the product is heavy, employ a second or third person to help move it safely or use a
mechanical device. Always refer to the instructions for the correct method.
Do not overreach. Extending your body too far can result in a loss of balance and you falling. This
could be from a height or onto a machine and will result in injury.
Maintain your tools correctly. A well maintained tool will do the job safely. Replace any damaged or
missing parts immediately with original parts from the manufacturer. As applicable, keep blades sharp,
moving parts clean, oiled or greased, handles clean, and emergency devices working.
- 6 -
- 15 -
9. BASIC CIRCULAR SAW OPERATIONS
FIG.8
FIG.9
(9)
(10)

4. INTRODUCTION
4.1 SCOPE
As part of our core range, this product is suitable for enthusiasts and tradespeople alike.
As part of our core range, this product is suitable for enthusiasts and tradespeople alike. Any
application other than that it was intended for, is considered misuse.
4.2 SPECIFICATION
Stock No........................................................................................................................................56791
Part No. ............................................................................................................................. CS1300D185
Motor:
Rated voltage .................................................................................................................. 230V~
Rated frequency ............................................................................................................... 50Hz
Rated input .................................................................................................................... 1300W
Saw blade:
Diameter................................................................................................................................185mm
Bore Ø.....................................................................................................................................16mm
Thickness ...............................................................................................................................2.4mm
Maximum depth of cut:
90°.......................................................................................................................................... 63mm
45°.......................................................................................................................................... 42mm
Revolutions per minute (no load): ......................................................................................... 4,500r/min
Sound pressure level (LpA)*: ................................................................................................ 95.5dB(A)
Sound power level (LWA)**: ................................................................................................ 106.5dB(A)
Uncertainty (K): .......................................................................................................................... 3dB(A)
Vibration level Main handle†: ..............................................................................
2.462m/s2 , K=1.5 m/s2
Weight (machine only):.................................................................................................................. 4.4kg
†When sawing in wood.
* Continuous A-Weighted Sound Pressure Level at the workstation in accordance to and declared
according to EN60745.
** The typical A-weighted noise level determined according to EN60745
4.3 HANDLING & STORAGE
– Care must be taken when handling this product.
● Dropping this power tool could have an effect on its accuracy and could also result in personal
injury. This product is not a toy and must be respected.
– Environmental conditions can have a detrimental effect on this product if neglected.
● Exposure to damp air can gradually corrode components.
● If the product is unprotected from dust and debris, components will become clogged.
● If not cleaned and maintained correctly or regularly, the machine will not perform at its best..
10. MAINTENANCE AND TROUBLESHOOTING
- 5 -
- 16 -
10.1 MAINTENANCE
Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your
tool in good working condition.
The motor must be correctly ventilated during tool operation. Avoid blocking the air inlets and vacuum
the ventilation slots regularly.
10.2 TROUBLESHOOTING
11. OPTIONAL ACCESSORIES
11.1 OPTIONAL ACCESSORIES
A full range of accessories are available from Draper Tools.
Please visit our website for details: www.drapertools.com
Note: Remove the plug from the socket before carrying out adjustment, servicing or maintenance.
3. Other.
2. Have brushes replaced by an
authorised service centre.
3. Contact an authorised service
centre.
Problem Cause Remedy
2. Brushes worn.
Machine does not
start.
1. Fuse. 1. Replace time delay fuse or
reset circuit breaker.
Poor cutting
performance.
1. Saw blade blunt. 1. Replace saw blade.
2. Saw blade incorrectly mounted. 2. Remove & refit saw blade as
per instructions.
3. Incorrect saw blade selection. 3. Seek advice on suitable saw
blades.
Saw vibrates. 1. Saw blade distorted. 1. Stop machine immediately &
replace blade.
2. Saw blade incorrectly mounted. 2. Stop machine immediately.
Remove & refit saw blade as
per instructions.

3. WARRANTY
3.1 WARRANTY
Draper tools have been carefully tested and inspected before shipment and are guaranteed to be
free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor or
contact
Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.
Telephone Sales Desk: [phone] or Product Help Line [phone].
A proof of purchase must be provided with the tool.
If upon inspection it is found that the fault occurring is due to defective materials or workmanship,
repairs will be carried out free of charge. This warranty period covering labour is 12 months from
the date of purchase except where tools are hired out when the warranty period is 90 days from
the date of purchase. The warranty is extended to 24 months for parts only. This warranty does not
apply to any consumable parts, any type of battery or normal wear and tear, nor does it cover any
damage caused by misuse, careless or unsafe handling, alterations, accidents, or repairs
attempted or made by any personnel other than the authorised Draper warranty repair agent.
Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges will
be quoted and made accordingly.
This warranty applies in lieu of any other warranty expressed or implied and variations of its terms
are not authorised.
Your Draper warranty is not effective unless you can produce upon request a dated receipt or
invoice to verify your proof of purchase within the warranty period.
Please note that this warranty is an additional benefit and does not affect your statutory rights.
Draper Tools Limited.
- 4 -
- 17 -
12. DISPOSAL
12.1 DISPOSAL
– At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is
disposed of according to national regulations.
– Contact your local authority for details of collection schemes in your area.
In all circumstances:
● Do not dispose of power tools with domestic waste.
● Do not incinerate.
● Do not dispose of WEEE* as unsorted municipal waste.
* Waste Electrical & Electronic Equipment.

2. CONTENTS
1. TITLE PAGE
1.1 INTRODUCTION..........................................................................................................2
1.2 REVISION HISTORY .................................................................................................. 2
1.3 UNDERSTANDING THIS MANUAL .............................................................................2
1.4 COPYRIGHT NOTICE ................................................................................................. 2
2. CONTENTS
2.1 CONTENTS..................................................................................................................3
3. WARRANTY
3.1 WARRANTY................................................................................................................. 4
4. INTRODUCTION
4.1 SCOPE........................................................................................................................5
4.2 SPECIFICATION ..........................................................................................................5
4.3 HANDLING & STORAGE............................................................................................. 5
5. HEALTH AND SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE ............................6-7
5.2 ADDITIONAL SAFETY INSTRUCTIONS FOR ALL SAWS.......................................7-8
5.3 PENDULUM GUARDS................................................................................................. 8
5.4 ADDITIONAL SAFETY INSTRUCTIONS FOR CIRCULAR SAW BLADES..............8-9
5.5 ADDITIONAL SAFETY INSTRUCTIONS FOR LASER PRODUCTS ..........................9
5.6 RESIDUAL RISK ..........................................................................................................9
5.7 CONNECTION TO THE POWER SUPPLY................................................................10
6. TECHNICAL DESCRIPTION
6.1 IDENTIFICATION ....................................................................................................... 11
7. UNPACKING AND CHECKING
7.1 PACKAGING ..............................................................................................................12
7.2 WHAT’S IN THE BOX................................................................................................. 12
8. PREPARING THE CIRCULAR SAW
8.1 BLADE INSTALLATION AND REPLACEMENT......................................................... 13
9. BASIC CIRCULAR SAW OPERATIONS
9.1 ON/OFF TRIGGER SWITCH ..................................................................................... 14
9.2 DUST EXTRACTION .................................................................................................14
9.3 CUTTING DEPTH ADJUSTMENT .............................................................................14
9.4 CUTTING ANGLE ADJUSTMENT .............................................................................14
9.5 PARALLEL GUIDE ..................................................................................................... 15
9.6 LASER GUIDE ........................................................................................................... 15
9.7 SAW OPERATION .....................................................................................................15
10. MAINTENANCE AND TROUBLESHOOTING
10. MAINTENANCE ......................................................................................................... 16
10.2 TROUBLESHOOTING ...............................................................................................16
11. OPTIONAL ACCESSORIES
11.1 OPTIONAL ACCESSORIES.......................................................................................16
12. DISPOSAL
12.1 DISPOSAL..................................................................................................................17
13. EXPLANATION OF SYMBOLS
13. EXPLANATION OF SYMBOLS ..................................................................................18
DECLARATION OF CONFORMITY .............................................................................. ENCLOSED
- 3 -
- 18 -
13.1 EXPLANATION OF SYMBOLS
13. EXPLANATION OF SYMBOLS
Read the instruction manual.
Wear face mask and safety
glasses.
Wear ear defenders.
Wear protective gloves.
Do not abandon into the
environment.
Keep out of the reach of children.
Warning!
99
Single value noise marking.
(Maximum declared A-Weighted
sound power level in decibels).
For indoor use only.
Do not expose to rain.
Short-circuit-proof safety
isolating transformer.
Lithium-ion product.
WEEE –
Waste Electrical &
Electronic Equipment.
Do not dispose of Waste Electrical
& Electronic Equipment in with
domestic rubbish.
Class II construction
(Double insulated).
Polarity indication.
Rated voltage.
Do not incinerate or
throw onto fire.
Fuse.
130°
Warning!
Laser product
WARNING: LASER RADIATION – DO NOT STARE INTO BEAM
Class 2 LASER PRODUCT
Maximum Output Power
________________________
1mW
Emitted Wavelength
____________________________
650nM
EN60825-1:1994 Safety of Laser Products

1. TITLE PAGE
1.1 INTRODUCTION:
USER MANUAL FOR: 230V Circular Saws
Stock No: 56791
Part No: CS1300D185
As our user manuals are continually updated, users should make sure that they use
the very latest version.
Downloads are available from: http://drapertools.com/manuals
Draper Tools Limited
Hursley Road
Chandler’s Ford
Eastleigh
Hampshire
SO53 1YF
UK
Website: drapertools.com
Product help line: [phone]
General Fax: [phone]
1.3 UNDERSTANDING THIS MANUALS SAFETY CONTENT:
WARNING! – Information that draws attention to the risk of injury or death.
CAUTION! – Information that draws attention to the risk of damage to the product or
surroundings.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited.
Permission is granted to reproduce this publication for personal and educational use
only. Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any
other form or means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.
1.2 REVISIONS:
Date first published November 2018.
- 19 -
NOTES

Draper Tools Limited, Hursley Road,
Chandler's Ford, Eastleigh, Hampshire. SO53 1YF. U.K.
Help line: [phone]
Sales Desk: [phone]
Internet: drapertools.com
E-mail: [email protected]
General Enquiries: [phone]
Service/Warranty Repair Agent:
For aftersales servicing or warranty repairs, please contact the
Draper Tools Help line for details of an agent in your local area.
©Published by Draper Tools Limited.
No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means,
electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
CONTACTS
YOUR DRAPER STOCKIST
TAKC1118
These instructions accompanying the product are the original instructions. This document is part of the product, keep
it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.

230V
CIRCULAR
SAW
56791
