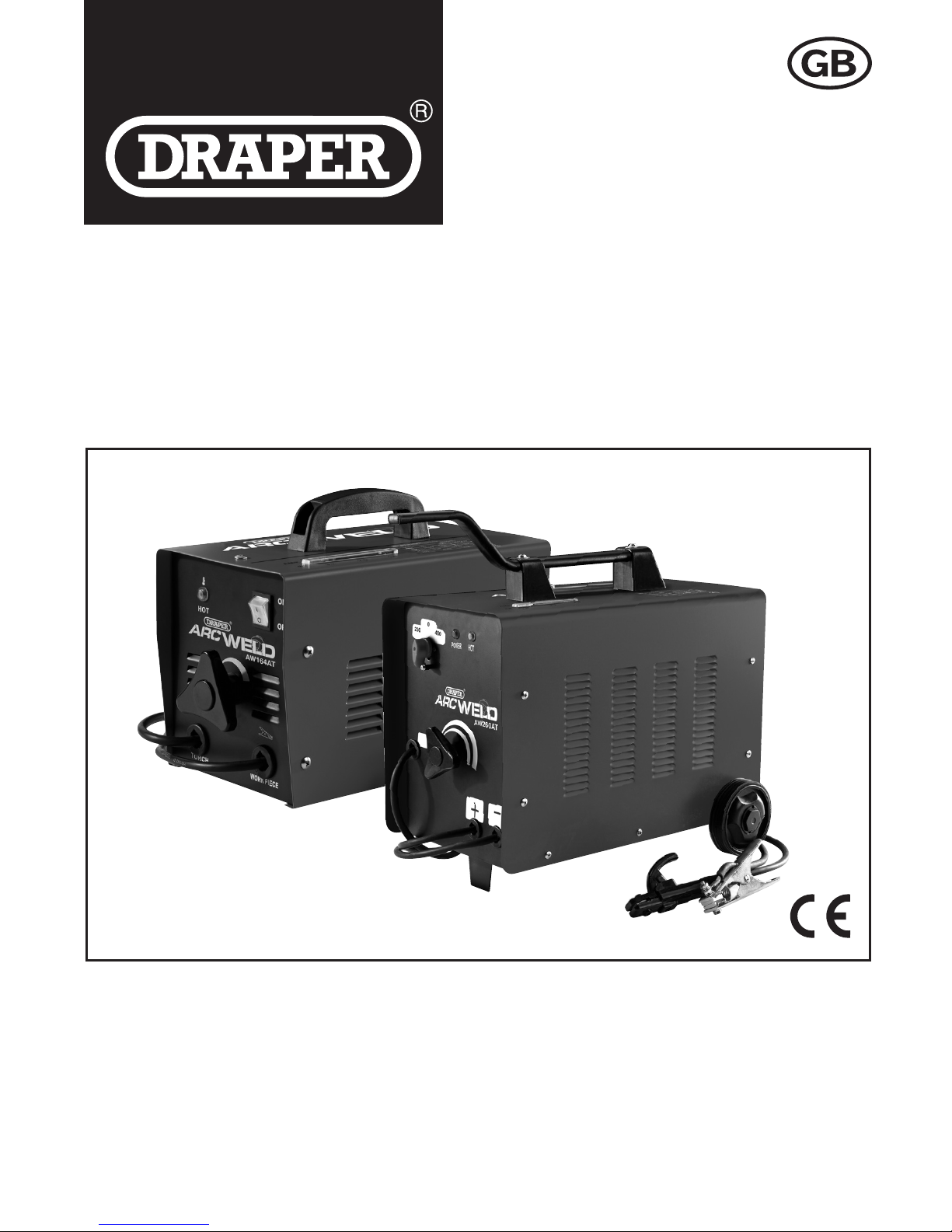

Draper AW164AT User manual

IMPORTANT: Please read these instructions carefully to ensure the safe and effective use of this product and save
these instructions for future reference. This manual has been compiled by Draper Tools and is an integrated part of the
product with which it is enclosed and should be kept with it for future references.
This manual describes the purpose for which the product has been designed and contains all the necessary information
to ensure its correct and safe use. We recommend that this manual is read before any operation or, before performing
any kind of adjustment to the product and prior to any maintenance tasks. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure accuracy of information contained in this manual, the Draper Tools policy
of continuous improvement determines the right to make modifications without prior warning.
230V/400V
ARC WELDERS
71090-71151

DBMC0317
1.1 INTRODUCTION:
USER MANUAL FOR:
230V/400V ARC WELDERS
Stock nos. 71090 & 71151.
Part no. AW164AT & AW260AT
1.2 REVISIONS:
As our user manuals are continually updated, users should make sure that they use the
very latest version.
Downloads are available from: http://www.drapertools.com/manuals
DRAPER TOOLS LIMITED WEBSITE: drapertools.com
HURSLEY ROAD PRODUCT HELPLINE: [phone]
CHANDLER’S FORD GENERAL FAX: [phone]
EASTLEIGH
HAMPSHIRE
SO53 1YF
UK
1.3 UNDERSTANDING THIS MANUALS SAFETY CONTENT:
WARNING! Information that draws attention to the risk of injury or death.
CAUTION! Information that draws attention to the risk of damage to the product or
surroundings.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited.
Permission is granted to reproduce this publication for personal & educational use only.
Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any other
form or means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.
Date first published July 2017
1. TITLE PAGE
2

2. CONTENTS
3
2.1 CONTENTS
Page content .............................................................................. Page
1 TITLE PAGE
1.1 INTRODUCTION ................................................................................................ 2
1.2 REVISION HISTORY.......................................................................................... 2
1.3 UNDERSTANDING THIS MANUAL ................................................................... 2
1.4 COPYRIGHT NOTICE ........................................................................................ 2
2 CONTENTS
2.1 CONTENTS ........................................................................................................ 3
3 GUARANTEE
3.1 GUARANTEE...................................................................................................... 4
4 INTRODUCTION
4.1 SCOPE................................................................................................................ 5
4.2 SPECIFICATION................................................................................................. 5
4.1 HANDLING & STORAGE.................................................................................... 5
5 HEALTH & SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS .............................................................6-8
5.2 CONNECTION TO THE POWER SUPPLY ........................................................ 9
6 IDENTIFICATION
6.1 IDENTIFICATION.............................................................................................. 10
7 UNPACKING & CHECKING
7.1 PACKAGING..................................................................................................... 11
7.2 WHAT’S IN THE BOX ....................................................................................... 11
8 PREPARING THE WELDERS
8.1 PREPARING THE WELDING CIRCUIT ........................................................... 12
9 OPERATION INSTRUCTIONS
9.1 ADJUSTING THE WELDING CURRENT ......................................................... 14
9.2 THERMAL CUT-OUT SIGNAL.......................................................................... 14
9.3 RECOMMENDATIONS FOR USE.................................................................... 14
10 TROUBLESHOOTING
10.1 TROUBLESHOOTING ...................................................................................... 15
11 MAINTENANCE
11.1 MAINTENANCE................................................................................................ 16
12 EXPLANATION OF SYMBOLS
12.1 EXPLANATION OF SYMBOLS......................................................................... 17
13 DISPOSAL
13.1 DISPOSAL ....................................................................................................... 18
14 GLOSSARY
14.1 GLOSSARY ...................................................................................................... 19
DECLARATION OF CONFORMITY............................................................................ ENCLOSED

3.1 GUARANTEE
Draper tools have been carefully tested and inspected before shipment and are guaranteed to
be free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor
or contact Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF.
England.
Telephone Sales Desk: [phone] or Product Helpline [phone].
A proof of purchase must be provided with the tool.
If upon inspection it is found that the fault occurring is due to defective materials or
workmanship, repairs will be carried out free of charge. This guarantee period covering
parts/labour is 12 months from the date of purchase except where tools are hired out when
the guarantee period is 90 days from the date of purchase. This guarantee does not apply
to normal wear and tear, nor does it cover any damage caused by misuse, careless or
unsafe handling, alterations, accidents, or repairs attempted or made by any personnel
other than the authorised Draper warranty repair agent.
Note: If the tool is found not to be within the terms of warranty, repairs and carriage
charges will be quoted and made accordingly.
This guarantee applies in lieu of any other guarantee expressed or implied and variations
of its terms are not authorised.
Your Draper guarantee is not effective unless you can produce upon request a dated
receipt or invoice to verify your proof of purchase within the guarantee period.
Please note that this guarantee is an additional benefit and does not affect your statutory
rights.
Draper Tools Limited.
3. GUARANTEE
4

4. INTRODUCTION
5
4.1 SCOPE
AC welding machine suited to light repair and fabrication work.
4.2 SPECIFICATION
Stock no. .................................................... 71090 ............................................... 71151
Part no. ................................................. AW164AT...................................... AW260AT
Rated voltage ................................................230V~50Hz.........................230V/400V~50Hz
Absorbed power ................................................. 8.0kVA ........................................... 14.2kVA
Duty cycle ................................................10%@160A ................................. 10%@250A
Welding current range ....................................... 60-160A ........................................100-250A
Coupling device ................................................ Direct fit .......................................... Direct fit
Usable electrodes ........................................ 1.6mm-4.0mm ........................... 1.6mm-5.0mm
Insulation class .......................................................H...........................................................H
IP Protection class .............................................. IP21S ............................................... IP21S
Cooling device ...................................................... Fan ..................................................... Fan
Dimensions (LxWxH).................................. 470x240x320mm .....................585x325x440mm
Weight (nett) ..................................................... 16kg .................................................. 24kg
4.3 HANDLING & STORAGE
Care must still be taken when handling and lifting. Dropping this machine will have an effect
on its operation and may also result in personal injury. This machine is not a toy and must be
respected.
The environment will have a negative result on its operation if you are not careful. If the
machine is unprotected from dust and debris; components will become clogged:
And if not cleaned and maintained correctly or regularly the machine will not perform
at its best.

6
5. HEALTH & SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS
WARNING: When using electric tools basic safety precautions should always be followed to
reduce the risk of fire, electric shock and personal injury including the following.
Read all these instructions before attempting to operate this product and save these instructions.
Electric shock can kill:
– Remove the plug from the socket before carrying out adjustment, servicing or
maintenance.
– Allow 5 minutes waiting time for the capacitors to discharge before removing the panels for any
maintenance operations
– Do not touch live electrical parts.
– Never use electrode holders or cables with damaged or deteriorated insulation.
– Keep working environment, equipment, cables and clothing free from grease, oil, moisture and dirt.
– Ensure welding machine has been correctly earthed and all panels are fitted securely.
– The operator must be insulated from the floor and work bench using a dry insulation mat.
– Wear isolating footwear and gloves that are in good condition, i.e. without holes.
– In hazardous conditions of increased electric shock always ensure a second person is present in
case of accident.
– Never change electrodes with bare hands or damp gloves (for ARC/MMA welders).
– Keep welding cables away from power cables.
– Regularly inspect the condition of the welding, earth, and power cables for signs of damage.
– Do not leave machine unattended and remove plug from socket when not in use.
– Do not use welding cables unsuitable for the amperage.
– Ensure earth clamp is adjacent to weld seam, secured to bare metal and when not in use is
insulated for safety.
– Keep all equipment well maintained.
– The operator shall prevent gas cylinders in the vicinity of the work piece from becoming part of
the welding circuit.
Fumes & gases can be harmful:
– The welding process generates hazardous fumes as a by product. Inhalation of these fumes is
hazardous to health.
– Keep your head away from the weld to avoid breathing the fumes.
– If welding in confined spaces ensure adequate ventilation and use a fume extractor.
– Welding fumes displace oxygen. Danger of suffocation.
– By products of welding can react with other chemical vapours to produce a
toxic/explosive environment.
Welding can cause fire or explosion:
– Arc welding and allied processes can cause fire and explosions and precautions shall be
taken to prevent these hazards.
– Before starting a weld ensure the area is clear of flammable materials.
– Remove any inflammables to a safe distance, especially substances likely to generate
a dangerous vapour.

5. HEALTH & SAFETY INFORMATION
7
– The welding arc can cause serious burns. Avoid contact with skin.
– Sparks and molten metal are cast out during welding. Take precautions to prevent fire igniting
and wear protective clothing.
– Sparks and molten metal can pass through gaps. Be aware that fire can start out of sight.
Flammables in a locked cabinet may not be safe.
– Do not weld pressurised containers.
– Do not weld tanks, drums or other vessels until they have been correctly cleaned/prepared for
welding.
– Always have appropriate and fully maintained fire fighting equipment suitable for the materials
used and for use in electrical environments available in close proximity at all times.
– Keep clothing free from oil and grease.
– Wear hat, flame-proof apron, woollen clothing, gloves, long sleeve tops with closed neck,
trousers (without turn-ups) to cover non-slip boots.
– Protective head and shoulder coverings should be worn when overhead welding.
– Avoid taking any fuels with you e.g. cigarette lighters or matches.
– Hot spots and their immediate surroundings should be observed until their temperature
has dropped to normal.
Personal Protection:
– The body should be protected by suitable clothing.
– The use of neck protection may be necessary against reflected radiation.
– Wear safety glasses when chipping, wire brushing, grinding or when near cooling welds as metal
filings or slag can be thrown up. Fully enclosed goggles are advisable.
– Arc machines generate a magnetic field which is detrimental to pacemaker recipients.
Consult your doctor before going near welding equipment/operations.
– The UV and IR radiation generated by welding is highly damaging to the eye, causing burns.
This can also affect the skin. Protect the eyes and face.
– The face and eyes shall be protected by suitable welding shields equipped with appropriate
occural protection filters.
– Where environments are subject to pedestrians and traffic ensure a protective screen is
used to avoid accidental arc glare.
- Do not weld in the vicinity or children or animals and ensure no one is looking before
striking up.
– In the welding environment, damaging levels of noise can exist. Wear hearing protection if
the process dictates.
– Do not touch hot equipment or metal. Allow the weld time to cool, use the correct tool and
wear protective welding gauntlets.
– Wear flame retardant clothing (leather, wool, etc.).
– Take care when adjusting or maintaining the torch that it has had time to cool sufficiently
and is disconnected.
– The arc generates
• ultra-violet radiation (can damage skin and eyes);
• visible light (can dazzle eyes and impair vision);
• infra-red (heat) radiation (can damage skin and eyes);
– Such radiation can be direct or reflected from surfaces such as bright metals and light
coloured objects.

5. HEALTH & SAFETY INFORMATION
8
Gas cylinders:
– Gas cylinders should be located or secured so that they cannot be knocked over.
– Shield gas containers can explode if damaged. Take care when handling.
– Ensure gas cylinders are shut-off when not in use and between operations.
– Take care that no build-up of gas is permitted to form in confined area's.
– Cylinders must be in an upright position at all times during use and storage.
– The gas cylinder must never come in to contact with the electrode.
– Follow the manufacturer's instructions for handling, storing and using the gas bottle correctly and safely.
– Use the correct equipment to connect the gas bottle to the welding torch.
Limitations:
– Do not use for;
• operations in severe conditions
(e.g. extreme climates, freezer applications,
strong magnetic fields etc).
• operations subject to special rules
(e.g. potentially explosive atmospheres,
mines etc).
• operations that require ingress protection
greater than IPX0, e.g. in rain or snow etc.
General:
– Training should be sought out in
• the safe use of this equipment;
• the processes;
• the emergency procedures;
– Welding power sources are not to be used
for pipe thawing.
– Take precautions against toppling over, if
the power source shall be placed on a tilted
plane.
– All equipment should be kept in good working
condition, inspected and, when defective,
promptly repaired or withdrawn from service -
All equipment should be placed so that it does
not present a hazard in passageways, on
ladders or stairways, and should be operated
in accordance with the manufacturer's
instructions.
– In the vicinity of an arc, non-reflective curtains
or screens shall be used to isolate persons
from the arc radiation. A warning, e.g. a symbol
for eye protection, should refer to the hazard
of arc radiation.
10 60
EN 60974-1
U 0 =46V
I 1max = 60A
I1max = 34.5A
I 1eff = 18.2A
I
1eff = 11 A
U1=400V
50Hz
1~50Hz
100A/22V~250A/28V
1~ 1~
250 102
28 22.1
Stock No.71151 Part No.AW260AT
U 1 =230V

5. HEALTH & SAFETY INFORMATION
9
5.2 CONNECTION TO THE POWER SUPPLY
Make sure the power supply information on the machine's rating plate is compatible
with the power supply you intend to connect it to.
This machine comes supplied without a plug. It is designed for connection to a 16amp
power supply rated at 230V AC or 400V AC (71151 only).
Note: For Stock No.71151 you must ensure that the machines voltage selector switch is set to
the voltage that you will use to supply power to this machine, failure to do so will cause damage
to the machine that would not be covered under warranty.
A suitable plug must be fitted by a qualified electrician.
Because it is constructed mostly of metal parts, it is a Class 1 machine; meaning,
it must have an earth connection in the power supply. This is to prevent electrocution
in the event of a failure.

6. IDENTIFICATION
10
 Power cable.
 On/off foot switch.
 Welding current adjustment.
 Current adjustment indicator.
 Thermal cutout signal.
 Connections for welding cables.
(some machines have directly
connected cables).
 Ventilation grille.
 Direct fit earth clamp.
 Electrode holder.
 Handle.
 Transport wheels.










 
 








11
7.2 WHAT´S IN THE BOX?
As well as the product; there are several parts not fitted or attached to it.
7.1 PACKAGING
Carefully remove the product from the packaging and examine it for any sign of damage
caused during shipping. Lay the contents out and check them. If any part is damaged or
missing, do not attempt to use the tool and contact the Draper Helpline immediately (see
back page for details).
Retain the packaging material at least during the guarantee period: in case the machine
needs to be returned for repair.
Warning! Some of the packaging materials used may be harmful to children, keep them out
of reach from children.
Disposed of any packaging correctly and according to local regulations.
7. UNPACKING & CHECKING
 Chipping hammer/wire brush.
 Hand held mask.
 Chipping hammer/wire brush.
 Hand held mask.
 Handle bolts x2.
 Wheel axle bar.
 Wheel covers.
 Wheel washers x4.
 Wheel circlips x4.
 Handle support.
 Front support.


*71090 *71151













8. PREPARING THE WELDERS
NOTE: Remove the plug from the socket before carrying out adjustment, servicing or
maintenance.
Check that the electrical supply delivers the voltage and frequency corresponding to the
welding machine and that it is fitted with a delayed fuse suited to the maximum delivered
rated current.
NOTE: The welding machines are set to the highest voltage at the factory.
8.1 PREPARING THE WELDING CIRCUIT
Connect the ground “lead” to the piece to be welded. Connect the welding electrode to the
electrode holder.
When the machine is turned on and the electrode touches, the workpiece, the electrical
circuit is complete, this will result in the welding arc being produced.
12

9. SETTING THE WELDERS
A data plate is affixed to the welding machine. Fig.1. shows examples of this plate.
$ Constructor name and machine part No.
% Delivered alternate current frequency.
& Serial number.
' European reference standard for the construction and safety of welding
equipment.
( WELDING CIRCUIT PERFORMANCE
U0V Minimum and maximum open circuit voltage (open welding circuit).
ØDiameter of weldable electrodes.
I2A Value of the current needed to weld using different electrode diameters.
A/V Conventional welding current (maximum) and corresponding normalised
voltage.
) POWER SUPPLY DATA
U1 Input voltage (permitted tolerance: +/- 10%)
I1 eff Effective absorbed current.
I1 max Maximum absorbed current.
* Weight
+ Safety symbols.
, Level of protection from solids and liquids.
- Input power required:
1" alternate single phase voltage, frequency
. Symbol indicating the possibility to use the welding machine in environments
potentially subject to electric discharges.
/ Indicates the machine is an ARC/MMA process machine.
0 Indicates this machine produces an AC welding current.
$
'
(
)
0
/
.
%
-
+ *,
&
10 60
EN 60974-1
U 0 =46V
I1max = 36A
I 1eff = 15.3A
~50Hz
~50Hz
60A/20.4V-160A/24.4V
1~ 1~
160 65
24.4 20.6
Stock No.71090 Part No.AW164AT
U 1 =230V
FIG.1
13

9. OPERATING INSTRUCTIONS
1
1
2 3
Plate thickness
2 Electrode Diameter
3 Welding amperage
FIG.2
NOTE: Once you have put the welding machine
into operation, switch it on and carry out the
required adjustments.
9.1 ADJUSTING THE WELDING
CURRENT
Select the welding current depending on the
electrode, the joint and the welding position.
Indicatively, the currents to be used with the
different electrode diameters are listed in Fig.2.
NOTE: Do not force the adjustment flywheel as
this could damage the welding machine. Check
the adjustment on the current adjustment
indicator.
NOTE: To strike the welding arc with the coated
electrode, brush it onto the piece to be welded
and as soon as the arc is struck, hold it constantly
at a distance equal to the electrode diameter and
at an angle of approximately 20-30 degrees in the
direction in which you are welding.
9.2 THERMAL CUTOUT SIGNAL
The warning light switched on means that the
thermal protection is running.
If the welding time is exceeded, a thermal cutout
stops operation before the welder is damaged.
Wait for operation to be resumed and, if possible,
wait a few minutes more.
If the thermal cutout continues to cut in, the
welding machine is being pushed beyond its
normal performance levels.
9.3 RECOMMENDATIONS FOR USE
Only use an extension lead when absolutely
necessary and providing it has an equal or larger
section to the power cable and is fitted with a
grounding conductor.
Do not block the welder air intakes. Do not store
the welder in containers or on shelving that does
not guarantee suitable ventilation.
Do not use the welder in any environment in the
presence of gas, vapours, conductive powders
(e.g. iron shavings), brackish air, caustic fumes or
other agents that could damage the metal parts
and electrical insulation.
NOTE: The electric parts of the welder have been
treated with protective resins. When used for the
first time, smoke may be noticed; this is caused
by the resin drying out completely. The smoke
should only last for a few minutes.
14

15
EXAMPLE TERM CAUSE
Insufficient penetration
- Incorrect arc distance.
- Welding current too low.
- Wire speed to low.
- Welding line not central to butt.
- Wire size too large for application.
- Torch speed too slow.
- Contamination in the metal
(eg rust).
- Shield gas breakdown.
- Incorrect arc distance.
- Area cooling down too fast.
- Unsteady torch movement.
- Worn wire tip.
- Current too high for material
thickness.
- Torch speed too slow.
Overlap
Pitting
Untidy weld
Burn through
10. TROUBLESHOOTING

16
11. MAINTENANCE
11.1 MAINTENANCE & PARTS REPLACEMENT
Regular inspection and cleaning reduces the necessity for maintenance operations
and will keep your welder in good working condition.
The welder must be correctly ventilated during tool operation. For this reason avoid
blocking the air inlets. After use disconnect the tool from the power supply and vacuum the
ventilation slots.
If the replacement of the supply cord is necessary, this has to be done by the manufacturer
or his agent in order to avoid a safety hazard.

12. EXPLANATION OF SYMBOLS
17
12.1 EXPLANATION OF SYMBOLS
Warning!
Wear suitable respiratory protection.
Warning!
Wear suitable welding eye/face protection.
Warning!
Read the instruction manual
Warning!
Wear ear defenders (During grinding operations).
WEEE
Do not dispose of Waste Electrical &
Electronic Equipment in with
domestic rubbish
Class 1 appliance
(Must be earthed).
Attention.
Danger of electric shock.
Danger of fire.
Danger of explosion.
Danger of welding fumes.
Danger of ultraviolet radiation.
Danger of burning splashes.

18
FIG. 6
13. DISPOSAL
13.1 DISPOSAL
- At the end of the machine’s working life, or when it can no longer be repaired, ensure
that it is disposed of according to national regulations.
- Contact your local authority for details of collection schemes in your area.
In all circumstances:
• Do not dispose of power tools with domestic waste.
• Do not incinerate.
• Do not abandon in the environment.
• Do not dispose of WEEE*
as unsorted municipal waste.
* Waste Electrical & Electronic Equipment.

19
14. GLOSSARY
14.1 GLOSSARY
ALPHABETICAL LIST OF WORDS RELATING TO THIS MANUAL
Duty cycle The duty cycle is the percentage of 10 minutes that the machine can
weld for at a set amperage (10%=1min up to 100%=10mins). The higher
the amperage, the lower the welding time.
Polarity The relative orientation of electric poles.

20
NOTES
