Draytek Vigor2850 Series User manual

Vigor2850 Series Quick Start Guide
i

Vigor2850 Series Quick Start Guide ii
Vigor2850 Series
VDSL2 Security Firewall
Quick Start Guide
Version: 1.1
Firmware Version: V3.6.2_RC1
Date: 02/03/2012

Vigor2850 Series Quick Start Guide
iii
Copyright Information
Copyright
Declarations
Copyright 2012 All rights reserved. This publication contains information that is
protected by copyright. No part may be reproduced, transmitted, transcribed,
stored in a retrieval system, or translated into any language without written
permission from the copyright holders.
Trademarks
The following trademarks are used in this document:
zMicrosoft is a registered trademark of Microsoft Corp.
zWindows, Windows 95, 98, Me, NT, 2000, XP, 7 and Explorer are
trademarks of Microsoft Corp.
zApple and Mac OS are registered trademarks of Apple Computer Inc.
zOther products may be trademarks or registered trademarks of their
respective manufacturers.
Safety Instructions and Approval
Safety
Instructions
zRead the installation guide thoroughly before you set up the router.
zThe router is a complicated electronic unit that may be repaired only be
authorized and qualified personnel. Do not try to open or repair the router
yourself.
zDo not place the router in a damp or humid place, e.g. a bathroom.
zDo not stack the routers.
zThe router should be used in a sheltered area, within a temperature range
of +5 to +40 Celsius.
zDo not expose the router to direct sunlight or other heat sources. The
housing and electronic components may be damaged by direct sunlight or
heat sources.
zDo not deploy the cable for LAN connection outdoor to prevent electronic
shock hazards.
zKeep the package out of reach of children.
zWhen you want to dispose of the router, please follow local regulations on
conservation of the environment.
Warranty
We warrant to the original end user (purchaser) that the router will be free from
any defects in workmanship or materials for a period of two (2) years from the
date of purchase from the dealer. Please keep your purchase receipt in a safe
place as it serves as proof of date of purchase. During the warranty period, and
upon proof of purchase, should the product have indications of failure due to
faulty workmanship and/or materials, we will, at our discretion, repair or replace
the defective products or components, without charge for either parts or labor, to
whatever extent we deem necessary tore-store the product to proper operating
condition. Any replacement will consist of a new or re-manufactured
functionally equivalent product of equal value, and will be offered solely at our
discretion. This warranty will not apply if the product is modified, misused,
tampered with, damaged by an act of God, or subjected to abnormal working
conditions. The warranty does not cover the bundled or licensed software of
other vendors. Defects which do not significantly affect the usability of the
product will not be covered by the warranty. We reserve the right to revise the
manual and online documentation and to make changes from time to time in the
contents hereof without obligation to notify any person of such revision or
changes.
Be a Registered
Owner Web registration is preferred. You can register your Vigor router via
http://www.draytek.com.
Firmware & Tools
Updates Due to the continuous evolution of DrayTek technology, all routers will be
regularly upgraded. Please consult the DrayTek web site for more information on
newest firmware, tools and documents.
http://www.draytek.com

Vigor2850 Series Quick Start Guide iv
European Community Declarations
Manufacturer: DrayTek Corp.
Address: No. 26, Fu Shing Road, Hukou Township, Hsinchu Industrial Park, Hsinchu County,
Taiwan 303
Product: Vigor2850 Series Router
DrayTek Corp. declares that Vigor2850 Series of routers are in compliance with the following essential
requirements and other relevant provisions of R&TTE Directive 1999/5/EEC.
The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive
2004/108/EEC by complying with the requirements set forth in EN55022/Class B and EN55024/Class B.
The product conforms to the requirements of Low Voltage (LVD) Directive 2006/95/EEC by complying
with the requirements set forth in EN60950-1.
Regulatory Information
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one of the following measures:
zReorient or relocate the receiving antenna.
zIncrease the separation between the equipment and receiver.
zConnect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
zConsult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device may accept any interference received, including interference that may cause undesired
operation.
http://www.draytek.com/user/AboutRegulatory.php
This product is designed for the DSL, ISDN, POTS, and 2.4GHz/5GHz WLAN network throughout the EC
region and Switzerland with restrictions in France. Please see the user manual for the applicable networks
on your product.

Vigor2850 Series Quick Start Guide
v

Vigor2850 Series Quick Start Guide vi
T
Ta ab bl le e o of f C Co on nt te en nt ts s
1. Introduction........................................................................................................... 1
1.1 Panel Explanation ...................................................................................................................... 2
1.1.1 For Vigor2850........................................................................................................................ 2
1.1.2 For Vigor2850n...................................................................................................................... 4
1.1.3 For Vigor2850Vn.................................................................................................................... 6

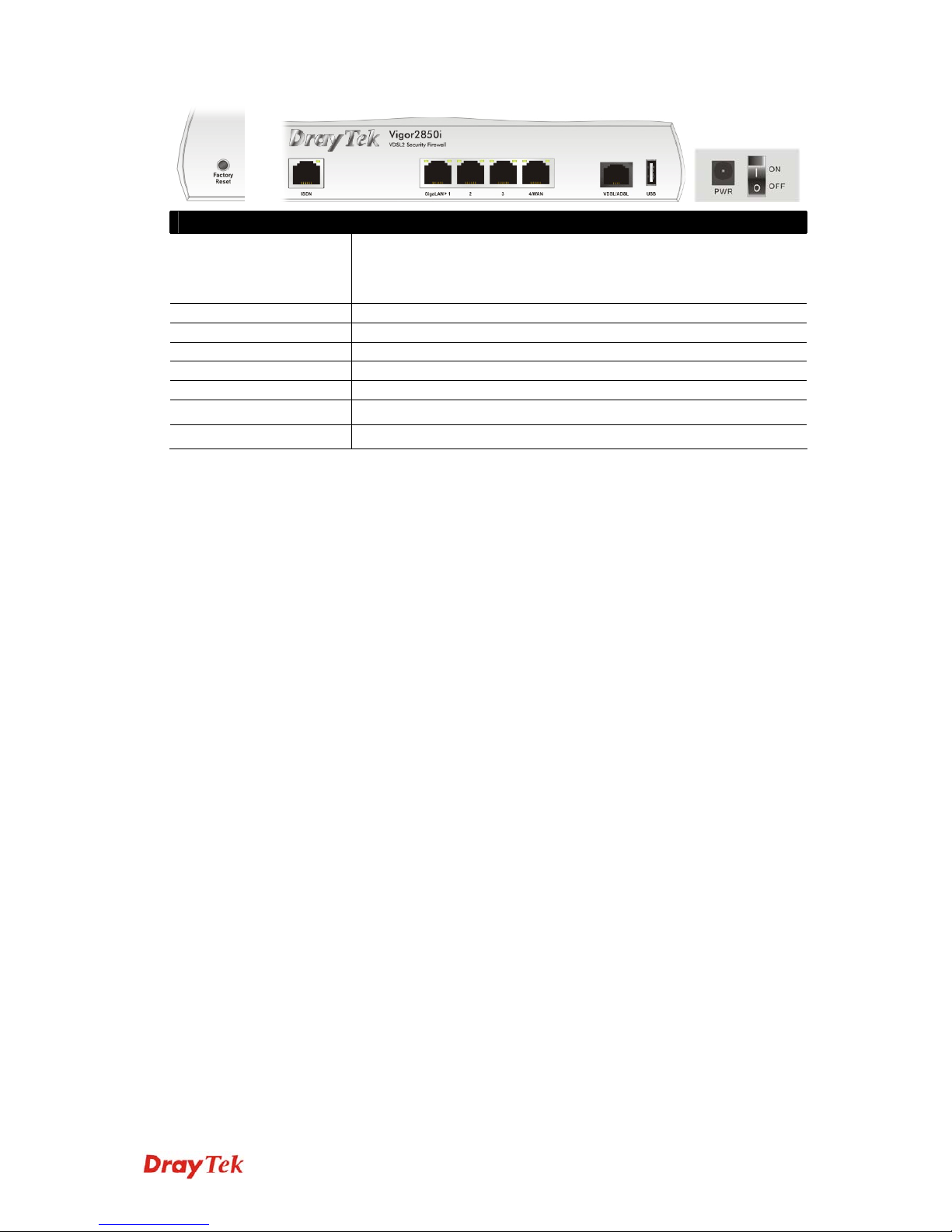

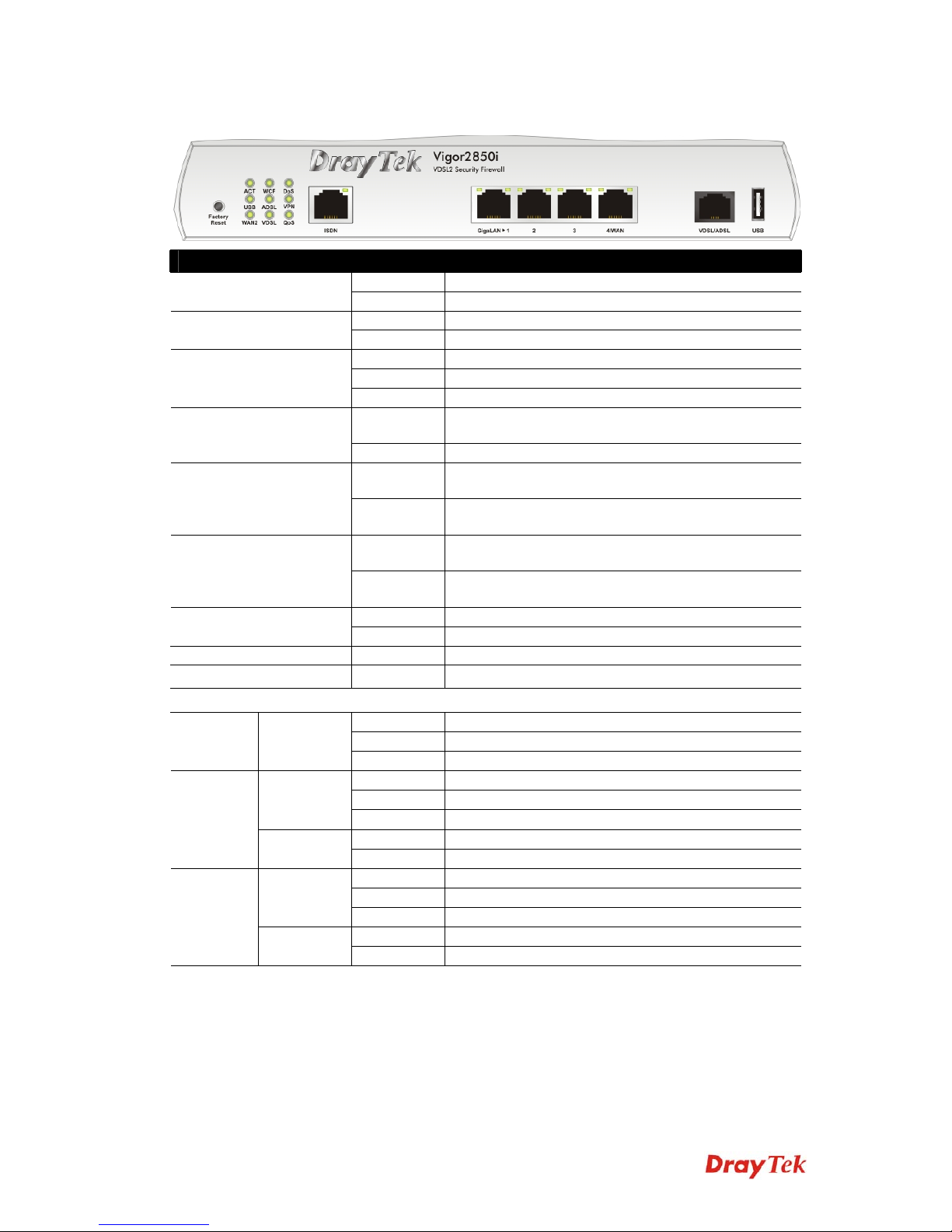

1.1.4 For Vigor2850i....................................................................................................................... 8

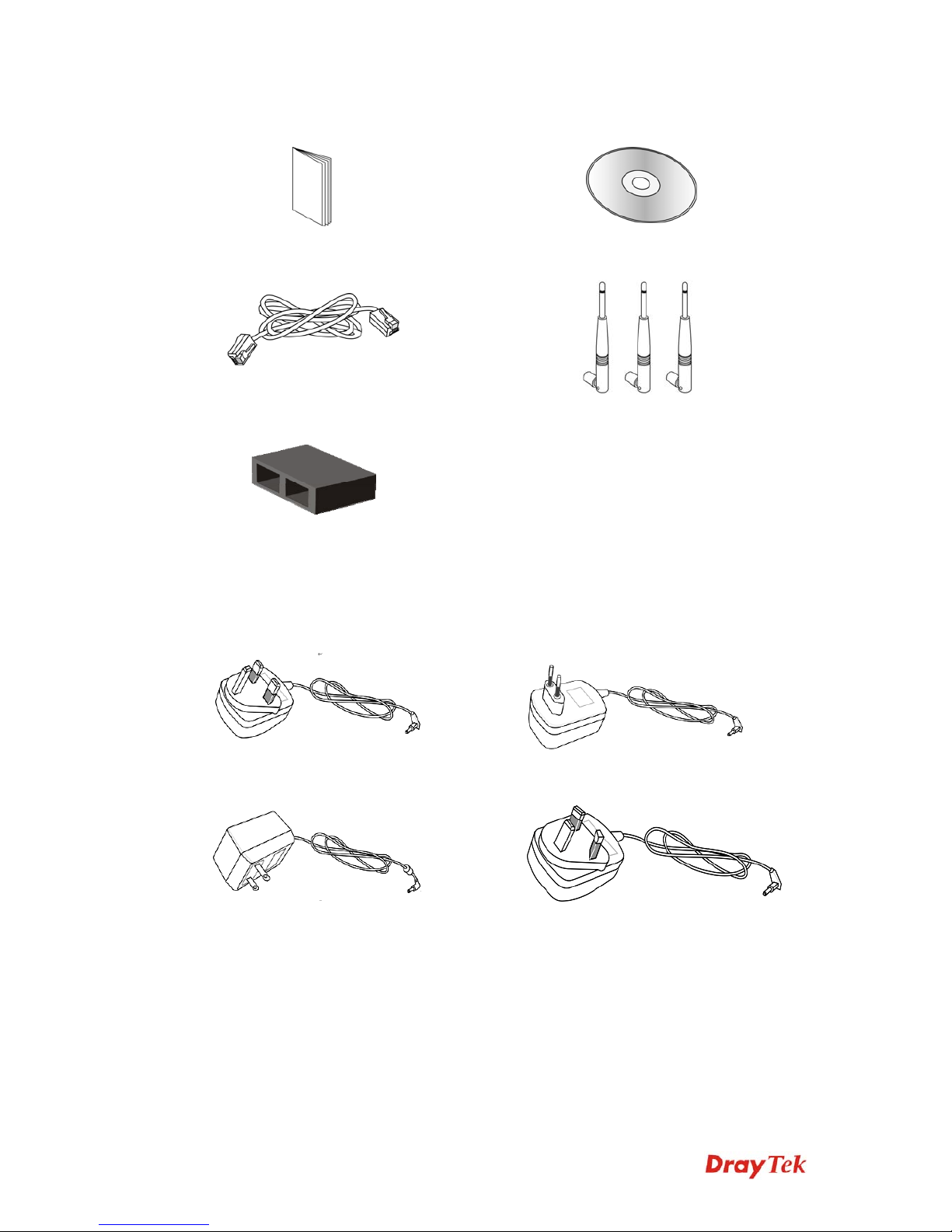

1.2 Package Content...................................................................................................................... 10
2. Installing Your Router..........................................................................................11

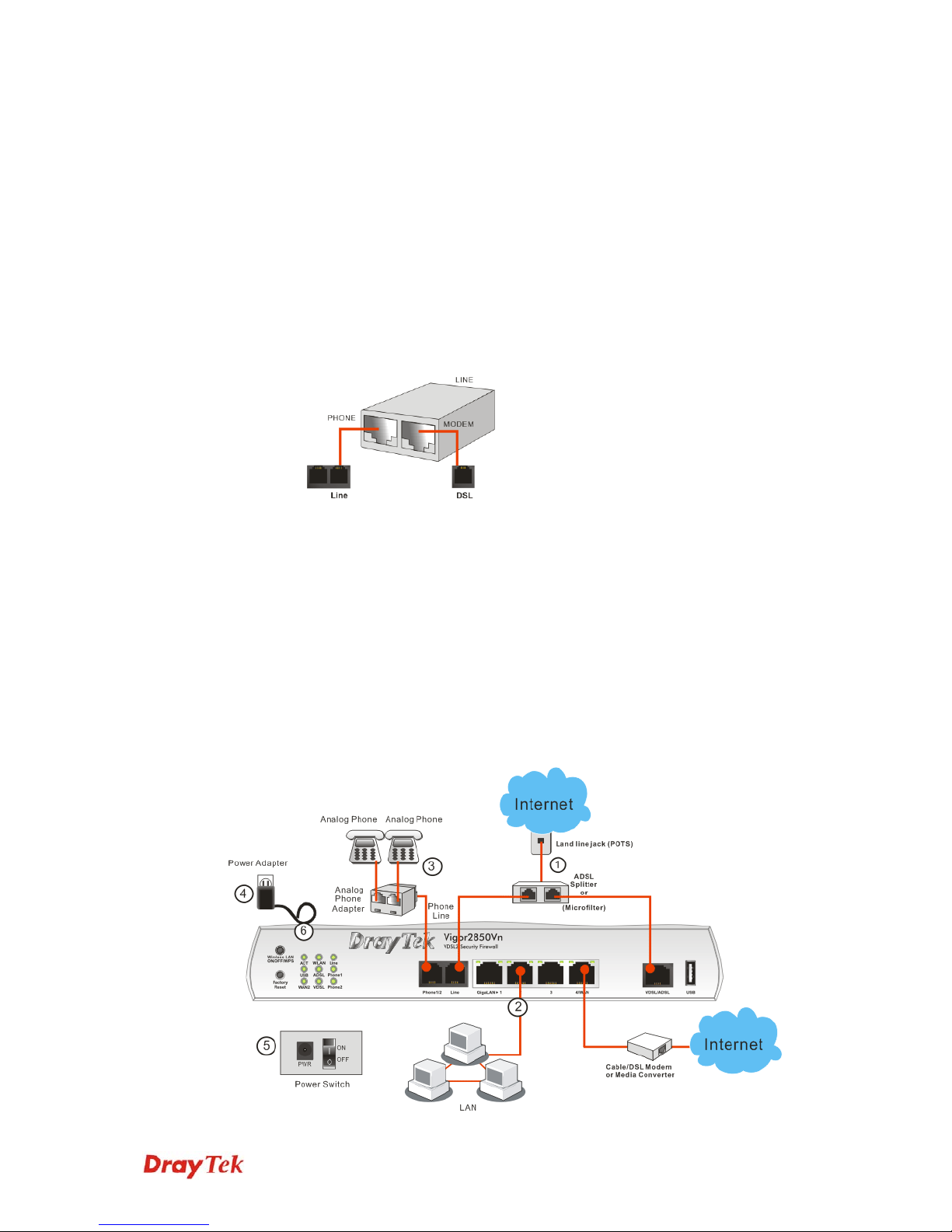

2.1 Hardware Installation.................................................................................................................11

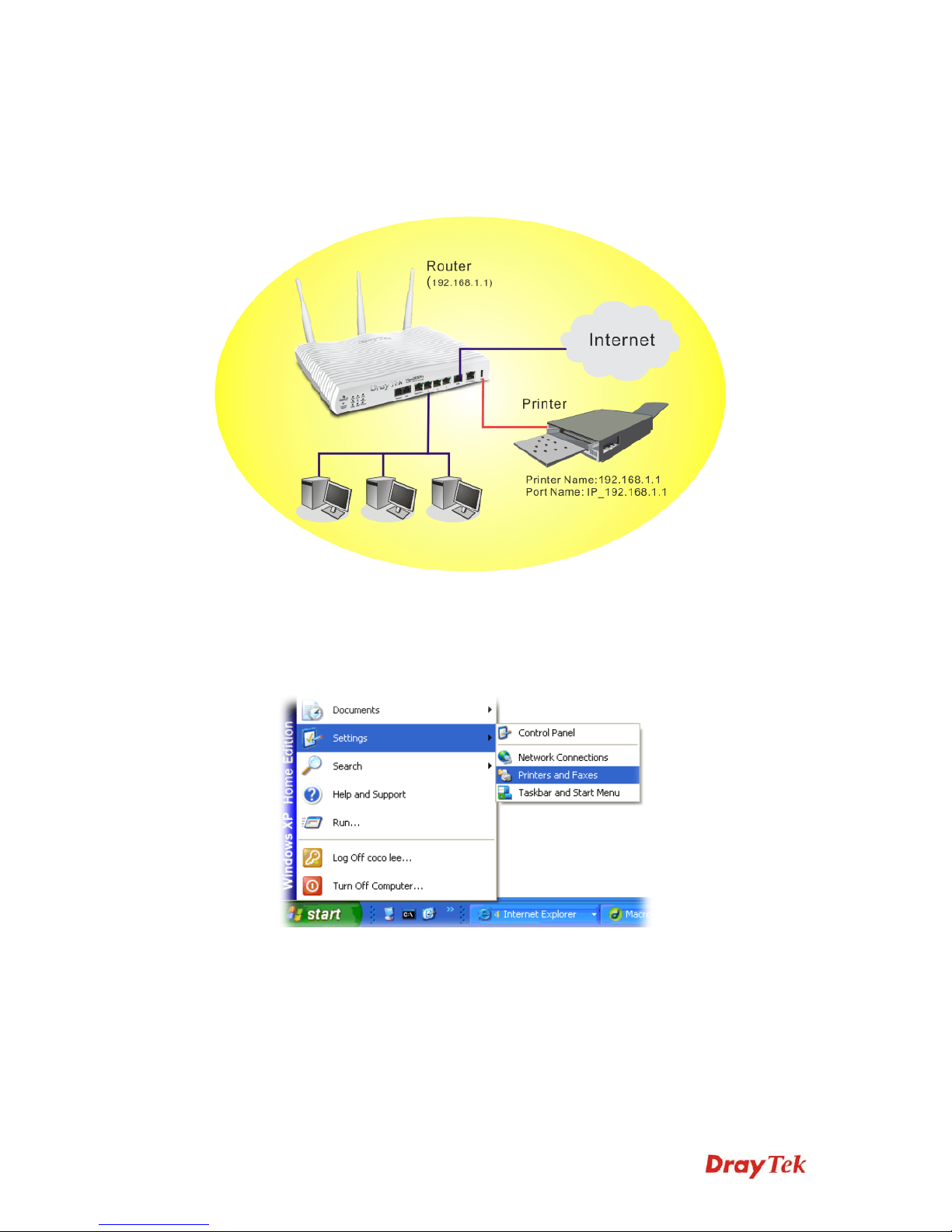

2.2 Printer Installation..................................................................................................................... 12
3. Configuring Web Pages ..................................................................................... 17
3.1 Accessing Web Page ............................................................................................................... 17
3.2 Basic Configuration.................................................................................................................. 18
3.2.1 For WAN1 (ADSL/VDSL).....................................................................................................19
3.2.2 For WAN2 (Ethernet)........................................................................................................... 23
3.2.3 For WAN3 (USB)................................................................................................................. 30
3.3 Wireless Configuration............................................................................................................. 31
3.3.1 Basic Wireless LAN Concept............................................................................................... 31
3.3.2 General Setup...................................................................................................................... 32
3.3.3 Security Settings.................................................................................................................. 33
4. Trouble Shooting................................................................................................ 35
4.1 Checking If the Hardware Status Is OK or Not......................................................................... 35
4.2 Checking If the Network Connection Settings on Your Computer Is OK or Not ...................... 36
4.3 Pinging the Router from Your Computer.................................................................................. 38
4.4 Checking If the ISP Settings are OK or Not............................................................................. 39
4.5 Backing to Factory Default Setting If Necessary...................................................................... 39
4.6 Contacting Your Dealer ............................................................................................................ 40

Vigor2850 Series Quick Start Guide
vii

Vigor2850 Series Quick Start Guide
1
1
1. . I In nt tr ro od du uc ct ti io on n
Vigor2850 series is a VDSL2 router with multi-subnet for secure and efficient workgroup
management. It integrates IP layer QoS, NAT session/bandwidth management to help
users control works well with large bandwidth.
By adopting hardware-based VPN platform and hardware encryption of AES/DES/3DES,
and hardware key hash of SHA-1/MD5, the router increases the performance of VPN
greatly and offers several protocols (such as IPSec/PPTP/L2TP) with up to 32 VPN
tunnels.
The object-based design used in SPI (Stateful Packet Inspection) firewall allows users to
set firewall policy with ease. CSM (Content Security Management) provides users control
and management in IM (Instant Messenger) and P2P (Peer to Peer) more efficiency than
before. In addition, DoS/DDoS prevention and URL/Web content filter strengthen the
security outside and control inside.

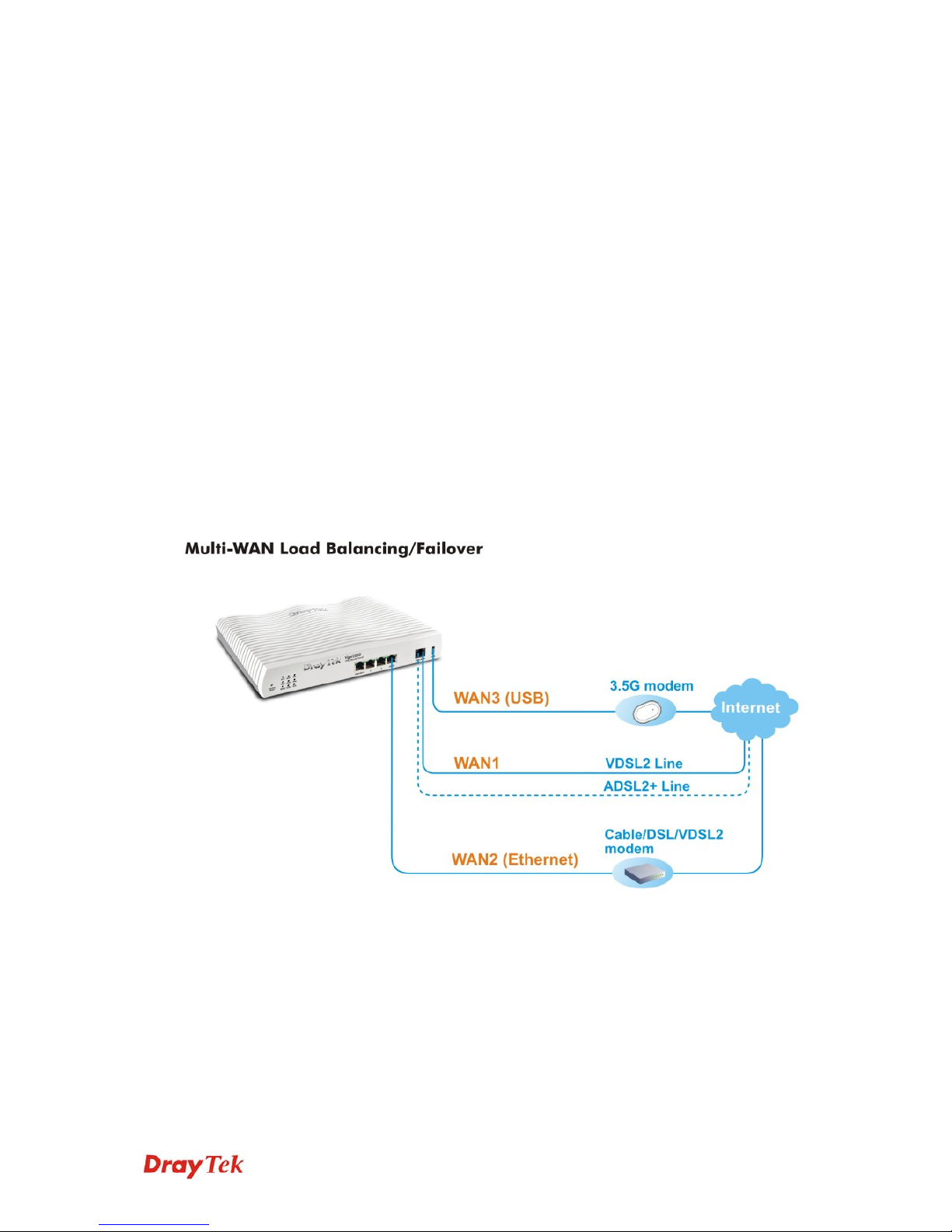

Vigor2850 series supports USB interface for connecting USB printer to share printing
function, 3G USB modem for network connection, or connectivity for network FTP
service.

Vigor2850 Series Quick Start Guide 2
1
1. .1 1 P Pa an ne el l E Ex xp pl la an na at ti io on n
1

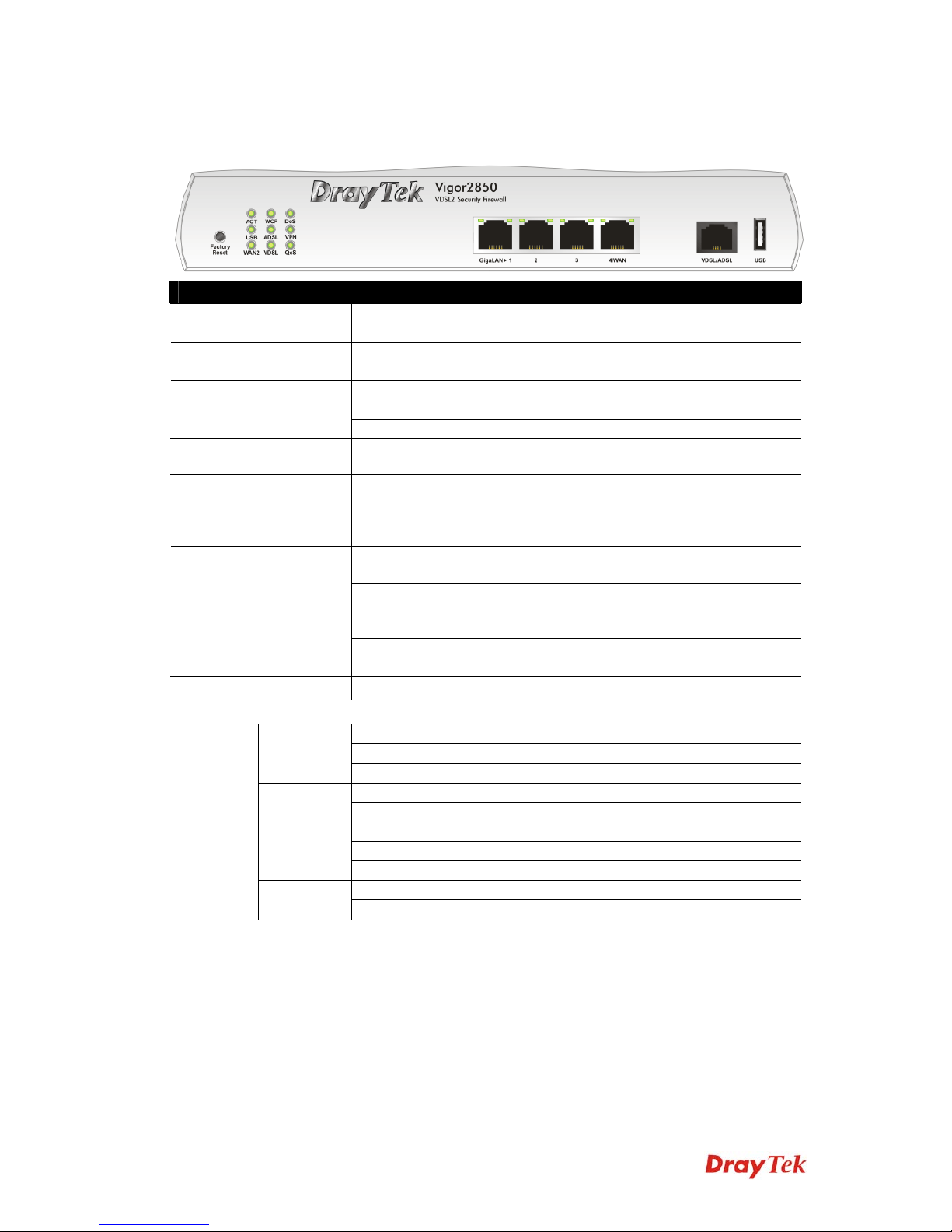

1. .1 1. .1 1 F Fo or r V Vi ig go or r2 28 85 50 0
LED Status Explanation
Blinking The router is powered on and running normally.ACT (Activity) Off The router is powered off.
On USB device is connected and ready for use.USB Blinking The data is transmitting.
On Internet connection is ready.
Off Internet connection is not ready.
WAN2
Blinking The data is transmitting.
WCF On The Web Content Filter is active. (It is enabled from
Firewall >> General Setup).
On The router is ready to access Internet through ADSL
link.
ADSL
Blinking Slowly: The ADSL connection is ready.
Quickly: The connection is training.
On The router is ready to access Internet through VDSL
link.
VDSL
Blinking Slowly: The VDSL connection is ready.
Quickly: The connection is training.
On The DoS/DDoS function is active.DoS Blinking It will blink while detecting an attack.
VPN On The VPN tunnel is active.
QoS On The QoS function is active.
LED on Connector
On The port is connected.
Off The port is disconnected.
Left LED
(Green)
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
GigaLAN
1/2/3
Right LED
(Green) Off The port is connected with 10/100Mbps
On The port is connected.
Off The port is disconnected.
Left LED
(Green)
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
GigaLAN
4/WAN
Right LED
(Green) Off The port is connected with 10/100Mbps

Vigor2850 Series Quick Start Guide
3

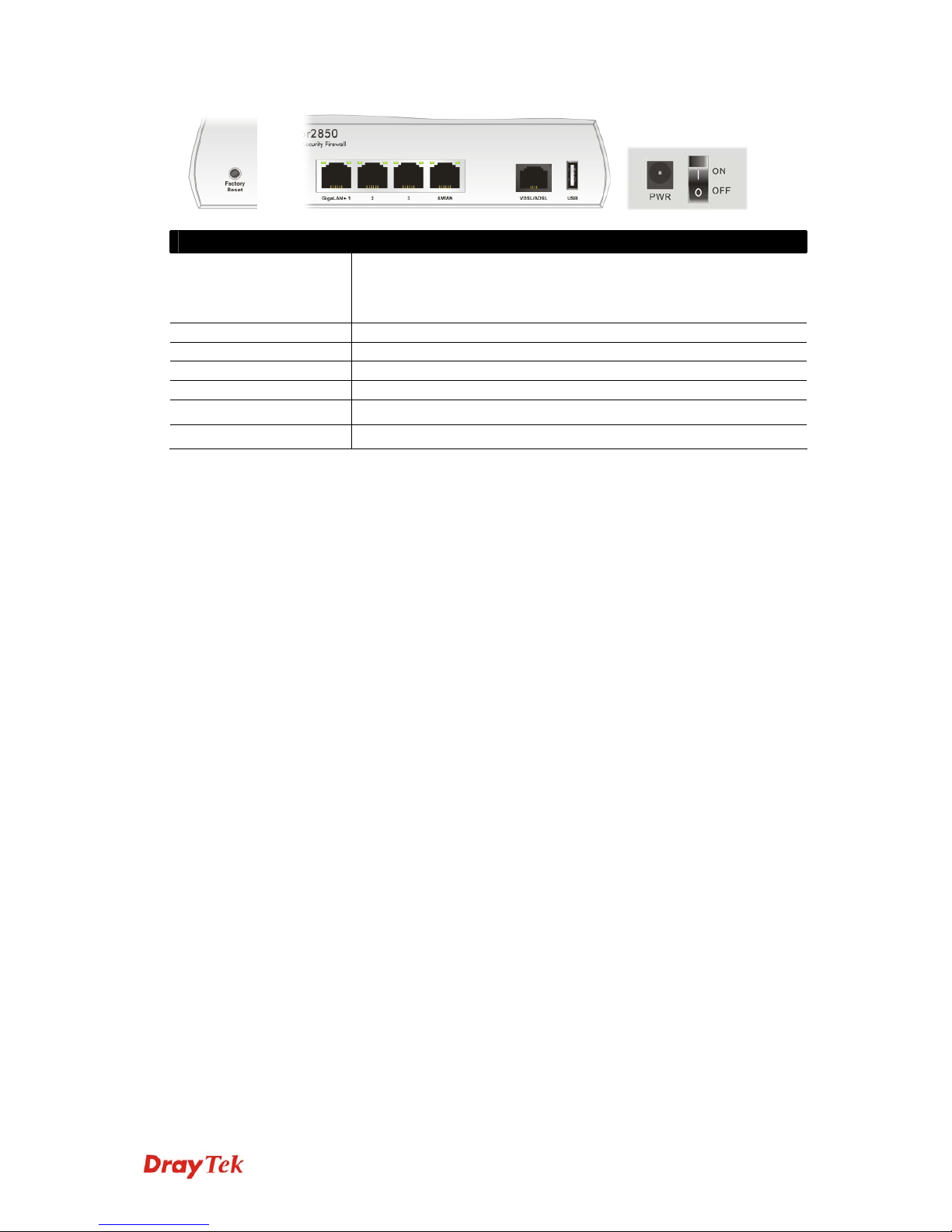

Interface Description
Factory Reset Restore the default settings. Usage: Turn on the router (ACT LED is
blinking). Press the hole and keep for more than 5 seconds. When you
see the ACT LED begins to blink rapidly than usual, release the button.
Then the router will restart with the factory default configuration.
GigaLAN (1-3) Connecters for local network devices.
4/WAN Connecter for local network devices or modem for accessing Internet.
VDSL/ADSL Connecter for accessing the Internet.
USB Connecter for a USB device (for 3G USB Modem or printer).
PWR Connecter for a power adapter.
ON/OFF Power Switch.

Vigor2850 Series Quick Start Guide 4
1

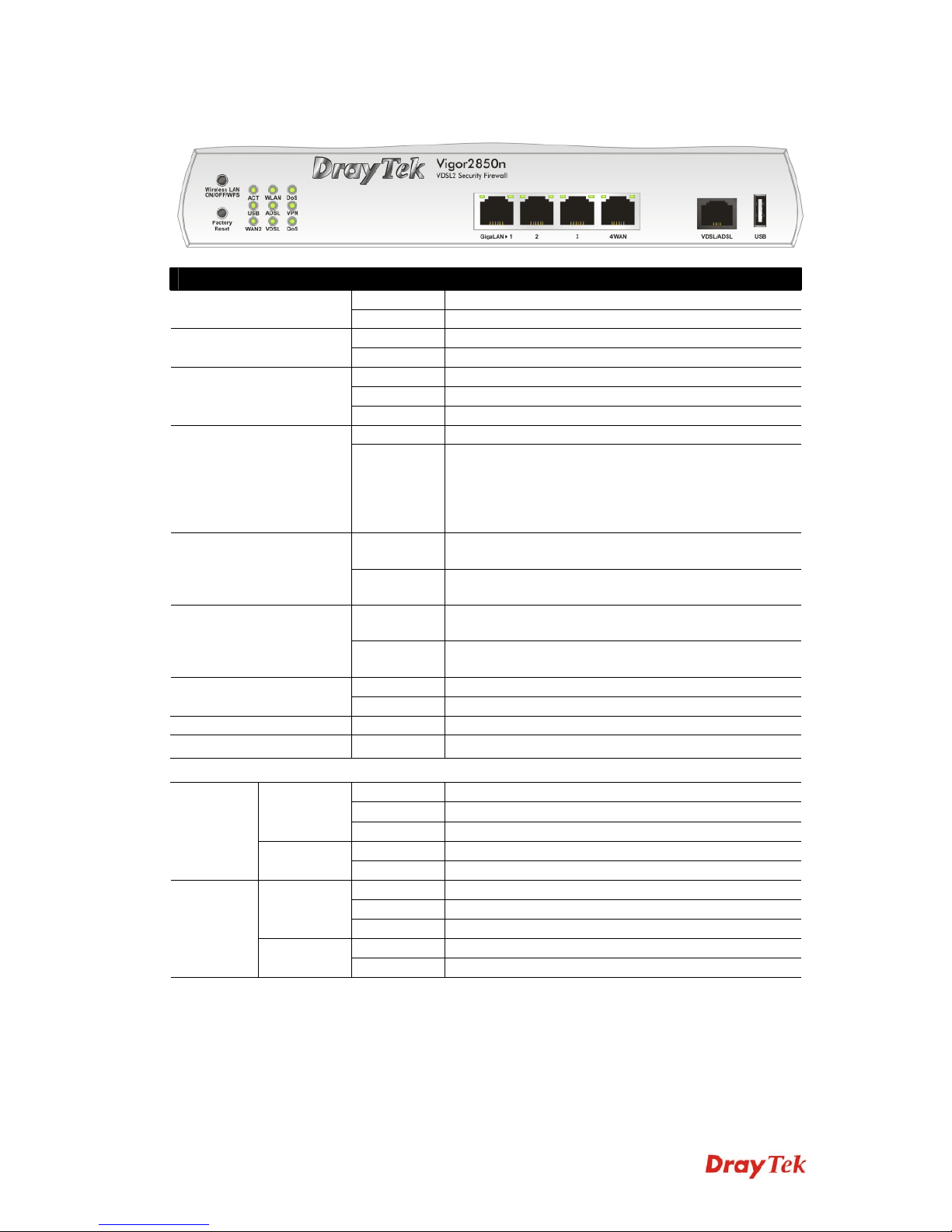

1. .1 1. .2 2 F Fo or r V Vi ig go or r2 28 85 50 0n n
LED Status Explanation
Blinking The router is powered on and running normally.ACT (Activity) Off The router is powered off.
On USB device is connected and ready for use.USB Blinking The data is transmitting.
On Internet connection is ready.
Off Internet connection is not ready.
WAN2
Blinking The data is transmitting.
On Wireless access point is ready. WLAN Blinking It will blink slowly while wireless traffic goes through.
ACT and WLAN LEDs blink quickly and
simultaneously when WPS is working, and will return to
normal condition after two minutes. (You need to setup
WPS within 2 minutes.)
On The router is ready to access Internet through ADSL
link.
ADSL
Blinking Slowly: The ADSL connection is ready.
Quickly: The connection is training.
On The router is ready to access Internet through VDSL
link.
VDSL
Blinking Slowly: The VDSL connection is ready.
Quickly: The connection is training.
On The DoS/DDoS function is active.DoS Blinking It will blink while detecting an attack.
VPN On The VPN tunnel is active.
QoS On The QoS function is active.
LED on Connector
On The port is connected.
Off The port is disconnected.
Left LED
(Green)
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
GigaLAN
1/2/3
Right LED
(Green) Off The port is connected with 10/100Mbps
On The port is connected.
Off The port is disconnected.
Left LED
(Green)
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
GigaLAN
4/WAN
Right LED
(Green) Off The port is connected with 10/100Mbps

Vigor2850 Series Quick Start Guide
5

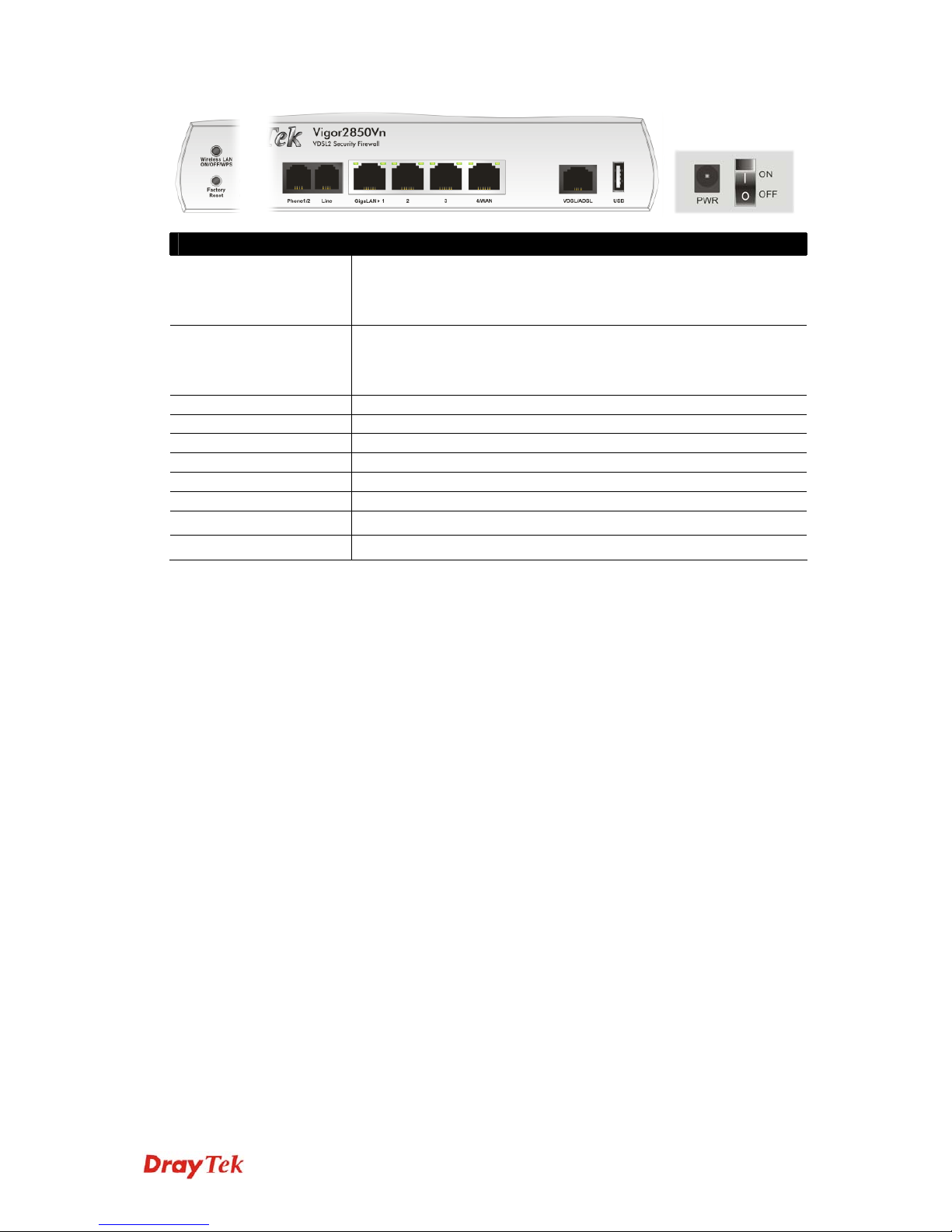

Interface Description
Wireless LAN
ON/OFF/WPS Press "Wireless LAN ON/OFF/WPS" button once to wait for client device making network connection through WPS.
Press "Wireless LAN ON/OFF/WPS" button twice to enable (WLAN
LED on) or disable (WLAN LED off) wireless connection.
Factory Reset Restore the default settings. Usage: Turn on the router (ACT LED is
blinking). Press the hole and keep for more than 5 seconds. When you
see the ACT LED begins to blink rapidly than usual, release the button.
Then the router will restart with the factory default configuration.
GigaLAN (1-3) Connecters for local network devices.
4/WAN Connecter for local network devices or modem for accessing Internet.
VDSL/ADSL Connecter for accessing the Internet.
USB Connecter for a USB device (for 3G USB Modem or printer).
PWR Connecter for a power adapter.
ON/OFF Power Switch.

Vigor2850 Series Quick Start Guide 6
1
1. .1 1. .3 3 F Fo or r V Vi ig go or r2 28 85 50 0V Vn n
LED Status Explanation
Blinking The router is powered on and running normally.ACT (Activity) Off The router is powered off.
On USB device is connected and ready for use.USB Blinking The data is transmitting.
On Internet connection is ready.
Off Internet connection is not ready.
WAN2
Blinking The data is transmitting.
On Wireless access point is ready. WLAN Blinking It will blink slowly while wireless traffic goes through.
ACT and WLAN LEDs blink quickly and
simultaneously when WPS is working, and will return to
normal condition after two minutes. (You need to setup
WPS within 2 minutes.)
On The router is ready to access Internet through ADSL
link.
ADSL
Blinking Slowly: The ADSL connection is ready.
Quickly: The connection is training.
On The router is ready to access Internet through VDSL
link.
VDSL
Blinking Slowly: The VDSL connection is ready.
Quickly: The connection is training.
On A PSTN phone call comes (in and out). However, when
the phone call is disconnected, the LED will be off.
Line
Off There is no PSTN phone call.
On The phone connected to this port is off-hook.
Off The phone connected to this port is on-hook.
Phone 1/2
Blinking A phone call comes.
LED on Connector
On The port is connected.
Off The port is disconnected.
Left LED
(Green)
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
GigaLAN
1/2/3
Right LED
(Green) Off The port is connected with 10/100Mbps
On The port is connected.
Off The port is disconnected.
Left LED
(Green)
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
GigaLAN
4/WAN
Right LED
(Green) Off The port is connected with 10/100Mbps

Vigor2850 Series Quick Start Guide
7
Interface Description
Wireless LAN
ON/OFF/WPS Press "Wireless LAN ON/OFF/WPS" button once to wait for client device making network connection through WPS.
Press "Wireless LAN ON/OFF/WPS" button twice to enable (WLAN
LED on) or disable (WLAN LED off) wireless connection.
Factory Reset Restore the default settings. Usage: Turn on the router (ACT LED is
blinking). Press the hole and keep for more than 5 seconds. When you
see the ACT LED begins to blink rapidly than usual, release the button.
Then the router will restart with the factory default configuration.
Phone 1/2 Connecter for analog phone(s).
Line Connector for PSTN life line.
GigaLAN (1-3) Connecters for local network devices.
4/WAN Connecter for local network devices or modem for accessing Internet.
VDSL/ADSL Connecter for accessing the Internet.
USB Connecter for a USB device (for 3G USB Modem or printer).
PWR Connecter for a power adapter.
ON/OFF Power Switch.

Vigor2850 Series Quick Start Guide 8
1
1. .1 1. .4 4 F Fo or r V Vi ig go or r2 28 85 50 0i i
LED Status Explanation
Blinking The router is powered on and running normally.ACT (Activity) Off The router is powered off.
On USB device is connected and ready for use.USB Blinking The data is transmitting.
On Internet connection is ready.
Off Internet connection is not ready.
WAN2
Blinking The data is transmitting.
On The Web Content Filter is active. (It is enabled from
Firewall >> General Setup).
WCF
Off The Web Content Filter is disabled.
On The router is ready to access Internet through ADSL
link.
ADSL
Blinking Slowly: The ADSL connection is ready.
Quickly: The connection is training.
On The router is ready to access Internet through VDSL
link.
VDSL
Blinking Slowly: The VDSL connection is ready.
Quickly: The connection is training.
On The DoS/DDoS function is active.DoS Blinking It will blink while detecting an attack.
VPN On The VPN tunnel is active.
QoS On The QoS function is active.
LED on Connector
On The port is connected.
Off The port is disconnected.
ISDN Right LED
(Green)
Blinking The data and voice are transmitting.
On The port is connected.
Off The port is disconnected.
Left LED
(Green)
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
GigaLAN
1/2/3
Right LED
(Green) Off The port is connected with 10/100Mbps
On The port is connected.
Off The port is disconnected.
Left LED
(Green)
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
GigaLAN
4/WAN
Right LED
(Green) Off The port is connected with 10/100Mbps

Vigor2850 Series Quick Start Guide
9
Interface Description
Factory Reset Restore the default settings. Usage: Turn on the router (ACT LED is
blinking). Press the hole and keep for more than 5 seconds. When you
see the ACT LED begins to blink rapidly than usual, release the button.
Then the router will restart with the factory default configuration.
ISDN Connecter for ISDN line.
GigaLAN (1-3) Connecters for local network devices.
4/WAN Connecter for local network devices or modem for accessing Internet.
VDSL/ADSL Connecter for accessing the Internet.
USB Connecter for a USB device (for 3G USB Modem or printer).
PWR Connecter for a power adapter.
ON/OFF Power Switch.

Vigor2850 Series Quick Start Guide 10
1
1. .2 2 P Pa ac ck ka ag ge e C Co on nt te en nt t
nQuick Start Guide oCD
pRJ-45 Cable (Ethernet) qAntenna (n models)
rAnalog phone adapter (V models)
sThe type of the power adapter depends on the country that the router will be
installed:
UK-type Power Adapter EU-type Power Adapter
USA/Taiwan-type Power Adapter AU/NZ-type Power Adapter
* The maximum power consumption is 24 Watt.

Vigor2850 Series Quick Start Guide
11
2
2. . I In ns st ta al ll li in ng g Y Yo ou ur r R Ro ou ut te er r
This section will guide you to install the router through hardware connection and
configure the router’s settings through web browser.
2
2. .1 1 H Ha ar rd dw wa ar re e I In ns st ta al ll la at ti io on n
Before starting to configure the router, you have to connect your devices correctly.
1. Connect the XDSL interface to the external XDSL splitter with an XDSL line cable
for all models. For Vigor2850Vn, also connect Line interface to external XDSL
splitter.
2. Connect one end of an Ethernet cable (RJ-45) to one of the LAN ports of the router
and the other end of the cable (RJ-45) into the Ethernet port on your computer.
3. Connect the telephone set with phone lines (for using VoIP function). For the model
without phone ports, skip this step.
4. Connect one end of the power adapter to the router’s power port on the rear panel,
and the other side into a wall outlet.
5. Power on the device by pressing down the power switch on the rear panel.
6. The system starts to initiate. After completing the system test, the ACT LED will
light up and start blinking.
(For the hardware connection, we take “Vn” model as an example.)

Vigor2850 Series Quick Start Guide 12
2
2. .2 2 P Pr ri in nt te er r I In ns st ta al ll la at ti io on n
You can install a printer onto the router for sharing printing. All the PCs connected this
router can print documents via the router. The example provided here is made based on
Windows XP/2000. For Windows 98/SE/Vista, please visit www.draytek.com.
Before using it, please follow the steps below to configure settings for connected
computers (or wireless clients).
1. Connect the printer with the router through USB port.
2. Open Start->Settings-> Printers and Faxes.
