Drayton Digistat+ 2 22084 Operation manual

Drayton
U
Programmable Room
Thermostat
24 Hour
Models:
22084 / 22088
Power Supply:
Battery / Mains
Invensys Controls Europe
Technical Helpline: [phone]
www.draytoncontrols.co.uk
Installation / User Guide 06490045001 (0406)
W

User Guide

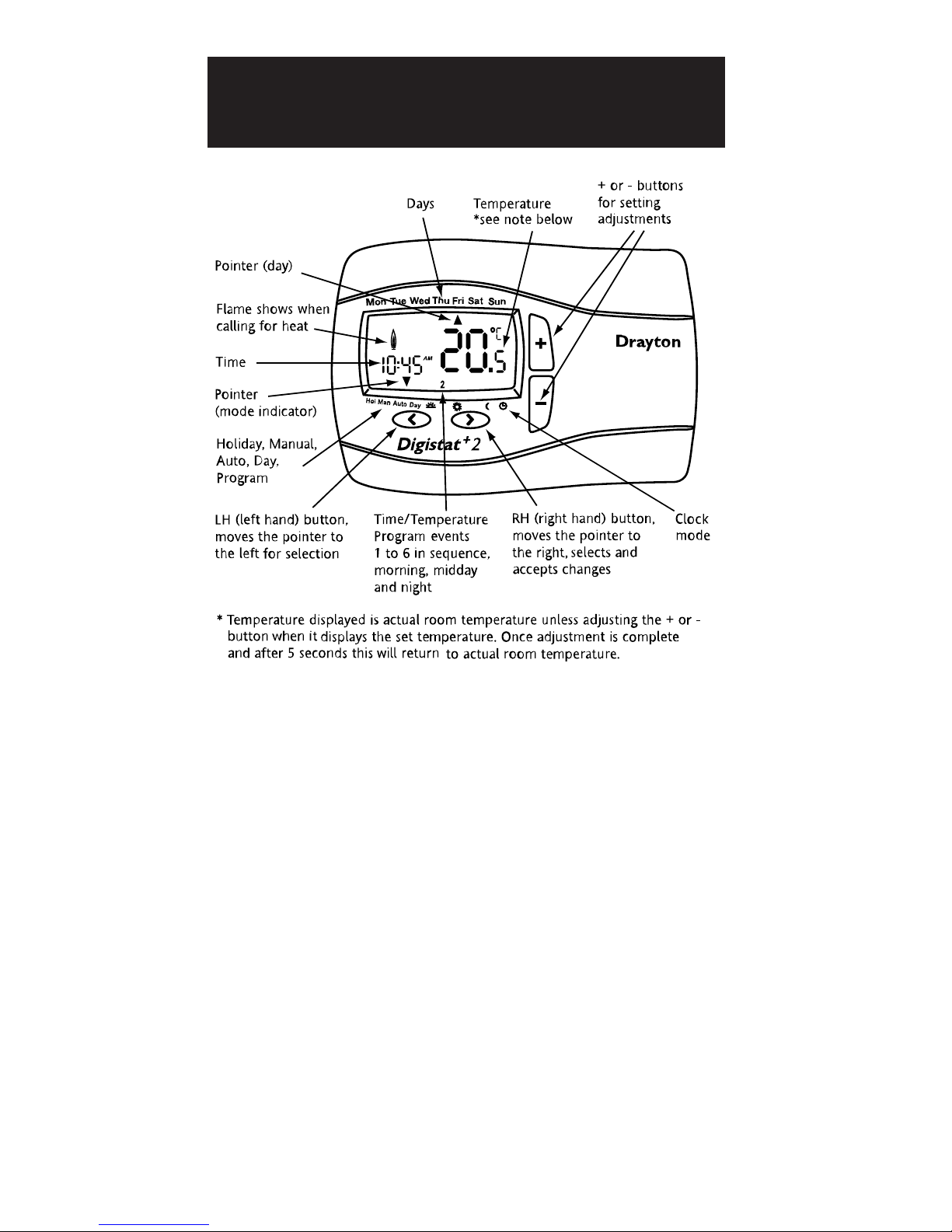

Your Digistat+2 programmable room
thermostat. 24 Hour
Digistat+2 programmable room thermostat allows you to set
time and temperature periods (up to 6 per day) to suit your own
lifestyle. Once fully installed and powered the Digistat+2 will
automatically set the correct time and in auto mode will control
your heating system according to pre-set program 1 (9 till 5).
The temperature is controlled by sensing air temperature,
switching on the heating when the air temperature falls below
the thermostat setting and switching it off once this set
temperature has been reached.
(

How to change the temperature for a short time (Override).
When in Auto mode you can override the existing temperature
setting by pressing + or -. During adjustment the temperature will
flash then stop. The Digistat+2 will now control at this
temperature until the next programmed time/temperature event is
reached, when the Digistat+2 will revert back to Auto mode.
Whilst in temperature override the pointer indicates both Man and
Auto. To exit override press > to return to Auto. (Fig 1) shows
Digistat+2 in override.
How to set a constant room temperature (Manual mode).
Manual mode will allow you to set a temperature, over-riding all
programs, until you exit manual mode. In this mode all pre-set
time temperature events will be disabled.
To enter manual mode press < until the pointer indicates MAN
(Fig 2). The screen will only show the temperature, which can be
adjusted by pressing + or -.
Once you have set the temperature it will flash for 5 seconds and
then stop. The Digistat+2 will now control at this temperature until
you adjust using + or - or exit by pressing > to enter Auto mode.
(
(Fig 1) (Fig 2)
How to set my room temperature for my holiday period.
(Holiday Mode)
When going on holiday you can lower the temperature of your
home for the duration of your holiday, but set Digistat+2 to
return to your normal programming ready for your return.
Holiday mode works by counting down the days or hour until
your return.
Time periods of between 1 to 24hr then 1 day to 199 days can
be set.
Example
I am ready to leave for my 2 week (14 day) holiday and would like
the house temperature held at a constant 10.0 ºC during this time
and on my return the house temperature will be already running
at my normal pre-set temperature.

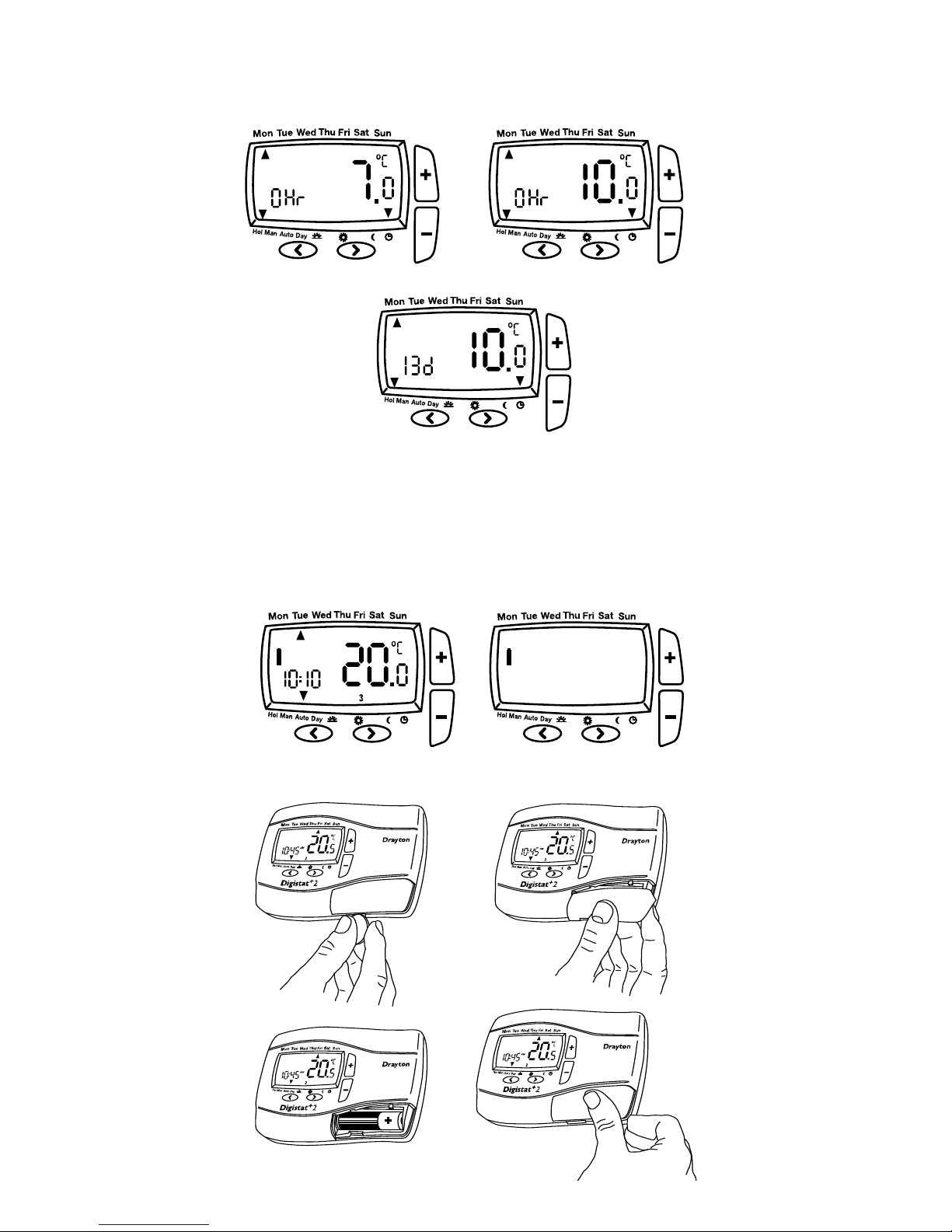

To enter Holiday mode press the < button until the pointer is
indicating HOL (fig 3). The temperature will flash and by pressing
the + or - buttons you can change to the temperature required
(in this example to 10.0 ºC) (Fig 3a).
Then press < again to set the time period.(in this example 14
days) using the + or - buttons. (it would be advisable in this
example to set the time period 1 day less (13 days) to ensure the
house temperature is back to normal on your return). (Fig 3b)
Once you have set your time period the time will flash for 10
seconds and then start the holiday period. To exit the Holiday
mode press either < or > to return to auto mode.
W

When changing time the display will scroll through Hr (Hours)
1-24 then d (Days) 1-99.
The display will show holiday time period and set temperature.
(Fig 3) (Fig 3a)
(Fig 3b)
(Fig 4) (Fig 5)
Battery Model only.
How do I know when to change the batteries.
When the batteries start to run low a battery icon will blink for
15 seconds every 15 seconds to indicate “low battery” during this
time the Digistat+2 will function normally (see fig 4).
Please replace batteries with (2 x AA 1.5V Alkaline batteries).
After 6 months the Digistat+2 will cease to function and will
permanently display the battery icon and nothing else, shown in (fig 5).
(
(Fig6)
(

(Fig 8)(Fig 7)
(Fig 10)(Fig 9)
How to change the time, day, month & year.
Digistat+2 comes with a pre-set clock, which also automatically
adjusts for summer/winter time changes. It is activated
automatically on 1st installation. There should be no need to
change these settings, however, should you wish to, it can be
done in clock mode.

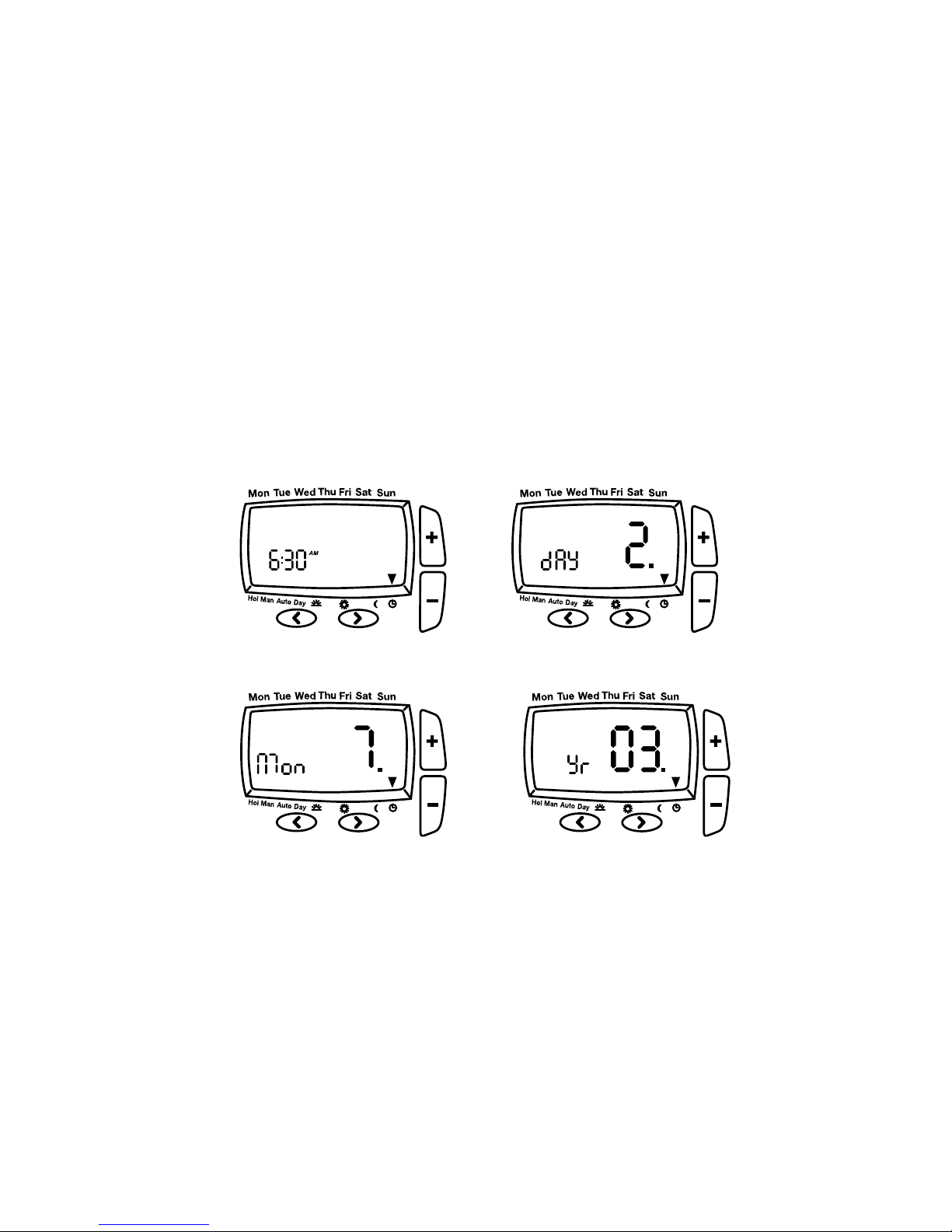

To enter the clock mode press > to move through Day and all 6
time/temperature events until the arrow points to the clock
symbol. The time will now flash and can be adjusted (Fig 7) by
pressing + or - then press > to accept and move to Day.
Change day. (Fig 8).
If you wish to change the day press + or - then press > to accept.
Digistat+2 will move to the next field - month.
Change month. (Fig 9).
If you wish to change the month press + or - then press > to
accept. Digistat+2 will move to the next field - Year.
Change year. (Fig 10).
If you wish to change the year press + or -, then press > to
accept. Digistat+2 will now return to Auto mode.
Display Error code E1 or E2.
When the display shows E1 or E2 this indicates a sensor fault
and your heating system will remain Off. Please contact your
installer.
How to select another pre-set time/temperature program.
There are 3 pre-set time/temperature programs already held in
memory as shown, if pre-set program 1 is the best program to
suit your lifestyle do nothing and the Digistat+2 will control to
program 1.
If you would like to select one of the other pre-set programs,
refer to ‘How to change User Options’, Option 3 and select your
preferred program.

(Fig 11)
(Fig 12) (Fig 12a)
Pre-set programs for Digistat+2 24 Hour.
Program 1 (9 till 5) as shown below
Monday to Sunday
Events 1 2 3 4 5 6
Time 6:30 8:30 12:00 14:00 16:30 22:30
Temperature C 20.0 16.0 16.0 16.0 21.0 7.0
Program 2 (Home for lunch)
Monday to Sunday
Events 1 2 3 4 5 6
Time 6:30 8:30 12:00 14:00 16:30 22:30
Temperature C 21.0 16.0 21.0 16.0 21.0 10.0
Program 3 (Home worker)
Monday to Sunday
Events 1 2 3 4 5 6
Time 6:00 8:30 12:00 14:00 17:30 22:30
Temperature C 21.0 19.0 21.0 19.0 21.0 16.0
How to change the pre-set time/temperature program to my
own selection.

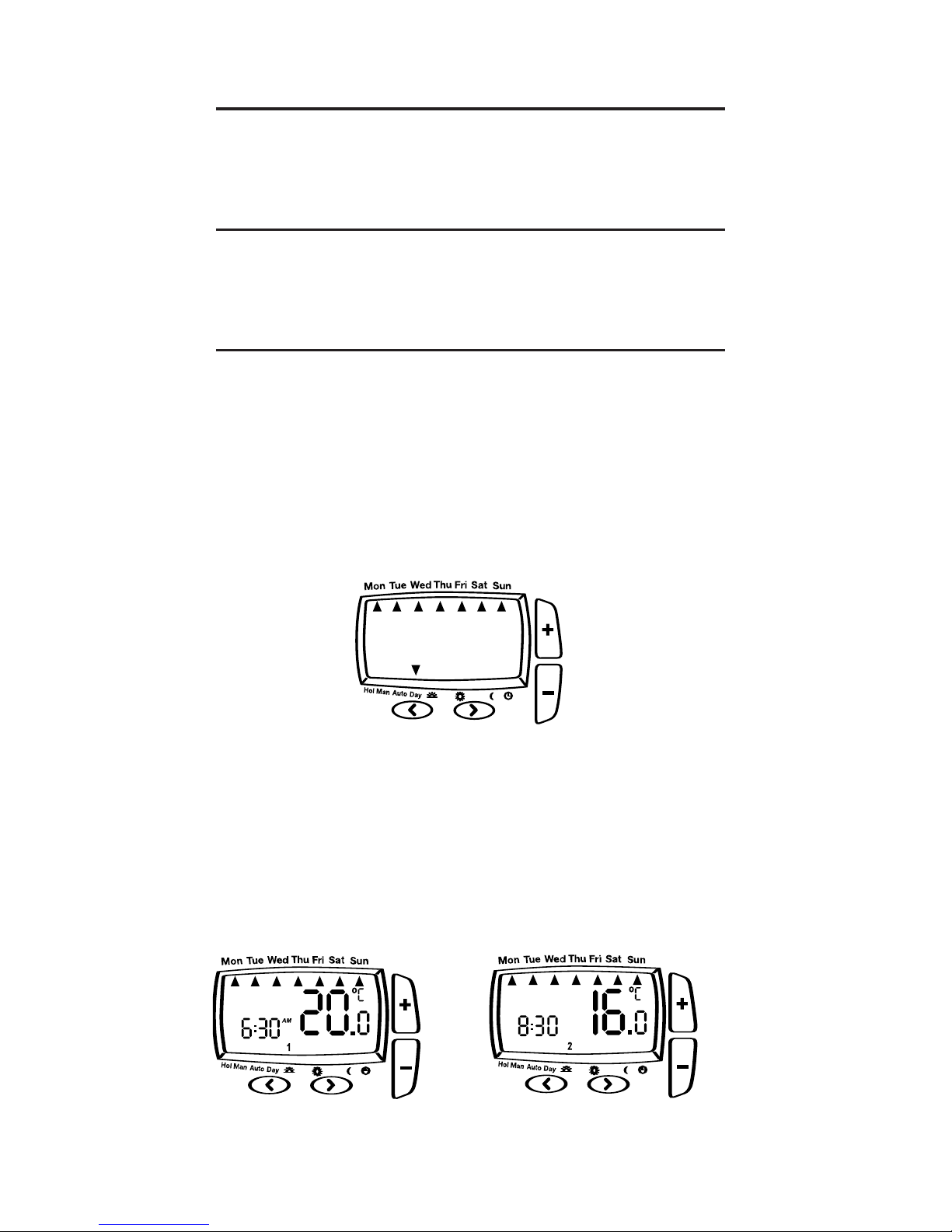

Press > to select the day function. (refer to fig 11).
This indicates that any changes made are valid for all days of the week.
Press > to view the existing time/temperature event (1). (Fig 12)
time will flash. Press > again to view the temperature setting,
temperature will flash. Press > again to view the 2nd
time/temperature event (Fig 12a).
H

When you get to the event you wish to change press + or - to
change the required time, then Press > to accept. Use + or - to
select the required temperature, then > to accept. Digistat+2 will
now show the next time/temperature event. To exit press < until
you return to Auto mode.
How to change User Options.

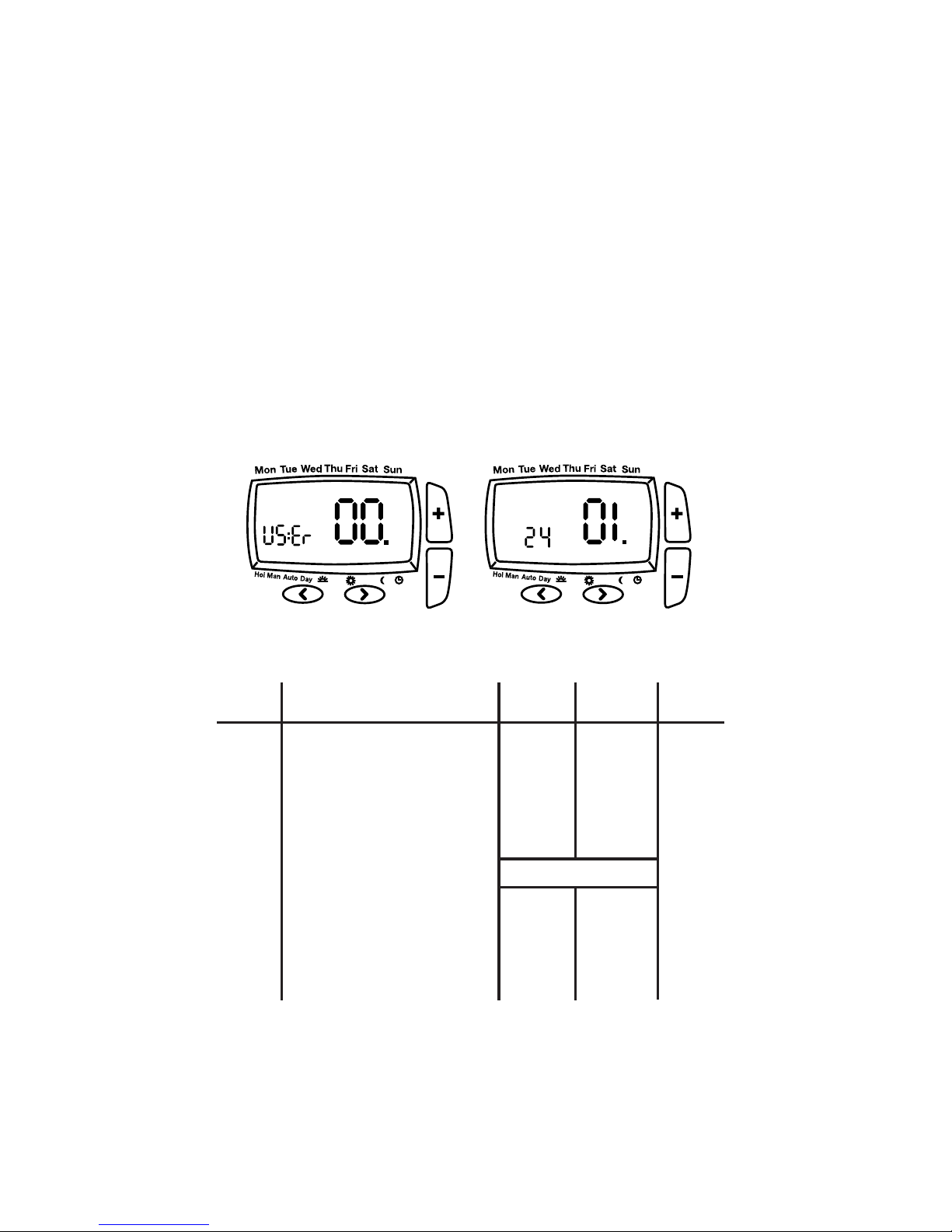

If you wish to change any user options 1 to 8 shown in table 1 they
can be accessed from Auto or Man by pressing < and >
simultaneously for 3 seconds. Once you have accessed the user
setting Menu (Fig 13) press > to scroll through selectable options
1 to 8. The settings for each option can be changed by pressing +
or - as required. Press > to accept the change and move to the
next option. To exit press < and > simultaeously for 3 seconds.
Alternatively, not pressing any buttons for 2 mins will cause the
Digistat+2 to return to Auto. (Fig 13a) shows option 1 24 (24
hour clock).
Only selected options which have been accepted by pressing >
will be changed.
(
(Fig 13) (Fig 13a)
User
options What is it Min Max Default
1 Change 12h or 24h clock 12 24 24
2 Change the manual set
point temperature
0
C7
0C 32 0C 20 0
C
3 Change to another
pre-set programme 1 3 1
4 Change the number of
programme events per day 2, 4 or 6 6
5 Switch on/off automatic
summer/winter time change On Off On
6 Change temperature offset
0
C-5 5 0
7 Restore pre-set programme On Off Off
8 To enable Off function On Off Off
(Table 1)

How to change from 24hr to 12hr clock (Option 1).
Enter user options, select option 1 and use + and – keys to select
desired option, 12 = 12hr and 24 = 24hr. Press > to accept change.
How to change the default manual set-point temperature
(Option 2).
Enter user options, select option 2 and use + and – keys to set
desired temperature. Press > to accept desired change.
How to change to another predefined program 1, 2 or 3
(Option 3).
Enter user options, select option 3 and use + and – keys to
select desired program 1, 2 or 3. 1 = program 1, 2 = program 2
and 3 = program 3. Press > to accept desired change.
How to change the number of program events per day
(Option 4).
Enter user options, select option 4 and use + and – keys to select
desired option. 2 = 2 time / temp events per day, 4 = 4 time /
temp events per day and 6 = 6 time / temp events per day. Press
> to accept desired change.
How to switch on/off the automatic summer / winter time
change (Option 5).
Twice a year the actual time is automatically changed to keep it in
line with the summer / winter time change. Default setting is On.
If you wish to disable / enable this feature enter user options,
select option 5 and press – or + key to display Off or On as
desired. Press > to accept desired change.
U
How to change temperature offset (Option 6).
The temperature displayed on the thermostat may not match
that of other temperature measuring devices in the controlled
space, because of its location. The displayed and set temperature
may be offset to bring it in line with other devices. To adjust the
temperature, enter the user options, select option 6. The
temperature may be offset by +/- 5 degrees by pressing the +
and – keys. Press > to accept the desired change.
How to restore the built in time temperature programs
(Option 7).
Enter user options, select option 7 and use + and – keys to select
desired option. Off = current programs retained. On = restore
factory program settings. Press > to select the desired change.
Please note enabling this function will lose any user changes
to the preset programs.
How to switch the Digistat+2 and heating system off
(Option 8).
To switch the Digistat+2 and the heating system off you need to
enable the Off function. Enter user options, select option 8 and
use + or – keys to select On to enable the Off function .The
thermostat and heating system will now be Off unless the
temperature in the controlled space falls below 7oC the frost
protection set-point. The LCD will display Off and room
temperature only and the keys will not function. To switch On
the Digistat+2 enter user options select option 8 and use + or –
keys to select Off to disable the Off function. The thermostat will
now regulate the heating system in line with the currently
selected program. Please note this does not effect the operation
of domestic hot water where provided.
H

What is a programmable room
thermostat?
...an explanation for householders
A programmable room thermostat is both a programmer
and a room thermostat. A programmer allows you to set
‘On’ and ‘Off ’ time periods to suit your own lifestyle. A room
thermostat works by sensing the air temperature, switching
on the heating when the air temperature falls below the
thermostat setting, and switching it off once this set
temperature has been reached.
So, a programmable room thermostat lets you choose what
times you want the heating to be on, and what temperature
it should reach while it is on. It will allow you to select
different temperatures in your home at different times of the
day (and days of the week) to meet your particular needs.
Turning a programmable room thermostat to a higher
setting will not make the room heat up any faster. How
quickly the room heats up depends on the design of the
heating system, for example, the size of boiler and radiators.
Neither does the setting affect how quickly the room cools
down. Turning a programmable room thermostat to a lower
setting will result in the room being controlled at a lower
temperature, and saves energy.
The way to set and use your programmable room
thermostat is to find the lowest temperature settings that
you are comfortable with at the different times you have
chosen, and then leave it alone to do its job. The best way to
do this is to set low temperatures first, say 18C, and then
t

turn them up by one degree each day until you are
comfortable with the temperatures. You won’t have to adjust
the thermostat further. Any adjustments above these settings
will waste energy and cost you more money.
If your heating system is a boiler with radiators, there will
usually be only one programmable room thermostat to
control the whole house. But you can have different
temperatures in individual rooms by installing thermostatic
radiator valves (TRVs) on individual radiators. If you don’t
have TRVs, you should choose a temperature that is
reasonable for the whole house. If you do have TRVs, you can
choose a slightly higher setting to make sure that even the
coldest room is comfortable, then prevent any overheating in
other rooms by adjusting the TRVs.
The time on the programmer must be correct. Some types
have to be adjusted in spring and autumn at the changes
between Greenwich Mean Time and British Summer Time.
You may be able to temporarily adjust the heating
programme, for example, ‘Override’, ‘Advance’ or ‘Boost’.
These are explained in the manufacturer’s instructions.
Programmable room thermostats need a free flow of air to
sense the temperature, so they must not be covered by
curtains or blocked by furniture. Nearby electric fires,
televisions, wall or table lamps may prevent the thermostat
from working properly.
