DreameTech Mop D9 User manual

Dreame Robot Vacuum-Mop F9
User Manual
Read this manual carefully before use, and retain it for future reference.

1
Safety Information
Usage
Restrictions
This product is for 󽗊oor cleaning in a home environment only. Do not use it outdoors, on non-󽗊oor surfaces, or in a commercial or industrial
setting.
Do not use the vacuum-mop in an area suspended above ground level without a protective barrier.
Do not use the vacuum-mop at an ambient temperature above 40° C or below 0° C or on a 󽗊oor with liquids or sticky substances.
Pick up any cables from the 󽗊oor before using the vacuum-mop to prevent it from dragging them while cleaning.
Remove fragile or small items from the 󽗊oor to prevent the vacuum-mop from bumping into and damaging them.
This product can be used by children aged from 8 years and above and persons with physical, sensory, intellectual de󽗉ciencies, or limited
experience or knowledge under the supervision of a parent or guardian to ensure safe operation and to avoid any risk of hazards. Cleaning
and maintenance shall not be made by children without supervision.
Children shall not play with this product. Ensure children and pets are kept at a safe distance from the vacuum-mop while it is operating.
Keep the brush cleaning tool out of reach of children.
Do not place children, pets, or any item on top of the vacuum-mop regardless of whether it is stationary or moving.
Keep hair, 󽗉ngers, and other body parts away from the suction opening of the vacuum-mops.
Do not use the vacuum-mop to clean any burning substances.
Do not vacuum up hard or sharp objects.
Make sure the vacuum-mop is turned o󽗈 and the charging dock is unplugged before cleaning or performing maintenance.
Do not wipe any part of this product using a wet cloth or any liquids.
Please use this product in accordance with the instructions in the User Manual. Users are responsible for any loss or damage arising from
improper use of this product.
Only for navigation and positioning purposes, the camera of the vacuum-mop will collect individuals in the surroundings within the range of the viewing angles
when it is cleaning. Please be assured that all your personal information will be protected by the data encryption technology.

2
Batteries and
Charging
Do not use any third-party battery, charger, or charging dock. Use only with RCS0 supply unit.
Do not attempt to disassemble, repair, or modify the battery or charging dock on your own.
Do not place the charging dock near a heat source.
Do not use a wet cloth or wet hands to wipe or clean the dock's charging contacts.
Do not improperly dispose of old batteries. Unneeded batteries should be discarded at an appropriate recycling facility.
If the power cord becomes damaged or broken, stop using it immediately and contact after-sales service.
Make sure the vacuum-mop is turned o󽗈 when being transported and kept in its original packaging if possible.
If the vacuum-mop will not be used for an extended period, fully charge it, then turn it o󽗈 and store in a cool, dry place. Recharge the
vacuum-mop at least once every 3 months to avoid over-discharging the battery.
This product contains batteries that can only be replaced by quali󽗉ed technicians or after-sales service.
Hereby, Dreame Trading (Tianjin) Co., Ltd. declares that the radio equipment type RVS5-WH0 is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: www.dreame-technology.com
Safety Information

3
Product Overview

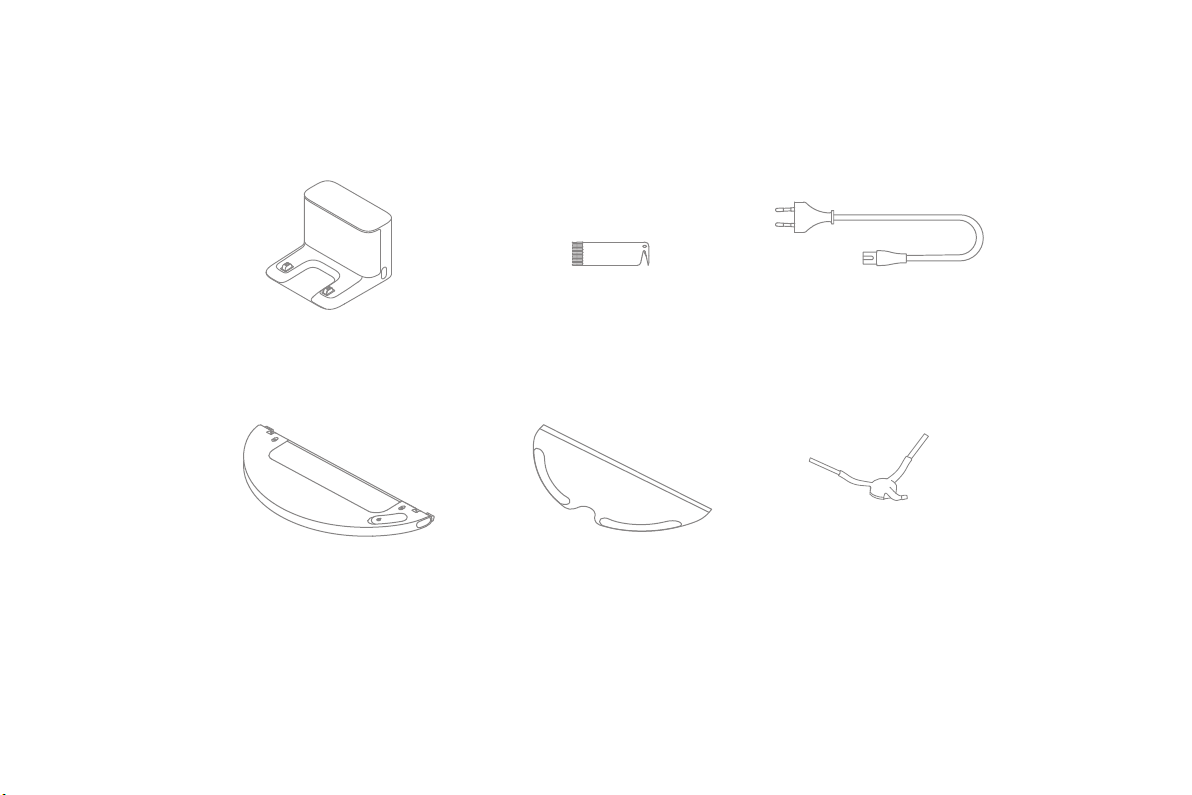

Accessories
Note: The illustrations in this manual are for reference only, please refer to the actual product for the actual appearance.
Charging Dock
Water Tank
Cleaning Tool
Mop Pad
Power Cord
Side Brush

4

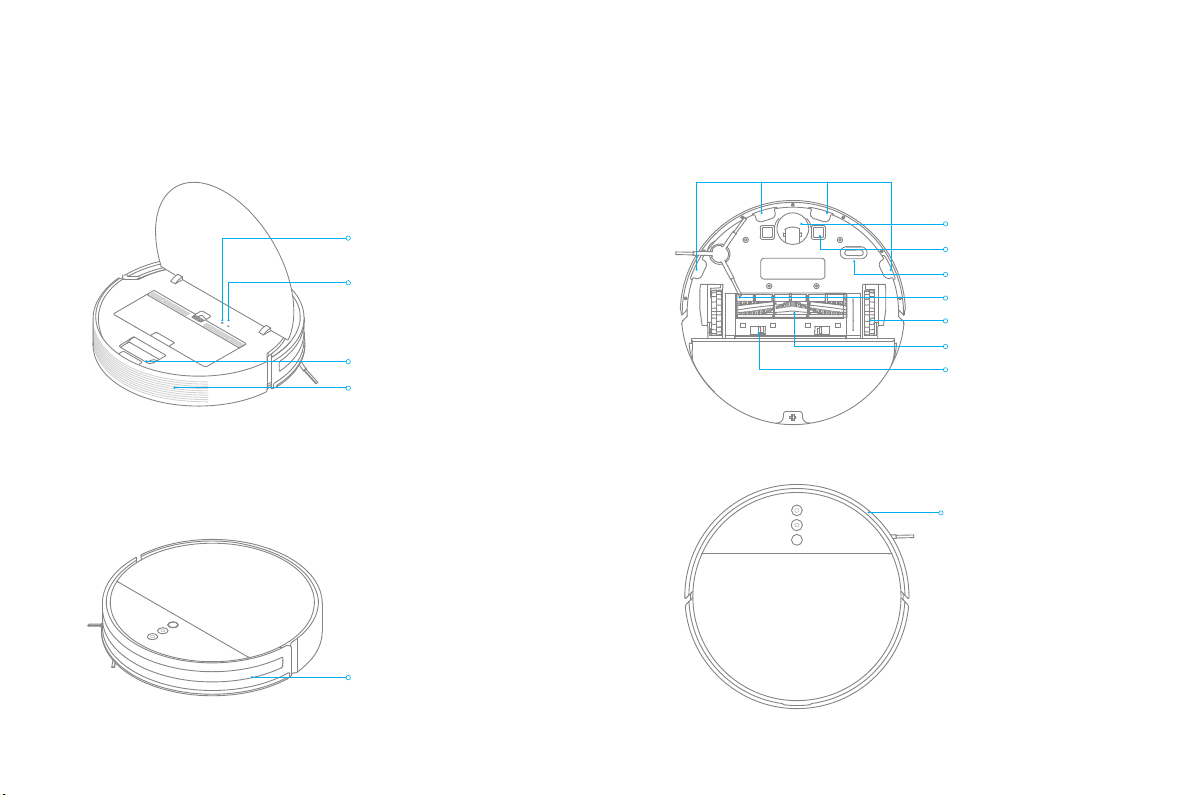

Product Overview

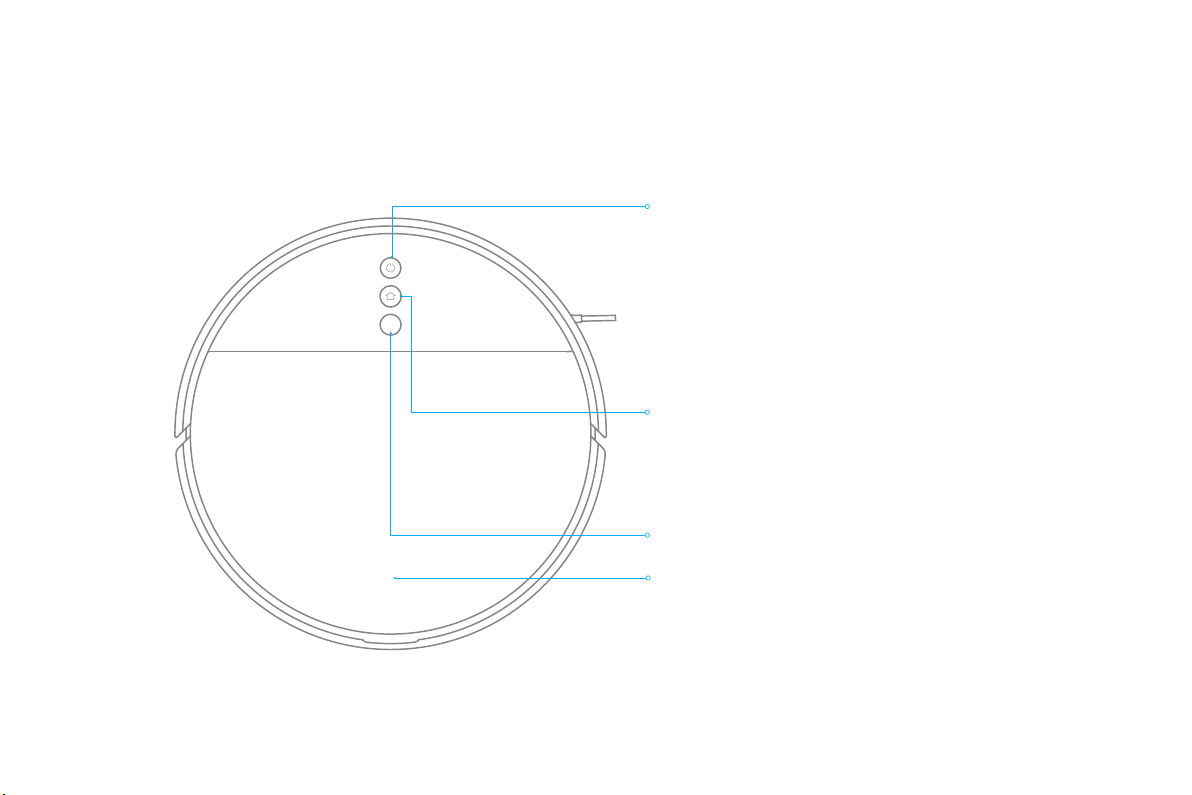

Vacuum-Mop
Power/Clean Button
Press and hold for 3 seconds
Press to start cleaning after the vacuum-mop is powered on
Cover latch
Visual Navigation Sensor
Status Indicator
White: Cleaning, or cleanup is completed
Blinking white: Cleaning paused
Blinking blue: Connecting to network
Blinking orange: Error
Spot/Dock Button
Press to send vacuum-mop back to charging dock
Press and hold for 3 seconds to start Spot Clean mode
Note: Press any button to pause while the vacuum-mop is cleaning,
returning to dock, or in Spot Clean mode.

5
Product Overview
Vacuum-Mop
Vacuum-Mop Sensors
Wi-Fi Indicator
Blinking slowly: To be connected
Blinking quickly: Connecting
On: Wi-Fi connected
Cleaning Tool
Collision Bu󽗈er
Infrared Deceleration Sensor
Omnidirectional Wheel
Charging Contacts
Optical Sensor
Side Brush
Main Wheels
Main Brush
Brush Guard Clips
Reset Button
Press and hold to restore factory settings
Air Outlet/Speaker
Cli󽗈 Sensors

6
Bin Clip
Bin Cover
Filter
Signaling Area
Charging Contacts
Power Port
Water Tank
Water Tank Stopper
Mop Pad
Attaching Area
Product Overview
Dust Bin Mopping Module
Charging Dock

7

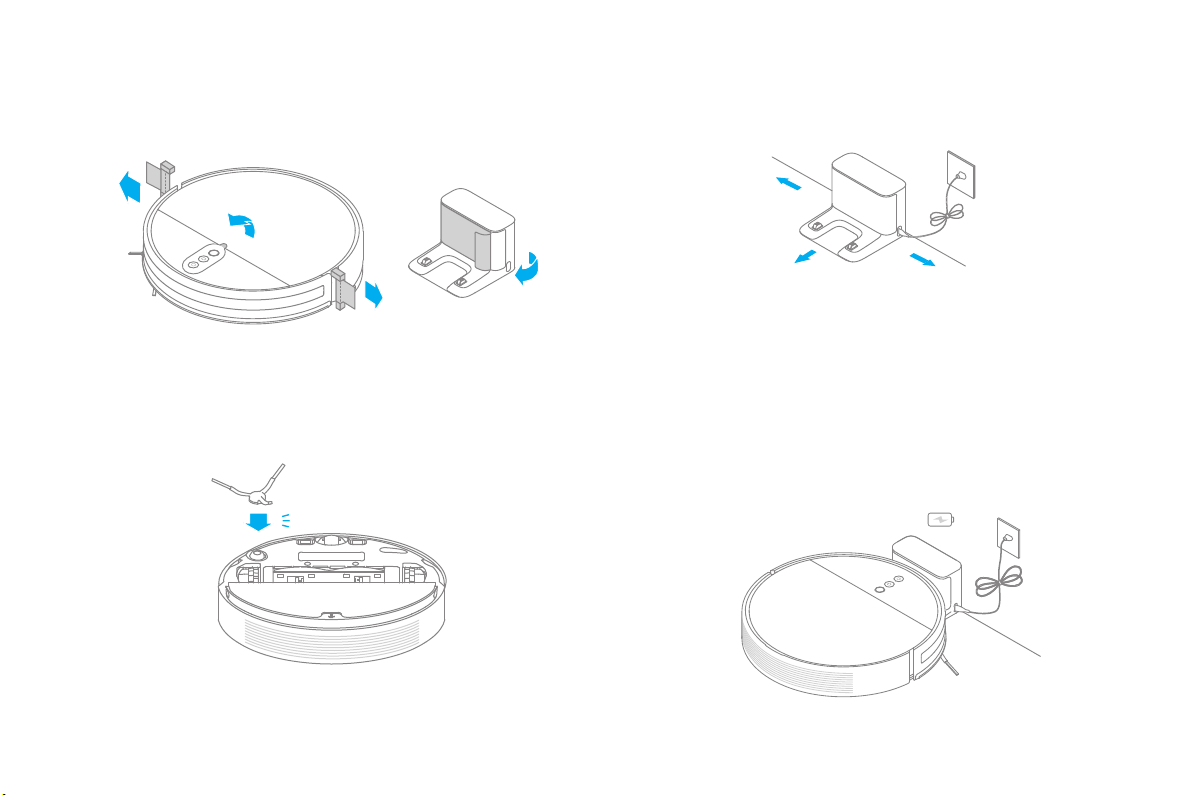

Preparation
2. Install the side brush.
Note：
• Fully charge before 󽗉rst use.
• Don't install the mopping module while charging.
4. Place the robot onto the charging dock to recharge.
Battery Level Indicator
White: Battery level is more than 15%
Orange: Battery level is less than 15%
≥6h
3. Place the charging dock on the level ground against wall and connect to a
power outlet.
Note：
• Make sure there is a distance of 0.5 meters or more on either side of the charging dock, and
more than 1.5 meters in front of it.
• Tidy up any loose cord which could accidentally move or unplug the charging dock.
• To ensure you can well connect to the vacuum-mop with your phone, make sure the
vacuum-mop and charging dock are in the range of Wi-Fi.
• Do not place the charging dock in an area with direct sunlight or where other objects could
block its signaling area, as this may hinder the vacuum-mop from returning to the charging
dock.
>1.5m
>0.5m
>0.5m
1. Remove the protective 󽗉lm.

8
Connecting with Mi Home/Xiaomi Home App
This product works with Mi Home/Xiaomi Home app *.
Scan the QR code to download and install the app.
You will be directed to the connection setup page if the app is installed
already.
Or search "Mi Home/Xiaomi Home" in the app store to download and
install it.
Open Mi Home / Xiaomi Home app, tap "+" on the upper right, and then
follow prompts to add your device.
Note: The version of the app might have been updated, please follow the instructions
based on the current app version.
Reset Wi-Fi
Simultaneously press and hold the buttons and until you hear a
voice saying "Waiting for the network con󽗉guration".
Once the Wi-Fi indicator is slowly blinking, the Wi-Fi has been successfully
reset.

9
How to Use
3. Cleaning Mode
Four cleaning modes are available in the app:
Quiet, Standard, Strong and Turbo. The default mode is Standard.
4. Pausing/Sleep Mode
• Press any button to pause the vacuum-mop during cleaning.
• The vacuum-mop will automatically enter sleep mode after 10 minutes of
inactivity, then the power and charging indicators will go o󽗈. To wake up
the vacuum-mop, press any button.
Note: When the vacuum-mop is paused, placing it onto the charging dock will end the
current cleaning task.
2. Start Cleaning
Upon activation, the vacuum-mop will methodically clean each room in an
S-shape pattern, then 󽗉nish by cleaning along edges and walls to ensure a
thorough job. When the vacuum-mop is done cleaning, it will automatically
return to the charging dock to recharge.
Note:
• Please fully charge and start from the charging dock before cleaning. Don't move the
robot and charging dock when the robot is working.
• If the battery is too low , the robot will automatically return to the dock to charge. It
will resume un󽗉nished cleaning tasks after charging to the appropriate power.
Note: Activating Spot Clean mode will end the current cleaning task of the vacuum-mop.
5. Spot Clean mode
When the vacuum-mop is in standby mode or paused, press and hold the
button for 3 seconds to start Spot Clean mode. In this mode, it will clean
a square-shaped area of 1.5 ×1.5 meters directly around the vacuum-mop.
When the spot cleaning is done, the vacuum-mop will automatically return
to its original location and shut o󽗈.
1. Turn On/O󽗈
Press and hold the button to turn on the vacuum-mop. Once the power
indicator turns solid white, the vacuum-mop is in standby mode. To turn o󽗈
the vacuum-mop, press and hold the button while the vacuum-mop is
stationary. Turning o󽗈 the vacuum-mop will end the current cleaning task.

10
How to Use
7. Scheduled Cleaning
You can schedule cleaning time in the app.
The vacuum-mop will automatically start cleaning at the designated time
and then return to the charging dock to recharge when the cleaning is
done.
8. Advanced Function
The app can be used to set up advanced functions such as selected room
cleaning, zone cleaning, forbidden area / virtual wall, etc.
Note:
• Map Saving mode switched on before this functions can be used. After completing
several cleanups under di󽗈erent lighting conditions, a full map will be created. When
starting a cleanup, please open all the doors in your home to ensure the integrity of
the map.
• Do not rely on forbidden areas and virtual walls to isolate dangerous areas.
• Moving the robot manually or making signi󽗉cant changes to the home environment
may cause the loss of virtual walls.
6. Do Not Disturb Mode
Do Not Disturb mode prevents the vacuum-mop from automatically
starting cleaning tasks, and the power indicator remains o󽗈. You can
enable Do Not Disturb or modify its hours in the app.
Note:
• Scheduled cleanups will still be carried out during the DND period.
• The vacuum-mop will continue cleaning after this period ends.
Select Room Forbidden Area / Virtual Wall
C
A
B
D

11
How to Use
9. Use the mopping function
It is recommended that all 󽗊oors are vacuumed at least three times before
the 󽗉rst mopping session to achieve better cleaning e󽗈ect.
③ Install the mopping module: Align the mopping module as indicated by
the arrow, then slide it into the back of the vacuum until it clicks into place.
Press the button or use Mi Home/Xiaomi Home app to start cleaning.
Note:
• Only use the mopping module when someone is at home.
• To prevent the vacuum-mop from entering carpeted areas, objects may be used.
• Use the app to adjust the water 󽗊ow as required.
④ Press the two side clips inwards and slide the water tank backwards to
separate it from the robot.
Note: When the vacuum-mop is charging or not in use, remove the mopping module,
pour out all remaining water in the tank, and clean the mop pad to prevent mildew or
lingering odors.
① Install the mop pad: Dampen the mop pad and wring out excess water.
Slide the pad all the way into the slot of the water tank until it is securely in
place.
② Fill the water tank: Open the water tank lid, 󽗉ll the tank with water, then
securely close the lid.
Note: Do not use non-designated detergents or disinfectants.

12
Routine Maintenance
2. Open the bin cover as indicated by the diagram.
Dust Bin and Filter
1. Open the vacuum-mop cover, then pinch the bin clips to remove the dust
bin.
4. Wash the dust bin and 󽗉lter with water, and then place it aside to
dry fully before reinstalling it.
Note:
• Only clean water should be used to clean the 󽗉lter. Do not use detergent.
• Filter must be fully dry before use (allow at least 24 hours).
12
6
111
57
210
48
924 hrs
3. Remove the 󽗉lter, rinse repeatedly and tap the 󽗊iter frame to remove as
much dirt as possible.
Note: Do not attempt to clean the 󽗉lter with a brush or 󽗉nger.

13
Routine Maintenance
Mopping Module
1. Press the side clips of the mopping module inward and pull to remove
the module.Pull the mop pad o󽗈 of the mopping module to remove it.
2. Empty the remaining water in the water tank and keep it dry naturally.
3. Clean and dry the mop pad.
Note:
• Remove the pad from the mopping module before cleaning it, and make sure dirty
water does not 󽗊ow back into the water outlet to avoid clogging.
• Do not press too hard on the mop pad, as this can hinder its performance.
• Pad should be cleaned before each use. It is recommended to change the mop pad
every 3 to 6 months.
12
6
111
57
210
48
924 hrs
4. If slow water 󽗊ow occurs, or the volume is not well-distributed, please
clean the air hole in the cover of the water tank.

14

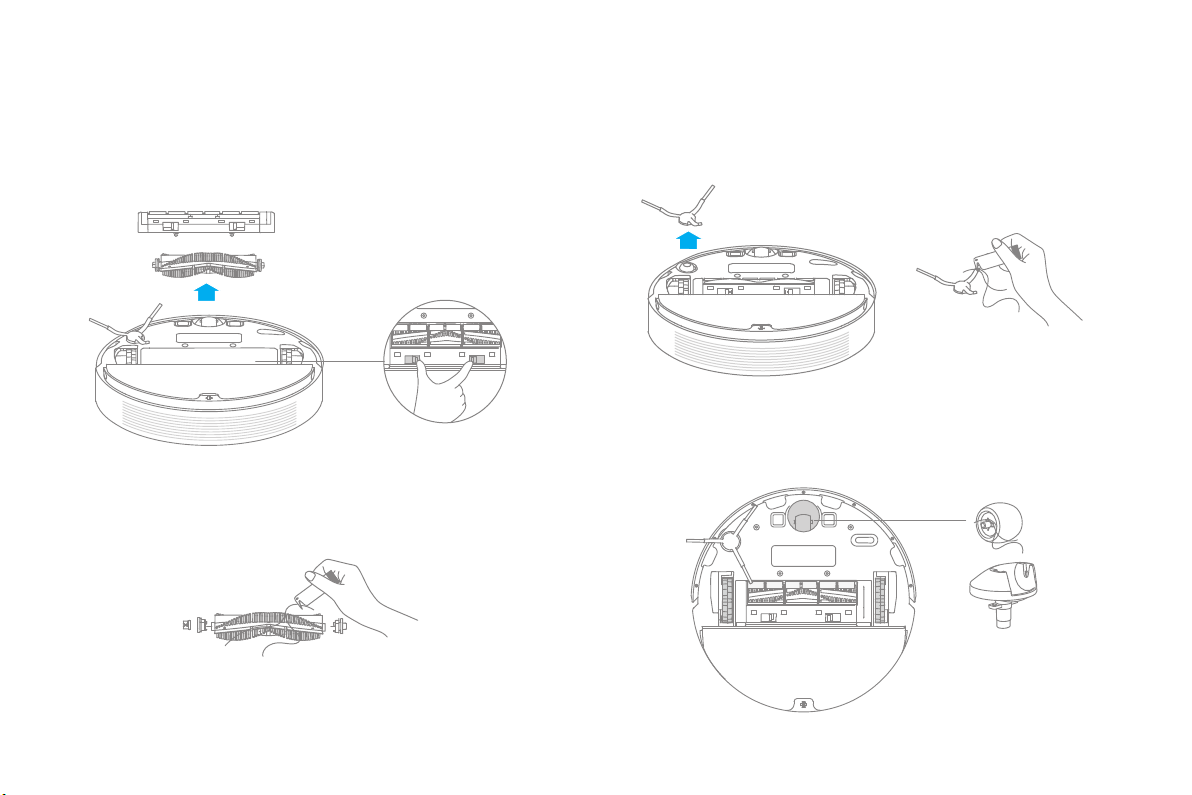

Flip the vacuum-mop over, then gently pull out the side brush as shown in
the diagram below to clean it.
Side BrushMain Brush
1. Flip the vacuum-mop over and pinch the clips to remove the main brush
guard. Lift the main brush out of the vacuum-mop, then clean the brush
bearings.
2. Use the included brush cleaning tool to remove any hairs tangled on the
brush.
Note: If there is a large amount of hair or hair is tightly entangled, remove it carefully to
avoid damage to the main brush.
Omnidirectional Wheel
Flip the vacuum-mop over and pull out the omnidirectional wheel. Remove
hair, dirt, and other debris from the wheel and axle.
Note: Use tools such as a small screwdriver, etc. to separate the axle and the tire.
Routine Maintenance

15

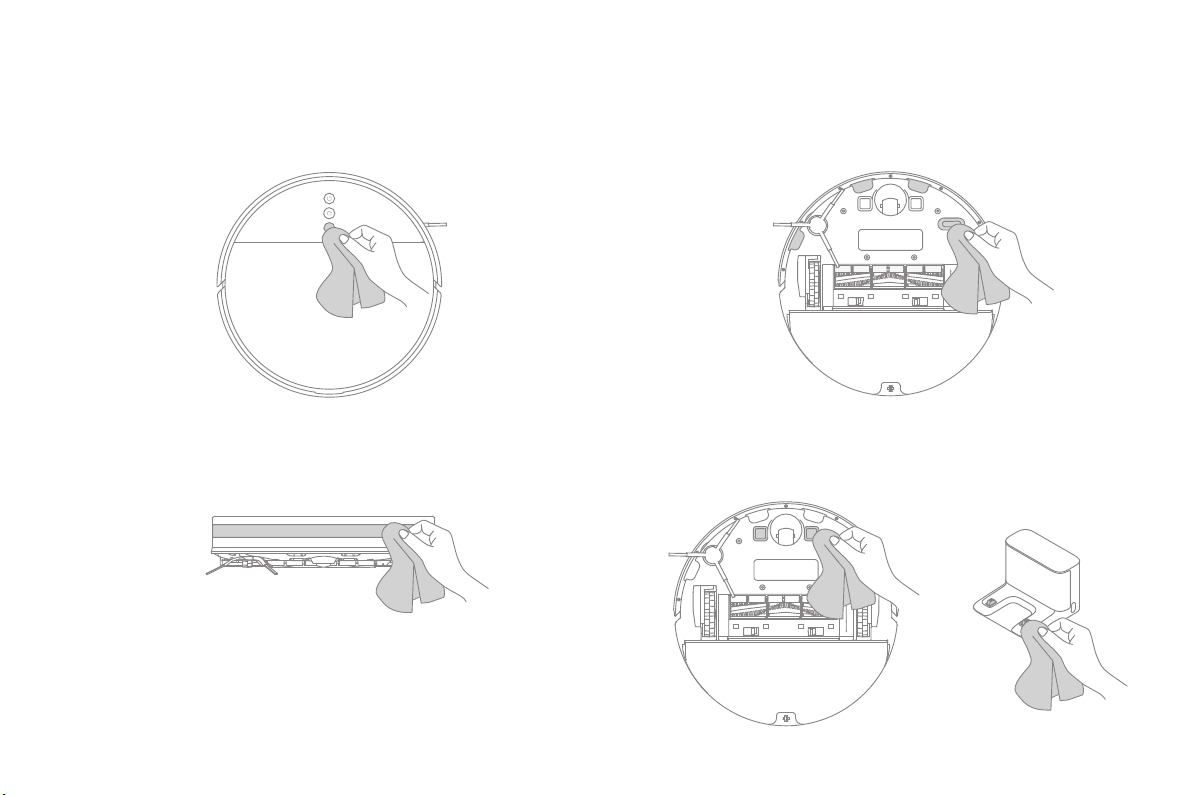

Use a soft cloth to clean all sensors in the vacuum-mop, including:
Visual Navigation Sensor
Infrared Deceleration Sensor
Cli󽗈 Sensor and Optical Sensor
Clean the contacts of the charging dock with a soft cloth.
Routine Maintenance

16
FAQ
Problem Type
Vacuum-mop does not turn on
Vacuum-mop does not recharge
Vacuum-mop does not return to charging dock
Vacuum-mop is malfunctioning
Vacuum-mop makes a strange noise
Vacuum-mop no longer cleans efficiently or
leaves dust behind
Vacuum-mop cannot connect to Wi-Fi
Solution
The charging dock is not receiving power. Please confirm that both ends of the power cord are
plugged in correctly.
Poor contact, clean the charging contacts of the charging dock and the vacuum-mop.
There are too many obstructions around the charging dock. Place the charging dock in a more
open area.
Please clean the dock's signaling area.
A foreign object might be caught in the brush, side brush, or one of the main wheels.
Stop the vacuum-mop and remove any debris.
The dust bin is full. Please clean it.
The filter is blocked. Please clean it.
A foreign object is caught in the brush. Please clean it.
Wi-Fi signal is weak. Make sure the vacuum-mop is in an area with good Wi-Fi coverage.
There is something wrong with the Wi-Fi connection. Reset the Wi-Fi and download the latest
version of the app, then try reconnecting.
Turn off the vacuum-mop and then reactivate it.
Battery level is low. Recharge the vacuum-mop at the charging dock, then try again.
The ambient temperature is too low (below 0°C) or too high (above 50°C). The operating
temperature of the vacuum-mop is 0°C to 40°C.

17
FAQ
Problem Type
Vacuum-mop has low battery. Scheduled cleaning will not start unless the vacuum-mop has at least
15% battery left .
Leaving the vacuum-mop on the charging dock after it's fully charged consumes very little
electricity and helps maintain optimal battery performance.
Lithium batteries do not suffer from memory effects, so it is not necessary to wait 16 hours after
fully charging the vacuum-mop before using it.
Does the vacuum-mop need to be fully charged
for 16 hours the first three times it is used?
Too much water comes out of the mopping
module
No water comes out of the mopping module, or
only a little bit comes out.
Vacuum-mop doesn't resume cleaning after
charging
Vacuum-mop doesn't return to charging dock
after being moved
Does leaving the vacuum-mop on the
charging dock consume power if it's already
charged?
Solution
Make sure the water tank lid is securely closed.
Make sure the vacuum-mop is not set to Do Not Disturb mode, which will prevent it from resuming
cleaning.
The vacuum-mop does not resume cleaning when it is manually recharged or placed onto the
charging dock.
Confirm that the water tank is filled with water, and clean the mop pad if necessary.
Make sure the mop pad is installed correctly according to the user manual.
Moving the vacuum-mop may cause it to re-position itself or re-map its surroundings. If the
vacuum-mop is too far from the charging dock, it might not be able to automatically return on its
own, in which case you need to manually place the vacuum-mop onto the charging dock.
Vacuum-mop does not perform scheduled
cleaning.

18
Speci󽗉cations
Battery
Wireless Connectivity
Rated Voltage
Operation Frequency 2400-2483.5 MHz
Rated Power 40W
Maximum Output
Power ＜20 dBm
Model RVS5-WH0
14.4V
14.4 V 5200 mAh(Rated Capacity) Rated Input
Rated Output
RCS0Model
100-240 V ~ 50/60 Hz 0.5 A
19.8 V 1 AWi-Fi IEEE 802.11b/g/n 2.4 GHz
WEEE Information
All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with
unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated
collection point for the recycling of waste electrical and electronic equipment, appointed by the
government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human
health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection
points.
Under normal use of condition, this equipment should be kept a separation
distance of at least 20cm between the antenna and the body of the user.
Vacuum-Mop Charging Dock
