DreameTech T20 User manual

Dreame
Cordless Vacuum Cleaner
User Manual

THANK YOU
FOR PURCHASING THIS DREAME
VACUUM CLEANER.
With it you are obtaining a high quality product that is engineered for
optimal performance. If you have any questions on the product, please
contact us: [e-mail].
Registration Quick Start
Welcome to register a Dreame account
by scanning the QR code.
You are available for the User Manual
and Special O󽗈ers.

3
Product Overview
Component Names
Charging Port
Display Screen
Antistatic Contact
Dust Cup
Dust Cup Bottom Cover
Release Button
Battery Release Button
LED Battery Status Indicator
Extension Rod
Release Button
Brush Bar Head Release
Button
Extension Rod
Smart Multi-
Brush Bar
On / O󽗈 Switch
• Press to turn on
• Release to turn o󽗈

4
Product Overview
Accessories
Extension Rod
Charger Crevice NozzleExtension Hose 2-in-1 Brush Nozzle
Smart Multi-brush Bar Mini Electric Brush2-in-1 Charging &
Storage Mount
(Including screws ×2, wall plugs
×2, mounting template sticker )
Note: The images in this manual are for illustrative purposes only. The actual product may
di󽗈er.

5
Introduction of Display Screen
Electronic Lock/Reset Filter
• Press brie󽗊y to enter/exit lock
• Press and hold for 1.5 seconds to
enter the 󽗉lter reset interface
Suction Level Status
Lock Status
Switching Suction Level
• Press brie󽗊y to switch the suction
levels
Setting Language
Switching Suction Level
Note: If the vacuum is not working properly, the screen display will produce an error
message. Please refer to the troubleshooting section to 󽗉nd your solution.
Note: The display screen will return the main page if there is no operation for more than 15
seconds.
Note:
• Stop the vacuum at any time while cleaning. Then it will continue to use the last selected
suction level when started again.
• Connecting the smart multi-brush bar to the vacuum will activate the Auto Mode. In this
mode, the vacuum can automatically adjust its suction level depending on the surface
type.
Press and hold the button for 3 seconds to open the language list, then press the button
to scroll through the language to select the desired one. Press and hold the button
for 3 seconds to use the selected language.
Press the button to switch between three suction levels of eco, med/auto, and turbo.
The corresponding suction level will be highlighted on the display screen.
Auto Mode will be activated and "Auto" will appear on the display screen only when using
the smart multi-brush bar. The vacuum will then automatically switch the suction level
between the 󽗊oor/tile and the carpet.
Product Overview

6
Installation

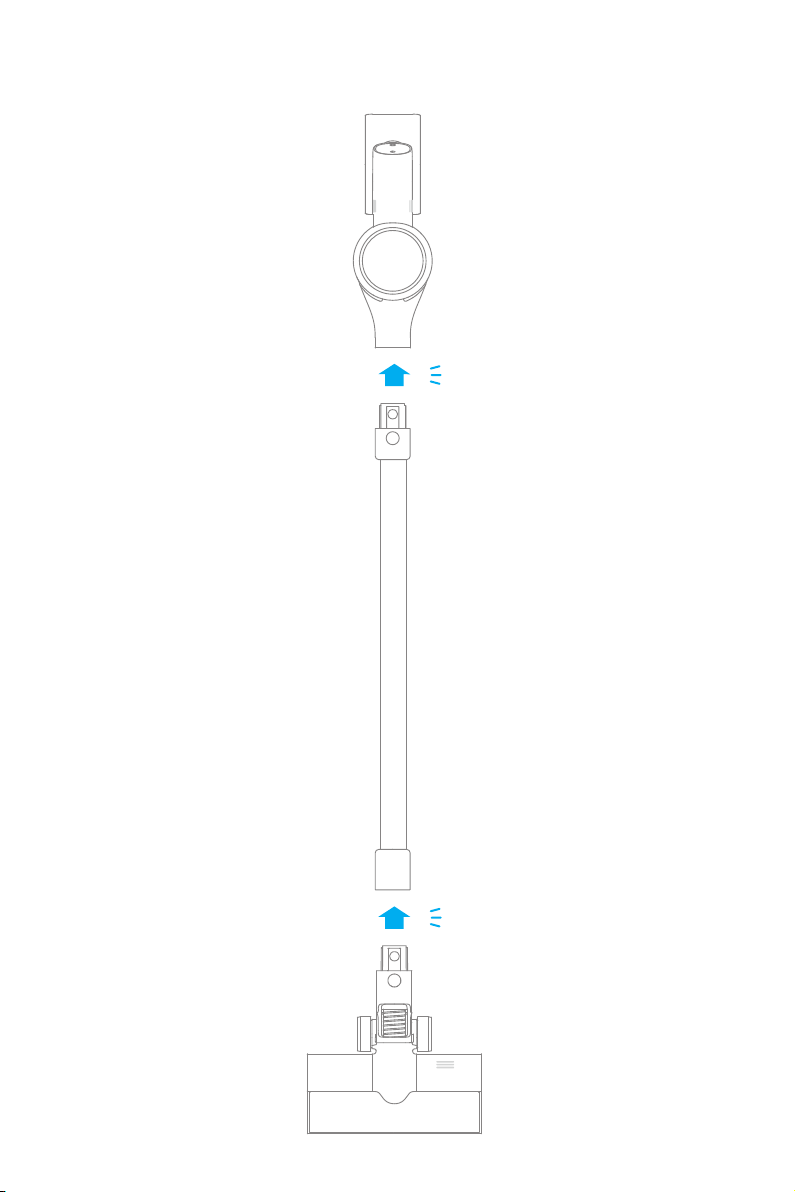

Vacuum Installation
Diagram
Click
Click

7
Click Click
Click
Accessories Installation
Diagram
Installation

8
2-in-1 Charging & Storage Mount Installation Diagram
1. The 2-in-1 charging & storage mount should be installed in a cool, dry place with an
electrical outlet nearby. Prior to installing, ensure that there are no electrical wires or
pipes in the space directly behind where the mount will be installed.
2. The bottom of the mounting template sticker should be level and at least 103cm from
the ground, and its top should have at least 30cm* of clearance above it. (*30cm: Leave
enough space just in case you may need to purchase the replaceable battery in the
future.)
3. Use a power drill with an 8 mm drill bit to drill a hole into each hole marker on the
mounting template sticker, then insert a wall plug into each hole.
4. Align the position holes on the mount with the holes on the wall. Fasten it to the wall with
the included screws.
The 2-in-1 charging & storage mount is an optional accessory. You can install it based on
your needs.
103 cm
30 cm
Installation

9

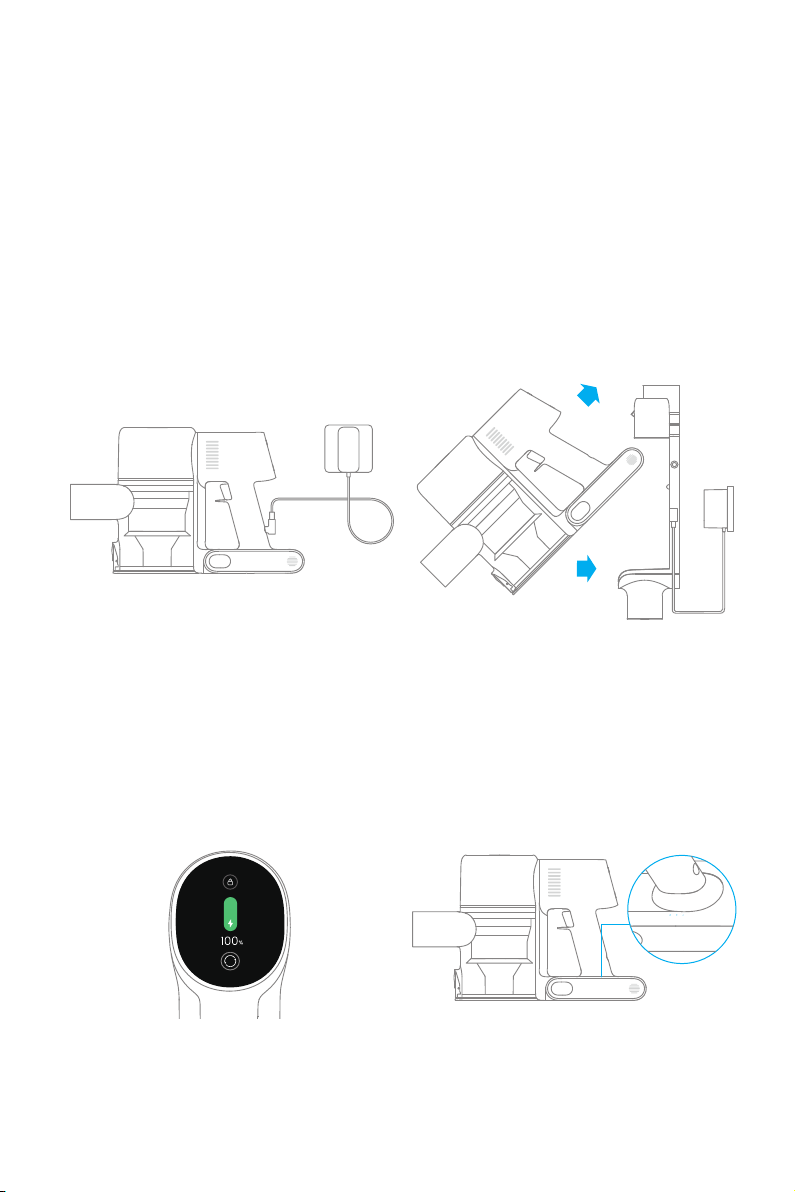

Fully charge the vacuum before using it for the 󽗉rst time.
Charging
Note: A full charge will take approx. 4 hours. Using Turbo Mode for a prolonged period
will cause the battery to heat up, which increases charging time. Allow the vacuum to cool
down for 30 minutes before charging it.
LED Battery Status Indicator
Note: Once the vacuum is fully charged, the
indicator will turn o󽗈 after 5 minutes, and
the vacuum will enter the energy-saving
mode.
Charging the vacuum with the charger Charging the vacuum on the charging
mount
Display Screen
Charging Methods
Battery Status Display
1
2
When charging, the three indicators 󽗊ash
and then turn bright constantly in sequence
considering the battery condition. When the
charging is completed, the three indicators
keep solid light.
The number on the display screen
represents the current battery level in a
percentage during charging. When the
number turns into 100, the battery is fully
charged.

10
How to Use
Working Methods
Method 1: Discontinuous Cleaning Mode
Press and hold the switch of the vacuum to start working, and release it to stop
immediately.
Method 2: Continuous Cleaning Mode (Electronic Lock)
Click the electronic lock key to switch to Continuous Cleaning mode, and then brie󽗊y press
the on/o󽗈 switch to make the vacuum in Continuous Cleaning mode.
Use the electronic lock to free your 󽗉ngers and avoid 󽗉nger fatigue caused by holding the
switch.
Note:
• In this mode, brie󽗊y press the on/o󽗈 switch to suspend the operation or start again，
and the working mode of the vacuum will not change.
• Click the electronic lock again to quit the Continuous Cleaning mode.
Continuous
Cleaning Mode
There are two working methods for the vacuum, which can be selected based on your
needs.

11
Using Di󽗈erent Accessories
Smart Multi-Brush Bar
For cleaning 󽗊oors such as marble, tile,
and low pile carpet. When Auto Mode is
activated, the vacuum will automatically
adjust its suction level depending on the
surface type.
Mini Electric Brush
For vacuuming dirt, pet hair, and other
stubborn debris from sofas, bedding, and
other fabric surfaces.
2-in-1 Brush Nozzle
For vacuuming curtains, keyboards,
ceilings, sofas, vehicle interiors, co󽗈ee
tables, etc.
Crevice Nozzle
Suitable for vacuuming cracks, corners of
doors and windows, stairs, and other hard-
to-reach places.
Note: The smart multi-brush bar can be
attached directly to the vacuum.
Note: It is not recommended to vacuum on
fragile surfaces, such as silk.
缩放8%，旋转-5
How to Use

12

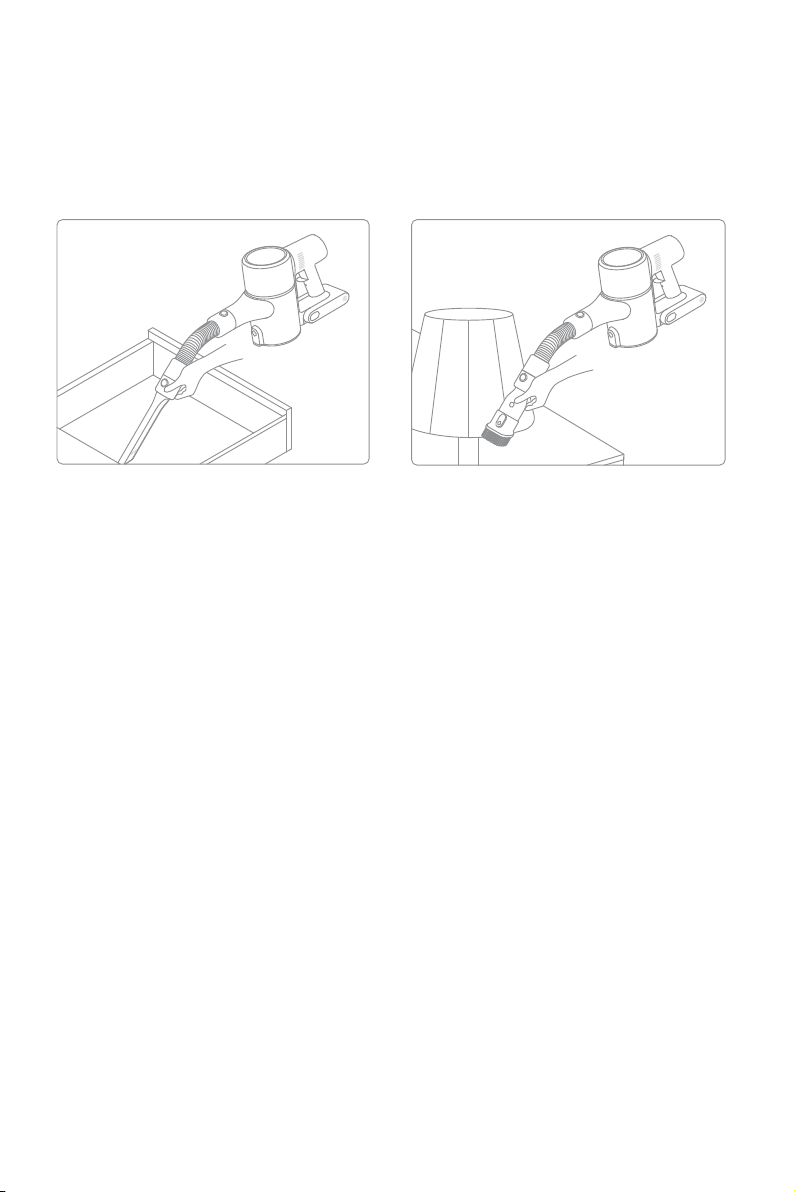

Extension Hose
Use for hard-to-reach corner cleaning.
How to Use
Note:
• If any rotating part becomes stuck, the vacuum may shut o󽗈 automatically. Remove any
trapped foreign objects, then resume use.
• When the battery becomes overheated, the vacuum will automatically shut o󽗈. Wait
until the battery temperature returns to normal, then resume use.

13
Care & Maintenance
Tips:
Cleaning the Vacuum
Cleaning the Dust Cup, Pre-Filter, and Cyclone Assembly
• Always use genuine parts to keep your warranty from being void.
• If the 󽗉lter or nozzle becomes clogged, the vacuum will stop working shortly after being
turned on. Clear the tube to restore functionality.
• If the vacuum is not used for an extended period, fully charge it, unplug its charger, and
store it in a cool, low-humidity environment away from direct sunlight. To avoid over-
discharging the battery, recharge the vacuum at least once every three months.
Wipe the vacuum with a soft dry cloth.
The vacuum's cleaning ability will be reduced if the dust cup is 󽗉lled to the "MAX" mark.
To regain performance, empty the dust cup in a timely manner. Before emptying the cup,
make sure the vacuum is disconnected from the power, and do not press its power button.
2. Push the dust cup release switch in the direction indicated by the arrow, then gently
remove the dust cup from the vacuum.
1. Press the dust cup bottom cover release button, then empty the contents.
2
1
1

14
Care & Maintenance
3. Remove the pre-󽗉lter 󽗉rst, then lift the handle of the cyclone assembly and turn to
counterclockwise until it stops, then pull to lift out the cyclone assembly.
Note:
• It is recommended to clean the dust cup once every month.
• It is recommended to clean the pre-󽗉lter at least once every 3 months and the cyclone
system at least once every 6 months.
1
2
3
Pre-󽗉lter Dust Cup Cyclone Assembly
4. Rinse the cyclone assembly, pre-󽗉lter and dust cup until they are clean. After washing,
air dry at least 24 hours .
12
6
111
57
210
48
39 24 hrs

15
Installing the Dust Cup, Pre-Filter, and Cyclone Assembly
1. Insert the cyclone assembly vertically into the dust cup, and make sure that the handle of
the cyclone assembly line up with the slot on the left side of the dust cup. Turn the handle
clockwise until it locks, then 󽗊ip the handle down.
2. Place the pre-󽗉lter with its front side facing up into the cyclone assembly.
3. Slightly tilt the dust cup so the slot aligns with the clip on the vacuum. Then gently push
the dust cup until it clicks into place.
3
1
2
3
Care & Maintenance

16
Cleaning theFilter
It is recommended to clean the󽗉lter once every 4 to 6 months.
1. Remove the dust cup as shown in the
󽗉gure.
3. Clean the󽗉lter with clean water. Make
sure you rotate the󽗉lter 360° to thoroughly
and remove all dust caught in the 󽗉lter.
Lightly tap the 󽗉lter several times to
remove any excess dirt.
Note：
• Only use clean water to wash the 󽗉lter. Do not use detergent.
• Do not attempt to clean the󽗉lter with a brush or 󽗉nger.
2. Remove the󽗉lter from the vacuum by
pulling it down in the direction shown in
the 󽗉gure.
4. Allow the󽗉lter to air dry for 24 hours.
2
1
12
6
111
57
210
48
39 24 hrs
12
6
111
57
210
48
39 24 hrs
Care & Maintenance

17
Installing theFilter
1. Insert the󽗉lter into the vacuum and
gently press down, as illustrated.
2. Reinstall the dust cup.
Care & Maintenance

18

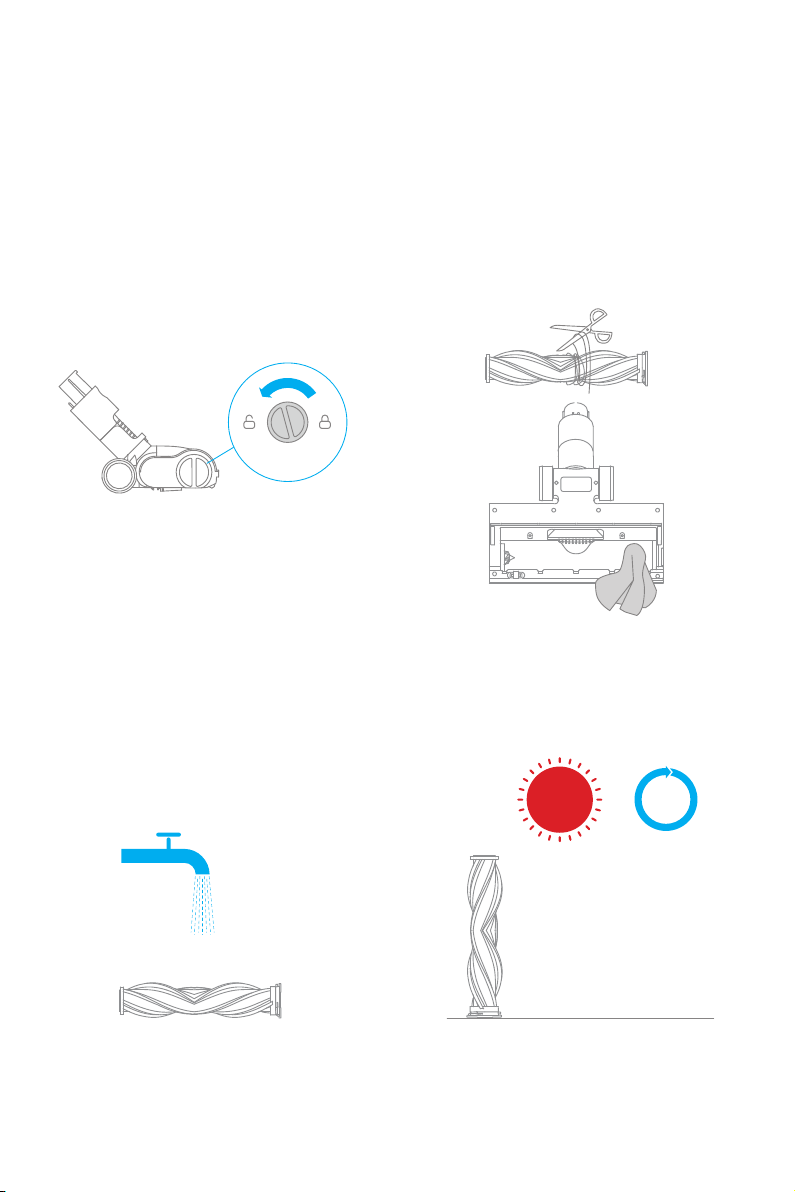

Cleaning the Smart Multi-Brush Bar
1. Turn the lock counterclockwise until it
stops, then remove the roller brush from
the smart multi-brush bar.
2. Use scissor to cut o󽗈 the hairs and 󽗉bers
that stick on the roller brush. Wipe the dust
from the notch and transparent cover with
a dry cloth or paper towel. Thoroughly dry
before use.
3. When it is dirty, rinse the roller brush
with clean water until it is clean.
4. Stand the roller brush upright for at least
24 hours until it is fully dry.
12
6
111
57
210
48
39 24 hrs
Care & Maintenance

19
Cleaning the Mini Electric Brush
1. Use a coin as illustrated to rotate the
lock counterclockwise until you hear a
click.
3.Stand the roller brush upright in a well-
ventilated area for at least 24 hours until it
is fully dry.
2. After unlocking the roller brush, remove
it from the mini electric brush, then rinse
and clean the brush head.
4. Once the mini roller brush is dry,
reinstall it by following the disassembly
steps in reverse.
12
6
111
57
210
48
39 24 hrs
Care & Maintenance

20
Battery Pack
The vacuum contains a removable rechargeable lithium-ion battery pack which has a
limited number of recharge cycles. After extended use, the battery pack may no longer hold
a charge. If this happens, it means the battery pack has reached the end of its life cycle and
needs to be replaced.
1. Press down the battery pack release button and slide the battery pack to the right, as
illustrated, to remove it.
2. Install the new battery pack.
Care & Maintenance
