IMPORTANT SAFETY
INSTRUCTIONS
KNOWING YOUR
BABY MONITOR
USING YOUR
BABY MONITOR
TROUBLESHOOTING
DREO CUSTOMER
CARE
01
04
07
19
22
Baby Monitor
01 Baby Monitor 02
IMPORTANT SAFETY
INSTRUCTIONS
READ ALL CAUTIONARY MARKINGS ON THE APPLIANCE AND
SAFETY INSTRUCTIONS IN THE USER MANUAL BEFORE USE.
Not a Substitute for Proper Adult Supervision:
You MUST check your children’s activities regularly.
Not Intended for Use as a Medical Camera:
this appliance should not replace adult supervision.
Not a Toy:
Do not allow children to play with this appliance.
Risk of Suffocation:
Keep all packaging materials out of reach of children.
General Safety
Location Safety
Strangulation Hazard:
Children can be entangled in cords. Keep
the appliance, adapter and power cords
out of the reach of children at all times,
at least 3 feet / 1 meter away.
Danger from Power Cords:
To avoid possible danger from power
cords, the cords should be secured and
never be hung on or near the crib or
playpen. Do not place in the crib, bed or
playpen.
Keep Away From Heat:
Do not install near any heat sources such
as radiators, heat registers and stoves.
Water and Moisture:
Do not use the appliance near water,
including near a bathtub, sink, laundry
machine, wet basement, etc.
Electricity Safety
• Only use the AC adapters provided.
• Do not insert anything into upgrade pinholes.
• Do not block any ventilation openings.
• Unplug the appliance during lightening storms.
• Only use attachments and accessories provided.
• Unplug the appliance when unused for long periods of time.
FCC Statement
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
this device may not cause harmful interference, and
this device must accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy, and if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
FCC 20cm Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
a minimum distance of 20cm between the radiator & your body. This transmitter
must not be co-located or operating in conjunction with any other antenna or
transmitter.
31
ft /
HOUSEHOLD USE ONLY
READ AND SAVE THESE
INSTRUCTIONS
m
Baby Monitor
01 Baby Monitor 02
IMPORTANT SAFETY
INSTRUCTIONS
READ ALL CAUTIONARY MARKINGS ON THE APPLIANCE AND
SAFETY INSTRUCTIONS IN THE USER MANUAL BEFORE USE.
Not a Substitute for Proper Adult Supervision:
You MUST check your children’s activities regularly.
Not Intended for Use as a Medical Camera:
this appliance should not replace adult supervision.
Not a Toy:
Do not allow children to play with this appliance.
Risk of Suffocation:
Keep all packaging materials out of reach of children.
General Safety
Location Safety
Strangulation Hazard:
Children can be entangled in cords. Keep
the appliance, adapter and power cords
out of the reach of children at all times,
at least 3 feet / 1 meter away.
Danger from Power Cords:
To avoid possible danger from power
cords, the cords should be secured and
never be hung on or near the crib or
playpen. Do not place in the crib, bed or
playpen.
Keep Away From Heat:
Do not install near any heat sources such
as radiators, heat registers and stoves.
Water and Moisture:
Do not use the appliance near water,
including near a bathtub, sink, laundry
machine, wet basement, etc.
Electricity Safety
• Only use the AC adapters provided.
• Do not insert anything into upgrade pinholes.
• Do not block any ventilation openings.
• Unplug the appliance during lightening storms.
• Only use attachments and accessories provided.
• Unplug the appliance when unused for long periods of time.
FCC Statement
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
this device may not cause harmful interference, and
this device must accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy, and if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
FCC 20cm Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
a minimum distance of 20cm between the radiator & your body. This transmitter
must not be co-located or operating in conjunction with any other antenna or
transmitter.
31
ft /
HOUSEHOLD USE ONLY
READ AND SAVE THESE
INSTRUCTIONS
m
Baby Monitor
03 Baby Monitor 04
SPECIFICATIONS
General System
Connectivity
RF Frequency
Type of Modulation
Selectable Camera Channels
2.4GHz FHSS
2400 MHz-2483 MHz
GFSK
4
Monitor
Resolution
Display
Input Voltage
Operating Voltage
Battery
Zoom
Camera
COMS
Input Voltage
Operating Voltage
Night Vision
Pan & Tilt
Gentle Reminder
Check the appliance regularly and refer to TROUBLESHOOTING or contact
our customer support if it shows any of the following signs:
- Power cord or plug is damaged.
- Poor reception or excessive noise.
KNOWING YOUR
BABY MONITOR
Package Contents
1280 X 780P
5 inch TFT Color Display
100-240V~50/60Hz
5.0V 2A
5000mAh
2X&4X
1280 X 720P
100-240V~50/60Hz
5V 1.2A
Black and white
90 degrees vertical
(up=60°, down=30°)
300 degrees horizontal
*Actual contents may vary depending on your purchase.
Camera Baby Monitor
Wall Mount Screw User Manual Quick Start Guide
Quick Start
Guide
AC Adapter (For Camera)
USB Charger andCharging Cable
(For Monitor)
Baby Monitor
03 Baby Monitor 04
SPECIFICATIONS
General System
Connectivity
RF Frequency
Type of Modulation
Selectable Camera Channels
2.4GHz FHSS
2400 MHz-2483 MHz
GFSK
4
Monitor
Resolution
Display
Input Voltage
Operating Voltage
Battery
Zoom
Camera
COMS
Input Voltage
Operating Voltage
Night Vision
Pan & Tilt
Gentle Reminder
Check the appliance regularly and refer to TROUBLESHOOTING or contact
our customer support if it shows any of the following signs:
- Power cord or plug is damaged.
- Poor reception or excessive noise.
KNOWING YOUR
BABY MONITOR
Package Contents
1280 X 780P
5 inch TFT Color Display
100-240V~50/60Hz
5.0V 2A
5000mAh
2X&4X
1280 X 720P
100-240V~50/60Hz
5V 1.2A
Black and white
90 degrees vertical
(up=60°, down=30°)
300 degrees horizontal
*Actual contents may vary depending on your purchase.
Camera Baby Monitor
Wall Mount Screw User Manual Quick Start Guide
Quick Start
Guide
AC Adapter (For Camera)
USB Charger andCharging Cable
(For Monitor)
Baby Monitor
05 Baby Monitor 06
Product Diagram
Camera
2
1
3
4
5
1
5
6
7
8
9
10
11
12
13
14
15
16
17
18
6
7
8
9
10
11
Baby Monitor
2
3
4
Microphone
Light Sensor
Lens
Camera Base
1
2
3
4
Speaker
Antenna
Power Indicator
Micro USB Port
5
6
7
8
Pair Button
Temperature
Sensor
Mounting Hole
9
10
11
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Volume Button
Volume Indicators
Charging Indicator
Power Indicator
Power/Sleep Button
Menu/Back Button
Up Button
OK Button
Right Button
Left Button
Down Button
Zoom Button
Talk Button
Microphone
Antenna
Speaker
USB-C Port
Back Stand
Baby Monitor
05 Baby Monitor 06
Product Diagram
Camera
2
1
3
4
5
1
5
6
7
8
9
10
11
12
13
14
15
16
17
18
6
7
8
9
10
11
Baby Monitor
2
3
4
Microphone
Light Sensor
Lens
Camera Base
1
2
3
4
Speaker
Antenna
Power Indicator
Micro USB Port
5
6
7
8
Pair Button
Temperature
Sensor
Mounting Hole
9
10
11
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Volume Button
Volume Indicators
Charging Indicator
Power Indicator
Power/Sleep Button
Menu/Back Button
Up Button
OK Button
Right Button
Left Button
Down Button
Zoom Button
Talk Button
Microphone
Antenna
Speaker
USB-C Port
Back Stand
Baby Monitor
07 Baby Monitor 08
USING YOUR
BABY MONITOR
Getting Started
1. Plugging in the Camera
Connect the camera to the power supply with the included AC adapter.
Place the camera and power cord out of reach of children.
Camera is not battery powered. Keep plugged in when in use.
2. Charging the Monitor
Charge the monitor with the included USB charger.
It takes around 7 hours to fully charge. The charging indicator
will turn on while charging and off when fully charged.
3. Pairing the Camera with the Monitor
By default, the camera has been paired with the monitor when
manufactured. If the camera is disconnected, please refer to page 12.
Keep camera and monitor within a distance of 12-40 in (30-100
cm) when pairing. Note that microphone feedback might occur
when they are close to each other.
4. Positioning the Camera
Keep the camera 3-16 ft (1-5m) away from your baby’s crib, playpen and
baby bed for best viewing and safety reasons.
5. Wall Mounting the Camera (Optional)
Select a spot to mount the camera, ideally 5-8 ft high, keeping it
beyond the reach of children. Install the included screw into the wall
and mount the camera onto the screw.
Do not release the camera until you’re sure it is firmly mounted.
Functions & Operations
1
72°F
06:12 PM
Status Bar
Signal
Strength
Current
Camera
1
Temper-
ature
72°F
Video
Muted
Alert
Muted
Reminder
On
Battery
Status
Current
Time
06:12 PM
1. Interface Overview
Baby Monitor
07 Baby Monitor 08
USING YOUR
BABY MONITOR
Getting Started
1. Plugging in the Camera
Connect the camera to the power supply with the included AC adapter.
Place the camera and power cord out of reach of children.
Camera is not battery powered. Keep plugged in when in use.
2. Charging the Monitor
Charge the monitor with the included USB charger.
It takes around 7 hours to fully charge. The charging indicator
will turn on while charging and off when fully charged.
3. Pairing the Camera with the Monitor
By default, the camera has been paired with the monitor when
manufactured. If the camera is disconnected, please refer to page 12.
Keep camera and monitor within a distance of 12-40 in (30-100
cm) when pairing. Note that microphone feedback might occur
when they are close to each other.
4. Positioning the Camera
Keep the camera 3-16 ft (1-5m) away from your baby’s crib, playpen and
baby bed for best viewing and safety reasons.
5. Wall Mounting the Camera (Optional)
Select a spot to mount the camera, ideally 5-8 ft high, keeping it
beyond the reach of children. Install the included screw into the wall
and mount the camera onto the screw.
Do not release the camera until you’re sure it is firmly mounted.
Functions & Operations
1
72°F
06:12 PM
Status Bar
Signal
Strength
Current
Camera
1
Temper-
ature
72°F
Video
Muted
Alert
Muted
Reminder
On
Battery
Status
Current
Time
06:12 PM
1. Interface Overview
Volume
Settings
Video Volume
Alert Volume
Adjust video volume
Adjust alert/reminder volume
Brightness
Settings
Brightness
Screen Timeout
Adjust brightness level
Change screen timeout to
1 min, 3 mins, 5 mins, or never
Camera
Settings
Add
Auto Switch
Add new camera
Auto switch between cameras
Cam View
Delete
View cameras in full/split screen
Delete camera
VOX
Settings
VOX On
VOX Off
Turn on VOX
Turn off VOX
Reminder
Settings
Reminder
Repeat
Set reminder at a specific time
Create a repeating reminder
(2 hrs, 4 hrs, 6 hrs, or never)
Baby Monitor
09 Baby Monitor 10
Menu Bar
Reminder Off Turn off reminder
Other
Settings
Time Set the date and time on the
monitor
Select temperature scale
between °C and °F
Select refresh rate between
60Hz and 50Hz
Refresh Rate
Temperature
Support
Reset Reset to factory settings
View support page
1
72°F
06:12 PM
Alert Volume
Video Volume
Low High Mute
Alert Volume
Video Volume
1
72°F
06:12 PM

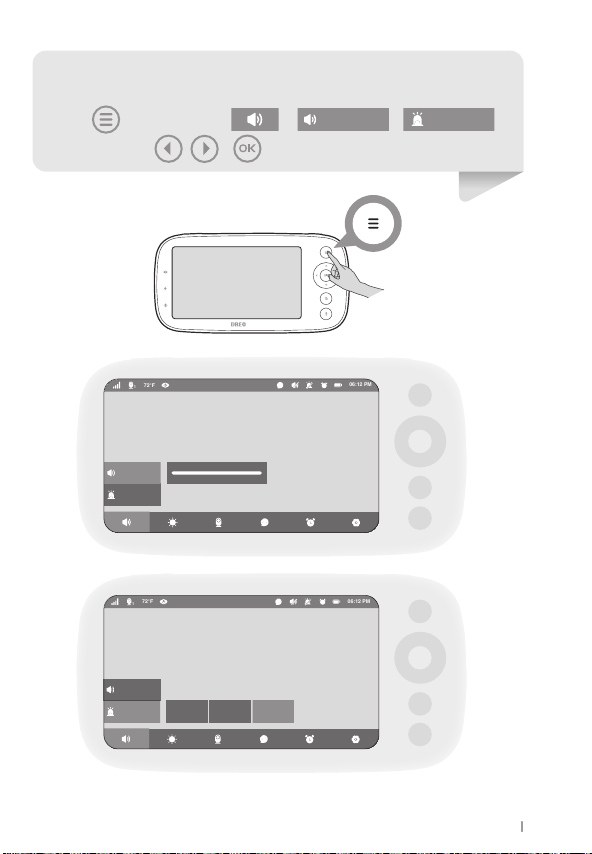

2. Volume Settings
Press , select through → / ,
and press / →to set the desired volume level.
Alert Volume
Video Volume
Volume
Settings
Video Volume
Alert Volume
Adjust video volume
Adjust alert/reminder volume
Brightness
Settings
Brightness
Screen Timeout
Adjust brightness level
Change screen timeout to
1 min, 3 mins, 5 mins, or never
Camera
Settings
Add
Auto Switch
Add new camera
Auto switch between cameras
Cam View
Delete
View cameras in full/split screen
Delete camera
VOX
Settings
VOX On
VOX Off
Turn on VOX
Turn off VOX
Reminder
Settings
Reminder
Repeat
Set reminder at a specific time
Create a repeating reminder
(2 hrs, 4 hrs, 6 hrs, or never)
Baby Monitor
09 Baby Monitor 10
Menu Bar
Reminder Off Turn off reminder
Other
Settings
Time Set the date and time on the
monitor
Select temperature scale
between °C and °F
Select refresh rate between
60Hz and 50Hz
Refresh Rate
Temperature
Support
Reset Reset to factory settings
View support page
1
72°F
06:12 PM
Alert Volume
Video Volume
Low High Mute
Alert Volume
Video Volume
1
72°F
06:12 PM
2. Volume Settings
Press , select through → / ,
and press / →to set the desired volume level.
Alert Volume
Video Volume
Baby Monitor
11 Baby Monitor 12
Screen Timeout
Brightness
1
72°F
06:12 PM
1 Min1 Min 3 Min3 Min 5 Mins5 Mins NeverNever
Screen Timeout
Brightness
1
72°F
06:12 PM
3. Brightness Settings
Press , select through → ,
and press / →to set the desired brightness level.
Brightness
Press , select through → ,
and press / →to set the desired time for the
screen to turn off automatically.
Screen Timeout
4. Screen Timeout
1 2 3
Delete
Cam View
Auto Switch
Add
1
72°F
06:12 PM
1 2 3 4
Delete
Cam View
Auto Switch
Add
1
72°F
06:12 PM
5. Add a Camera
Press , select through →→,
and press the PAIR button on the camera, then the
camera will pair with the monitor automatically.
Add
6. View a Camera
Press , select through → ,
and select the camera number 1/2/3/4 to view.
Cam View
Baby Monitor
11 Baby Monitor 12
Screen Timeout
Brightness
1
72°F
06:12 PM
1 Min1 Min 3 Min3 Min 5 Mins5 Mins NeverNever
Screen Timeout
Brightness
1
72°F
06:12 PM
3. Brightness Settings
Press , select through → ,
and press / →to set the desired brightness level.
Brightness
Press , select through → ,
and press / →to set the desired time for the
screen to turn off automatically.
Screen Timeout
4. Screen Timeout
1 2 3
Delete
Cam View
Auto Switch
Add
1
72°F
06:12 PM
1 2 3 4
Delete
Cam View
Auto Switch
Add
1
72°F
06:12 PM
5. Add a Camera
Press , select through →→,
and press the PAIR button on the camera, then the
camera will pair with the monitor automatically.
Add
6. View a Camera
Press , select through → ,
and select the camera number 1/2/3/4 to view.
Cam View
Baby Monitor
13 Baby Monitor 14
1 2 3 4Delete
Cam View
Auto Switch
Add
1
72°F
06:12 PM
ON OFF
Delete
Cam View
Auto Switch
Add
1
72°F
06:12 PM
7. Delete a Camera
Press , select through → ,
and select the camera number 1/2/3/4 to view.
Delete
8. Auto Switch
Press , select through → → . .
Auto Switch ON
VOX Off
VOX On
Low
Medium
High
Screen will auto wake up according to
the audio sensitivity level.
1
72°F
06:12 PM
9. Split Screen
Press , select through → ,
and select two cameras.
Cam View

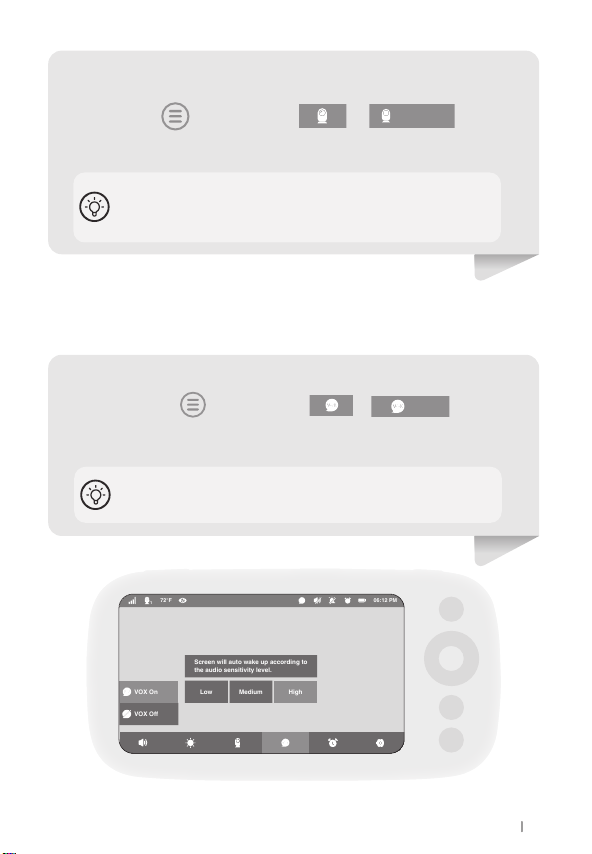

10. VOX (Voice Activated Alert)
1) Press , select through → .
2) Choose a sensitivity level. The higher the VOX sensitivity level, the more
sensitive the camera is in detecting sounds for transmitting to the monitor.
VOX
• At least one camera should stay connected.
• The current camera number will appear at the top of the screen.
Once set, the screen will automatically switch from one
camera to another camera (if connected) every 15 seconds.
• Once set, the screen will go into sleep and enter VOX mode.
• In VOX mode, the screen will stop broadcasting sounds from
the camera side until the audio detected is above the alert level.
• Once two cameras are selected, you can view two cameras
in split-screen mode.
• In split-screen mode, the audio will switch between cameras
every 15 seconds.
Baby Monitor
13 Baby Monitor 14
1 2 3 4Delete
Cam View
Auto Switch
Add
1
72°F
06:12 PM
ON OFF
Delete
Cam View
Auto Switch
Add
1
72°F
06:12 PM
7. Delete a Camera
Press , select through → ,
and select the camera number 1/2/3/4 to view.
Delete
8. Auto Switch
Press , select through → → . .
Auto Switch ON
VOX Off
VOX On
Low
Medium
High
Screen will auto wake up according to
the audio sensitivity level.
1
72°F
06:12 PM
9. Split Screen
Press , select through → ,
and select two cameras.
Cam View
10. VOX (Voice Activated Alert)
1) Press , select through → .
2) Choose a sensitivity level. The higher the VOX sensitivity level, the more
sensitive the camera is in detecting sounds for transmitting to the monitor.
VOX
• At least one camera should stay connected.
• The current camera number will appear at the top of the screen.
Once set, the screen will automatically switch from one
camera to another camera (if connected) every 15 seconds.
• Once set, the screen will go into sleep and enter VOX mode.
• In VOX mode, the screen will stop broadcasting sounds from
the camera side until the audio detected is above the alert level.
• Once two cameras are selected, you can view two cameras
in split-screen mode.
• In split-screen mode, the audio will switch between cameras
every 15 seconds.
Baby Monitor
15 Baby Monitor 16
11. Nursing Reminder
Press , select through → ,
and set a specific time for the monitor to alert you for nursing.
You can also select through
→ , and select 2 hours, 4 hours, or 6 hours to
create a repeating reminder.
Reminder
Repeat
The reminder will sound for 30 seconds and again after 1 minute
if no action is taken, but will shut off automatically if none is taken
after three times.
12. Talkback
Push to talk and release to listen.
• In split screen mode: the talkback function is activated
on the left camera by default. You can press / →
to select one camera to talk to.
• When the video volume is set low, you might not be able to
hear from the camera side.
• When is pressed, the sound from the camera side will
not be heard.
• In sleep mode, the screen will turn off, but the monitor will
continue to receive sounds from the camera.
13. Sleep Mode
Short press to enter sleep mode. Press any button to wake up.
Reminder Off
Repeat
Reminder
1
72°F
06:12 PM
02 45 PM
Other manuals for DR-BBM001
3
Table of contents
Other dreo Baby Monitor manuals
