Model # SMSCOCLS-BR
ASSEMBLY INSTRUCTIONS
Closet Organizer
Questions, problems, missing parts? Before returning to the store,
call Customer Service
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenfurniture.com
Or e-mail your request to p[email protected]om

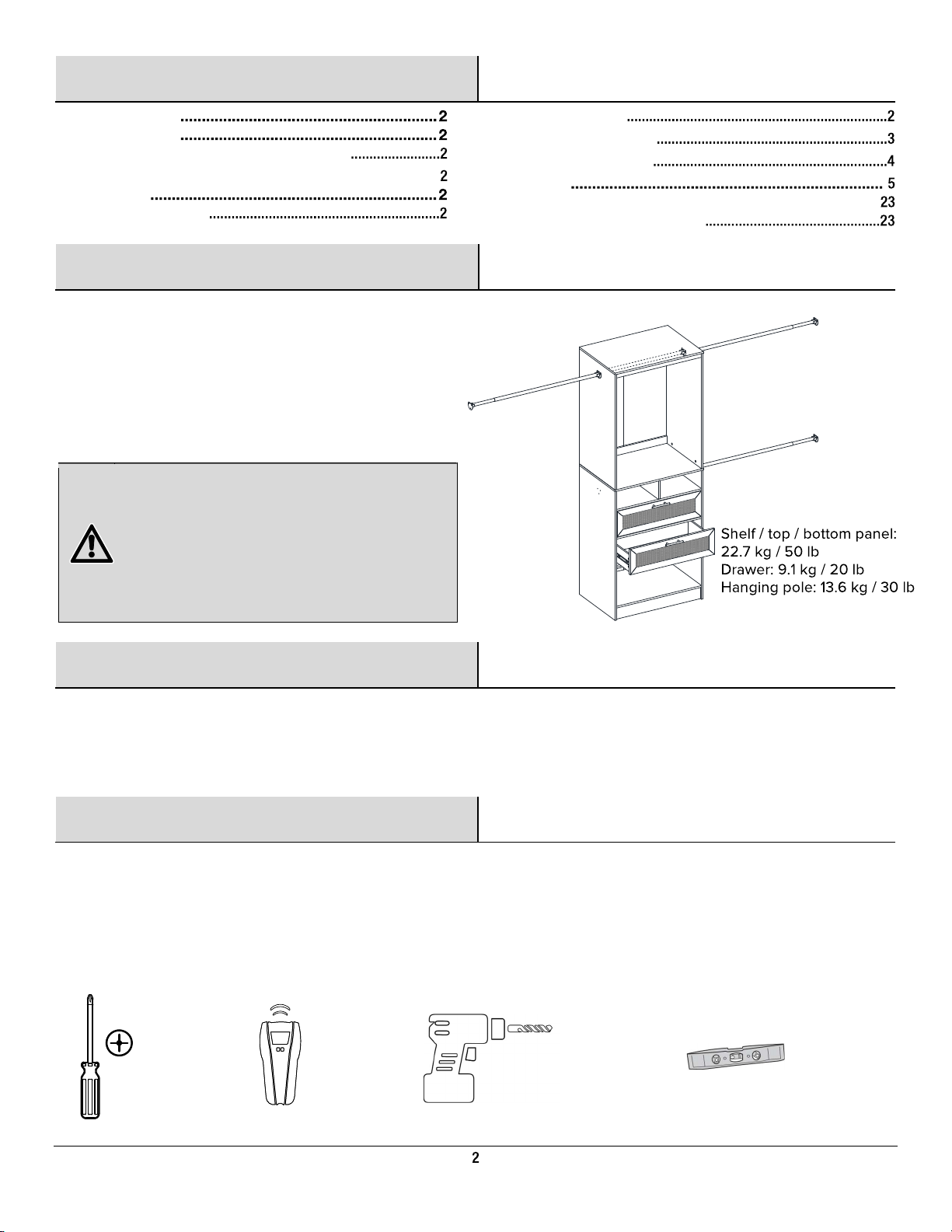

Table of Contents
Table of Contents
Safety Information
Maximum Recommended Weight Loads
Warranty ......................................................................................
Pre-Assembly
Planning Assembly
Tools required
Hardware Included
Package Contents
Assembly
Care and Maintenance ...........................................................
Caring for Wood Furniture
Safety Information
Please read and understand these instructions before
assembling and using this closet. Save these instructions
for future reference.
MAXIMUM RECOMMENDED WEIGHT
LOADS
WARNING: This unit is intended only for use within
the maximum weights indicated. use with load
heavier than the maximum weights indicated may
result in instability, causing possible injury. For
safety purpose, the maximum span of expandable
hanging poles should not exceed 60”. Do not open
more than one drawer at a time and do not step on
drawer, doing so may cause unit to tip forward.
Warranty
We are confident that you will be delighted with this purchase. Should this product be defective in workmanship or
materials, or fail under normal use, we will repair or replace it for a period of up to one (1) year from date of purchase.
This warranty gives you specific rights and you may also have other rights which vary from state to state.
Contact the Customer Service Team at 1-866-942-5362 or visit www.whalenfurniture.com.
Pre-Assembly
PLANNING ASSEMBLY
Compare all parts with the Hardware Included and Package Contents list. If any part appears missing or damaged, do not
assemble this product and contact the Customer Service Team at 1-866-942-5362.
TOOLS REQUIRED
Phillips
screwdriver
(not provided)
Stud finder
(not provided)
Power drill and
drill bits
(not provided)
Level
(not provided)

Pre-Assembly (continued)

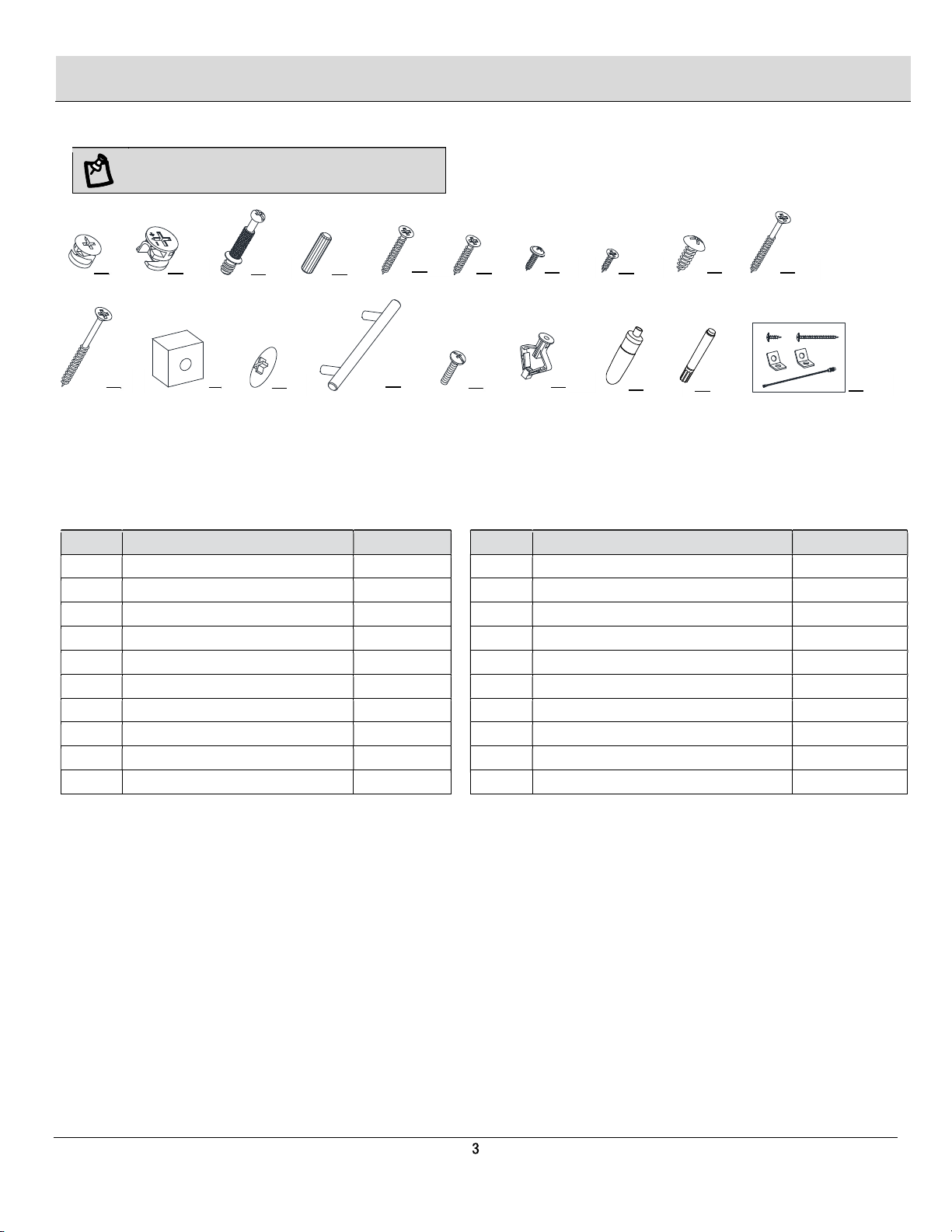

HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
Part Description Quantity Part Description Quantity
AA Small cam lock 12+1 extra KK M4 x 75mm screw 2
BB Large cam lock 46+2 extra LL Spacer block 2
CC Cam bolt 58+2 extra MM Cam lock cover 16+1 extra
DD Wood dowel 62+2 extra NN Handle 2
EE M4 x 38mm screw 12+1 extra OO Handle bolt 4
FF M4 x 30mm screw 14+1 extra PP Wall anchor 11+1 extra
GG Washer head screw 48+2 extra QQ Glue 2
HH M3.5 x 14mm screw 15+1 extra RR Touch-up pen 1
II M4 x 16mm self-tapping screw 8+1 extra SS Tipping restraint hardware kit 1
JJ M4 x 65mm screw 9+1 extra
LL MM
AA GG BB CC DD EE FF HH II JJ
NN OO PP QQ SS
KK RR

Pre-Assembly (continued)

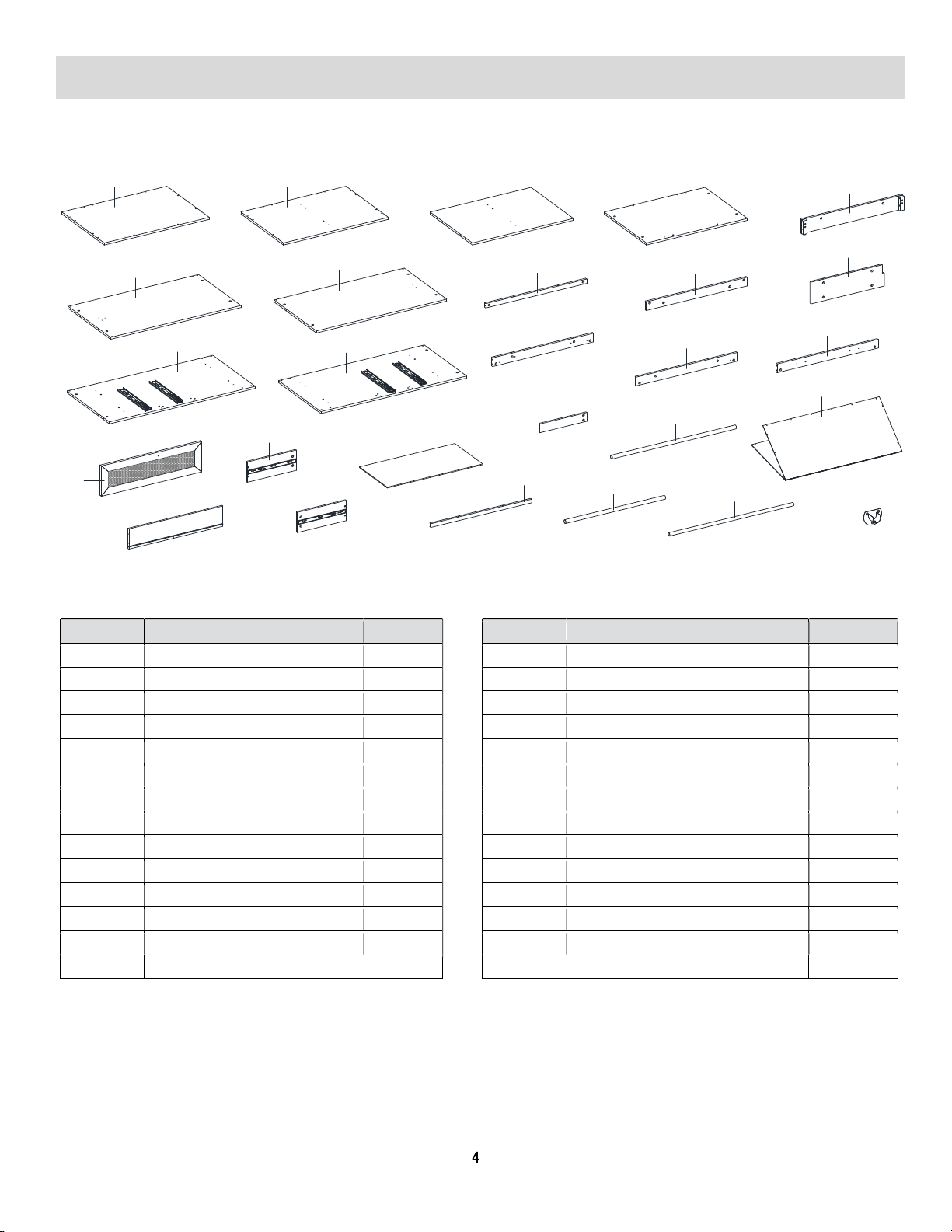

PACKAGE CONTENTS
Part Description Quantity Part Description Quantity
A Top panel 1 O Front crossbar 2
B Upper fixed shelf 1 P Back panel 2
C Lower fixed shelf 1 Q Drawer front panel 2
D Bottom panel 1 R Drawer back panel 2
E Base stretcher 2 S Drawer left side panel 2
F Partition panel 1 T Drawer right side panel 2
G Left upper side panel 1 U Drawer bottom panel 2
H Right upper side panel 1 V Drawer bottom support 2
I Left lower side panel 1 W Front reinforcement 2
J Right lower side panel 1 X Fixed hanging pole 1
K Top front stretcher 1 Y Expandable outer pole 3
L Top back stretcher 1 Z Expandable inner pole 3
M Middle upper back stretcher 1 A1 Pole holder 8
N Middle lower back stretcher 1
AB D E
F
C
GH
IJ
K
L
M
NO
P
Q
S
T
R
UV
X
Y
Z
A1
W

Assembly

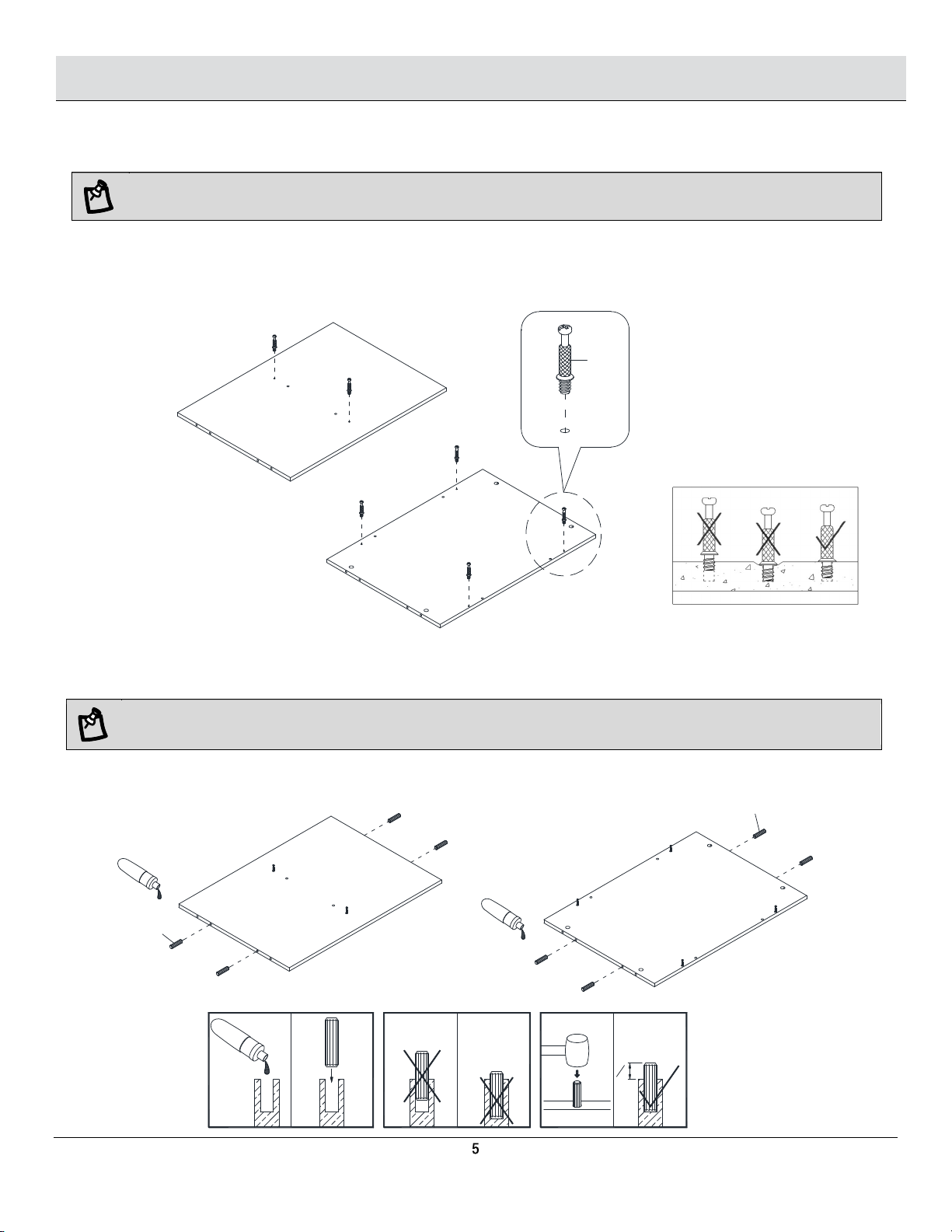

1 Preparing bottom cabinet assembly
NOTE: Do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all
bolts. This will make the assembly easier.
□ Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a carpeted
floor or the empty carton to avoid any scratches.
□ Securely screw the cam bolts (CC) into the designated small holes on the lower fixed shelf (C) and bottom panel (D)
using a Phillips screwdriver.
2 Gluing wood dowels
□ Glue the wood dowels (DD) into the designated holes on the lower fixed shelf (C) and bottom panel (D). It is very
important to use a small amount of glue on both ends of dowels and wipe off the excess glue immediately.
NOTE: Refer to the dowel guide drawings in this step for further clarification on how to properly glue in the
wooden dowels. Apply this method whenever instructed to install wood dowels.
The dowel assembling guide
D
C
CC
D
C
DD
DD
13
GLUE
FINAL
1 2 43

Assembly (continued)

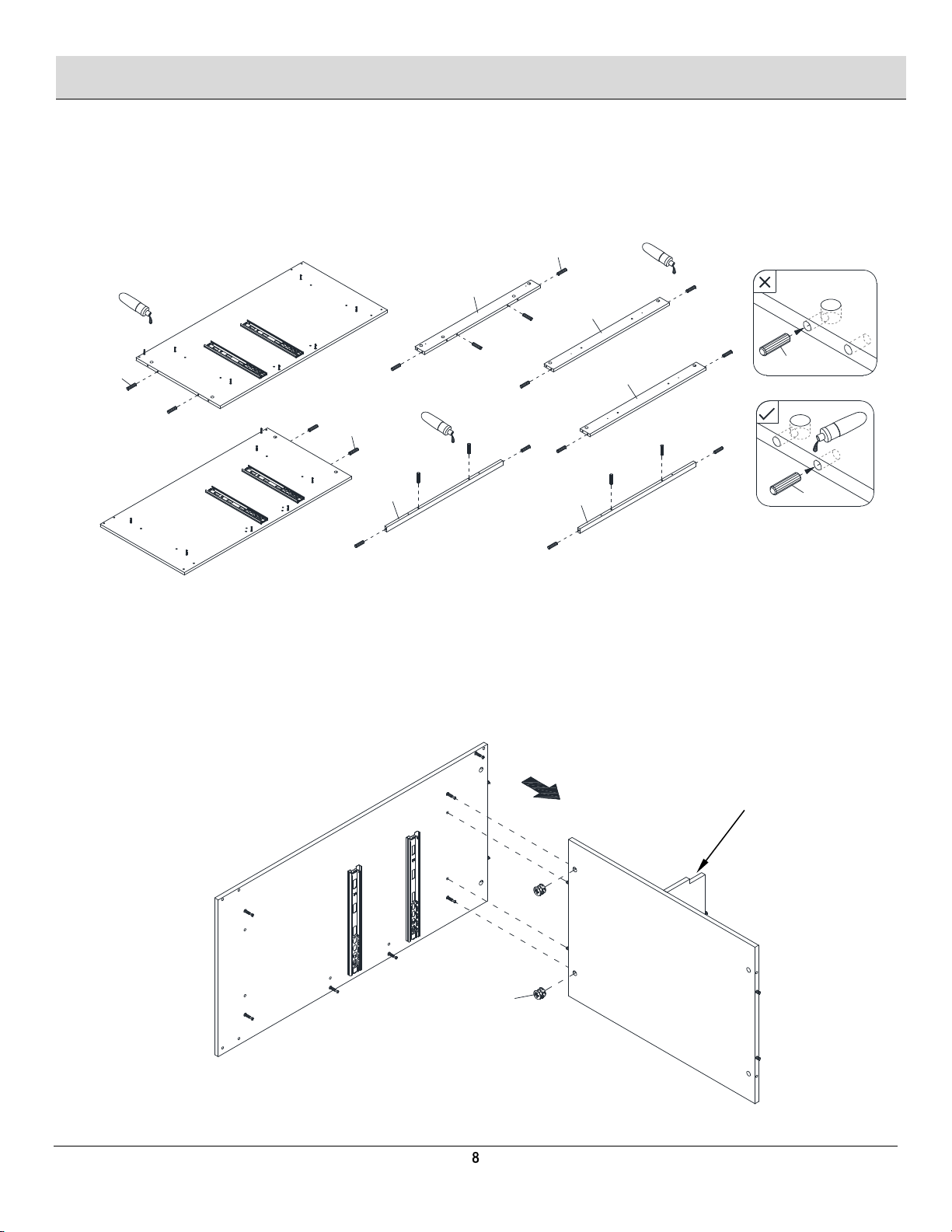

3 Gluing wood dowels

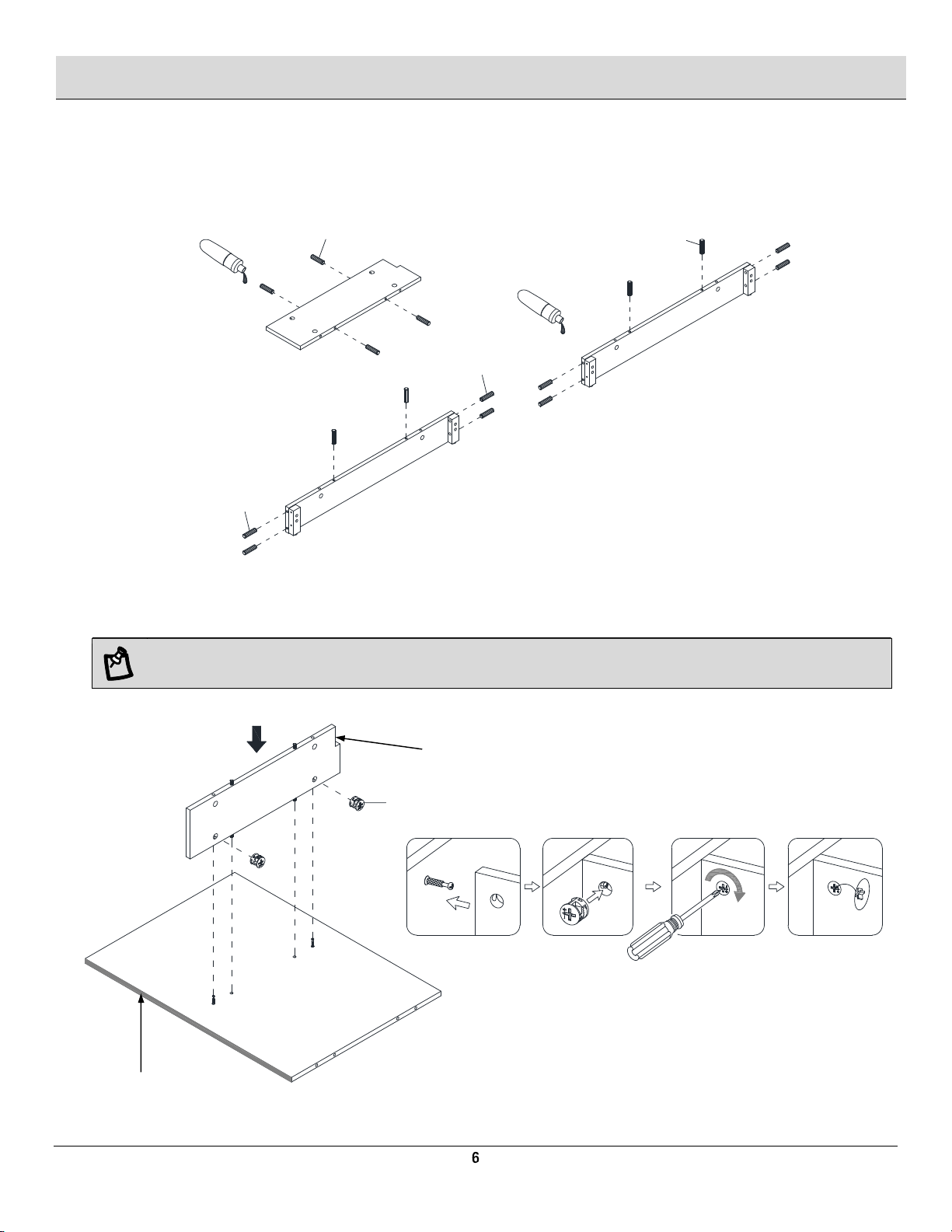

□ Glue the wood dowels (DD) into the designated holes on both base stretchers (E) and the partition panel (F).
4 Attaching partiton panel
□ Orient and attach the partiton panel (F) to the lower fixed shelf (C) by engaging 2 large cam locks (BB).
NOTE: Refer to the cam lock assembling guide drawings in this step for further clarification on how to properly
install cam locks. Apply this method whenever instructed to install cam locks.
BB
C
F
F
inished edge
The cam lock assembling guide
DD
DD
DD
DD
E
F
E
The notch is located at back
of the unit
and
face
s
upward

Assembly (continued)
5

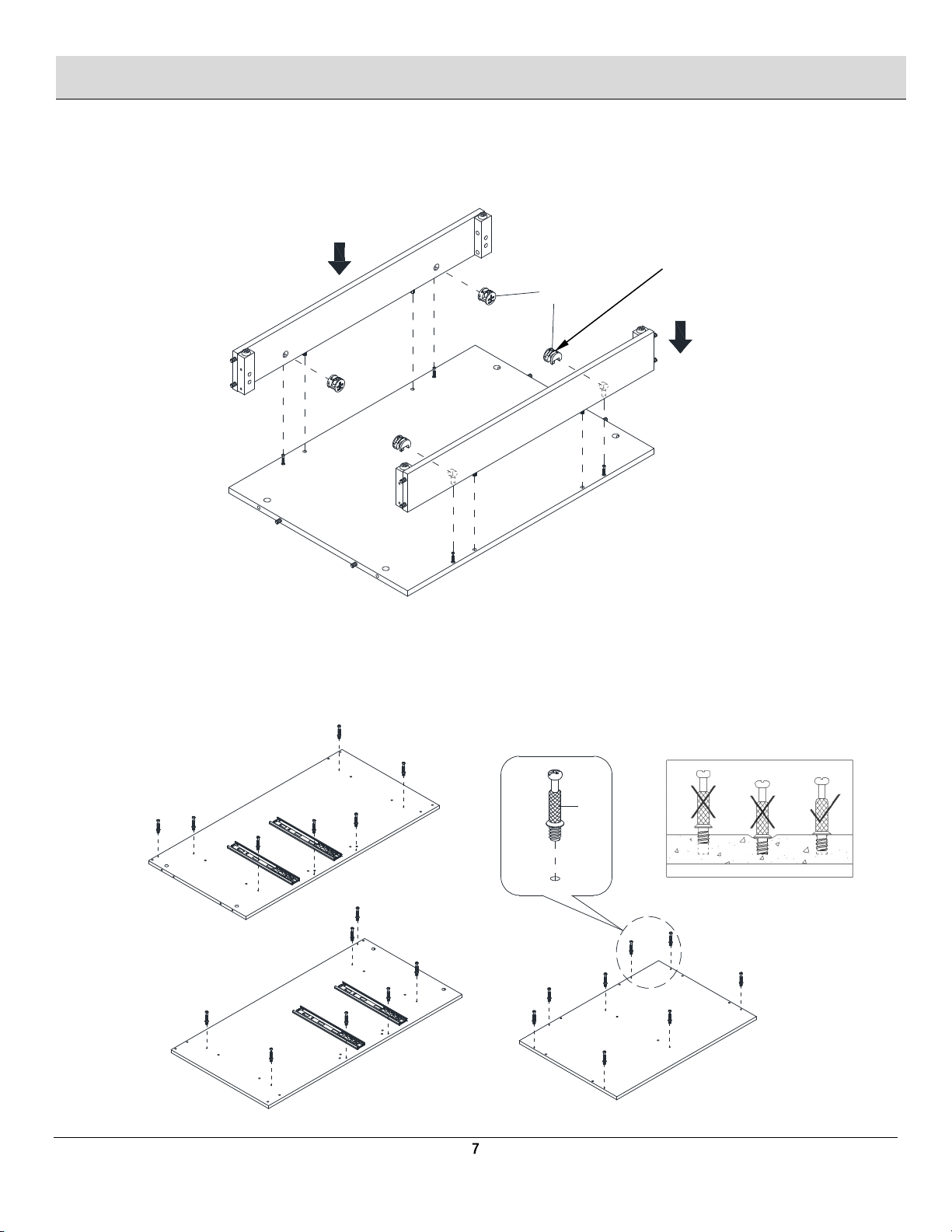

Attaching base stretchers
□ Align and attach the base stretchers (E) to the bottom panel (D) using 4 large cam locks (BB).
6
Preparing bottom cabinet assembly
□ Securely screw the cam bolts (CC) into the designated small holes on the upper fixed shelf (B) and lower side panels
(I and J) using a Phillips screwdriver.
D
E
EBB
CC
J
I
B
The cam locks
face inward

Assembly (continued)
7 Gluing wood dowels
□ Glue the wood dowels (DD) into the designated holes on the lower side panels (I and J), middle lower back stretcher
(N), front crossbars (O) and front reinforcements (W) as shown.
8 Attaching lower fixed shelf
□ Attach the assembled lower fixed shelf (C) to the right lower side panel (J) with 2 large cam locks (BB).
J
C
BB
The notch is located at back
of the unit and faces upward
DD
DD
DD
DD
DD
I
J
N
O
O
W
W

Assembly (continued)

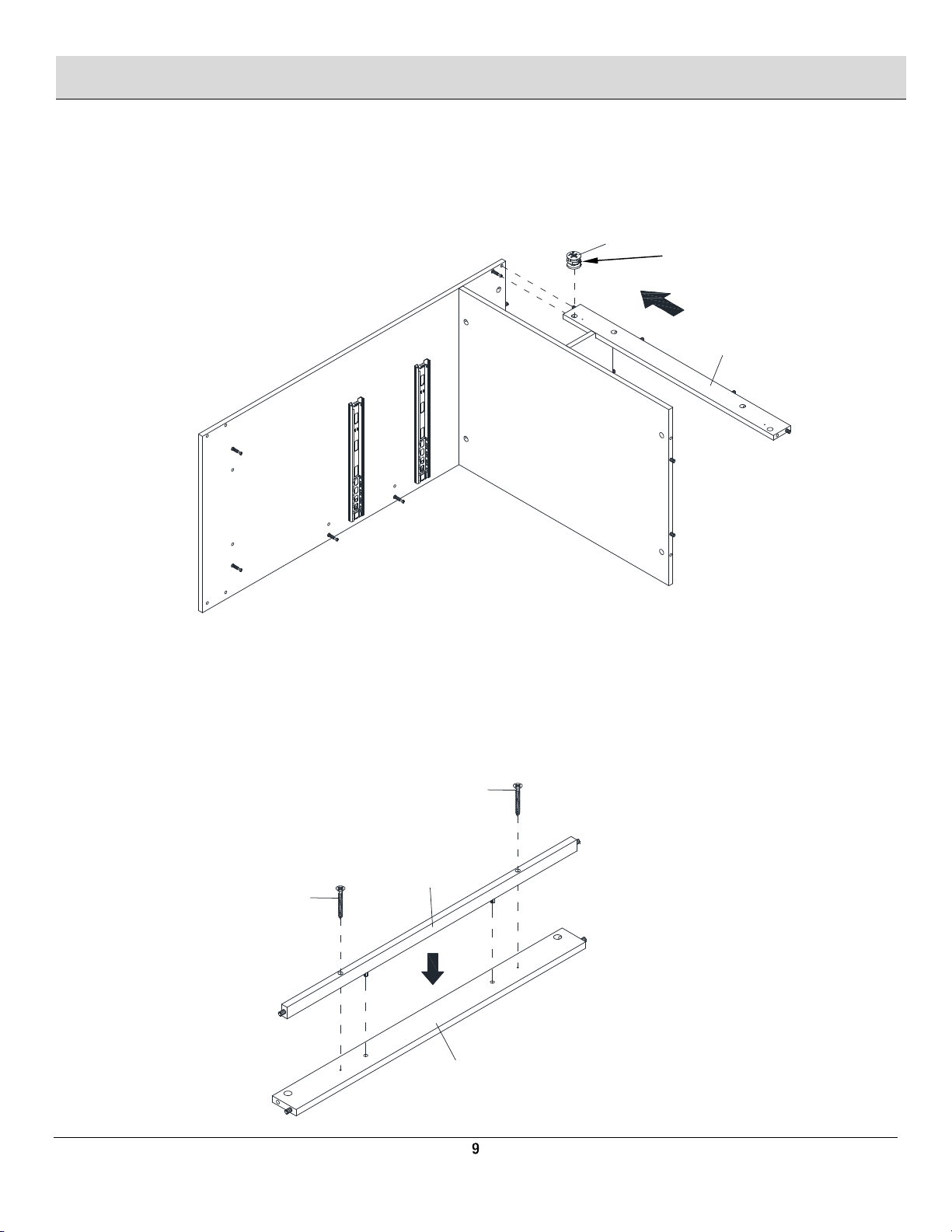

9 Attaching middle lower back stretcher
□ Rest the middle lower back stretcher (N) onto the notch of the partiton panel (F) and attach it to the right lower side
panel (J) by engaging one large cam lock (BB).
10
Combining front crossbars and reinforcements
□ Using the wood dowels as a guide, fasten one front reinforcement (W) to one front crossbar (O) with two 30mm
screws (FF).
□ Complete this step two times to combine the other front crossbar and reinforcement.
N
J
BB
W
O
FF
FF
x 2
The
cam lock faces outward

Assembly (continued)
11
Attaching front crossbars
□ Align and attach the assembled front crossbars (O) to the right lower side panel (J) by engaging 2 large cam locks
(BB).
12 Attaching bottom panel
□ Orient and attach the assembled bottom panel (D) to the right lower side panel (J) using 2 large cam locks (BB).
O
J
BB
O
D
E
E
J
BB
F
inished edge

Assembly (continued)

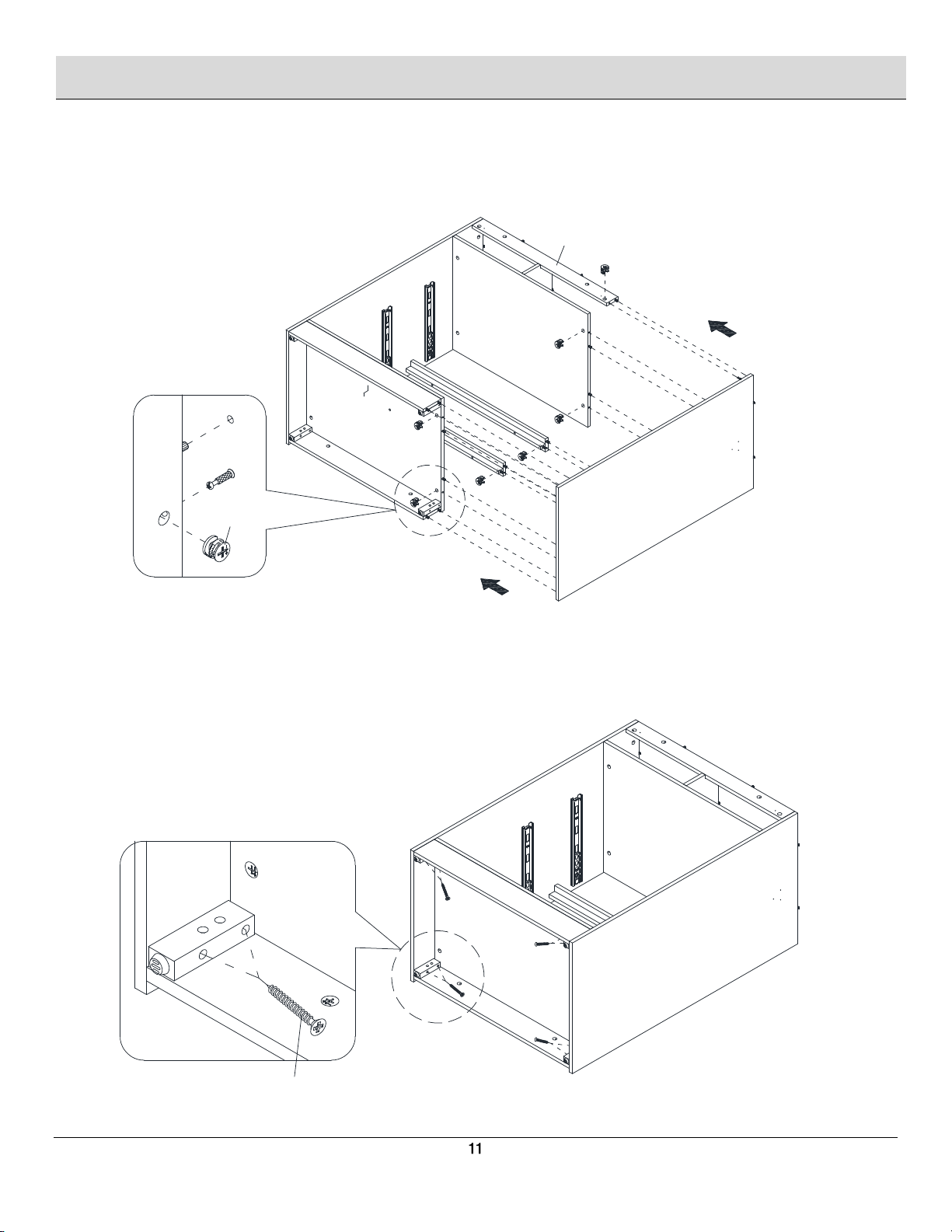

13 Attaching left lower side panel
□ Align and attach the left lower side panel (I) to the previous assembly by engaging 7 large cam locks (BB).
14 Fastening base stretchers
□ Fasten the base stretchers (E) to the lower side panels (I and J) with eight 30mm screws (FF).
DO
O
C
I
BB
N
I
J
D
E
E
FF

Assembly (continued)
15
Attaching upper fixed shelf
□ Using the wood dowels as a guide, align and attach the upper fixed shelf (B) onto the previous assembly by
engaging 8 large cam locks (BB).
16 Preparing wardrobe compartment assembly
□ Securely screw the cam bolts (CC) into the designated small holes on the upper fixed shelf (B) using a Phillips
screwdriver.
B
CC
I
J
N
F
B
BB

Assembly (continued)
17

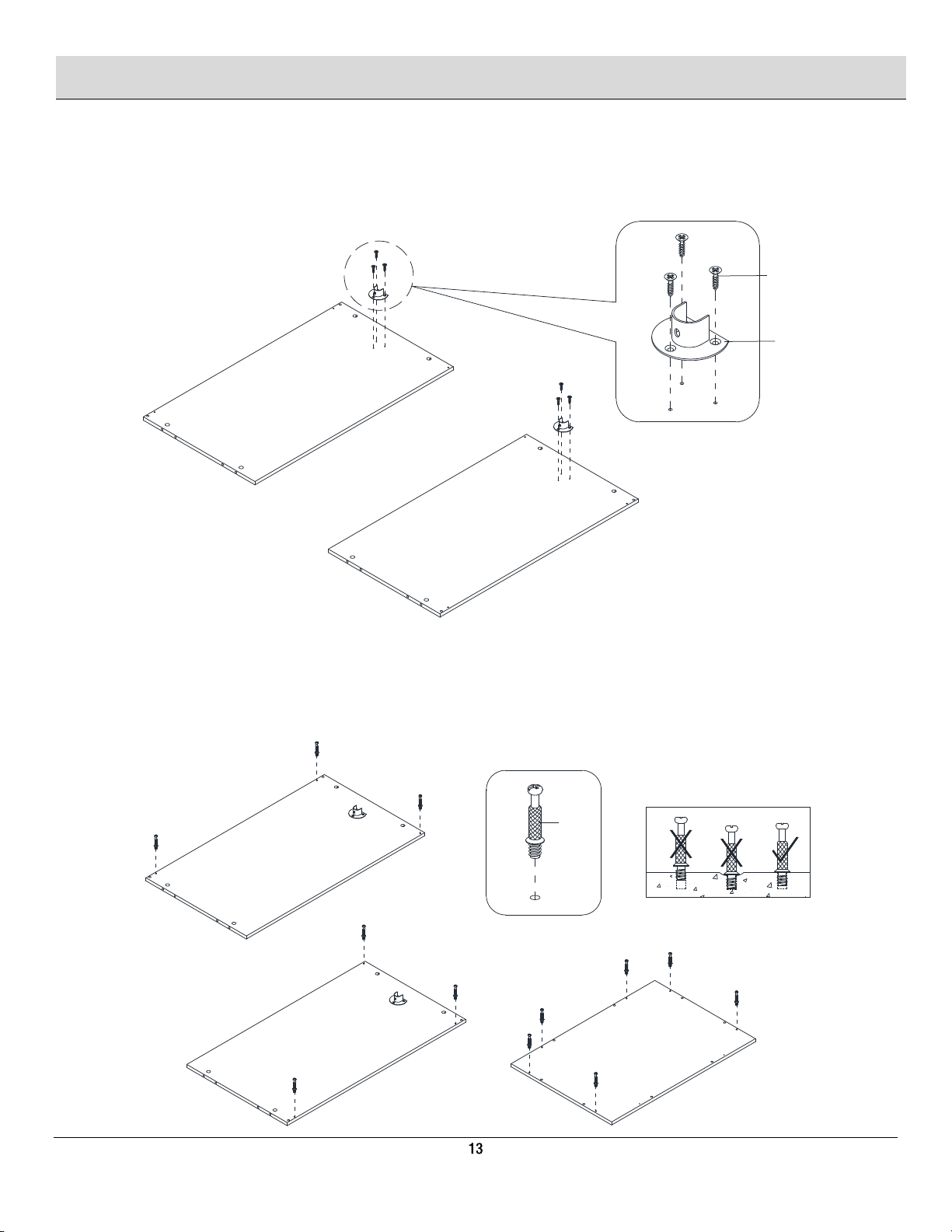

Attaching pole holders
□ Using the pilot holes as a guide, fasten one pole holder (A1) to the inner side of each upper side panel (G and H)
with three 14mm screws (HH).
18
Preparing wardrobe compartment assembly
□ Securely screw the cam bolts (CC) into the designated small holes on the top panel (A) and upper side panels (G
and H) using a Phillips screwdriver.
GA
H
CC
G
A1
HH
H

Assembly (continued)
19
Gluing wood dowels
□ Glue the wood dowels (DD) into the designated holes on both upper side panels (G and H) and stretchers (K, L and
M) as shown.
20
Attaching wardrobe compartment frame
□ Align and attach both top stretchers (K and L) and middle upper back stretcher (M) to the left upper side panel (G) by
engaging 3 large cam locks (BB). Make sure that the wood dowels on the top front stretcher (K) face top of the unit.
□ Repeat the same procedure to attach the right upper side panel (H) at the other end.
The cam locks face
back of the unit
G
L
DD
DD
DD
DD
M
K
H
DD
DD
G
L
K
M
BB
H

Assembly (continued)

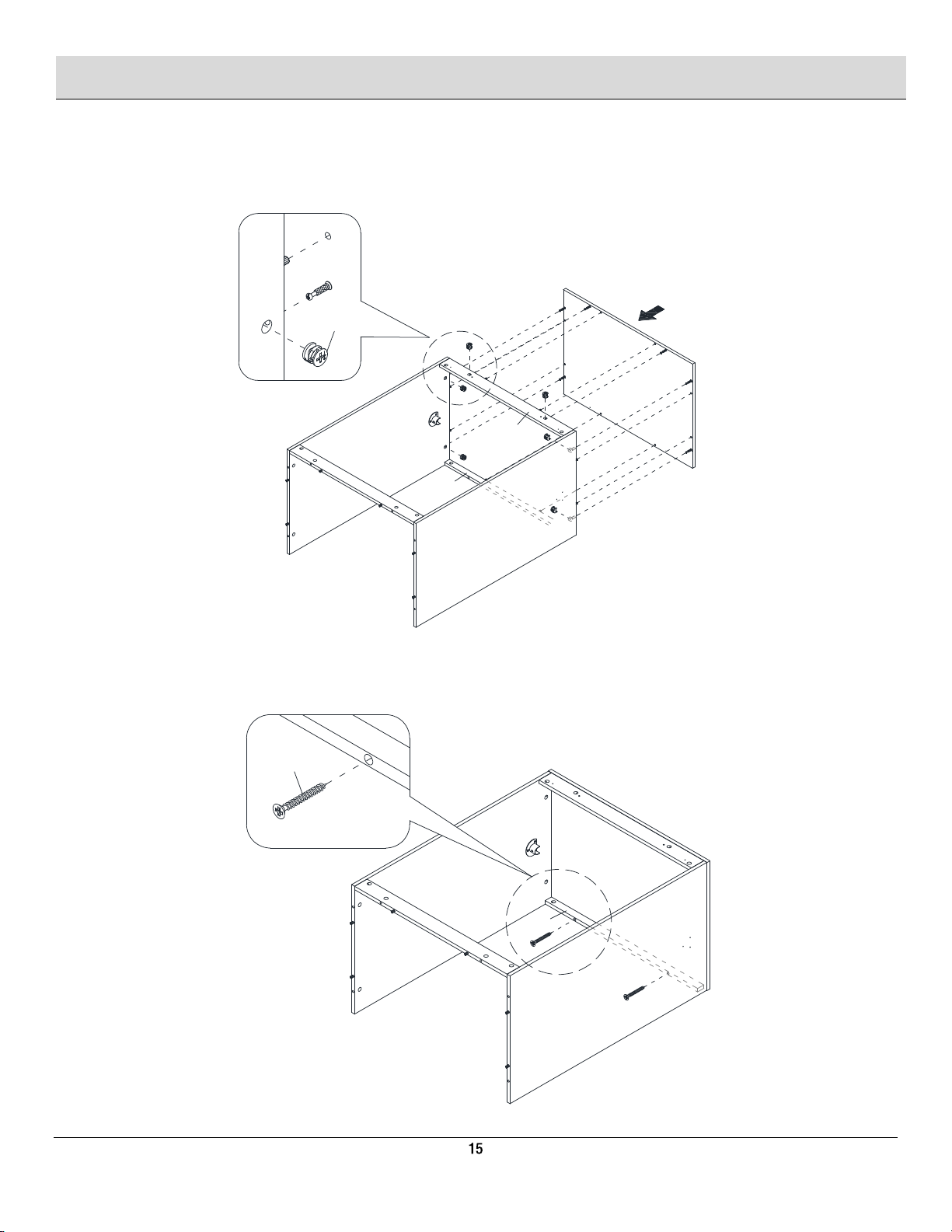

21
Attaching top panel
□ Using the wood dowels as a guide, align and attach the top panel (A) to the previous assembly by engaging 6 large
cam locks (BB).
22
Fastening top front stretcher
□ Insert two 30mm screws (FF) through the pre-drilled holes on the top front stretcher (K) and into the top panel (A).
G
L
K
A
BB
H
K
A
FF

Assembly (continued)
23

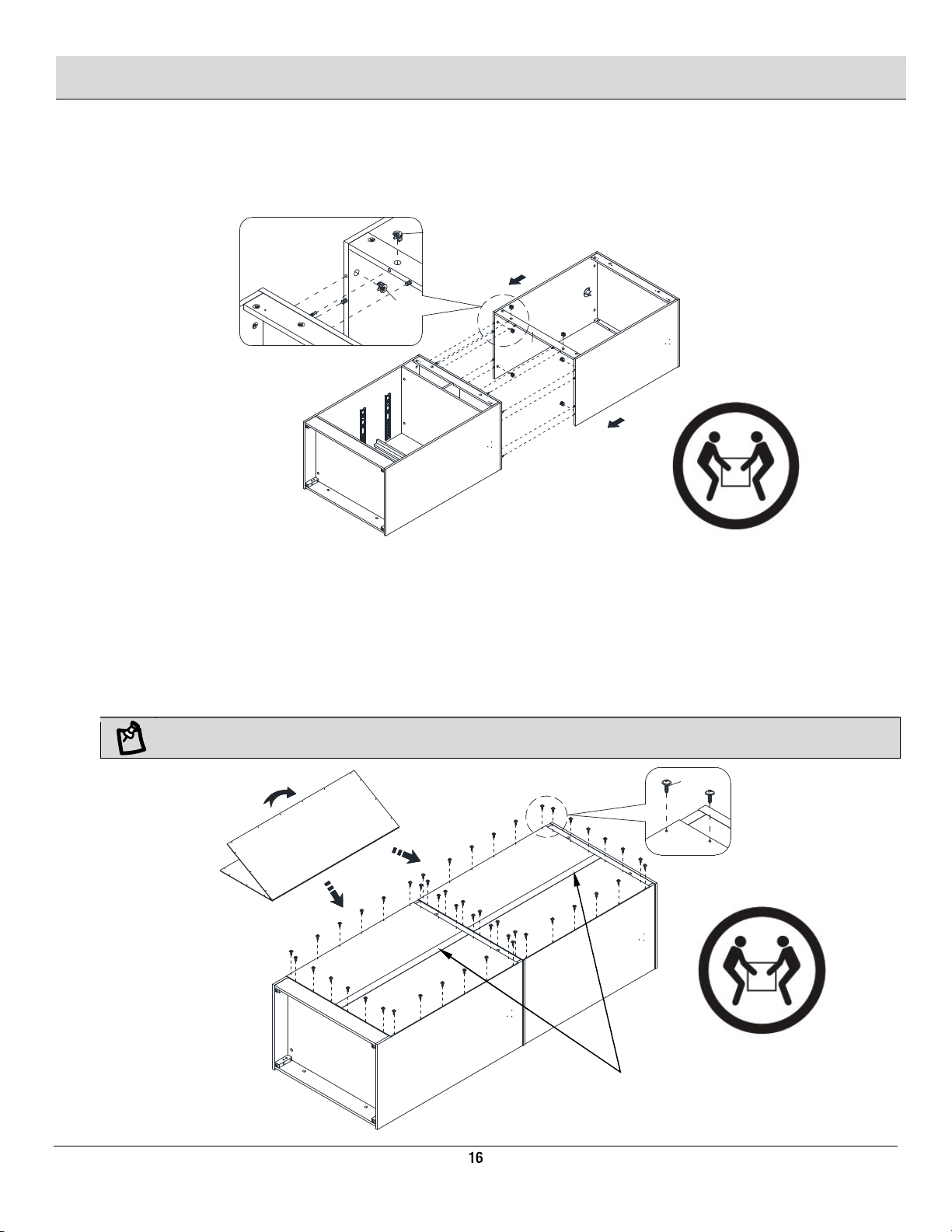

Combining wardrobe compartment with bottom cabinet
□ Using the wood dowels as a guide, position the assembled wardrobe compartment onto the bottom cabinet properly
and attach them into place with 6 large cam locks (BB).
24
Attaching back panels
□ Now, go back and securely tighten all the cam locks and screws. Make sure all the parts are tight and there are no
gaps between the parts. This will help keep the unit square.
□ Unfold one back panel (P) and align the pre-drilled holes against the upper edges with the pilot holes on the back of
the top back stretcher (L). Fasten it in place using the provided washer head screws (GG).
□ Using the pilot holes on middle lower back stretcher (N) as a guide, fasten the other back panel (P) to the bottom cabinet
with the provided washer head screws (GG).
NOTE: We recommend attaching back panel with the screws at the corners first.
P
P
P
G
I
GG
The
adhesive tape
s
face
outside.
G
M
B
BB
BB
H
I
J

Assembly (continued)
25

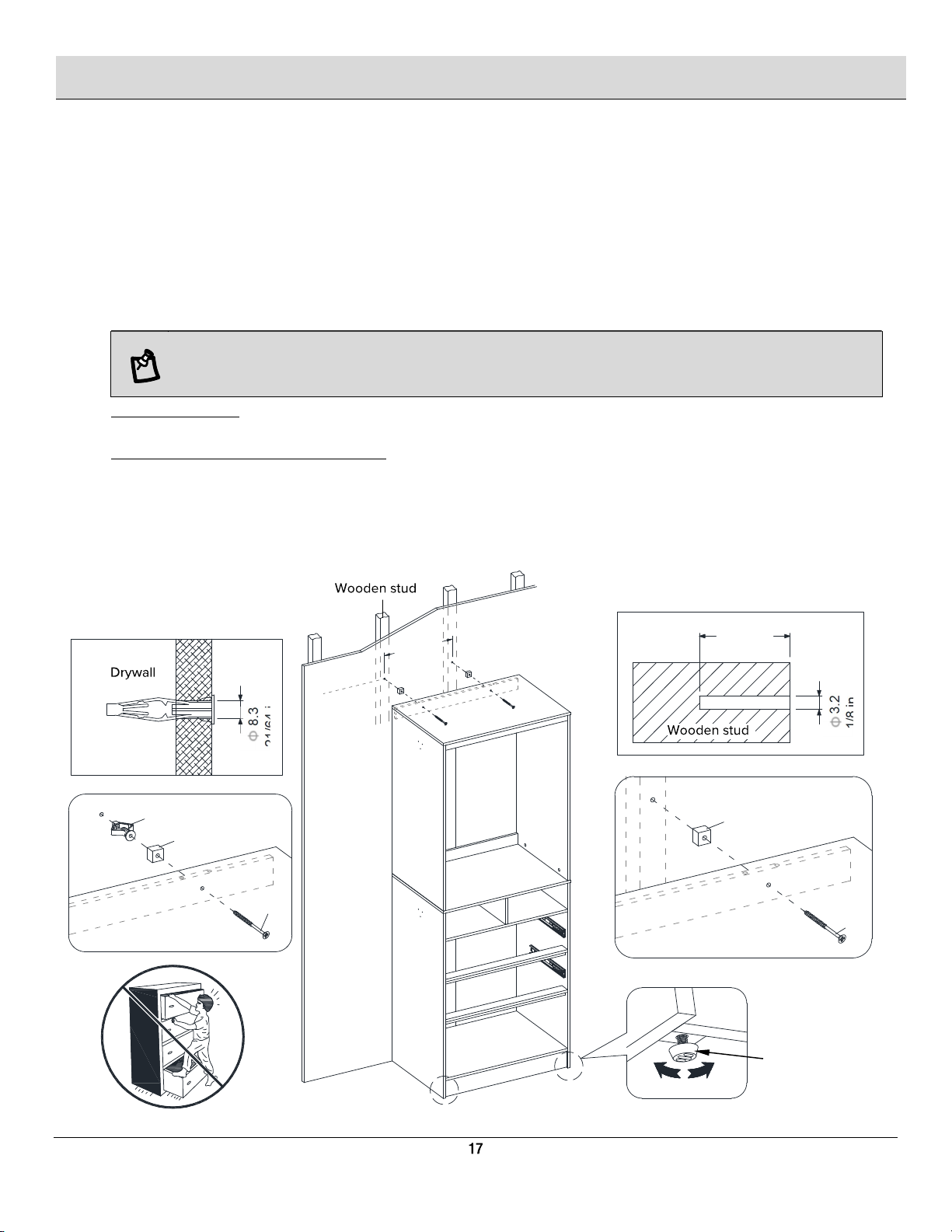

Mounting closet to a stud wall to avoid tipping
□ Consider the proper position relative to your room and find the optimum place to mount your closet. Be sure
to leave the desired space to the other walls to set your expandable hanging poles. For safety purpose, the
maximum span of expandable hanging poles should not exceed 60”.
□ With assistance, lift the assembled unit upright and against the wall in the desired location. If necessary, adjust
the floor levelers pre-attached on both base stretchers (E) to correct tilting, until the unit is level. Draw a level line
on the wall at the desired height where the through holes on the top back stretcher (L) will line up properly.
□ Remove the closet and locate the position of the nearest studs with a stud finder and mark the outside edges and
center locations. Mark out two mounting hole location 16 inches apart on the level line you just drew on the wall.
NOTE: It is critical to mount your closet to the studs in your wall. We provide wall anchors (PP) to assist
you on the properly attachment to the wall. You must use wall anchors if no stud is present. Failure to
do so will result in a weakened installation and causing any accidents or damage.
□ Mount to wall stud: With an electric drill (not included) on its low setting, drill 1/8” (3.2mm) diameter holes to at
least 2½ inch (63.5mm) deep on the two marked points.
□ Mount to drywall without stud is present: With an electric drill (not included) on its low setting, drill 21/64” (8.3mm)
diameter holes through the gypsum board on the two marked points. Clean the holes from dust and insert one
wall anchor (PP) into each hole. Gently tap the wall anchors (PP) with a hammer until they are flush with the wall.
□ Replace the closet to against the wall in the desired location. Insert two 75mm wood screws (KK) through the
through holes on the top back stretcher (L) through two spacer blocks (LL) and securely screw into the inserted
wall anchors (PP) or the drilled holes in the wall stud.
L
LL
LKK
40.6 cm
16 in / po
3.2 mm
1/8 in / po
63.5 mm
2.5 in / po
Φ
Floor leveler
Mount to drywall
without stud is present
Mount to wall stud
KK
LL
L
PP
8.33 mm
21/64 in / po
Φ

Assembly (continued)
26
Installing tipping restraint hardware
WARNING: Young children can be seriously injured by tipping furniture. You must install the tipping restraint hardware
with the unit to prevent the unit from tipping, causing any accidents or damage. The tipping restraints are intended only
as a deterrent, they are not a substitute for proper adult supervision. The tipping restraints are not earthquake restraints. If
you wish to add the extra security of earthquake restraints, they must be purchased and installed separately.

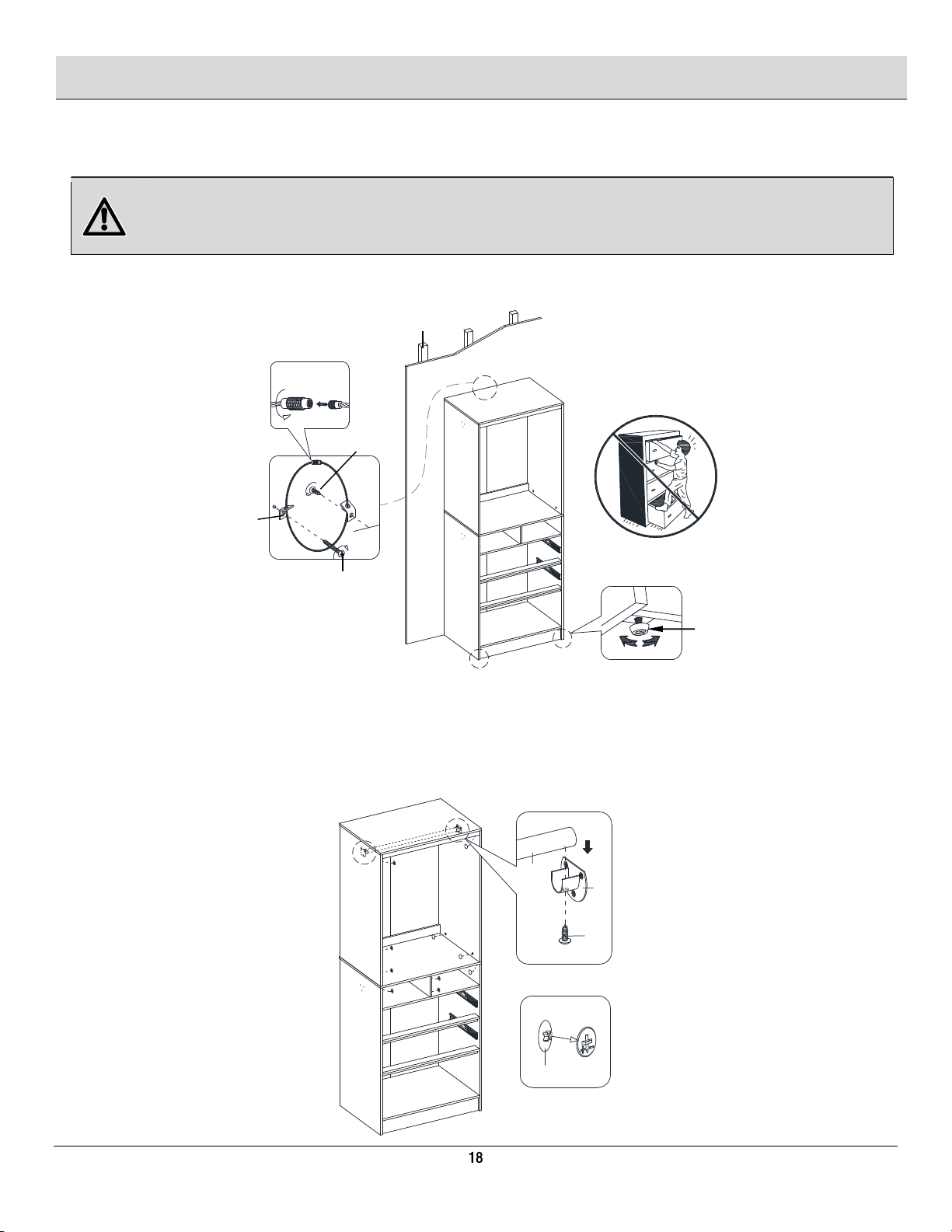

□ We provided one set of tipping restraint hardware kit for extra safety. Follow the instructions printed on the plastic
bag containing the tipping restraint hardware to attach the tip-over restraints to the unit and the wall.
27
Installing the fixed hanging pole
□ Position the fixed hanging pole (X) onto the installed open pole holders (A1) and lock it into place with two 16mm
self-tapping screws (II).
□ Plug the cam lock covers (MM) onto the visible cam locks to conceal the cams.
Short screw
Connector
Wooden stud
Wall
Wall
Metal bracket
Long screw
Floor leveler
II
A1
X
MM

Assembly (continued)
28

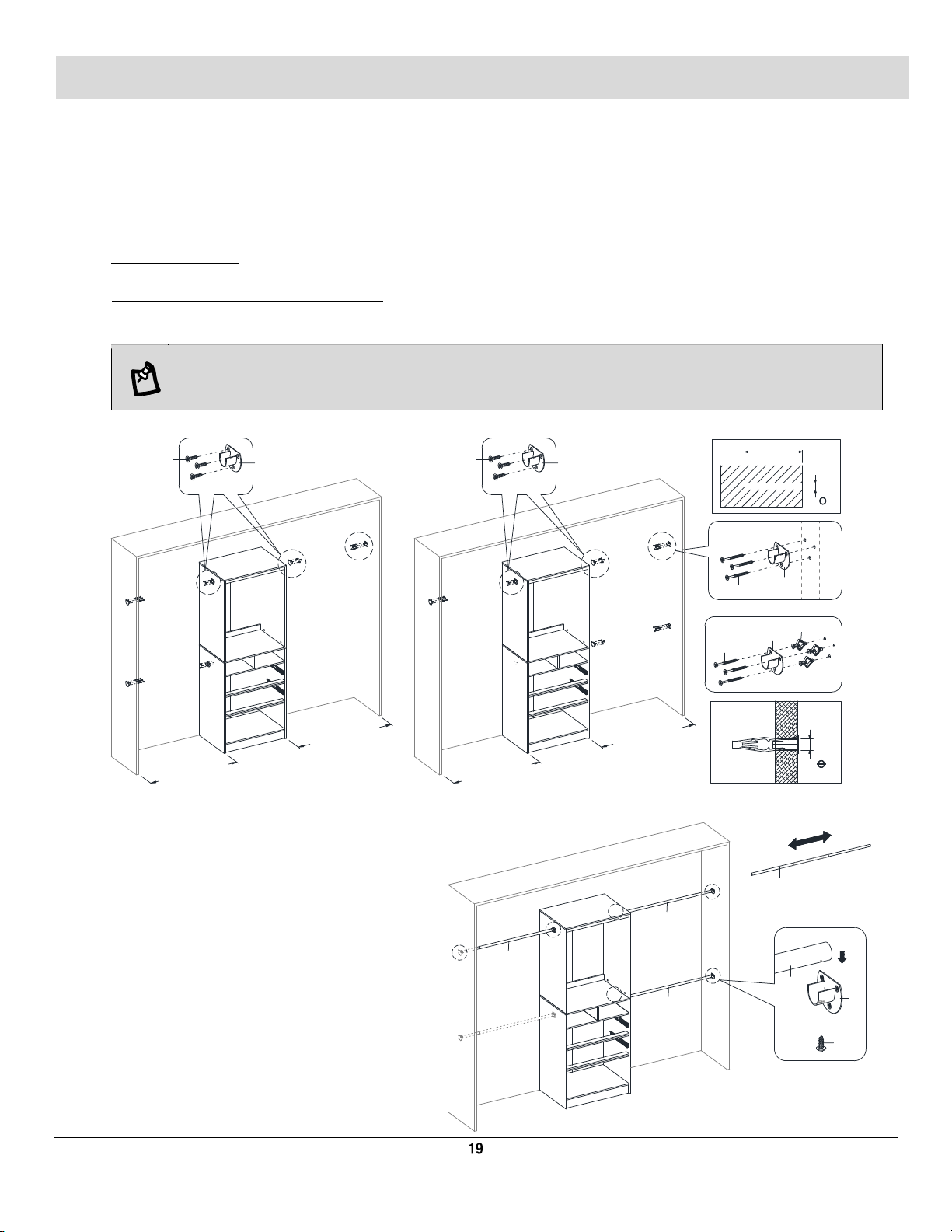

Installing pole holders for expandable poles
□ Using the pilot holes as a guide, attach 3 pole holders (A1) to the outside of the closet with nine 14mm screws (HH).
□ Rest the expandable poles onto the pole holders as reference to mount 3 pole holders (A1) at the same level on the
side walls. Use a level to make sure they are at the same level and the open cut of each pole holder (A1) faces up.
□ Using the pole holder (A1) as a template, mark out the corresponding drill points on the side walls with a pencil.
□ Mount to wall stud: With an electric drill (not included) on its low setting, drill 1/8” (3.2mm) diameter holes to at least
2½ inch (63.5mm) deep on the marked points.
□ Mount to drywall without stud is present: With an electric drill (not included) on its low setting, drill 21/64” (8.3mm)
diameter holes through the gypsum board on the marked points. Clean the holes from dust and insert one wall
anchor (PP) into each hole. Gently tap the wall anchors (PP) with a hammer until they are flush with the wall.
NOTE: It is critical to mount your pole holders to the studs in your wall. We provide wall anchors (PP)
to assist you on the properly attachment to the wall. You must use wall anchors if no stud is present.
Failure to do so will result in a weakened installation and causing any accidents or damage.
□ Secure the pole holders (A1) to the side walls with 65mm screws (JJ) provided.
29
Installing expandable hanging poles
□ Insert the expandable inner pole (Z) into each
of expandable outer poles (Y).
□ Position the combined poles onto the pole
holders (A1) installed and lock them into place
with six 16mm self-tapping screws (II).
90.7 cm ~ 152.4 cm
35.7 in / po ~ 60 in / po
90.7 cm ~ 152.4 cm
35.7 in / po ~ 60 in / po
A1
HH
90.7 cm ~ 152.4 cm
35.7 in / po ~ 60 in / po
90.7 cm ~ 152.4 cm
35.7 in / po ~ 60 in / po
A1
HH
A1
JJ
A1
JJ
PP
3.2 mm
1/8 in / po
63.5 mm
2.5 in / po
8.33 mm
21/64 in / po
Y
Z
II
A1
Y / Z
Y / Z
Y / Z
Y / Z

Assembly (continued)
30

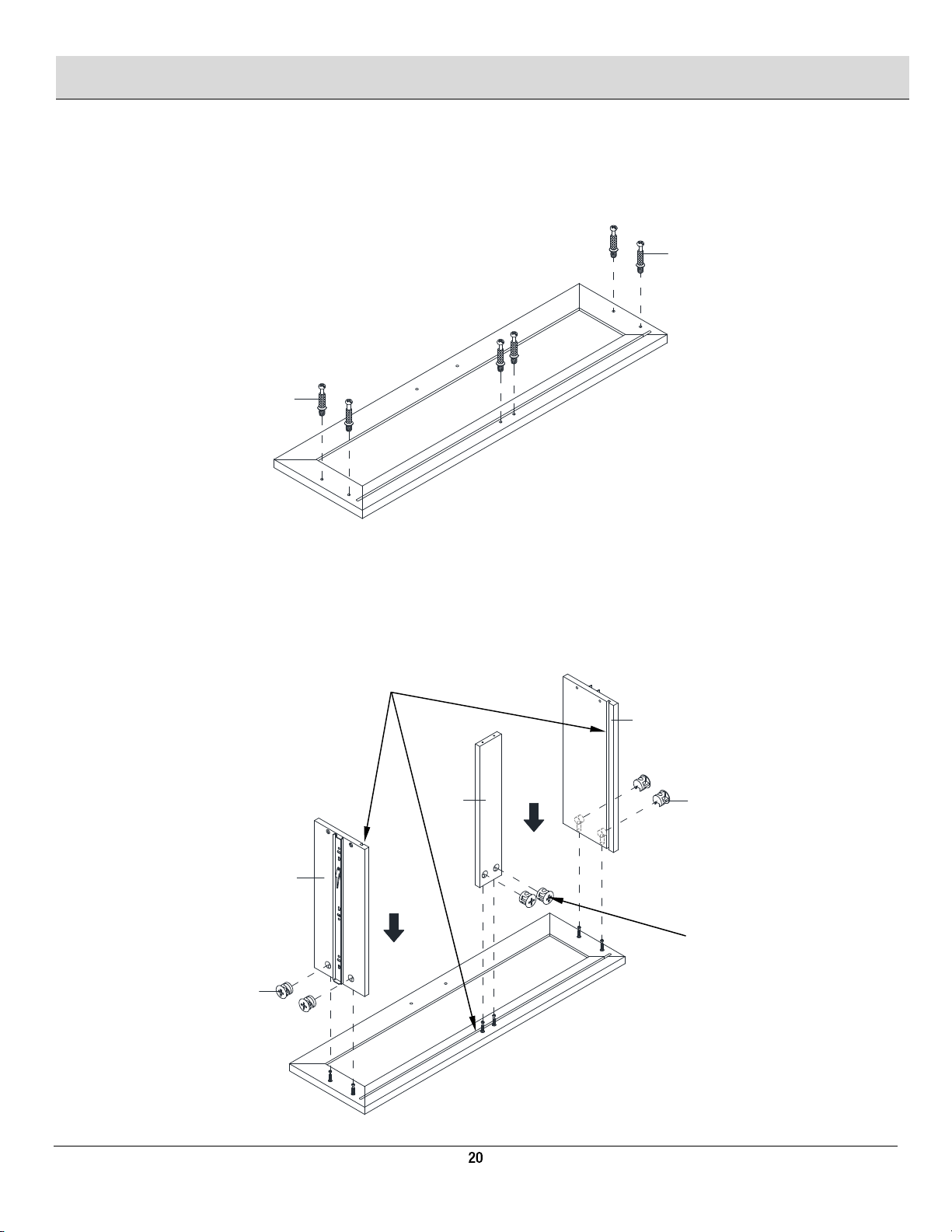

Preparing drawer assembly
□ Securely screw six cam bolts (CC) into the designated small holes on one drawer front panel (Q) using a Phillips
screwdriver.
31 Attaching drawer side panels and bottom support
□ Attach the drawer side panels (S and T) to one drawer front panel (Q) by engaging 4 small cam locks (AA).
□ Orient and attach one drawer bottom support (V) to the drawer front panel (Q) with 2 small cam locks (AA).
Q
T
S
VAA
AA
x 2
CC
Q
CC
x 2
The grooves face inward
and line up with each other
The cam locks
face outward
