Drija Square Isla Professionale Series User manual

Voltage 110-120V.

Manual de Usuario
EXTRACTOR DE GRASA | SQUARE ISLA Professionale
2
1. NOTICE.........................................................................................................3
2. CHARACTERISTICS.....................................................................................3
3. INSTALLATION NOTICE ..............................................................................3
4. INSTALLATION INSTRUCTIONS.................................................................4
5. USE GUIDE...................................................................................................6
6. MAINTENANCE AND CLEANING................................................................. 6
7. ANOMALIES AND SOLUTION......................................................................8
8. SAFETY WARNING......................................................................................9
9. ELECTRIC SHOCK HAZARD .....................................................................11
10. WARRANTY CERTIFICATE....................................................................11

Manual de Usuario
EXTRACTOR DE GRASA | SQUARE ISLA Professionale
3
1. NOTICE
1. Installation work must be carried out by qualified and competent personnel.
2. The manufacturer shall not be liable for any damage or injury caused by failure
to follow the instructions contained in the manual.
2. CHARACTERISTICS
1. The kitchen hood uses a high quality material and is made with steam
design.
2. Equipped with an electric motor of low noise, centrifugal blade produces
great suction, low noise, non-stick filter and easy cleaning, domestic use.
3. Control circuit board insulated low voltage, 12vDC input, the lights are more
secure.
4. Built with a special tunnel, designed with an oil sump and dust absorption in
seconds.
3. INSTALLATION NOTICE
1. Before installation, make sure the area is clean to avoid sucking out
remaining broken wood and dust.
2. It is not possible to share the same air ventilation tube with other appliances
such as gas pipe, hot air pipe.
3. The bending of the ventilation tube should be ≥120 °, parallel or above the
start point and must be connected to the outer wall.
4. After installation, make sure the extractor is level to avoid collecting grease
at one end.

Manual de Usuario
EXTRACTOR DE GRASA | SQUARE ISLA Professionale
4
Warning: Failure to install screws or fastening device according to these
instructions may result in electrical hazards.

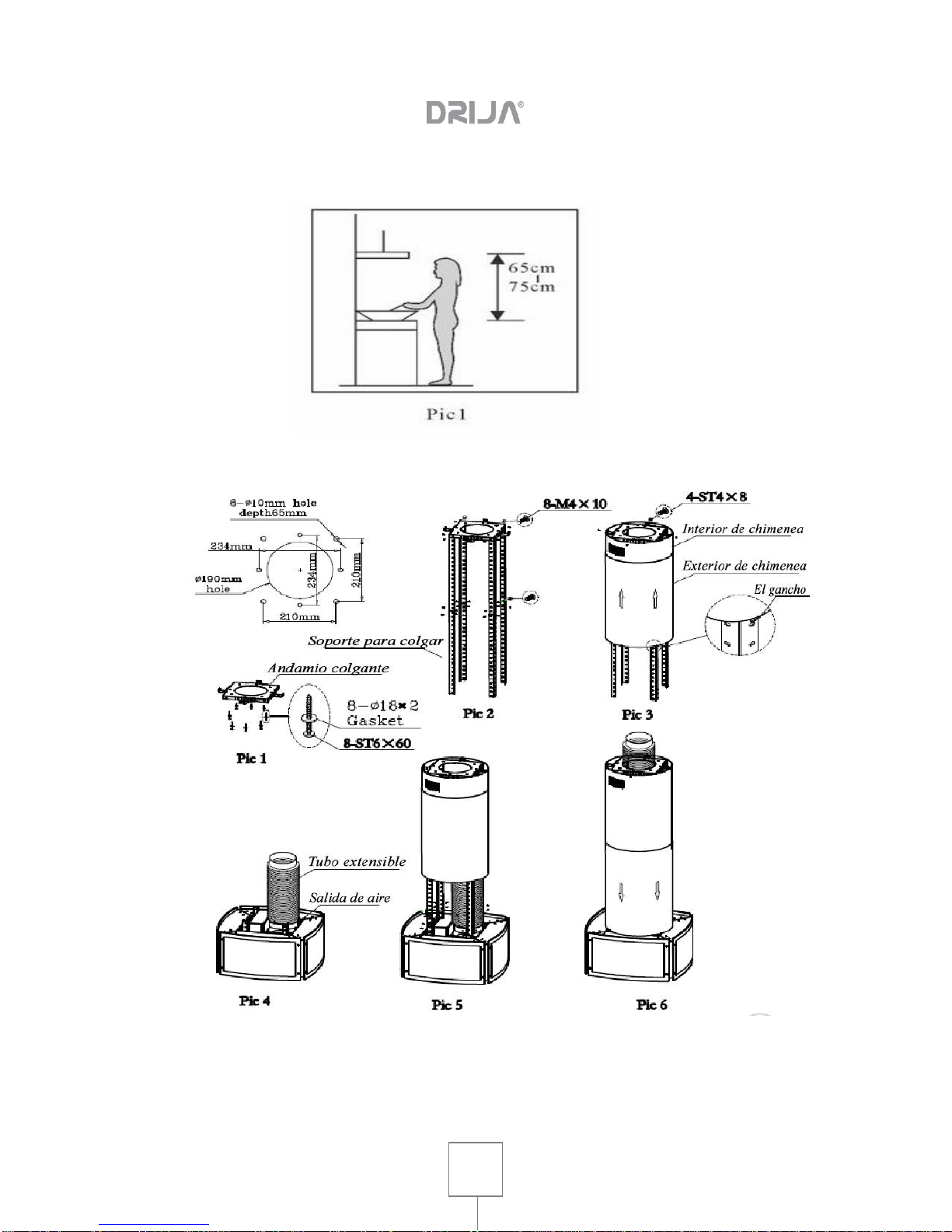

4. INSTALLATION INSTRUCTIONS
1. Make sure the installation position, fix the hanging scaffold in the correct
position, and check the firmness and smoothness of the installation. You should
leave between 65 and 75 cm between the stove and the hood. See picture 1.
2. Adjust to the proper height, attach the brackets, install on hangers. See picture 2
3. Fix the inside of the chimney on a hanging scaffold, place the chimney outside
on it in the proper position, and insert the hook into the holder to fix the exterior
chimney temporarily. See picture 3.
4. Attach the exhaust air to the vent of the hood body; connect the extension tubing
to the air outlet. See picture 4.
5. Extend the hose off the hanging scaffold; attach the bell body to the bracket.
See picture 5
6. After installation, make sure the extractor is level. Do not hit the glass. See
picture 6

Manual de Usuario
EXTRACTOR DE GRASA | SQUARE ISLA Professionale
5
Pictures

Manual de Usuario
EXTRACTOR DE GRASA | SQUARE ISLA Professionale
6
5. USE GUIDE
SPEED ADJUSTMENT
Electronic Button
1. Turn on the unit, it will hear a sound at the beginning five times. The sound will
indicate that the unit is on.
2. Press the low button, it will indicate light 1, you will hear the sound and the
engine will start running at low speed, press it again and the engine will stop.
3. Press the center button, it will indicate light 2, you will hear the sound and the
engine will start to run at medium speed, press it again and the engine will stop.
4. Press the upper button, it will indicate light 3, you will hear a sound and the
motor will run at high speed, press it again and the motor will stop.
5. Press the light button, indicate light 4, two lights will light, press again and the
lamps will turn off, with each press you will hear the sound.
6. MAINTENANCE AND CLEANING
CLEANING THE CARBON FAT FILTER MESH
The filter mesh is made of high density stainless steel. Please do not use corrosive
detergent for cleaning. Keeping the filter clean will cause the appliance to function
properly. Please follow the guidelines below:
CLEANING THE KITCHEN BELL

Manual de Usuario
EXTRACTOR DE GRASA | SQUARE ISLA Professionale
7
•To protect the body from corrosion after a long time, the hood should
be cleaned with warm water and a non-corrosive detergent every two
months.
•Please do not use abrasive detergent, it will damage the body.
•Keep engine and spare parts away from water as this will cause
damage to the unit.
•Before cleaning the appliance, please remember to disconnect from
the mains.
•The carbon filter should not be exposed to heat.
•Please do not tear the fixed rod around the carbon filter
•If the plug or cord is damaged, please replace it with special soft
cord.
USER MANUAL
Clean the hood according to the instructions in the manual and keep the unit
free from burn hazard. If it is not cleaned by taking the precautions of the
manual, there is a risk of fire.
If the outlet is damaged, it must be replaced by the manufacturer or qualified
service center to avoid a hazardous situation.
The air should not be thrown by a pipe that is used to evacuate fumes from
gas appliances or other fuels.
This appliance can be used by children from 8 years of age and for people
with physical and mental disabilities, as well as with little or no experience.
Provided they receive all instructions and supervision concerning the use of
the apparatus and the danger involved. Children should be supervised to
ensure that they do not play with the appliance.
Cleaning and maintenance should not be done by unsupervised children.
Do not place a flame of fire under the hood.
CAUTION:
Accessible parts may become hot when using the appliance.
The warnings must be in the same position as the instructions, as it details
how to install the equipment.
Instructions should detail how to clean the surface that has food contact.

Manual de Usuario
EXTRACTOR DE GRASA | SQUARE ISLA Professionale
8
7. ANOMALIES AND SOLUTION
Failure
Cause
Solution
Light on, but engine does
not work
Blocked sheet
Get rid of the lock
Damaged capacitor
Replace Capacitor
Engine clogged, wheel bearing
Replace motor
Internal engine shut off or an unpleasant smell
exits the engine.
Replace motor
Light does not work,
motor does not work
Apart from the above, check the following:
Damaged light
Replace light
One-way valve and air
Oil spill
Departure from your body
Ventilation inlet not tightly closed.
Leakage in the connection.
Take the section of the U-shape
The U-shaped section and its cover
Damaged blade and cause
Lower and seal with soap or paint.
Replace blade.
Suction Insufficient
The U-shaped section and its cover
Damaged blade and cause
Lock the motor firmly
Shake
The engine is not firm
Correct body firmly
Strung up
The body is not firm
Reset the distance
Machine Leaning
Body and gas top too long.
Too much ventilation
Choose a new place
Open door or window
Re-ensemble machine

Manual de Usuario
EXTRACTOR DE GRASA | SQUARE ISLA Professionale
9
Fixing screw is not tight
Tighten the hanger
Bell shaking
Bolt of the pendant is not tight.
Screw horizontally
Tighten the hanger
Motor screw not tightened
Screw the engine tightly
8. SAFETY WARNING
1. Never let children operate the machine.
2. The kitchen hood is for domestic use, it is not recommended for
barbecues, rosticerias or any other commercial purpose.
3. The cooker hood and its filter should be cleaned regularly to keep it
working in good condition.
4. Clean the cooker hood according to the instructions in the manual and
keep the unit out of danger of burns.
5. Prohibit direct cooking from the gas cooker.
6. Please keep the kitchen with good convection.
7. Before connecting the appliance, check that the power cord is not
damaged. Damaged power cord only needs to be replaced by suitable
personnel.
8. Adequate ventilation in the kitchen should be provided when using the
cooker hood along with other gas appliances or other fuels.
9. The air should not be thrown by a pipe that is used to evacuate fumes
from gas appliances or other fuels.
10.The regulations concerning the evacuation of air must be taken into
account.
11.Do not place a flame of fire under the hood.
12.The cooker hood should not be installed on stoves having more than 4
burners.
13.This appliance may not be used by persons (including children) with
physical, mental, or little or no disability unless instructed to use and
supervise the person taking care of their safety.
14.Children should be supervised to ensure that they do not play with the
appliance.

Manual de Usuario
EXTRACTOR DE GRASA | SQUARE ISLA Professionale
10
15.When the hood and appliances supplied with power other than the
electric one are running at the same time, the negative pressure in the
room should not exceed 4 Pa (4 x 10-5 bar).
16.Caution: Accessible parts may become hot by use of the appliance.

Manual de Usuario
EXTRACTOR DE GRASA | SQUARE ISLA Professionale
11
9. ELECTRIC SHOCK HAZARD
Only connect this unit to an appropriate ground. If in doubt, consult a
qualified engineer.
Failure to follow these instructions can result in death, fire or electric shock.
10. WARRANTY CERTIFICATE
•Product guaranteed for two years in default of factory from the
purchase.
•If a problem occurs, contact your service representative.
THIS WARRANTY DOES NOT COVER THE FOLLOWING:
•Filter mesh or light bulb.
•Commercial use
•Modification of the date of manufacture on the plate.
•After 24 months from purchase data.
•Damage to glass parts, S / S, or LED parts.
•Improper installation, misuse, abuse or neglect.
•Incorrectly connected to insufficient or inadequate power source.
•Damage caused by foreign objects.
•Uninstallation by unauthorized technicians, use of spare parts from
other manufacturers.
For commercial use the maintenance and free service must be discussed with our
authorized agent.
After the 24 months of the warranty period, the buyer must pay for the service and
spare of needing it.
If you need the service, please provide the warranty certificate and purchase
invoice.
Shop place: _____________________________________
Date of purchase: ______________________________________
Model: _____________________________________________

Manual de Usuario
EXTRACTOR DE GRASA | SQUARE ISLA Professionale
12
Warehouse stamp.
