Drolet HT-2000 User manual

READ AND KEEP THIS MANUAL FOR REFERENCE
45060A
Printed in Canada 18-08-2014
Installation and Operation Manual
HT-2000
US ENVIRONMENTAL PROTECTION
AGENCY PHASE II CERTIFIED
WOOD STOVE
Safety tested according to ULC S627,
and UL 1482 Standards
by Intertek Testing Services
www.drolet.ca
Stove Builder International Inc.
250, rue de Copenhague, St-Augustin-de-Desmaures
(Quebec) Canada G3A 2H3
Tel: [phone] Fax: [phone]
This manual is available for free download on the manufacturer’s web site. It is a
copyrighted document. Re-sale is strictly prohibited. The manufacturer may update this
manual from time to time and cannot be responsible for problems, injuries, or damages
arising out of the use of information contained in any manual obtained from unauthorized
sources.

HT-2000 Installation and Operation Manual
2
THANK YOU FOR CHOOSING THIS DROLET WOOD STOVE
As one of North America’s largest and most respected wood stove and fireplace
manufacturers, Stove Builder International takes pride in the quality and performance of all
its products. We want to help you get maximum satisfaction as you use this product.
In the pages that follow you will find general advice on wood heating, detailed instructions
for safe and effective installation, and guidance on how to get the best performance from
this stove as you build and maintain fires, and maintain your wood heating system.
We recommend that our wood burning hearth products be installed and serviced by
professionals who are certified in the United States by NFI (National Fireplace Institute®) or
in Canada by WETT (Wood Energy Technology Transfer) or in Quebec by APC
(Association des Professionnels du Chauffage).
Congratulations on making a wise purchase.
When this stove is not properly installed, a house fire may result. To reduce the risk
of fire, follow the installation instructions. Contact local building or fire officials
about restrictions and installation inspection requirements in your area.
Please read this entire manual before you install and use your new stove. Failure to
follow instructions may result in property damage, bodily injury, or even death. It is
important that you follow the installations guidelines exactly.
You may need to obtain a building permit for the installation of this stove and the
chimney that it is connected to. Consult your municipal building department or fire
department before installation to determine the need to obtain one. We recommend
that you also inform your home insurance company to find out if the installation will
affect your policy.
REGISTER YOUR WARRANTY ONLINE
To receive full warranty coverage, you will need to show
evidence of the date you purchased your stove. Keep your sales
invoice. We also recommend that you register your warranty
online at:
http://www.drolet.ca/en/service-support/warranty-registration
Registering your warranty online will help us to quickly track the
information we need about your stove.

HT-2000 Installation and Operation Manual
3
Table of content
PART A - OPERATION AND MAINTENANCE ...............................6
2Safety Information .....................................................................6
2.2Summary of Operation and Maintenance Cautions and Warnings......................... 6
2.1HT-2000 Specifications .......................................................................................... 7
2.2Zone Heating and How to Make it Work for You .................................................. 10
2.3The Benefits of Low Emissions and High Efficiency............................................. 10
2.4The SBI Commitment to You and the Environment.............................................. 11
2.4.1What is Your New Stove Made Of? .................................................................. 11
3Fuel............................................................................................12
3.1Materials That Should Not be Burned .................................................................. 12
3.2How to Prepare or Buy Good Firewood................................................................ 12
3.2.1What is Good Firewood?................................................................................... 12
3.2.2Tree Species..................................................................................................... 12
3.2.3Log Length ........................................................................................................ 13
3.2.4Piece Size ......................................................................................................... 13
3.2.5How to Dry Firewood......................................................................................... 14
3.2.6Judging Firewood Moisture Content ................................................................. 15
3.3Manufactured Logs............................................................................................... 15
4Operating Your Stove..............................................................16
4.1Your First Fires..................................................................................................... 16

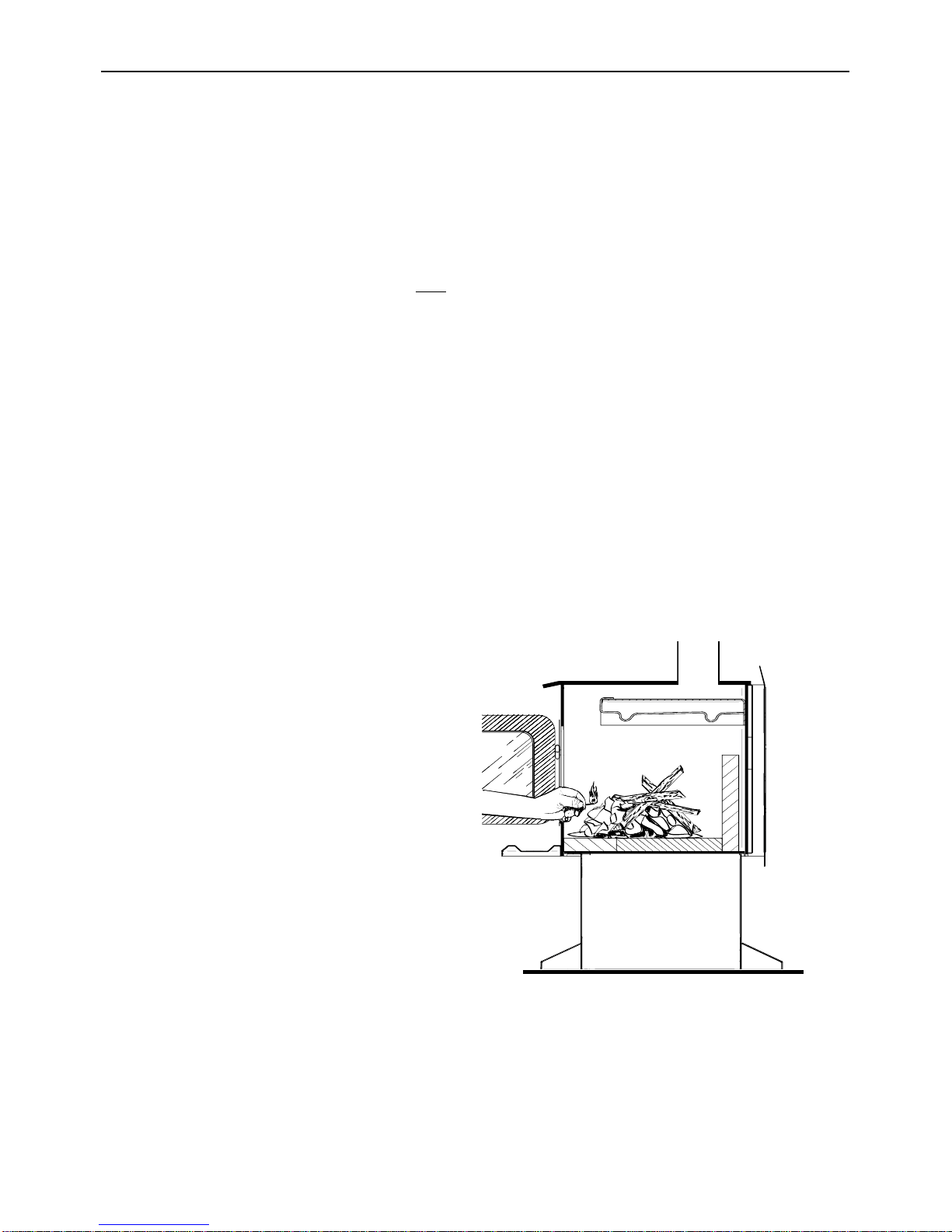

4.2Lighting Fires........................................................................................................ 16
4.2.1Conventional Fire Starting................................................................................. 16
4.2.2The Top Down Fire ........................................................................................... 17
4.2.3Two Parallel Logs ............................................................................................. 17
4.2.4Using Fire Starters ............................................................................................ 17
4.3Maintaining Wood Fires........................................................................................ 17
4.3.1General Advice ................................................................................................. 17
4.3.2Ash Removal..................................................................................................... 18

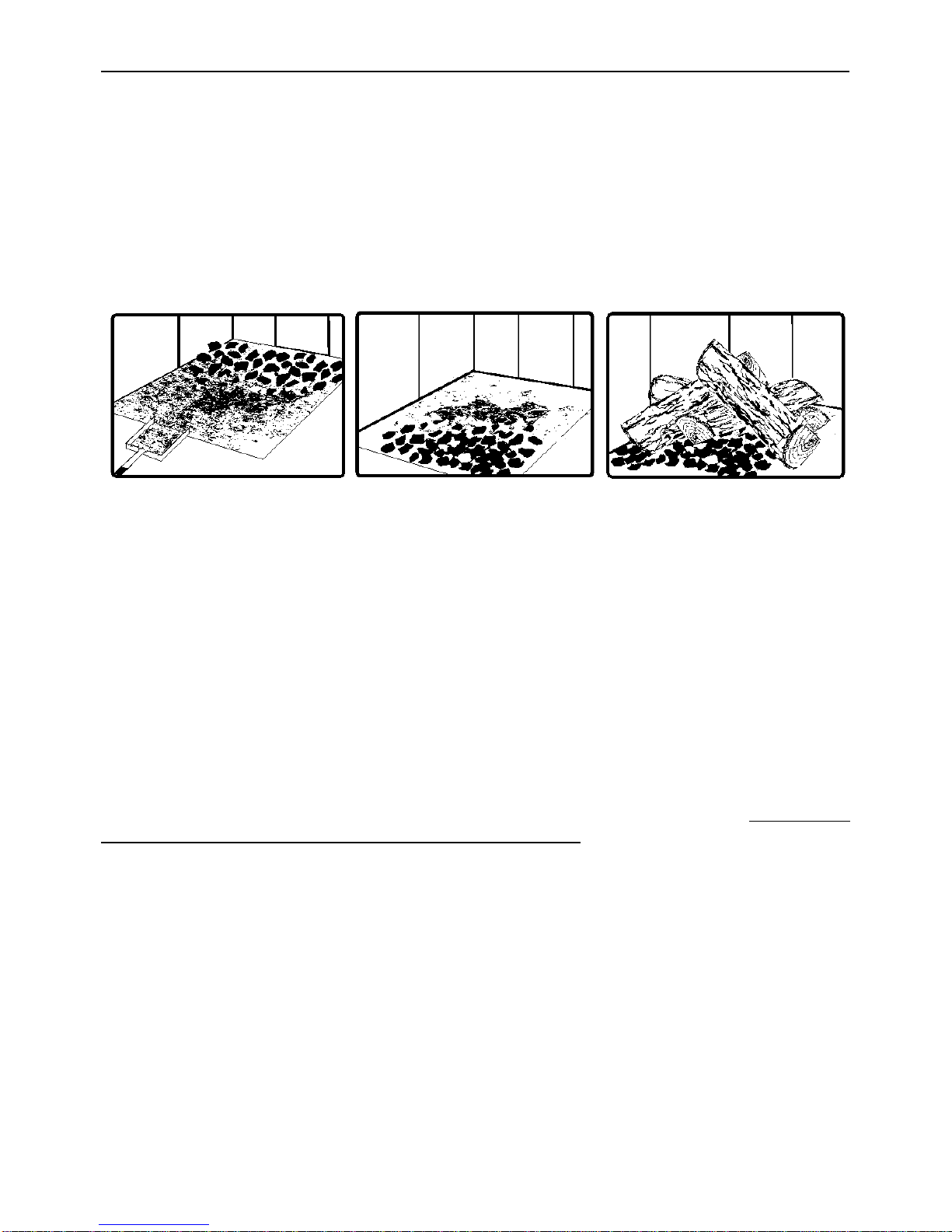

4.3.3Raking Charcoal ............................................................................................... 19
4.3.4Firing Each New Load Hot ................................................................................ 19
4.3.5Turning Down the Air Supply ............................................................................ 20
4.3.6Building Different Fires for Different Needs....................................................... 21

HT-2000 Installation and Operation Manual
4
5Maintaining Your Wood Heating System...............................23
5.1Stove Maintenance............................................................................................... 23
5.1.1Plated Finish Maintenance................................................................................ 23
5.1.2Cleaning Door Glass......................................................................................... 23
5.1.3Door adjustment................................................................................................ 24
5.1.4Replacing the Door Gasket ............................................................................... 25
5.1.5Replacing the Glass Gasket and/or the Glass .................................................. 25
5.1.6Cleaning and Painting the Stove....................................................................... 26
5.2Chimney and Chimney Connector Maintenance .................................................. 26
5.2.1Why Chimney Cleaning is Necessary ............................................................... 26
5.2.2How Often Should You Clean the Chimney? .................................................... 27
5.2.3Cleaning the Chimney....................................................................................... 27
PART B - INSTALLATION.............................................................28
6Safety Information ...................................................................28
6.1Summary of Installation Cautions and Warnings.................................................. 28
6.2Regulations Covering Stove Installation............................................................... 29
7Clearances to Combustible Material......................................30
7.1Location of the certification label .......................................................................... 30
7.2Clearances to Walls and Ceiling........................................................................... 30
7.3Floor protector...................................................................................................... 32
7.4Reducing Wall and Ceiling Clearances Safely ..................................................... 33
7.4.1Shield Construction Rules................................................................................. 33
7.4.2Table of Clearance Reduction Percentages...................................................... 35
8The Venting System.................................................................36
8.1General ................................................................................................................ 36
8.2Suitable Chimneys ............................................................................................... 36
8.2.1Factory-built Metal Chimneys............................................................................ 37
8.2.2Masonry Chimneys ........................................................................................... 38
8.3Minimum Chimney Height .................................................................................... 38
8.4The Relationship Between the Chimney and the House ...................................... 39
8.4.1Why inside chimneys are preferred................................................................... 39
8.4.2Why the chimney should penetrate the highest heated space .......................... 40
8.5Supply of Combustion Air..................................................................................... 40
8.5.1Air Supply in Conventional Houses................................................................... 40

HT-2000 Installation and Operation Manual
5
8.6Installing the Chimney Connector......................................................................... 41
8.6.1Installation of Single Wall Chimney Connector ................................................. 42
Appendix 1: Installing the Pedestal ............................................44
Appendix 2: Installing Trims........................................................45
Appendix 3: Installation and Use of Optional Air Circulation
Fan (AC02050), and Thermodiscs (AC02055 and
AC05530)................................................................47
Appendix 4: Installation of Secondary Air Tubes......................49
Appendix 5: Baffle Installation ....................................................50
Appendix 6: Exploded Diagram and Parts List..........................52
DROLET LIMITED LIFETIME WARRANTY ..................................55

HT-2000 Installation and Operation Manual
6
PART A - OPERATION AND MAINTENANCE
Please see Part B for installation instructions.
2 Safety Information
2.2 Summary of Operation and Maintenance Cautions and Warnings
•HOT WHILE IN OPERATION, KEEP CHILDREN, CLOTHING AND FURNITURE AWAY.
CONTACT MAY CAUSE SKIN BURNS. GLOVES MAY BE NEEDED FOR STOVE
OPERATION.
•USING A STOVE WITH CRACKED OR BROKEN COMPONENTS, SUCH AS GLASS OR
FIREBRICKS OR BAFFLES MAY PRODUCE AN UNSAFE CONDITION AND MAY
DAMAGE THE STOVE.
•OPEN THE AIR CONTROL FULLY BEFORE OPENING FIRING DOOR.
•OPERATE ONLY WITH DOOR FULLY CLOSED. IF DOOR IS LEFT PARTLY OPEN,
GAS AND FLAME MAY BE DRAWN OUT OF THE OPENING, CREATING RISKS FROM
BOTH FIRE AND SMOKE.
•THIS STOVE IS NOT DESIGNED TO BE USED WITH THE DOOR OPEN. THE DOOR
MAY BE OPEN ONLY DURING LIGHTING PROCEDURES OR RELOADING. DO NOT
LEAVE THE STOVE UNATTENDED WHEN THE DOOR IS SLIGHTLY OPENED
DURING IGNITION. ALWAYS CLOSE THE DOOR AFTER IGNITION.
•NEVER USE GASOLINE, GASOLINE-TYPE LANTERN FUEL (NAPHTHA), FUEL OIL,
MOTOR OIL, KEROSENE, CHARCOAL LIGHTER FLUID, OR SIMILAR LIQUIDS OR
AEROSOLS TO START OR ‘FRESHEN UP’ A FIRE IN THIS STOVE. KEEP ALL SUCH
LIQUIDS OR AEROSOLS WELL AWAY FROM THE STOVE WHILE IT IS IN USE.
•DO NOT STORE FUEL WITHIN HEATER MINIMUM INSTALLATION CLEARANCES.
•BURN ONLY SEASONED NATURAL FIREWOOD.
•DO NOT BURN:
oGARBAGE OF ANY KIND,
oCOAL OR CHARCOAL,
oTREATED, PAINTED OR COATED WOOD,
oPLYWOOD OR PARTICLE BOARD,
oFINE PAPER, COLORED PAPER OR CARDBOARD,
oSALT WATER DRIFTWOOD, OR
oRAILROAD TIES.
•DO NOT ELEVATE THE FIRE BY USING A GRATE IN THIS STOVE.
•THIS APPLIANCE SHOULD BE MAINTAINED AND OPERATED AT ALL TIMES IN
ACCORDANCE WITH THESE INSTRUCTIONS.

HT-2000 Installation and Operation Manual
7
2 General Information
2.1 HT-2000 Specifications
Fuel Type Cordwood
Test Standards (safety) ULC S627 and UL 1482
Test Standard (emissions) EPA Method 28 (40 CFR Part 60)
Heating capacity range* 1,000 to 2,400 sq. ft. (93 to 223 m2)
Maximum heat output**
(EPA test fuel) 60, 175 BTU/h (17.64 kW/h)
Maximum heat output**
(natural hardwood fuel) 95,000 BTU/h (27.84 kW/h)
Optimum efficiency 78 %
Particulate Emissions 3.79 g/h
Test Standard (efficiency) CSA B415.1
Approximate Burn Time 9 to 10 hours
Shipping Weight 486 lb (220 kg)

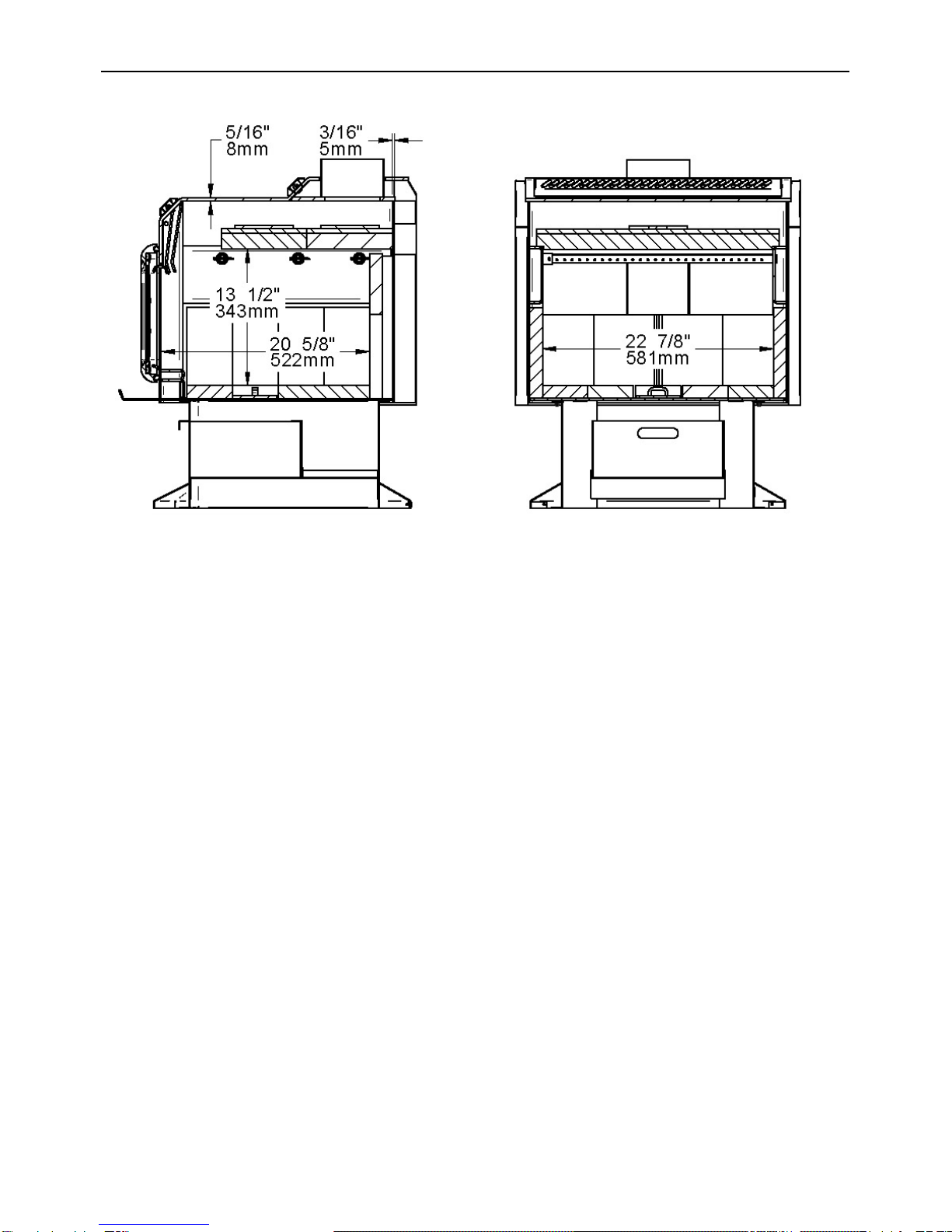

Firebox Volume 3.7 cu.ft. (0.104 m3)
Maximum Log Length 22" east-west***
Flue Outlet Diameter: 6" (150 mm) diameter (vertical)
Baffle Material C-Cast
Mobile home approved No
* Burn time and heating capacity may vary subject to location in home, chimney draft,
chimney diameter, locality, heat loss factors, climate, fuels and other variables.
** The EPA test fuel is dimensional Douglas fir pieces stapled together into cribs with air
spaces between. We also test using the same procedure except using split hardwood
firewood to reflect real-world heat output. This stove is not intended to operate at its peak
heat output continuously.
*** East-west: through the door you see the sides of the logs.

HT-2000 Installation and Operation Manual
8

HT-2000 Installation and Operation Manual
9

HT-2000 Installation and Operation Manual
10
2.2 Zone Heating and How to Make it Work for You
Your new HT-2000 wood stove is a space heater, which means it is intended to heat the
area it is installed in, as well as spaces that connect to that area, although to a lower
temperature. This is called zone heating and it is an increasingly popular way to heat
homes or spaces within homes.
Zone heating can be used to supplement another heating system by heating a particular
space within a home, such as a basement family room or an addition that lacks another
heat source.
Houses of moderate size and relatively new construction can be heated with a properly
sized and located wood stove. Whole house zone heating works best when the stove is
located in the part of the house where the family spends most of its time. This is normally
the main living area where the kitchen, dining and living rooms are located. By locating the
stove in this area, you will get the maximum benefit of the heat it produces and will achieve
the highest possible heating efficiency and comfort. The space where you spend most of
your time will be warmest, while bedrooms and basement (if there is one) will stay cooler.
In this way, you will burn less wood than with other forms of heating.
Although the stove may be able to heat the main living areas of your house to an adequate
temperature, we strongly recommend that you also have a conventional oil, gas or electric
heating system to provide backup heating.
Your success with zone heating will depend on several factors, including the correct sizing
and location of the stove, the size, layout and age of your home and your climate zone.
Three-season vacation homes can usually be heated with smaller stoves than houses that
are heated all winter.
2.3 The Benefits of Low Emissions and High Efficiency
The low smoke emissions produced by the special features inside the HT-2000 firebox
mean that your household will release up to 90 percent less smoke into the outside
environment than if you used an older conventional stove. But there is more to the
emission control technologies than protecting the environment.
The smoke released from wood when it is heated contains about half of the energy content
of the fuel. By burning the wood completely, your stove releases all the heat energy from
the wood instead of wasting it as smoke up the chimney. Also, the features inside the

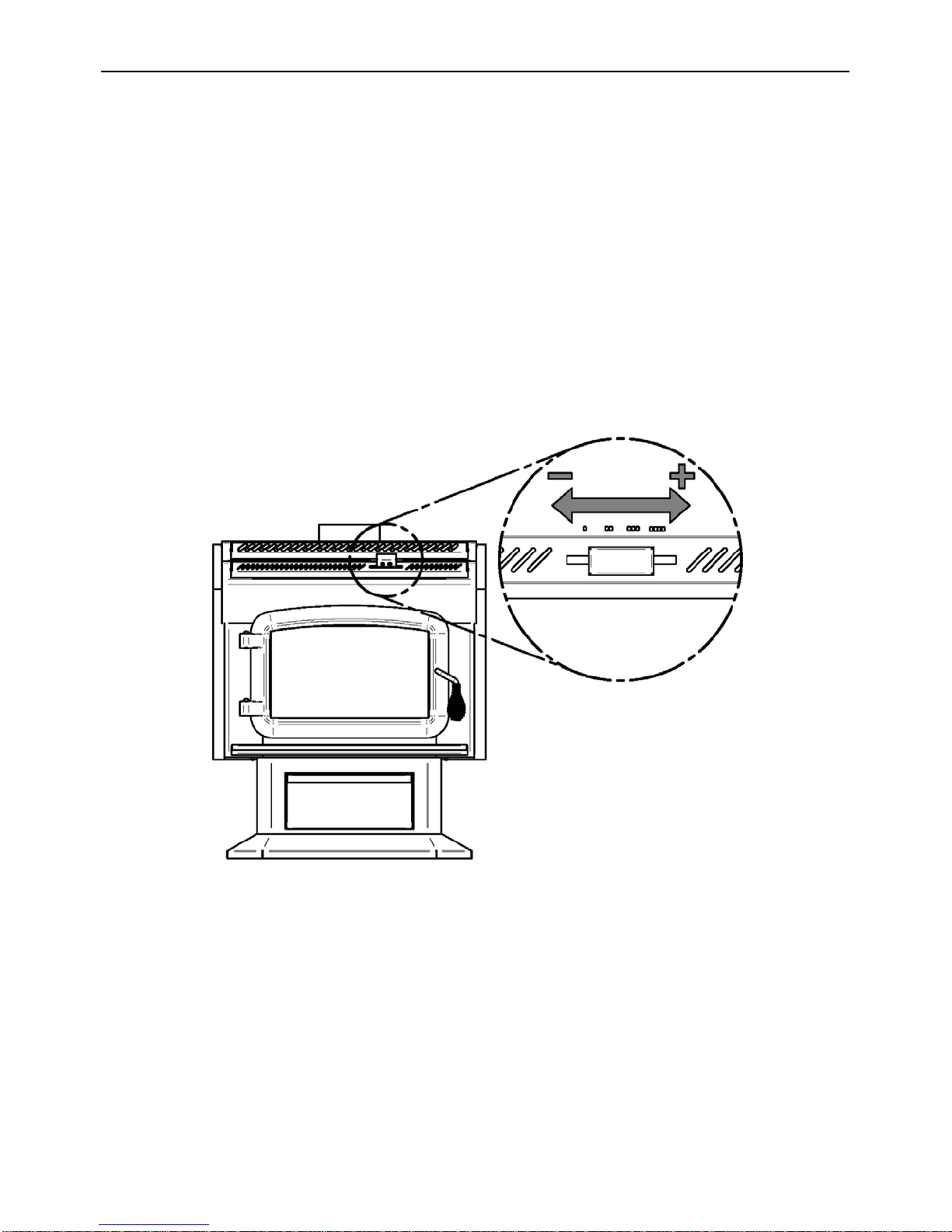

firebox allow you to reduce the air supply to control heat output, while maintaining clean
and efficient flaming combustion, which boosts the efficient delivery of heat to your home.
The emission control and advanced combustion features of your stove can only work
properly if your fuel is in the correct moisture content range of 15 to 20 percent. See
Section 3 of this manual for suggestions on preparing firewood and judging its moisture.
